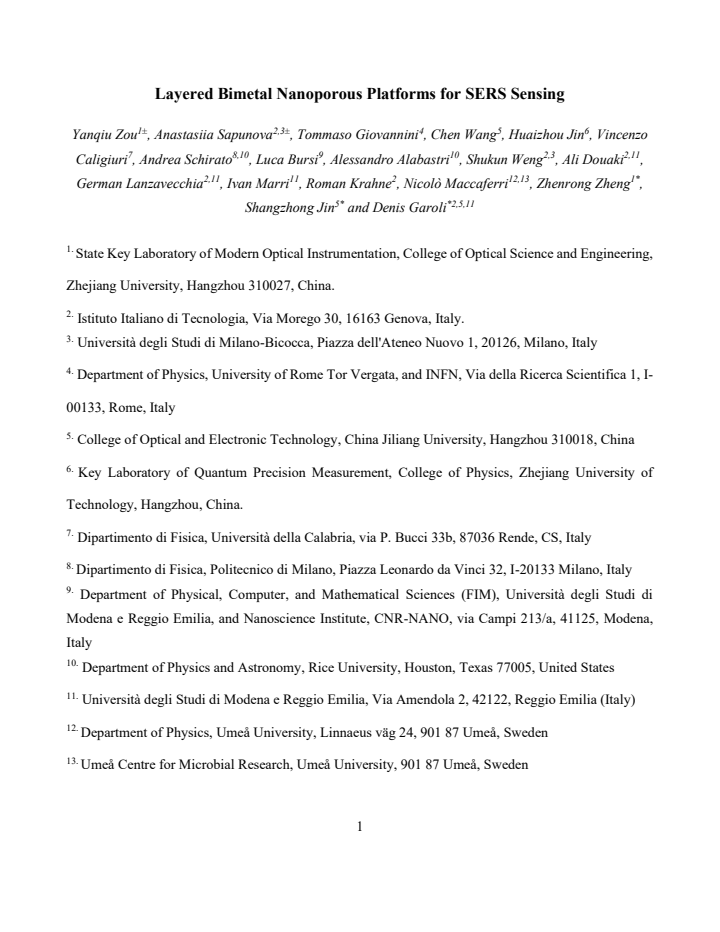

Layered Bimetal Nanoporous Platforms for SERS Sensing

Alessandro Alabastri; Ali Douaki; Anastasiia Sapunova; Andrea Schirato; Chen Wang; Denis Garoli; German Lanzavecchia; Huaizhou Jin; Ivan Marri; Luca Bursi

arxiv: 2510.14706 · v2 · pith:3CAY6QWPnew · submitted 2025-10-16 · ⚛️ physics.app-ph · physics.optics

Layered Bimetal Nanoporous Platforms for SERS Sensing

Yanqiu Zou , Anastasiia Sapunova , Tommaso Giovannini , Chen Wang , Huaizhou Jin , Vincenzo Caligiuri , Andrea Schirato , Luca Bursi

show 10 more authors

Alessandro Alabastri Shukun Weng Ali Douaki German Lanzavecchia Ivan Marri Roman Krahne Nicol\`o Maccaferri Zhenrong Zheng Shangzhong Jin Denis Garoli

This is my paper

Pith reviewed 2026-05-21 21:18 UTC · model grok-4.3

classification ⚛️ physics.app-ph physics.optics

keywords nanoporous metalsbimetallic bilayersSERS sensingplasmonic couplingdry synthesisfield enhancementAu Ag Cu platformssurface enhanced Raman

0 comments

The pith

Bimetallic nanoporous bilayers made by dry synthesis allow controlled plasmonic coupling for SERS sensing with metals like Au, Ag, and Cu.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that bi-metal nanoporous platforms can be fabricated using a dry-synthesis method that produces controllable bilayers of different metals such as gold, silver, and copper. This enables a detailed examination through morphological analyses, numerical modeling, and optical spectroscopies of interactions including plasmonic coupling, electromagnetic field enhancements, and possible electron or energy transfer at the metal interfaces. A sympathetic reader would care because moving beyond single-metal porous structures opens routes to tailored local fields and improved performance in surface-enhanced Raman scattering for biomolecule detection.

Core claim

The central claim is that a dry-synthesis method enables the easy and controllable fabrication of bi-metal nanoporous bilayers combining metals such as Au, Ag, and Cu, and that a comprehensive study of these platforms reveals their plasmonic coupling, field interactions, and potential for SERS applications.

What carries the argument

The dry-synthesis method for preparing layered bimetal nanoporous bilayers, which supports specific metal combinations and interfaces for plasmonic coupling and field enhancements.

If this is right

Different metal combinations allow tuning of plasmon energies and local electric fields for targeted sensing wavelengths.
High surface area combined with interface-enhanced fields improves Raman signal strength for biomolecule detection.
Numerical models of electromagnetic interactions can be directly compared to spectroscopic data from the fabricated layers.
Separation, size, and material choices influence thermal and electronic energy transfer in addition to optical effects.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same dry-synthesis route could be tested on trilayer or composition-gradient structures to achieve more complex plasmonic responses.
Integration of these bilayers into microfluidic devices might enable portable, real-time SERS sensors.
Systematic performance comparisons across metal pairs could identify optimal combinations for specific detection limits or wavelengths.

Load-bearing premise

The dry-synthesis method produces well-defined, controllable bilayers with clean metal-metal interfaces that enable the expected plasmonic coupling and field enhancements without significant defects or intermixing.

What would settle it

Cross-sectional imaging showing substantial intermixing or alloying at the bilayer interfaces combined with SERS measurements that show no enhancement relative to single-metal nanoporous platforms would falsify the central claim.

read the original abstract

Nanoporous metals are extensively investigated as platforms for applications in plasmonics. They present high surface areas and strong local electric fields that can be tuned at different energies, playing with the choice of the metals and the morphology of the porous layers. Until recently, research in the field of plasmonics has primarily focused on porous metals composed of a single element, with limited attention given to the impact of alloy composition. The investigation of bi-metallic systems has only just begun to emerge in the literature. In particular, combining two or more different plasmonic metals, it could be possible to explore the interactions between two metals excited at specific energies. This involves plasmonic coupling, electron transfer, band hybridization at the interface, electromagnetic field interactions, and possibly thermal and electronic energy transfer depending on separation, size, and materials involved. The analysis of bi-metal systems can also be interesting in biomolecule detection, such as in the case of Surface Enhanced Raman Scattering (SERS). Here we report, for the first time, a detailed study (comprising morphological analyses, numerical modelling, and optical spectroscopies) on bi-metal nanoporous platforms prepared with a dry-synthesis method enabling the easy and controllable fabrication of bilayers combining different metals such as Au, Ag, and Cu.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

Dry-synthesis bimetal nanoporous bilayers add a fabrication route for SERS but rest on an unverified assumption of clean metal interfaces.

read the letter

The paper's main contribution is a dry-synthesis method for making bilayer nanoporous films that combine two different plasmonic metals such as Au with Ag or Cu. The authors position this as the first detailed look at these bi-metal porous systems, including morphology, optical spectra, and some numerical modeling of the expected field enhancements for SERS use. That framing is reasonable given the prior focus on single-metal porous structures in the literature they cite. The experimental workflow looks practical for producing these layered platforms with some control over thickness and composition. The modeling section ties the observed spectra to plasmonic coupling at the metal-metal boundary, which is the core idea they want to highlight. If the data hold, this gives researchers a tunable way to adjust resonance energies without relying solely on alloying or single-element porosity. The soft spot is exactly where the stress-test note flags it. The claims about controllable plasmonic behavior depend on distinct layers with minimal intermixing or oxidation at the interface. Morphological SEM or TEM images are mentioned, but without cross-sectional elemental maps or similar direct checks, the modeling inputs for layer thicknesses and dielectric functions remain an assumption rather than a measured fact. If interdiffusion occurs at the relevant scales, the actual field distribution could differ from the simulations. This is not a fatal issue for a methods-oriented paper, but it is the part that needs tightening before the SERS performance claims can be taken at face value. The work is aimed at the plasmonics and SERS substrate community. Someone already working on nanoporous metals or looking for new fabrication options would find the fabrication details and spectra useful as a starting point. It is not broad enough to interest readers outside that niche. The paper deserves peer review. It is experimental with supporting calculations, and the central fabrication claim is testable even if the interface characterization is currently light. Referees will likely push for better boundary analysis, but the manuscript is coherent enough to go out rather than be desk-rejected.

Referee Report

1 major / 1 minor

Summary. The manuscript presents a study on bi-metal nanoporous platforms (e.g., Au/Ag and Au/Cu bilayers) fabricated via a dry-synthesis method. It combines morphological analyses (SEM/TEM), numerical modeling of plasmonic properties, and optical spectroscopies to claim controllable fabrication of layered structures suitable for SERS sensing, emphasizing plasmonic coupling at metal-metal interfaces.

Significance. If the bilayer interfaces prove clean and controllable as assumed, the work could advance tunable plasmonics in high-surface-area nanoporous systems by enabling metal-specific excitations and field enhancements beyond single-metal platforms, with potential relevance to SERS-based biomolecule detection.

major comments (1)

[Morphological analyses and numerical modelling] The central claim of well-defined, controllable bilayers with clean metal-metal interfaces (enabling the modeled plasmonic coupling) rests on an unverified assumption. Morphological analyses are cited but without cross-sectional elemental mapping (e.g., EDX or EELS line scans), interdiffusion, oxidation, or defects at the boundary cannot be ruled out; this directly affects the validity of the numerical modeling inputs for layer thicknesses and dielectric functions.

minor comments (1)

[Abstract] The abstract states this is 'for the first time' a detailed study but does not explicitly contrast the dry-synthesis approach or results against the limited prior bi-metallic nanoporous work mentioned in the introduction.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comment on morphological characterization. We address the point below and have revised the manuscript to clarify the assumptions underlying our claims and modeling.

read point-by-point responses

Referee: [Morphological analyses and numerical modelling] The central claim of well-defined, controllable bilayers with clean metal-metal interfaces (enabling the modeled plasmonic coupling) rests on an unverified assumption. Morphological analyses are cited but without cross-sectional elemental mapping (e.g., EDX or EELS line scans), interdiffusion, oxidation, or defects at the boundary cannot be ruled out; this directly affects the validity of the numerical modeling inputs for layer thicknesses and dielectric functions.

Authors: We agree that cross-sectional elemental mapping would provide stronger direct evidence for interface quality. Our current morphological data consist of plan-view and cross-sectional SEM/TEM images that show distinct bilayer structures with thicknesses matching the nominal deposition rates. The dry-synthesis approach (sequential physical vapor deposition) is performed under high-vacuum conditions without intermediate air exposure, which limits oxidation and interdiffusion at the metal-metal boundary. In the revised manuscript we have added explicit text in the morphological characterization and numerical modeling sections stating the assumptions used for layer thicknesses (taken from TEM) and dielectric functions (literature values for the respective metals). We also note that the close agreement between measured extinction spectra and FDTD simulations provides indirect support for the interface model employed. We acknowledge this as a limitation of the present study and have included a forward-looking statement that future work will incorporate EDX/EELS line scans. revision: yes

Circularity Check

0 steps flagged

No significant circularity; experimental study is self-contained

full rationale

The paper reports an experimental dry-synthesis fabrication of bi-metal nanoporous bilayers (Au/Ag, Au/Cu) with supporting SEM/TEM morphology, optical spectroscopy, and numerical modelling. The central claims concern controllable layer formation and resulting SERS/plasmonic performance. No equations, derivations, or predictions are presented that reduce by construction to fitted parameters, self-definitions, or self-citation chains. Modelling inputs are stated as layer thicknesses and dielectric functions drawn from standard references rather than from the present data in a circular loop. The work is primarily empirical and does not invoke uniqueness theorems or ansatzes from prior author work as load-bearing justification for the reported results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract provides no explicit free parameters, axioms, or invented entities; the claims rest on standard assumptions in plasmonics and nanofabrication that are not detailed here.
