Building a Process-Modeling Tool using Agentic AI: An Experience Report on PM4Py-UCM

Daniel Amyot

REVIEW 3 major objections 6 minor 30 references

Building a Process-Modeling Tool using Agentic AI: An Experience Report on PM4Py-UCM

T0 review · 3 major / 6 minor · reviewed 2026-08-03 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The paper reports a qualified yes: a modeling tool largely written by an AI coding agent can be trusted, but only when correctness is enforced by executable external checks and a domain expert in the loop.

desk verdict A credible single-case experience report: the measured dev-mining numbers and taxonomy are genuinely new, and the trust-in-scaffolding claim is plausible and well-argued, but neither the label reliability nor the oracle sensitivity is actually measured — treat the headline ratios as provisional. read the letter →

arxiv 2607.28825 v1 pith:3DEWRDGH submitted 2026-07-30 cs.SE

Daniel Amyot This is my paper · ORCID

classification cs.SE

keywords enterprisemodelingprocessminingagenticAIcodingagentsexperiencereportUseCaseMapsmodeltransformationverificationoracle-basedtesting

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper is an experience report trying to settle a practical question: can a modeling-language tool that an AI coding agent largely wrote be trusted? The author answers with a qualified yes, based on building PM4Py-UCM, a tool that mines Use Case Map process models from event logs, over ten weeks and 18 agent sessions. The central claim is that trust came not from the agent's self-reports but from the scaffolding around it: mechanically checkable transformation boundaries, golden-file oracles, and deterministic round-trip tests against a reference editor, with a domain expert acting as record verifier. The development record shows the work was fix-dominated (fixes outnumber features 2.3:1) and nearly one turn in five corrected an agent mistake, while independent analyzers found the final code well covered and free of medium or high-severity security issues. If correct, the lesson is that small teams can build custom process-modeling tools with AI agents, but only if they invest in executable verification rather than in the agent's assurances.

What carries the argument

The central mechanism is the oracle-based validation strategy placed at model-transformation boundaries. PM4Py-UCM's pipeline is a chain of transformations — process tree to UCM object model to interchange file and back — where a wrong condition or label can produce a file that opens cleanly yet encodes incorrect behavior. The paper makes these boundaries mechanically checkable using golden-file oracles (known-good interchange fixtures), metamorphic tests (comparing outputs across related inputs), deterministic round-trips against a reference editor, and metamodel conformance checks. A second, reflexive-mining apparatus classifies every human turn from agent-session transcripts using a taxon

What would settle it

Have two independent human coders apply the published taxonomy to the 317 substantive turns and measure agreement with the paper's gold labels; if the fix-to-feature ratio departs materially from 2.3:1 or the correction rate from 18%, the paper's quantitative case fails, even though its qualitative pattern of fix-heavy, boundary-concentrated development may survive.

Watch

Extended reading notes

Core claim

The paper's core claim is that an AI-agent-written modeling tool can be made trustworthy, but the trust must be engineered: transformations between the process tree, the UCM object model, and the interchange format are exactly where errors become silent, producing files that open cleanly yet encode wrong behavior. PM4Py-UCM's validation strategy pairs every feature with an executable oracle — hand-computed fixtures, algebraic invariants, metamorphic transforms, byte-deterministic round-trips, and differential comparison against reference metric functions — so that subtle semantic corruption surfaces as visible test failure. Measured on the development record, this strategy corresponds to a t

Load-bearing premise

The quantitative backbone relies on the LLM-proposed, author-sample-reviewed gold labels being an accurate reference standard for classifying turns; the paper acknowledges these labels are not independently human-coded, so the 2.3:1 and 18% figures could shift if the labels are systematically wrong.

Editorial extensions

If this is right

Teams commissioning agent-built modeling tools should budget for a refinement loop: fixes outnumbered features 2.3:1, so iteration, not first-shot generation, is the expected workflow.
Agent weaknesses concentrate at format and renderer boundaries — external interchange formats and visual fidelity accounted for the highest fix rates (78–83%) — so verification should target those boundaries first.
A domain expert in the loop is indispensable: the 18% correction rate recorded expert repairs of semantic errors, not generic oversight.
Tests can keep pace with feature growth under agent-driven development — the suite grew from 108 to 691 test functions in lockstep with releases — so 'test as you go' is feasible.
Independent analyzers corroborated the internal oracles: 90.6% line coverage, low average complexity, and no medium/high-severity security findings, suggesting quality was not sacrificed for velocity.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The paper's own threat analysis implies the exact quantitative ratios depend on the reliability of LLM-proposed, author-sample-reviewed gold labels; an obvious extension is to re-label the corpus with two independent human coders and estimate inter-rater agreement.
If the oracle-based pattern transfers, the scarce skill for AI-assisted modeling-tool development shifts from writing transformation code to designing executable oracles and metamodel conformance checks.
A testable extension suggested by the paper is to give the agent an explicit 'definition of done' enumerating auxiliary artifacts (docs, notebooks, save/load schemas) to recover the 9.8% cross-cutting consistency tax.
The qualitative results — fix-heavy development and error concentration at external-format boundaries — are more likely to generalize than the specific ratios, but replication on other tools and less-expert developers is needed to establish transferability.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

Colleague — worth a look if you care about agentic coding and modeling tools. It’s an experience report on building PM4Py-UCM, a process-mining tool for Use Case Maps, almost entirely through Claude Code, and then mining the development transcripts (374 turns, ~10k tool actions) to characterize the process. The genuinely new bits: a turn taxonomy with cross_cutting and corrects_agent flags, a reproducible dev-mining toolkit that preserves privacy by publishing aggregates, and the measured numbers — fixes outnumber features 2.3:1, 18% of turns correct agent mistakes, fix rates of 78–83% at the visualization/XMI boundaries, tests growing lockstep from 108 to 691.

What it does well: it’s honest and well-scoped. The threats-to-validity section is unusually candid — it admits the gold labels are LLM-proposed with only sample expert review, the developer and analyst are the same person, the corpus is single-case, and the agent models changed mid-project. The internal arithmetic checks out (107/47 = 2.28 ≈ 2.3; 57/317 = 18%; 10,328/374 ≈ 27.6). The independent analyzers (pytest-cov 90.6%, Bandit 0 medium/high, import-linter contracts held, pip-audit 0 CVEs) are genuinely external and give the quality claims some legs.

Soft spots, in order of real weight. First, the label reliability is unmeasured but load-bearing for the headline ratios. The gold labels come from the same Claude family that wrote the code, verified through a sample by the developer-turned-analyst. The paper flags this, and even says the keyword-baseline comparison “measures the baseline’s inadequacy, not the reference’s reliability.” That’s honest, but it means the 2.3:1 and 18% are best treated as provisional until a second coder re-labels. The qualitative shape probably survives; the specific numbers shouldn’t be quoted as fact. Second, the stress-test concern is fair: the central claim in Sect. 9 — that mechanically checkable boundaries “turned silent semantic corruption into visible failures” — is asserted rather than demonstrated. The test suite includes golden fixtures, metamorphic relations, and deterministic round-trips, but none of these are shown to actually catch the failure mode the paper worries about (a logically wrong condition that still opens cleanly in jUCMNav). jUCMNav is not in the automated test loop. Fault seeding or mutation testing on the transformation chain would have made the oracle claim empirical; without it, the scaffolding’s contribution is a reasonable belief, not a measured result. The 18% correction rate shows the human caught errors, but it doesn’t isolate what the oracles caught.

Who’s the audience? People studying LLM agents in software engineering, plus the process-mining / enterprise-modeling community, will both get value. It’s a single case, but a rich one, and the method and toolkit are reusable. I’d send it to review — it deserves a serious referee, mainly to push for the re-labeling and the mutation analysis in revision. I’d be comfortable citing the method and the qualitative patterns, but I’d avoid citing the exact ratios as established.

Recommendation: engage, send to peer review, and treat the headline numbers as hypotheses pending external labels.

Referee Report

3 major / 6 minor

Summary. This paper reports on the agent-assisted development of PM4Py-UCM, an open-source Python tool that mines Use Case Map models from event logs and exports them to jUCMNav. The author mined 18 Claude Code sessions, 374 original human turns (317 substantive), 151 commits, and test growth from 108 to 691 functions, classifying turns with a 10-intent/5-flag taxonomy. Headline results: fixes outnumber features 2.3:1, 18% of turns correct agent errors, 9.8% are cross-cutting consistency work, and tool actions per turn are about 28:1. Independent analyzers report 90.6% line coverage, no medium/high-severity Bandit findings, 2/2 architecture contracts, and stable complexity. The paper argues that trust in the resulting tool came not from the agent but from executable verification scaffolding: golden-file oracles, metamorphic tests, byte-deterministic XMI round-trips, and differential tests, plus a domain expert in the loop. It offers a reflexive-mining toolkit and lessons for AI-assisted EM tooling.

Significance. The paper is honest about its single-case scope and ships a reproducible, privacy-preserving toolkit, published gold labels and aggregates, and genuinely external third-party analyzers (pytest-cov, radon, Bandit, import-linter, pip-audit). If the labeling is reliable, the 2.3:1 fix:feature ratio and 18% correction rate provide useful descriptive benchmarks for agent-assisted development. The paper also makes a valuable distinction between code quality (coverage, security, architecture) and semantic correctness of model transformations, a distinction often missing in reports on LLM-generated software. However, the central causal claim — that the verification scaffolding turned silent semantic corruption into visible failures — is asserted rather than demonstrated, and the quantitative backbone depends on an unvalidated reference standard. These gaps are fixable and do not invalidate the qualitative patterns, but they currently limit the strength of the conclusions.

major comments (3)

[Sect. 5.4, 6 (Lesson 3), 9] The central conclusion — that 'mechanical checkability' turned silent semantic corruption into visible failures — is not empirically demonstrated. The paper lists golden-file oracles, metamorphic tests, byte-deterministic round-trips, and differential checks, but reports no mutation testing or fault seeding on the transformation chain, and jUCMNav is not part of the automated test suite. A byte-deterministic round-trip verifies internal consistency, not semantic conformity; a metamorphic relation verifies only the chosen property. Thus the oracles' sensitivity to the specific failure mode in Sect. 3 (a wrong condition/label yielding a .jucm file that opens cleanly but executes incorrectly) is unmeasured. Please report a mutation/fault-injection score, or at least an explicit list of injected semantic mutants and which oracles caught them, before claiming the scaffolding 'turned' corrupti
[Sect. 5.2, Table 2, Sect. 7] The quantitative backbone (2.3:1 fix:feature, 18% corrects_agent, 9.8% cross_cutting) depends on gold labels that are 'LLM-proposed and expert-verified (through a sample)' rather than independently human-coded, with no reported inter-rater reliability. Sect. 5.2 admits the reported comparison 'measures the baseline's inadequacy, not the reference's reliability.' Since the labeler is the same model family that wrote the code and the expert is the author, self-preference and confirmation bias are unchecked. Please add a second human coder and report agreement (e.g., Cohen's kappa or per-class precision/recall), or explicitly reclassify these ratios as exploratory and remove them from the evidential load of the conclusion.
[Sect. 5.5, Table 4] The independent static analyzers are a genuine strength, but the statement that they 'corroborate our internal oracle-based validation' overreaches. Coverage, complexity, maintainability, Bandit findings, and import-linter contracts measure code quality and structural hygiene; they do not measure whether the oracles detect semantic corruption in model transformations. The corroboration is therefore indirect and should be framed accordingly. If the causal claim is kept, the evidence must come from oracle sensitivity (e.g., mutation testing), not from these quality metrics.

minor comments (6)

[Title/Abstract] Typographical issues: 'onPM4Py-UCM' and 'Use Case Maps·Process' are missing spaces. Please fix.
[Sect. 4 IV] The prompt text begins with 'Y ou classify' — typo for 'You classify'.
[Sect. 5] The ≈28:1 tool-action-to-turn ratio uses 374 original turns, while most other proportions use 317 substantive turns. State the denominator explicitly at the point of the ratio to avoid ambiguity.
[Sect. 5, footnote 5] The 65-hour active-time figure depends on the 10-minute inter-event gap threshold; a sensitivity check (e.g., 5/15/20 minutes) would strengthen the claim that this is a conservative floor.
[Sect. 5.1 vs Sect. 7] Sect. 5.1 calls the 18% corrects_agent rate a 'conservative lower bound,' while Sect. 7 calls it an 'upper bound' on genuine agent error (because ambiguous instructions may be folded in). These statements are not contradictory if interpreted precisely, but the wording should be reconciled to avoid confusion.
[Table 3] The 'jUCMNav export/round-trip' row has only N=6 turns; the 83% fix rate is a small-sample descriptive statistic. Consider adding a caution or confidence statement when discussing this as evidence that the agent 'struggled most' with external-format fidelity.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the trust argument is anchored to external oracles and independent analyzers; the gold-label self-reference is an acknowledged validity threat, not a circular reduction.

full rationale

This is an experience report, not a derivation chain with predictions. The central claim (Sect. 9) — that trust in PM4Py-UCM came from mechanical checks and expert verification rather than agent self-report — is supported by external evidence: byte-deterministic XMI round-trips, golden-file oracles, metamorphic tests, differential comparisons against PM4Py's metric functions, and independent third-party analyzers (pytest-cov, radon, Bandit, import-linter, pip-audit; Sect. 5.5). None of these reduce to the conclusion by construction: the oracles test against a reference metamodel/editor and hand-computed fixtures, and the static metrics are computed by external tools on the final code. The paper's quantitative development measures (2.3:1 fix:feature ratio, 18% corrects_agent) do depend on LLM-proposed, sample-reviewed labels, and Sect. 5.2 explicitly states that the comparison 'measures the baseline's inadequacy, not the reference's reliability,' while Sect. 7 lists the single-developer/analyst and LLM-assisted labeling as validity threats. This is a measurement-reliability limitation, not a circularity: the labels are not used to define the trust conclusion, and the qualitative pattern (fix-heavy development, error concentration at XMI/visualization boundaries) is presented as a case-study hypothesis rather than a forced result. The prior-work citations ([2], [4]) are for inherited capabilities and are treated as given, not as evidence for the trust claim; the jUCMNav reference editor is an external artifact, not an output of this paper. No equation or fitted parameter is renamed as a prediction, and no uniqueness theorem is invoked. The skeptic's concern that oracle sensitivity is unmeasured (no mutation testing) is a correctness/evidence gap, not circularity. Overall score 0.

Assumptions & free parameters 2 free parameters · 4 assumptions · 1 invented entities

Empirical case study, not a derivation, so the ledger records measurement-instrument assumptions rather than mathematical axioms. The largest unexamined burden is the gold-label reference standard itself (Sect. 4 IV, 5.2, 7). Additional domain assumptions: transcripts+git faithfully capture effort (Sect. 7, Internal); the inductive-miner→UCM mapping is inherited from the author's prior [2,4]; jUCMNav/Z.151 is the authoritative oracle target (Sect. 3). Two hand-chosen data-handling rules affect effort estimates and all proportions. Invented construct: the turn taxonomy, whose labels are released for independent audit.

free parameters (2)

active-time inter-event gap threshold = 10 minutes
Hand-chosen cutoff defining 'active time' as a conservative floor over inter-event gaps ≤10 min (Sect. 4, V); the ≈65h effort figure and effort-per-concern measures depend on it.
substantive-turn inclusion rules (resume-duplicate collapse, interrupt/attachment artifact removal) = 48 duplicates collapsed; 374 → 317 turns
Data-cleaning choices (Sect. 4, II) that determine every reported proportion (e.g., 107 fixes / 317 = 33.8%); different rules would shift the headline ratios.

assumptions (4)

ad hoc to paper The LLM-produced, author-sample-reviewed gold labels are an accurate enough reference standard to support the reported proportions (fix 33.8%, corrects_agent 18%, cross_cutting 9.8%)
All headline quantitative claims inherit this assumption; Sect. 5.2 admits the reference's own reliability was never measured, and Sect. 7 says labels are 'LLM-proposed and expert-verified (through a sample) rather than independently human-coded'.
domain assumption Agent-session transcripts plus git history and test snapshots faithfully represent the development effort
Sect. 7 (Internal): out-of-chat reasoning, manual edits, and local testing are not captured; the paper acknowledges agent effort is an upper bound and human effort an underestimate.
domain assumption The inductive miner's block-structured process trees map cleanly to the UCM metamodel subset, making the discovery chain semantics-preserving
Inherited from the author's prior work [2,4], treated as given in Sect. 2–3; the oracle-based validation strategy exists precisely because silent semantic corruption in this chain is the paper's central risk.
domain assumption jUCMNav's .jucm (XMI) file format and the ITU-T Z.151 metamodel are the authoritative oracle targets for correctness
Round-trip determinism and golden-file oracles are defined against jUCMNav/Z.151 (Sect. 3, 5.4); if jUCMNav itself diverges from Z.151, oracle validity is weakened.

invented entities (1)

Turn-classification taxonomy with 10 primary intents and 5 cross-cutting flags (cross_cutting, corrects_agent, user_incorrect, scope_change, rework) independent evidence
purpose: Measurement instrument for the reflexive-mining method: classifies all 374 human turns (317 substantive) so development can be characterized quantitatively (C2)
The constructs are operationally defined in Table 1, and the gold labels, aggregates, and pipeline are archived (Zenodo [3]) with a keyword baseline retained for auditability, so the coding is externally re-auditable even though raw transcripts are privacy-restricted.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Building a Process-Modeling Tool using Agentic AI: An Experience Report on PM4Py-UCM." pith.science (2026). https://pith.science/paper/3DEWRDGH

@misc{pith2026260728825,
  author       = {Pith},
  title        = {Pith review of: Building a Process-Modeling Tool using Agentic AI: An Experience Report on PM4Py-UCM},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3DEWRDGH}},
  note         = {Machine review of arXiv:2607.28825}
}

read the original abstract

Enterprise-modeling (EM) tools are often complex and hard to extend. Yet, users may want to explore new EM features and capabilities that currently do not exist. AI coding agents can help here by enabling the development of new capabilities and entire tools, but whether we can trust a modeling-language tool an LLM largely wrote remains a question. This paper reports on the AI-assisted construction of PM4Py-UCM, an open-source tool that mines Use Case Map (UCM) models from event logs. PM4Py-UCM's capabilities include some expected from process mining tools (e.g., performance heat-maps and dashboards) and distinctive ones (e.g., mined executable scenarios/variants, and model decomposition). We mined the development record itself, composed of 18 agent sessions (374 human turns and 10,328 tool actions over 65 hours), 151 commits, 20 releases, and a test suite grown from 108 to 691 test functions, in order to characterize, in a single in-depth case, how the tool was built with an agent (Claude Code), complemented by an independent static assessment of the resulting code (coverage, complexity, maintainability, security, architecture). We contribute a reproducible, privacy-preserving toolkit and taxonomy that classify human turns and flag cross-cutting consistency work, agent corrections, and retracted requests. Up to version 0.7.4, fixes outnumber features 2.3:1, with ~18% of turns for correcting agent errors. Feature waves dragged a measurable tail of documentation/test/notebook consistency work, and tests grew lockstep with features. We finally present lessons learned, centered on making model transformations mechanically checkable, and the oracle-based validation strategy that closed the "the agent said it works" gap, for responsibly engineering EM tooling with AI.

Figures

Figures reproduced from arXiv: 2607.28825 by the authors.

**Figure 1.** PM4Py-UCM: Streamlit-based Web interface with BPMN rendering, including performance heat-map overlays (activity/edge text with color and thickness encoding time and frequency metrics). tree, converts it into a Python UCM object model mirroring the URN metamodel, renders it in UCM or BPMN style (with components), and serializes it to a round-trip-safe .jucm file for jUCMNav. The tool is available both through a Web … view at source ↗

**Figure 2.** PM4Py-UCM custom analytics dashboard (KPI, gauges, distributions...) [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** jUCMNav: scenario execution of a mined UCM and generated sequence diagram. Among PM4Py-UCM’s distinctive capabilities, we find: – Log-driven UCM discovery: to our knowledge, PM4Py-UCM offers the first pipeline to make Use Case Maps a first-class process-mining output [4]. – Performer-aware component binding: activities bound to a two-dimensional hierarchy of components mined from log roles/resources—the “who” simila… view at source ↗

Figures from the paper (6 more)

**Figure 4.** Figure 4: Generated HTML side-by-side comparison report for a UCM model family. – Executable scenario synthesis: one UCM scenario per concurrency-aware variant, with variant-driven or data-driven (decision-tree [26]) branch conditions [2]. These can be executed for visualizatio…

**Figure 5.** Figure 5: Pipeline applied to PM4Py-UCM: From an agent’s logs to trustworthy evidence. I) Data Inputs. We draw on three artifacts of the development itself: a) 18 AI-agent session transcripts (Claude Code JSONL chat logs with timestamped human turns, agent tool calls, model ide…

**Figure 6.** Figure 6: PM4Py-UCM development timeline: commits/day, releases (orange lines), and test-suite growth [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]

**Figure 7.** Figure 7: Weekly interaction mix. Bursts: core W20 (2026) & dashboards/families W29 [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]

**Figure 8.** Figure 8: Test-suite growth over the full commit history: 108 test functions on 2026-05-13 to 691 on 2026-07-22 (test files on the right axis; releases marked). transforms [10] on the mined models, byte-deterministic XMI round-trips, and differential comparison against PM4Py’s o…

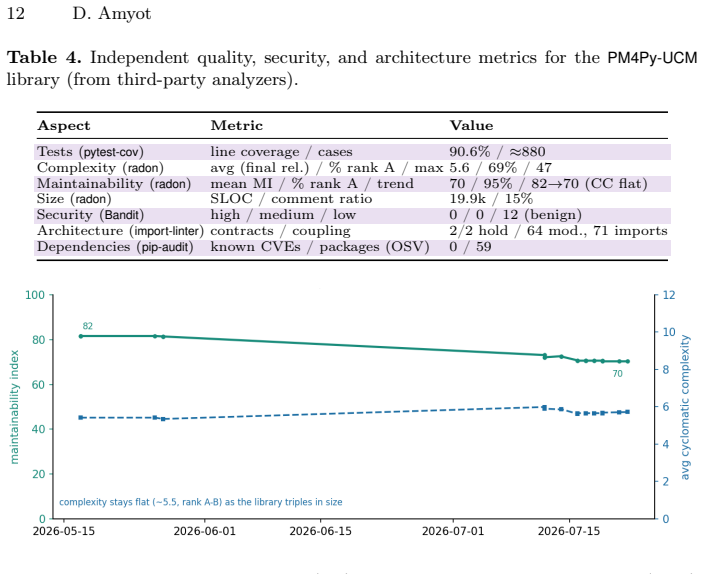

**Figure 9.** Figure 9: Library maintainability index (left) and average cyclomatic complexity (right) across releases (v0.2.0 to v0.7.4): complexity stays flat (≈5.5, rank A–B) while maintainability declines only mildly as the code triples in size. ity stayed flat at ≈5.5 (rank A–B) while t…
