arxiv: 2605.14243 · v2 · pith:3NBR2KIJnew · submitted 2026-05-14 · 🌌 astro-ph.EP · astro-ph.GA

Dynamical Evolution of V-Shaped Collision Debris

Ryuki Hyodo , Naoya Torii This is my paper

Pith reviewed 2026-05-20 21:36 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.GA
keywords planetary ringsproto-satellite collisionscollision debrisdynamical evolutionSaturn ringsN-body simulationsRoche limitequivalent circular orbit
0
0 comments X

The pith

Collision debris from proto-satellites converges back to the impact radius and reaccretes rather than spreading to form rings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the long-term evolution of debris from catastrophic collisions between proto-satellites. It finds that the debris, initially spread in a V-shaped region in the semi-major axis and eccentricity plane, experiences dominant inter-arm collisions due to differing angular momenta. These collisions drive the particles along the original constraint curves toward the apex of the V, which is the original collision radius. As a result, the debris does not form massive rings but instead reaccretes into new satellite-sized bodies near the impact site. This revises the understanding of how such collisions contribute to planetary ring systems.

Core claim

Although some debris initially passes within the Roche limit on eccentric orbits, successive collisional evolution drives the particles approximately along the original V-shaped constraint curves toward the apex of the V-shape, i.e., the original collision radius. Instead of spreading inward to form a ring, the debris converges and reaccretes near the original collision location. Therefore, catastrophic proto-satellite collisions do not produce massive Saturnian rings but lead to reaccretion into a new generation of satellite-sized bodies near the impact radius.

What carries the argument

The V-shaped distribution of collision debris in the a-e plane, consisting of two arms sharing a common collision radius, where inter-arm collisions dominate due to differences in angular momentum and drive convergence along the constraint curves.

Load-bearing premise

Particles on the two arms of the V-shaped distribution in the a-e plane possess significantly different angular momenta, causing inter-arm collisions to dominate the evolution.

What would settle it

An N-body simulation over long timescales showing that debris spreads significantly inward or forms a stable ring inside the Roche limit without reconverging would contradict the convergence result.

Figures

Figures reproduced from arXiv: 2605.14243 by Naoya Torii, Ryuki Hyodo.

Figure 1
Figure 1. Figure 1: V-shaped distribution of collision debris in the a-e diagram. Left: Post-impact debris from L. F. A. Teodoro et al. (2023). Middle: Initial V-shaped configuration adopted in this study, defined by the apoapsis (acol = a(1 + e)) and periapsis (acol = a(1 − e)) constraint curves. The blue and red curves mark the conditions q = aRoche and aeq = aRoche, respectively, where q = a(1 − e) is the periapsis distanc… view at source ↗
Figure 2
Figure 2. Figure 2: Post-collision orbital evolution of two particles in the a–e diagram. Each panel shows the constraint curves for a collision at acol = 7 Rplanet: the apoapsis constraint (e = acol/a − 1; left branch) and the periapsis constraint (e = 1 − acol/a; right branch). The green- and blue-shaded regions indicate orbits with periapsis below the planetary surface and the Roche limit, respectively. Blue and red symbol… view at source ↗
Figure 3

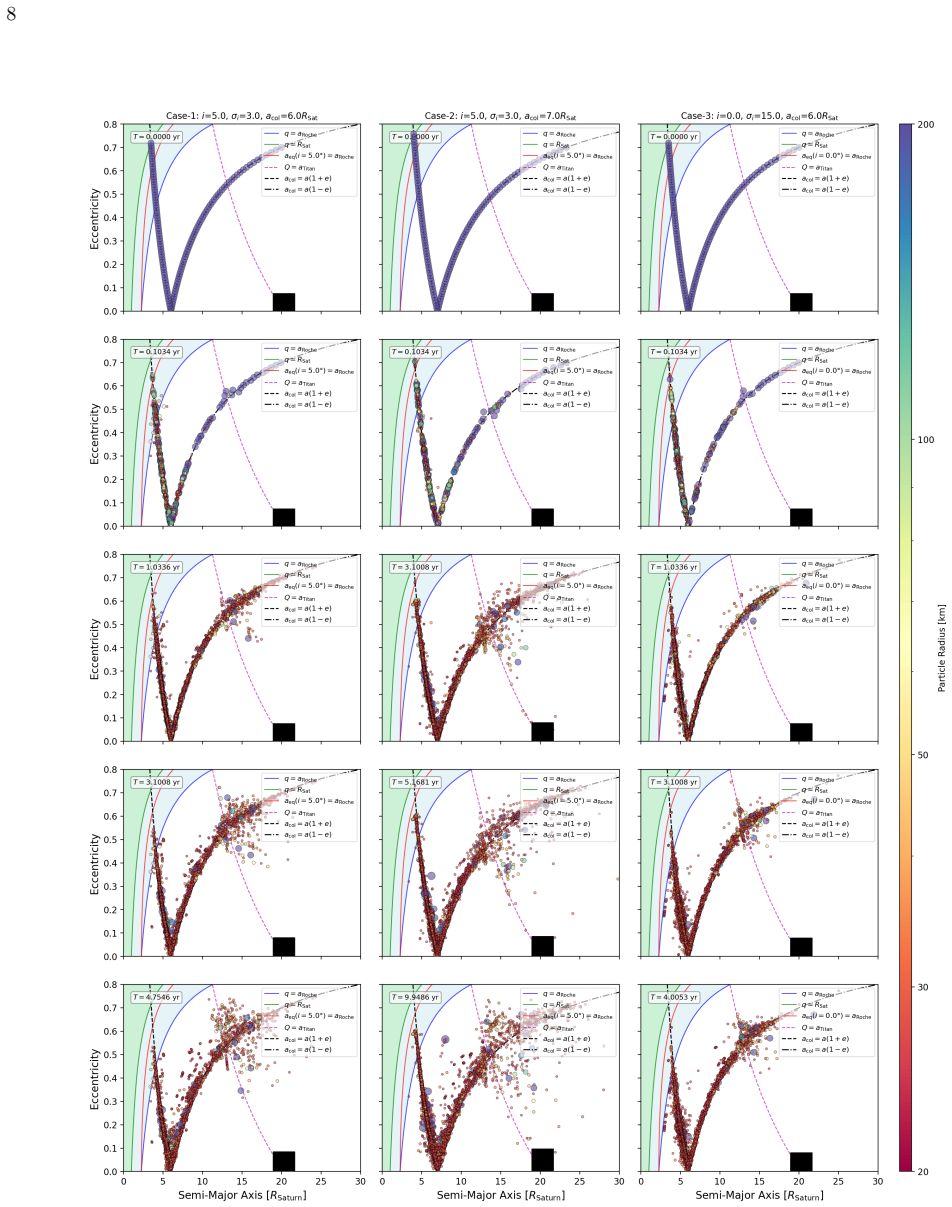

Figure 3. Figure 3: Evolution of the debris distribution in the a–e plane obtained from the direct N-body simulations for the three representative initial conditions summarized in [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

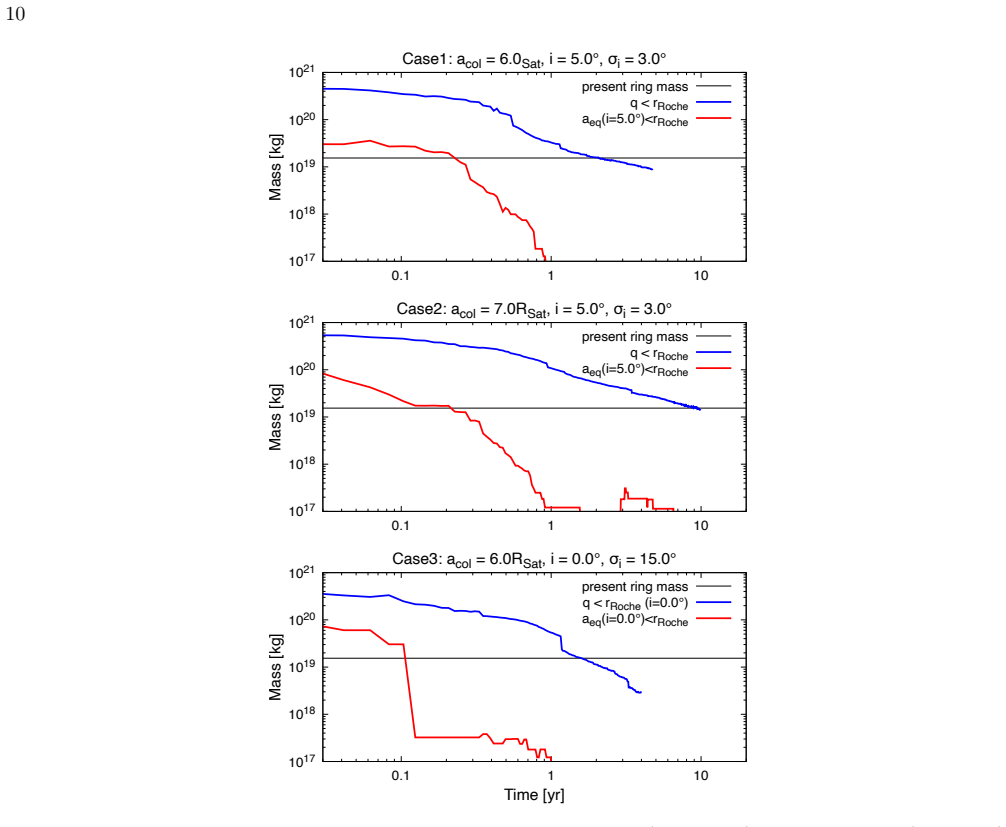

Figure 4. Figure 4: Time evolution of the total mass of debris satisfying q < aRoche (blue curves) and aeq < aRoche (red curves) in the direct N-body simulations for the three representative initial conditions. The present mass of Saturn’s rings is shown by black line. Here, q = a(1 − e) is the periapsis distance and aeq is the equivalent circular radius. At t = 0, the mass satisfying aeq < aRoche is sufficiently large to acc… view at source ↗
read the original abstract

Catastrophic collisions between proto-satellites have been proposed as a possible origin of Saturn's rings. This argument relies on the concept of the equivalent circular orbit. Here, we re-examine the post-impact dynamical evolution of collision debris using analytical arguments and $N$-body simulations with fragmentation. We focus on the long-term evolution of debris distributed in a broad V-shaped region in the $a$--$e$ plane, with two arms for particles sharing a common collision radius. Because particles on the two arms possess significantly different angular momenta, inter-arm collisions dominate the evolution and drive behavior fundamentally different from the simple circularization assumed in the equivalent circular orbit approach. As a result, the classical equivalent circular orbit concept cannot predict the long-term fate of collision debris. Both our analytical framework and $N$-body simulations show that, although some debris initially passes within the Roche limit on eccentric orbits, successive collisional evolution drives the particles approximately along the original V-shaped constraint curves toward the apex of the V-shape, i.e., the original collision radius. Instead of spreading inward to form a ring, the debris converges and reaccretes near the original collision location. We therefore conclude that catastrophic proto-satellite collisions do not produce massive Saturnian rings. Rather, the debris evolves toward reaccretion into a new generation of satellite-sized bodies near the impact radius. These results fundamentally revise the dynamical interpretation of collision-generated debris and establish a more general framework applicable beyond the Saturnian system, including other planetary ring systems and debris produced during planet formation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript re-examines the post-impact evolution of debris from catastrophic proto-satellite collisions using analytical arguments and N-body simulations that include fragmentation. It focuses on debris distributed across a broad V-shaped region in the a–e plane consisting of two arms that share a common collision radius. The central claim is that particles on the two arms have sufficiently different specific angular momenta that inter-arm collisions dominate, driving collisional evolution along the original V-shaped constraint curves toward the apex (the original collision radius). Consequently, the debris reaccretes into new satellite-sized bodies near the impact location rather than spreading inward to form massive rings inside the Roche limit, rendering the equivalent-circular-orbit concept inapplicable for long-term predictions.

Significance. If the central dynamical mechanism is confirmed, the work would substantially revise interpretations of ring formation via satellite collisions, both for Saturn and for other planetary systems. It supplies a more general framework for collision-generated debris that applies to ring systems and to planetesimal evolution during planet formation. The combination of analytical constraints with fragmentation-enabled N-body integrations is a constructive approach, provided the key assumption of inter-arm dominance is quantitatively demonstrated.

major comments (2)
  1. [Analytical arguments and § on collision rates] The load-bearing assumption that inter-arm collisions dominate intra-arm encounters for a continuous distribution along each arm is stated in the abstract and developed in the analytical framework, yet no explicit calculation of relative velocities, number densities, or collision timescales comparing the two classes of encounters is supplied. Without this comparison, it remains possible that intra-arm collisions produce diffusion rather than convergence along the V-curves, which would undermine the conclusion that reaccretion occurs near the original radius instead of spreading inside the Roche limit.
  2. [N-body simulations section] In the N-body simulation results, quantitative diagnostics (e.g., histograms or time series of inter-arm versus intra-arm collision counts, or measured diffusion coefficients in a–e space) are needed to confirm that the simulated evolution follows the predicted constraint curves rather than randomizing. The current description leaves open whether the reported convergence is robust to the continuous arm distribution.
minor comments (2)
  1. [Introduction] Notation for the V-constraint curves and the equivalent circular orbit should be introduced with a single equation or diagram early in the text to improve readability for readers unfamiliar with the prior literature.
  2. [Figures] Figure captions for the a–e evolution plots should explicitly label the two arms and indicate the direction of the predicted convergence toward the apex.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and insightful comments, which identify key areas where additional quantitative support will strengthen the manuscript. We address each major comment below and describe the revisions we plan to implement.

read point-by-point responses

  1. Referee: [Analytical arguments and § on collision rates] The load-bearing assumption that inter-arm collisions dominate intra-arm encounters for a continuous distribution along each arm is stated in the abstract and developed in the analytical framework, yet no explicit calculation of relative velocities, number densities, or collision timescales comparing the two classes of encounters is supplied. Without this comparison, it remains possible that intra-arm collisions produce diffusion rather than convergence along the V-curves, which would undermine the conclusion that reaccretion occurs near the original radius instead of spreading inside the Roche limit.

    Authors: We agree that an explicit quantitative comparison of collision rates is needed to fully support the dominance of inter-arm encounters. In the revised manuscript we will add a dedicated subsection (or appendix) that calculates relative velocities, number densities, and collision timescales for both inter-arm and intra-arm encounters. These calculations will demonstrate that the large difference in specific angular momentum between the two arms produces sufficiently high relative velocities to make inter-arm collisions the dominant process, thereby driving convergence along the V-curves rather than random diffusion. A new figure summarizing the timescale ratios will be included. revision: yes

  2. Referee: [N-body simulations section] In the N-body simulation results, quantitative diagnostics (e.g., histograms or time series of inter-arm versus intra-arm collision counts, or measured diffusion coefficients in a–e space) are needed to confirm that the simulated evolution follows the predicted constraint curves rather than randomizing. The current description leaves open whether the reported convergence is robust to the continuous arm distribution.

    Authors: We accept that additional quantitative diagnostics are required to demonstrate that the simulated evolution follows the analytical constraint curves. In the revised version we will include (i) time-series histograms of inter-arm versus intra-arm collision counts, (ii) snapshots of the a–e distribution at multiple epochs to illustrate adherence to the original V-shaped loci, and (iii) measured diffusion coefficients in a–e space that quantify the constrained (non-random) evolution. These diagnostics will be presented for the continuous arm distribution and will confirm the robustness of the reported convergence toward the apex. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results emerge from simulations and angular-momentum analysis

full rationale

The paper derives its central claim—that inter-arm collisions dominate and drive convergence along the original V-shaped constraint curves toward the impact radius—directly from N-body simulations with fragmentation and analytical arguments based on specific angular momentum differences between the two arms. These steps are not shown to reduce by construction to fitted inputs, self-citations, or presupposed dominance; the abstract and described framework present the behavior as an outcome of the modeled dynamics, explicitly contrasting it with the equivalent circular orbit concept. No load-bearing step equates a prediction to its own definition or renames a known result via citation chains. The derivation remains self-contained against external benchmarks of collisional evolution.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; full text would be required to audit them.
