MSQ: Memory-Efficient Bit Sparsification Quantization

T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Pith's one-line read MSQ computes and prunes least-significant bits directly from weights, achieving up to 8x fewer trainable parameters and 86% less training time at competitive accuracy.

desk verdict MSQ's empirical scope is broad, but the central LSB extraction equation is dimensionally wrong, so the mechanism as written does not do what it claims. read the letter →

arxiv 2507.22349 v1 pith:3NUNWIRP submitted 2025-07-30 cs.LG

classification cs.LG
keywords mixed-precisionquantizationquantization-awaretrainingbit-levelsparsityleastsignificantbitsHessiantracestraight-throughestimatorvisiontransformersefficientdeeplearning
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

MSQ is a quantization-aware training method that claims to make bit-level mixed-precision quantization much cheaper to run. Instead of treating every bit of every quantized weight as a separate trainable variable, as earlier bit-sparsification methods do, MSQ computes the value carried by the low k bits directly from the full-precision weight using a specially designed round-clamp quantizer, then penalizes those values with L1 regularization to drive them to zero. Layer sensitivity, measured by Hessian trace, decides whether a layer loses one or two bits per pruning step. The paper reports up to 8.00x fewer trainable parameters and up to 86% less training time than previous bit-level methods on ResNet, MobileNetV3, DeiT, and Swin models, at comparable accuracy and compression. If these numbers hold, bit-level mixed-precision QAT becomes practical on a single GPU, including for vision transformers.

What carries the argument

The load-bearing mechanism is the RoundClamp quantizer plus the LSB-extraction identity. The quantizer $q_r(W; n) = \frac{1}{2^n-1}\min(\lfloor 2^n W\rceil, 2^n-1)$ differs from the standard DoReFa-style quantizer by scaling the rounding input by $2^n$ instead of $2^n-1$ and clamping to $2^n-1$; this aligns the $(n-k)$-bit bin boundaries with the midpoints of the $n$-bit bins, so that sparsifying the computed LSB value $B_k = W - 2^k q_r(W; n-k)$ has both positive and negative gradient directions toward zero-LSB states. The Hessian-trace sensitivity $\Omega_l = \mathrm{Tr}(H_l)\|W_n^{(l)} - W^{(l)}\|_2$ is the second mechanism: it decides whether a layer is pruned by one bit or two bits per step, accelerating pruning of insensitive layers while protecting sensitive ones. Together they produce a mixed-precision bit assignment without ever instantiating a trainable variable per bit.

What would settle it

Compute $B_k = W - 2^k q_r(W; n-k)$ for every value in a full traversal of the $n$-bit quantization grid and check whether $B_k$ vanishes precisely on the values whose low $k$ bits are zero; any mismatch is a counterexample that falsifies the bit-extraction assumption.

Watch

Extended reading notes

Core claim

The central claim is that bit-level sparsity for mixed-precision quantization can be induced without explicit bit-level parameter splitting. The paper introduces a RoundClamp quantizer, defined as $q_r(W; n) = \frac{1}{2^n-1}\min(\lfloor 2^n W\rceil, 2^n-1)$, whose bin boundaries align so that a weight with nonzero low bits can be rounded either up or down to a neighboring zero-LSB value. From this quantizer the value of the least significant $k$ bits of the $n$-bit quantized weight is computed as $B_k = W - 2^k q_r(W; n-k)$, and applying $\ell^1$ regularization to $B_k$ gives a gradient direction that pushes weights toward LSB-zero configurations. A Hessian-trace sensitivity measure $\Omega_l$ then sets the pruning step $k \in \{1,2\}$ per layer, and layers are pruned when their LSB-nonzero rate falls below a threshold, repeating until a target compression ratio is reached. The paper argues this yields accuracy and compression on par with or better than BSQ and CSQ on ResNet-20/18/50, MobileNetV3-Large, DeiT-T/S, and Swin-T, with much lower training resource use.

Load-bearing premise

The core assumption is that the formula for $B_k$ really extracts the least significant bits of the quantized weight, so that driving $B_k$ to zero removes exactly those bits; if the formula and the true bit pattern come apart, the regularizer can push weights toward states that are not bit-sparse in the intended way.

Editorial extensions

If this is right

  • Bit-level mixed-precision quantization-aware training can run with up to 8.00x fewer trainable parameters, because no per-bit variables are created.
  • Training time drops by up to 86% relative to bit-splitting baselines, and the freed memory allows larger batch sizes before out-of-memory.
  • The same method transfers from homogeneous CNNs to heterogeneous architectures (MobileNetV3) and to vision transformers (DeiT, Swin-T), extending bit-level QAT beyond standard ResNet-style models.
  • Hessian-aware pruning lets insensitive layers lose two bits at a time, so the target compression ratio is reached in fewer epochs and with smaller accuracy dips at each pruning step.
  • After the target compression ratio is reached, regularization and pruning stop and training continues as ordinary QAT, so the final mixed-precision scheme is stable and cleanly defined.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the round-clamp LSB extraction is mathematically sound, the same bipartite slicing idea could be applied to activation quantization or to higher-order bit groups (removing more than the least significant bits), potentially pushing average bit-width well below 2 bits.
  • The Hessian-threshold rule (prune two bits when the layer sensitivity is below the mean) is a heuristic; a principled allocation based on the Hessian trace's magnitude could yield a better accuracy-compression frontier on the same pruning schedule.
  • Because the method removes the per-bit parameter overhead, it points toward quantization-aware fine-tuning of large transformer models (and possibly LLMs) on a single GPU, where bit-splitting methods would be memory-prohibitive.
  • The reported efficiency gains are measured against BSQ and CSQ; transferring the LSB-regularization view to post-training quantization could reduce the need for search-based mixed-precision schemes on deployment pipelines.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper proposes MSQ, a bit-level mixed-precision quantization-aware training method. Instead of instantiating each bit as a trainable variable as in BSQ/CSQ, MSQ computes an LSB value B_k from the full-precision weight W via Eq. (5), applies L1 regularization to encourage LSB sparsity, and prunes bits when the LSB nonzero rate is low, with Hessian-aware control of how many bits are pruned per layer. MSQ is evaluated on ResNet-20/18/50, MobileNetV3-Large, DeiT-T/S, Swin-T, and a ViT-Base variant, reporting competitive accuracy/compression tradeoffs, up to 8x fewer trainable parameters, and up to 86% training-time reduction relative to BSQ/CSQ.

Significance. MSQ addresses a real bottleneck: bit-level sparsification methods such as BSQ/CSQ require bit-sliced trainable parameters and are memory/time hungry. The paper's scope is broader than many prior bit-level method papers, covering MobileNetV3 and ViTs, and it reports training-resource measurements on three networks. The Hessian-guided pruning schedule is a reasonable engineering idea that can be assessed independently. If the LSB computation were correct, the accuracy-compression results would make a useful contribution. The paper would be strengthened by reporting repeated runs/error bars; the current tables report single runs, and several accuracy differences among methods are within 0.1-0.2 percentage points.

major comments (3)
  1. [Section 3.1, Eq. (5)] The claimed LSB extraction is mathematically inconsistent as written. With qr(W; n-k) defined by Eq. (4), the output is a normalized value in [0,1] with levels j/(2^{n-k}-1). Substituting W - 2^k qr(W; n-k) mixes a continuous [0,1] value with a shifted normalized value, and the 2^k factor is dimensionally wrong for normalized representations. Example: W=0.5, n=3, k=1 gives qr(0.5;2)=2/3 and B_1 = 0.5 - 4/3 = -5/6, although 0.5 is exactly representable in the 2-bit grid used for the MSBs and its lower bit is zero. More generally, B_k=0 under Eq. (5) implies W = 2^k qr(W;n-k), which for k=1 has only W=0 as a solution on [0,1], not the set of weights whose lower bit is zero. The correct decomposition of the quantized weight is qr(W;n) - qr(W;n-k) (or an explicitly integer fixed-point identity), not Eq. (5). Because Eq. (8) penalizes this B_k, the central sparsification mechanism is not internally consistent as written. The authors should correct the identity, describe any STE or continuous relaxation used to make the L1 gradient meaningful, and confirm that all reported results are obtained with the corrected objective.
  2. [Algorithm 1, line 16] The pruning criterion beta_l is not reproducible as printed. In Algorithm 1, beta_l is computed as sum(B > 2^{p_l-1}); since B denotes the LSB value from Eq. (5) (bounded approximately in [-1,1] under the printed formula, or [0,1] under a corrected definition), the threshold 2^{p_l-1} is far outside the range of B for p_l >= 2, so beta_l would be identically zero for every layer that prunes 2 bits. This makes the pruning loop (lines 21-27) degenerate and prevents reproduction. The authors need to define beta_l precisely, e.g., as the fraction of weights whose |B_k| exceeds a fraction of the quantization step, and state the threshold used.
  3. [Tables 2-5 and Section 4.2] The main accuracy-compression claims are supported only by single runs with no seeds, standard deviations, or number of trials. Many comparisons that support the claim of competitive accuracy are within 0.01-0.2 percentage points (e.g., ResNet-18 69.74 vs. CSQ 69.73; ResNet-50 75.32 vs. CSQ 75.47). Without repeated runs, these differences are not sufficient to establish that MSQ maintains accuracy at the same level as prior methods. The authors should report at least means and standard deviations over multiple seeds for the main tables, and state which batches and pruning schedules were used for each run.
minor comments (5)
  1. [Section 3.1, Eqs. (3) and (5)] Equation (3) writes B_k = W_n - 2^k W_{n-k}, while Eq. (5) replaces W_n with the raw floating-point W; the relationship between the two is never explained and should be clarified.
  2. [Section 3.2, Eq. (9)] The Hessian trace is written Tr(H_i) in one place and Tr(H_l) in the next; please use consistent subscripts for the layer index.
  3. [Table 2] There are two rows labeled simply 'MSQ' with no distinguishing description; the reader cannot tell which configuration (activation bits, target compression, or other hyperparameters) produced each row.
  4. [Figure 3] The caption of Figure 3 does not define what is plotted (weight values, bin boundaries, or both); the comparison between DoReFa and RoundClamp would be much easier to follow with labeled axes and a precise statement of the bin edges.
  5. [Algorithm 1 and Table 1] Algorithm 1 initializes 'p, q in G' without defining the initial bit width or the initial pruning amount per layer; additionally, Table 1 reports peak memory for MSQ that is higher than BSQ/CSQ for ResNet-20 despite fewer parameters, and the table should annotate the batch sizes used to obtain the peak-memory numbers.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: MSQ's core claims are benchmarked externally rather than derived from its inputs, and the same-group BSQ/CSQ comparisons are experimental, not load-bearing evidence.

full rationale

MSQ's derivation chain is self-contained. The core mechanism—computing B_k via Eq. (5) and applying L1 regularization in Eq. (8)—is defined inside the paper, and the efficiency claims (8x parameter reduction, 86% training-time reduction) are measured against external baselines on standard benchmarks (CIFAR-10, ImageNet), not derived from a fitted quantity. The Hessian sensitivity metric is imported from HAWQ-V2 [6], an external reference with no author overlap, so it is independent support. The self-citations to BSQ [27] and CSQ [26], both involving coauthor Huanrui Yang, serve as experimental comparison points and motivational context, not as an authority that forces the paper's conclusions; the reported timings, memory usage, accuracies, and compression ratios are externally falsifiable. The equations in Sec. 3.1 may be mathematically questionable as written—Eq. (5) does not in general equal the k-LSB contribution under the 2^m−1 denominator—but that is a correctness concern, not a circularity: the claimed results do not reduce to their inputs by construction. No fitted parameter is renamed as a prediction, no uniqueness theorem is imported from the authors' prior work, and no ansatz is smuggled in via citation.

Assumptions & free parameters 6 free parameters · 5 assumptions · 0 invented entities

The method introduces no physical or conceptual entities beyond a modified quantizer; all auxiliary quantities (Omega, B_k, beta) are functions of weights and data. The main unverified load is the LSB formula and the hand-chosen hyperparameters.

free parameters (6)
  • lambda (LSB L1 regularization strength) = 5e-5 for ResNet/MobileNetV3; 8e-6 for DeiT-T; 5e-6 for DeiT-S/Swin-T
    Tuned per model; controls sparsity vs accuracy tradeoff, reported in Supplementary Table 2.
  • alpha (pruning threshold) = 0.3 or 0.35 depending on network
    Hand-chosen; determines which layers are pruned based on LSB nonzero rate.
  • I (pruning interval) = 5, 8, 10, or 20 epochs depending on network
    Hand-chosen; controls how often bit pruning and Hessian recomputation occur.
  • target compression ratio Gamma = e.g., 16.00, 10.67, 10.89, etc. per experiment
    User-specified stopping target for pruning; results are reported at this target, not as predictions.
  • prune bits per step for insensitive layers = 2 bits for insensitive layers, 1 bit for sensitive layers
    Heuristic in Algorithm 1 using mean(Omega) as threshold; number of bits is chosen ad hoc.
  • initial bit precision = 8 bits (from Fig. 7)
    Starting width for all layers; not justified beyond standard QAT practice.
assumptions (5)
  • domain assumption Straight-through estimator (STE) gradient approximation
    Eq (2) assumes gradients pass through the quantizer unchanged; standard in QAT but unverified for this method.
  • domain assumption Hessian trace is a reliable layer sensitivity metric
    Adopted from HAWQ-V2 [6]; no verification for MSQ's specific training dynamics.
  • ad hoc to paper B_k computed by Eq (5) represents the LSBs
    As written, Eq (5) is dimensionally inconsistent and its zero set does not match LSB-zero fixed-point values; the mechanism is therefore an assumption about an intended corrected formula.
  • domain assumption Weights are normalized to [0,1] and use uniform fixed-point grids
    Standard DoReFa-style setup; asymmetric or per-channel scaling is not discussed.
  • domain assumption Pretrained floating-point models are used for ImageNet experiments
    Results depend on pretrained checkpoints not provided, including OFQ 4-bit checkpoints for ViTs.

how reviews work

0 comments
Cite this review

Pith. "Pith review of MSQ: Memory-Efficient Bit Sparsification Quantization." pith.science (2026). https://pith.science/paper/3NUNWIRP

@misc{pith2026250722349,
  author       = {Pith},
  title        = {Pith review of: MSQ: Memory-Efficient Bit Sparsification Quantization},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/3NUNWIRP}},
  note         = {Machine review of arXiv:2507.22349}
}
read the original abstract

As deep neural networks (DNNs) see increased deployment on mobile and edge devices, optimizing model efficiency has become crucial. Mixed-precision quantization is widely favored, as it offers a superior balance between efficiency and accuracy compared to uniform quantization. However, finding the optimal precision for each layer is challenging. Recent studies utilizing bit-level sparsity have shown promise, yet they often introduce substantial training complexity and high GPU memory requirements. In this paper, we propose Memory-Efficient Bit Sparsification Quantization (MSQ), a novel approach that addresses these limitations. MSQ applies a round-clamp quantizer to enable differentiable computation of the least significant bits (LSBs) from model weights. It further employs regularization to induce sparsity in these LSBs, enabling effective precision reduction without explicit bit-level parameter splitting. Additionally, MSQ incorporates Hessian information, allowing the simultaneous pruning of multiple LSBs to further enhance training efficiency. Experimental results show that MSQ achieves up to 8.00x reduction in trainable parameters and up to 86% reduction in training time compared to previous bit-level quantization, while maintaining competitive accuracy and compression rates. This makes it a practical solution for training efficient DNNs on resource-constrained devices.

Figures

Figures reproduced from arXiv: 2507.22349 by the authors.

Figure 1
Figure 1. Work flow of bit-level quantization vs. MSQ. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Comparison of bit-level splitting quantization and MSQ. (a) Training process of the bit-level model weight with STE.(b) Training [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Weight distribution of training with (a) DoReFa and (b) [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (9 more)
Figure 3
Figure 3. Figure 3: Three-bit and two-bit quantized weight mapping range [PITH_FULL_IMAGE:figures/full_fig_p004_3.png]

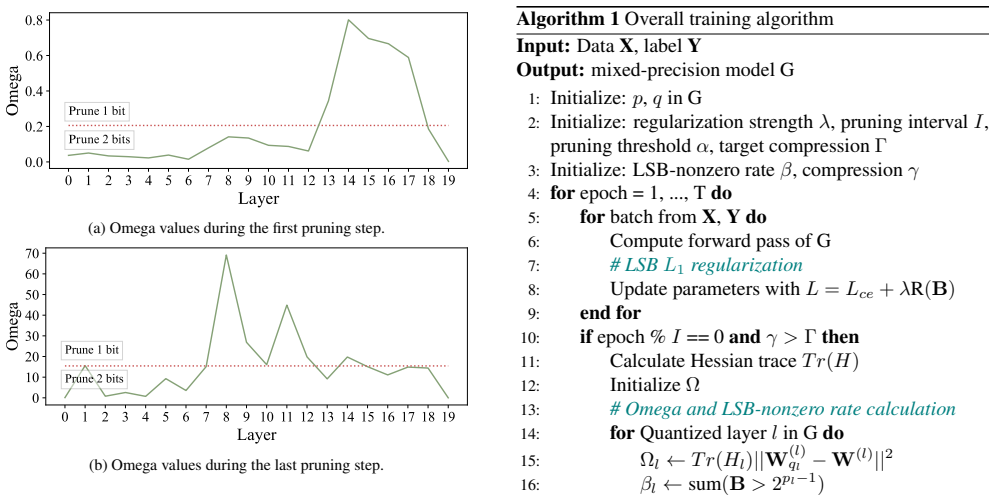

Figure 5
Figure 5. Figure 5: Comparison of Omega values for each layer of ResNet [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: Comparison of training time per epoch for different methods across varying batch sizes. Results are reported up to the maximum [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]

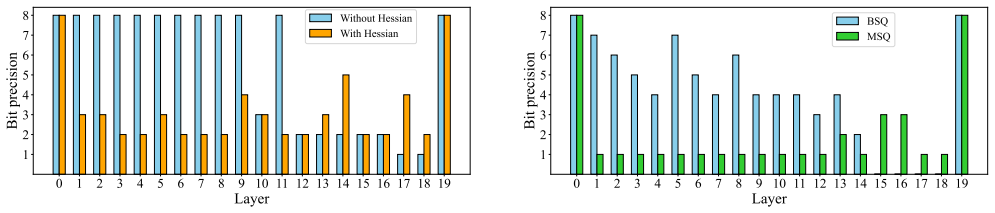

Figure 7
Figure 7. Figure 7: Final bit scheme selected during the training process. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]
Figure 8
Figure 8. Figure 8: The change of validation accuracy with and without Hes [PITH_FULL_IMAGE:figures/full_fig_p008_8.png]
Figure 1
Figure 1. Figure 1: Changes in Layer Precision and Omega During Training [PITH_FULL_IMAGE:figures/full_fig_p011_1.png]

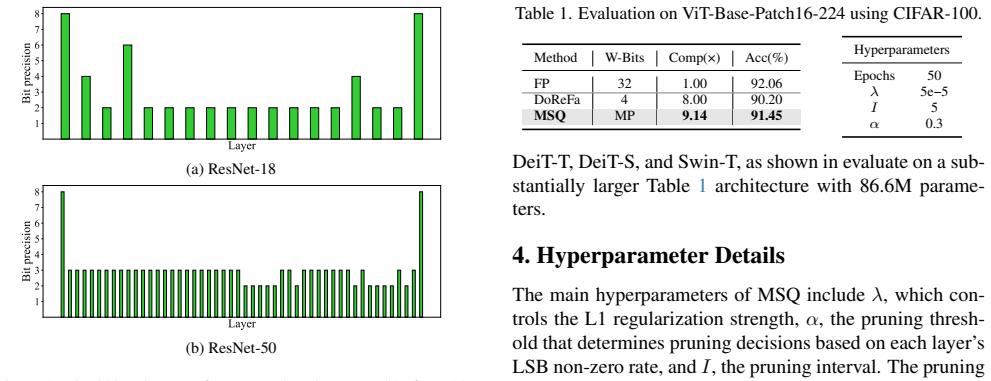

Figure 2
Figure 2. Figure 2: Final bit schemes of ResNet-18 and ResNet-50 after 100 [PITH_FULL_IMAGE:figures/full_fig_p012_2.png]

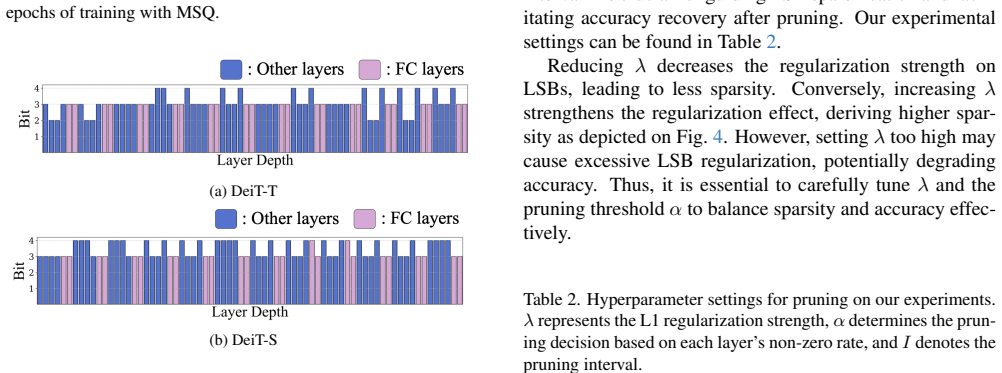

Figure 3
Figure 3. Figure 3: Final bit schemes of DeiT-T and DeiT-S after fine-tuning [PITH_FULL_IMAGE:figures/full_fig_p012_3.png]
Figure 4
Figure 4. Figure 4: Comparison of λ = 5e−5 and λ = 1e−4. The LSB non-zero rate is relatively smaller when λ = 1e−4 [PITH_FULL_IMAGE:figures/full_fig_p012_4.png]
