Conversion of Tycho-2 to Johnson-Cousins Magnitudes in the Gaia Era

Stephen C. Schiff This is my paper

Pith reviewed 2026-05-25 16:11 UTC · model grok-4.3

classification 🌌 astro-ph.IM
keywords Tycho-2Johnson-Cousins magnitudesmagnitude transformationphotometryGaia DR2machine learningcomparison stars
0
0 comments X

The pith

Machine learning on Gaia data converts Tycho-2 magnitudes to the Johnson-Cousins system for use as photometry comparison stars.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a set of equations that map Tycho-2 BT and VT magnitudes into Johnson B and V magnitudes. It trains the mapping on 558 bright standard stars using one-step supervised learning with weight decay and 10-fold cross validation, then applies the same process to the associated standard deviations. The resulting transformations show average errors much smaller than 1 mmag with standard deviations that match the input precision, allowing a large share of the 2.5 million Tycho-2 stars to serve as reliable comparison sources in two-color bright-star ensemble photometry.

Core claim

The learned mapping from Tycho-2 to Johnson-Cousins magnitudes is essentially unbiased, with average errors much less than 1 mmag in both B and V, and the predicted standard deviations accurately reflect the actual errors, so that they can be used directly to rank comparison-star candidates from the full Tycho-2 catalog.

What carries the argument

One-step supervised learning with weight decay regularization and 10-fold cross validation applied to the 558 standard stars to produce both magnitude transformations and uncertainty transformations.

If this is right

  • A substantial portion of the 2.5 million Tycho-2 stars can now be treated as usable comparison stars for two-color ensemble photometry.
  • The derived standard-deviation transformations allow reliable suitability ranking of candidate comparison stars.
  • The in-sample and cross-validation error statistics remain comparable to the input data precision.
  • The approach supplies both transformed magnitudes and their uncertainties in a single consistent framework.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same supervised-learning procedure could be retrained on additional Gaia-calibrated standards to extend coverage to fainter Tycho-2 stars.
  • Comparison of the new transformations against existing literature relations on overlapping stars would quantify any remaining color-dependent residuals.
  • The availability of uncertainty estimates opens the possibility of weighting individual comparison stars by their predicted precision in ensemble solutions.

Load-bearing premise

The 558 standard stars brighter than magnitude 11 form a representative training set whose learned mapping generalizes without significant bias across the full magnitude and color range of the Tycho-2 catalog.

What would settle it

Independent B and V measurements of Tycho-2 stars outside the training set that reveal systematic offsets larger than the reported millimeter-level errors would falsify the claim of unbiased generalization.

read the original abstract

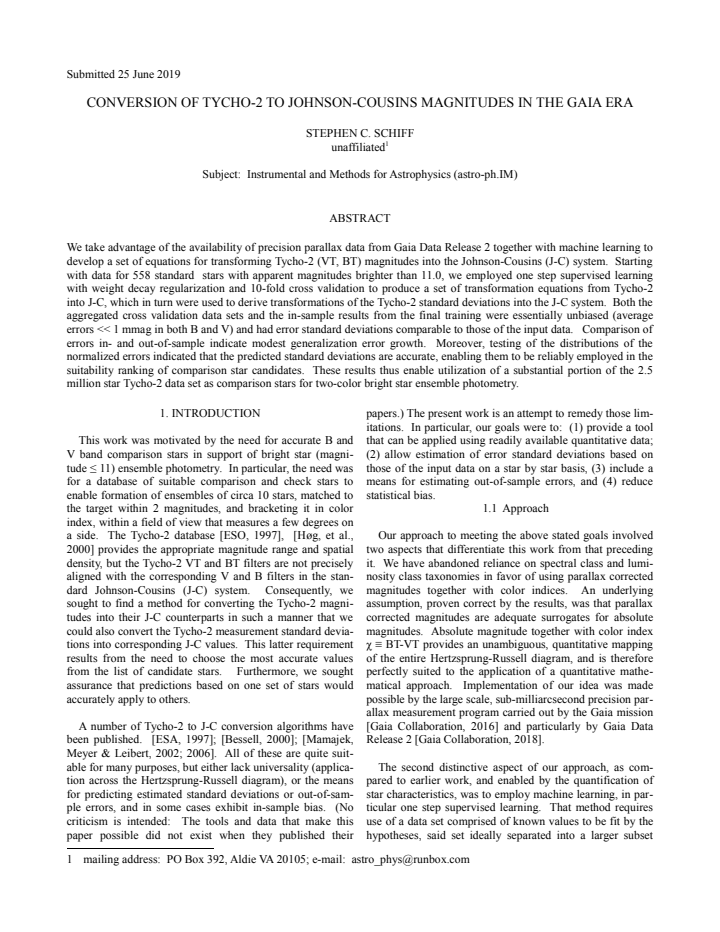

We take advantage of the availability of precision parallax data from Gaia Data Release 2 together with machine learning to develop a set of equations for transforming Tycho-2 (VT, BT) magnitudes into the Johnson-Cousins (J-C) system. Starting with data for 558 standard stars with apparent magnitudes brighter than 11.0, we employed one step supervised learning with weight decay regularization and 10-fold cross validation to produce a set of transformation equations from Tycho-2 into J-C, which in turn were used to derive transformations of the Tycho-2 standard deviations into the J-C system. Both the aggregated cross validation data sets and the in-sample results from the final training were essentially unbiased (average errors << 1 mmag in both B and V) and had error standard deviations comparable to those of the input data. Comparison of errors in- and out-of-sample indicate modest generalization error growth. Moreover, testing of the distributions of the normalized errors indicated that the predicted standard deviations are accurate, enabling them to be reliably employed in the suitability ranking of comparison star candidates. These results thus enable utilization of a substantial portion of the 2.5 million star Tycho-2 data set as comparison stars for two-color bright star ensemble photometry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript develops a set of transformation equations from Tycho-2 BT and VT magnitudes to Johnson-Cousins B and V using one-step supervised machine learning with weight decay regularization, trained and 10-fold cross-validated on 558 standard stars brighter than 11.0 mag. It reports near-zero average bias, error standard deviations comparable to input data, and accurate normalized residual distributions, concluding that these enable use of a substantial portion of the 2.5 million Tycho-2 stars as comparison stars for two-color bright-star ensemble photometry.

Significance. If the learned mapping generalizes reliably, the work would expand the available pool of comparison stars for ensemble photometry by providing usable transformations and error estimates for the large Tycho-2 catalog, a practical contribution in the Gaia era. The reported cross-validation, in-sample/out-of-sample error comparison, and normalized-error distribution tests provide concrete empirical support for the transformations within the training magnitude range.

major comments (2)
  1. [Abstract] Abstract and results: the central claim that the transformations enable utilization of a substantial portion of the full 2.5 million star Tycho-2 catalog rests on the untested assumption that the mapping learned from the 558 stars <11.0 mag generalizes without bias to fainter magnitudes; all validation (10-fold CV, residual distributions) is confined to the bright training subset, leaving potential magnitude-dependent systematics unexamined.
  2. [Results] Methods and results: the supervised learning produces data-driven fits whose generalization error is described as modest, yet no independent test set at V>11 (or color/magnitude slices outside the training distribution) is presented to quantify any systematic offset that would affect the suitability ranking of comparison-star candidates across the catalog.
minor comments (1)
  1. [Methods] The role of Gaia DR2 parallax data in sample selection or feature construction is mentioned in the abstract but not detailed in the transformation procedure; clarifying this would improve reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the careful review and constructive comments highlighting the limits of our validation. We address each major comment below. Where the points identify genuine gaps, we will revise the manuscript to add explicit caveats rather than overstate the results.

read point-by-point responses

  1. Referee: [Abstract] Abstract and results: the central claim that the transformations enable utilization of a substantial portion of the full 2.5 million star Tycho-2 catalog rests on the untested assumption that the mapping learned from the 558 stars <11.0 mag generalizes without bias to fainter magnitudes; all validation (10-fold CV, residual distributions) is confined to the bright training subset, leaving potential magnitude-dependent systematics unexamined.

    Authors: We agree that the 10-fold CV and residual tests are confined to the <11.0 mag training stars and that no direct test of magnitude-dependent bias exists for fainter Tycho-2 stars. The transformations are derived from color terms that are in principle magnitude-independent, and the training sample spans the color range of the catalog, but this does not substitute for an explicit check at fainter magnitudes. We will revise the abstract and add a limitations paragraph stating that the transformations are validated only for V < 11 and that application to fainter stars involves an untested extrapolation. revision: yes

  2. Referee: [Results] Methods and results: the supervised learning produces data-driven fits whose generalization error is described as modest, yet no independent test set at V>11 (or color/magnitude slices outside the training distribution) is presented to quantify any systematic offset that would affect the suitability ranking of comparison-star candidates across the catalog.

    Authors: No independent test set at V > 11 was available because the 558 standards with published Johnson-Cousins photometry and Gaia DR2 parallaxes are all brighter than this limit; fainter Tycho-2 stars lack equivalent ground-based J-C measurements for direct comparison. The modest in-sample vs. out-of-sample error growth we report is therefore only within the bright regime. We will expand the results section to discuss this constraint and its effect on suitability ranking for any fainter candidates. revision: partial

standing simulated objections not resolved
  • Absence of an independent test set at V > 11; no additional standard stars with both Tycho-2 and Johnson-Cousins photometry exist in the literature that could be used for such a test.

Circularity Check

0 steps flagged

Empirical ML calibration on standard stars with CV yields independent transformations for Tycho-2 catalog

full rationale

The derivation fits transformation equations via supervised learning (weight decay, 10-fold CV) on 558 standard stars with known J-C magnitudes and Tycho-2 photometry, then applies the resulting equations to the remaining Tycho-2 stars. This is a conventional empirical mapping; the outputs for the 2.5 M catalog stars are not equivalent by construction to the training inputs, and CV supplies explicit out-of-sample checks within the sampled distribution. No self-citations, uniqueness theorems, or definitional loops appear in the chain. Generalization beyond the bright training subset is a separate empirical-validity question, not a circularity reduction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the representativeness of the 558 standard stars and the assumption that Gaia DR2 parallaxes add useful information for the magnitude transformation; the ML weights constitute fitted parameters whose values are not reported.

free parameters (1)
  • ML model weights and regularization strength
    Determined by supervised learning with weight decay on the 558-star training set; exact values not stated in abstract.
axioms (1)
  • domain assumption Gaia DR2 parallaxes provide accurate distances for the selected standard stars that improve the magnitude transformation.
    Abstract states the use of precision parallax data from Gaia DR2 as a key input to the learning process.
