A spatially regularized Bayesian emulator extrapolates gridded simulation output beyond the finest observed resolution, recovering the high-resolution target with accuracy competitive with or better than alternative emulators, especially wh

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-01 09:35 UTC pith:4DLNJ7J6

load-bearing objection Genuinely novel method, but the evidence for extrapolation is only shown for the exact functional family the model assumes, and extrapolative coverage is never checked. the 3 major comments →

arxiv 2607.20703 v1 pith:4DLNJ7J6 submitted 2026-07-22 stat.ME

A Bayesian Framework for Extrapolative Emulation of Spatially Gridded Simulation Data

Kelly R. Moran , Ky Potter , Chris Danly , Christopher L. Fryer This is my paper
classification stat.ME MSC 62F1562M30
keywords Bayesian emulationresolution extrapolationGaussian processspatial regularizationmulti-fidelity simulationradiation hydrodynamicsgridded datauncertainty quantification
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to show that extrapolating simulation output across resolution is a spatial statistical problem: each pixel's value follows a saturating growth curve in resolution, and the curve parameters are linked across pixels by Gaussian process priors. This linking lets the emulator borrow strength from neighboring pixels and produce calibrated uncertainty estimates, even when coarse-resolution runs are few. In synthetic experiments built to mimic resolution-dependent bias, the method recovers the truth at the unobserved r=1 limit with lower or comparable error than PCA-based and per-cell alternatives, particularly in low-information settings. It also extrapolates a radiation wave-front diagnostic from a sequence of progressively refined simulations, pointing toward use as a statistical complement to direct simulation.

Core claim

The central claim is that each pixel of a gridded simulation output follows a nonlinear resolution-response curve f(r;θ)=f_min + (B/k)(1 - exp(-k r)), with pixel-specific parameters drawn from Gaussian process priors that share information across space. Observed outputs at coarse resolutions are modeled as noisy evaluations of these curves, and inference for the field at r=1 (the high-fidelity limit) proceeds through MCMC. Synthetic benchmarks show that this spatially regularized extrapolation achieves competitive or improved accuracy relative to PCA-based and per-cell emulators, particularly when the observed resolution range is narrow or data are sparse, while maintaining near-nominal inte

What carries the argument

The load-bearing device is the pixel-level growth curve f(r;θ_ij) = f_min,ij + (B_ij/k_ij)(1 - exp(-k_ij r)), a monotone saturating function of resolution; it converts resolution extrapolation into inference about three latent spatial parameter fields (f_min, B, log k). Gaussian process priors with Kronecker-factorized squared-exponential covariances link these fields across pixels, so neighboring pixels share information and the posterior yields both a point prediction and uncertainty at unobserved resolutions. A blocked MCMC sampler exploits the separability for efficient computation.

Load-bearing premise

The load-bearing premise is that every pixel's value follows a single smooth, monotone, saturating exponential curve in resolution, so the limiting value at r=1 is governed by that same curve; if the resolution dependence has multiple regimes, a change point, or non-saturating behavior, the extrapolation is unreliable.

What would settle it

Run the same simulation at several resolutions withheld from training, including at least one above the training range but below r=1, and compare the emulator's extrapolation to the actual output. If the resolution path shows a change point, a plateau-then-rise, or any non-monotone feature that the single exponential curve cannot represent, the extrapolation will deviate systematically and the credible intervals will fail to cover the held-out values. For the radiation-hydrodynamics example, a sixth run at a finer resolution than the five observed would serve as a direct check.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Simulation campaigns could shift resources: several cheap coarse runs may suffice to support inference about the high-resolution limit, reducing reliance on the most expensive runs.
  • Because the method outputs calibrated credible intervals at interpolated resolutions, downstream analyses can explicitly weigh extrapolative uncertainty.
  • Spatial regularization lets the emulator recover structured fields even when per-pixel data are extremely sparse, a regime where non-spatial methods degrade sharply.
  • The construction extends naturally to 3D or space-time grids, since the covariance separability carries over to higher-dimensional arrays.
  • The wave-front illustration suggests that derived diagnostics from simulation output, not just raw scalar fields, are amenable to resolution extrapolation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The synthetic data generator assumes a smooth saturating bias (alpha(r)=(1-r)^beta), so the benchmark is favorable to the single-curve model; a stiffer test would inject resolution dependence with multiple regimes or a change point.
  • Because the GP priors impose spatial smoothness on the curve parameters, the method is most reliable for fields that are spatially smooth at the grid scale; sharply localized subgrid features would likely be over-smoothed.
  • A practical safeguard suggested by the paper's own discussion: hold out the highest observed resolution, fit on the rest, and check the extrapolated curve against it before trusting the r=1 prediction.
  • The soft-box prior on the asymptotic increment A=B/k is a weakly informative device; if the truth has A outside [-2,2] for some pixels, the posterior could be pulled toward the prior boundary, so sensitivity to that bound is worth testing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 7 minor

Summary. The manuscript proposes a Bayesian emulator for extrapolating scalar fields from gridded simulation output across a resolution index r∈[0,1]. Each pixel is modeled by a saturating exponential growth curve in resolution, and the three curve parameters are assigned Gaussian process priors over the spatial grid, allowing borrowing of strength and posterior uncertainty quantification. Inference is carried out with a blocked MCMC sampler using pCN proposals and Kronecker-factored covariances. In a synthetic study with training resolutions up to 0.8 and target r=1, the method ('extraEmu') is compared with PCA+GAM, PCA+NNET, and per-cell GAM, and generally achieves lower or comparable MSE. Interpolative 95% coverage at r=0.1 is reported as near nominal. The method is illustrated on a Cassio radiation-hydrodynamics wave-front diagnostic, extrapolating five runs to an unobserved limiting resolution. The authors are explicit that the real-data illustration has no ground truth and that the monotone saturation assumption may be restrictive.

Significance. The proposed framework is coherent and, if its assumptions hold, would be a useful complement to expensive high-resolution simulations. The Bayesian construction is principled, the MCMC details (pCN updates, Kronecker covariance) are appropriate, and the synthetic benchmark is extensive and honestly reported. The MSE comparisons at r=1 are genuine out-of-sample extrapolations because fits use only r≤0.8; there is no leakage of the target into training. However, the benchmark's data generator is built from the same smooth saturating family as the model, and no misspecification stress test is reported; extrapolative coverage at r=1 is never evaluated. These gaps are load-bearing for the general claim, but they are addressable within the manuscript's scope.

major comments (3)
  1. [§3.1; §4; §6] The central extrapolation claim is carried by the growth model f(r;θ)=f_min+(B/k)(1−exp(−k(r−r0))). The synthetic data generator, Y(r)=(1−α(r))True+α(r)Bias+ε with α(r)=(1−r)^β, produces exactly the smooth, saturating resolution dependence this model can represent. Thus the benchmark is an in-family test, and the fact that extraEmu extrapolates well does not validate the general claim in the Abstract. The Discussion (§6) acknowledges that 'a single monotone curve in resolution may be too restrictive' and that structured intermediate-resolution effects can occur. I am not accusing leakage: fits use r≤0.8, so r=1 is a genuine extrapolation. But the method must be stress-tested under a different resolution-response family (e.g., change-point, non-saturating, or oscillatory bias) before the general claim is made.
  2. [§4.1; Fig. 5; §A.2] Uncertainty quantification is a stated advantage of the Bayesian approach, yet coverage is only reported at the interpolative point r=0.1 (Fig. 5 and Figs. 13–14). The text's 'primary focus' at r=1.0 is limited to MSE; no 95% interval coverage, interval width, or proper score at the extrapolation target is given. Since the synthetic design has a known true field at r=1, extrapolative coverage is easy to compute and is exactly the calibration property needed to support extrapolative use. Please report it, ideally stratified by training information and misspecification, and discuss any degradation.
  3. [§5; Fig. 8] The Cassio example is useful as a proof of concept, but it has no ground truth at the extrapolated resolution and only five resolution runs; the authors correctly present it as an illustration, not a validation. In the current manuscript, however, every quantitative claim about extrapolative accuracy rests on the synthetic study. Given Major Comment 1, the evidence for the method is therefore limited to one functional family. I ask that the Discussion's scope caveat be strengthened and, if possible, that the abstract/title not imply general extrapolation of 'spatially gridded simulation data' without qualification.
minor comments (7)
  1. [§3.1; §4] The growth model and the synthetic-data equation are unnumbered; number them to support cross-referencing and review.
  2. [§3.1] The minimum resolution r0 is fixed at zero in this paper. Clarify identifiability and interpretation if r0 is nonzero or estimated.
  3. [§5] The 'quadratically scaled resolution axis' is not defined. Specify the mapping from run index to r and explain what the limiting resolution represents.
  4. [References] The LaTeX control characters in 'Lamminp¨a¨a' are visible in the text; fix the encoding.
  5. [Fig. 7] The units of the effective radiation temperature (rev) and the exact threshold criterion ('exceeds 3') should be stated in the caption for reproducibility.
  6. [§A.3] Reconcile the model-selection rule: the text first says models within 0.1% of minimum SSR are retained, then says the 1 standard error rule is used. As written this is ambiguous.
  7. [General] No code or data availability statement is included. For a methods paper in this area, a reproducibility statement or link to code would strengthen the contribution.

Circularity Check

0 steps flagged

No significant circularity: the r=1 target is never used in training, and the main limitation is assumption alignment, not definitional reduction.

full rationale

The central claim is extrapolation from lower-resolution runs to r=1. Training data explicitly excludes the target: 'training data consists of subsets of the resolution grid {0.000,0.005,0.010, . . . ,1.000}, with high (every element), medium (every 10th element), or low (every 20th element) point density and with the maximum observed resolution ranging between 0.2 and 0.8' (Section 4). MSE at r=1.0 is evaluated out-of-sample, so the prediction is not statistically forced by a fitted target. The assumed functional form f(r;θ)=f_min+(B/k)(1-exp(-k(r-r0))) is a modeling assumption, not derived from the data; the synthetic data generator uses a smooth saturating bias α(r)=(1-r)^β, which is favorable to the model family, but this is a benchmark-design limitation, not a circular reduction. The paper explicitly acknowledges this: 'In some applications, one may see structured intermediate-resolution effects before the output settles into a shape that is amenable to the present growth model. In such cases, a single monotone curve in resolution may be too restrictive' (Section 6). The only relevant self-citation (Fryer et al. 2023, with overlapping co-author C. L. Fryer) appears in Section 2 as general motivation and is not load-bearing for the method or its evaluation. The Cassio illustration is explicitly presented as an illustration, not a validated extrapolation: 'the goal here is not formal benchmarking.' No equation reduces a prediction to a fitted input by construction, no uniqueness theorem is imported from the authors' prior work, and no known result is merely renamed. Score reflects only the minor, non-load-bearing self-citation.

Axiom & Free-Parameter Ledger

6 free parameters · 5 axioms · 0 invented entities

The central claim rests on the assumed exponential-saturation response curve and on synthetic data designed to share that shape. No new physical entities are introduced; the per-pixel parameters are estimated rather than hand-fitted, but the functional family and several tuning constants (soft-box bounds, wave-front threshold, resolution scaling) are chosen by the authors and are load-bearing for the extrapolation.

free parameters (6)
  • Soft-box interval bounds = [-2, 2]
    Hand-chosen bounds in Appendix A.1 on A_ij = B_ij/k_ij; penalizes increments outside the interval, affecting extrapolation strength.
  • Prior hyperparameters = half-t(3,3), half-normal(0,5), Gamma(1,0.01), Gamma(0.1,1e-4)
    Weakly informative priors in Appendix A.1; chosen by hand and influence shrinkage and uncertainty estimates.
  • Growth model fixed offset r0 = 0
    Set to zero in Section 3.1; fixes the minimum resolution point of the response curve.
  • Synthetic bias exponent β = {1.5, 2, 2.5}
    Simulation study parameter governing how quickly bias resolves; results are conditional on this family of bias shapes.
  • Cassio resolution axis scaling = quadratic
    Section 5 places the five runs on a quadratically scaled resolution axis; this scaling choice changes the meaning of the extrapolation target r=1.
  • Wave-front threshold = 3 (stored units)
    Section 5 defines the radiation front as the first vertical index where rev exceeds 3; the extracted diagnostic depends on this arbitrary threshold.
axioms (5)
  • ad hoc to paper Resolution response follows f(r;θ)=fmin + (B/k)(1-exp(-k(r-r0)))
    Central functional form in Section 3.1: a single monotone saturating curve in resolution. Not derived from physics; the Discussion admits it may be too restrictive.
  • ad hoc to paper Synthetic data generation Y(r)=(1-(1-r)^β)True + (1-r)^β Bias + ε with smooth GP fields
    Section 4: the test environment is constructed to mimic smooth resolution-dependent bias and spatial smoothness, which favors the model's assumptions.
  • domain assumption Shared noise variance σ² across pixels and resolutions
    Section 3.2 assumes homoskedastic residual variance; acknowledged as restrictive in the Discussion.
  • standard math Kronecker separability of GP covariance on rectangular grid
    Section 3.2 uses separable covariance factors on gridded designs; valid mathematically and used for computational efficiency.
  • standard math MCMC sampler converges to the posterior
    Section 3.3 and Appendix A.2 claim adequate mixing based on trace plots; no formal convergence diagnostics are provided.

pith-pipeline@v1.3.0-alltime-deepseek · 10004 in / 12683 out tokens · 97104 ms · 2026-08-01T09:35:49.873932+00:00 · methodology

0 comments
read the original abstract

We propose a Bayesian emulator for extrapolating spatially gridded simulation output across resolution. The method treats each pixel as following a nonlinear resolution-response curve, while linking pixels through Gaussian process priors on the curve parameters to preserve spatial structure and quantify uncertainty. In synthetic experiments designed to mimic resolution-dependent bias, the approach recovers the high-resolution target with competitive or improved accuracy relative to several alternative emulators, particularly in lower-information settings, while maintaining near-nominal interpolative coverage. We also illustrate the method on a radiation-hydrodynamics example from Cassio, where it is used to extrapolate a derived wave-front diagnostic beyond the finest observed simulation. These results suggest that spatially regularized resolution extrapolation can provide a useful statistical tool for studying high-fidelity behavior when direct simulation is expensive.

Figures

Figures reproduced from arXiv: 2607.20703 by Chris Danly, Christopher L. Fryer, Kelly R. Moran, Ky Potter.

Figure 1
Figure 1. Figure 1: The true matrix (left) and the bias pattern (right) samples for a single example [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Example of sampled values at entry [5, 7] across resolutions for the example [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: MSE across methods (extraEmu, PCA+GAM, PCA+NNET, per-cell GAM) for [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: MSE for extraEmu for predicting at r = 1.0 under simulations having β = 2.0. Shown are the median (horizontal line in each box) and interquartile range (the box spanning the 25th to 75th percentiles), vertical lines that extend to points within 1.5 times the IQR for each method and setting, and any outliers. As expected, MSE lowers with denser training points and with higher max observed resolution [PITH_… view at source ↗
Figure 5
Figure 5. Figure 5: Data coverage of extraEmu for predicting at [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Results for the example simulation introduced in Figures 1 and 2. The extraEmu [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Effective radiation temperature (rev) fields at selected saved times (rows) and observed resolutions (columns). The white curve marks the radiation front location used to construct the emulator input, defined at each horizontal location as the first vertical index at which rev exceeds 3. 15 [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Wave-front location images derived from the Cassio clump-test example across [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: MSE across methods (extraEmu, PCA+GAM, PCA+NNET, per-cell GAM) for [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: MSE for extraEmu for predicting at r = 1.0 under simulations having β = 1.5. As expected, MSE lowers with denser training points and with higher max observed resolution. 21 [PITH_FULL_IMAGE:figures/full_fig_p021_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: MSE across methods (extraEmu, PCA+GAM, PCA+NNET, per-cell GAM) for [PITH_FULL_IMAGE:figures/full_fig_p022_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: MSE for extraEmu for predicting at r = 1.0 under simulations having β = 2.5. As expected, MSE lowers with denser training points and with higher max observed resolution. 22 [PITH_FULL_IMAGE:figures/full_fig_p022_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Data coverage of extraEmu for predicting at [PITH_FULL_IMAGE:figures/full_fig_p023_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Data coverage of extraEmu for predicting at [PITH_FULL_IMAGE:figures/full_fig_p023_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Trace plots of Y pred ij (1) at select grid locations. 24 [PITH_FULL_IMAGE:figures/full_fig_p024_15.png] view at source ↗
Figure 16

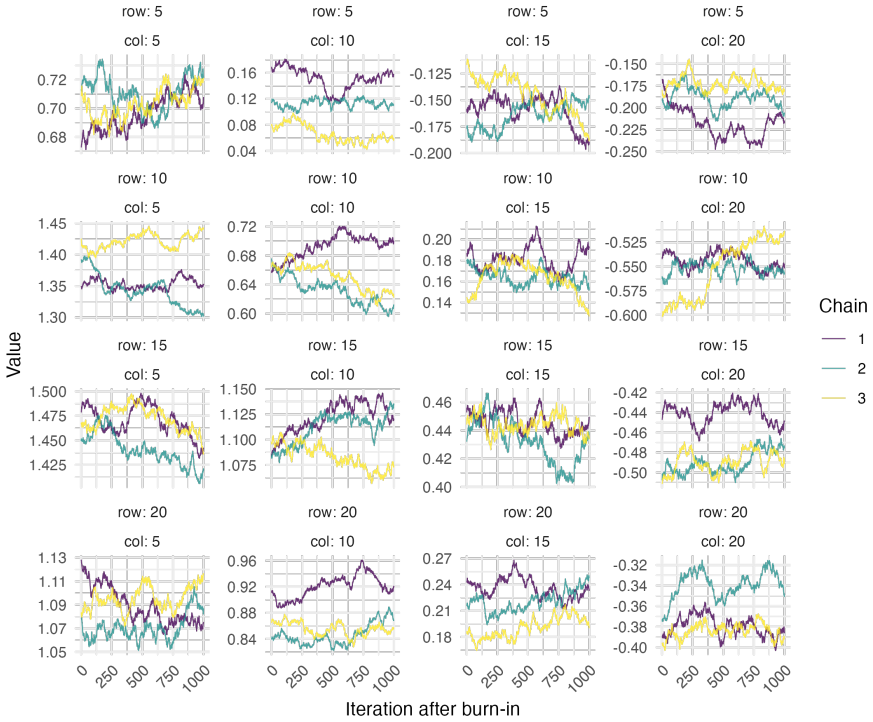

Figure 16. Figure 16: Trace plots of f at select grid locations. 25 [PITH_FULL_IMAGE:figures/full_fig_p025_16.png] view at source ↗
Figure 17

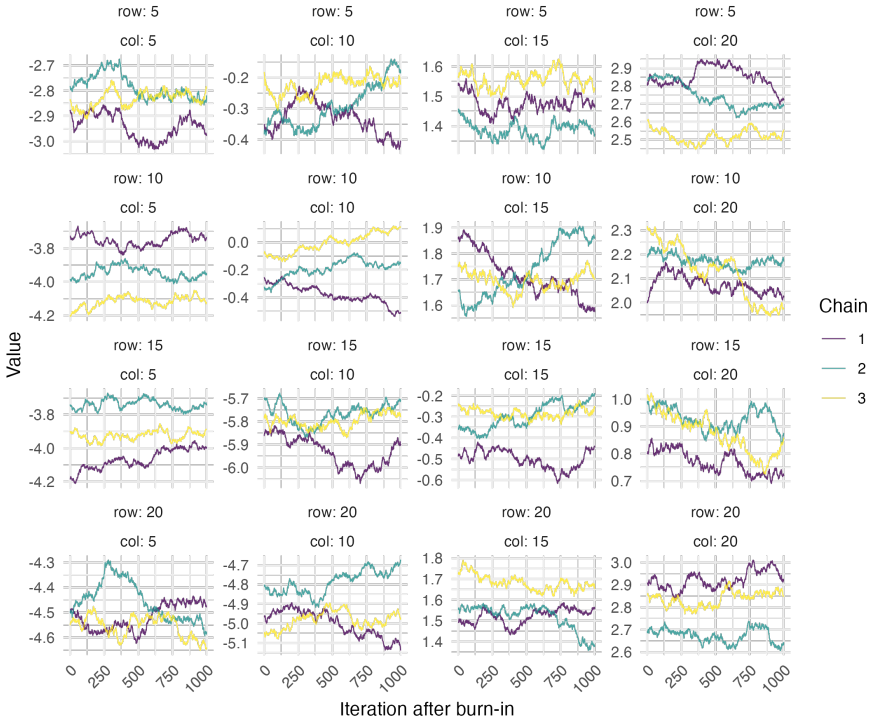

Figure 17. Figure 17: Trace plots of B at select grid locations. 26 [PITH_FULL_IMAGE:figures/full_fig_p026_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Trace plots of k at select grid locations. 27 [PITH_FULL_IMAGE:figures/full_fig_p027_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Trace plots of the GP hyperparameters associated with [PITH_FULL_IMAGE:figures/full_fig_p028_19.png] view at source ↗
Figure 20

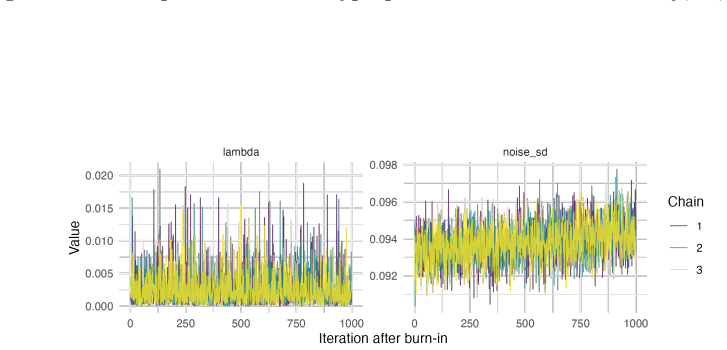

Figure 20. Figure 20: Trace plots of σ and λk. 28 [PITH_FULL_IMAGE:figures/full_fig_p028_20.png] view at source ↗
