On the origin of the unusual strain morphologies and polar Moir\'e patterns in twisted ferroelectrics

Sergey Prosandeev , Charles Paillard , Laurent Bellaiche This is my paper

Pith reviewed 2026-05-21 17:23 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords twisted ferroelectricsBaTiO3 bilayersshear strainMoiré patternselectric dipolesvortices and antivorticesacoustic forcesfirst-principles calculations
0
0 comments X

The pith

In twisted BaTiO3 bilayers, acoustic forces generate shear strain standing waves whose gradient couples to electric dipoles to form a Moiré pattern of vortices and antivortices.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper performs density functional theory calculations on twisted ferroelectric bilayers to trace the source of their complex shear strain shapes and polar Moiré structures. It shows that forces tied to acoustic motions create standing waves in the shear strain. These waves produce a strain gradient that interacts with the electric dipoles, resulting in interpenetrated arrays of vortices and antivortices. The analysis also indicates that forces linked to optical phonons play a lesser role in shaping these patterns.

Core claim

Density functional theory calculations, together with a decomposition of forces into acoustic and optical contributions, show that forces acting mostly on acoustic-related motions produce standing waves of the shear strain. Such waves naturally generate a self-organization of the shear strains and a peculiar gradient of these strains. A Moiré dipole pattern consisting of interpenetrated arrays of vortices and antivortices made of the electric dipoles then mostly arises due to the coupling of this gradient of the shear strain with the electric dipoles, while forces acting on optical-phonon motions play a smaller role.

What carries the argument

Decomposition of forces into acoustic-related and optical-phonon-related contributions that isolates the dominant mechanism producing standing shear-strain waves and the resulting dipole pattern.

If this is right

  • Acoustic forces are the primary driver of the self-organized shear strain morphologies in twisted ferroelectric bilayers.
  • The gradient of shear strain couples directly with electric dipoles to create the observed Moiré pattern of vortices and antivortices.
  • Optical-phonon forces contribute to the polar vortices and antivortices but only to a limited degree.
  • Comparable strain and dipole patterns are expected in other twisted ferroelectric materials when similar acoustic mechanisms operate.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Controlling the twist angle may offer a way to engineer specific dipole vortex patterns for potential use in ferroelectric devices.
  • External electric fields could be tested to see whether they modulate the acoustic waves and thereby alter the Moiré dipole arrangement.
  • The strain-gradient mechanism may connect to topological features seen in other two-dimensional layered systems.

Load-bearing premise

Splitting the forces into those linked to acoustic motions versus those linked to optical motions correctly identifies what mainly causes the shear strain waves and the dipole patterns.

What would settle it

A simulation that applies the same twist but uses a different force decomposition or boundary conditions and fails to produce the observed standing shear-strain waves or the Moiré dipole pattern would challenge the proposed origin.

Figures

Figures reproduced from arXiv: 2512.14633 by Charles Paillard, Laurent Bellaiche, Sergey Prosandeev.

Figure 1
Figure 1. Figure 1: FIG. 1. (Color online) Forces centered on the Ti ions in the bottom atomic layer of the BTO [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (Color online) Map in a (x,y) plane of the shear strain morphology from Eq. (7) (panel a), [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
read the original abstract

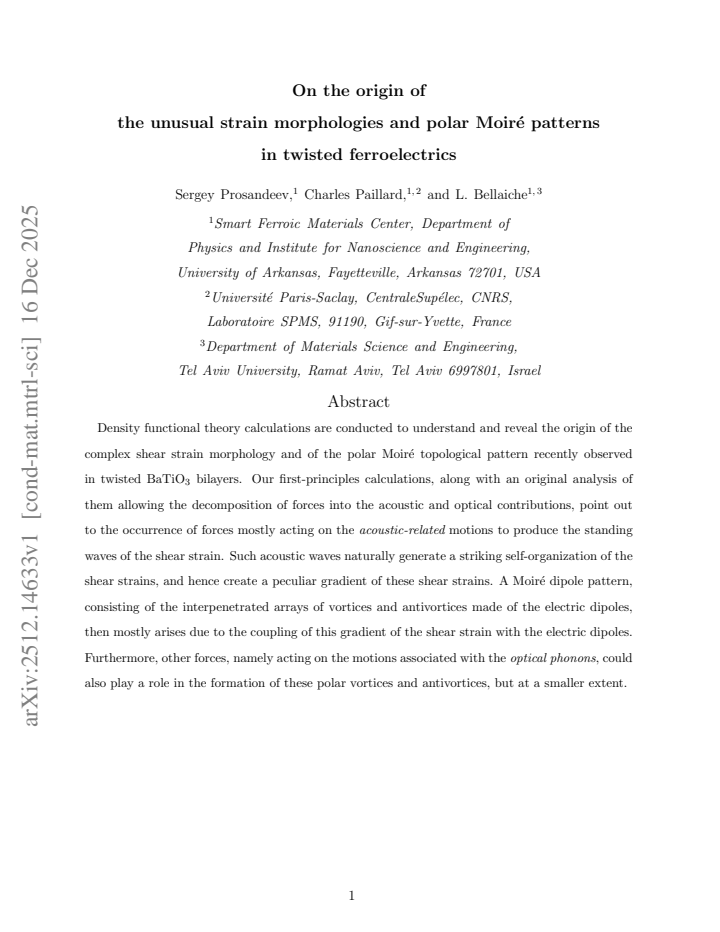

Density functional theory calculations are conducted to understand and reveal the origin of the complex shear strain morphology and of the polar Moir\'e topological pattern recently observed in twisted BaTiO$_3$ bilayers. Our first-principles calculations, along with an original analysis of them allowing the decomposition of forces into the acoustic and optical contributions, point out to the occurrence of forces mostly acting on the {\it acoustic-related} motions to produce the standing waves of the shear strain. Such acoustic waves naturally generate a striking self-organization of the shear strains, and hence create a peculiar gradient of these shear strains. A Moir\'e dipole pattern, consisting of the interpenetrated arrays of vortices and antivortices made of the electric dipoles, then mostly arises due to the coupling of this gradient of the shear strain with the electric dipoles. Furthermore, other forces, namely acting on the motions associated with the {\it optical phonons}, could also play a role in the formation of these polar vortices and antivortices, but at a smaller extent.
