Fast Algorithms for Surface Reconstruction from Point Cloud

Yuchen He , Martin Huska , Sung Ha Kang , Hao Liu This is my paper

Pith reviewed 2026-05-25 11:19 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.OC
keywords surface reconstructionpoint cloudlevel setsemi-implicit methodaugmented Lagrangian methodminimum surface energy
0
0 comments X

The pith

Semi-implicit and augmented Lagrangian methods accelerate surface reconstruction from point clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops two algorithms to efficiently minimize the weighted minimum surface energy functional for reconstructing surfaces from point clouds. The semi-implicit method relaxes the time-step restriction of explicit schemes, allowing larger steps in the level-set evolution. The augmented Lagrangian method reformulates the problem and solves it with an ADMM-style splitting where subproblems are handled efficiently. Numerical tests demonstrate that both approaches achieve accurate reconstructions in less time than standard methods. A reader would care because faster surface reconstruction enables better performance in applications like 3D modeling and computer graphics.

Core claim

The semi-implicit method and the augmented Lagrangian method both efficiently minimize the weighted minimum surface energy functional, with the former relaxing time-step constraints and the latter using alternating direction splitting to reduce runtime, while maintaining accuracy in surface reconstruction from point cloud data.

What carries the argument

The weighted minimum surface energy functional minimized via semi-implicit time stepping or augmented Lagrangian with ADMM-type subproblem solving.

If this is right

  • The semi-implicit scheme permits larger time steps without instability, speeding up the level-set evolution process.
  • The ALM approach decomposes the optimization into simpler sub-problems that can be solved quickly.
  • Analysis of parameters reveals their impact on the evolution and links the two methods.
  • Numerical examples confirm both methods produce accurate surfaces efficiently.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the methods reach the same energy minimizer, they may be interchangeable or combinable depending on problem size.
  • These solvers could extend to other variational problems involving surface energies in imaging.
  • Testing on noisy or incomplete point clouds would show robustness beyond the presented examples.

Load-bearing premise

The weighted minimum surface energy functional is the appropriate objective for faithful surface reconstruction from the point cloud, and the solvers converge to its minimizer without bias or artifacts.

What would settle it

Observing that the reconstructed surfaces from the new methods differ significantly from those of the original method or fail to match known ground-truth shapes on test data would indicate the claim is not holding.

Figures

Figures reproduced from arXiv: 1907.01142 by Hao Liu, Martin Huska, Sung Ha Kang, Yuchen He.

Figure 1

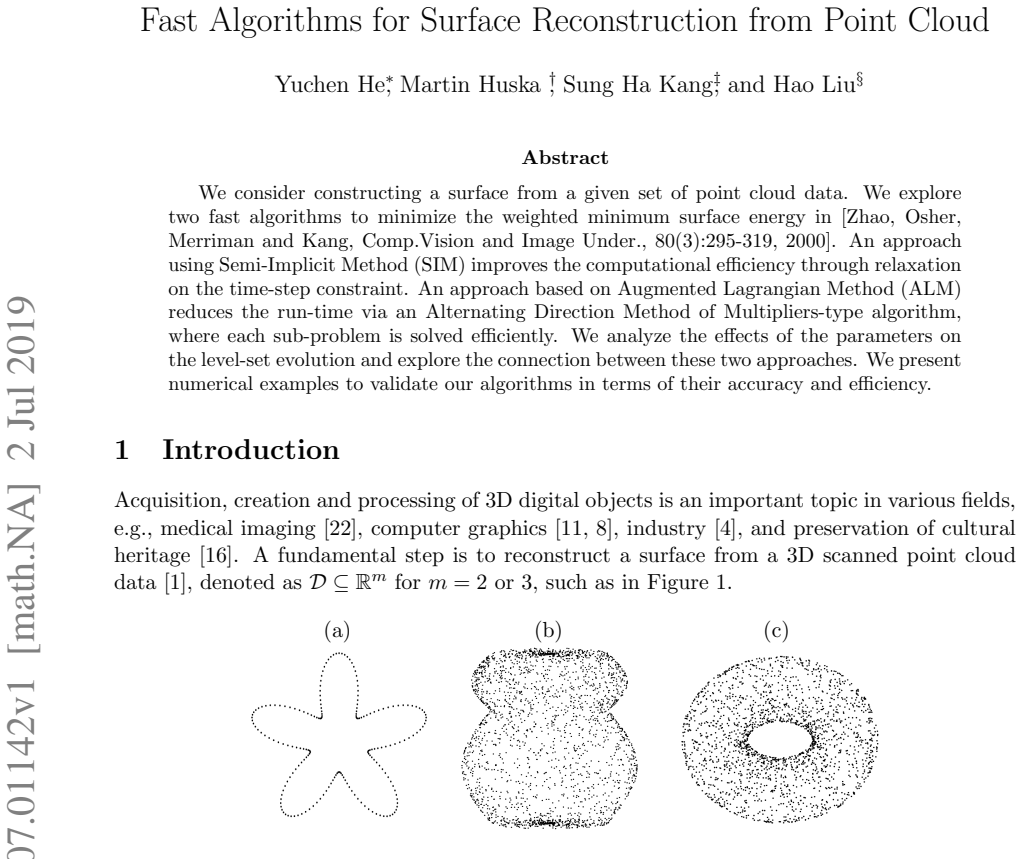

Figure 1. Figure 1: Test point clouds. (a) Five-fold circle (200 points). (b) Jar (2100 points). (c) Torus [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

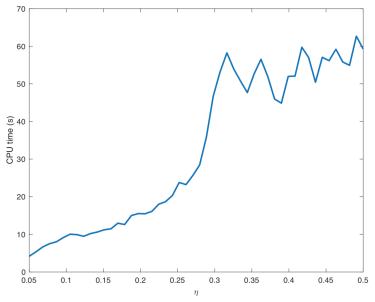

Figure 2. Figure 2: The CPU-time (s) of ALM until convergence, for the five-fold circle point cloud in [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

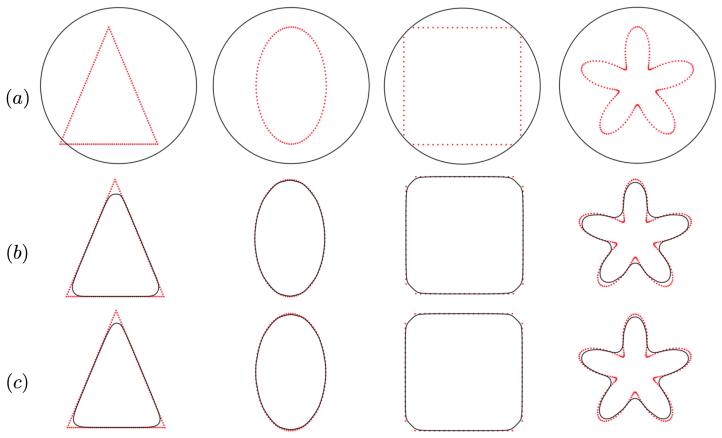

Figure 3. Figure 3: The test point clouds: triangle with 150 number of points, ellipse with 100 points, [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

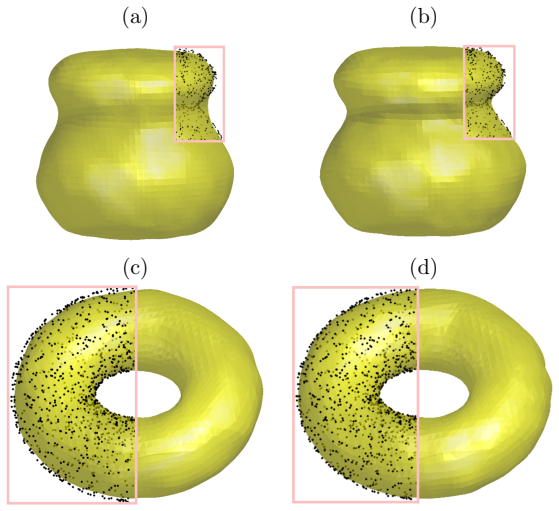

Figure 4. Figure 4: The first row shows ALM and SIM applied to the 3D jar point cloud in Figure 1 (b). [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5

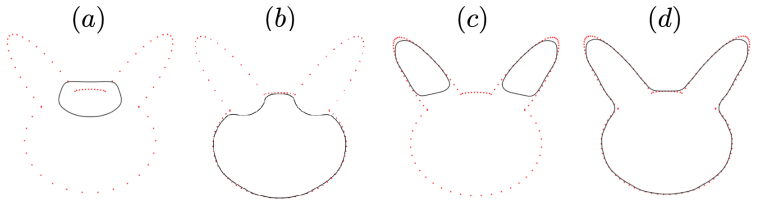

Figure 5. Figure 5: The effect of the distance function for varying-density point clouds: the face with [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6

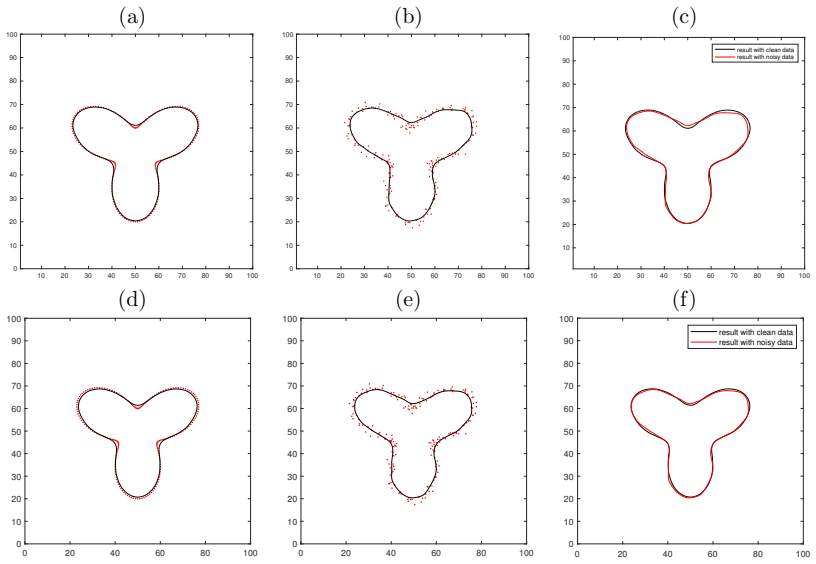

Figure 6. Figure 6: The influence of noise on reconstructing three-fold circle with 200 points: (a)-(c) [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7

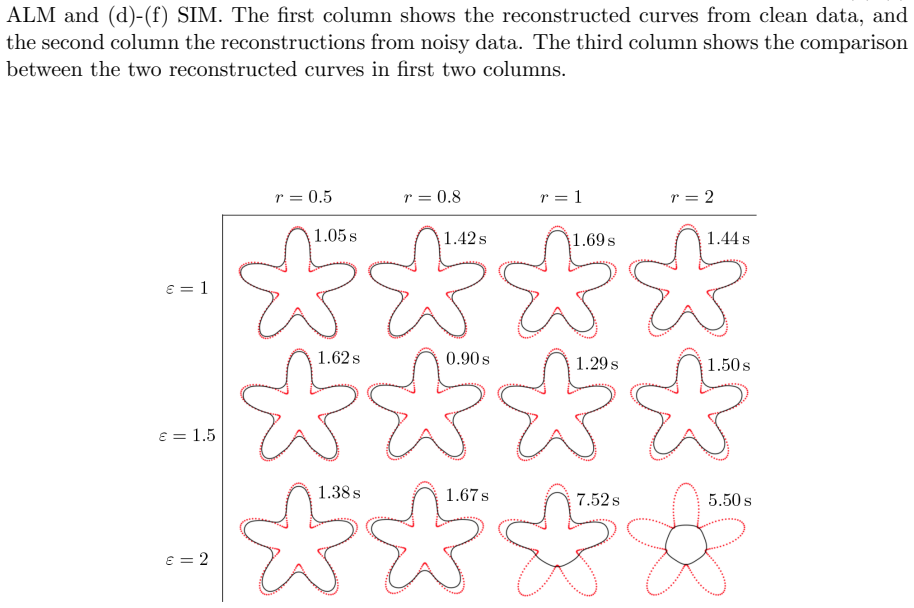

Figure 7. Figure 7: Results by ALM with different r and ε. For each column, from top to bottom, ε = 1, 1.5, 2; and for each row, from left to right, r = 0.5, 0.8, 1, 2. Increasing ε renders the curve less sharp and more convex. Increasing r induces a stronger diffusion effect on φ n . 11 [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

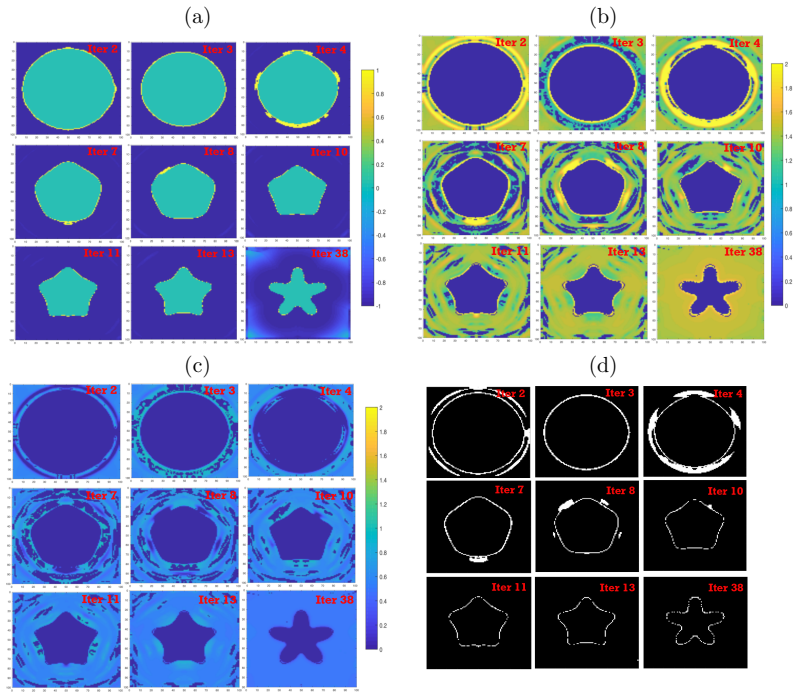

Figure 8. Figure 8: (a) Disc Qn , (b) r n U , (c) r n L at certain iterations. (d) The region (in white) where d explicitly guides the level-set evolution by ALM. The distance function d refines the local structures and it is only active near {φ n = 0}. This partially explains the efficiency of ALM. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗
read the original abstract

We consider constructing a surface from a given set of point cloud data. We explore two fast algorithms to minimize the weighted minimum surface energy in [Zhao, Osher, Merriman and Kang, Comp.Vision and Image Under., 80(3):295-319, 2000]. An approach using Semi-Implicit Method (SIM) improves the computational efficiency through relaxation on the time-step constraint. An approach based on Augmented Lagrangian Method (ALM) reduces the run-time via an Alternating Direction Method of Multipliers-type algorithm, where each sub-problem is solved efficiently. We analyze the effects of the parameters on the level-set evolution and explore the connection between these two approaches. We present numerical examples to validate our algorithms in terms of their accuracy and efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper proposes two fast algorithms to minimize the weighted minimum surface energy functional from Zhao et al. (2000) for surface reconstruction from point clouds: a Semi-Implicit Method (SIM) that relaxes the time-step constraint for improved efficiency, and an Augmented Lagrangian Method (ALM) that uses an ADMM-type splitting where subproblems are solved efficiently. It analyzes the effects of parameters on level-set evolution, explores connections between the two approaches, and presents numerical examples to validate accuracy and efficiency.

Significance. If the SIM and ALM solvers are shown to converge to the identical minimizer of the Zhao et al. (2000) energy without bias or artifacts, the work would offer practical computational improvements for level-set surface reconstruction, a standard technique in computer vision and image processing. The parameter analysis and method connection could also inform solver design for related variational problems.

major comments (3)
  1. [Abstract and numerical examples section] Abstract and numerical examples section: the claim that the methods produce faithful reconstructions is load-bearing, yet no direct quantitative comparison (e.g., final energy values, Hausdorff distance, or surface difference metrics) to the original Zhao et al. (2000) evolution is provided to confirm that the relaxed time-step in SIM or the ADMM splitting in ALM reaches the same minimizer.
  2. [Parameter analysis section] Parameter analysis section: while effects of parameters on level-set evolution are discussed, the manuscript supplies neither convergence rates nor error bounds demonstrating that the modified evolution equations preserve the minimizer of the weighted minimum surface energy without introducing bias; this verification is required to support the efficiency claims.
  3. [Connection between SIM and ALM] Connection between SIM and ALM: the claimed connection is presented without a rigorous equivalence proof or numerical check that both methods yield equivalent reconstructions for the same point-cloud inputs, which is central to treating them as interchangeable fast alternatives.
minor comments (3)
  1. [Introduction] The energy functional from Zhao et al. (2000) should be restated explicitly (including the weighting term) in the introduction or methods section for self-contained reading.
  2. [Numerical examples] Figure captions and axis labels in the numerical examples could be expanded to include the specific parameter values used for each run.
  3. [Methods] A brief statement on the stopping criteria for the iterative solvers would improve reproducibility.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive comments highlighting the need for stronger validation that our methods reach the same minimizer as the original Zhao et al. (2000) evolution. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract and numerical examples section] Abstract and numerical examples section: the claim that the methods produce faithful reconstructions is load-bearing, yet no direct quantitative comparison (e.g., final energy values, Hausdorff distance, or surface difference metrics) to the original Zhao et al. (2000) evolution is provided to confirm that the relaxed time-step in SIM or the ADMM splitting in ALM reaches the same minimizer.

    Authors: We agree that direct quantitative comparisons are needed to substantiate the claim of faithful reconstructions. The current examples emphasize visual results and runtime, but we will add tables comparing final energy values and Hausdorff distances to the original Zhao et al. evolution in the revised manuscript. revision: yes

  2. Referee: [Parameter analysis section] Parameter analysis section: while effects of parameters on level-set evolution are discussed, the manuscript supplies neither convergence rates nor error bounds demonstrating that the modified evolution equations preserve the minimizer of the weighted minimum surface energy without introducing bias; this verification is required to support the efficiency claims.

    Authors: The parameter section provides numerical observations on evolution behavior but does not derive convergence rates or error bounds. Such analysis lies outside the paper's algorithmic focus and would require substantial new theoretical development; we do not plan to add it. revision: no

  3. Referee: [Connection between SIM and ALM] Connection between SIM and ALM: the claimed connection is presented without a rigorous equivalence proof or numerical check that both methods yield equivalent reconstructions for the same point-cloud inputs, which is central to treating them as interchangeable fast alternatives.

    Authors: The connection is motivated by the shared energy functional and illustrated numerically. We will add side-by-side numerical comparisons of the final surfaces and energies produced by SIM and ALM on the same inputs to verify practical equivalence. revision: partial

standing simulated objections not resolved
  • Rigorous mathematical proof that the modified schemes converge to the identical minimizer without bias or artifacts

Circularity Check

0 steps flagged

No circularity; solvers for externally defined energy

full rationale

The paper proposes SIM and ALM numerical schemes to minimize the weighted minimum surface energy functional taken directly from the 2000 Zhao et al. reference. All claimed improvements (relaxed time-step constraints, ADMM splitting, parameter analysis, and connection between the two methods) are algorithmic and are validated on numerical examples against that fixed external objective. No step redefines the target energy in terms of the solver output, renames a fitted quantity as a prediction, or relies on a self-citation chain for the central claim. The 2000 citation supplies an independent benchmark rather than a load-bearing uniqueness theorem or ansatz.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the suitability of the 2000 energy functional and on the assumption that the new solvers accurately minimize it; no free parameters, invented entities, or additional axioms are visible in the abstract.

axioms (1)
  • domain assumption The weighted minimum surface energy from Zhao et al. (2000) is the correct objective for point-cloud surface reconstruction.
    The paper takes this functional as given and focuses on faster minimization.
