Machine learning without a feature set for detecting bursts in the EEG of preterm infants

Geraldine B. Boylan; John M. O'Toole

arxiv: 1907.06943 · v1 · pith:4MAHWP6Knew · submitted 2019-07-16 · 📡 eess.SP · cs.LG· physics.med-ph

Machine learning without a feature set for detecting bursts in the EEG of preterm infants

John M. O'Toole , Geraldine B. Boylan This is my paper

Pith reviewed 2026-05-24 20:39 UTC · model grok-4.3

classification 📡 eess.SP cs.LGphysics.med-ph

keywords EEG burst detectionpreterm infantsgradient boostingtime-frequency analysisfeature-free machine learningneonatal EEG

0 comments

The pith

A gradient boosting method applied to time-frequency slices of preterm EEG detects bursts as accurately as multi-feature approaches without any hand-designed feature set.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a framework for detecting bursts in EEG recordings from preterm infants that transforms the raw signal into the time-frequency domain and then applies gradient boosting to each individual time slice. This avoids the need to manually construct any feature set or to use deep neural networks. On data from infants born before 30 weeks gestation, the method reaches an area under the curve of 0.98, with median sensitivity of 95 percent and specificity of 94 percent, matching the performance of an existing expert-designed multi-feature detector. The approach also incorporates a control for oversampling that cuts memory and computation to less than one percent of the naive implementation. The authors position the framework as a simpler, more efficient alternative for cases where domain knowledge for features is limited or unavailable.

Core claim

The central claim is that the time-frequency representation of the EEG, when fed slice-by-slice into a gradient boosting machine, contains sufficient information to detect bursts in preterm infants at the same accuracy level as a multi-feature expert system, while requiring far less manual engineering and computational resources.

What carries the argument

Gradient boosting trained independently on each time slice of the time-frequency distribution of the EEG signal, with an explicit reduction step to control oversampling.

If this is right

Detection accuracy reaches an AUC of 0.98 with 95 percent median sensitivity and 94 percent median specificity, matching existing multi-feature methods.
Memory and computational demands drop by more than 99 percent through the controlled oversampling step.
The method serves as a direct alternative both to deep neural networks and to manual feature engineering for this task.
The framework applies to any time-series detection problem where a time-frequency view can be formed without additional domain-specific feature design.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The slice-wise approach could shorten development time for burst or event detectors in other neonatal or adult EEG applications by removing the need for iterative feature selection.
Because each time slice is handled separately, the method lends itself to streaming or low-latency implementations in bedside monitors.
If the same slice-wise gradient boosting pattern works on other biomedical signals such as ECG or EMG, it would reduce reliance on domain experts for initial detector design.

Load-bearing premise

The time-frequency representation alone, when processed slice-by-slice with gradient boosting, already holds all the information required to match the accuracy of a detector built from multiple expert-designed features.

What would settle it

Running the method on a fresh, independent cohort of preterm EEG recordings and finding the area under the curve falls below 0.90 or median sensitivity drops below 85 percent would falsify the claim of comparable performance.

Figures

Figures reproduced from arXiv: 1907.06943 by Geraldine B. Boylan, John M. O'Toole.

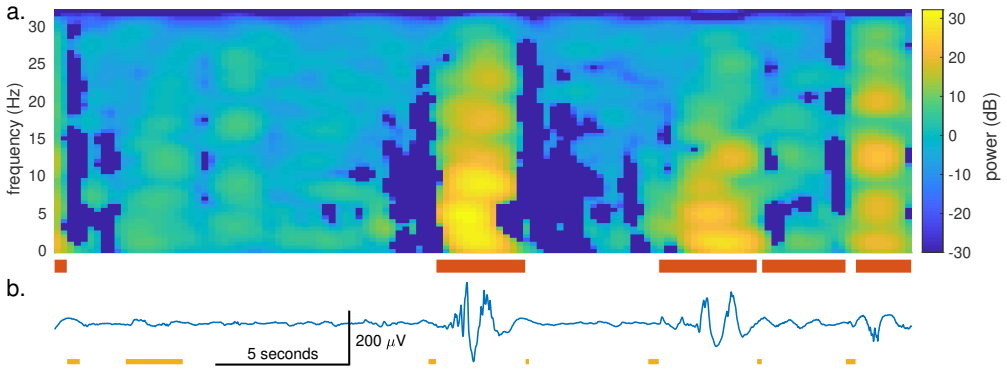

**Figure 1.** Figure 1: Time–frequency distribution (TFD) in (a) generated from EEG epoch in (b) containing bursts and inter-bursts. Thick [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗

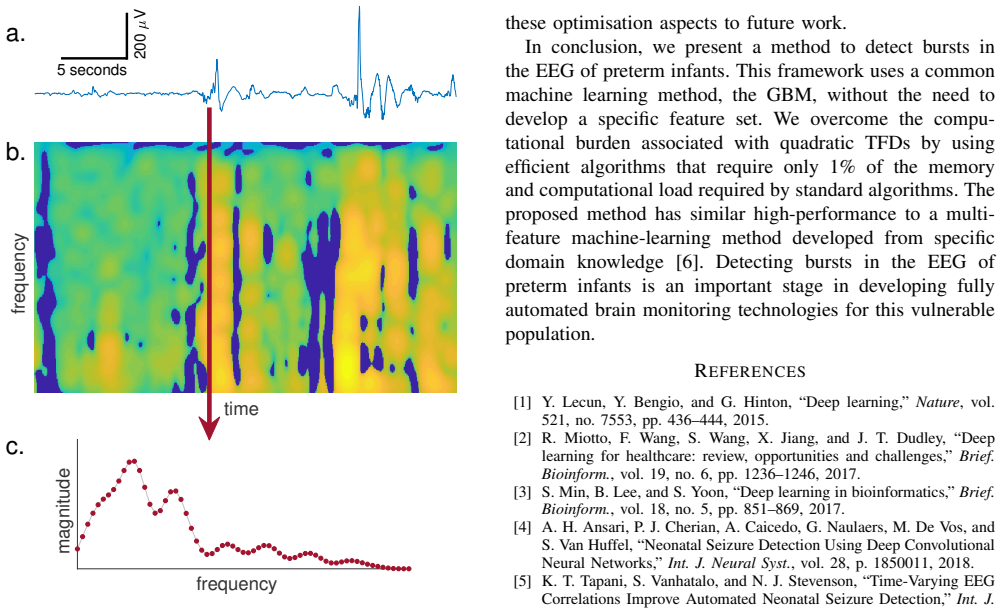

**Figure 2.** Figure 2: Time-slice in (c) of the time–frequency distribution [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

read the original abstract

Deep neural networks enable learning directly on the data without the domain knowledge needed to construct a feature set. This approach has been extremely successful in almost all machine learning applications. We propose a new framework that also learns directly from the data, without extracting a feature set. We apply this framework to detecting bursts in the EEG of premature infants. The EEG is recorded within days of birth in a cohort of infants without significant brain injury and born <30 weeks of gestation. The method first transforms the time-domain signal to the time--frequency domain and then trains a machine learning method, a gradient boosting machine, on each time-slice of the time--frequency distribution. We control for oversampling the time--frequency distribution with a significant reduction (<1%) in memory and computational complexity. The proposed method achieves similar accuracy to an existing multi-feature approach: area under the characteristic curve of 0.98 (with 95% confidence interval of 0.96 to 0.99), with a median sensitivity of 95% and median specificity of 94%. The proposed framework presents an accurate, simple, and computational efficient implementation as an alternative to both the deep learning approach and to the manual generation of a feature set.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows a simple time-frequency plus per-slice GBM pipeline that matches a multi-feature baseline on preterm EEG burst detection, but the validation details are too thin to assess robustness.

read the letter

The main point is a practical pipeline: convert the EEG to a time-frequency distribution, then run gradient boosting on each time slice independently to label bursts. It reports an AUC of 0.98 (0.96-0.99) with median sensitivity 95% and specificity 94%, matching an existing multi-feature detector while cutting memory and compute by controlling oversampling. This avoids both hand-engineered features and the complexity of deep nets, which is a clear engineering win for this narrow clinical task. The efficiency reduction is concrete and useful for real-time or resource-limited settings. The numbers come with a confidence interval, which is better than many similar abstracts. The framework is positioned as a general alternative, and that framing fits the scope. The soft spots are the missing validation specifics and the modeling choice. The abstract gives performance numbers but no information on data splits, subject-wise cross-validation, or the exact comparison protocol to the baseline, so the equivalence claim cannot be checked for reproducibility or overfitting. Treating slices independently also skips any explicit temporal features such as burst duration or inter-burst intervals that expert detectors commonly include; if the paper does not test whether the per-slice spectral content alone is sufficient or run an ablation against a sequence model, the good numbers may be tied to this particular cohort of infants without major injury rather than a general result. This paper is for engineers and clinicians working on automated neonatal EEG analysis who need something lightweight to implement. A reader focused on practical biomedical signal processing would get value from the pipeline once the methods section supplies the missing reproducibility details. It deserves peer review because the core idea is straightforward, the performance numbers are specific enough to test, and the task matters in its domain even if revisions will be needed on validation and temporal assumptions.

Referee Report

2 major / 2 minor

Summary. The paper proposes a framework for burst detection in preterm infant EEG that transforms the time-domain signal to a time-frequency representation and applies a gradient boosting machine independently to each time slice of the distribution. It claims this achieves performance equivalent to an existing multi-feature detector, with AUC 0.98 (95% CI 0.96-0.99), median sensitivity 95%, and median specificity 94%, while avoiding manual feature engineering and deep learning, and with reduced computational cost via oversampling control.

Significance. If validated, the result would demonstrate that a simple per-slice TF+GBM pipeline can match expert-designed multi-feature detectors for this task, offering a low-complexity alternative that reduces reliance on domain knowledge for feature construction. The reported memory/complexity reduction (<1%) is a concrete practical strength.

major comments (2)

[Methods/Results] Methods/Results: The manuscript provides no description of the data partitioning, cross-validation folds, or exact protocol used to compute and compare the AUC, sensitivity, and specificity against the multi-feature baseline (including whether the baseline was re-implemented on the same splits). This detail is load-bearing for the central equivalence claim.
[Methods] Methods: The per-slice GBM design omits any cross-slice or sequence-level features (e.g., burst duration or inter-burst interval continuity). No ablation study or analysis tests whether temporal dependencies are implicitly captured or whether performance would hold on datasets where such features are critical, leaving the weakest assumption unexamined.

minor comments (2)

[Abstract] Abstract and text: The phrase 'area under the characteristic curve' should be corrected to 'area under the receiver operating characteristic curve' for standard terminology.
[Introduction/Methods] The manuscript should include a reference or brief description of the 'existing multi-feature approach' used for comparison to allow readers to assess the baseline.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive review. We address each major comment below. Where the manuscript is incomplete, we will revise accordingly.

read point-by-point responses

Referee: [Methods/Results] Methods/Results: The manuscript provides no description of the data partitioning, cross-validation folds, or exact protocol used to compute and compare the AUC, sensitivity, and specificity against the multi-feature baseline (including whether the baseline was re-implemented on the same splits). This detail is load-bearing for the central equivalence claim.

Authors: We agree that the absence of these details weakens the central claim. The original manuscript omitted a description of the partitioning protocol. In revision we will add a Methods subsection that specifies the cross-validation scheme (subject-wise partitioning), the number of folds, how AUC/sensitivity/specificity were aggregated, and explicit confirmation that the multi-feature baseline was re-run on identical splits. This will make the equivalence result reproducible and address the referee's concern directly. revision: yes
Referee: [Methods] Methods: The per-slice GBM design omits any cross-slice or sequence-level features (e.g., burst duration or inter-burst interval continuity). No ablation study or analysis tests whether temporal dependencies are implicitly captured or whether performance would hold on datasets where such features are critical, leaving the weakest assumption unexamined.

Authors: The framework is deliberately per-slice to avoid manual sequence features. On the reported preterm EEG cohort the per-slice model already reaches AUC 0.98, indicating that slice-wise time-frequency patterns suffice for this population. We did not conduct an ablation on temporal continuity because the study focus was on removing feature engineering rather than comparing against sequence models. We will add a short discussion paragraph acknowledging that the approach may require augmentation on datasets where burst-duration statistics are decisive, but we maintain that the current design meets the paper's stated goal of a low-complexity, feature-free alternative. revision: partial

Circularity Check

0 steps flagged

No significant circularity; empirical ML pipeline compared to external baseline

full rationale

The paper applies a standard time-frequency transform followed by independent per-slice gradient boosting classification to EEG data and reports empirical performance (AUC 0.98) against an external multi-feature detector. No equations, derivations, or self-citations reduce the reported metrics or method to fitted parameters or inputs by construction. The central claim rests on direct data-driven evaluation rather than any self-referential reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on the domain assumption that time-frequency slices are independent and sufficient; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)

domain assumption Time-frequency representation preserves all burst-relevant information without loss relative to expert features.
Invoked by the choice to train only on time-frequency slices rather than raw time series or additional features.

pith-pipeline@v0.9.0 · 5754 in / 1102 out tokens · 42919 ms · 2026-05-24T20:39:20.946831+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages

[1]

Deep learning,

Y . Lecun, Y . Bengio, and G. Hinton, “Deep learning,” Nature, vol. 521, no. 7553, pp. 436–444, 2015

work page 2015
[2]

Deep learning for healthcare: review, opportunities and challenges,

R. Miotto, F. Wang, S. Wang, X. Jiang, and J. T. Dudley, “Deep learning for healthcare: review, opportunities and challenges,” Brief. Bioinform., vol. 19, no. 6, pp. 1236–1246, 2017

work page 2017
[3]

Deep learning in bioinformatics,

S. Min, B. Lee, and S. Yoon, “Deep learning in bioinformatics,” Brief. Bioinform., vol. 18, no. 5, pp. 851–869, 2017

work page 2017
[4]

Neonatal Seizure Detection Using Deep Convolutional Neural Networks,

A. H. Ansari, P. J. Cherian, A. Caicedo, G. Naulaers, M. De V os, and S. Van Huffel, “Neonatal Seizure Detection Using Deep Convolutional Neural Networks,” Int. J. Neural Syst. , vol. 28, p. 1850011, 2018

work page 2018
[5]

Time-Varying EEG Correlations Improve Automated Neonatal Seizure Detection,

K. T. Tapani, S. Vanhatalo, and N. J. Stevenson, “Time-Varying EEG Correlations Improve Automated Neonatal Seizure Detection,” Int. J. Neural Syst. , p. 1850030, 2018

work page 2018
[6]

Detecting bursts in the EEG of very and extremely premature infants using a multi-feature approach,

J. M. O’Toole, G. B. Boylan, R. O. Lloyd, R. M. Goulding, S. Van- hatalo, and N. J. Stevenson, “Detecting bursts in the EEG of very and extremely premature infants using a multi-feature approach,” Med. Eng. Phys. , vol. 45, pp. 42–50, 2017

work page 2017
[7]

A review of important EEG features for the assessment of brain maturation in premature infants,

E. Pavlidis, R. O. Lloyd, S. Mathieson, and G. B. Boylan, “A review of important EEG features for the assessment of brain maturation in premature infants,” Acta Paediatr ., vol. 38, no. 1, pp. 42–49, 2017

work page 2017
[8]

Estimating functional brain maturity in very and extremely preterm neonates using automated analysis of the electroencephalogram,

J. M. O’Toole, G. B. Boylan, S. Vanhatalo, and N. J. Stevenson, “Estimating functional brain maturity in very and extremely preterm neonates using automated analysis of the electroencephalogram,” Clin. Neurophysiol., vol. 127, no. 8, pp. 2910–2918, 2016

work page 2016
[9]

Time–frequency processing of nonstationary signals: advanced TFD design to aid diagnosis with highlights from medical applications,

B. Boashash, G. Azemi, and J. M. O’ Toole, “Time–frequency processing of nonstationary signals: advanced TFD design to aid diagnosis with highlights from medical applications,” IEEE Signal Process. Mag., vol. 30, no. 6, pp. 108–119, 2013

work page 2013
[10]

A new discrete analytic signal for reducing aliasing in the discrete Wigner–Ville distribution,

J. M. O’ Toole, M. Mesbah, and B. Boashash, “A new discrete analytic signal for reducing aliasing in the discrete Wigner–Ville distribution,” IEEE Trans. Signal Process. , vol. 56, no. 11, pp. 5427–5434, 2008

work page 2008
[11]

Fast and memory-efﬁcient algo- rithms for computing quadratic time–frequency distributions,

J. M. O’ Toole and B. Boashash, “Fast and memory-efﬁcient algo- rithms for computing quadratic time–frequency distributions,” Appl. Comput. Harmon. Anal. , vol. 35, no. 2, pp. 350–358, 2013

work page 2013
[12]

Memory-Efﬁcient Algorithms for Quadratic TFDs,

——, “Memory-Efﬁcient Algorithms for Quadratic TFDs,” in Time– Frequency Signal Analysis and Processing , 2nd ed., B. Boualem, Ed. Academic Press, 2016, ch. 6.6, pp. 374–385

work page 2016
[13]

Greedy function aproximation: A gradient boost- ing machine,

B. J. H. Friedman, “Greedy function aproximation: A gradient boost- ing machine,” Ann. Stat. , vol. 29, no. 5, pp. 1189–1232, 2001

work page 2001
[14]

XGBoost: A Scalable Tree Boosting System,

T. Chen and C. Guestrin, “XGBoost: A Scalable Tree Boosting System,” in ACM SIGKDD Int. Conf. Knowl. Disc. Data Min. , vol. 42, no. 8. San Francisco: ACM Press, 2016, pp. 785–794

work page 2016
[15]

Optimization of an NLEO-based algorithm for automated detection of spontaneous activity transients in early preterm EEG

K. Palmu, N. Stevenson, S. Wikstr ¨om, L. Hellstr¨om-Westas, S. Vanhat- alo, and J. M. Palva, “Optimization of an NLEO-based algorithm for automated detection of spontaneous activity transients in early preterm EEG.” Physiol. Meas. , vol. 31, no. 11, pp. N85–93, 2010

work page 2010
[16]

Line length as a robust method to detect high- activity events: automated burst detection in premature EEG record- ings

N. Koolen, K. Jansen, J. Vervisch, V . Matic, M. De V os, G. Naulaers, and S. Van Huffel, “Line length as a robust method to detect high- activity events: automated burst detection in premature EEG record- ings.” Clin. Neurophysiol., vol. 125, no. 10, pp. 1985–94, 2014

work page 1985
[17]

Assessing instanta- neous energy in the EEG: a non-negative, frequency-weighted energy operator,

J. M. O’ Toole, A. Temko, and N. J. Stevenson, “Assessing instanta- neous energy in the EEG: a non-negative, frequency-weighted energy operator,” in Int. Conf. IEEE Eng. Med. Biol. Soc. , Chicago, 2014, pp. 3288–3291

work page 2014
