Polytropic Wind-Driven Bubbles and their Shock Structures in Radially Stratified Ambient Media

T0 review · 3 major / 4 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A new matching method gives the relative thickness of a wind-blown bubble's two shocked layers without assuming constant pressure inside the shocked wind.

desk verdict Solid extension of KM92b with a self-contained closed-form for Rs/Rsw; validation is thinner than the method deserves, but the core approach is not circular and warrants peer review. read the letter →

arxiv 2505.21839 v1 pith:4PN54VBF submitted 2025-05-28 astro-ph.HE physics.comp-ph

Dmitrii Zagorulia , Hsien Shang , Ruben Krasnopolsky (Institute of Astronomy , Astrophysics , Academia Sinica , Taiwan) This is my paper
classification astro-ph.HEphysics.comp-ph
keywords wind-blownbubblesshockedwindcontactdiscontinuityself-similarsolutionspolytropicequationofstatestellarwindsinterstellarmediumbubbleshellthickness
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper aims to give analytic control over the internal structure of a spherical wind-blown bubble, specifically the relative thickness of the two layers of shocked gas: the shocked wind inside the contact discontinuity and the shocked ambient medium outside it. For a steady wind expanding into an ambient medium with density falling as $\rho\propto r^{-2}$, it writes down exact ODEs for the shocked wind and matches them at the contact discontinuity to the shocked-ambient solution, removing the need for the usual constant-pressure assumption in the hot shocked wind. The matching yields a closed-form estimate of the shell thickness ratio $R_s/R_{sw}\simeq 1.53$, against $1.55$ from the exact ODEs and from one-dimensional simulations for $\gamma=5/3$. This matters because shell thickness controls bubble stability, cooling, and observable morphology, and the same machinery can be reused for winds blowing into preexisting bubbles or into collapsing cores.

What carries the argument

The load-bearing object is the self-similar ODE system for the compressed wind, written in $\xi=r/R_{sw}$ with postshock values at the wind shock as units and integrated inward until the contact discontinuity, located where $\bar v(\xi_c)=\xi_c/\sigma$. The analytic closure is a hyperbolic approximation for the wind-side velocity, $\bar v(\xi)\simeq -n(1/\xi-1)+1$, built from the velocity gradients at the wind shock and at the contact discontinuity, paired with the linear approximation used for the ambient shell. Matching velocity and pressure continuity at the contact discontinuity produces an algebraic equation for the unknown ratio $v_{in}/v_{sw}$, and the shell thickness follows from $R_s/R_{sw}=\xi_c/\lambda_c$. This replaces the isobaric assumption for the shocked wind with a profile-shape assumption and reduces a PDE problem to ODEs plus a one-dimensional root-finding step.

What would settle it

Run a one-dimensional spherical simulation of the same steady-wind, $\rho\propto r^{-2}$ setup with a different density contrast, for example $\delta=1$ or $\delta=0.01$, or with $\gamma\approx 1.2$ and a slow wind, and compare the measured $R_s/R_{sw}$ with the closed-form prediction once the shell reaches self-similar expansion; a systematic deviation larger than the few-percent agreement found for the tested $\gamma=5/3$, $\delta=0.1$ case would show that the assumed profile shapes are not generally accurate.

Watch

Extended reading notes

Core claim

The central claim is that the shocked wind region of a bubble can be treated with the same self-similar ODE machinery previously reserved for the shocked ambient medium, so the relative locations of the wind shock, contact discontinuity, and ambient shock can be found without solving the full time-dependent equations and without assuming the shocked wind is isobaric. The paper derives a dimensionless ODE system in the similarity variable $\xi = r/R_{sw}$, approximates the wind-side velocity profile by a hyperbola and the ambient-side profile by a line, and enforces continuity of velocity and pressure at the contact discontinuity. Solving the resulting algebraic matching condition gives the velocity ratio $v_{in}/v_{sw}$ and hence the thickness ratio $R_s/R_{sw} = \xi_c/\lambda_c$, with the values $1.55$ from the exact ODEs and $1.53$ from the hyperbola/linear approximation for $\gamma=5/3$ and density contrast $\delta=0.1$. The numerical study also shows that for small polytropic indices near the isothermal limit the thickness ratio develops a dependence on wind speed that the strong-shock analytic solution does not capture.

Load-bearing premise

The closed-form numbers rest on assuming that the velocity profile inside each shocked layer has a fixed simple shape, linear on the ambient side and hyperbolic on the wind side, determined only by the values at the shocks and the contact discontinuity, and that assumption is tested only for a narrow set of parameters.

Editorial extensions

If this is right

  • For strong shocks with $\gamma=5/3$ and a $\rho\propto r^{-2}$ ambient medium, the thickness ratio $R_s/R_{sw}$ is predicted to be approximately $1.55$ (closed form $1.53$), nearly independent of wind speed and matching one-dimensional simulations.
  • Bubble shell thickness can be obtained from ODEs and a simple algebraic matching equation, without a full PDE simulation and without assuming constant pressure in the shocked wind.
  • For small polytropic indices near the isothermal limit, the thickness ratio becomes sensitive to wind speed, and the strong-shock approximation must be replaced by the full shock-jump compression formula.
  • The matching method yields estimates of the velocity ratios $v_s/v_{in}$ and $v_{in}/v_{sw}$ for steady winds into $r^{-2}$ media, with applications to winds expanding into preexisting bubble environments and to collapsing dense cores.
  • The resulting shell thickness provides a hydrodynamic baseline for interpreting observations of planetary nebulae, supernova remnants, and protostellar outflows, where thickness affects stability, cooling, and emission morphology.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An untested extension the method invites is applying the same matching to other density power-law indices $k_\rho$ and to unequal polytropic indices on the wind and ambient sides, since the two sides are already treated as separate ODE problems; the paper does not demonstrate those cases, so their accuracy is unknown.
  • Because the shell thickness ratio controls cooling and stability, a testable observational consequence is that highly radiative, nearly isothermal bubbles should appear thicker at higher wind speeds, while adiabatic bubbles should show a nearly fixed ratio; mapping shell sizes across sources with known wind speeds could test this without full simulations.
  • The Cartesian analog in the appendix shows the same qualitative shock structure in planar geometry, which implies the thickness ratio is geometry-dependent; applying the matching idea to cylindrical or jet-like geometries could give analytic shell thickness estimates for collimated outflows.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. This manuscript extends the Koo & McKee (1992a,b) self-similar framework for spherically symmetric wind-driven bubbles from the shocked ambient region to the shocked wind region. For a wind with constant luminosity and an ambient medium with ρ ∝ r^-2, it writes dimensionless ODEs for the shocked wind (Eqs. 26–31), proposes a hyperbolic approximation for the velocity profile and linear approximations for pressure (Eqs. 33–41), and matches the shocked wind and shocked ambient solutions at the contact discontinuity to solve for vin/vsw and the shell thickness ratio Rs/Rsw without invoking the isobaric assumption. It also presents 1D ZeusTW simulations over a range of γ and vin, reports agreement with the semi-analytic method at γ = 5/3, δ = 0.1, and discusses astrophysical applications to preexisting winds and collapsing cores.

Significance. If the approximation is accurate over a useful parameter range, it offers a compact, essentially parameter-free estimate of the shocked-wind and shocked-ambient shell thickness ratio, going beyond the isobaric treatments of Weaver et al. (1977) and Koo & McKee (1992b). The ODEs are explicit, and the approximate matching in Eq. (41) is self-contained in the sense that it does not require simulation input. The numerical scan in §2.2 is a useful exploration of the velocity and polytropic-index dependence. However, the validation is currently anchored on a single density ratio and a single polytropic index, and part of the 'exact' comparison uses simulation input, so the claimed generality is not yet fully established.

major comments (3)
  1. [Table 1 and Fig. 1] The row labelled 'Exact' in Table 1 is not an independent test of the matching procedure, because vin/vsw = 4.06 is taken from the ZeusTW simulation, as stated in the Fig. 1 caption. The self-contained approximate matching of Eq. (41) predicts vin/vsw = 4.37, about 8% above the simulation value, yet it reproduces Rs/Rsw to about 1.3% (1.53 versus 1.55). This disparity suggests that the close thickness agreement may result from a cancellation between errors in λc and ξc rather than from an accurate velocity matching. The manuscript should implement the shooting method on the exact ODEs (mentioned in §2.1.3) without simulation input, or otherwise quantify the error compensation, before the exact-ODE comparison is used as support.
  2. [§2.1.3 and §2.2] The central generality claim of the semi-analytic method is not yet supported: the matching is tested only for γ = 5/3 and δ = 0.1 in Table 1, and Table 2 varies only the Mach numbers, not γ or δ. Since the matching equation (37) depends explicitly on δ and the hyperbolic ansatz was motivated by the γ = 5/3 velocity profile, the accuracy for other density ratios and polytropic indices is unestablished. The §2.2 simulations do vary γ, but the quantitative comparison with the semi-analytic result is made at γ = 5/3 only (Section 3.1). A δ scan (for example δ = 0.01, 0.1, 1) and a γ scan (for example γ = 1.1, 1.4, 2) of the approximate matching against the exact ODE shooting or against simulations is needed to substantiate the claimed applicability.
  3. [§2.1.3, Eqs. (38)–(41)] The pressure matching uses linear approximations for both the shocked ambient and shocked wind pressure profiles, but no error estimate is given for these linearizations away from the single tested point γ = 5/3, δ = 0.1. Table 2 already shows errors in ξc up to about 6% for the Msw = ∞ case, so the closed-form result may degrade in regimes the paper intends to cover. The authors should either derive a bound on the linearization error or test the approximation on a grid of parameters corresponding to the applications in Sections 3.2 and 3.3.
minor comments (4)
  1. [Introduction, §2.1] There are several wording and typographical errors that should be corrected, for example 'it does not an the isobaric assumption' in §1, 'authentically solves the basic ODES' in §2.1, and 'In this section we over one natural cases' in §3.2.
  2. [§2.2 and Fig. 12] The caption of Fig. 12 refers to 'the small values of γ = 1.01'; this should be singular, and Table 3's header is awkwardly repeated across two lines.
  3. [Figs. 10–12] The fit of the numerical velocity profiles to Eq. (43) is described only visually; adding a quantitative residual or RMS error would make the comparison more convincing.
  4. [§2.1.4] The text says the value 1.55 'agrees completely' with Table 3, but Table 3 lists 1.551; the wording should be softened to 'agrees within the reported precision'.

Circularity Check

1 steps flagged · score 4.0 of 10

Exact-ODE validation uses simulation-derived vin/vsw, so that agreement is partly by construction; the approximate matching itself is self-contained.

  1. fitted input called prediction [Sec. 2.1.4, Table 1 and Fig. 1 caption]
    "Value of vin/vsw = 4.06 for the exact solution of compressed wind was obtained through ZeusTW simulations for the same set of parameters."

    The 'Exact' row of Table 1 (vin/vsw = 4.06, Rs/Rsw = 1.55) fixes the wind-shock velocity ratio using the ZeusTW simulation, and the text then states that 'the value of 1.55 found for the thickness ratio Rs/Rsw in Table 1 agrees completely with the value found in Table 3' from the same ZeusTW runs. Thus the exact ODE branch is not an independent analytical prediction of the thickness: one of its key parameters is supplied by the numerical solution it is being compared with. The genuinely predictive approximate matching (Eq. 41) instead yields vin/vsw = 4.37, about 8% higher, so the exact branch cannot validate the approximate method's prediction of that velocity ratio; only the final thickness ratio is checked.

full rationale

The central approximate method is not circular: the matching equation (41) is solved for vin/vsw using only the ODE-derived gradients, linear/hyperbolic ansatze, and the density ratio delta, with no simulation input, and it yields Rs/Rsw = 1.53 versus the numerical 1.55. The hyperbola ansatz is admittedly motivated by the shape of ODE and numerical profiles, but it is then used in a self-contained algebraic matching, so it does not reduce the prediction to its inputs. There is no load-bearing self-citation chain or imported uniqueness theorem; citations to KM92b and Shang et al. are for prior framework and applications, not to force the present result. The one genuine circularity concern is the 'exact' ODE comparison in Table 1/Figure 1, which uses vin/vsw taken from the ZeusTW simulation and then presents the resulting thickness as agreement with that same simulation. This weakens the exact branch as an independent validation, though it does not contaminate the approximate method's derivation. The unquantified error for other delta and gamma values is a robustness limitation, not a circularity.

Assumptions & free parameters 2 free parameters · 5 assumptions · 0 invented entities

The model adds no new physical entities. It adopts standard shock and self-similar machinery and one hand-chosen density ratio delta=0.1 for all demonstrations; the profile ansatze are the main ad hoc input beyond standard hydrodynamics.

free parameters (2)
  • wind-to-ambient density ratio delta = 0.1
    Chosen for all analytic and numerical demonstrations (Sec. 2.1.4, 2.2). The matching equation (37) depends on delta, and the total shell thickness xi_c and Rs/Rsw vary with it, so this hand-picked value is an input the central results depend on.
  • sound speeds for numerical scans = a_amb=0.2 km/s, a_wind0=0.6 km/s
    These set the preshock Mach numbers in the simulations; they are chosen rather than derived. They determine the compression ratios via Eq. 6 in the near-isothermal and low-gamma regime.
assumptions (5)
  • domain assumption Euler equations with a polytropic equation of state and a single global gamma for both shocked regions.
    Introduced in Sec. 1 and 2; the paper explicitly excludes the common case of an adiabatic bubble with a radiative outer shock because only one gamma is used.
  • domain assumption Self-similarity: Rs proportional to t^eta and Rsw proportional to t^kappa with eta=1, kappa=1 for eta_in=1, k_rho=2, so shock velocities are constant in time.
    Used throughout Sec. 2.1 to write dimensionless ODEs; follows Ostriker and McKee (1988) and KM92b.
  • domain assumption Strong-shock (M to infinity) compression ratios for both shocks in the semi-analytic method.
    Used in Eq. 7 and in the matching of Sec. 2.1.3; Section 2.2 and Tables 2 show this fails at low gamma and low vin.
  • domain assumption Ambient medium is cold, at rest, with rho_a proportional to r^-2, and the wind is steady (eta_in=1) and cold with purely kinetic energy injection.
    Initial conditions in Sec. 2; restrict applicability to preexisting wind bubbles and collapsing cores with negligible ambient velocity.
  • ad hoc to paper Linear (ambient) and hyperbolic (wind) velocity and pressure profile ansatze for the closed-form matching.
    Sec. 2.1.3; justified by the shape of the ODE and numerical profiles, but not derived from the PDEs; validated only for a limited parameter set.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Polytropic Wind-Driven Bubbles and their Shock Structures in Radially Stratified Ambient Media." pith.science (2026). https://pith.science/paper/4PN54VBF

@misc{pith2026250521839,
  author       = {Pith},
  title        = {Pith review of: Polytropic Wind-Driven Bubbles and their Shock Structures in Radially Stratified Ambient Media},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4PN54VBF}},
  note         = {Machine review of arXiv:2505.21839}
}
abstract

We extend the analytic expressions for polytropic wind-driven bubbles and their shock structures, formulated initially in Koo and McKee 1992(a,b), focusing on spherically symmetric configurations in astrophysical environments with $\rho\propto r^{-2}$, which arises naturally in the star-forming environment and has applications to winds flowing into a preexisting bubble. Wind luminosity is assumed to be constant, and as a result the shock velocities of these bubbles are constant in time. The ratio of specific heats is assumed to be the same in the shocked ambient medium and the shocked wind. Numerical results are presented for one selected ratio of wind density to ambient density. Exact ODEs are written for the compressed wind region and approximate solutions are found by fitting the ODE solutions. By analyzing the interactions between stellar winds and ambient media in the strong compression limit, we model the formation and evolution of spherical bubbles, highlighting their shock fronts and contact discontinuities. Our analytic method provides an intuitive approach to calculating the thickness of bubble shells, which is crucial for understanding their dynamics and observational characteristics. A numerical method explores conditions without explicitly requiring the strong compression limit, and then we compare numerical to analytical results under various conditions.

Figures

Figures reproduced from arXiv: 2505.21839 by the authors.

Figure 1
Figure 1. Exact and approximate solutions for γ = 5/3, kρ = 2, ηin = 1, δ = 0.1 with strong shock assumption (hence µ → 2/(γsa + 1)). Blue lines show solutions of the exact ODEs (Eqs. 29–31 in the compressed wind, and B5 of KM92b in the compressed ambient medium). Green lines show approximations (hyperbola for compressed wind and linear for compressed ambient medium). Value of vin/vsw = 4.06 for the exact solution of compress… view at source ↗
Figure 2
Figure 2. Comparison of velocity profiles obtained via exact ODE solutions with strong shock assumption for compressed wind (Eqs. 29–31, blue) and compressed ambient medium (B5 of KM92b, orange) to numerical ZeusTW simulation (black) in the bubble shell, using vin = 12 km s−1 . the ZeusTW numerical simulation ( [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3
Figure 3. Investigating solution dependence on the Mach number M = Msw = Msa (see Section 2.1.4). Top rows: velocities and densities for the exact ODE solutions in the two compressed regions, using for the compressed wind vin/vsw = 4.06. The lines ξ/σ and λ/µ in the top row have been drawn for the case M = ∞ (σ and µ depend on Mach number). Bottom row: comparison of exact ODE (solid lines) to the hyperbola and linear approxim… view at source ↗
Figures from the paper (11 more)
Figure 4
Figure 4. Figure 4: Hyperbolic and linear approximations using values for vin/vsw obtained through matching. Computed for Msw = ∞, and five values of Msa in the range from 3 to ∞ ( [PITH_FULL_IMAGE:figures/full_fig_p011_4.png]
Figure 5
Figure 5. Figure 5: Gas density ρ at t = 300 yr for the small value of γ = 1.01. Position coordinate r scaled respectively with Rc and Rsw [PITH_FULL_IMAGE:figures/full_fig_p012_5.png]
Figure 6
Figure 6. Figure 6: Gas density ρ(r/Rsw) at t = 300 yr for the small values of γ = 1.00001, 1.05, and 1.1. vin Rs/Rsw for γ = 5/3 to 1.00001 Rc/Rsw for γ = 5/3 to 1.00001 (km s) 5/3 1.3 1.2 1.1 1.05 1.01 1.00001 5/3 1.3 1.2 1.1 1.05 1.01 1.00001 100 1.551 1.351 1.270 1.161 1.090 1.020 1.0…
Figure 7
Figure 7. Figure 7: Same as [PITH_FULL_IMAGE:figures/full_fig_p013_7.png]
Figure 8
Figure 8. Figure 8: Thickness ratios Rs/Rsw (solid lines) and Rc/Rsw (dashed lines) for the set of 7 × 7 values of vin and γ, for sound speeds awind = 3aamb = 0.6 km s−1 and a background density ratio (r 2 ρw)/(r 2 ρa) = 0.1 [PITH_FULL_IMAGE:figures/full_fig_p013_8.png]
Figure 9
Figure 9. Figure 9: Fractional thickness (Rs − Rsw)/Rsw for the same set as in [PITH_FULL_IMAGE:figures/full_fig_p013_9.png]
Figure 10
Figure 10. Figure 10: Gas velocity v as a function of r/Rsw at t = 300 yr for small values of γ. Solid lines: simulation results. Dashed lines: fits to Equation (43). Thin vertical lines: position of the contact discontinuity. 3.2. Astrophysical applications: Wind flowing into a preexisten…
Figure 11
Figure 11. Figure 11: Same as [PITH_FULL_IMAGE:figures/full_fig_p015_11.png]
Figure 12
Figure 12. Figure 12: Gas velocity v scaled to the postshock velocity as a function of r/Rsw at t = 300 yr for the small values of γ = 1.01. Solid lines: simulation results. Dashed lines: fits to Equation (43). We consider now cases of astrophysical application of the model of this work, w…
Figure 13
Figure 13. Figure 13: Structures of spherical (left figure) and Cartesian (right figure) bubbles shown on the density profile. The two main bubble regions are shown (free and shocked wind and ambient media), separated by the three classical discontinuities (wind and ambient shock, and a co…
Figure 14

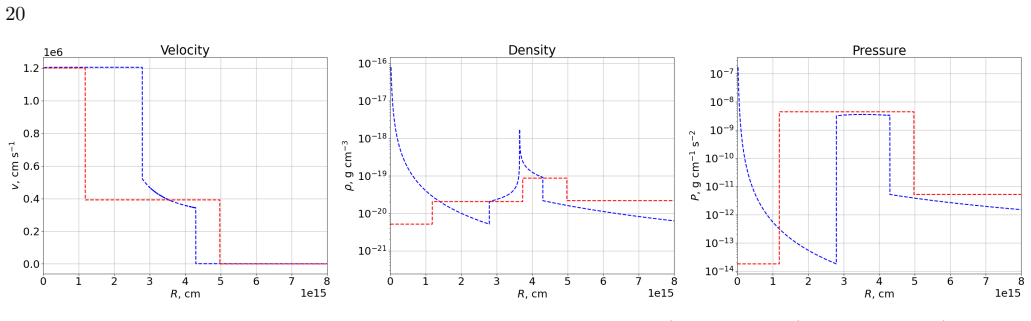

Figure 14. Figure 14: Velocity, pressure and density profiles at 300 years for spherical (blue, ZeusTW) and Cartesian (red, exact 1D solution) bubbles. Spherical solution was obtained as a ZeusTW simulation with the following parameters: γ = 5/3, vL = 1.2×106 cm s−1 , vR = 0 cm s−1 , aL = …

Discussion (0). Sign in to comment.
