arxiv: 2606.27850 · v1 · pith:4QOMRGE4new · submitted 2026-06-26 · 💻 cs.SI · math.DS

Spectral clustering of time-evolving networks using spatio-temporal random walks

Filip Bla\v{s}kovi\'c , Tim O. F. Conrad , Stefan Klus , Nata\v{s}a Djurdjevac Conrad This is my paper

Pith reviewed 2026-06-29 02:25 UTC · model grok-4.3

classification 💻 cs.SI math.DS
keywords temporal networkscommunity detectionspectral clusteringrandom walksmulti-view canonical correlation analysismetastable setsspace-time graphstransfer operators
0
0 comments X

The pith

Multi-view canonical correlation analysis on temporal networks maps exactly to spectral analysis of a time-reversible random walk on an augmented space-time graph.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a framework for community detection in time-evolving networks that rests on multi-view canonical correlation analysis. It demonstrates that this formulation is equivalent to the spectral analysis of a time-reversible random walk defined on an augmented space-time network. The equivalence supplies a dynamical reading in which detected communities correspond to metastable sets of the walk. Analysis of the resulting transfer operators separates genuine spatial-temporal structure from effects introduced by coupling successive snapshots. A reduced-order approximation is derived that retains the essential spectral features while lowering computational cost.

Core claim

The mCCA formulation for community detection in temporal networks admits a spectral characterization via a time-reversible random walk on an augmented space-time network, providing a clear dynamical interpretation of temporal communities as metastable structures of the process. The transfer operators exhibit an interplay between spatial and temporal effects that distinguishes structural features from snapshot-coupling artifacts, and a reduced-order model preserves the essential spectral properties at lower cost.

What carries the argument

multi-view canonical correlation analysis mapped to the transfer operator of a time-reversible random walk on an augmented space-time network

If this is right

  • Temporal communities receive a direct interpretation as metastable sets of an underlying Markov process.
  • Spectral properties of the augmented transfer operator separate spatial structure from temporal coupling artifacts.
  • A reduced-order model derived from the same operator yields community assignments at substantially lower computational expense while retaining the same leading eigenvalues.
  • The framework extends the classical random-walk justification of spectral clustering from static to time-dependent networks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same space-time augmentation technique could be applied to other multi-view objectives beyond CCA, such as co-regularized spectral clustering.
  • Because the walk is time-reversible, standard mixing-time bounds become available for quantifying how quickly communities merge or split.
  • The reduced-order model may be combined with existing fast eigensolvers for static networks to handle very long time series.
  • The distinction between structural and coupling-induced features offers a diagnostic that could be retrofitted to existing temporal community methods.

Load-bearing premise

The multi-view CCA objective on successive network snapshots can be rewritten without approximation or artifact as the generator of a single time-reversible random walk on the product space-time graph.

What would settle it

Compute the leading eigenvectors of the mCCA operator on a small temporal network and compare them directly to the eigenvectors of the random-walk transfer matrix on the corresponding space-time graph; mismatch in the spectra or in the recovered partitions would refute the claimed equivalence.

Figures

Figures reproduced from arXiv: 2606.27850 by Filip Bla\v{s}kovi\'c, Nata\v{s}a Djurdjevac Conrad, Stefan Klus, Tim O. F. Conrad.

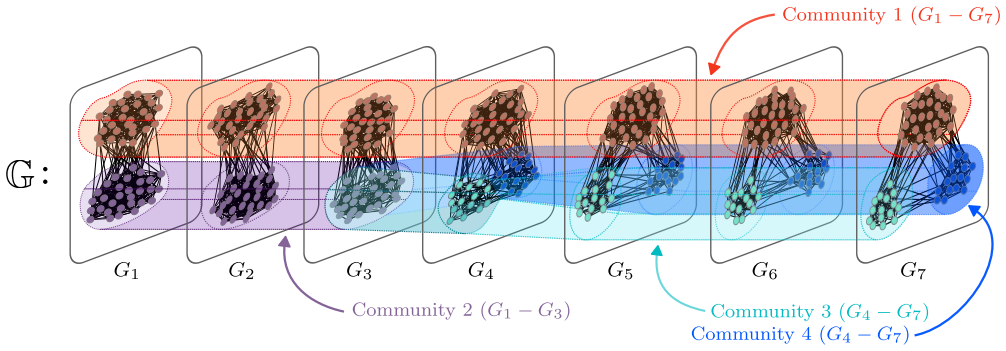

Figure 1
Figure 1. Figure 1: Our goal is to cluster nodes across network snapshots into subsets that remain densely connected [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

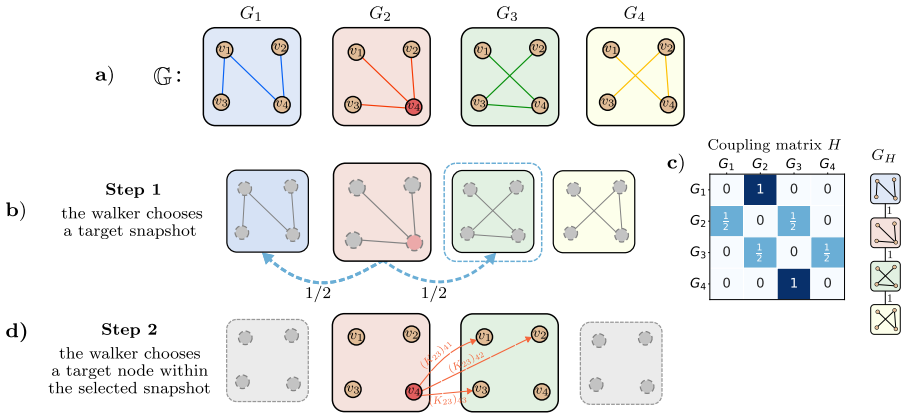

Figure 2
Figure 2. Figure 2: An illustration of a spatio-temporal random walk on the temporal network [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗

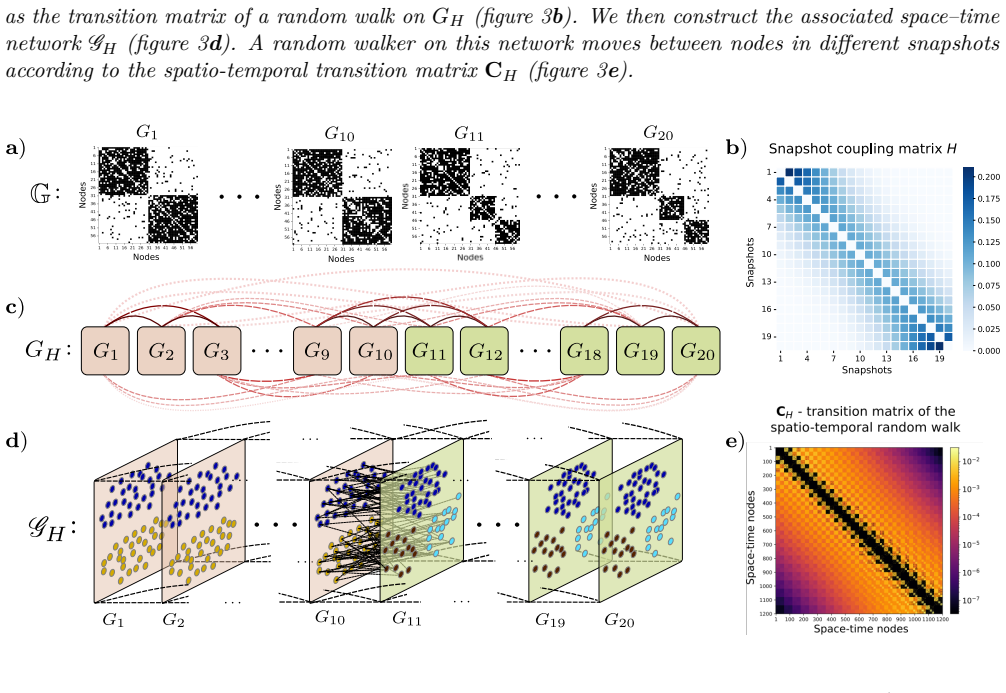

Figure 3
Figure 3. Figure 3: Illustration of the construction of a space–time network from a temporal network. [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗

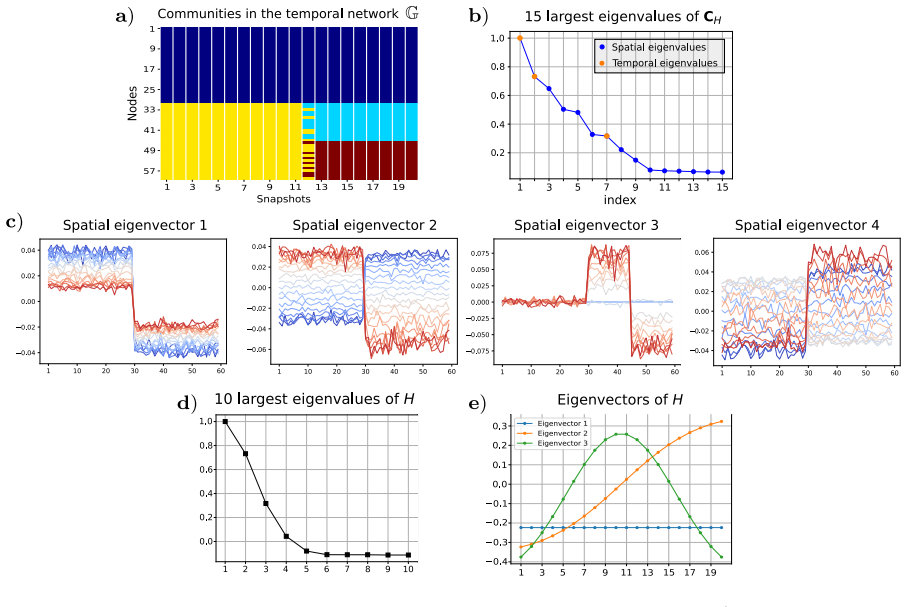

Figure 4
Figure 4. Figure 4: Illustration of the community detection via spectral clustering. [PITH_FULL_IMAGE:figures/full_fig_p016_4.png] view at source ↗

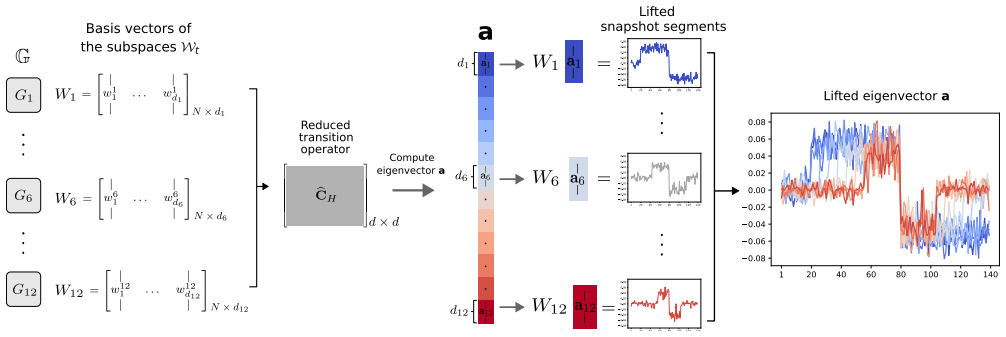

Figure 5
Figure 5. Figure 5: Illustration of the computation of network observables [PITH_FULL_IMAGE:figures/full_fig_p018_5.png] view at source ↗

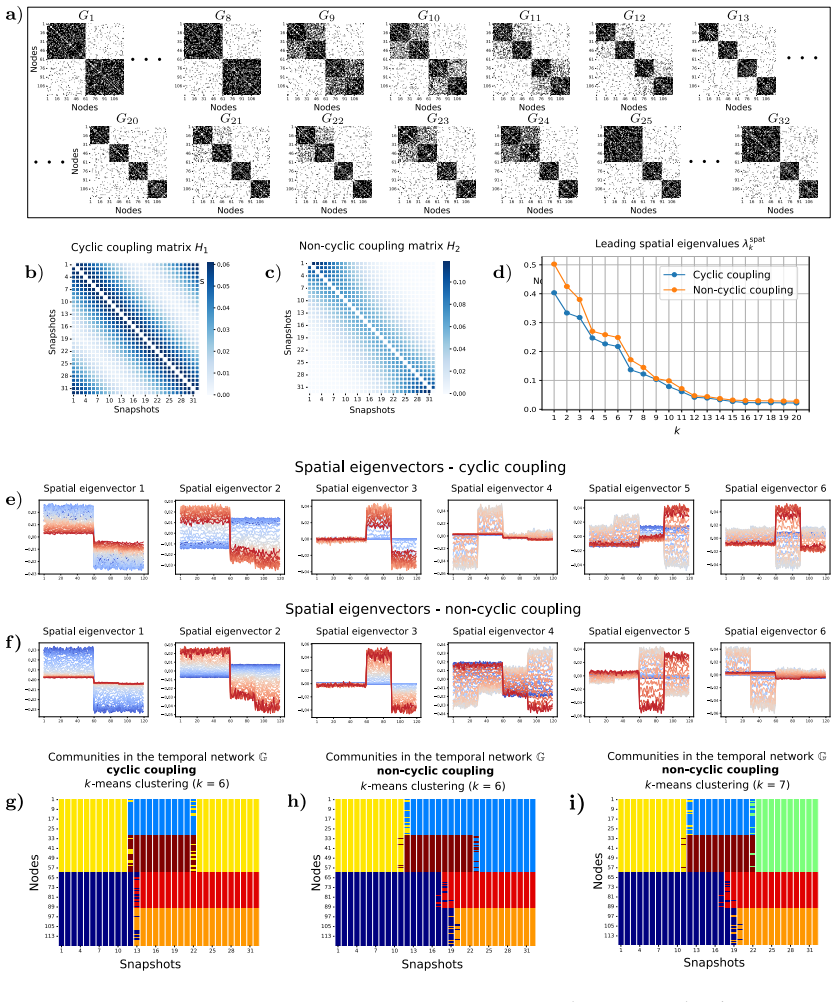

Figure 6
Figure 6. Figure 6: Illustration of our approach on the temporal network [PITH_FULL_IMAGE:figures/full_fig_p024_6.png] view at source ↗

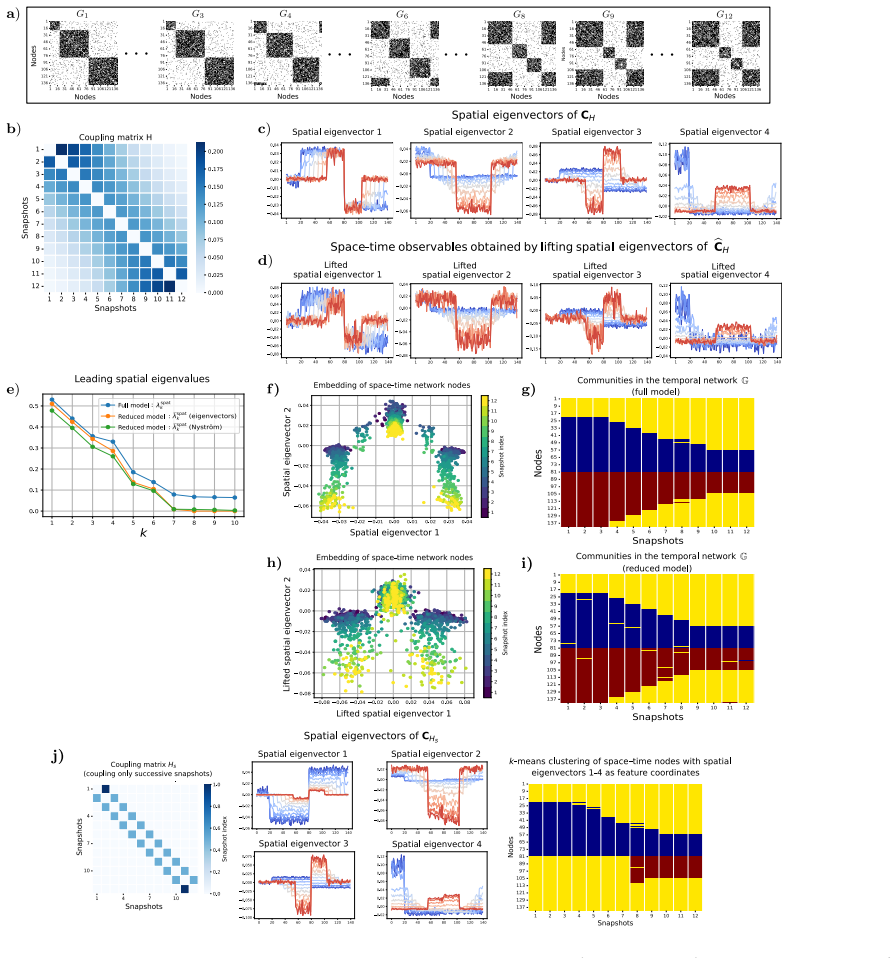

Figure 7
Figure 7. Figure 7: Illustration of our approach on the temporal network [PITH_FULL_IMAGE:figures/full_fig_p026_7.png] view at source ↗

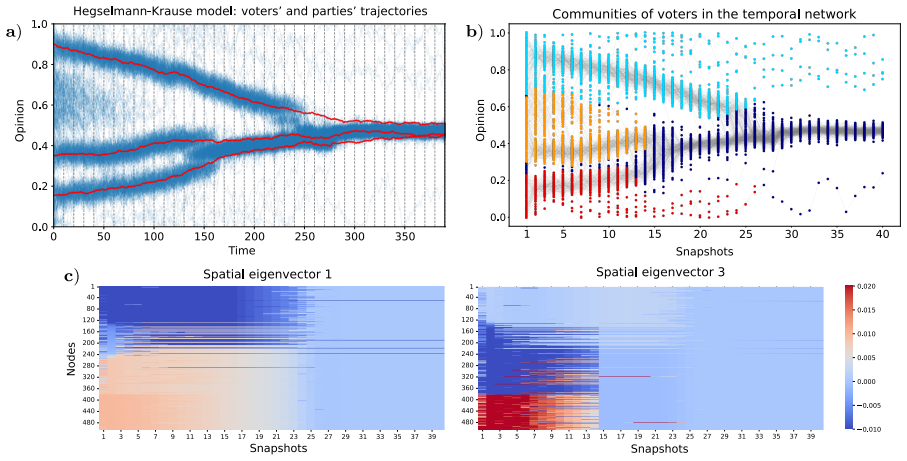

Figure 8
Figure 8. Figure 8: Application of our spectral clustering approach to a temporal network generated from the [PITH_FULL_IMAGE:figures/full_fig_p028_8.png] view at source ↗
Figure 9

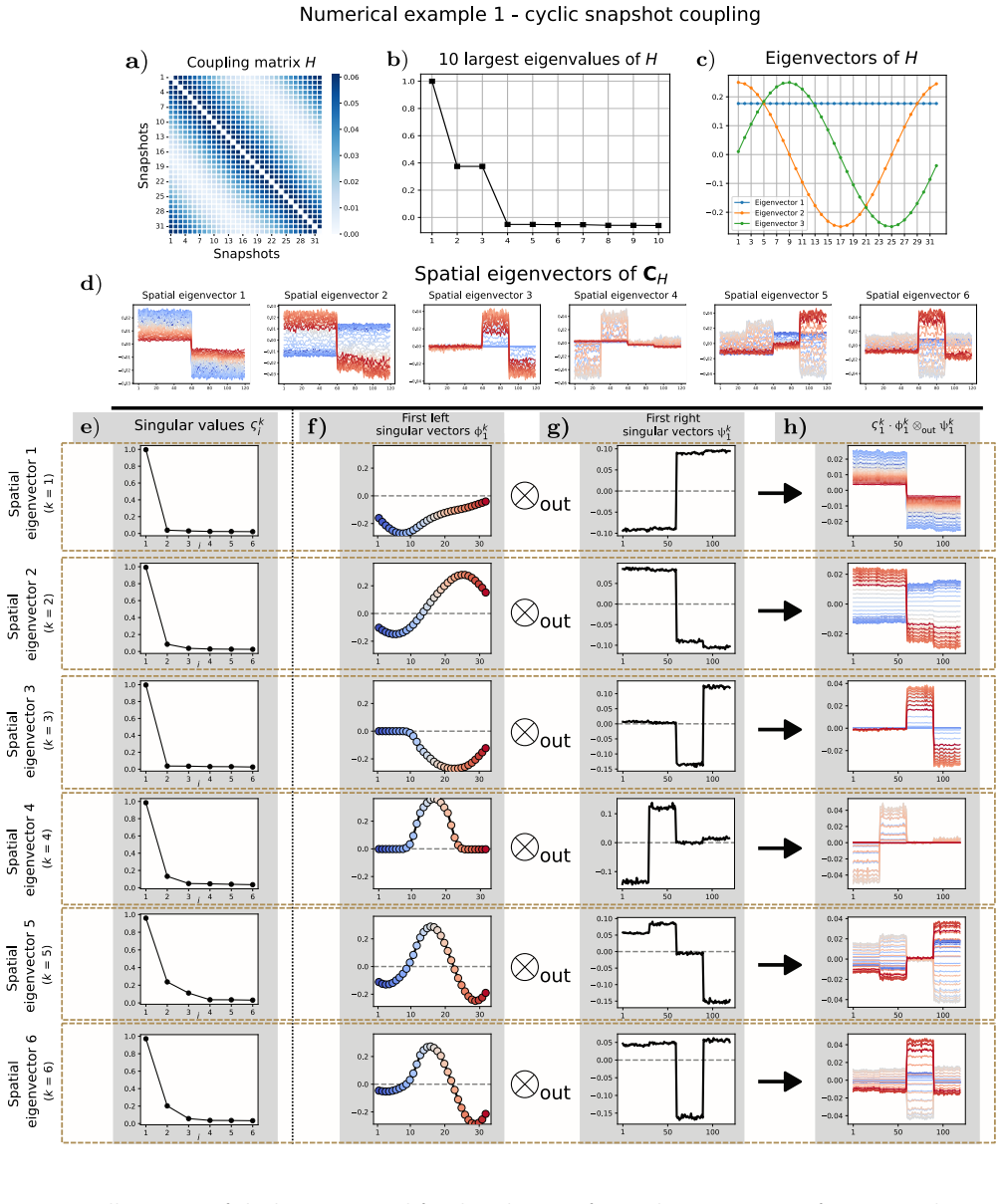

Figure 9. Figure 9: Illustration of the heuristics used for the selection of spatial eigenvectors as feature coordinates [PITH_FULL_IMAGE:figures/full_fig_p038_9.png] view at source ↗
read the original abstract

Temporal (or time-evolving) networks provide a natural framework for modeling complex systems with time-dependent interactions, where understanding the evolution of community structures is a central challenge. While random walk-based approaches to community detection in static networks are well established through the spectral analysis of associated transfer operators, extending these ideas to temporal networks is nontrivial due to the inherent time-dependence of the underlying dynamics. In this work, we develop a general framework for community detection in temporal networks that is based on multi-view canonical correlation analysis (mCCA). We show that the proposed formulation admits a spectral characterization via a time-reversible random walk on an augmented space-time network, providing a clear dynamical interpretation of temporal communities as metastable structures of the process. Furthermore, we analyze key spectral properties of the resulting transfer operators and the interplay between spatial and temporal effects, which allows us to distinguish between structural features and artifacts induced by the snapshot coupling. Finally, we derive a reduced-order model, which preserves the essential spectral properties while significantly improving computational efficiency. We show that the proposed approach effectively detects communities in temporal networks and captures their evolution.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a framework for community detection in temporal networks based on multi-view canonical correlation analysis (mCCA). It claims that this formulation admits an exact spectral characterization as the transfer operator of a time-reversible random walk on an augmented space-time network, allowing temporal communities to be interpreted as metastable structures. The work further analyzes the spectral properties of the resulting operators, separates structural features from snapshot-coupling artifacts, derives a reduced-order model that preserves essential spectral properties, and demonstrates the approach on temporal networks.

Significance. If the claimed exact equivalence to a time-reversible space-time random walk holds without approximation, the work would provide a rigorous dynamical foundation linking mCCA to established random-walk spectral clustering methods. This offers a clear metastability interpretation for temporal communities and a principled way to isolate coupling artifacts, which would be a substantive advance for dynamic network analysis. The reduced-order model is noted as a practical efficiency contribution.

major comments (1)
  1. [theoretical mapping from mCCA to space-time random walk (abstract and main theoretical sections)] The central claim (abstract and theoretical development) that the mCCA objective on temporal snapshots exactly equals the transfer operator of a time-reversible random walk on the augmented space-time graph requires the inter-snapshot coupling to produce a transition kernel satisfying detailed balance with respect to a stationary measure on the product space. The manuscript must explicitly derive or verify the conditions on the coupling terms that guarantee reversibility; if the coupling is asymmetric or the normalization fails to preserve detailed balance, the spectral characterization and metastability interpretation become approximate, undermining the dynamical interpretation.
minor comments (2)
  1. Clarify the precise definition of the augmented space-time network construction and the normalization used for the coupling terms to make the reversibility argument fully self-contained.
  2. The abstract states that the approach 'distinguishes between structural features and artifacts induced by the snapshot coupling'; provide a concrete example or theorem showing how this separation is achieved in the spectrum.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading and for identifying the need for greater explicitness in the theoretical mapping. We address the single major comment below and will incorporate the requested derivation in the revised manuscript.

read point-by-point responses

  1. Referee: [theoretical mapping from mCCA to space-time random walk (abstract and main theoretical sections)] The central claim (abstract and theoretical development) that the mCCA objective on temporal snapshots exactly equals the transfer operator of a time-reversible random walk on the augmented space-time graph requires the inter-snapshot coupling to produce a transition kernel satisfying detailed balance with respect to a stationary measure on the product space. The manuscript must explicitly derive or verify the conditions on the coupling terms that guarantee reversibility; if the coupling is asymmetric or the normalization fails to preserve detailed balance, the spectral characterization and metastability interpretation become approximate, undermining the dynamical interpretation.

    Authors: We agree that an explicit derivation of the reversibility conditions strengthens the central claim. In the original formulation the inter-snapshot coupling is defined symmetrically (via a normalized, undirected space-time adjacency structure) so that the resulting transition kernel satisfies detailed balance with respect to the product stationary measure π ⊗ π_t; this is what permits the exact identification with the transfer operator of a time-reversible random walk. Nevertheless, the manuscript presents this fact at a high level rather than spelling out the algebraic verification. In the revised version we will insert a dedicated subsection (immediately following the definition of the augmented space-time graph) that (i) states the precise normalization chosen for the coupling blocks, (ii) writes the detailed-balance equations, and (iii) verifies that they hold identically under the chosen normalization. This addition will make the metastability interpretation fully rigorous without changing any of the stated results or the reduced-order model. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation extends mCCA and random-walk spectral methods independently

full rationale

The paper's central step is to formulate temporal community detection via mCCA and then establish that this formulation admits an exact spectral characterization as the transfer operator of a time-reversible random walk on an augmented space-time graph. This equivalence is presented as a derived mathematical property rather than a definitional identity or a fit to the target quantity. No equations in the abstract or context reduce a prediction to a fitted parameter by construction, no uniqueness theorem is imported from self-citations, and no ansatz is smuggled via prior work. The derivation therefore remains self-contained against the external benchmarks of standard mCCA and reversible random-walk spectral clustering; the reader's preliminary score of 2 reflects only routine citation of those foundations, not load-bearing circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No specific free parameters, axioms, or invented entities can be identified from the abstract alone; the framework relies on standard concepts like random walks and CCA but implementation details are absent.
