arxiv: 2605.18003 · v1 · pith:4T56I574new · submitted 2026-05-18 · 💻 cs.NE · cs.AI

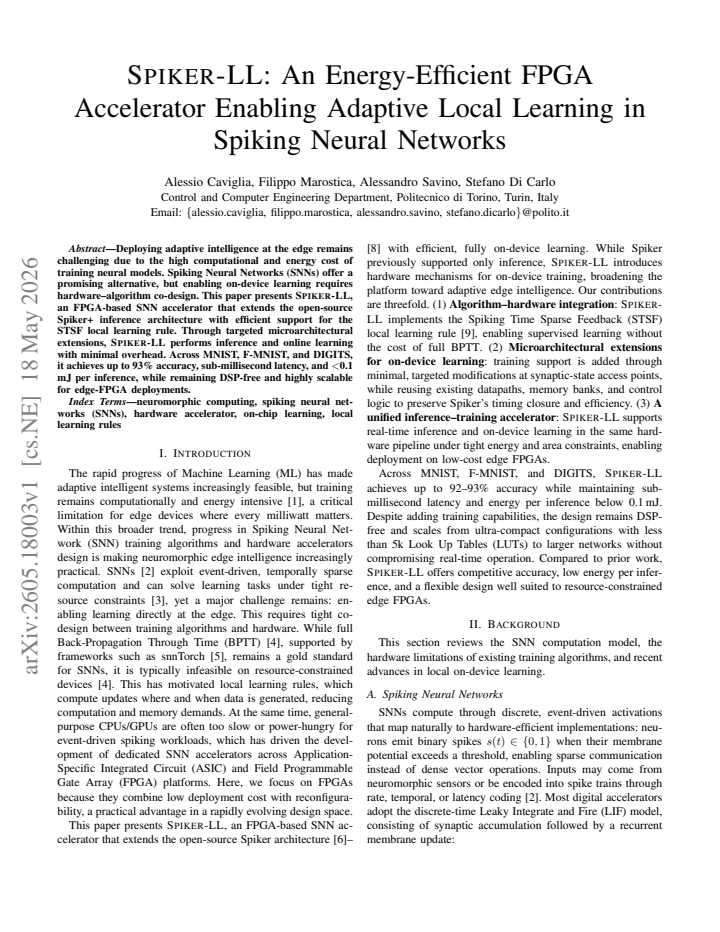

Spiker-LL: An Energy-Efficient FPGA Accelerator Enabling Adaptive Local Learning in Spiking Neural Networks

Alessio Caviglia , Filippo Marostica , Alessandro Savino , Stefano Di Carlo This is my paper

Pith reviewed 2026-05-20 00:06 UTC · model grok-4.3

classification 💻 cs.NE cs.AI
keywords FPGA acceleratorSpiking Neural NetworksSTSF local learningEnergy efficiencyEdge deploymentOnline learningSNN accelerator
0
0 comments X

The pith

SPIKER-LL extends an FPGA SNN accelerator with on-device learning via the STSF rule.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents SPIKER-LL, which adds support for the STSF local learning rule to the existing Spiker+ FPGA architecture for spiking neural networks. The extensions allow both inference and online learning to run on the same hardware with only modest added cost. Results on MNIST, Fashion-MNIST, and DIGITS reach up to 93 percent accuracy, sub-millisecond latency, and less than 0.1 millijoules per inference. The design stays free of DSP blocks and scales for edge FPGA use, which matters for placing adaptive models on low-power devices without constant cloud retraining.

Core claim

Through targeted microarchitectural extensions to the Spiker+ inference architecture, SPIKER-LL enables efficient support for the STSF local learning rule. It performs inference and online learning with minimal overhead. Across MNIST, F-MNIST, and DIGITS, the design achieves up to 93% accuracy, sub-millisecond latency, and less than 0.1 mJ per inference while remaining DSP-free and highly scalable for edge-FPGA deployments.

What carries the argument

Microarchitectural extensions to the Spiker+ datapath that map the STSF local learning rule for online weight updates with low resource overhead.

If this is right

  • Enables on-device adaptation for spiking networks on edge FPGAs without external training hardware.
  • Maintains sub-millisecond inference while supporting continuous learning at under 0.1 mJ per sample.
  • Remains DSP-free, allowing deployment on resource-constrained FPGA families.
  • Delivers competitive accuracy on standard image datasets using a single unified accelerator.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same microarchitectural approach could support other local learning rules in SNNs beyond STSF.
  • This points toward fully on-chip training for dynamic edge environments where data changes over time.
  • It may reduce reliance on periodic cloud-based retraining for deployed neuromorphic systems.

Load-bearing premise

The STSF local learning rule can be added to the existing Spiker+ hardware path with only modest resource overhead and without degrading accuracy or energy efficiency beyond the reported bounds.

What would settle it

An FPGA implementation of SPIKER-LL that measures energy consumption above 0.1 mJ per inference or accuracy below 93% on MNIST when using the STSF rule would show the efficiency claims do not hold.

Figures

Figures reproduced from arXiv: 2605.18003 by Alessandro Savino, Alessio Caviglia, Filippo Marostica, Stefano Di Carlo.

Figure 1
Figure 1. Figure 1: Global view of the SPIKER-LL architecture. SPIKER-LL extends the Spiker+ inference-oriented architecture with additional local and global structures that implement and coordinate the on-device learning process. synapse, the weight update combines three quantities available in hardware: (i) the pre-synaptic spike spre(t), (ii) the post￾synaptic spike spost(t), and (iii) a global modulatory signal Φ(t) distr… view at source ↗
Figure 2
Figure 2. Figure 2: Envisioned deployment of SPIKER-LL in the field with different operating modes. B. SPIKER-LL deployment environment Incorporating local learning into a hardware accelerator is not sufficient without a deployment workflow, illustrated in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
read the original abstract

Deploying adaptive intelligence at the edge remains challenging due to the high computational and energy cost of training neural models. Spiking Neural Networks (SNNs) offer a promising alternative, but enabling on-device learning requires hardware-algorithm co-design. This paper presents SPIKER-LL, an FPGA-based SNN accelerator that extends the open-source Spiker+ inference architecture with efficient support for the STSF local learning rule. Through targeted microarchitectural extensions, SPIKER-LL performs inference and online learning with minimal overhead. Across MNIST, F-MNIST, and DIGITS, it achieves up to 93% accuracy, sub-millisecond latency, and less than 0.1 mJ per inference, while remaining DSP-free and highly scalable for edge-FPGA deployments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper presents SPIKER-LL, an FPGA-based SNN accelerator extending the open-source Spiker+ inference architecture with microarchitectural support for the STSF local learning rule. It enables combined inference and online learning with low overhead, reporting up to 93% accuracy, sub-millisecond latency, and <0.1 mJ per inference on MNIST, Fashion-MNIST, and DIGITS while remaining DSP-free and scalable for edge deployments.

Significance. If the empirical results hold, the work provides a concrete hardware demonstration of energy-efficient on-device learning for SNNs, which is valuable for edge-AI applications. Strengths include the DSP-free implementation, reported scalability, and internal consistency between resource tables, latency, and energy measurements. The focus on minimal-overhead mapping of a local learning rule to an existing datapath addresses a practical gap in SNN hardware.

major comments (1)
  1. [Experimental results] Experimental results section: Accuracy, latency, and energy figures are reported without error bars, number of independent runs, or explicit dataset split details (e.g., train/test ratios or validation strategy). This makes it difficult to assess statistical robustness of the 'up to 93%' claim and the overhead comparison to the baseline Spiker+ design.
minor comments (3)
  1. [Figure 3] Figure 3 (resource utilization): The bar chart for LUT/BRAM usage in learning vs. inference mode would benefit from explicit numerical labels and a direct side-by-side comparison column for the unmodified Spiker+ on the same FPGA device.
  2. [Section 3.2] Section 3.2: The description of STSF rule integration could include a short pseudocode snippet or timing diagram showing the additional control signals and memory accesses required for weight updates.
  3. [Related work] Related work: A brief quantitative comparison table against other recent FPGA SNN accelerators (e.g., those supporting online learning) would better contextualize the energy and DSP-free advantages.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of SPIKER-LL and the recommendation for minor revision. We address the major comment on the experimental results section below.

read point-by-point responses

  1. Referee: Experimental results section: Accuracy, latency, and energy figures are reported without error bars, number of independent runs, or explicit dataset split details (e.g., train/test ratios or validation strategy). This makes it difficult to assess statistical robustness of the 'up to 93%' claim and the overhead comparison to the baseline Spiker+ design.

    Authors: We agree that additional details would improve the clarity and allow better assessment of statistical robustness. In the revised manuscript we will explicitly state the dataset splits employed (standard 60,000/10,000 train/test partitions for MNIST and Fashion-MNIST together with the predefined split for DIGITS). We will also report the number of independent training runs performed with different random seeds and include mean accuracy with standard-deviation error bars. For latency and energy we will clarify that measurements are deterministic for a given configuration on the FPGA and present averages over repeated inferences. These changes will strengthen both the 'up to 93%' claim and the overhead comparison against Spiker+. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The manuscript is an empirical hardware implementation and measurement study that extends the open-source Spiker+ architecture with microarchitectural support for the STSF local learning rule. All headline results (accuracy up to 93%, sub-millisecond latency, <0.1 mJ per inference, DSP-free operation) are obtained from direct FPGA synthesis, place-and-route, and runtime measurements on MNIST, F-MNIST, and DIGITS; no equations, fitted parameters, or derivation steps are presented that reduce by construction to the reported numbers or to prior self-citations. The central claims rest on independently verifiable resource utilization tables, power measurements, and accuracy benchmarks rather than any self-referential mapping or uniqueness theorem.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper introduces no new mathematical axioms, free parameters, or invented physical entities; its claims rest on standard digital design assumptions and the correctness of the underlying Spiker+ open-source components.
