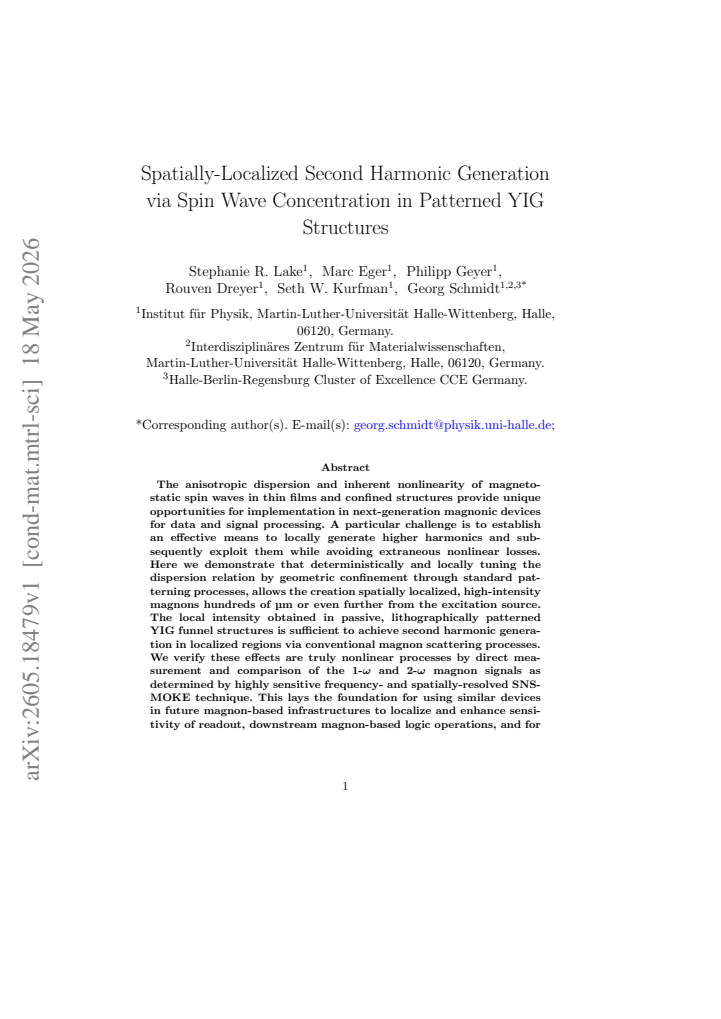

Spatially-Localized Second Harmonic Generation via Spin Wave Concentration in Patterned YIG Structures

Stephanie R. Lake , Marc Eger , Philipp Geyer , Rouven Dreyer , Seth W. Kurfman , Georg Schmidt This is my paper

Pith reviewed 2026-05-20 09:10 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords spin wavessecond harmonic generationYIGmagnonicspatterned structuresnonlinear magnon scatteringgeometric confinement
0
0 comments X

The pith

Patterned YIG funnels concentrate spin waves to enable localized second harmonic generation far from the excitation source.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes that standard lithographic patterning of thin YIG films into funnel shapes can deterministically tune the spin-wave dispersion to concentrate magnons into high-intensity regions hundreds of micrometers from where they are launched. The resulting local intensities reach levels sufficient to drive conventional magnon-magnon scattering that produces a clear second harmonic signal. A sympathetic reader would care because the method is entirely passive, avoids widespread nonlinear losses across the film, and provides a practical route to localize higher-harmonic generation for magnonic signal processing and readout. The effects are verified by direct, spatially resolved comparison of the fundamental and doubled-frequency magnon amplitudes using a sensitive optical probe.

Core claim

Deterministic geometric confinement through lithographically patterned YIG funnel structures creates spatially localized, high-intensity magnons hundreds of micrometers from the excitation source; the local intensity is sufficient to achieve second harmonic generation in those regions via conventional magnon scattering processes, as confirmed by frequency- and spatially-resolved measurements of the 1-ω and 2-ω signals.

What carries the argument

lithographically patterned YIG funnel structures that geometrically confine and concentrate magnetostatic spin waves by tuning their dispersion relation

If this is right

  • Spatially localized high-intensity magnons can be created hundreds of micrometers from the excitation source using only passive patterning.
  • Second harmonic generation becomes feasible in defined regions without incurring extraneous nonlinear losses throughout the film.
  • The approach supplies a foundation for localizing readout sensitivity and enabling downstream magnon-based logic operations.
  • Similar structures can support other higher-harmonic generation phenomena and low-power magnonics applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same geometric-confinement principle could be adapted to other thin-film magnetic materials to engineer different nonlinear thresholds.
  • Localized harmonic generation might allow frequency-domain multiplexing in magnonic circuits without additional active components.
  • Integration with existing lithographic processes suggests straightforward scaling to arrays of such funnels for parallel signal processing.

Load-bearing premise

The observed second-harmonic signal arises from nonlinear magnon-magnon scattering enabled by the geometric concentration rather than from linear propagation, measurement artifacts, or unaccounted losses.

What would settle it

If spatially resolved measurements show the 2-ω amplitude scaling linearly with input power or appearing with comparable strength in unpatterned film regions, the claim that concentration-driven nonlinear scattering is responsible would be falsified.

read the original abstract

The anisotropic dispersion and inherent nonlinearity of magnetostatic spin waves in thin films and confined structures provide unique opportunities for implementation in next-generation magnonic devices for data and signal processing. A particular challenge is to establish an effective means to locally generate higher harmonics and subsequently exploit them while avoiding extraneous nonlinear losses. Here we demonstrate that deterministically and locally tuning the dispersion relation by geometric confinement through standard patterning processes, allows the creation spatially localized, high-intensity magnons hundreds of $\mu m$ or even further from the excitation source. The local intensity obtained in passive, lithographically patterned YIG funnel structures is sufficient to achieve second harmonic generation in localized regions via conventional magnon scattering processes. We verify these effects are truly nonlinear processes by direct measurement and comparison of the 1-$\omega$ and 2-$\omega$ magnon signals as determined by highly sensitive frequency- and spatially-resolved SNS-MOKE technique. This lays the foundation for using similar devices in future magnon-based infrastructures to localize and enhance sensitivity of readout, downstream magnon-based logic operations, and for other higher harmonic generation-related phenomena and low-power magnonics applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript demonstrates that lithographic patterning of YIG into funnel structures enables geometric concentration of spin waves, producing locally high intensities hundreds of μm from the excitation source that are sufficient to drive second-harmonic generation via conventional magnon-magnon scattering. Nonlinearity is asserted on the basis of direct, spatially and frequency-resolved SNS-MOKE comparison between the 1-ω and 2-ω magnon signals.

Significance. If the attribution to nonlinear scattering is confirmed, the work supplies a passive, fabrication-compatible route to localize and enhance higher-harmonic magnonic signals, which would be useful for low-power magnonic logic, readout enhancement, and related nonlinear phenomena.

major comments (1)
  1. Abstract and results on SNS-MOKE: the central claim that the observed 2-ω signal arises from nonlinear magnon scattering enabled by geometric concentration rests on comparison of 1-ω and 2-ω amplitudes, yet the manuscript does not report power-dependent measurements showing quadratic scaling of the 2-ω intensity with input power or with the square of the 1-ω amplitude. Without this check, linear effects (frequency-dependent propagation, taper interference, or defect scattering) remain viable alternative explanations.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading and constructive feedback. The major comment correctly identifies a gap in the experimental evidence presented for the nonlinear origin of the 2-ω signal. We address this point directly below and describe the revisions we will make.

read point-by-point responses

  1. Referee: Abstract and results on SNS-MOKE: the central claim that the observed 2-ω signal arises from nonlinear magnon scattering enabled by geometric concentration rests on comparison of 1-ω and 2-ω amplitudes, yet the manuscript does not report power-dependent measurements showing quadratic scaling of the 2-ω intensity with input power or with the square of the 1-ω amplitude. Without this check, linear effects (frequency-dependent propagation, taper interference, or defect scattering) remain viable alternative explanations.

    Authors: We agree that explicit power-dependent measurements constitute the most direct test of quadratic scaling and would strengthen the attribution to magnon-magnon scattering. The present manuscript relies on the fact that the 2-ω signal is detected only within the geometrically concentrated high-intensity region and is absent outside it, together with the precise frequency doubling observed in the spatially resolved SNS-MOKE maps. While these observations are difficult to reconcile with purely linear propagation or interference effects, we acknowledge that they do not replace a power-law verification. In the revised version we will add a dedicated subsection presenting the 2-ω intensity as a function of input microwave power and as a function of the square of the measured 1-ω amplitude, confirming the expected quadratic dependence. These data will be obtained on the same funnel structures under identical SNS-MOKE conditions and will be discussed in the context of the existing spatial maps. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration with direct measurements

full rationale

The paper is an experimental report on lithographically patterned YIG funnel structures, using SNS-MOKE to observe localized 1-ω and 2-ω magnon signals. No derivation chain, equations, or fitted parameters are presented that reduce to inputs by construction. Claims rest on fabricated samples, optical measurements, and signal comparisons rather than self-referential definitions or self-citation load-bearing steps. The argument is self-contained against external benchmarks of magnon propagation and nonlinearity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on established properties of magnetostatic spin waves in YIG thin films and the ability of lithographic patterning to modify dispersion; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Standard anisotropic dispersion relation for magnetostatic spin waves in thin YIG films holds under geometric confinement.
    Invoked to explain how patterning creates localized high-intensity regions.
