Infrasonic wave propagation in ultrasoft solids at low Reynolds numbers

Jan Maarten van Doorn , Ruben Higler , Ronald Wegh , Remco Fokkink , Alessio Zaccone , Joris Sprakel , Jasper van der Gucht This is my paper

Pith reviewed 2026-05-24 16:25 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords infrasonic waveslow Reynolds numbersoft solidswave propagationoptical trapStokes flowelastic wavesoverdamped waves
0
0 comments X

The pith

An analytical theory for low Reynolds number wave propagation in soft solids agrees with direct experiments using oscillating point forces.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper measures the propagation of overdamped elastic waves at low Reynolds numbers in both ordered and disordered ultrasoft solids. It generates these waves using an oscillating point force from an optical trap and derives an analytical theory based on Stokes flow that matches the observed behavior. This matters because mechanical signals in soft and biological materials often occur at low Re where waves are overdamped and difficult to observe or predict. The work supplies both a characterization method for such waves and a framework for understanding remote delayed responses to localized cues.

Core claim

Direct measurements of low Re waves propagating in ordered and disordered soft solids, generated by an oscillating point force induced by an optical trap, are described by a derived analytical theory for low Re wave propagation in excellent agreement with the experiments. The results present both a new method to characterize wave propagation in soft solids and a theoretical framework to understand how localized mechanical signals can provoke a remote and delayed response.

What carries the argument

Analytical theory for low Re wave propagation derived from the overdamped Stokes-flow description for point-force excitation.

If this is right

  • Provides a new method to characterize wave propagation in soft solids.
  • Supplies a theoretical framework to understand how localized mechanical signals provoke remote and delayed responses.
  • Applies equally to ordered and disordered soft solids.
  • Describes wave behavior where inertia is negligible.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The framework could be applied to model mechanical signal transmission in biological tissues under low Re conditions.
  • Testing the theory in additional ultrasoft materials such as gels would check its generality beyond the studied samples.
  • Extensions to weakly nonlinear forcing could identify where the linear Stokes assumption breaks down.

Load-bearing premise

The overdamped Stokes-flow description remains valid and linear for the point-force excitation used in the samples.

What would settle it

A measurement of wave speeds or spatial decay lengths in similar ultrasoft solids at low Re that deviates significantly from the analytical predictions.

Figures

Figures reproduced from arXiv: 1907.10736 by Alessio Zaccone, Jan Maarten van Doorn, Jasper van der Gucht, Joris Sprakel, Remco Fokkink, Ronald Wegh, Ruben Higler.

Figure 1
Figure 1. Figure 1: FIG. 1. (a) Schematic overview of our experiment. (b) [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

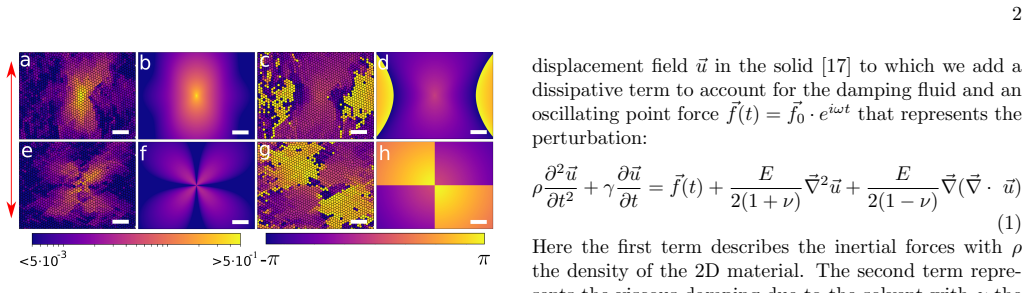

Figure 2
Figure 2. Figure 2: FIG. 2. (a) Experimental amplitude map of the parallel dis [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

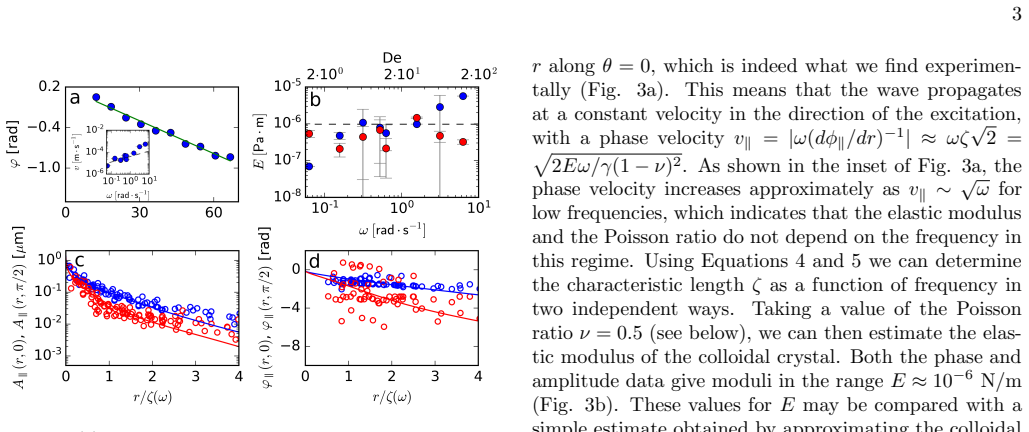

Figure 3
Figure 3. Figure 3: FIG. 3. (a) Bin-averaged phase of the parallel displacement [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

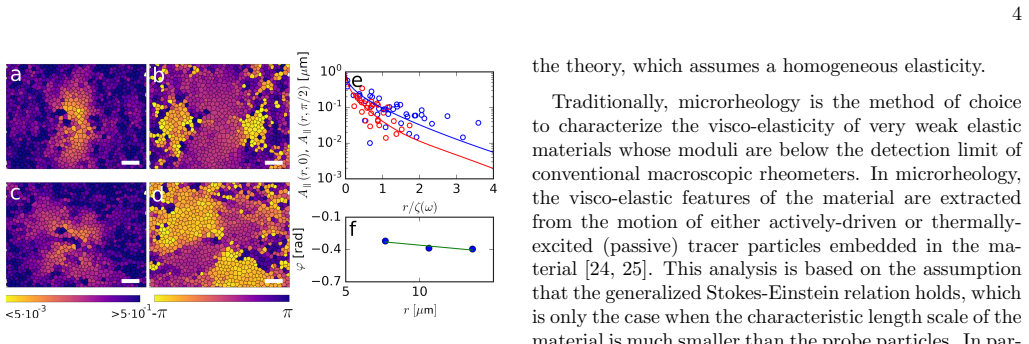

Figure 4
Figure 4. Figure 4: FIG. 4. Experimental maps of (a) parallel displacement am [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

The propagation of elastic waves in soft materials plays a crucial role in the spatio-temporal transmission of mechanical signals, e.g. in biological mechanotransduction or in the failure of marginal solids. At high Reynolds numbers $Re \gg 1$, inertia dominates and wave propagation can be readily observed. However, mechanical cues in soft and biological materials often occur at low $Re$, where waves are overdamped. Not only have low $Re$ waves been difficult to observe in experiments, their theoretical description remains incomplete. In this paper, we present direct measurements of low $Re$ waves propagating in ordered and disordered soft solids, generated by an oscillating point force induced by an optical trap. We derive an analytical theory for low $Re$ wave propagation, which is in excellent agreement with the experiments. Our results present both a new method to characterize wave propagation in soft solids and a theoretical framework to understand how localized mechanical signals can provoke a remote and delayed response.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports direct measurements of overdamped (low-Re) infrasonic wave propagation in both ordered lattices and disordered ultrasoft gels, driven by an oscillating point force applied via optical trap. An analytical theory is derived from the linear Stokes equations for this regime and is stated to be in excellent agreement with the experimental data across both sample classes, providing a framework for remote mechanical signaling in soft materials.

Significance. If the linear Stokes-flow assumption and the theory-experiment comparison hold without post-hoc adjustments, the work would supply both a practical experimental method and a closed-form description for wave propagation at low Re, relevant to mechanotransduction and marginal solids. The explicit comparison in both ordered and disordered systems is a positive feature; the absence of free parameters in the derivation (as indicated by the axiom ledger) would strengthen the result if confirmed.

major comments (2)
  1. [Theory section and Experimental methods] The central claim of excellent agreement rests on the validity of the linear, overdamped Stokes description for the optical-trap point force. No explicit checks (local Re, strain amplitude, or linearity tests near the trap) are provided for the disordered gels, where spatial heterogeneity could amplify deviations; this is load-bearing for the theory-experiment match in both sample types.
  2. [Results and comparison to theory] The functional form of the analytical solution is presented as independently derived and then compared to data, yet the manuscript does not detail data-exclusion criteria or confirm that the comparison is truly out-of-sample; this directly affects the circularity concern and the strength of the 'excellent agreement' statement.
minor comments (2)
  1. [Abstract] The abstract asserts 'excellent agreement' without quoting quantitative metrics (e.g., R^{2} or residual norms) that appear in the figures or tables.
  2. [Theory] Notation for the point-force term and the resulting Green's function should be cross-referenced explicitly between the derivation and the experimental fitting procedure.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting these important points regarding validation of the linear regime and the independence of the theory-experiment comparison. We address each major comment below and will revise the manuscript to strengthen these aspects.

read point-by-point responses

  1. Referee: [Theory section and Experimental methods] The central claim of excellent agreement rests on the validity of the linear, overdamped Stokes description for the optical-trap point force. No explicit checks (local Re, strain amplitude, or linearity tests near the trap) are provided for the disordered gels, where spatial heterogeneity could amplify deviations; this is load-bearing for the theory-experiment match in both sample types.

    Authors: We agree that explicit verification of the linear Stokes regime is essential, especially given potential heterogeneity in the disordered gels. Although the experimental design (ultrasoft materials and small trap forces) was chosen to ensure low Re and small strains by construction, the manuscript does not currently include these quantitative checks. In the revised manuscript we will add a dedicated subsection with: (i) local Re estimates computed from measured particle velocities and the gel mesh size as the relevant length scale, (ii) strain-amplitude calculations from the observed displacements near the trap, and (iii) linearity tests obtained by repeating measurements at multiple force amplitudes in both ordered and disordered samples. These additions will directly confirm that the assumptions remain valid across the reported data. revision: yes

  2. Referee: [Results and comparison to theory] The functional form of the analytical solution is presented as independently derived and then compared to data, yet the manuscript does not detail data-exclusion criteria or confirm that the comparison is truly out-of-sample; this directly affects the circularity concern and the strength of the 'excellent agreement' statement.

    Authors: The analytical solution was obtained by solving the linear Stokes equations with an oscillating point force, without reference to any experimental data and with no free parameters (as documented in the axiom ledger). All measured data points are shown in the comparison figures; no data were excluded on the basis of agreement with theory. We will revise the Methods and Results sections to state explicitly that (a) the derivation preceded data analysis, (b) the full data set is used without post-hoc selection, and (c) the theory contains no adjustable parameters fitted to the presented measurements. This clarification removes any ambiguity about circularity. revision: yes

Circularity Check

0 steps flagged

Analytical derivation from linear Stokes equations is independent of fitted data

full rationale

The paper states it derives an analytical theory for low-Re wave propagation from the overdamped Stokes equations with a point-force source and then compares the closed-form result to independent experimental measurements in both ordered and disordered samples. No step reduces a claimed prediction to a parameter fitted on the same data, no self-citation chain is invoked to justify a uniqueness theorem or ansatz, and the functional form is not obtained by renaming an empirical pattern. The derivation chain is therefore self-contained against external benchmarks and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no explicit free parameters, axioms, or invented entities; the theory is stated to be analytical and in agreement with data, but details are absent.
