Fourier-Latent Diffusion for Constrained Generation of Triply Periodic Minimal Surfaces

Bohan Wang; Shu Yan

A diffusion model trained in a D2h-symmetric Fourier latent space can generate diverse near-minimal TPMS that satisfy user-specified geometric and material-property constraints.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

A D2h-symmetric Fourier latent diffusion model generates diverse near-minimal triply periodic minimal surfaces and supports conditioning on sparse geometric points and homogenized elastic stiffness targets.

T0 review reviewed 2026-08-04 challenge →

load-bearing objection The D2h-symmetric Fourier latent space and the 18K TPMS dataset are the real contributions; the material-property conditioning claim is weaker than the abstract suggests because evaluation reuses the same homogenization pipeline used to build the labels. the 4 major comments →

arxiv 2608.02151 v2 pith:4YHZAZGS submitted 2026-08-03 cs.GR

Fourier-Latent Diffusion for Constrained Generation of Triply Periodic Minimal Surfaces

Shu Yan , Bohan Wang This is my paper

classification cs.GR

keywords triply periodic minimal surfacesTPMSdiffusion modelFourier latent spaceD2h symmetryinverse designhomogenized elastic propertiesmean curvature

verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper tries to make triply periodic minimal surfaces (TPMS) — the bicontinuous, zero-mean-curvature geometries used in engineered lattices — designable rather than limited to a few known families such as the Primitive, Diamond, and Gyroid. The authors build a dataset of more than 18,000 unique TPMS by enumerating admissible boundary loops on mirrorable fundamental bounding volumes and solving for the minimal patches, then encode each surface as 4,096 cosine-Fourier coefficients that enforce periodicity and D2h symmetry by construction. A transformer-based diffusion model is trained in this compact latent space, and at inference users can condition the sampler on sparse points the surface must pass through, on target homogenized stiffness values, or on both. Reported results are that generated surfaces stay close to minimal (average absolute mean curvature as low as 0.67 after postprocessing), are diverse and distinct from training shapes, and hit geometric and material targets within a few percent. If these claims hold, the framework becomes a practical inverse-design tool for TPMS metamaterials, replacing a short menu of analytic surfaces with a generative prior over a much richer space.

Core claim

The paper's central discovery is that a rich space of TPMS geometries can be compressed into a compact, symmetry-enforcing Fourier latent space without meaningful geometric loss, and that a diffusion model trained in this space can both sample novel near-minimal surfaces and satisfy user constraints at inference time. Using the procedural boundary-loop construction, the authors enumerate eight mirrorable fundamental bounding volumes with admissible loops up to ten vertices to produce 18,704 unique TPMS, align their signed-distance fields, and project onto a D2h-invariant cosine basis with K_max=15, giving 4,096 coefficients (an 8x reduction over a general real Fourier series) that enforce pe

What carries the argument

The load-bearing object is the D2h-symmetric cosine Fourier basis for the signed-distance field of each TPMS. Because every dataset surface is invariant under reflections across the three coordinate planes of the unit cell, its Fourier expansion contains no sine terms; the field is exactly represented as a sum of products of cosines (Eq. 4) with coefficients a_{hkl}. Truncating at K_max=15 leaves 4,096 coefficients, exactly periodic and D2h-symmetric for any coefficient tensor, and reducing the representation roughly eightfold versus a general real Fourier series. This basis does the work of a learned autoencoder but is derived from the geometry itself: it also acts as a geometric cleanup, l

Load-bearing premise

The stiffness-matching claims depend on the same homogenization pipeline being an accurate oracle for both the training labels and the evaluation of generated samples, with a fixed shell thickness of 0.02; if that simulator is biased, the reported material-property accuracy could be an artifact.

What would settle it

Take the 30 bulk-modulus-conditioned samples from the paper, thicken them to 0.02 as described, and recompute their homogenized elastic tensors with an independent finite-element solver (or fabricate and compress them); if the relative error jumps well above the reported 6.1%, the material-conditioning result is an artifact of the shared simulator.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

If this is right

Designers gain a generative prior over D2h-symmetric TPMS: unconditional sampling produces diverse, topologically distinct, near-minimal candidates that are not near-copies of the training set.
Functional inverse design becomes a single forward pass: users can specify sparse geometry, homogenized stiffness (bulk modulus or C11), or both, and receive a low-curvature TPMS meeting the constraint within reported single-digit percentage errors.
Deterministic inversion creates a built-in editing tool: an existing TPMS can be mapped to its latent code, locally modified under gradient guidance, and decoded back to a periodic, low-curvature surface.
The eightfold compression of the symmetry-aware Fourier basis makes training roughly 3-5x cheaper than generic 3D SDF diffusion baselines while yielding better mean curvature and periodicity guarantees.
Because the latent representation enforces symmetry by construction, no additional symmetry or periodicity losses are needed during training or postprocessing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the material-property conditioning survives evaluation by an independent homogenization solver or physical compression testing, the pipeline would be a strong candidate for real TPMS metamaterial inverse design; the paper currently labels and evaluates with the same simulator, so that external check is the decisive next experiment.
The Fourier-latent strategy is not conceptually limited to D2h; any periodic structure with a finite crystallographic symmetry group could be encoded in the corresponding symmetric Fourier basis, so the approach plausibly extends to other point groups and to graded or thickness-varying TPMS with a modest change of representation.
A natural testable extension is to condition on richer material descriptors (full anisotropic tensor, surface-area-to-volume ratio, or multiple stiffness components at once); the cross-attention conditioning mechanism in principle absorbs new targets, and success would show the latent space carries enough geometric information for multi-objective design.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

The D2h-symmetric Fourier latent space and the 18K TPMS dataset are the real contributions; the material-property conditioning claim is weaker than the abstract suggests because evaluation reuses the same homogenization pipeline used to build the labels.

read the letter

Dear Colleague,

You should know two things before reading: the actual contribution is the D2h-symmetric Fourier latent representation plus the 18K TPMS dataset built from Makatura et al.'s boundary-loop construction. The material-property conditioning, which the abstract advertises as the headline, is evaluated on a self-consistency check and needs independent validation before I'd trust the 6.1% error.

What's genuinely new: building a diffusion model on a compact cosine-basis latent that enforces periodicity and D2h symmetry by construction is clever and effective. The 8x reduction in coefficients while preserving geometry (including small holes) is demonstrated with inversion on held-out shapes; validation CD ~3.8e-3 is respectable. The dataset of 18,704 unique solver-generated TPMS is a resource in itself, and the paper is transparent about the pipeline and limitations.

Where it gets soft: First, the material-property evaluation uses the same finite-element homogenization pipeline to label training data and to evaluate generated samples. That makes the 6.1% bulk-modulus error a test of consistency, not of genuine inverse-design capability. The stress-test note is right. The paper even admits this in §4.4, but transparency doesn't remove the circularity; you'd want at least one check with an independent solver or a different shell thickness (0.02 is arbitrary). Second, the headline curvature numbers come from selecting the best 150 of 300 samples (§4.5), and the postprocessing in Eq. (12) directly minimizes the same squared-mean-curvature objective used to report low residual curvature. That's a mild circularity in the curvature claim, but it's ablated and the affect is real. Third, the baseline comparisons for material property are missing; there's no trivial mean-predictor or unconditional-sampling control, so we don't know how much conditioning actually helps. Finally, no code or dataset is released, which makes the dataset claim hard to verify.

On the whole, the central generative claim holds up; the method is well-engineered and the latent representation is a genuine step forward. The soft spots are evaluation choices, not fatal flaws. I'd send this to peer review with a request for major revision: add an independent homogenization check, report all 300 samples or justify the selection, control for the postprocessing in baselines, and add a conditioning baseline. A reader working on TPMS design or learned latent representations will get real value from this paper.

My recommendation: engage with it, but treat the material-property numbers with skepticism until they are independently verified.

Referee Report

4 major / 6 minor

Summary. The paper presents a diffusion-based generative framework for triply periodic minimal surfaces (TPMS). The authors construct a dataset of over 18K TPMS using procedural boundary-loop enumeration, project the surfaces onto a D2h-symmetric Fourier coefficient representation, train a transformer-based diffusion model in this latent space, and support unconditional sampling, inversion, editing, and conditioning on sparse geometric points and homogenized elastic properties. The central claim is that this is the first learned generative framework for TPMS that jointly supports geometric and material-property conditioning while maintaining low residual mean curvature. Experiments report accurate shape inversion, diverse unconditional generation, small point-conditioning errors, and low bulk-modulus errors under material conditioning.

Significance. If the claims hold, the paper makes a useful contribution: a large, curated TPMS dataset, a symmetry-aware Fourier latent representation that reduces dimensionality while preserving periodicity, and a flexible diffusion framework supporting several design tasks. The dataset construction and the explicit D2h-symmetric Fourier basis are technically sound and could benefit the community. The paper is also transparent about its limitations, including the restriction to D2h symmetry and non-exact minimality. However, two evaluation choices currently weaken the evidence for the headline claims: the material-property validation uses the same homogenization pipeline for both training labels and evaluation, and the reported low-curvature/diversity metrics are computed on a selected subset of samples after a post-processing step that directly minimizes the reported curvature metric. These issues are load-bearing for the claimed contributions and need to be addressed.

major comments (4)

[§4.4] Material-property conditioning is validated using the same homogenization pipeline that generated the training labels: 'The same homogenization pipeline is used to label the training data and to evaluate generated samples.' The reported 6.1% average relative bulk-modulus error is therefore a self-consistency check, not an independent validation of the claim that the model can 'match target homogenized linear elastic properties.' The paper provides no comparison against unconditional sampling or a trivial mean-predictor baseline, so the conditioning effect is not isolated. Please validate with an independent solver, a different shell thickness or mesh resolution, or at least report the distribution of errors for unconditionally generated samples. Without this, the material-conditioning claim is not established.

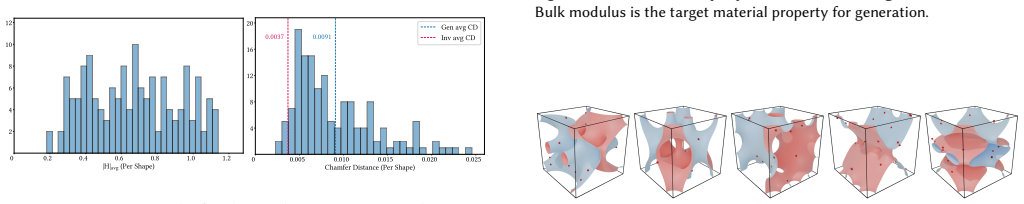

[§4.5 and Table 1] The headline curvature and diversity metrics are computed on the best 150 of 300 generated samples (§4.3, Fig. 8), and Table 1 uses these selected samples. The paper notes that all 300 samples have average |H|_avg = 1.16, but the reported 0.67 is for the selected subset. This is a form of cherry-picking that overstates the model's typical output. Additionally, the comparison with baselines is not apples-to-apples: Ours includes the mean-curvature post-processing of Eq. (12), while the SDF-Diffusion and SDFusion baselines are not given the same post-processing. Please report metrics for all 300 samples and either apply the same post-processing to baselines or compare without post-processing.
[§4.6 and Eq. (12)] The post-processing step directly minimizes the squared mean curvature of the implicit surface, and the paper then reports average |H|_avg as a measure of quality. This is circular for the 'low residual mean curvature' claim: the reported reduction from 1.00 to 0.67 is by construction. Please report an independent curvature evaluation, for example a curvature measure computed on a different mesh resolution or via a different discretization, and show that the improvement is not solely an artifact of optimizing the same objective used for evaluation.
[§3.1 and §3.2] The paper assumes that all generated TPMS can be aligned to a D2h-symmetric form after half-period shifts and sign flips, so that the Fourier basis of Eq. (4) exactly represents them. However, the reflection group of a mirrorable FBV may be a subgroup of D2h, and it is not proven that the alignment procedure restores full D2h symmetry for all eight FBV types. If some dataset surfaces are not D2h-invariant, the projection onto this basis introduces uncontrolled distortion. Please provide empirical evidence of symmetry satisfaction (e.g., measure the symmetry residual before and after projection) or restrict the dataset to FBVs that provably generate D2h-symmetric surfaces.

minor comments (6)

[§3.3] The signed-log normalization depends on a scale parameter τ, but the value of τ is not given. Please report it for reproducibility.
[§3.3] The terminal SNR parameter 'SNR=3.0' is not precisely defined. Please specify how it is computed from the noise schedule.
[§3.4] The guidance strength η_t in Eq. (11) is described as timestep-dependent but no schedule is provided. Please clarify the schedule used in the experiments.
[§4.4] For joint conditioning, only C11 and point constraints are tested. It would be helpful to see a more diverse set of material targets (e.g., off-diagonal stiffness components or anisotropy ratios) to demonstrate generality.
[§4.2 and §4.3] Chamfer distances are reported without standard deviations or error bars. Adding variance information would strengthen the quantitative comparisons.
[References] The reference list contains a typo in the caption of Fig. 14 ('fucntions') and some entries appear in author lists with inconsistent formatting. A careful proofread is recommended.

Circularity Check

2 steps flagged

Partial circularity: the reported low curvature is the postprocessor's own objective, and material-property conditioning is scored by the same FE simulator that produced the training labels; unconditional diversity and validation-set inversion remain independent evidence.

specific steps

self definitional [§3.5, Eq. (12) and §4.6 (postprocessing ablation)]
"For each generated shape, we sample 8,192 vertices from the extracted mesh, evaluate the absolute mean curvature |H|, and backpropagate the corresponding loss to optimize the Fourier coefficients. ... As shown in Figure 15, mean-curvature post-processing reduces the average |H|_avg from 1.00 to 0.67."

Eq. (12) minimizes E_p[H_f(p;a)^2] over the Fourier coefficients, and the low-curvature metric reported throughout the paper is the same |H|_avg evaluated on the final output. Running gradient descent on that objective and then reporting that the output has low |H|_avg is a self-consistency check, not independent evidence that the diffusion model itself generates near-minimal surfaces. The raw diffusion output has |H|_avg around 1.00-1.16, so the headline 0.67 is substantially the result of optimizing the evaluation metric.
other [§4.4, material-property conditioning]
"Then, homogenized stiffness tensors C are computed using a standard solver [Zhang et al. 2023]. The same homogenization pipeline is used to label the training data and to evaluate generated samples. ... The generated structures closely match the prescribed bulk modulus, with an average relative error of 6.1%."

The conditioning labels are produced by the same FE homogenization function that is used to score the generated shapes. Any bias, discretization error, or arbitrary modeling choice (e.g., the uniform 0.02 shell thickness) is therefore shared by the target and the prediction, so the 6.1% error measures how well the model inverts this particular simulator rather than whether the surfaces match independently measured or differently simulated elastic properties. The experiment is a self-consistency check, not validation against an independent forward model.

full rationale

The paper has substantial independent content. The DDIM inversion results on a held-out validation set (CD 3.82e-3) test generalization to unseen shapes; unconditional sampling is compared with training nearest neighbors and baselines, showing novelty and diversity; and the Fourier latent representation enforces periodicity and D2h symmetry by construction. The two flagged steps are partial circularities in the central evaluation. First, the 'low residual mean curvature' headline is obtained by explicitly optimizing squared mean curvature (Eq. 12), so the reported 0.67 is the postprocessor's objective value rather than an independent generative-quality measure, though raw outputs are already lower-curvature than the trigonometric baseline. Second, material-property conditioning is both labeled and evaluated with the same homogenization pipeline, which makes the 6.1% error a self-consistency metric rather than an independent validation. These do not reduce the entire framework to its inputs, so the score is not 8-10, but they do mean two load-bearing quantitative claims are partly forced by construction, giving a partial-circularity score of 6. The use of Makatura et al. [2023] for dataset construction is an externally published, solver-based tool and is not scored as circular.

Axiom & Free-Parameter Ledger

6 free parameters · 5 axioms · 0 invented entities

The central claim rests on the Makatura et al. definition of minimality and on a FE homogenization simulator used both to label and evaluate. Many hyperparameters (Kmax, lambda_a, thickness, curvature threshold, noise schedule) are hand-set. No new physical entities are introduced.

free parameters (6)

Kmax = 15 (Fourier truncation) = 15
Latent dimension (4096 coefficients). Chosen by hand based on Fig. 4; affects fidelity and diversity of all generated surfaces.
Curvature threshold for dataset filtering = |H|_avg = 7.5
Structures with average absolute mean curvature above 7.5 are discarded during dataset construction (§4.1), shaping the training distribution and the definition of 'valid TPMS'.
Postprocessing weight lambda_a = 0.1
Trade-off between mean-curvature minimization and anchoring to the generated surface (§3.5, §4.6); directly controls reported |H|_avg values.
Diffusion noise schedule = beta_min=0.1, beta_max=10.0, terminal SNR=3.0
Forward-process schedule chosen to preserve coefficient structure; affects sample quality and inversion stability.
Homogenization shell thickness = 0.02
TPMS is uniformly thickened by 0.02 with Young's modulus 1.0 and Poisson's ratio 0.3 to compute elastic tensors (§4.4). Material labels and evaluations depend on this arbitrary simulation choice.
Signed-log normalization scale tau = not stated
Scale in the signed logarithmic normalization of Fourier coefficients (§3.3). Value is not reported in the text.

axioms (5)

domain assumption Makatura et al.'s procedural boundary-loop solver produces exact or near-exact minimal surface patches for admissible loops on mirrorable FBVs.
Invoked in §3.1 as the ground-truth generator of all 18K TPMS. If the solver has systematic curvature error, all downstream curvature claims inherit it.
domain assumption The truncated D2h-symmetric cosine basis at Kmax=15 faithfully represents the dataset, including fine topological features.
§3.2 and Fig. 4. The 4096-coefficient latent space is the representation on which the entire generative model operates; representation loss is shown to be small but not zero.
domain assumption The FE homogenization solver of Zhang et al. 2023 correctly predicts linear elastic properties of 0.02-thick TPMS shells.
§4.4 uses the same pipeline for training labels and evaluation. No independent experimental or second-solver validation is provided.
domain assumption Gradient-guided diffusion posterior sampling (Eq. 11) stays near the learned TPMS manifold while satisfying constraints.
Used for conditional generation and editing; no convergence or manifold-staying guarantees, only empirical distance/error measurements.
ad hoc to paper All TPMS can be aligned to a canonical D2h-symmetric form after half-period shifts and sign flips without losing geometric validity.
§4.1 alignment procedure. This restricts the design space to D2h-symmetric TPMS, an acknowledged limitation in §5.

reviewed 2026-08-04 · how reviews work

0 comments

Cite this review

Pith. "Pith review of Fourier-Latent Diffusion for Constrained Generation of Triply Periodic Minimal Surfaces." pith.science (2026). https://pith.science/paper/4YHZAZGS

@misc{pith2026260802151,
  author       = {Pith},
  title        = {Pith review of: Fourier-Latent Diffusion for Constrained Generation of Triply Periodic Minimal Surfaces},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4YHZAZGS}},
  note         = {Machine review of arXiv:2608.02151}
}

Share X Bluesky LinkedIn Reddit HN

read the original abstract

We propose a diffusion-based generative framework for controllable generation of triply periodic minimal surface (TPMS) structures with low residual mean curvature. Existing TPMS generation approaches are often restricted to a small set of canonical families or produce TPMS-like approximations that deviate from exact minimality. To enable this generative framework, we first construct a large-scale dataset of over 18K unique TPMS by enumerating admissible boundary loops on mirrorable fundamental bounding volumes and solving for diverse minimal-surface patches. Each surface is then projected onto a compact Fourier latent space that explicitly enforces periodicity and $D_{2h}$ symmetry. Next, a transformer-based diffusion model is trained in this latent space to support unconditional sampling, deterministic inversion, local editing, and conditional generation under user-specified constraints. Experiments demonstrate that the model generates diverse, low-curvature TPMS candidates that, under conditioning, satisfy sparse geometric constraints and match target homogenized linear elastic properties, providing a practical tool for TPMS inverse design.
