CNN Models for Microphone Array Covariance Matrix Upsampling and Acoustic Imaging

Marianthi Adamopoulou , Parthasaarathy Sudarsanam , David Diaz-Guerra , Meng Jiang , Archontis Politis , Seyed Jalaleddin Mousavirad , Tuomas Virtanen , Jan Lundgren This is my paper

Pith reviewed 2026-07-03 18:52 UTC · model grok-4.3

classification 📡 eess.AS cs.LGcs.SDeess.SP
keywords covariance matrix upsamplingmicrophone arrayacoustic imagingconvolutional neural networksbeamformingdelay-and-sumSTARSS23
0
0 comments X

The pith

Neural networks can upsample 4-microphone covariance matrices to produce acoustic images matching a 32-microphone array.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests five convolutional neural network architectures that take the covariance matrix from a tetrahedral 4-microphone array and estimate the covariance matrix of a spherical 32-microphone array. The goal is to improve spatial resolution in acoustic imaging while keeping the physical hardware small. The models use 2D convolutions to capture spatial-spectral patterns in the matrices and frequency dynamic convolution to handle frequency dependence. On the STARSS23 dataset the networks beat a random baseline in root-mean-square error, and delay-and-sum beamforming on the estimated matrices yields sound maps visually close to those from the full 32-channel array.

Core claim

Convolutional models can learn a mapping from the 4-channel covariance representation to the full 32-channel covariance matrix such that delay-and-sum beamforming on the estimated matrix produces sound source maps that closely resemble the maps obtained from the actual 32-channel array.

What carries the argument

2D convolutional layers with frequency dynamic convolution that extract spatial-spectral structure and frequency-dependent properties from covariance matrices.

If this is right

  • Covariance upsampling raises the effective spatial resolution of a 4-channel array toward that of a 32-channel array.
  • Beamforming images computed from the estimated 32-channel matrices visually match those from the real 32-channel array.
  • All five tested architectures reduce RMSE relative to the random-guess baseline of 0.548.
  • The best architecture reaches an RMSE of 0.432 on the test data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could enable higher-resolution acoustic imaging on devices that can only carry a small number of microphones.
  • If the same network generalizes across array shapes, it would reduce the need to redesign hardware for each new application.
  • Real-time versions of these models could support live sound-source tracking on resource-limited platforms.

Load-bearing premise

The mapping learned from STARSS23 training recordings will produce covariance estimates that remain accurate for beamforming on acoustic scenes and array placements never seen during training.

What would settle it

Apply the best trained model to a held-out recording set from a different acoustic environment or with a different 4-microphone geometry and measure whether the RMSE stays below 0.45 and whether the resulting beamforming heatmaps still match the 32-channel ground truth.

Figures

Figures reproduced from arXiv: 2607.01295 by Archontis Politis, David Diaz-Guerra, Jan Lundgren, Marianthi Adamopoulou, Meng Jiang, Parthasaarathy Sudarsanam, Seyed Jalaleddin Mousavirad, Tuomas Virtanen.

Figure 1

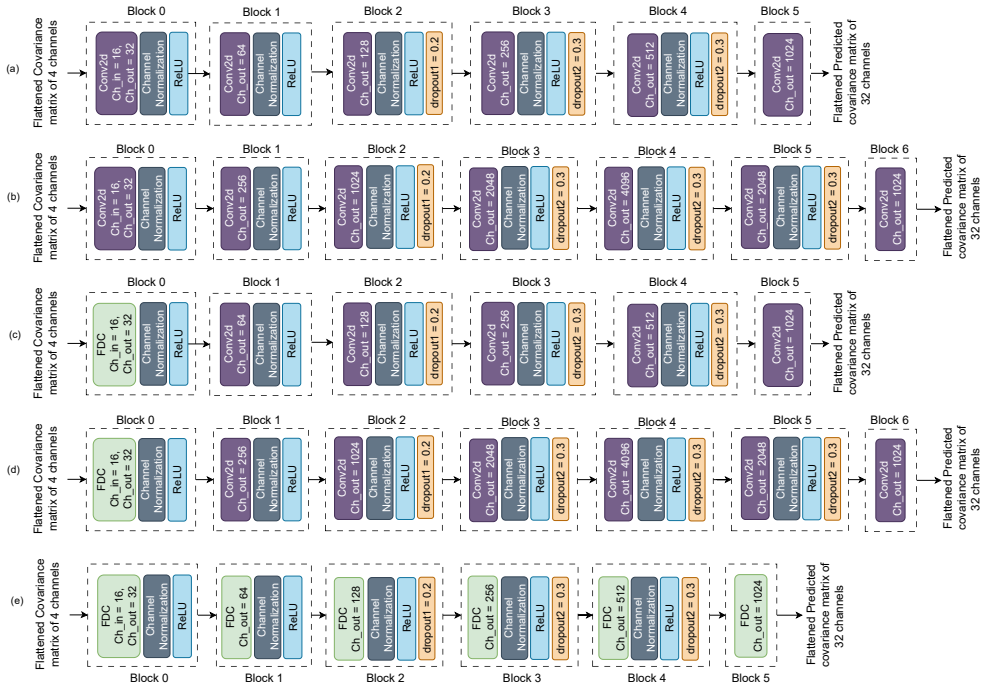

Figure 1. Figure 1: model architectures. (a) Base CNN, (b) Expanded CNN, (c) Hybrid FDC-CNN Base, (d) Hybrid FDC-CNN Expanded, [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
