PIM Is All You Need: A CXL-Enabled GPU-Free System for Large Language Model Inference

T0 review · 4 major / 5 minor · reviewed 2026-08-08 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read CENT, a GPU-free CXL memory system, claims 2.3x higher LLM inference throughput than A100 GPUs while using 2.9x less energy.

desk verdict Solid systems work with one load-bearing gap: no accuracy validation for BF16/Taylor softmax, plus an asymmetric GPU comparison; deserves peer review with major-revision expectations. read the letter →

arxiv 2502.07578 v3 pith:55LXYXN7 submitted 2025-02-11 cs.AR

Yufeng Gu , Alireza Khadem , Sumanth Umesh , Ning Liang , Xavier Servot , Onur Mutlu , Ravi Iyer , Reetuparna Das This is my paper · ORCID
classification cs.AR
keywords Processing-in-memoryComputeExpressLinkLargelanguagemodelinferenceMemory-boundworkloadsNear-bankprocessingGPU-freeservingPipelineparallelismTensor
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Large language models are memory-bound during token-by-token decoding: they stream weights and key-value caches from DRAM faster than GPUs can feed them, so expensive GPU compute sits underutilized. This paper argues that the right hardware for that workload is not a GPU at all but a memory-centric system: CXL-attached memory devices with processing units placed next to DRAM banks. The proposed system, CENT, claims 2.3x higher end-to-end throughput than an A100-based GPU server at similar average power, 2.9x lower energy, and 5.2x more tokens per dollar. If true, it would make LLM serving cost and energy driven by memory, not by GPU silicon.

What carries the argument

The load-bearing object is the hierarchical PIM-PNM memory device. Each CXL device holds 16 GDDR6-PIM chips; each chip has two channels, and every bank in a channel has a near-bank processing unit with a 16-MAC reduction tree that reads operands directly from the bank at 1 GHz, giving the device 512 TB/s of internal bandwidth. Because near-bank units only do MACs, a second level, PNM units with accumulators, reduction trees, exponent accelerators, and RISC-V cores, finishes the non-MAC operations through a 64 KB shared buffer. Arithmetic uses BF16 values, and exponentiation inside the PNM units uses a 10-order Taylor-series approximation. This hierarchy, plus the CXL communication primitives, is what lets a transformer block run end-to-end inside memory without a GPU or host compute.

What would settle it

Run the paper's provided CENT simulator on Llama2-70B with the published traces, measure end-to-end perplexity on a held-out text set, and compare against FP16 A100 inference at batch 128; if perplexity diverges by more than a preset tolerance, the accuracy premise fails. Separately, reproduce the 2.3x throughput and 2.9x energy numbers with the supplied scripts; if they do not reproduce, the headline comparison fails.

Watch

Extended reading notes

Core claim

The paper's central claim is that a GPU-free server built from CXL-connected GDDR6-PIM devices can outperform a four-GPU A100 server for LLM inference by moving arithmetic to where the weights live. CENT maps the arithmetic of a transformer block onto two levels: near-bank processing units inside each DRAM bank perform the multiply-accumulate operations that make up over 99% of the arithmetic, while processing-near-memory accelerators and RISC-V cores next to the memory handle softmax, normalization, square roots, and divisions. A CXL 3.0 switch network with broadcast, multicast, gather, send, and receive primitives lets CENT distribute a model across devices using pipeline, tensor, or hybrid parallelism. On Llama2 7B/13B/70B with 4K contexts and maximum supported batch sizes, the paper reports 2.3x geomean throughput, 2.9x lower energy, and 5.2x more tokens per dollar than the GPU baseline; with 32K contexts the decode-throughput advantage grows to 3.3x.

Load-bearing premise

The premise that BF16 near-bank MACs and a 10-order Taylor-series exponential produce transformer output indistinguishable from FP16 GPU inference; the functional simulator checks instruction-level behavior but the paper reports no perplexity, accuracy, or downstream-task comparison, so if output quality degrades, CENT cannot replace GPUs regardless of speed or cost.

Editorial extensions

If this is right

  • If CENT's numbers hold, LLM serving can shift from compute-optimized GPUs to memory-optimized CXL-attached PIM devices, with the host CPU only orchestrating and sampling.
  • The advantage grows with context length: at 32K contexts the paper measures 3.3x decoding throughput over GPUs, so long-context and reasoning workloads benefit most.
  • Prefill stays compute-bound and GPUs remain roughly 2.5x faster there, but because prefill is only about 2% of end-to-end GPU time, the decode-dominated total still favors CENT.
  • Scaling is feasible up to about 64 CXL devices per server with one switch and 128 devices with two-level switching, giving a path from small models to 70B-class serving without GPUs.
  • TCO gains are substantial: CENT's owned and rental costs are about 2.5x lower per hour, which is why tokens per dollar reach 5.2x.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the unverified BF16/Taylor arithmetic preserves model quality, a natural next step is aggressive weight quantization, because the same memory-bound argument suggests CENT would tolerate it at least as well as GPUs.
  • The cost comparison is a single-server figure: in a multi-tenant fleet, sharing the host CPU and CXL switch across racks could improve or erode the 5.2x tokens-per-dollar number, so the headline TCO claim is not automatically a fleet-level bound.
  • The manuscript reports 2.9x lower energy in the abstract and results but 2.3x lower energy in the conclusion; this discrepancy is not flagged in the paper and should be resolved before relying on either number.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. CENT is a proposed GPU-free server for LLM inference built from CXL-attached devices containing GDDR6-PIM channels and near-memory PNM units. The paper describes the hierarchical PIM-PNM microarchitecture, a CXL 3.0-based network with send/receive/broadcast/multicast primitives, mappings for pipeline, tensor, and hybrid parallelism, and an evaluation of Llama2-7B/13B/70B using a modified Ramulator2 simulator plus power and cost models. Against a vLLM baseline on A100 GPUs, the authors report 2.3x higher end-to-end throughput, 2.9x lower energy, and 5.2x more tokens per dollar. The artifact is open source and includes trace generation, simulation, power modeling, and figure-generation scripts.

Significance. If the reported results hold, CENT would be a significant data point showing that memory-centric hardware can serve memory-bound LLM decoding more efficiently than GPUs. The paper's strengths include the open-source artifact, the use of a timing-aware DRAM simulator, the grounding in real PIM prototypes (AiM, UPMEM), the inclusion of CXL-PNM and heterogeneous GPU-PIM baselines, and the scalability exploration to 128 devices. The central limitation is that output fidelity is never validated, so the throughput and TCO claims currently refer to a system whose tokens are not shown to be as useful as GPU-generated tokens.

major comments (4)
  1. [§4.2, §6, Appendix A.3.3] The numerical fidelity of the proposed datapath is load-bearing and is not evaluated. Section 4.2 specifies BF16 near-bank MACs, BF16 reduction trees that reduce 16 BF16 inputs to one BF16, BF16 accumulators, and 10th-order Taylor-series exponent accelerators in the PNM units. For Llama2-70B, the GEMV dimension is 8K and attention scores reach 4K elements, so repeated BF16 rounding and reduction-tree accumulation can accumulate substantial error. Section 6 and Appendix A.3.3 state that the functional simulator verifies instruction-level correctness only, that model weights are not required, and that the performance/power simulator does not model real values. No perplexity, logit-level, or downstream-task comparison against FP16/FP32 GPU inference is reported. If these approximations degrade model quality, the 2.3x throughput and 5.2x tokens-per-dollar results describe a device that cannot replace GPUs. Please add accuracy validation (e.g., WikiText perplexity, common QA benchmarks, and logit similarity for representative prompts across all three model sizes), or revise the numerical pipeline to use higher-precision accumulation and show that the approximation error is negligible.
  2. [§5.1, §7.1, Figure 13] The main throughput comparison uses asymmetric concurrency. The GPU runs vLLM with batch size 128, while CENT uses pipeline parallelism with 32, 40, and 80 concurrent prompts for the 7B, 13B, and 70B models, respectively (Section 5.1 states that CENT does not batch within a pipeline stage; the 'batch' is the pipeline depth). Because reported throughput is aggregated over all concurrent queries, a larger batch directly increases tokens/s. The paper does not show CENT throughput at batch 128 or at matched concurrency levels, nor does it report the maximum feasible batch for the 7B and 13B GPU configurations, which use 1 and 2 GPUs rather than 4. Please report throughput at matched batch sizes and/or provide an SLA-constrained comparison; otherwise the 2.3x geomean does not isolate memory-system efficiency.
  3. [§6, Table 6, Figure 12] The TCO and tokens-per-dollar results depend on unvalidated cost assumptions. PIM module cost is set to 10x standard DRAM, the CXL controller production volume is set to 3 million units, and the A100 price is set to $10,000 (Section 6, Table 6, Figure 12). These are plausible inputs but they are point estimates, and the 5.2x tokens-per-dollar figure has no sensitivity analysis. For example, if the PIM cost multiplier is actually 20x or the production volume is 300K, the TCO advantage will shrink substantially. Please provide a one-way (or ideally multi-way) sensitivity analysis over these parameters and report the range of tokens-per-dollar, so readers can see how robust the central TCO claim is.
  4. [§4.1, §6] The CXL network evaluation rests on a protocol-level assumption that is not validated. Section 4.1 repurposes a reserved header code in the PBR flit to implement broadcast/multicast and requires write acknowledgements from all destinations. Section 6 models the multicast-capable switch by halving bandwidth and doubling latency of a baseline switch. No CXL-protocol simulation, credit/ordering analysis, or sensitivity study supports this model. Since the TP and hybrid mappings (Figures 9 and 14) rely on frequent broadcast and gather transactions, and the latency speedups in Figure 13(a) depend on this cost model, the authors should either validate the multicast model with a cycle-level CXL switch simulation or show that the results are insensitive to the factor-of-two bandwidth/latency penalty.
minor comments (5)
  1. [§9] The conclusion states that CENT 'consumes 2.3× less energy,' while the abstract and Section 7.2 report 2.9×; please reconcile the numbers.
  2. [§5.1, Figure 13] The term 'batch' is used for pipeline depth in the CENT configuration; consider calling it 'concurrent prompts' or 'pipeline width' to avoid confusion with GPU batching.
  3. [Figure 14(a)] The 16K and 32K context results use a 1TB CENT configuration with 16Gb GDDR6-PIM modules, but Table 4 lists 512GB; this configuration change should be stated in the main text and not only in the caption.
  4. [Appendix A.3.3] The statement that 'model weights and parameters are not required for this appendix' should be reconciled with the claim that functional correctness is verified; as written, it reinforces the missing accuracy validation.
  5. [Throughout] Minor typographical issues include 'hierachical' in Section 4, 'Transfmer' in reference [51], and inconsistent use of 'Llama2' versus 'Llama 2'.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found: CENT's throughput, energy, and TCO results are simulated from stated models with external GPU baselines, not equivalent by construction to their inputs.

full rationale

I walked the claimed derivation chain for the three headline results. The 2.3x throughput figure comes from a Ramulator2-based performance simulation of CENT (Section 6, Table 4) against vLLM/A100 GPU baselines measured at batch=128; it is a modeled outcome, not a fitted parameter. The 2.9x energy figure is computed from the simulated power model (Section 7.2) with per-component power estimates, and the 5.2x tokens/dollar figure follows from the throughput and an explicitly stated TCO model (Section 6, Tables 4-6, Figure 12) using assumed hardware costs and a 3M-unit volume estimate. None of these models encode the target ratios as inputs; changing the DRAM timing, power, or cost assumptions would change the outputs, so the results are not forced by definition. The only author-overlapping citation is Ramulator2 [67], used as open-source simulation infrastructure; it is code-reproduced and carries no load-bearing theoretical premise. The paper's own artifact note (Appendix A.3.3) that the performance/power simulator 'does not model real values' is a numerical-fidelity limitation (BF16 MACs, BF16 reduction trees, 10th-order Taylor exp are unvalidated against FP16 GPU output quality), which is a correctness/external-validity risk rather than a circularity: it does not make any derived quantity equal its input. No self-definitional, fitted-input, uniqueness-imported, or renaming circularity was found.

Assumptions & free parameters 3 free parameters · 5 assumptions · 0 invented entities

The central claims depend on several hand-set cost inputs (10x PIM premium, 3M volume, $10k A100) and unverified domain assumptions (numerical accuracy of BF16/Taylor softmax, CXL broadcast extension, 1 GHz near-bank PUs). These are not fitted to data, but they are load-bearing for the TCO and throughput claims.

free parameters (3)
  • PIM module cost multiplier = 10x standard DRAM
    Used to compute CENT hardware cost and tokens-per-dollar (Section 6, Table 6); based on references [17,107] but not on a measured CENT device.
  • CENT device production volume = 3 million units
    Used to amortize NRE in the CXL controller cost model (Section 6, volume paragraph); derived from an assumption that 370K GPUs serve LLM inference and each GPU consumes 8x CENT device power.
  • A100 GPU price = $10,000
    Used in GPU TCO (Section 6, Table 6); authors state they deduct 50% margin from the lowest available price, a hand-chosen value that favors CENT's cost comparison.
assumptions (5)
  • domain assumption BF16 multipliers and a 10-order Taylor approximation for exponentiation preserve model accuracy.
    Section 4.2 describes these approximations; no accuracy evaluation is provided, yet the design assumes output quality is preserved.
  • ad hoc to paper CXL 3.0 reserved header codes can be repurposed to implement broadcast and multicast without violating the protocol.
    Section 4.1 proposes using a reserved H-slot code in PBR flits and a device ID mask; this is an extension to CXL not validated on real hardware.
  • domain assumption Near-bank PUs in a DRAM process can operate at 1 GHz with 16 MAC units and all-bank activation (ACTab) without exceeding power or area budgets.
    Section 4.2 assumes this based on AiM's reservoir capacitor technique; CENT scales it to 32 channels per device.
  • ad hoc to paper A CXL switch supporting multicast can be modeled by halving bandwidth and doubling latency of a baseline switch.
    Section 6 describes this analytical approximation for the CXL network.
  • domain assumption DRAM power and timing parameters of GDDR6-PIM match Samsung GDDR6 and AiM current specifications.
    Section 6 uses the Micron power calculator, Samsung 8Gb GDDR6 C-die, and 3x MAC current from AiM.

how reviews work

0 comments
Cite this review

Pith. "Pith review of PIM Is All You Need: A CXL-Enabled GPU-Free System for Large Language Model Inference." pith.science (2026). https://pith.science/paper/55LXYXN7

@misc{pith2026250207578,
  author       = {Pith},
  title        = {Pith review of: PIM Is All You Need: A CXL-Enabled GPU-Free System for Large Language Model Inference},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/55LXYXN7}},
  note         = {Machine review of arXiv:2502.07578}
}
abstract

Large Language Model (LLM) inference uses an autoregressive manner to generate one token at a time, which exhibits notably lower operational intensity compared to earlier Machine Learning (ML) models such as encoder-only transformers and Convolutional Neural Networks. At the same time, LLMs possess large parameter sizes and use key-value caches to store context information. Modern LLMs support context windows with up to 1 million tokens to generate versatile text, audio, and video content. A large key-value cache unique to each prompt requires a large memory capacity, limiting the inference batch size. Both low operational intensity and limited batch size necessitate a high memory bandwidth. However, contemporary hardware systems for ML model deployment, such as GPUs and TPUs, are primarily optimized for compute throughput. This mismatch challenges the efficient deployment of advanced LLMs and makes users pay for expensive compute resources that are poorly utilized for the memory-bound LLM inference tasks. We propose CENT, a CXL-ENabled GPU-Free sysTem for LLM inference, which harnesses CXL memory expansion capabilities to accommodate substantial LLM sizes, and utilizes near-bank processing units to deliver high memory bandwidth, eliminating the need for expensive GPUs. CENT exploits a scalable CXL network to support peer-to-peer and collective communication primitives across CXL devices. We implement various parallelism strategies to distribute LLMs across these devices. Compared to GPU baselines with maximum supported batch sizes and similar average power, CENT achieves 2.3$\times$ higher throughput and consumes 2.9$\times$ less energy. CENT enhances the Total Cost of Ownership (TCO), generating 5.2$\times$ more tokens per dollar than GPUs.

Figures

Figures reproduced from arXiv: 2502.07578 by the authors.

Figure 1

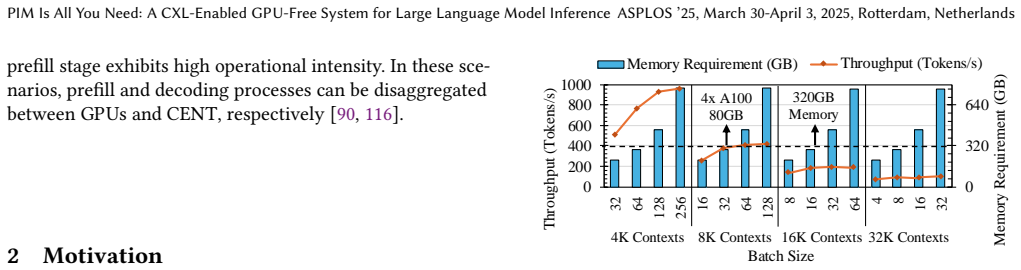

Figure 1. Llama2-70B [12, 106] inference throughput and memory requirement on 4 A100 80GB GPUs [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. (b) compares the GPU compute utilization of an LLM (Llama2-70B [12, 106]) with an encoder-only trans￾former model (BERT [15]) and a Convolutional Neural Net￾work (ResNet-152 [35]). BERT and ResNet-152 models pre￾dominantly consist of GEMM operations with high opera￾tional intensity, effectively utilizing GPU compute through￾put. Conversely, LLama2-70B exhibits limited operational intensity, resulting in a mere 21% u… view at source ↗
Figure 3
Figure 3. (a) Prefill stage encodes prompt tokens in parallel. Decoding stage generates output tokens sequentially. (b) LLM contains N× decoder transformer blocks. (c) Llama2 model architecture. alternative to costly GPUs, there are two options: (a) Per￾form all operations near-bank using a general-purpose PU similar to UPMEM [13] architecture. (b) Perform MAC oper￾ations of GEMVs in domain-specific near-bank PUs similar to A… view at source ↗
Figures from the paper (15 more)
Figure 5
Figure 5. Figure 5: CXL Device Architecture. Inter-device communication is supported by SEND_CXL, RECV_CXL and BCAST_CXL instructions. The non-blocking SEND_CXL specifies the device ID (DVid) and the Shared Buffer address in source and destination devices. Conversely, RECV_CXL operates in…
Figure 4
Figure 4. Figure 4: presents the CENT architecture, where a CXL switch interconnects 32 CXL devices, driven by a host CPU. Each CXL device integrates a CXL controller, PNM units, and 16 memory chips, each equipped with two GDDR6-PIM chan￾nels (hereafter referred to as PIM channels). We in…
Figure 6
Figure 6. Figure 6: CXL Port Architecture. In [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 7
Figure 7. Figure 7: Hierarchical PIM-PNM Architecture [PITH_FULL_IMAGE:figures/full_fig_p007_7.png]
Figure 8
Figure 8. Figure 8: Pipeline parallelism: (a) Transformer decoder blocks are distributed across CXL devices and form the pipeline stages. Each block is mapped to multiple GDDR6- PIM channels. (b) Multiple prompts are executed in different stages of the pipeline. 5.2 Tensor-Parallel Mappin…
Figure 9
Figure 9. Figure 9: (a) Tensor parallelism: each transformer block is assigned to multiple CXL devices. Prompts are processed se￾quentially. (b) In a transformer block, fully connected layers are spread across CXL devices, while other operations are confined to a single device. Prior to t…
Figure 10
Figure 10. Figure 10: (a) illustrates the operations within a Llama2 trans￾former block. Operations within the blue blocks are assigned to PIM channels, including GEMV in fully connected layers, vector dot product in RMSNorm, and element-wise multipli￾cation in RMSNorm, SiLU, Softmax and R…
Figure 11
Figure 11. Figure 11: Vector-matrix multiplication compilation [PITH_FULL_IMAGE:figures/full_fig_p009_11.png]
Figure 12

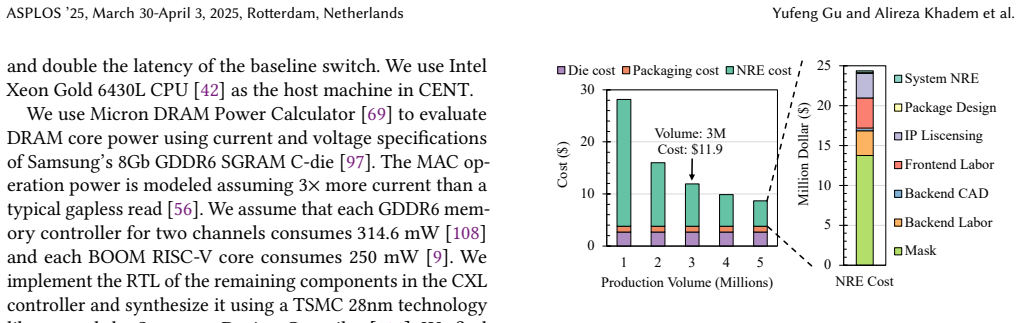

Figure 12. Figure 12: CXL Controller Cost Breakdown [PITH_FULL_IMAGE:figures/full_fig_p010_12.png]
Figure 13
Figure 13. Figure 13: compares the performance of CENT and our GPU baseline under two scenarios: (a) Latency Critical: We use a batch of 1 query (CENT’s tensor parallel mapping). 2.3 0 1 2 3 4 7B 13B 70B 7B 13B 70B 7B 13B 70B Geomean Prefill Decoding End-to-End (b) Throughput 4.6 0 1 2 3 4…
Figure 14
Figure 14. Figure 14: Analysis on Llama2-70B. (a) CENT achieves higher decoding throughputs with long context windows and 3584 decoding sizes (Section 6). 16K and 32K context scenarios with PP=80 configurations require the 16Gb GDDR6-PIM module, increasing CENT capacity to 1TB (2X of that …
Figure 15
Figure 15. Figure 15: (a) Power consumption of CENT and GPU (b) GPU SM frequency and board power, and (c) energy efficiency (Tokens per Joule) of CENT and GPU using the maximum batch size, 512 prefill tokens and 3584 decoding tokens. Matrix Units (a) CENT (b) CXL-PNM (c) AttAcc (d) NeuPIM …
Figure 16
Figure 16. Figure 16: (a) CENT employs vector units near PIM modules and utilizes a CXL switch to interconnect PIM devices with novel CXL communication primitives. (b) CXL-PNM [88] applies a processing-near-memory solution without integrating compute logic into DRAM chips. (c-d) AttAcc [86…
Figure 18
Figure 18. Figure 18: shows the performance of CENT versus AttAcc and NeuPIM. For a power-neutral evaluation, we assume 12 CENT devices per GPU-PIM node. Across different sequence lengths and batch sizes, the blue bars show that CENT pro￾cesses 1.8-3.7× and 1.8-5.3× more tokens per dollar …
Figure 19
Figure 19. Figure 19: CENT scalability study on Llama2-70B. support up to 64 devices per server. A larger number of de￾vices can be driven by multi-socket CPUs or a memory pool implementation facilitated by two levels of CXL switches. 7.5 Generality LLMs exhibit similar architectures but d…
