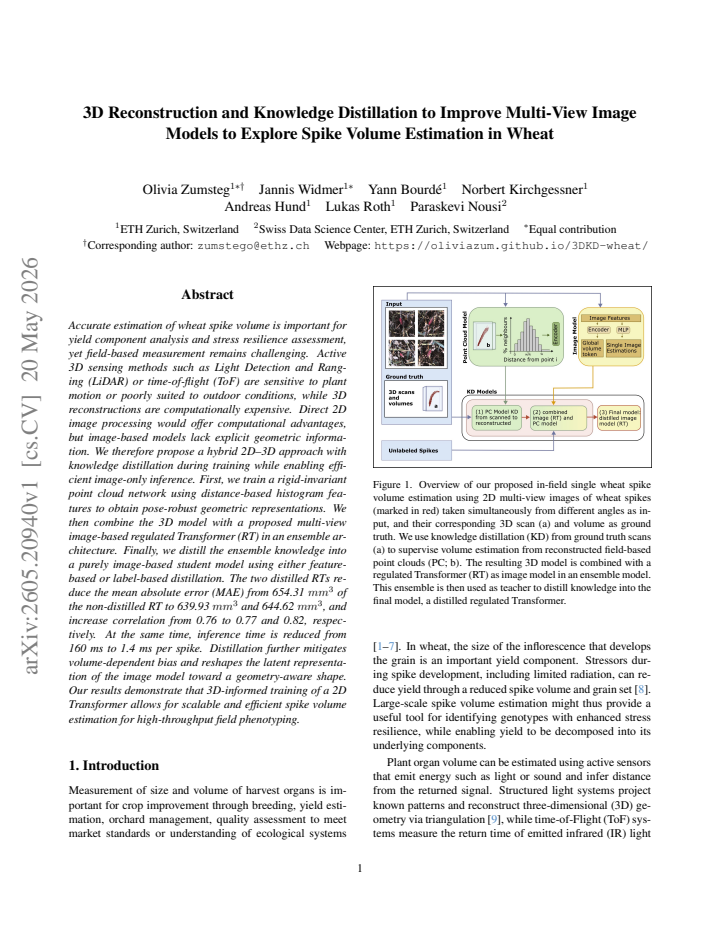

3D Reconstruction and Knowledge Distillation to Improve Multi-View Image Models to Explore Spike Volume Estimation in Wheat

Olivia Zumsteg , Jannis Widmer , Yann Bourd\'e , Norbert Kirchgessner , Andreas Hund , Lukas Roth , Paraskevi Nousi This is my paper

Pith reviewed 2026-05-21 05:30 UTC · model grok-4.3

classification 💻 cs.CV
keywords wheat spike volumeknowledge distillation3D reconstructionmulti-view imagesregulated Transformerfield phenotypingvolume estimationpoint cloud features
0
0 comments X

The pith

Distilling geometric knowledge from 3D reconstructions into 2D image Transformers improves wheat spike volume estimation accuracy while cutting inference time from 160 ms to 1.4 ms per spike.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to demonstrate that a multi-view image model can acquire useful 3D geometric understanding by distilling from a point cloud teacher, allowing accurate spike volume estimates from fast 2D images alone. A reader would care because current 3D methods are too slow or sensitive for routine field work on wheat, while pure image models miss explicit shape cues needed for yield and stress analysis. The approach first builds a rigid-invariant 3D network on histogram features, ensembles it with a regulated Transformer, then transfers the knowledge via feature or label distillation. If successful, this yields both higher accuracy and dramatically lower compute cost for high-throughput phenotyping.

Core claim

We train a rigid-invariant point cloud network using distance-based histogram features to obtain pose-robust geometric representations, combine it with a multi-view image-based regulated Transformer in an ensemble, and distill the ensemble into a purely image-based student model using either feature-based or label-based distillation. The two distilled models reduce mean absolute error from 654.31 mm³ to 639.93 mm³ and 644.62 mm³, raise correlation from 0.76 to 0.77 and 0.82, cut inference time from 160 ms to 1.4 ms per spike, mitigate volume-dependent bias, and reshape the image model's latent space toward geometry-aware shape.

What carries the argument

Knowledge distillation from an ensemble of a rigid-invariant 3D point cloud network and a multi-view regulated Transformer into a purely image-based student model.

If this is right

  • The final model performs volume estimation from images only, with no 3D data or reconstruction required at inference time.
  • Distillation reduces volume-dependent bias in the estimates compared with the non-distilled image model.
  • The method produces a geometry-aware latent representation inside an otherwise standard image Transformer.
  • Inference becomes fast enough for routine high-throughput field phenotyping of many spikes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same distillation pattern could be tested on other plant organs or crops where 3D shape informs important traits but only 2D capture is practical at scale.
  • If the 3D teacher is replaced by a different geometric representation, such as voxel or mesh features, the student might retain similar speed gains with altered accuracy.
  • Extending the regulated Transformer to additional views or temporal sequences might further strengthen the geometric signal transferred during distillation.

Load-bearing premise

The 3D point cloud reconstructions and their rigid-invariant histogram features supply accurate geometric knowledge that transfers usefully to the 2D student without adding reconstruction biases or errors.

What would settle it

Running the distilled image model on a fresh collection of wheat spikes imaged outdoors under motion or lighting conditions different from the training set and finding equal or higher volume estimation error than the non-distilled baseline would show the transferred geometric knowledge does not generalize.

Figures

Figures reproduced from arXiv: 2605.20940 by Andreas Hund, Jannis Widmer, Lukas Roth, Norbert Kirchgessner, Olivia Zumsteg, Paraskevi Nousi, Yann Bourd\'e.

Figure 1

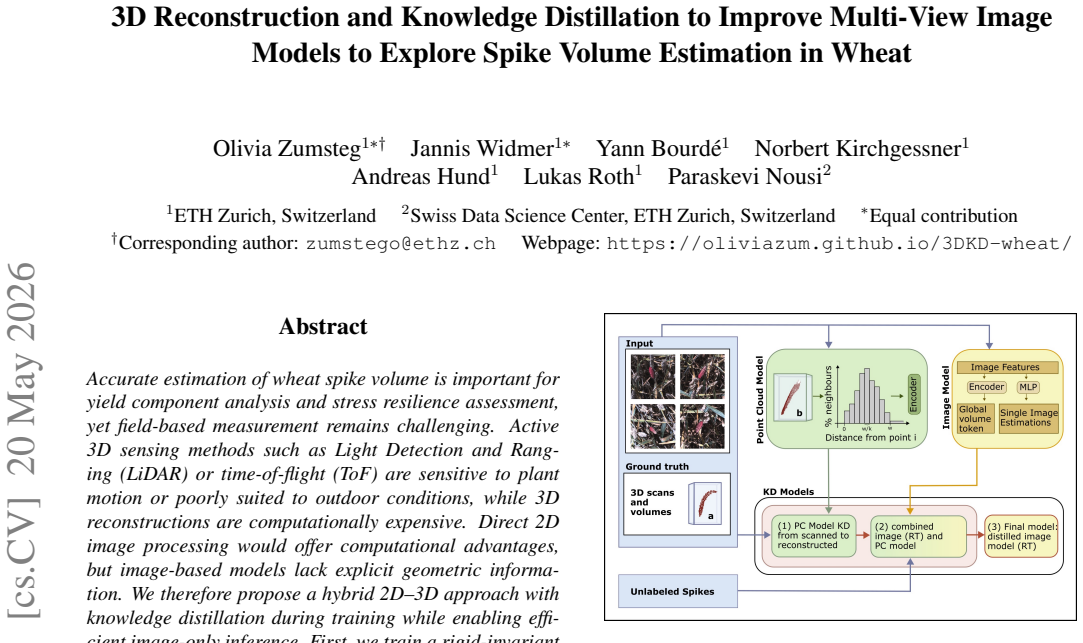

Figure 1. Figure 1: Overview of our proposed in-field single wheat spike [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Regulated Transformer image model architecture for one [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 4

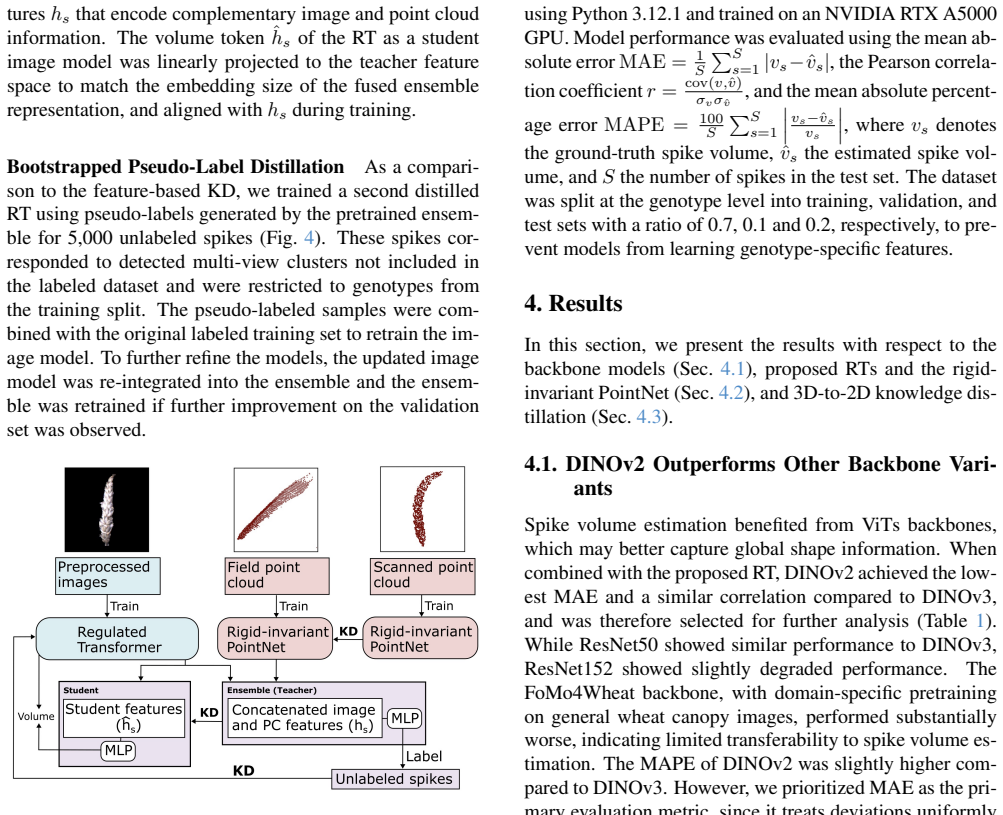

Figure 4. Figure 4: Overview of the training procedure. Images and rigid [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

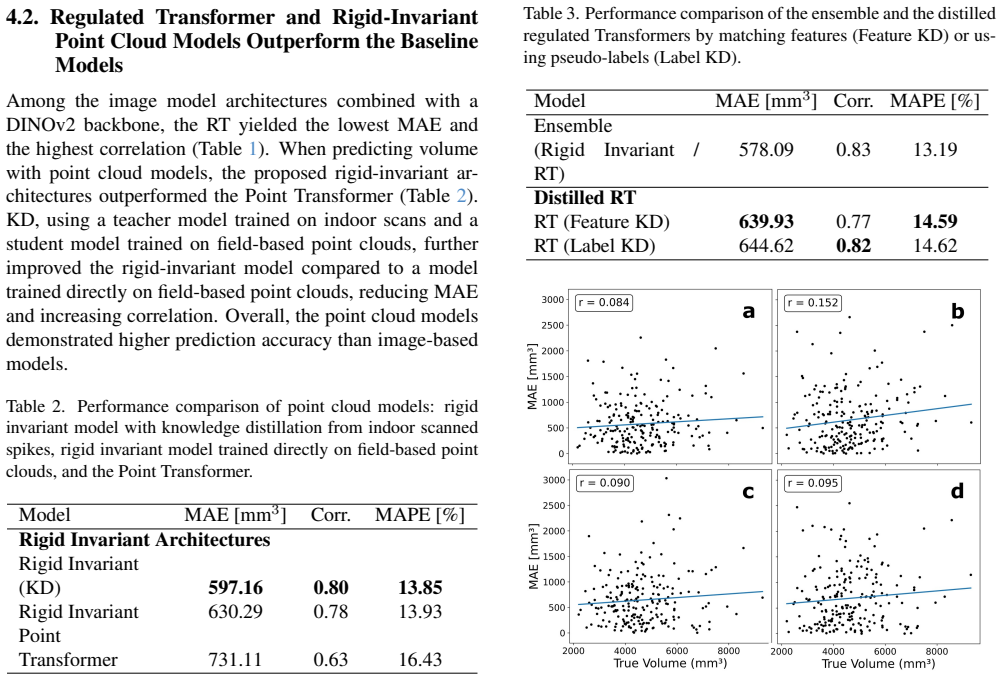

Figure 5. Figure 5: Correlation between MAE in and the ground truth vol [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

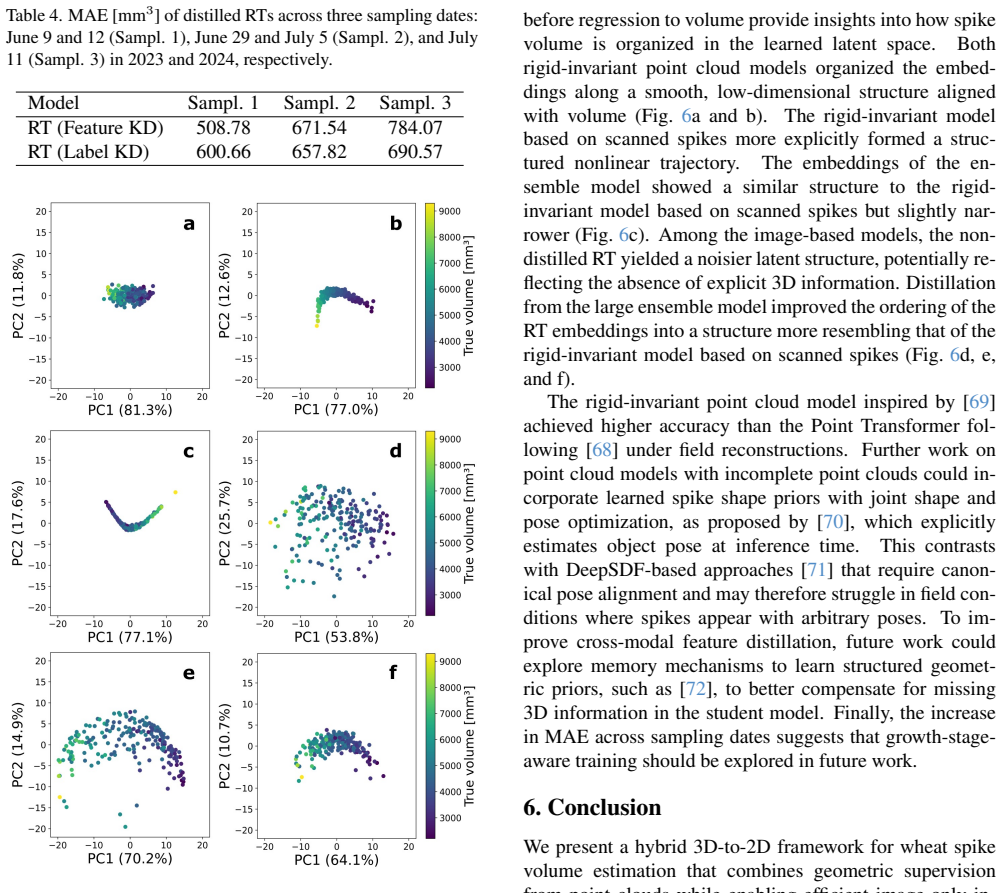

Figure 6. Figure 6: PCA of the embeddings of the rigid-invariant PointNet [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

Accurate estimation of wheat spike volume is important for yield component analysis and stress resilience assessment, yet field-based measurement remains challenging. Active 3D sensing methods such as Light Detection and Ranging (LiDAR) or time-of-flight (ToF) are sensitive to plant motion or poorly suited to outdoor conditions, while 3D reconstructions are computationally expensive. Direct 2D image processing would offer computational advantages, but image-based models lack explicit geometric information. We therefore propose a hybrid 2D-3D approach with knowledge distillation during training while enabling efficient image-only inference. First, we train a rigid-invariant point cloud network using distance-based histogram features to obtain pose-robust geometric representations. We then combine the 3D model with a proposed multi-view image-based regulated Transformer (RT) in an ensemble architecture. Finally, we distill the ensemble knowledge into a purely image-based student model using either feature-based or label-based distillation. The two distilled RTs reduce the mean absolute error (MAE) from 654.31 mm$^3$ of the non-distilled RT to 639.93 mm$^3$ and 644.62 mm$^3$, and increase correlation from 0.76 to 0.77 and 0.82, respectively. At the same time, inference time is reduced from 160 ms to 1.4 ms per spike. Distillation further mitigates volume-dependent bias and reshapes the latent representation of the image model toward a geometry-aware shape. Our results demonstrate that 3D-informed training of a 2D Transformer allows for scalable and efficient spike volume estimation for high-throughput field phenotyping.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a hybrid 2D-3D pipeline for wheat spike volume estimation: a rigid-invariant point cloud network is trained on distance-based histogram features, combined with a multi-view regulated Transformer (RT) in an ensemble, and the ensemble knowledge is distilled (via feature- or label-based methods) into a pure image-based student model. This enables accurate yet fast 2D-only inference. The abstract reports that the two distilled RT variants lower MAE from 654.31 mm³ (non-distilled RT) to 639.93 mm³ and 644.62 mm³, raise correlation from 0.76 to 0.77 and 0.82, cut inference time from 160 ms to 1.4 ms per spike, and mitigate volume-dependent bias.

Significance. If the central claims hold, the work demonstrates a practical route to scalable, high-throughput field phenotyping by transferring geometric knowledge from expensive 3D reconstructions to lightweight 2D models. The concrete numerical gains (specific MAE and correlation deltas) together with the >100× inference speedup constitute a tangible engineering contribution for agricultural computer vision. The rigid-invariant histogram features and dual distillation strategies are presented as reproducible design choices that could be adopted or extended by others.

major comments (2)
  1. [Abstract] Abstract: the 3D point cloud teacher’s own accuracy (MAE, correlation, or reconstruction error on the same test spikes) is never reported. Without these numbers it is impossible to determine whether the observed MAE reductions (654.31 mm³ → 639.93/644.62 mm³) and correlation gains are attributable to successful geometric knowledge transfer or to other factors such as ensemble averaging or regularization.
  2. [Abstract] Abstract / Methods description: no quantitative ablation or invariance test is supplied for the rigid-invariant histogram features under realistic field conditions (pose variation, occlusion, lighting). The central claim that these features constitute a “reliable, bias-free teacher” therefore rests on an unverified assumption; if the features themselves degrade or introduce systematic bias, the distillation benefit cannot be credited to geometric knowledge.
minor comments (1)
  1. [Abstract] The abstract states that distillation “mitigates volume-dependent bias” but does not define the metric or show the corresponding plots or statistical test; a brief clarification or supplementary figure would strengthen the claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We have addressed each major comment point by point below, providing clarifications and committing to revisions where the manuscript can be strengthened without misrepresenting our results.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the 3D point cloud teacher’s own accuracy (MAE, correlation, or reconstruction error on the same test spikes) is never reported. Without these numbers it is impossible to determine whether the observed MAE reductions (654.31 mm³ → 639.93/644.62 mm³) and correlation gains are attributable to successful geometric knowledge transfer or to other factors such as ensemble averaging or regularization.

    Authors: We acknowledge that explicitly reporting the standalone performance of the 3D point cloud teacher (MAE, correlation, and reconstruction error) on the identical test spikes would help isolate the contribution of geometric knowledge transfer from ensemble effects. These metrics were computed during our experiments but omitted from the abstract and main text to emphasize the distilled student model's efficiency gains. In the revised manuscript, we will add the teacher's test-set results in a new table or results subsection for direct comparison, enabling clearer attribution of the observed improvements. revision: yes

  2. Referee: [Abstract] Abstract / Methods description: no quantitative ablation or invariance test is supplied for the rigid-invariant histogram features under realistic field conditions (pose variation, occlusion, lighting). The central claim that these features constitute a “reliable, bias-free teacher” therefore rests on an unverified assumption; if the features themselves degrade or introduce systematic bias, the distillation benefit cannot be credited to geometric knowledge.

    Authors: We agree that a dedicated quantitative ablation or invariance test for the distance-based histogram features under field-like variations would provide stronger empirical support for their reliability. The methods section describes their design for pose robustness, but no explicit numerical evaluation (e.g., error under rotations, simulated occlusions, or lighting changes) is included. We will add such an analysis—either in the main text or as supplementary material—reporting quantitative metrics on feature stability to substantiate the assumption and rule out systematic bias. revision: yes

Circularity Check

0 steps flagged

Empirical test-set metrics with no reduction to fitted inputs or self-citation chains

full rationale

The paper's central claims rest on reported improvements in MAE and correlation for distilled image-only models versus a non-distilled baseline, measured on held-out test spikes. These are standard empirical outcomes from applying knowledge distillation (feature-based or label-based) between independently trained 3D point-cloud and 2D regulated Transformer models. No equations reduce a prediction to a fitted parameter by construction, no uniqueness theorems or ansatzes are smuggled via self-citation, and the histogram features and distillation losses are not defined circularly in terms of the final volume estimates. The approach is self-contained against external benchmarks, with only minor implicit hyperparameter choices for distillation weights that do not force the reported gains.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the unverified accuracy of the 3D teacher reconstructions and on the assumption that distillation successfully injects geometric priors into the image model; no explicit free parameters are named in the abstract.

free parameters (1)
  • distillation loss weights and temperature
    Typical distillation hyperparameters that are chosen or tuned and directly affect how much geometric signal reaches the student.
axioms (1)
  • domain assumption 3D point-cloud reconstructions provide reliable ground-truth geometry for the teacher model
    Invoked when the 3D network is positioned as the source of pose-robust features.
