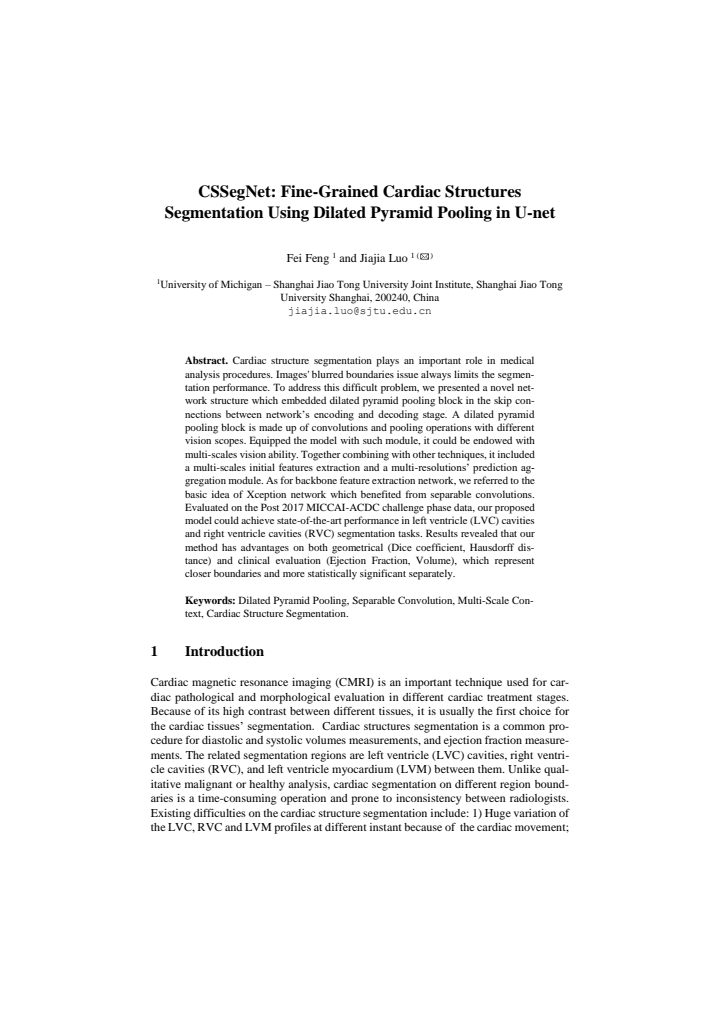

CSSegNet: Fine-Grained Cardiac Structures Segmentation Using Dilated Pyramid Pooling in U-net
Pith reviewed 2026-05-25 11:07 UTC · model grok-4.3
The pith
Embedding a dilated pyramid pooling block in U-net skip connections improves segmentation of left and right ventricle cavities on cardiac MRI.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors claim that embedding a dilated pyramid pooling block composed of convolutions and pooling operations with different vision scopes into the skip connections between encoding and decoding stages, combined with multi-scale initial feature extraction, a separable-convolution backbone, and multi-resolution prediction aggregation, produces state-of-the-art performance on left-ventricle-cavity and right-ventricle-cavity segmentation tasks in the post-2017 MICCAI-ACDC challenge data, with measurable gains in both geometric metrics (Dice coefficient, Hausdorff distance) and clinical metrics (ejection fraction, volume).
What carries the argument
Dilated pyramid pooling block: a module of convolutions and pooling at varying vision scopes placed in U-net skip connections to supply multi-scale context for boundary refinement.
If this is right
- Closer anatomic boundaries for left-ventricle and right-ventricle cavities as shown by higher Dice and lower Hausdorff distance.
- More reliable clinical quantities such as ejection fraction and chamber volume derived from the segmentations.
- Improved handling of blurred edges through explicit multi-scale pooling inside the skip paths.
- State-of-the-art ranking specifically on the ACDC left-ventricle-cavity and right-ventricle-cavity tasks.
Where Pith is reading between the lines
- The same skip-connection placement of multi-scale pooling could be tested on other medical segmentation problems that suffer from indistinct boundaries.
- Because the backbone already uses separable convolutions, the added block may keep computational cost modest enough for routine clinical use.
- Repeating the evaluation on independent cardiac MRI datasets would show whether the gains hold beyond the ACDC distribution.
Load-bearing premise
That the dilated pyramid pooling block itself, rather than dataset-specific tuning or other implementation choices, is the main reason for the reported gains in boundary accuracy.
What would settle it
An ablation experiment on the same ACDC test set that removes only the dilated pyramid pooling block from the skip connections and measures whether Dice, Hausdorff, ejection fraction, and volume metrics fall below the reported state-of-the-art levels.
read the original abstract
Cardiac structure segmentation plays an important role in medical analysis procedures. Images' blurred boundaries issue always limits the segmentation performance. To address this difficult problem, we presented a novel network structure which embedded dilated pyramid pooling block in the skip connections between networks' encoding and decoding stage. A dilated pyramid pooling block is made up of convolutions and pooling operations with different vision scopes. Equipped the model with such module, it could be endowed with multi-scales vision ability. Together combining with other techniques, it included a multi-scales initial features extraction and a multi-resolutions' prediction aggregation module. As for backbone feature extraction network, we referred to the basic idea of Xception network which benefited from separable convolutions. Evaluated on the Post 2017 MICCAI-ACDC challenge phase data, our proposed model could achieve state-of-the-art performance in left ventricle (LVC) cavities and right ventricle cavities (RVC) segmentation tasks. Results revealed that our method has advantages on both geometrical (Dice coefficient, Hausdorff distance) and clinical evaluation (Ejection Fraction, Volume), which represent closer boundaries and more statistically significant separately.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes CSSegNet, a U-Net variant for cardiac MRI segmentation that inserts a dilated pyramid pooling block (composed of convolutions and pooling at multiple scales) into the skip connections, augments it with multi-scale initial feature extraction and multi-resolution prediction aggregation, and uses an Xception-style separable-convolution backbone. It claims state-of-the-art performance on the post-2017 MICCAI ACDC challenge test-phase data for left-ventricle cavity (LVC) and right-ventricle cavity (RVC) segmentation, with gains on both geometric metrics (Dice, Hausdorff) and clinical metrics (ejection fraction, volume).
Significance. If the performance numbers and attribution to the dilated-pyramid module hold after proper controls, the work would supply a concrete architectural recipe for handling blurred boundaries via explicit multi-scale context in the skip paths. The use of an external public challenge dataset and the dual geometric-plus-clinical evaluation are positive features; however, the absence of any ablation isolating the pyramid block prevents the claimed novelty from being credited.
major comments (3)
- [Results / Experiments] Results / Experiments section: the manuscript reports only full-model metrics on the ACDC test phase and asserts SOTA for LVC/RVC without any ablation that removes the dilated pyramid pooling block while holding the Xception backbone, multi-scale extraction, aggregation module, loss, and training protocol fixed. This directly undermines attribution of the Dice/Hausdorff/EF/volume gains to the stated architectural contribution.
- [Abstract, Results] Abstract and Results: the central SOTA claim is presented without numerical values, baseline tables, standard deviations, or statistical significance tests against prior ACDC submissions, so the performance assertion cannot be verified from the supplied text.
- [Method] Method section: the dilated pyramid pooling block is described only at the level of “convolutions and pooling operations with different vision scopes”; no equations, dilation rates, or pooling kernel sizes are given, preventing reproduction or assessment of whether the module is parameter-free or introduces new hyperparameters.
minor comments (3)
- [Abstract] Abstract: “more statistically significant separately” should read “respectively”; “LVC cavities” is redundant.
- [Introduction / Method] Notation: the acronyms LVC/RVC are introduced without explicit expansion on first use in the main text.
- [Method] Figure clarity: the diagram of the dilated pyramid pooling block (if present) should label the dilation rates and kernel sizes used in each branch.
Simulated Author's Rebuttal
We thank the referee for the constructive comments on our manuscript. We address each major point below and agree that revisions are required to strengthen the attribution of results, the presentation of performance claims, and the reproducibility of the method.
read point-by-point responses
-
Referee: [Results / Experiments] Results / Experiments section: the manuscript reports only full-model metrics on the ACDC test phase and asserts SOTA for LVC/RVC without any ablation that removes the dilated pyramid pooling block while holding the Xception backbone, multi-scale extraction, aggregation module, loss, and training protocol fixed. This directly undermines attribution of the Dice/Hausdorff/EF/volume gains to the stated architectural contribution.
Authors: We agree that the absence of an ablation isolating the dilated pyramid pooling block limits the ability to credit the architectural contribution. In the revised manuscript we will add an ablation study that removes only this block while freezing the Xception backbone, multi-scale initial extraction, aggregation module, loss, and training protocol, and report the resulting changes in Dice, Hausdorff, EF, and volume metrics. revision: yes
-
Referee: [Abstract, Results] Abstract and Results: the central SOTA claim is presented without numerical values, baseline tables, standard deviations, or statistical significance tests against prior ACDC submissions, so the performance assertion cannot be verified from the supplied text.
Authors: The current abstract and results section indeed omit explicit numerical comparisons, standard deviations, and significance tests. We will revise both sections to include a comparison table with our method versus prior ACDC submissions, reporting mean Dice/Hausdorff/EF/volume values, standard deviations across the test cases, and p-values from appropriate statistical tests. revision: yes
-
Referee: [Method] Method section: the dilated pyramid pooling block is described only at the level of “convolutions and pooling operations with different vision scopes”; no equations, dilation rates, or pooling kernel sizes are given, preventing reproduction or assessment of whether the module is parameter-free or introduces new hyperparameters.
Authors: We acknowledge that the method description is insufficiently detailed. The revised manuscript will supply the missing equations for the dilated pyramid pooling block, list the exact dilation rates and pooling kernel sizes employed, and state the additional parameter count introduced by the module. revision: yes
Circularity Check
No circularity: empirical model evaluated on external challenge data
full rationale
The paper proposes an empirical CNN architecture (U-Net variant with dilated pyramid pooling in skip connections, Xception-style backbone, multi-scale modules) and reports Dice/Hausdorff/EF/volume metrics on the post-2017 MICCAI-ACDC phase test set. No equations, parameter fits, or derivations exist that could reduce outputs to inputs by construction. No self-citations appear in the provided text, and the central performance claim rests on an external public benchmark rather than internal redefinitions or fitted quantities renamed as predictions. This is the normal case of a self-contained empirical result.
Axiom & Free-Parameter Ledger
free parameters (1)
- network weights and hyperparameters
axioms (1)
- domain assumption The post-2017 MICCAI-ACDC challenge data constitutes a representative and unbiased test for cardiac structure segmentation performance.
