Forming Weakly Interacting Multi Layers of Graphene by using Atomic Force Microscope Tip Scanning and Evidence of Competition Between Inner and Outer Raman Scattering Processes Piloted by Structural Defects

C. Pardanaud (AMU) , A. Merlen (IEMN) , K Gratzer , O. Chuzel (SSOPN) , D Nikolaievskyi , L. Patrone (IM2NP) , S. Clair (IM2NP) , R Ramirez Jimenez
show 3 more authors
A de Andr\'es P. Roubin (PIIM) J.-L Parrain (ISM2)
This is my paper

Pith reviewed 2026-05-24 16:24 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords graphene foldingRaman spectroscopyatomic force microscopymulti-layer graphenestructural defectsDirac cone scatteringweakly interacting layers
0
0 comments X

The pith

AFM tip scanning folds single-layer graphene into weakly interacting multi-layers while maintaining in-plane properties and linking defects to Raman scattering competition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a method to form weakly interacting multi-layer graphene from single-layer material using an atomic force microscope tip that cuts, pushes, and folds the sheet during zigzag scans. Raman microscopy analysis through several plots confirms that the single-layer in-plane properties persist even as tens of layers stack with only limited structural defects introduced. A blue shift of roughly 20 wavenumbers in the 2D band appears, and the intensities of the 2D- and 2D+ components are tied to defects, showing how these defects mediate inner and outer scattering processes around the Dirac cone.

Core claim

We report an alternative route based on nanomechanical folding induced by AFM tip to obtain weakly interacting multi-layer graphene from CVD grown single-layer graphene. The tip first cuts, then pushes and folds graphene during zigzag movements. We show that the SLG in plane properties are maintained under the folding process and that a few tens of graphene layers are stacked, with a limited amount of structural defects. A blue shift of about 20 cm-1 of the 2D band is observed. The relative intensity of the 2D- and 2D+ bands have been related to structural defects, giving evidence of their role in the inner and outer processes at play close to the Dirac cone.

What carries the argument

AFM tip nanomechanical folding that cuts and stacks graphene layers, analyzed through Raman plots including A_D/A_G × E_L^4 versus Γ_G and A_2D-/A_2D+ versus A_2D/A_G to connect defects to scattering processes.

Load-bearing premise

The Raman spectral changes result directly from the AFM-induced folding and the structural defects it creates rather than from substrate interactions or measurement artifacts.

What would settle it

Measuring the Raman spectra on the folded graphene after transferring it to a different substrate and finding no blue shift or altered 2D- to 2D+ ratios would falsify the claim that defects from folding drive these changes.

Figures

Figures reproduced from arXiv: 1907.10912 by A de Andr\'es, A. Merlen (IEMN), C. Pardanaud (AMU), D Nikolaievskyi, J.-L Parrain (ISM2), K Gratzer, L. Patrone (IM2NP), O. Chuzel (SSOPN), P. Roubin (PIIM), R Ramirez Jimenez, S. Clair (IM2NP).

Figure 1

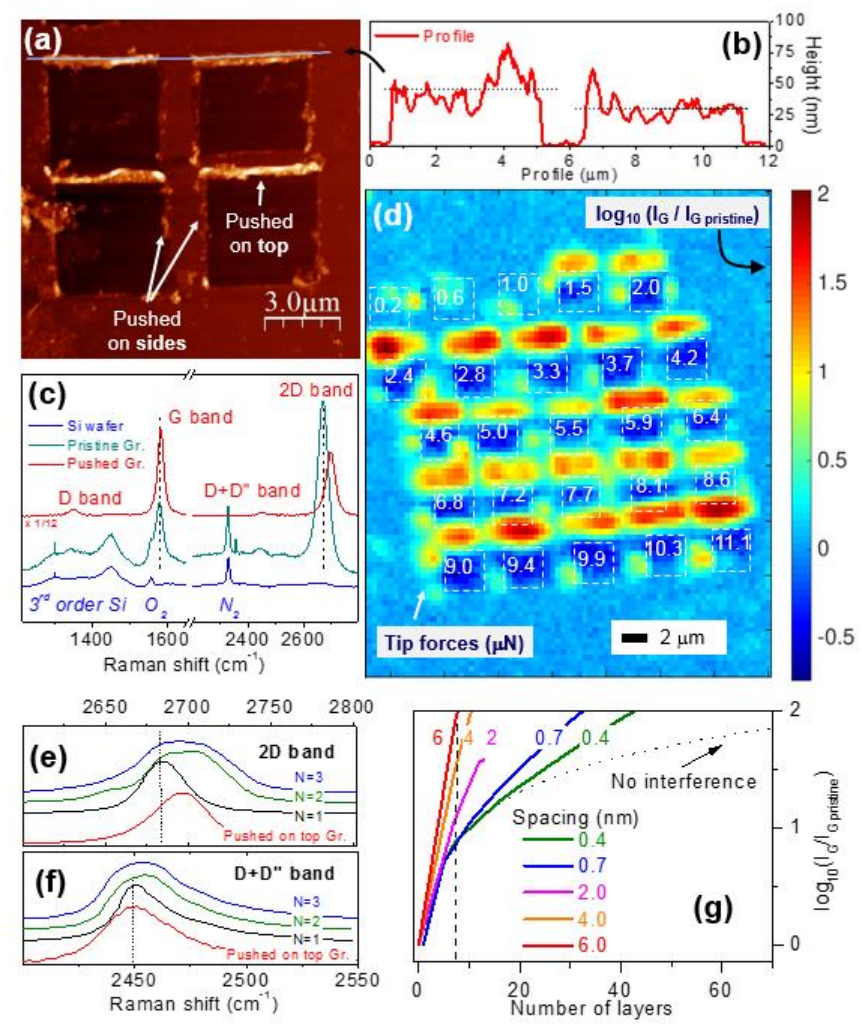

Figure 1. Figure 1: Cut and pushed graphene after scanning probe nanolithography. (a, b) AFM image and corresponding height profile along the blue line. (c) Raman spectrum before (green) and after (red) the tip scan (in blue that of the substrate). (d) Raman map of the G band intensity. Numbers in the white squares are the tip forces applied in N. (e) 2D band of the top pushed graphene compared to N-layer graphene with N=1 (… view at source ↗
Figure 2

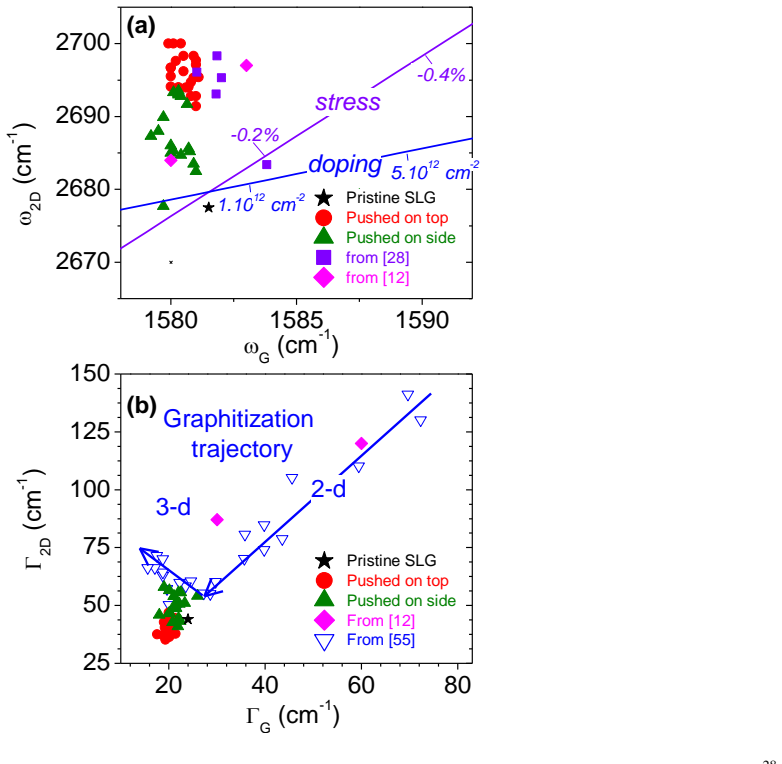

Figure 2. Figure 2: (a) Doping and strain characterization with a 2D vs G plot. Data from Bayle et al28 have been L-corrected using a 2D band dispersion of 100 cm-1 / eV. Straight lines correspond to the behavior under doping (blue) or strain (violet). 35-37 (b) Structural characterization with a 2D vs G plot. Consistently, the pristine graphene data point is close to the intersection of these two lines which corresponds… view at source ↗
Figure 4

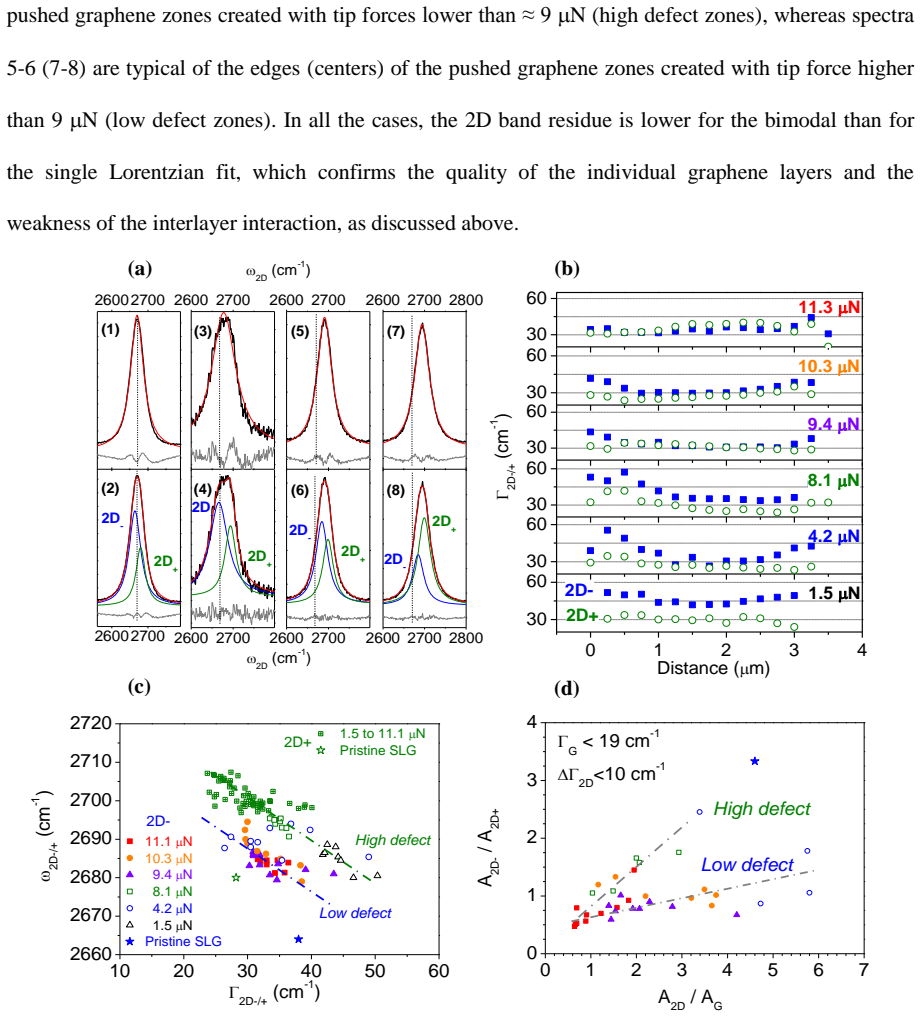

Figure 4. Figure 4: 2D- and 2D+ sub bands of graphene pushed on top. (a) Fits with one (top) or two (bottom) Lorentzians for (1-2) pristine graphene, (3-4) the edge of the 8.1 N zone, (5-6) the edge and (7-8) the center of the 11 N zone. (b) 2D- (full square) and 2D+ (empty circle) width profile for tip forces of 1.5, 4.2, 8.1, 9.4, 10.3 and 11.1 N. (c) 2D+/- vs2D+/- plot for the same tip forces, restricted to data at t… view at source ↗
read the original abstract

We report on an alternative route based on nanomechanical folding induced by AFM tip to obtain weakly interacting multi-layer graphene (wi-MLG) from a chemical vapor deposition (CVD) grown single-layer graphene (SLG). The tip first cuts, then pushes and folds graphene during zigzag movements. The pushed graphene has been analyzed using various Raman microscopy plots: $A_D /A_G \times E_L{}^4$ vs $\Gamma_G$, $\omega_{2D}$ vs $\Gamma_{2D}$, $\Gamma_{2D}$ vs $\Gamma_G$, $\omega_{2D+/-}$ vs $\Gamma_{2D+/-}$, and $A_{2D-}/A_{2D+}$ vs $A_{2D}/A_G$. We show that the SLG in plane properties are maintained under the folding process and that a few tens of graphene layers are stacked, with a limited amount of structural defects. A blue shift of about 20 cm-1 of the 2D band is observed. The relative intensity of the 2D$_-$ and 2D$_+$ bands have been related to structural defects, giving evidence of their role in the inner and outer processes at play close to the Dirac cone.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript reports an AFM tip-based nanomechanical folding method to convert CVD-grown single-layer graphene (SLG) into weakly interacting multi-layer graphene (wi-MLG). Analysis via multiple Raman correlation plots (A_D/A_G × E_L^4 vs Γ_G, ω_2D vs Γ_2D, Γ_2D vs Γ_G, ω_2D+/- vs Γ_2D+/-, and A_2D-/A_2D+ vs A_2D/A_G) leads to the claims that SLG in-plane properties are preserved, a few tens of layers are stacked with limited structural defects, a ~20 cm⁻¹ blue shift of the 2D band occurs, and the relative intensities of the 2D- and 2D+ bands demonstrate the role of defects in piloting inner and outer Raman scattering processes near the Dirac cone.

Significance. If the observed Raman shifts and intensity correlations can be isolated to the AFM folding and resulting defects, the work supplies an alternative fabrication route for wi-MLG and experimental evidence connecting structural defects to specific scattering channels in the Raman response of graphene. The use of several independent correlation plots constitutes a strength in the experimental design.

major comments (2)
  1. [Abstract] Abstract: The central attribution of the ~20 cm⁻¹ 2D-band blue shift, the A_2D-/A_2D+ vs A_2D/A_G correlation, and the maintenance of SLG-like properties specifically to AFM-induced folding and limited defects lacks reported before/after spectra on the same flake, Raman data from scanned but unfolded regions, or independent layer-count verification (AFM step height or optical contrast). Without these controls the interpretation cannot exclude substrate interactions, doping, or strain as alternative sources.
  2. [Abstract] Abstract: No raw spectra, error bars, number of sampled locations, or explicit exclusion criteria are supplied for any of the five listed Raman correlation plots, so the statistical reliability of the claimed defect-mediated inner/outer process distinction cannot be evaluated.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and have revised the manuscript accordingly to strengthen the experimental controls and statistical presentation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central attribution of the ~20 cm⁻¹ 2D-band blue shift, the A_2D-/A_2D+ vs A_2D/A_G correlation, and the maintenance of SLG-like properties specifically to AFM-induced folding and limited defects lacks reported before/after spectra on the same flake, Raman data from scanned but unfolded regions, or independent layer-count verification (AFM step height or optical contrast). Without these controls the interpretation cannot exclude substrate interactions, doping, or strain as alternative sources.

    Authors: We agree that before/after spectra on the exact same flake location would be the strongest control but are not possible because the folding process irreversibly alters the flake. In the revised manuscript we have added Raman spectra from adjacent regions scanned by the AFM tip but left unfolded; these show SLG-like 2D-band position and width, supporting that the ~20 cm⁻¹ blue shift and intensity correlations arise from the folded wi-MLG rather than substrate, doping or strain. We have also included AFM step-height profiles confirming a few tens of layers. The existing multi-plot Raman correlations already discriminate against uniform doping/strain scenarios according to established literature. revision: partial

  2. Referee: [Abstract] Abstract: No raw spectra, error bars, number of sampled locations, or explicit exclusion criteria are supplied for any of the five listed Raman correlation plots, so the statistical reliability of the claimed defect-mediated inner/outer process distinction cannot be evaluated.

    Authors: We have revised the manuscript to include representative raw spectra for each correlation plot, error bars (standard deviation), the number of sampled locations (n = 12–18 per plot), and explicit exclusion criteria (spectra with SNR < 5 or obvious cosmic-ray artifacts were discarded). These additions allow direct assessment of the statistical robustness of the defect-piloted inner/outer scattering interpretation. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental observations with no derivations or fitted predictions

full rationale

The paper reports AFM-induced folding of CVD graphene followed by Raman microscopy plots (A_D/A_G vs Γ_G, ω_2D vs Γ_2D, etc.) and direct band assignments. No equations, models, parameters fitted to subsets, or predictions are presented that could reduce to inputs by construction. All claims rest on observed spectral shifts and intensity ratios interpreted via standard Raman literature; no self-citation chains or ansatzes are invoked as load-bearing steps. This matches the default case of an experimental report with independent content.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is purely experimental and draws on established domain knowledge of graphene Raman spectroscopy rather than introducing new free parameters, axioms, or entities.

axioms (1)
  • domain assumption Standard assignment of D, G, and 2D Raman bands in graphene and their established relations to defects, layer number, and electronic structure near the Dirac cone.
    Invoked throughout the Raman analysis to interpret shifts and intensity ratios.
