Enhanced Ionic Conductivity of confined Ionic-Liquid in Angstrom-scale 2D channels
Pith reviewed 2026-05-20 08:03 UTC · model grok-4.3
The pith
Ionic liquids in 1.02 nm 2D slits conduct over 30 times better than bulk by breaking ion pairs.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By fabricating slit-shaped 2D channels of tunable height h via van der Waals assembly and filling them with [EMIM]+[TFSI]-, the work shows that ionic conductivity depends non-monotonically on confinement. Conductivity reaches a maximum of 26.7 S/m at h = 1.02 nm, exceeding the bulk value by a factor greater than 30. The increase is traced to structural rearrangements of ionic layers that promote breakup of ion pairs and larger clusters, raising the number of free ions. At still smaller heights around 0.68 nm steric hindrance lowers conductivity below bulk. Introduction of co-solvents with high dielectric constant and low viscosity, such as acetonitrile, further increases conductivity to ~145
What carries the argument
Tunable angstrom-scale 2D slit channels of height h that force specific rearrangements of ionic layers and control the breakup of ion pairs versus clusters.
If this is right
- Optimal slit height can be chosen to maximize free-ion population without reaching steric blockage.
- Co-solvents that combine high dielectric constant with low viscosity amplify the confinement benefit.
- Van der Waals assembly of 2D layers provides a platform for systematic tuning of ion transport at the molecular scale.
- Stronger-than-optimal confinement reduces conductivity through physical crowding of ions.
Where Pith is reading between the lines
- Electrolyte designs for batteries or supercapacitors could incorporate similar nanoscale slits to raise conductivity without altering the base ionic liquid.
- The non-monotonic response may appear in other ionic liquids or aqueous electrolytes once channel height is controlled at the angstrom level.
- Molecular-dynamics models calibrated on this system could predict best confinement sizes for new solvent mixtures.
Load-bearing premise
The measured conductivity changes with channel height arise from ion-pair breakup and layer rearrangements inside the liquid rather than from wall interactions, impurities, or uncertainty in the exact height of the fabricated slits.
What would settle it
Spectroscopic or simulation data showing no net increase in free ions at the 1.02 nm height while conductivity still peaks would falsify the structural-rearrangement mechanism.

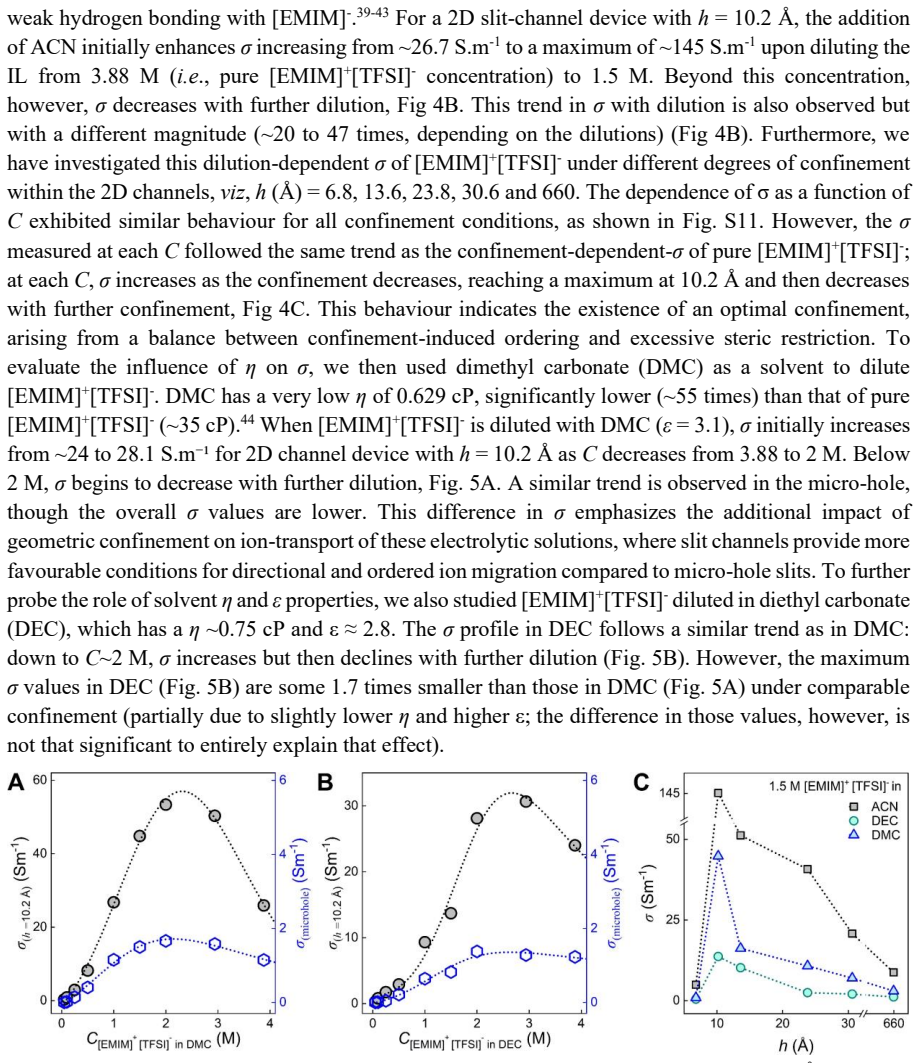

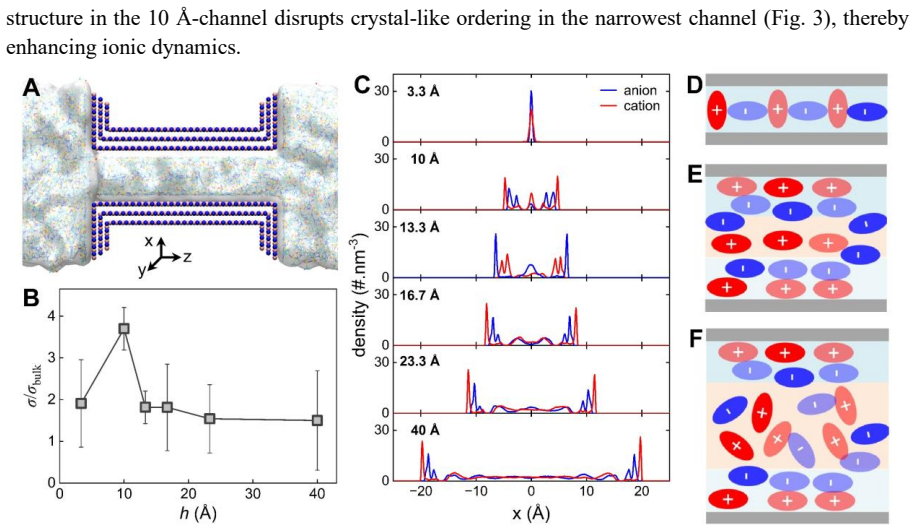

Figures

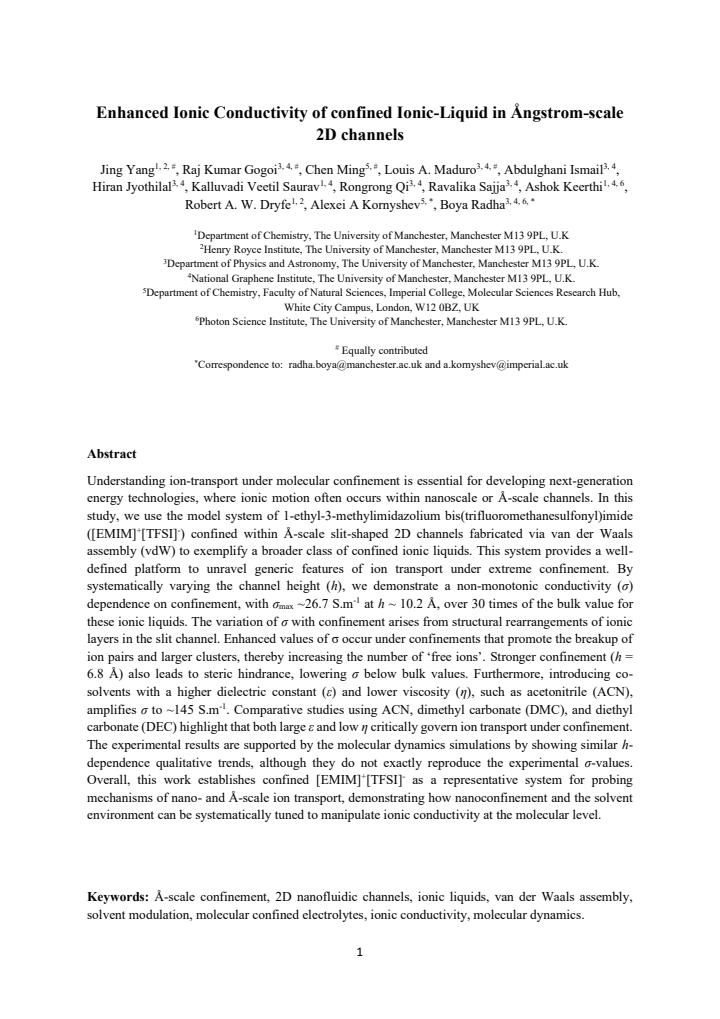

read the original abstract
Understanding ion-transport under molecular confinement is essential for developing next-generation energy technologies, where ionic motion often occurs within nanoscale or angstrom-scale channels. In this study, we use the model system of 1-ethyl-3-methylimidazolium bis(trifluoromethanesulfonyl)imide ([EMIM]+[TFSI]-) confined within angstrom-scale slit-shaped 2D channels fabricated via van der Waals assembly to exemplify a broader class of confined ionic liquids.This system provides a well-defined platform to unravel generic features of ion transport under extreme confinement. By systematically varying the channel height h, we demonstrate a non-monotonic conductivity dependence on confinement, with a maximum 26.7 S/m at confining height, 1.02 nm, over 30 times of the bulk value for these ionic liquids. The variation of conductivity with confinement arises from structural rearrangements of ionic layers in the slit channel. Enhanced values of conductivity occur under confinements that promote the breakup of ion pairs and larger clusters, thereby increasing the number of free ions. Stronger confinement (h, 0.68 nm) also leads to steric hindrance, lowering conductivity below bulk values. Furthermore, introducing co-solvents with a higher dielectric constant and lower viscosity, such as acetonitrile (ACN), amplifies conductivity to ~145 S/m. Comparative studies using ACN, dimethyl carbonate and diethyl carbonate highlight that both large dielectric constant and low viscosity critically govern ion transport under confinement, as also supported by molecular dynamics simulations. Overall, this work establishes confined [EMIM]+[TFSI]- as a representative system for probing mechanisms of nano- and angstrom-scale ion transport, demonstrating how nanoconfinement and the solvent environment can be systematically tuned to manipulate ionic conductivity at the molecular level.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates the ionic conductivity of the ionic liquid [EMIM]+[TFSI]- confined in angstrom-scale 2D slit channels fabricated via van der Waals assembly. By varying the channel height h, it reports a non-monotonic dependence of conductivity on confinement, achieving a maximum of 26.7 S/m at h = 1.02 nm, which is over 30 times the bulk value. This is attributed to structural rearrangements promoting the breakup of ion pairs and clusters. Stronger confinement at 0.68 nm leads to reduced conductivity due to steric hindrance. Co-solvents like acetonitrile enhance conductivity further to ~145 S/m, with molecular dynamics simulations supporting the structural interpretations.
Significance. If the central claims hold, this study provides valuable insights into ion transport under extreme confinement, offering a method to enhance conductivity through precise control of channel height and solvent environment. The systematic experimental approach combined with MD simulations establishes a representative system for nano-scale ion transport, with potential applications in energy technologies such as batteries and supercapacitors. The credit goes to the well-defined 2D channel platform and the comparative solvent studies that highlight the roles of dielectric constant and viscosity.
major comments (2)
- Abstract: the headline result of a conductivity maximum at h = 1.02 nm linked to ion-pair breakup is load-bearing for the mechanistic claim, but the manuscript provides no quantified uncertainty or sensitivity analysis for the channel height determination via van der Waals assembly of 2D spacers. Actual spacing may vary due to intercalation or contaminants, potentially shifting the peak position and decoupling it from specific layering configurations.
- Abstract: the abstract states experimental results on conductivity enhancement without mentioning error bars, raw data, or controls for potential artifacts in the measurements or h calibration, which is necessary to rigorously support the non-monotonic dependence and the interpretation over experimental uncertainties.
Simulated Author's Rebuttal
We thank the referee for their careful reading of our manuscript and for the constructive comments. We respond to each major comment below and indicate the revisions we will make.
read point-by-point responses
-
Referee: Abstract: the headline result of a conductivity maximum at h = 1.02 nm linked to ion-pair breakup is load-bearing for the mechanistic claim, but the manuscript provides no quantified uncertainty or sensitivity analysis for the channel height determination via van der Waals assembly of 2D spacers. Actual spacing may vary due to intercalation or contaminants, potentially shifting the peak position and decoupling it from specific layering configurations.
Authors: The channel height in our van der Waals assembled slits is set by the number of atomic layers in the spacer, which are pre-characterized by AFM. We agree that a formal sensitivity analysis would be beneficial to demonstrate robustness against small variations in h. We will add this analysis in the revised manuscript, including an estimate of uncertainty in h (typically ±0.1 nm or less based on layer thickness variations) and show that the conductivity peak remains at approximately 1.02 nm even with such variations. This supports the link to the specific layering configuration observed in MD simulations. revision: yes
-
Referee: Abstract: the abstract states experimental results on conductivity enhancement without mentioning error bars, raw data, or controls for potential artifacts in the measurements or h calibration, which is necessary to rigorously support the non-monotonic dependence and the interpretation over experimental uncertainties.
Authors: While the abstract is a high-level summary, we recognize the value in highlighting the rigor of our data. The main text and figures include error bars from multiple measurements, raw conductivity data, and descriptions of controls such as device leakage tests and h calibration via AFM and optical methods. To better convey this in the abstract, we will revise it to include a brief statement on the systematic nature of the measurements and the presence of supporting data with uncertainties in the manuscript body. revision: yes
Circularity Check
No significant circularity; results from direct measurements and simulations
full rationale
The paper reports experimental fabrication of angstrom-scale 2D slit channels via van der Waals assembly, systematic variation of confining height h, and direct conductivity measurements showing non-monotonic dependence with a peak of 26.7 S/m at h = 1.02 nm (over 30x bulk). Interpretation attributes this to ion-pair breakup and layer rearrangements, with supporting MD simulations and co-solvent comparisons. No equations, first-principles derivations, or predictions appear that reduce by construction to fitted inputs, self-definitions, or self-citation chains. Central claims rest on observable data and independent simulations rather than load-bearing self-references or ansatz smuggling. This is a standard experimental finding with no circularity in the reported chain.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Channel heights in van der Waals assembled 2D slits are precisely controllable and accurately known at the angstrom scale.
- domain assumption Conductivity variations arise primarily from structural rearrangements and breakup of ion pairs rather than other factors.
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
By systematically varying the channel height h, we demonstrate a non-monotonic conductivity dependence on confinement, with a maximum 26.7 S/m at confining height, 1.02 nm... The variation of conductivity with confinement arises from structural rearrangements of ionic layers in the slit channel. Enhanced values of conductivity occur under confinements that promote the breakup of ion pairs and larger clusters
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
At h ~10 Å, however, the ions reorganize into three distinct layers... the emergence of this three-layer structure... disrupts crystal-like ordering... enhancing ionic dynamics
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Fedorov, M.V., and Kornyshev, A.A. (2014). Ionic Liquids at Electrified Interfaces. Chem . Rev. 114, 2978-3036. 10.1021/cr400374x
-
[2]
Hayes, R., Warr, G.G., and Atkin, R. (2015). Structure and Nanostructure in Ionic Liquids. Chem. Rev. 115, 6357-6426. 10.1021/cr500411q
-
[3]
Feng, G., Chen, M., Bi, S., Goodwin, Z.A.H., Postnikov, E.B., Brilliantov, N., Urbakh, M., and Kornyshev, A.A. (2019). Free and Bound States of Ions in Ionic Liquids, Conductivity, and Underscreening Paradox. Phys. Rev. X 9, 021024. 10.1103/PhysRevX.9.021024
-
[4]
Marion, S., Davis, S.J., Wu, Z. -Q., and Radenovic, A. (2020). Nanocapillary confinement of imidazolium based ionic liquids. Nanoscale 12, 8867-8874. 10.1039/D0NR01164A
-
[5]
Lahrar, E.H., Belhboub, A., Simon, P., and Merlet, C. (2020). Ionic Liquids under Confinement: From Systematic Variations of the Ion and Pore Sizes toward an Understanding of the Structure and Dynamics in Complex Porous Carbons. ACS Appl . Mater. Interfaces 12, 1789 -1798. 10.1021/acsami.9b16740
-
[6]
Zhang, Z., Li, C., Chandresh, A., and Heinke, L. (2022). Conductivity measurement of ionic liquids confined in the nanopores of metal –organic frameworks: a case study for [BMIM][TFSI] in HKUST-1. Ionics 28, 487-494. 10.1007/s11581-021-04249-w
-
[7]
Filippov, A., Rudakova, M., Archipov, V.P., and Shah, F.U. (2024). Nanoconfinement effects on the dynamics of an ionic liquid -based electrolyte probed by multinuclear NMR. Soft Matter 20, 8436-8445. 10.1039/D4SM01058B
-
[8]
Chmiola, J., Yushin, G., Gogotsi, Y., Portet, C., Simon, P., and Taberna, P.L. (2006). Anomalous Increase in Carbon Capacitance at Pore Sizes Less Than 1 Nanometer. Science 313, 1760-1763. doi:10.1126/science.1132195
-
[9]
-L., Gogotsi, Y., and Simon, P
Largeot, C., Portet, C., Chmiola, J., Taberna, P. -L., Gogotsi, Y., and Simon, P. (2008). Relation between the Ion Size and Pore Size for an Electric Double -Layer Capacitor. J. Am. Chem. Soc. 130, 2730-2731. 10.1021/ja7106178
-
[10]
Futamura, R., Iiyama, T., Takasaki, Y., Gogotsi, Y., Biggs, M.J., Salanne, M., Ségalini, J., Simon, P., and Kaneko, K. (2017). Partial breaking of the Coulombic ordering of ionic liquids confined in carbon nanopores. Nat. Mater. 16, 1225-1232. 10.1038/nmat4974
-
[11]
Kondrat, S., Feng, G., Bresme, F., Urbakh, M., and Kornyshev, A.A. (2023). Theory and Simulations of Ionic Liquids in Nanoconfinement. Chem . Rev. 123, 6668 -6715. 10.1021/acs.chemrev.2c00728
-
[12]
Davenport, M., Rodriguez, A., Shea, K.J., and Siwy, Z.S. (2009). Squeezing Ionic Liquids through Nanopores. Nano Lett. 9, 2125-2128. 10.1021/nl900630z
-
[13]
Tasserit, C., Koutsioubas, A., Lairez, D., Zalczer, G., and Clochard, M.C. (2010). Pink Noise of Ionic Conductance through Single Artificial Nanopores Revisited. Phys . Rev. Lett. 105, 260602. 10.1103/PhysRevLett.105.260602. 11
-
[14]
Iacob, C., Sangoro, J.R., Papadopoulos, P., Schubert, T., Naumov, S., Valiullin, R., Kärger, J., and Kremer, F. (2010). Charge transport and diffusion of ionic liquids in nanoporous silica membranes. Phys. Chem. Chem. Phys. 12, 13798-13803. 10.1039/C004546B
-
[15]
Iacob, C., Sangoro, J.R., Kipnusu, W.K., Valiullin, R., Kärger, J., and Kremer, F. (2012). Enhanced charge transport in nano-confined ionic liquids. Soft Matter 8, 289-293. 10.1039/C1SM06581E
-
[16]
Dong, Y., Steinhart, M., Butt, H.-J., and Floudas, G. (2023). Conductivity of Ionic Liquids In the Bulk and during Infiltration in Nanopores. J . Phys. Chem. B 127, 6958 -6968. 10.1021/acs.jpcb.3c01216
-
[17]
Chathoth, S.M., Mamontov, E., Dai, S., Wang, X., Fulvio, P.F., and Wesolowski, D.J. (2012). Fast diffusion in a room temperature ionic liquid confined in mesoporous carbon. Europhys . Lett. 97, 66004. 10.1209/0295-5075/97/66004
-
[18]
Chathoth, S.M., Mamontov, E., Fulvio, P.F., Wang, X., Baker, G.A., Dai, S., and Wesolowski, D.J. (2013). An unusual slowdown of fast diffusion in a room temperature ionic liquid confined in mesoporous carbon. Europhys. Lett. 102, 16004. 10.1209/0295-5075/102/16004
-
[19]
Radha, B., Esfandiar, A., Wang, F.C., Rooney, A.P., Gopinadhan, K., Keerthi, A., Mishchenko, A., Janardanan, A., Blake, P., Fumagalli, L., et al. (2016). Molecular transport through capillaries made with atomic-scale precision. Nature 538, 222-225. 10.1038/nature19363
-
[20]
Bhardwaj, A., Surmani Martins, M.V., You, Y., Sajja, R., Rimmer, M., Goutham, S., Qi, R., Abbas Dar, S., Radha, B., and Keerthi, A. (2024). Fabrication of angstrom -scale two -dimensional channels for mass transport. Nat. Protoc. 19, 240-280. 10.1038/s41596-023-00911-x
-
[21]
Esfandiar, A., Radha, B., Wang, F.C., Yang, Q., Hu, S., Garaj, S., Nair, R.R., Geim, A.K., and Gopinadhan, K. (2017). Size effect in ion transport through angstrom-scale slits. Science 358, 511-
work page 2017
-
[22]
doi:10.1126/science.aan5275
-
[23]
Goutham, S., Keerthi, A., Ismail, A., Bhardwaj, A., Jalali, H., You, Y., Li, Y., Hassani, N., Peng, H., Martins, M.V.S., et al. (2023). Beyond steric selectivity of ions using ångström -scale capillaries. Nat. Nanotechnol. 18, 596-601. 10.1038/s41565-023-01337-y
-
[24]
Robin, P., Emmerich, T., Ismail, A., Niguès, A., You, Y., Nam, G.-H., Keerthi, A., Siria, A., Geim, A.K., Radha, B., and Bocquet, L. (2023). Long -term memory and synapse-like dynamics in two- dimensional nanofluidic channels. Science 379, 161-167. doi:10.1126/science.adc9931
-
[25]
Yang, W., Radha, B., Choudhary, A., You, Y., Mettela, G., Geim, A.K., Aksimentiev, A., Keerthi, A., and Dekker, C. (2021). Translocation of DNA through Ultrathin Nanoslits. Adv . Mater. 33, 2007682. https://doi.org/10.1002/adma.202007682
-
[26]
Ronceray, N., You, Y., Glushkov, E., Lihter, M., Rehl, B., Chen, T. -H., Nam, G. -H., Borza, F., Watanabe, K., Taniguchi, T., et al. (2023). Liquid -activated quantum emission from pristine hexagonal boron nitride for nanofluidic sensing. Nat. Mater. 22, 1236-1242. 10.1038/s41563-023- 01658-2
-
[27]
Yang, J., Papaderakis, A.A., Roh, J.S., Keerthi, A., Adams, R.W., Bissett, M.A., Radha, B., and Dryfe, R.A.W. (2024). Measuring the Capacitance of Carbon in Ionic Liquids: From Graphite to Graphene. J. Phys. Chem. C 128, 3674-3684. 10.1021/acs.jpcc.3c08269
-
[28]
-H., Ismail, A., Pandey, S.V., Keerthi, A., and Radha, B
Goutham, S., Gogoi, R.K., Jyothilal, H., Nam, G. -H., Ismail, A., Pandey, S.V., Keerthi, A., and Radha, B. (2025). Electric Field Mediated Unclogging of Angstrom -Scale Channels. Small Methods 9, 2400961. https://doi.org/10.1002/smtd.202400961
-
[29]
Mukhopadhyay, T.K., and Datta, A. (2017). Deciphering the Role of Solvents in the Liquid Phase Exfoliation of Hexagonal Boron Nitride: A Molecular Dynamics Simulation Study. J. Phys. Chem. C 121, 811-822. 10.1021/acs.jpcc.6b09446
-
[30]
Canongia Lopes, J.N., Pádua, A.A.H., and Shimizu, K. (2008). Molecular Force Field for Ionic Liquids IV: Trialkylimidazolium and Alkoxycarbonyl -Imidazolium Cations; Alkylsulfonate and Alkylsulfate Anions. J. Phys. Chem. B 112, 5039-5046. 10.1021/jp800281e. 12
-
[31]
Hess, B., Kutzner, C., van der Spoel, D., and Lindahl, E. (2008). GROMACS 4: Algorithms for Highly Efficient, Load-Balanced, and Scalable Molecular Simulation. J. Chem. Theory Comput. 4, 435-447. 10.1021/ct700301q
-
[32]
Darden, T., York, D., and Pedersen, L. (1993). Particle mesh Ewald: An N ⋅log(N) method for Ewald sums in large systems. J. Chem. Phys. 98, 10089-10092. 10.1063/1.464397
-
[33]
Essmann, U., Perera, L., Berkowitz, M.L., Darden, T., Lee, H., and Pedersen, L.G. (1995). A smooth particle mesh Ewald method. J. Chem. Phys. 103, 8577-8593. 10.1063/1.470117
-
[34]
Elbourne, A., McDonald, S., Voïchovsky, K., Endres, F., Warr, G.G., and Atkin, R. (2015). Nanostructure of the Ionic Liquid –Graphite Stern Layer. ACS Nano 9, 7608 -7620. 10.1021/acsnano.5b02921
-
[35]
Widegren, J.A., Saurer, E.M., Marsh, K.N., and Magee, J.W. (2005). Electrolytic conductivity of four imidazolium-based room-temperature ionic liquids and the effect of a water impurity. J. Chem. Thermodyn. 37, 569-575. https://doi.org/10.1016/j.jct.2005.04.009
-
[36]
Widegren, J.A., Laesecke, A., and Magee, J.W. (2005). The effect of dissolved water on the viscosities of hydrophobic room -temperature ionic liquids. Chem . Commun., 1610 -1612. 10.1039/B417348A
-
[37]
Gopinadhan, K., Hu, S., Esfandiar, A., Lozada-Hidalgo, M., Wang, F.C., Yang, Q., Tyurnina, A.V., Keerthi, A., Radha, B., and Geim, A.K. (2019). Complete steric exclusion of ions and proton transport through confined monolayer water. Science 363, 145-148. doi:10.1126/science.aau6771
-
[38]
Mo, T., Bi, S., Zhang, Y., Presser, V., Wang, X., Gogotsi, Y., and Feng, G. (2020). Ion Structure Transition Enhances Charging Dynamics in Subnanometer Pores. ACS Nano 14, 2395 -2403. 10.1021/acsnano.9b09648
-
[39]
Bozym, D.J., Uralcan, B., Limmer, D.T., Pope, M.A., Szamreta, N.J., Debenedetti, P.G., and Aksay, I.A. (2015). Anomalous Capacitance Maximum of the Glassy Carbon –Ionic Liquid Interface through Dilution with Organic Solvents. J . Phys. Chem. Lett. 6, 2644 -2648. 10.1021/acs.jpclett.5b00899
-
[40]
Pivnic, K., Bresme, F., Kornyshev, A.A., and Urbakh, M. (2020). Electrotunable Friction in Diluted Room Temperature Ionic Liquids: Implications for Nanotribology. ACS Appl . Nano Mater . 3, 10708-10719. 10.1021/acsanm.0c01946
-
[41]
Jitvisate, M., and Seddon, J.R.T. (2018). Direct Measurement of the Differential Capacitance of Solvent-Free and Dilute Ionic Liquids. J . Phys. Chem. Lett. 9, 126 -131. 10.1021/acs.jpclett.7b02946
-
[42]
Mata, R.A., and Costa Cabral, B.J. (2004). Structural, energetic, and electronic properties of (CH3CN)2–8 clusters by density functional theory. J . Mol. Struct. THEOCHEM 673, 155-164. https://doi.org/10.1016/j.theochem.2003.12.011
-
[43]
Jadżyn, J., and Świergiel, J. (2011). On Intermolecular Dipolar Coupling in Two Strongly Polar Liquids: Dimethyl Sulfoxide and Acetonitrile. J. Phys. Chem. B 115, 6623 -6628. 10.1021/jp2013336
-
[44]
Marekha, B.A., Kalugin, O.N., Bria, M., and Idrissi, A. (2015). Probing structural patterns of ion association and solvation in mixtures of imidazolium ionic liquids with acetonitrile by means of relative 1H and 13C NMR chemical shifts. Phys . Chem. Chem. Phys. 17, 23183 -23194. 10.1039/C5CP02748A
-
[45]
Rotnicki, K., Sterczyńska, A., Fojud, Z., Jażdżewska, M., Beskrovnyi, A., Waliszewski, J., and Śliwińska-Bartkowiak, M. (2020). Phase transitions, molecular dynamics and structural properties of 1-Ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide ionic liquid. J. Mol. Liq. 313, 113535. https://doi.org/10.1016/j.molliq.2020.113535
