An adaptive LO tracking loop keeps a Rydberg atomic receiver's intermediate frequency locked inside its narrow atomic bandwidth under severe Doppler shifts.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · grok-4.5

2026-07-10 12:19 UTC pith:5MKMYMGV

load-bearing objection Solid first engineering fix for Doppler on Rydberg receivers; classical CPAFC loop, clean sims, but the static Lorentzian Ha is never checked under closed-loop dynamics. the 2 major comments →

arxiv 2607.08145 v1 pith:5MKMYMGV submitted 2026-07-09 eess.SP

Doppler-Resilient Rydberg Atomic Receiver for High-Dynamic Communication Networks via Adaptive Local Oscillator Tracking

Yiyue Xiang , Jianxiong Pan , Qiaolin Ouyang , Bichen Kang , Bin Qi , Neng Ye This is my paper
classification eess.SP
keywords Rydberg atomic receiverDoppler shiftadaptive local oscillatorfrequency locked loopCPAFChigh-dynamic communicationTHz wirelesssatellite links
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Rydberg atomic receivers detect radio signals through resonant atomic energy levels, giving high sensitivity and wavelength-independent response, but their usable instantaneous bandwidth is only a few megahertz. In high-mobility links such as LEO satellite communications the Doppler shift can sweep the carrier by several megahertz per second, pushing the intermediate-frequency signal out of that narrow window and collapsing performance. This paper shows that a classical frequency-locked loop, driven by a cross-product automatic frequency control algorithm, can continuously retune the local oscillator so that the intermediate frequency remains centered on the atomic response regardless of the external Doppler rate. Simulations at 309 GHz with a 816 kHz/s Doppler ramp confirm that the intermediate frequency stays locked near 1 MHz, constellations remain tight, and both EVM and SER improve dramatically over a fixed-LO baseline.

Core claim

By feeding a CPAFC-derived frequency-error estimate back to both a digital NCO and an analog VCO that retunes the local oscillator, a Rydberg atomic receiver can keep its intermediate-frequency signal locked near the center of the atomic response bandwidth under high Doppler rates, thereby avoiding the severe attenuation and distortion that a fixed-LO architecture suffers once the offset exceeds half the atomic bandwidth.

What carries the argument

Cross-product automatic frequency control (CPAFC) loop: after M-th-power modulation wiping, a cross-product discriminator extracts residual frequency error; a second-order digital loop filter produces a control signal that simultaneously de-rotates the baseband samples and updates the physical LO frequency so that the effective IF remains fixed at the design value.

Load-bearing premise

The atomic response is treated as a fixed Lorentzian bandpass of constant width that does not change when the local-oscillator frequency or residual Doppler rate is varying.

What would settle it

Close the CPAFC loop on a real Rydberg vapor cell under a known linear Doppler ramp of several hundred kHz/s and measure whether the photocurrent spectrum remains centered inside the atomic linewidth while EVM stays low; any systematic walk-off or unexpected amplitude fade would refute the claim.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

Share X Bluesky LinkedIn Reddit HN

If this is right

  • Fixed-LO Rydberg receivers become unusable for LEO or high-velocity platforms once Doppler exceeds a few megahertz; the adaptive-LO architecture restores link availability.
  • The same feedback structure can be applied at higher carrier frequencies (THz and beyond) where Doppler rates scale linearly with frequency.
  • Because the atomic bandwidth constraint is enforced at the physical front-end, subsequent digital demodulators see an essentially static intermediate frequency and need only ordinary phase tracking.
  • The dual-path correction (digital NCO plus analog VCO) allows designers to allocate coarse Doppler compensation to hardware and fine residual cleanup to software.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The architecture is agnostic to the particular atomic species or ladder; any quantum sensor whose response is band-limited around a tunable LO beat note could adopt the same CPAFC loop.
  • If the loop filter is retuned for higher natural frequency, the same receiver could track the faster Doppler rates expected in hypersonic or low-Earth-orbit constellations without changing the atomic cell.
  • Because the LO itself is now a controlled oscillator, the system could also perform intentional frequency hopping while remaining inside the atomic window, opening a path to multi-band or anti-jam Rydberg links.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper proposes a Doppler-resilient Rydberg atomic receiver that uses an adaptive LO tracking architecture driven by a cross-product automatic frequency control (CPAFC) loop. After reviewing the LO-based heterodyne system model and the quantum readout (Sections II–III), it shows that a fixed LO allows Doppler-induced IF drift to exit the narrow atomic response bandwidth Ba, producing severe attenuation and constellation distortion. The CPAFC algorithm (modulation wiping, cross-product discrimination, second-order loop filter, dual digital/analog correction paths; Eqs. 15–22 and Algorithm 1) estimates residual frequency error and retunes the physical LO so that the effective IF remains near the design value. Simulations under a linear 816 kHz/s Doppler ramp at 309 GHz with QPSK demonstrate that the adaptive architecture keeps the IF locked, yields low discrimination error, preserves constellation integrity, and substantially reduces EVM and SER relative to a fixed-LO baseline.

Significance. If the claimed gains hold under more complete atomic dynamics, the work supplies a concrete, implementable front-end solution to a recognized bottleneck of Rydberg receivers in high-mobility (especially LEO/THz) links. The architecture is a natural extension of classical frequency-locked loops to the quantum-sensor setting, the CPAFC derivation is transparent, and Algorithm 1 is fully specified, making the proposal reproducible and extensible. The contribution is therefore of clear engineering interest to the quantum-sensing and non-terrestrial-network communities, even though the present evidence is purely numerical.

major comments (2)
  1. The central performance claims (abstract, §III-B, Figs. 2–5) rest on the static Lorentzian atomic response |Ha(f)| of Eq. (11) and the fixed-LO approximation Pout(t) = P̄0 + κ cos(2π fIF t + Δϕ) of Eq. (6). The paper never re-integrates the Lindblad master equation of §II-C (or even the approximate susceptibility) along the closed-loop LO trajectory produced by Algorithm 1 under the 816 kHz/s ramp. Residual frequency error, LO-amplitude coupling, or non-adiabatic effects could therefore alter the effective response and erode the reported constellation tightness and SER curves. A short density-matrix validation (or an explicit statement of the adiabaticity conditions under which Eq. (6) remains valid) is needed before the quantitative gains can be regarded as established.
  2. All results are obtained from a single deterministic linear Doppler ramp with fixed atomic and loop parameters (Table I) and no Monte-Carlo error bars or alternative Doppler profiles. Consequently it is unclear how sensitive the EVM/SER improvements are to loop-filter design (ωn, ζ), residual phase noise, or realistic multipath/acceleration profiles typical of LEO links. At least a modest parameter sweep or a second, non-linear Doppler trajectory would strengthen the claim that the architecture “significantly outperforms existing Rydberg atomic receivers” under high dynamics.
minor comments (4)
  1. Fig. 2 contains garbled axis labels and overlay text that render the “out-of-bandwidth” region and the ideal IF line difficult to read; a clean redraw is required.
  2. Notation for residual frequency offset is inconsistent (Δfe[n], Δfe, fd(t)); a single symbol should be used throughout §III.
  3. The coherent integration time Tcoh is introduced in Eq. (20) but never related to the symbol period Ts used in the simulations; a one-sentence clarification would help.
  4. References [10] and [12] are arXiv preprints; if journal versions exist they should be cited, or the preprint status should be noted.

Circularity Check

0 steps flagged

No circularity: open engineering proposal with forward simulation under an explicit model; no fitted parameters re-presented as predictions and no load-bearing self-citation chain.

full rationale

The paper's derivation chain is self-contained and non-circular. Section II states the LO-based Rydberg receiver model (Lindblad master equation, approximate photocurrent I_PD(t) proportional to cos(2 pi f_IF t + Delta phi)) drawn from the fixed-LO literature. Section III-A introduces the Doppler-induced IF drift f'_IF(t) = f_IF + f_d(t) and the static Lorentzian atomic response |H_a(f)| of Eq. (11) as an analysis tool; these are modeling assumptions, not quantities later recovered as predictions. Section III-B/C then constructs a standard CPAFC frequency-locked loop (modulation wipe by M-th power, cross-product discriminator, second-order loop filter, dual digital/analog correction) whose equations (15)-(22) and Algorithm 1 follow directly from the residual-frequency definition Delta f_e and ordinary discrete-time control design; the loop coefficients omega_n, zeta, K are free design choices listed in Table I, not data fits. Section IV evaluates the closed-loop architecture by forward simulation under the same model (linear Doppler ramp k = 816 kHz/s taken from 3GPP [13], atomic parameters from ARC library), reporting IF lock, constellation tightness, EVM and SER. No step equates an output to an input by construction, no parameter is fitted to a subset of results and then called a prediction of a related quantity, and the citations that supply the underlying atomic physics or CPAFC technique do not overlap with the present authors. The architecture is therefore an ordinary engineering proposal whose performance claims are conditional on the stated model; any concern about the validity of the static Lorentzian under closed-loop dynamics is a correctness/validation issue, not circularity.

Axiom & Free-Parameter Ledger

4 free parameters · 4 axioms · 0 invented entities

The claim rests on standard quantum-optics and classical control assumptions plus a handful of design parameters chosen for the simulation campaign. No new physical entities are postulated; the free parameters are ordinary loop-filter and atomic-response settings.

free parameters (4)
  • loop natural frequency ωn = 12500 rad/s
    Set by hand to 12500 rad/s (Table I) to achieve the desired tracking bandwidth; not derived from first principles.
  • damping factor ζ = √2/2
    Chosen as √2/2 (Table I), the classical critically-damped value; free design choice.
  • Doppler rate k = 816 kHz/s
    Fixed at 816 kHz/s from NTN literature; the single trajectory used for all performance claims.
  • atomic bandwidth Ba
    Appears only as “few MHz or hundreds of kHz”; the exact numerical value used to draw the “out-of-bandwidth” region in Fig. 2 is never stated.
axioms (4)
  • domain assumption The atomic response |Ha(f)| is a static Lorentzian of fixed width Ba centered at the nominal IF (Eq. 11).
    Introduced in §III-A without derivation from the Lindblad equation under time-varying LO; load-bearing for the claim that locking IF to fIF restores performance.
  • domain assumption ALO ≫ ARF so that the atomic system acts as a linear quantum mixer (Eq. 4).
    Standard operating regime stated in §II-B; required for the photocurrent model used by the discriminator.
  • domain assumption Narrowband channel assumption reduces the multipath channel to a single complex gain h(t).
    Invoked in §II-B; simplifies the Doppler analysis but is not re-examined under the closed-loop LO trajectory.
  • standard math Cross-product discriminator with M-th power modulation wipe yields an unbiased frequency-error estimate for small residual offsets (Eqs. 18–20).
    Classical AFC approximation; used without further justification for the QPSK case.

pith-pipeline@v1.1.0-grok45 · 14869 in / 2700 out tokens · 28798 ms · 2026-07-10T12:19:36.167162+00:00 · methodology

0 comments
Cite this review

Pith. "Pith review of Doppler-Resilient Rydberg Atomic Receiver for High-Dynamic Communication Networks via Adaptive Local Oscillator Tracking." pith.science (2026). https://pith.science/paper/5MKMYMGV

@misc{pith2026260708145,
  author       = {Pith},
  title        = {Pith review of: Doppler-Resilient Rydberg Atomic Receiver for High-Dynamic Communication Networks via Adaptive Local Oscillator Tracking},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5MKMYMGV}},
  note         = {Machine review of arXiv:2607.08145}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

Rydberg atomic receiver has emerged as promising candidate for next-generation wireless communication, due to the exceptional sensitivity and ability to overcome the physical limitations of traditional radio frequency antennas. Utilizing the resonant response of atomic energy levels for signal detection, Rydberg atomic receiver is inherently confined to a narrow instantaneous bandwidth. However, in high-mobility scenarios such as satellite communications, the severe Doppler effect induces carrier frequency offsets, which drive the signal beyond the instantaneous bandwidth and result in severe distortion. In this paper, we propose an adaptive local oscillator (LO) tracking Rydberg atomic receiver architecture designed to lock high-dynamic signals within the effective atomic response bandwidth. By employing a cross-product automatic frequency control (CPAFC) algorithm, the system dynamically estimates the instantaneous frequency offset, generates a corresponding error control signal, and adjusts the LO frequency through a feedback loop. Consequently, the intermediate frequency signal can always be locked close to the center of the atomic response bandwidth regardless of dynamics. Simulation results show that the proposed architecture significantly outperforms existing Rydberg atomic receiver, effectively alleviating performance degradation in high-dynamic environments.

Figures

Figures reproduced from arXiv: 2607.08145 by Bichen Kang, Bin Qi, Jianxiong Pan, Neng Ye, Qiaolin Ouyang, Yiyue Xiang.

Figure 1

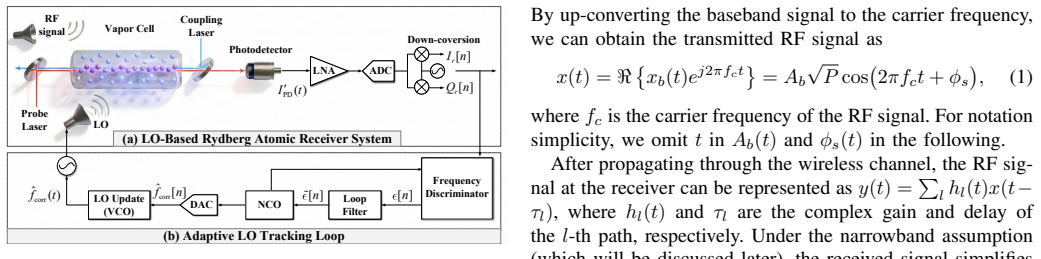

Figure 1. Figure 1: Proposed adaptive LO tracking Rydberg atomic re [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Performance of intermediate frequency tracking. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Performance of frequency discrimination error. [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Comparison of constellation @ERF = 0.005V /m. atomic response distortion causes symbols to spread along arcs and eventually form a ring. In contrast, the proposed RAR with LO tracking maintains tightly clustered constellations around all ideal locations at both early and late stages, confirming that the Doppler-induced distortion is effectively mitigated [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
