arxiv: 2606.25259 · v1 · pith:5NAUGD37new · submitted 2026-06-24 · ⚛️ physics.comp-ph · physics.flu-dyn

A Neural Surrogate Approach for Simulating Natural Convection Problems

Nurshat Menglik , Alex Shao , David Hyde This is my paper

Pith reviewed 2026-06-25 20:38 UTC · model grok-4.3

classification ⚛️ physics.comp-ph physics.flu-dyn
keywords natural convectionBoussinesq approximationcompressible flowFourier neural operatorneural surrogatefinite element methodheat transferfluid dynamics
0
0 comments X

The pith

A Fourier neural operator trained on paired Boussinesq and compressible simulations corrects per-channel errors in natural convection predictions with one evaluation per run.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper trains a neural surrogate on matched pairs of simulations: one using the cheaper Boussinesq model and one using the more expensive compressible model. After training, the surrogate is applied once to any new Boussinesq result to produce fields whose accuracy approaches the compressible reference across velocity, pressure, and temperature. This yields structural similarity indices near 1.0 and mean-squared error reductions of one to three orders of magnitude in both two and three dimensions. The approach therefore supplies higher-fidelity natural-convection data at roughly the cost of the original Boussinesq solve.

Core claim

Using compressible-flow results as high-fidelity references, a single evaluation of a Fourier neural operator trained on matched Boussinesq-compressible pairs raises the per-channel accuracy of Boussinesq predictions to SSIM values close to unity for all flow variables and produces corresponding mean-squared-error reductions of one to nearly three orders of magnitude across test distributions in two and three spatial dimensions.

What carries the argument

Fourier neural operator trained on paired Boussinesq-compressible simulation snapshots, applied once per new Boussinesq run to map the approximate fields onto the higher-fidelity compressible solution.

If this is right

  • Boussinesq-based codes can be post-processed to compressible accuracy without re-deriving or re-solving the full compressible equations.
  • The same paired-training strategy applies to other inexpensive flow approximations whose errors can be learned from a more expensive reference model.
  • Open-source release of the trained operator and the paired data sets allows immediate reuse on new geometries or boundary conditions within the covered regime.
  • Three-dimensional natural-convection problems become practical at the accuracy level previously available only from compressible solvers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be inserted into existing Boussinesq solvers as an optional post-processing step, enabling selective high-fidelity output only where needed.
  • Retraining on new parameter ranges would be required for problems far from the original training distribution, such as very high Rayleigh numbers or complex geometries.
  • Because the surrogate operates on solution snapshots rather than governing equations, it could be combined with other reduced-order modeling techniques for further speed-ups.

Load-bearing premise

The set of paired Boussinesq and compressible simulations used for training covers the parameter space and flow regimes that will appear in future test cases.

What would settle it

A new natural-convection test case whose Rayleigh or Prandtl numbers lie outside the training ranges, run with both models; if the surrogate fails to reduce mean-squared error by at least one order of magnitude relative to the raw Boussinesq result, the generalization claim is false.

Figures

Figures reproduced from arXiv: 2606.25259 by Alex Shao, David Hyde, Nurshat Menglik.

Figure 1
Figure 1. Figure 1: Domain geometry and boundary conditions for differentially heated thermal cavity simulations. A temperature [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2

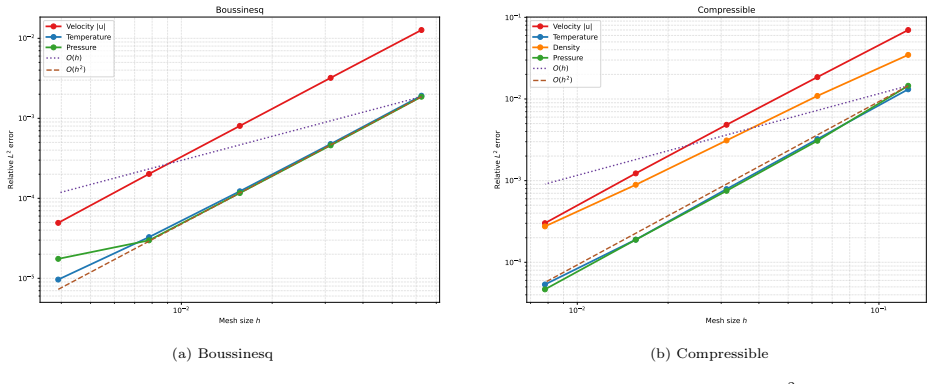

Figure 2. Figure 2: Self-convergence with mesh size for Boussinesq and fully compressible formulations. Relative [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3

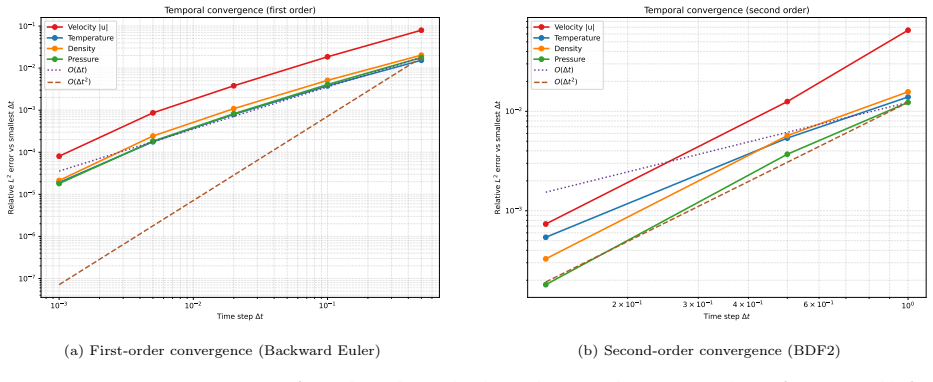

Figure 3. Figure 3: Time-step convergence using first-order and second-order implicit time discretization schemes for compressible for [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗

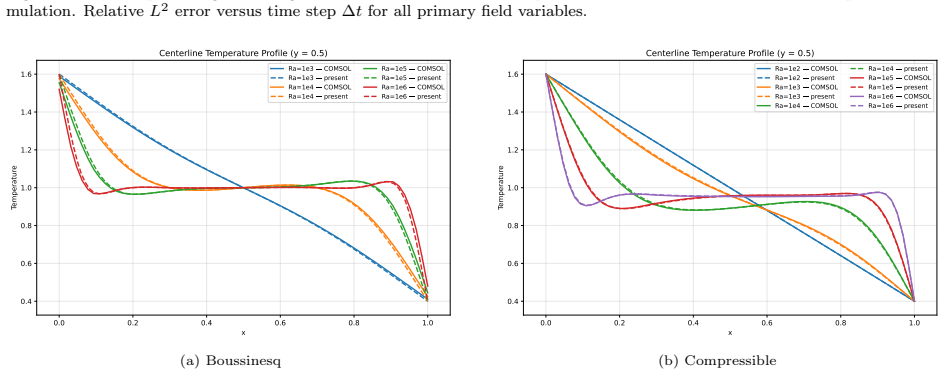

Figure 4
Figure 4. Figure 4: Temperature profile validation with COMSOL at [PITH_FULL_IMAGE:figures/full_fig_p015_4.png] view at source ↗

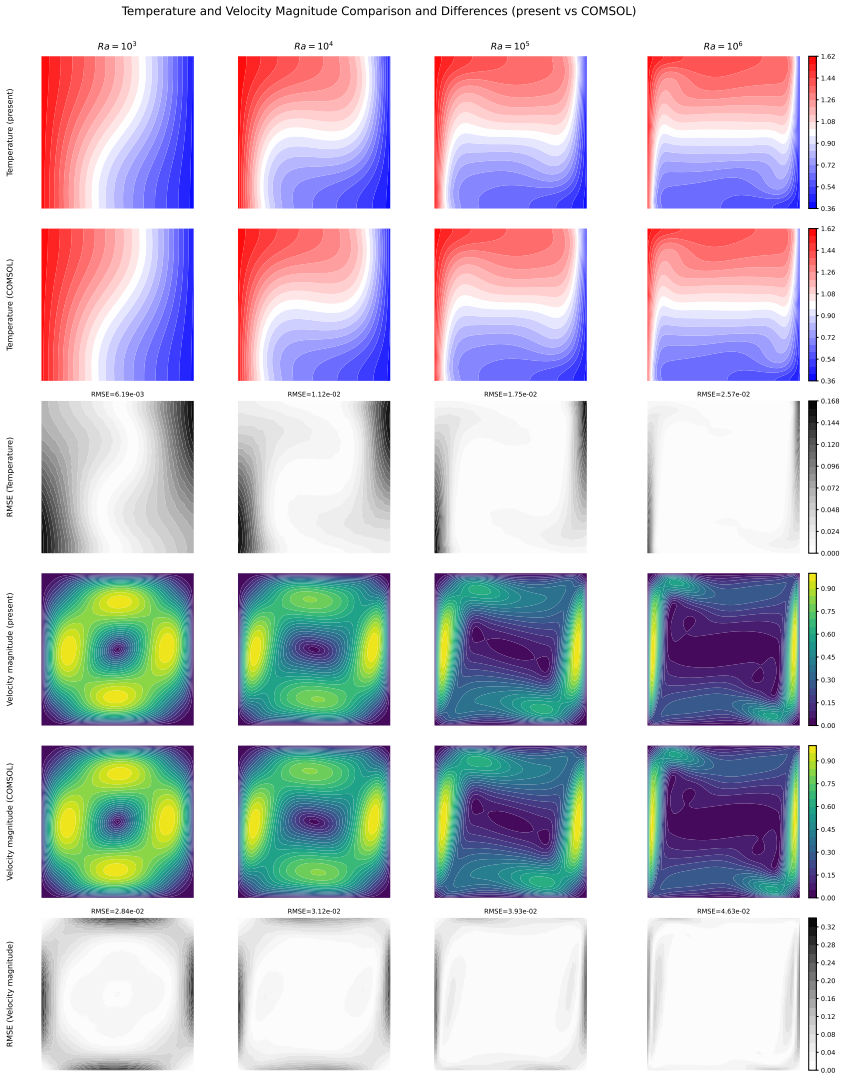

Figure 5
Figure 5. Figure 5: Validation with COMSOL (Boussinesq, 2D). Despite using different discretizations and solvers, the two sets of [PITH_FULL_IMAGE:figures/full_fig_p017_5.png] view at source ↗

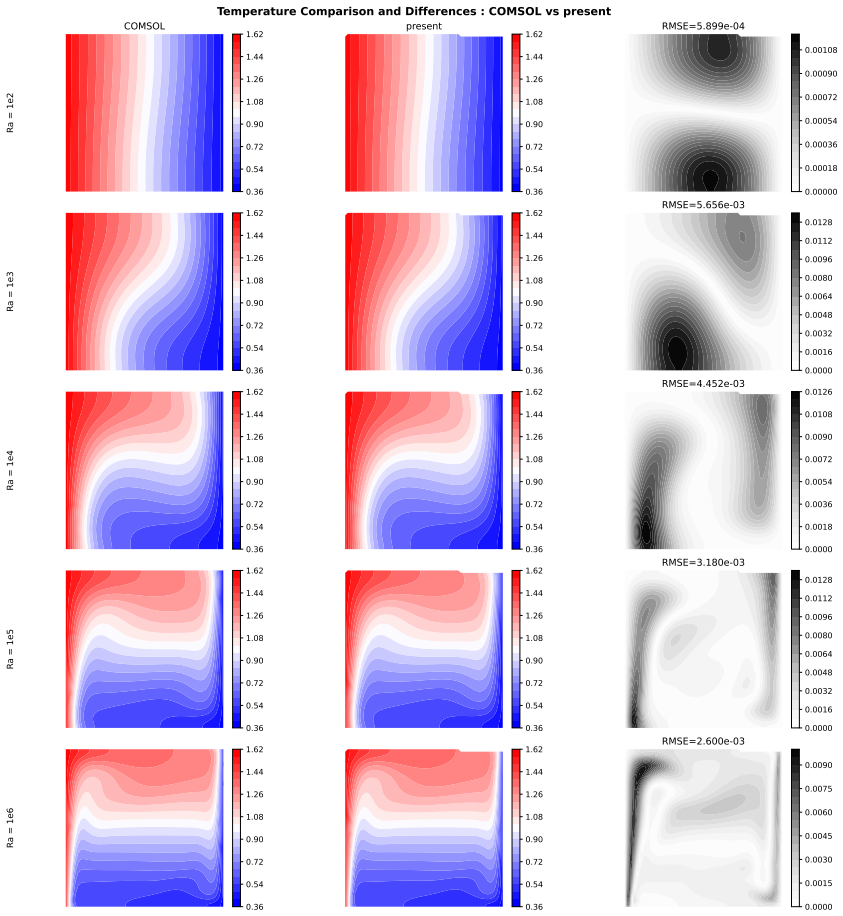

Figure 6
Figure 6. Figure 6: Validation with COMSOL (Compressible, 2D). Despite using different discretizations and solvers, the two sets of [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7

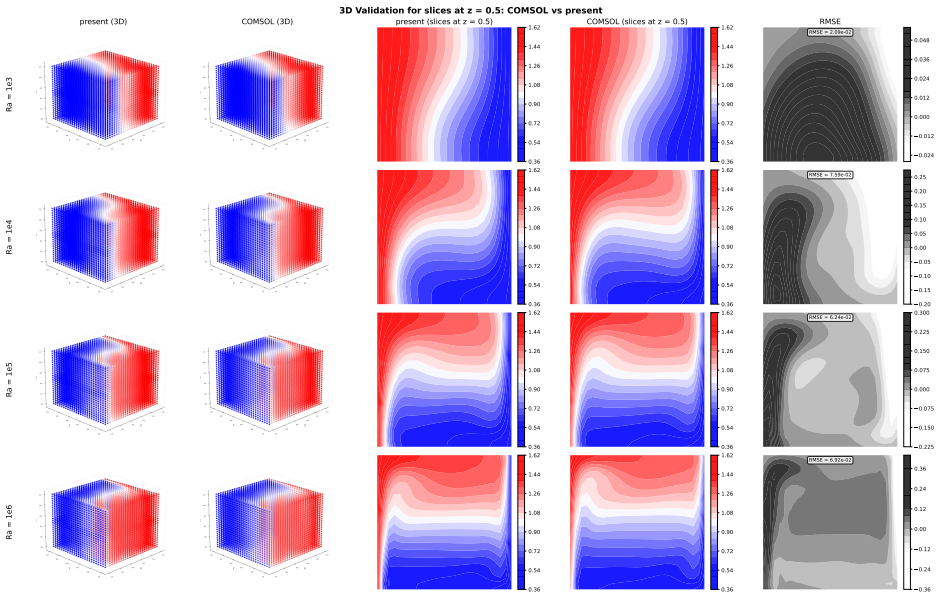

Figure 7. Figure 7: Validation with COMSOL (Compressible, 3D). Despite using different discretizations and solvers, the two sets of [PITH_FULL_IMAGE:figures/full_fig_p019_7.png] view at source ↗
Figure 8

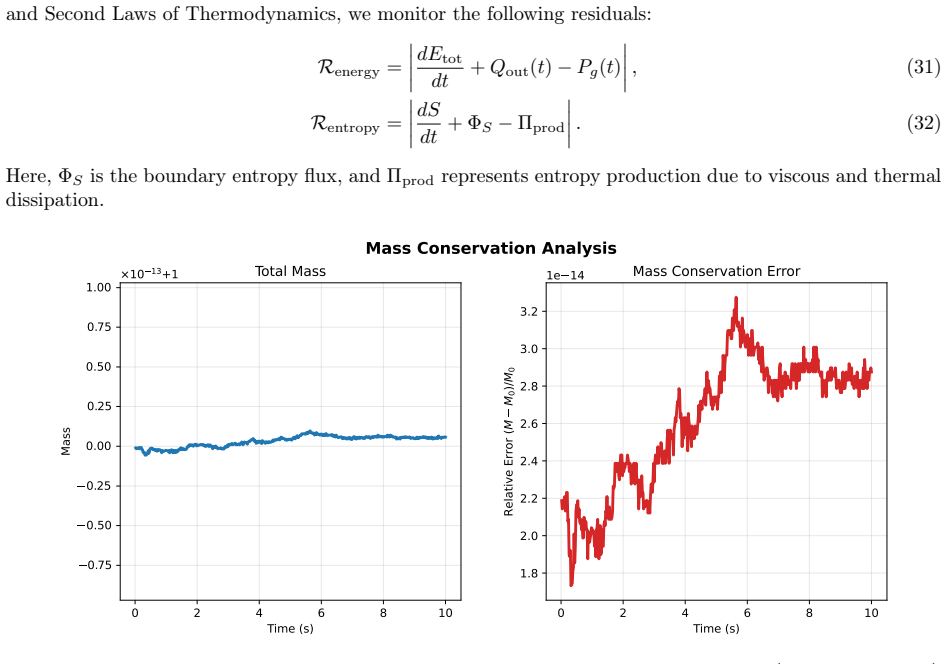

Figure 8. Figure 8: Mass conservation diagnostics for the 2D compressible cavity case (Mesh [PITH_FULL_IMAGE:figures/full_fig_p020_8.png] view at source ↗

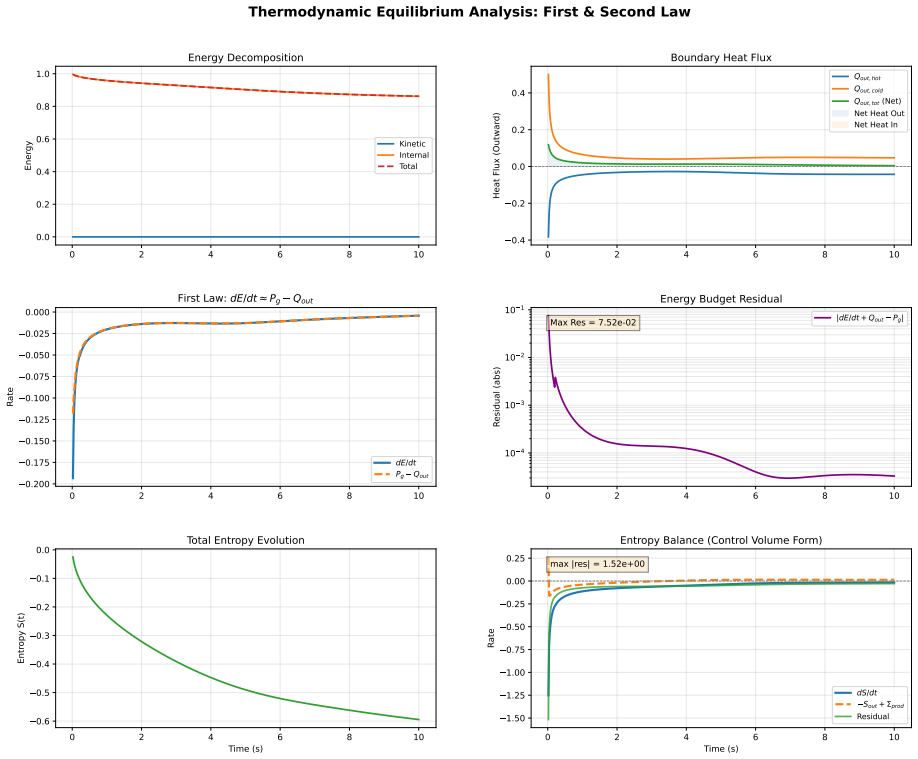

Figure 9
Figure 9. Figure 9: Analysis for First & Second Law of Thermodynamics. Top: Energy components and boundary heat fluxes. Middle: [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗

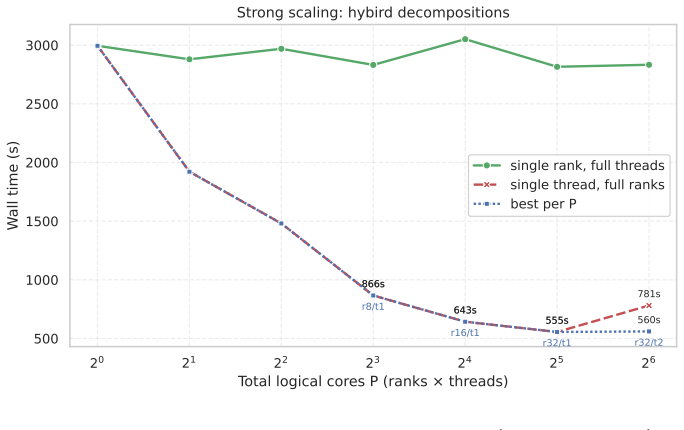

Figure 10
Figure 10. Figure 10: Strong scaling analysis for the 2D compressible flow simulation ( [PITH_FULL_IMAGE:figures/full_fig_p022_10.png] view at source ↗
Figure 11

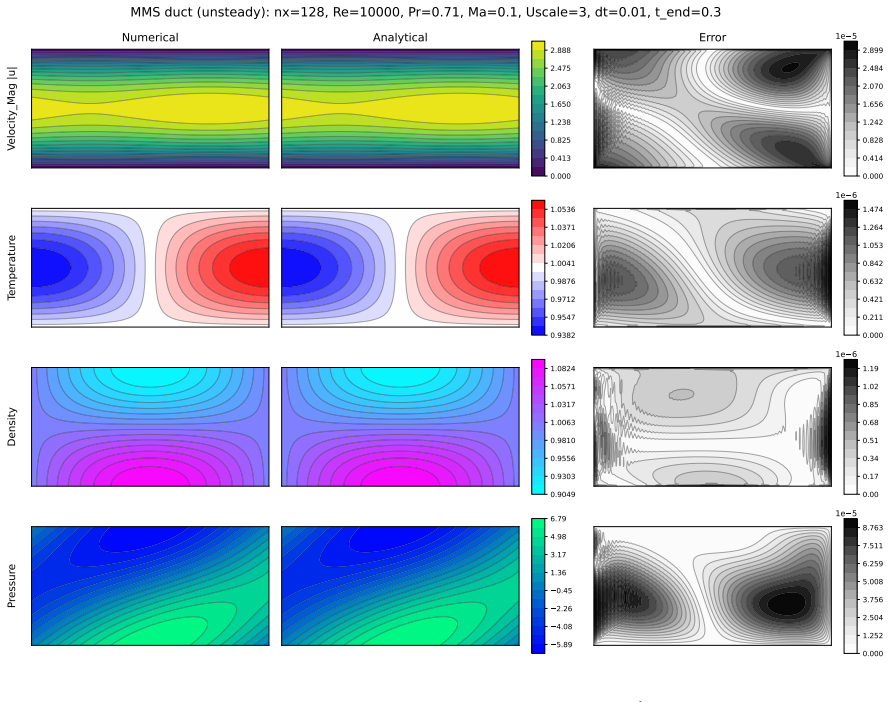

Figure 11. Figure 11: Unsteady MMS duct verification for the fully compressible formulation at [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12

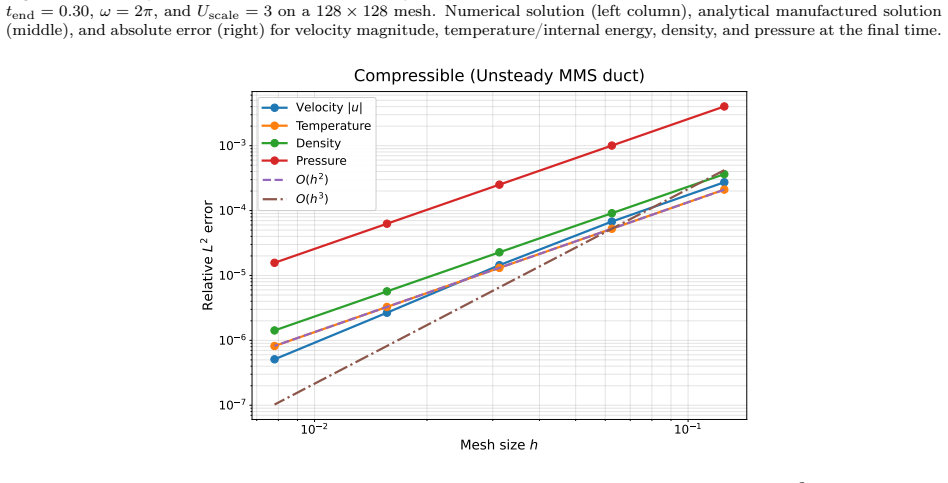

Figure 12. Figure 12: Mesh convergence for the unsteady MMS duct case (fully compressible formulation). Relative [PITH_FULL_IMAGE:figures/full_fig_p024_12.png] view at source ↗
Figure 13

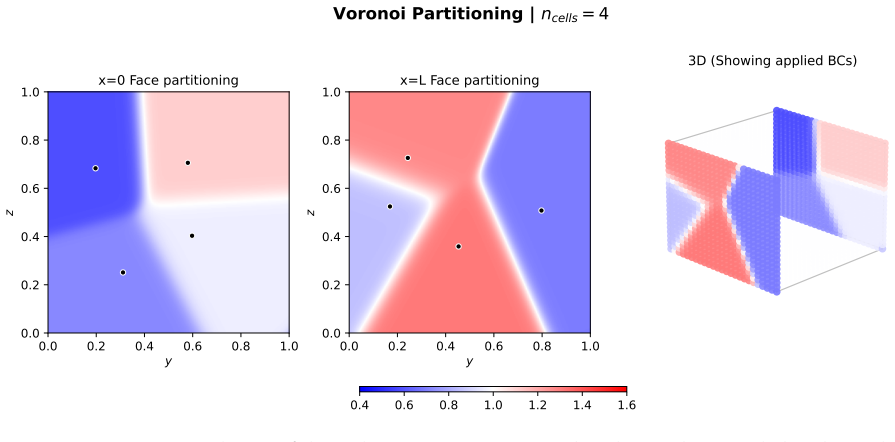

Figure 13. Figure 13: Representative realization of the stochastic Voronoi temperature boundary conditions applied to the 3D thermal [PITH_FULL_IMAGE:figures/full_fig_p027_13.png] view at source ↗
Figure 14

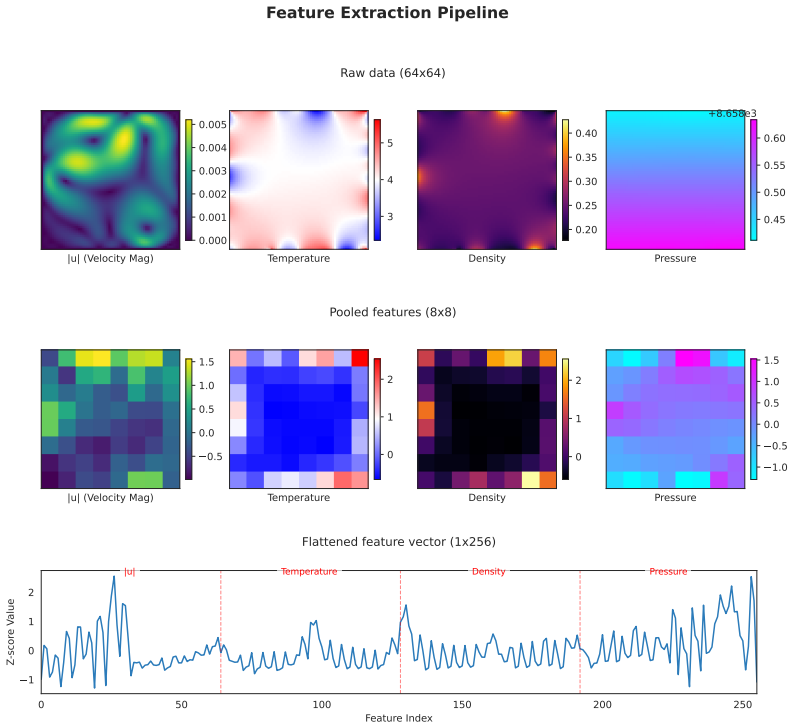

Figure 14. Figure 14: The feature extraction pipeline. (Top) Four raw physical fields on [PITH_FULL_IMAGE:figures/full_fig_p028_14.png] view at source ↗
Figure 16

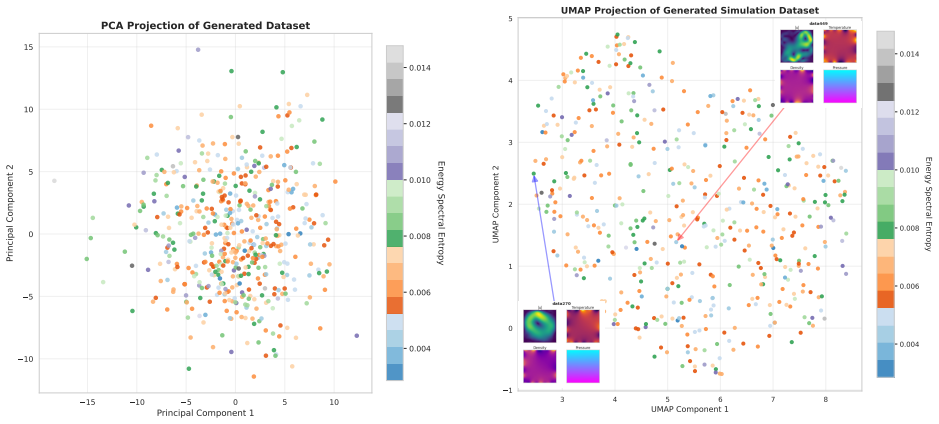

Figure 16. Figure 16: UMAP projection of 500 shape feature vectors [PITH_FULL_IMAGE:figures/full_fig_p029_16.png] view at source ↗
Figure 17

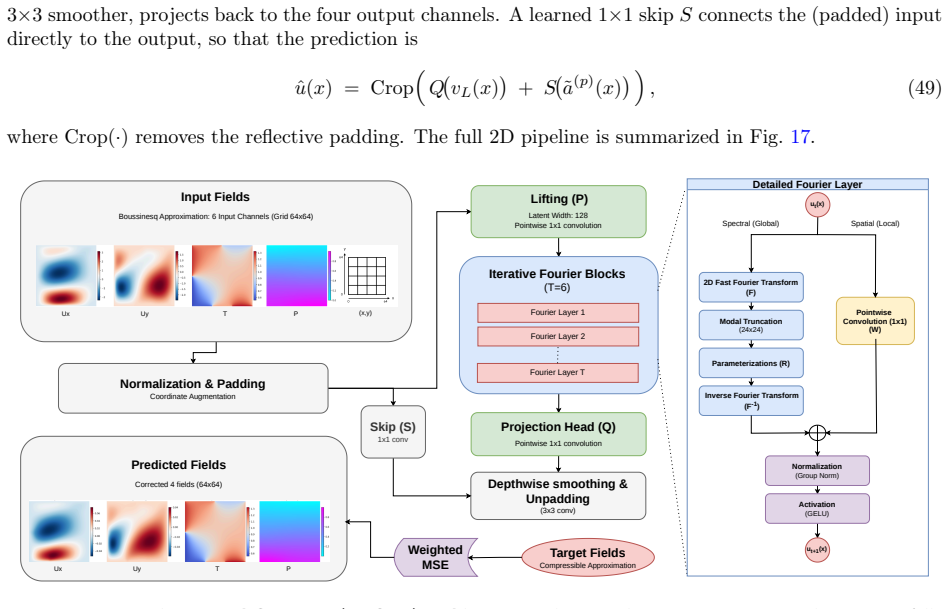

Figure 17. Figure 17: 2D Fourier Neural Operator (FNO2D) architecture. The network maps a Boussinesq prediction to its fully compressible counterpart. Left/Top (Macroscopic Pipeline): The input consists of 6 channels on a 64 × 64 grid (four physical fields ux, uy, T, p and two augmented coordinates x, y). The input is normalized and reflectively padded, then lifted to a latent width of W = 128 via a pointwise 1×1 convolution P… view at source ↗

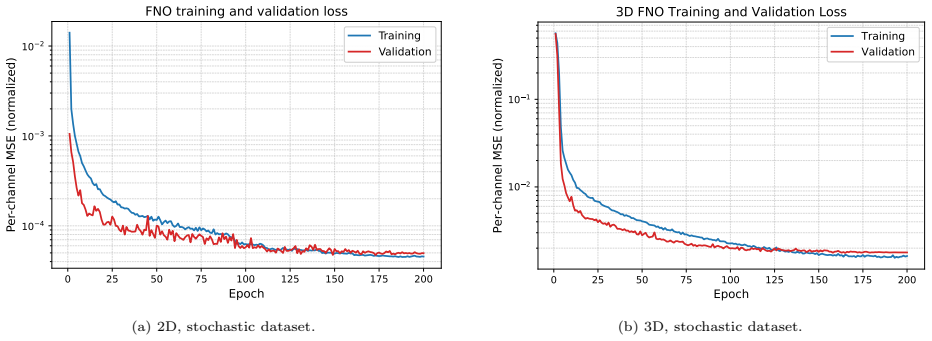

Figure 18
Figure 18. Figure 18: Training and validation loss (per-channel MSE in normalized [PITH_FULL_IMAGE:figures/full_fig_p032_18.png] view at source ↗
Figure 19

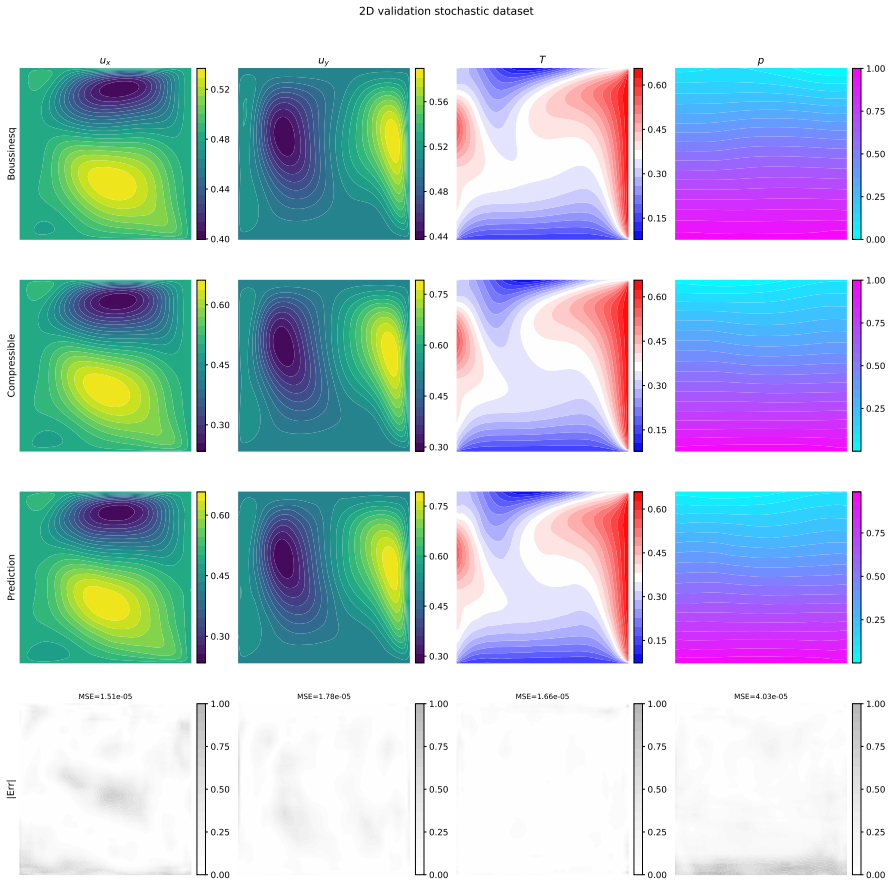

Figure 19. Figure 19: All four flow variables for a single representative in-distribution stochastic sample (the stochastic-trained surrogate [PITH_FULL_IMAGE:figures/full_fig_p033_19.png] view at source ↗

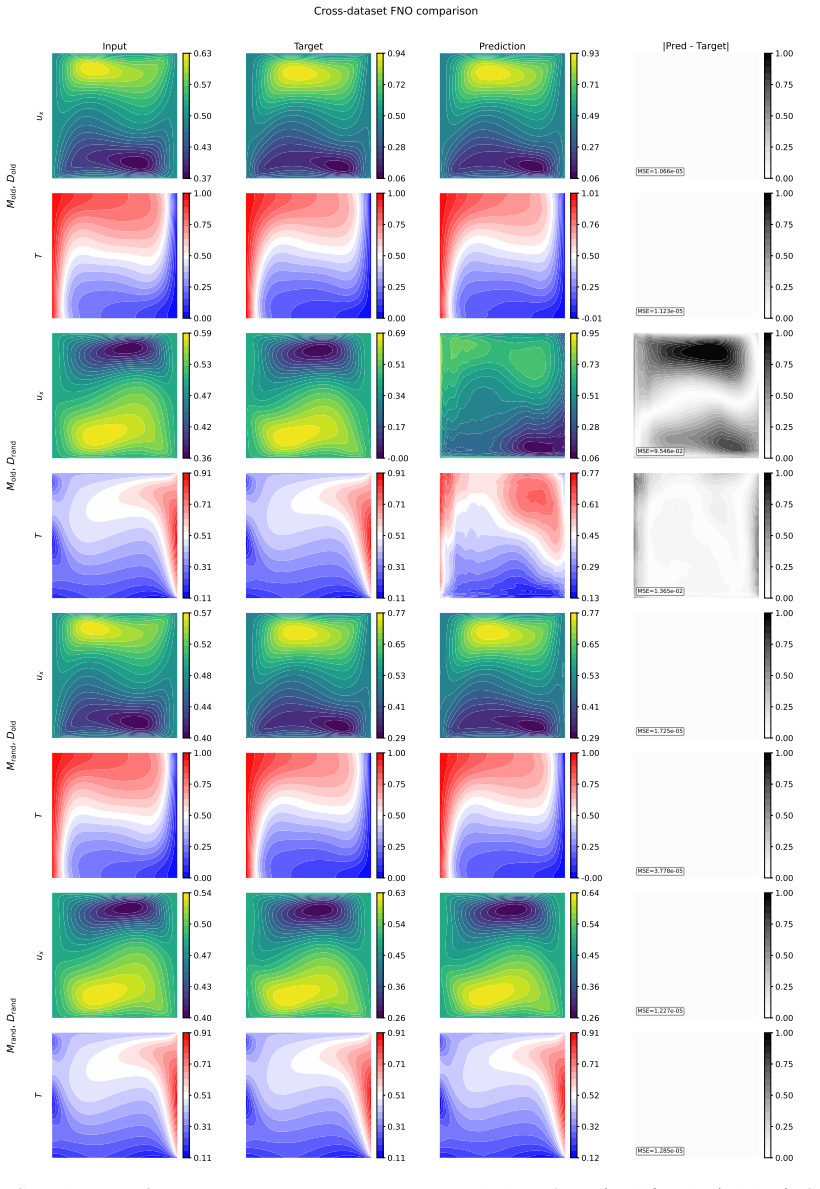

Figure 20
Figure 20. Figure 20: Cross-dataset FNO comparison on a single representative sample, shown for [PITH_FULL_IMAGE:figures/full_fig_p035_20.png] view at source ↗
Figure 21

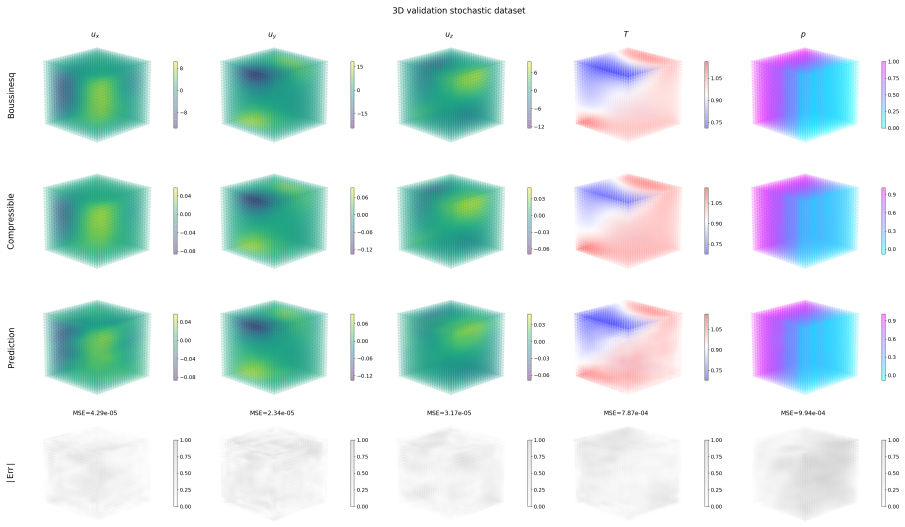

Figure 21. Figure 21: Per-channel qualitative comparison of the 3D stochastic-trained FNO surrogate on one in-distribution stochastic [PITH_FULL_IMAGE:figures/full_fig_p036_21.png] view at source ↗
Figure 22

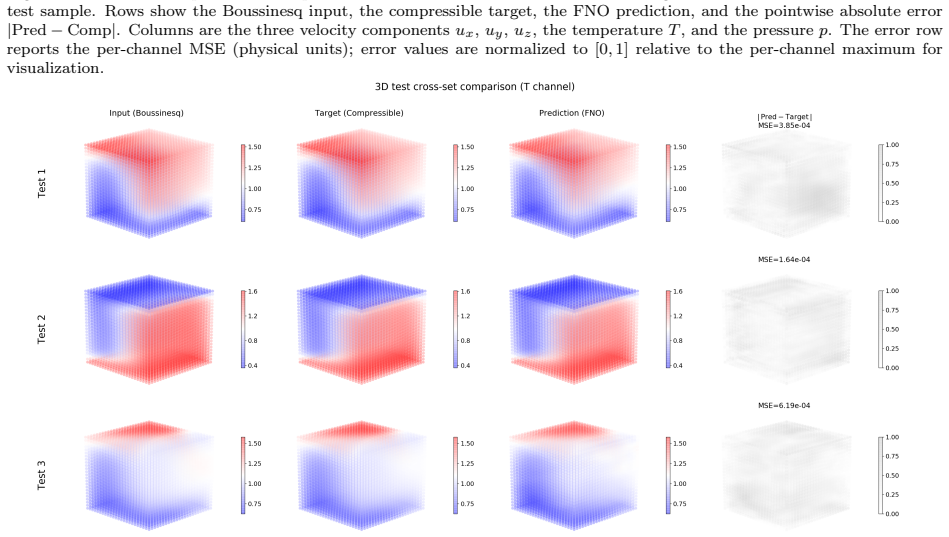

Figure 22. Figure 22: Cross test-set qualitative comparison of the 3D stochastic-trained FNO surrogate on the temperature field, for [PITH_FULL_IMAGE:figures/full_fig_p036_22.png] view at source ↗
read the original abstract

This paper presents a neural surrogate approach for improving the accuracy of natural convection problems simulated with a Boussinesq flow model (incompressible flow with heat transfer). Our approach, based on Fourier neural operators, uses training data consisting of matched pairs of simulations run under the computationally cheaper yet less accurate Boussinesq flow model and a more computationally expensive and more accurate compressible flow model. In both cases, we implement our parallelized simulation codes based on an implicit monolithic mixed finite element method (FEM) approach using the open-source FEniCSx framework. Our implementations are validated against a commercial software package, COMSOL, as well as standard test problems from the literature. We include a careful discussion and analysis of data set generation and present learning results in two and three spatial dimensions. Using compressible flow results as high-fidelity reference solutions, our learning approach, with a single model evaluation per simulation, substantially improves the per-channel accuracy of Boussinesq predictions, with structural similarity (SSIM) close to unity across all flow variables and test distributions and corresponding mean-squared error reductions of one to nearly three orders of magnitude. All code and data is released as open-source.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper claims that a Fourier neural operator (FNO) trained on matched pairs of Boussinesq (incompressible) and compressible natural convection simulations, generated via implicit monolithic mixed FEM in FEniCSx, can correct the Boussinesq model to achieve SSIM values near unity and MSE reductions of 1–3 orders of magnitude across flow variables on test distributions, with validation against COMSOL and literature benchmarks; all code and data are released open-source.

Significance. If the reported generalization holds, the approach offers a practical route to high-fidelity natural convection results at the cost of a single low-fidelity simulation plus one FNO evaluation, which would be valuable for parameter studies in computational fluid dynamics. The open-source release of code, data, and the careful validation against independent COMSOL runs and standard test problems are clear strengths that support reproducibility and adoption.

major comments (1)
  1. [Dataset generation and learning results sections] The central generalization claim (SSIM near 1 and 1–3 order MSE reductions on unseen test distributions) is load-bearing and depends on the paired dataset sufficiently covering the relevant parameter space. The manuscript provides no explicit train/test split statistics, parameter histograms (e.g., Rayleigh/Prandtl number ranges, aspect ratios, boundary conditions), or out-of-distribution protocol, leaving open whether the gains reflect interpolation within the convex hull of training data rather than operator learning that corrects the Boussinesq approximation for new regimes.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive comments and for highlighting the strengths of the open-source release and validation. We address the single major comment below.

read point-by-point responses

  1. Referee: [Dataset generation and learning results sections] The central generalization claim (SSIM near 1 and 1–3 order MSE reductions on unseen test distributions) is load-bearing and depends on the paired dataset sufficiently covering the relevant parameter space. The manuscript provides no explicit train/test split statistics, parameter histograms (e.g., Rayleigh/Prandtl number ranges, aspect ratios, boundary conditions), or out-of-distribution protocol, leaving open whether the gains reflect interpolation within the convex hull of training data rather than operator learning that corrects the Boussinesq approximation for new regimes.

    Authors: We agree that explicit documentation of dataset coverage is necessary to support the generalization claims. The manuscript contains a discussion of dataset generation, but does not include the requested train/test split statistics, parameter histograms, or a clear out-of-distribution protocol. In the revised version we will add these elements (histograms of Rayleigh and Prandtl numbers, aspect ratios, boundary conditions, and split details) together with a statement clarifying that the reported test cases are held-out samples drawn from the same parameter ranges used for training. This will allow readers to assess whether the observed improvements constitute interpolation within the training convex hull or operator learning that corrects the Boussinesq model. revision: yes

Circularity Check

0 steps flagged

No circularity: improvements are empirical outputs of training on independent paired simulation data

full rationale

The paper generates training data from independent FEniCSx simulations of Boussinesq and compressible models, trains an FNO on those pairs, and reports empirical SSIM/MSE gains on test cases validated against COMSOL and literature. No equation, ansatz, or self-citation reduces the claimed per-channel accuracy improvement to a quantity defined by the model itself or by prior author work; the derivation chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The central claim depends on the neural operator learning a generalizable correction from the generated pairs; the ledger records the training process and the domain assumptions of the two flow models.

free parameters (1)
  • Fourier neural operator weights
    The network parameters are fitted to the paired simulation dataset to minimize the difference between corrected Boussinesq and compressible outputs.
axioms (2)
  • domain assumption The Boussinesq approximation provides a usable base model whose errors are learnable from paired data
    The entire surrogate approach starts from running the Boussinesq model and learning its deviation from the compressible reference.
  • standard math Implicit monolithic mixed finite element discretization accurately solves both flow models
    Both training data and reference solutions rely on this numerical method implemented in FEniCSx.
