The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

ECG-Byte is a tokenizer that turns raw 12-lead electrocardiogram signals into discrete text-like tokens, so a large language model can be trained end-to-end to answer questions about an ECG. The paper argues that this rule-based compression replaces the standard two-stage pipeline, in which an ECG encoder is first pretrained with a self-supervised objective and only then used to finetune an LLM on latent features. The central claim is that ECG-Byte matches or beats those learned-encoder baselines on natural language generation metrics while training about three times faster and using roughly 48% of the data. A further claimed benefit is interpretability, because each ECG token can be mapped back to the exact signal segment that produced it, allowing attention patterns to be visualized on the original waveform. If this holds, generative ECG-language modeling becomes cheaper and more transparent, and the same recipe may apply to other physiological signals.

What carries the argument

The central object is ECG-Byte, an adapted byte pair encoding (BPE) tokenizer for ECG signals. It works by normalizing each ECG to the range [0,1], quantizing amplitudes into 26 symbols (the lowercase letters a-z), flattening the 12 leads into one long symbol string, and iteratively merging the most frequent adjacent symbol pairs, exactly the BPE compression algorithm, into new token IDs up to a chosen number of merges. Encoding uses a trie for longest-match tokenization. What carries the argument is that these tokens are inserted directly into the LLM's vocabulary and input sequence, so the model learns to condition generation on the ECG with no separate encoder or projection layer, while the merge history makes every token traceable back to the waveform.

What would settle it

Run the exact ECG-QA PTB-XL experiment with the ECG token block replaced by (a) no ECG tokens at all and (b) the same ECG tokens in random order. If BLEU-4, Rouge-L, Meteor, and BertScore do not drop substantially relative to the reported ECG-Byte numbers, the paper's claim that ECG-Byte conveys signal content is falsified.

Watch

Extended reading notes

Core claim

The paper's discovery is that a purely rule-based compressor, byte pair encoding applied to quantized ECG amplitudes, can carry a 12-lead ECG signal into an LLM's vocabulary well enough for competitive conditional text generation, making a learned, self-supervised ECG encoder unnecessary. ECG-Byte quantizes each normalized sample into one of 26 symbols, flattens the 12 leads into a single symbol string, and runs BPE on a large concatenated corpus to learn merges that become new vocabulary tokens. The LLM is then finetuned with the sequence [BOS] [SIG START] <ECG tokens> [SIG END] <question> <answer> [EOS], with the loss computed only on the answer tokens. Empirically, against two-stage baselines that pretrain contrastive, masked-image, or dual-objective ECG encoders, ECG-Byte is competitive or superior across BLEU-4, Rouge-L, Meteor, and BertScore on both MIMIC-IV and PTB-XL question-answer sets, while requiring about 48% of the data and roughly one-third of the total training time.

Load-bearing premise

The load-bearing premise is that the LLM's answers are actually driven by the ECG tokens; nothing in the experiments removes or scrambles the ECG input to prove this, and the attention maps show most of the model's attention falling on the text.

Editorial extensions

If this is right

  • A dedicated self-supervised ECG encoder is not a necessary component for competitive ECG-to-text generation; a rule-based tokenizer suffices.
  • Training time and data requirements for ECG language models can be cut to roughly one-third and one-half, respectively, without sacrificing NLG quality.
  • Because ECG tokens are reversible, attention maps and token-usage statistics become interpretable in terms of P waves, QRS complexes, and T waves.
  • The approach works across different base LLMs and ECG segment lengths, with full 10-second ECGs giving the highest scores in the paper's ablations.
  • The same BPE-on-quantized-signal recipe can be applied to other physiological time series for generative tasks.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • One test the paper does not run is a text-only or ECG-shuffled control; without it, the competitive scores could partly reflect the LLM answering from question priors or template text rather than from the ECG tokens.
  • The paper's own attention analysis shows the model concentrating on the textual part of the input, which, if confirmed by a control, would weaken the claim that the ECG tokens are what drive the generated answer.
  • A practical extension is to benchmark ECG-Byte tokens against other discrete time-series encodings, such as symbolic aggregation approaches, for generative tasks; the paper proposes refined quantizers as future work but does not compare them.
  • If the conditioning-control issue is resolved, the same compression approach may generalize to EEG, PPG, or EMG language modeling, where interpretable reversible tokens could help clinicians audit model reasoning.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 6 minor

Summary. The paper proposes ECG-Byte, a byte-pair-encoding (BPE) tokenizer that converts 12-lead ECG signals into discrete tokens by quantizing normalized amplitudes into a 26-symbol alphabet and then applying BPE merges. The tokens are fed directly into a decoder-only LLM (Llama-3.2-1B, with LoRA) together with a textual question, replacing the conventional two-stage pipeline of self-supervised ECG encoder pretraining followed by LLM finetuning. The authors report competitive or better NLG metrics on ECG-QA (MIMIC-IV and PTB-XL) compared with their implemented two-stage baselines, while using about 48% of the data and roughly 3x less total training time. They also provide ablations over LLM choice, sequence length, ECG segment length, number of merges, and model size, plus qualitative token-to-ECG mappings and attention visualizations. A central claimed advantage is interpretability: ECG tokens can be mapped back to the original signal. The paper concludes that a rule-based compressor can replace a learned ECG encoder in generative ECG language modeling.

Significance. If the central claim holds, the paper would make a useful contribution: it challenges the prevailing two-stage SSL-encoder paradigm for ECG-to-text generation and offers a simpler, faster, and more interpretable alternative. The experiments are generally well structured: results are reported as means over 5 seeds with standard deviations; ablations cover multiple LLMs, sequence lengths, ECG lengths, and merge counts; and the code is promised to be released. The efficiency comparison in Table 2 is a genuine strength, and the interpretability analysis through token-to-signal mapping is more informative than the usual latent-feature visualizations. However, the paper's load-bearing claim is conditional NLG: that the generated text actually depends on the ECG tokens. That claim is not established by the current experiments because no text-only, shuffled-ECG, or random-token control is reported. The paper's own attention analysis (Figure 4) shows that attention is concentrated on the text portion, and the authors explicitly acknowledge that this pattern is common in vision-language models.

major comments (2)
  1. [Section 4, Section 5.1, Section 5.5] The central claim is that ECG-Byte enables conditional NLG, where generated text depends on the ECG tokens. However, no experiment demonstrates that the ECG tokens influence the output. The training objective in Eq. (3) conditions on Context that includes XID, but the paper never reports a control with the ECG tokens removed, replaced by random tokens, or shuffled. Given that Figure 4 shows the model attending primarily to the text portion of the input, and Section 5.5 cites prior VLM work showing minimal attention to visual input, the competitive BLEU and Rouge scores in Table 1 could be driven by question priors and template answers. Please add a text-only or shuffled-ECG control and report whether the metrics change materially. If they do not change, the conditional-NLG framing in the abstract and Section 5.1 should be weakened to avoid overclaiming.
  2. [Section 5.1, Table 1] The sentence "Table 1 demonstrates ECG-Byte's effectiveness, showing competitive or superior performances across all metrics and datasets" is not supported by the table. On ECG-QA PTB-XL, the LMIM baseline achieves higher BLEU-4 (15.14 ± 0.28 vs 13.93 ± 0.21) and higher Meteor (29.64 ± 0.30 vs 29.17 ± 0.31) than ECG-Byte, even though ECG-Byte is superior on Rouge-L and BertScore. The text should be revised to "competitive on most metrics and datasets, superior on some," with a clear statement of where ECG-Byte loses. This overstatement appears again in the cross-dataset transfer results in Table 7, where ECG-Byte is often worse than the two-stage baselines.
minor comments (6)
  1. [Section 3.2, Eq. (1)] The constants ϵ1 = 0.5, ϵ2 = 10⁻⁶, and the alphabet size |A| = 26 are presented without justification. Please add a sentence on how sensitive the results are to these choices or acknowledge them as hyperparameters that were not systematically tuned.
  2. [Section 4.1 and Table 8] The main experiments use num_merges = 3500, but the ablation in Table 8 shows that num_merges = 2500 gives higher BLEU-4 (15.10 vs 13.93) and Meteor (30.12 vs 29.17) on ECG-QA PTB-XL. Please explain why 3500 was chosen for the main results, or report the best-performing setting.
  3. [Table 6] The T = 2500 row uses only 97,244 training instances instead of the 400,000 used for T = 250 and T = 500. This confounds the effect of ECG segment length with dataset size. The text should state this limitation explicitly and avoid attributing the T = 2500 improvement solely to richer ECG context.
  4. [Section 5.5, Figure 4] The attention visualization is qualitative and only described for one lead. Please specify how many examples were inspected and whether the pattern was consistent, or provide a quantitative summary of attention allocated to ECG vs text tokens across the evaluation set.
  5. [Section 5.5] The statement "we focus on one lead due to the uniformity of attention across encoded signal tokens" is asserted without supporting evidence. Please provide a quantitative comparison of attention across leads or remove the claim.
  6. [Headings] There are typographical artifacts in headings, e.g., "T raining" in Section 5.3 and "T oken" in Section 5.5. These should be corrected in a final proofreading pass.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: ECG-Byte's NLG and efficiency claims are empirically measured, not derived from fitted inputs or self-citations.

full rationale

The paper's central claims are empirical. ECG-Byte is a rule-based BPE tokenizer trained on ECG statistics (percentiles, cluster sampling, merge counts), but these choices are not fit to the NLG metrics; the BLEU/Rouge/Meteor/BertScore results in Table 1 and the data/time ratios in Table 2 are reported observations against external baselines. The autoregressive objective (Eq. 3) conditions generation on ECG tokens, but the concern that no behavioral control proves the tokens are used is a threat to external validity, not a circular reduction: no target result is encoded in the experimental setup. Section 5.5 itself concedes 'attention visualizations may not inherently indicate which parts of the input sequence contribute to the final generated output,' and the paper flags this as an interpretability limitation. Self-citations (Han et al. 2024, Qiu et al. 2023a/b) appear only as background or as one of several inspirations for quantization, alongside independent works such as Chen et al. (2022), and are not load-bearing. No equation reduces a prediction to a fitted value, no uniqueness theorem is imported from the authors, and no known result is renamed as organization.

Assumptions & free parameters 4 free parameters · 3 assumptions · 0 invented entities

The central empirical claim rests on the representational adequacy of 26-level quantization and on the model actually using the ECG tokens; both are assumed rather than demonstrated. No new physical entities are introduced.

free parameters (4)
  • Quantization alphabet size = 26
    Equation 2 maps normalized amplitudes to 26 bins, chosen to match lowercase ASCII letters. It controls amplitude resolution and is not validated against reconstruction or clinical content.
  • Normalization percentiles and epsilons = p1 and p99 from 300,000 samples; eps1=0.5, eps2=1e-6
    Equation 1 uses these to scale signals into [0,1]. The percentiles come from a data sample and the epsilons are hand-set; they affect all tokenization.
  • Number of BPE merges = 3500
    Default in experiments; ablation in Table 8 shows performance is relatively flat from 500 to 3500 merges, so the choice is not critical.
  • ECG segment length T = 500 (2 seconds at 250 Hz)
    Model input uses 2-second segments; ablation in Table 6 shows T=2500 gives the best metrics, indicating sensitivity to this choice.
assumptions (3)
  • domain assumption Flattening the 12 leads into a single string is a valid representation for BPE merging.
    The method concatenates lead sequences, so merges can cross lead boundaries; the paper does not analyze artifacts from this.
  • domain assumption The LLM genuinely conditions its generated text on the ECG tokens.
    No ablation removes or shuffles ECG tokens; the attention analysis in Section 5.5 shows most attention on text, leaving this premise unverified.
  • domain assumption BLEU, Rouge-L, Meteor, and BertScore are adequate proxies for clinical text quality.
    All reported evaluation relies on these automatic metrics; no human or clinical validation is provided.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ECG-Byte: A Tokenizer for End-to-End Generative Electrocardiogram Language Modeling." pith.science (2026). https://pith.science/paper/5T3S2U5J

@misc{pith2026241214373,
  author       = {Pith},
  title        = {Pith review of: ECG-Byte: A Tokenizer for End-to-End Generative Electrocardiogram Language Modeling},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/5T3S2U5J}},
  note         = {Machine review of arXiv:2412.14373}
}
read the original abstract

Large Language Models (LLMs) have demonstrated exceptional versatility across domains, including applications to electrocardiograms (ECGs). A growing body of work focuses on generating text from multi-channeled ECG signals and corresponding textual prompts. Existing approaches often involve a two-stage process: pretraining an ECG-specific encoder with a self-supervised learning (SSL) objective, followed by finetuning an LLM for natural language generation (NLG) using encoder-derived features. However, these methods face two key limitations: inefficiency due to multi-stage training and challenges in interpreting encoder-generated features. To overcome these issues, we propose ECG-Byte, an adapted byte pair encoding (BPE) tokenizer pipeline for autoregressive language modeling of ECGs. ECG-Byte compresses and encodes ECG signals into tokens, enabling direct end-to-end LLM training by combining ECG and text tokens. This approach enhances interpretability, as ECG tokens can be directly mapped back to the original signals. Leveraging ECG-Byte, we achieve competitive NLG performance while training 3 times faster and using just 48\% of the data required by traditional two-stage methods.

Figures

Figures reproduced from arXiv: 2412.14373 by the authors.

Figure 1
Figure 1. Comparison of traditional and our approach for ECG language modeling. Tra￾ditional methods follow a two-stage process: (i) training a 12-lead ECG encoder with self-supervised objectives—contrastive learning (LCL between ECG (ze) and the textual diagnostic report (zo)) and/or masked image modeling (LMIM )—to learn robust latent features; and (ii) mapping these ECG features (z ′ e ) to a shared representation space vi… view at source ↗
Figure 2

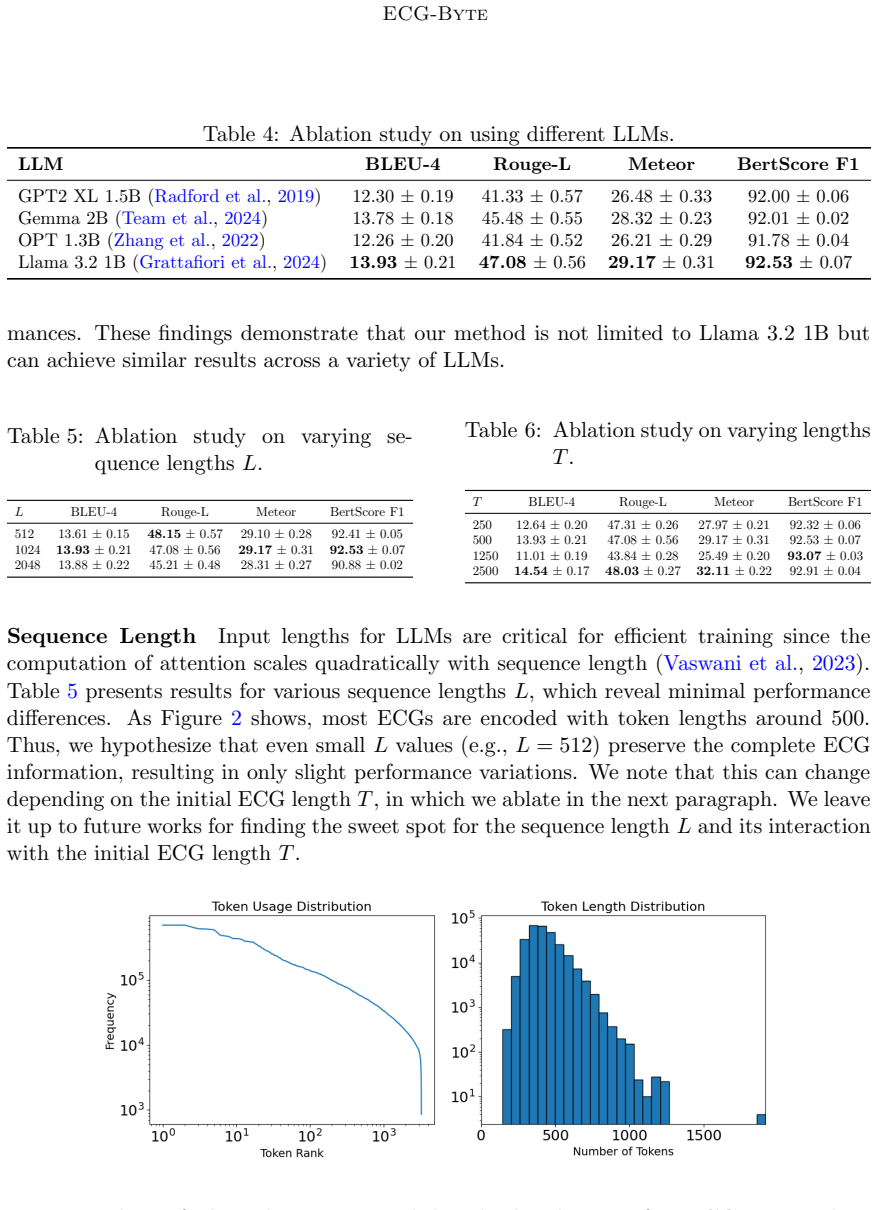

Figure 2. Plots of the token usage and length distributions for ECG-Byte where num merges = 3500. More examples with varying num merges are provided in Appendix B.3. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. A mapping between tokens used for a given ECG Lead I. More examples are provided in Appendix B.2. 13 [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figures from the paper (6 more)
Figure 4
Figure 4. Figure 4: The attention weight overlaid on top of both the text (top) and ECG (bottom). More examples are provided in Appendix B.4. Attention Visualizations [PITH_FULL_IMAGE:figures/full_fig_p014_4.png]
Figure 5
Figure 5. Figure 5: Plots of the token usage and length distributions for ECG-Byte where num merges is 500, 1750, and 2500 from top to bottom. 28 [PITH_FULL_IMAGE:figures/full_fig_p028_5.png]
Figure 6
Figure 6. Figure 6: A mapping between tokens used for a given ECG Leads I, II, III, aVL, aVR, aVF, V1, V2, V3, V4, V5, V6.. 35 [PITH_FULL_IMAGE:figures/full_fig_p035_6.png]
Figure 7
Figure 7. Figure 7: The attention weight overlaid on both ECG (left) and text (right). [PITH_FULL_IMAGE:figures/full_fig_p036_7.png]
Figure 8
Figure 8. Figure 8: Randomly sampled NLG results of unsuccessful generations on the PTB-XL test set from ECG-QA. 37 [PITH_FULL_IMAGE:figures/full_fig_p037_8.png]
Figure 9
Figure 9. Figure 9: Randomly sampled NLG results of successful generations on the PTB-XL test set from ECG-QA. 38 [PITH_FULL_IMAGE:figures/full_fig_p038_9.png]
