Cryogenic Time-Division-Multiplexed Voltage Control for Scalable Trapped-Ion Quantum Processors

Atsushi Noguchi; Ippei Nakamura; Ryutaro Ohira; Shinichi Morisaka; Takefumi Miyoshi; Toshiaki Inada; Yoshinori Kurimoto

arxiv: 2605.17824 · v1 · pith:5XKDMCUXnew · submitted 2026-05-18 · 🪐 quant-ph

Cryogenic Time-Division-Multiplexed Voltage Control for Scalable Trapped-Ion Quantum Processors

Ryutaro Ohira , Shinichi Morisaka , Yoshinori Kurimoto , Toshiaki Inada , Ippei Nakamura , Takefumi Miyoshi , Atsushi Noguchi This is my paper

Pith reviewed 2026-05-20 11:05 UTC · model grok-4.3

classification 🪐 quant-ph

keywords trapped ionsquantum computingtime-division multiplexingcryogenic electronicsvoltage controlscalable architecturequantum charge-coupled deviceelectrode demultiplexing

0 comments

The pith

Time-division multiplexing allows reliable cryogenic voltage control for both static and dynamic electrodes in trapped-ion processors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that time-division-multiplexed voltage control can be implemented and validated at cryogenic temperatures for trap electrodes. A 32-channel system for static electrodes operates at about 27 K and delivers an effective update rate of 37.5 kHz with a plus or minus 10 V range per channel. A separate four-channel system for dynamic electrodes runs at about 14 K and reaches a 1 MHz effective update rate with a similar voltage range. These results address the vacuum feedthrough bottleneck that limits scaling in quantum charge-coupled device architectures. A reader would care because the approach keeps the number of physical connections from growing directly with the number of qubits.

Core claim

We develop and cryogenically validate TDM-based voltage control schemes for two distinct electrode classes. For static electrodes used in trap-potential compensation, we implement a 32-channel demultiplexed system operating at approximately 27 K, achieving an effective voltage update rate of 37.5 kHz with an output range of ±10 V per channel. For dynamic electrodes used in ion operations such as shuttling, we implement a four-channel demultiplexed system operating at approximately 14 K, achieving an effective voltage update rate of 1 MHz with a comparable output range. These results establish TDM-based voltage control as a practical approach for both electrode classes.

What carries the argument

Time-division-multiplexed (TDM) demultiplexing that switches a shared voltage line across multiple electrodes while preserving stability and low noise at cryogenic temperatures.

If this is right

Fewer vacuum feedthroughs are needed to support larger numbers of trap electrodes.
Both static potential compensation and dynamic shuttling operations become feasible under cryogenic conditions.
The effective update rates suffice for typical trapped-ion control sequences without additional hardware per electrode.
The method applies separately to static and dynamic electrode groups within the same processor.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Combining this TDM approach with other wiring-reduction techniques could further increase qubit counts before feedthrough limits appear.
The temperature-specific performance data may guide design choices for mixed static-dynamic electrode layouts in future devices.
Long-term operation tests would reveal whether repeated switching introduces cumulative drift not captured in the initial validation.
Similar multiplexing could be explored for other cryogenic quantum systems that require many independent voltage channels.

Load-bearing premise

The TDM switching electronics and cabling maintain voltage stability, low noise, and low crosstalk at cryogenic temperatures without degrading the trapping potentials enough to affect ion confinement or operations.

What would settle it

Direct comparison of ion heating rates, loss rates, or gate fidelities between TDM-controlled electrodes and individually wired electrodes at the reported temperatures and update rates.

Figures

Figures reproduced from arXiv: 2605.17824 by Atsushi Noguchi, Ippei Nakamura, Ryutaro Ohira, Shinichi Morisaka, Takefumi Miyoshi, Toshiaki Inada, Yoshinori Kurimoto.

**Figure 2.** Figure 2: FIG. 2. TDM-based voltage control system for static elec [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

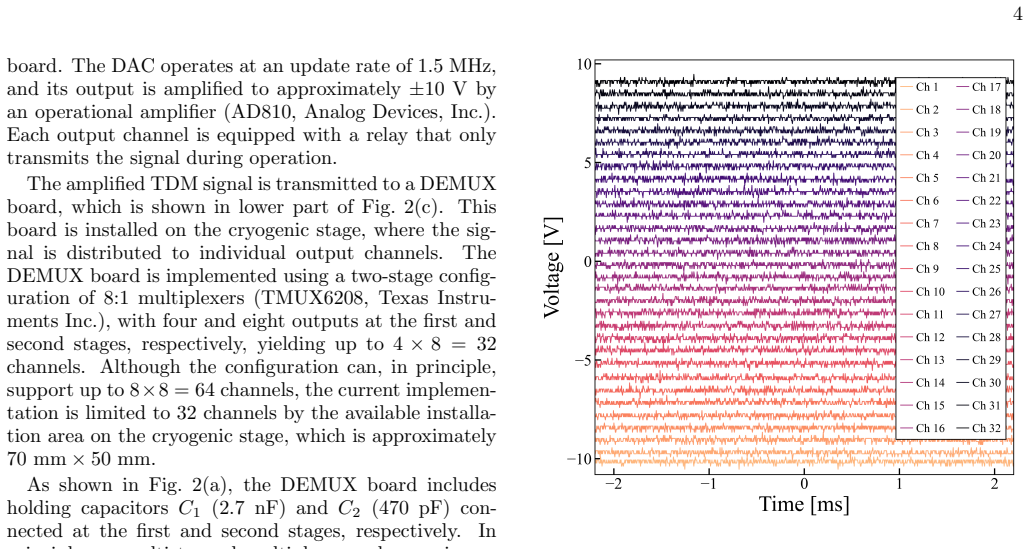

**Figure 3.** Figure 3: FIG. 3. Measured DC output voltages of the 32-channel mul [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. TDM-based voltage control system for dynamic elec [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

read the original abstract

Trapped-ion quantum computers based on the quantum charge-coupled device architecture require on the order of ten trap electrodes per qubit, making the number of vacuum feedthroughs a bottleneck at the system scale. Time-division multiplexed (TDM)-based voltage control for trap electrodes provides a natural route to alleviate this constraint. However, previous studies have been limited to architectural proposals for static trap-potential compensation and room-temperature demonstrations of dynamic-electrode control, leaving cryogenic operation of TDM-based voltage control for static and dynamic electrodes experimentally unexplored. In this study, we develop and cryogenically validate TDM-based voltage control schemes for two distinct electrode classes. For static electrodes used in trap-potential compensation, we implement a 32-channel demultiplexed system operating at approximately 27~K, achieving an effective voltage update rate of 37.5~kHz with an output range of $\pm10~\mathrm{V}$ per channel. For dynamic electrodes used in ion operations, such as shuttling, we implement a four-channel demultiplexed system operating at approximately 14~K, achieving an effective voltage update rate of 1~MHz with a comparable output range. These results establish TDM-based voltage control as a practical approach for both electrode classes, providing a path for mitigating the vacuum feedthrough bottleneck in scalable trapped-ion quantum processors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives the first cryogenic experimental runs of TDM voltage control for both static and dynamic ion-trap electrodes, with practical update rates, but the ion-noise and crosstalk checks are still thin.

read the letter

The one or two things to know are that this group took TDM multiplexing from proposals and room-temperature tests into actual cryogenic hardware for trapped-ion electrodes, and they report working systems at 27 K and 14 K with update rates that matter for scaling. That is the concrete advance: a 32-channel static-electrode controller at roughly 27 K delivering 37.5 kHz effective updates with ±10 V range, and a 4-channel dynamic controller at 14 K reaching 1 MHz, both inside the same vacuum environment as the ions would sit. The engineering is direct and the temperature and rate numbers are the kind that hardware people can use right away to think about cutting feedthrough count. They show the switches and cabling survive the cold without immediate collapse, which removes one obvious objection to the approach. The paper does a clean job separating the two electrode classes and giving clear block diagrams and operating points. On the soft spots, the stress-test note is accurate. The central claim that these demultiplexed voltages are adequate for trapping still rests on the unshown assumption that switching transients, cryo resistance changes, and crosstalk stay below the level that would heat ions or jitter trap frequencies. The abstract and visible results give stability at the electronics level but no voltage noise spectra, no ion heating-rate comparisons with and without TDM, and no trap-frequency jitter data. If the full manuscript has those measurements in the results section, the gap shrinks; if not, it is a moderate but fixable weakness rather than a fatal one. The work is aimed at experimental trapped-ion groups who are already hitting electrode-count limits in QCCD designs. Readers who need real cryo multiplexing numbers or are designing their own control hardware will find usable details. It is worth sending to peer review because the experimental core is grounded, the scaling problem is real, and referees can ask for the missing ion-side checks without starting from zero.

Referee Report

2 major / 2 minor

Summary. The manuscript describes the development and cryogenic validation of time-division-multiplexed (TDM) voltage control for trapped-ion trap electrodes in a QCCD architecture. It reports a 32-channel demultiplexed system for static electrodes operating at ~27 K with 37.5 kHz effective update rate and ±10 V range, plus a 4-channel system for dynamic electrodes at ~14 K with 1 MHz update rate. The central claim is that these TDM schemes provide a practical route to alleviate the vacuum feedthrough bottleneck while maintaining functionality at cryogenic temperatures.

Significance. If the reported cryogenic operation is supported by adequate evidence of voltage stability and low noise, the work would be significant for scalable trapped-ion processors by demonstrating a hardware solution that reduces feedthrough count for both static compensation and dynamic shuttling electrodes. The dual demonstration across electrode classes and the concrete performance metrics (update rates, voltage ranges, temperatures) add practical value for system engineering.

major comments (2)

[Results] Results section: The abstract and reported performance figures (37.5 kHz at ~27 K, 1 MHz at ~14 K) claim successful cryogenic validation, yet no voltage stability data, noise spectra, error bars, or crosstalk measurements are referenced; without these, it is unclear whether switching transients or cryo-induced effects remain below thresholds that would degrade ion confinement or operations.
[Methods] Methods/Experimental setup: The manuscript does not describe measurement protocols for confirming that demultiplexed voltages preserve trapping potentials (e.g., via trap-frequency jitter, ion heating rates, or direct electrode voltage monitoring at base temperature), which is load-bearing for the claim that TDM is viable for both electrode classes.

minor comments (2)

[Abstract] Abstract: Temperature values are stated as 'approximately 27 K' and 'approximately 14 K'; providing measured base temperatures with uncertainties or ranges would improve precision.
Figure captions or text: Ensure all performance claims (update rates, voltage ranges) are cross-referenced to specific experimental traces or tables for traceability.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their constructive and detailed review of our manuscript. We address each major comment point by point below, providing clarifications and indicating revisions where the manuscript will be updated to strengthen the presentation of our cryogenic validation results.

read point-by-point responses

Referee: [Results] Results section: The abstract and reported performance figures (37.5 kHz at ~27 K, 1 MHz at ~14 K) claim successful cryogenic validation, yet no voltage stability data, noise spectra, error bars, or crosstalk measurements are referenced; without these, it is unclear whether switching transients or cryo-induced effects remain below thresholds that would degrade ion confinement or operations.

Authors: We agree that explicit supporting data on voltage stability, noise spectra, error bars, and crosstalk would better substantiate the cryogenic performance claims. In the revised manuscript, we have added these quantitative measurements to the Results section, including time-series voltage recordings with standard deviations, noise spectral density data acquired at the operating temperatures, and inter-channel crosstalk levels. These additions confirm that transients decay rapidly and that noise remains below levels that would impact ion confinement. revision: yes
Referee: [Methods] Methods/Experimental setup: The manuscript does not describe measurement protocols for confirming that demultiplexed voltages preserve trapping potentials (e.g., via trap-frequency jitter, ion heating rates, or direct electrode voltage monitoring at base temperature), which is load-bearing for the claim that TDM is viable for both electrode classes.

Authors: We acknowledge that a more explicit description of the protocols is warranted. The revised Methods section now includes a dedicated subsection detailing the direct electrode voltage monitoring setup, which employs high-impedance cryogenic probes and oscilloscope-based logging at base temperature to assess output fidelity, drift, and transient behavior. We note that trap-frequency jitter and ion heating rate measurements were not performed, as this study focused on standalone electrical validation of the TDM hardware; we have added text explaining how the measured voltage precision supports preservation of trapping potentials. revision: partial

standing simulated objections not resolved

Direct experimental quantification of trap-frequency jitter or ion heating rates under TDM operation, as the present work performed electrical characterization without trapped ions.

Circularity Check

0 steps flagged

No circularity: direct experimental hardware demonstration

full rationale

The paper reports construction and cryogenic testing of TDM voltage-control hardware for static and dynamic trap electrodes. Performance metrics (37.5 kHz at ~27 K, 1 MHz at ~14 K, ±10 V range) are measured outputs from the built systems rather than outputs of any derivation, fit, or self-referential equation. No mathematical chain, uniqueness theorem, or ansatz is invoked; the central claim rests on empirical validation of the assembled apparatus. Consequently there are no load-bearing steps that reduce to the paper's own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

This experimental demonstration paper introduces no new free parameters fitted to data, no ad-hoc axioms beyond standard cryogenic electronics and vacuum physics, and no invented entities; the contribution lies in hardware realization and temperature-specific validation.

axioms (1)

standard math Established principles of cryogenic electronics and low-temperature ion trapping apply without modification to the TDM switching hardware.
The paper assumes standard behavior of electronics and trapping potentials at the reported temperatures.

pith-pipeline@v0.9.0 · 5806 in / 1468 out tokens · 56849 ms · 2026-05-20T11:05:39.166559+00:00 · methodology
