arxiv: 2606.06871 · v1 · pith:5YZNX253new · submitted 2026-06-05 · 💻 cs.LG

Evidence-Grounded Ensemble Diagnosis of 802.11 Packet Captures: A Multi-Stage Pipeline with Deterministic Reliability Scoring

Jerome Henry , Swadhin Pradhan , Miroslav Popovic This is my paper

Pith reviewed 2026-06-27 22:27 UTC · model grok-4.3

classification 💻 cs.LG
keywords 802.11 packet captureLLM ensemble diagnosisevidence-based reconciliationreliability scoringWi-Fi troubleshootingprotocol reasoningdeterministic evaluation
0
0 comments X

The pith

PROBE pipeline combines deterministic PCAP normalization, ensembles, and verdict-aware evidence scoring to reach 0.957 F1 on 802.11 captures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PROBE, a multi-stage pipeline for automated diagnosis of 802.11 packet captures that addresses LLM fabrication of events, uncalibrated confidence, and evaluation bias. It uses deterministic PCAP-to-text conversion with frame verifiability, multi-run ensembles including cross-model input, a framework that counts absence of failure evidence as positive support, and a deterministic reliability score based on validity, stability, and agreement. On 87 enterprise captures with 104 reviewer pairs, this yields 0.957 weighted evidence F1, 96% auto-accept rate, and reliability above 0.70 in the worst case, compared to 0.912 for single-pass LLM and 0.871 expert baseline. The approach aims to make expert-level diagnosis scalable and consistent without relying on model self-assessment.

Core claim

PROBE integrates deterministic PCAP-to-text normalization with frame-level verifiability, multi-candidate ensembles with optional cross-model second opinion and progressive obfuscation, a verdict-aware evidence framework that treats absence of failure evidence as contributing evidence, and a fully deterministic composite reliability score from evidence validity, run-to-run stability, and cross-model agreement. On the test set this produces 0.957 F1, 96% auto-accept, and a reliability floor above 0.70 while single-pass analysis misses critical frames in 35% of cases and LLM self-reported confidence clusters unhelpfully at 0.95.

What carries the argument

Verdict-aware evidence framework paired with deterministic composite reliability scoring computed from evidence validity, run-to-run stability, and cross-model agreement.

If this is right

  • Single-pass LLM analysis raises F1 to 0.912 but misses critical frames in 35% of cases.
  • Naive ensemble voting drops below the 0.871 expert baseline to 0.842 by amplifying conservative verdicts.
  • Evidence-grounded reconciliation reaches 0.957 F1 with 96% auto-accept rate and worst-case reliability above 0.70.
  • A model-agnostic per-field assertion matching evaluation framework removes circular bias from model-co-produced golden references.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same combination of deterministic normalization and non-self-reported reliability scoring could apply to automated diagnosis of other network or protocol traces.
  • High auto-accept rates suggest most captures could be handled without human review, reserving experts for the low-reliability remainder.
  • Progressive obfuscation and cross-model second opinions may reduce single-model biases in technical reasoning tasks outside Wi-Fi.

Load-bearing premise

The deterministic PCAP-to-text normalization with frame-level verifiability accurately captures all relevant protocol events without loss or fabrication.

What would settle it

A capture in which the PCAP-to-text normalization step omits or invents a protocol frame that changes the diagnosis outcome or the resulting reliability score.

Figures

Figures reproduced from arXiv: 2606.06871 by Jerome Henry, Miroslav Popovic, Swadhin Pradhan.

Figure 1

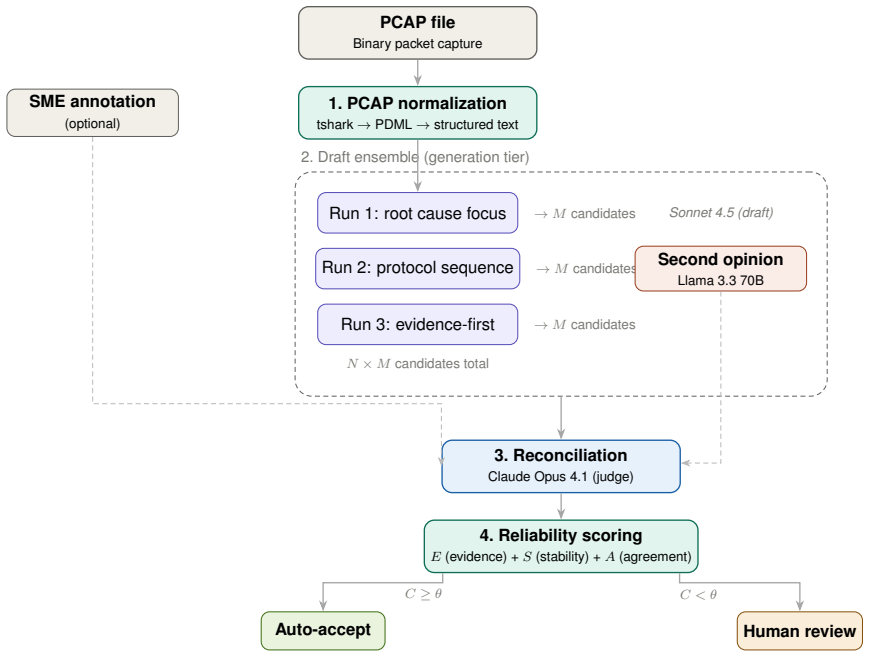

Figure 1. Figure 1: Overview of the PROBE pipeline. The generation tier (dashed box) produces [PITH_FULL_IMAGE:figures/full_fig_p008_1.png] view at source ↗

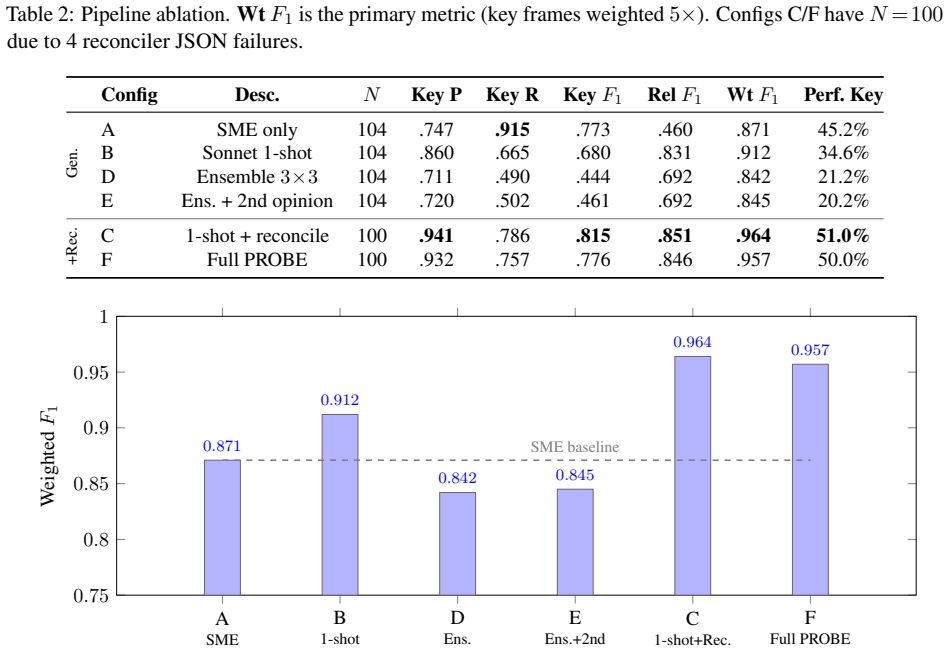

Figure 2
Figure 2. Figure 2: Weighted F1 by configuration. Generation-only (A, B, D, E) vs. with reconciliation (C, F). Dashed line marks the SME baseline. Ensemble without reconciliation (D, E) falls below the SME baseline. Both reconciled configurations (C, F) substantially exceed all generation-only results. Ensemble without reconciliation is counterproductive. Config D (Wt F1 = 0.842) falls below the SME baseline (0.871). Majority… view at source ↗

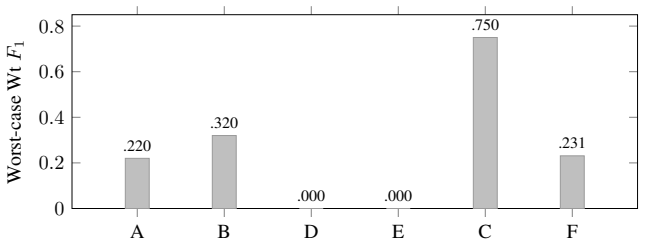

Figure 3
Figure 3. Figure 3: Worst-case Wt F1 per configuration. Ensemble without reconciliation (D, E) produces catastrophic failures (Wt F1 = 0). Config C has the highest floor (0.750). Config F has one outlier (0.231) but its second-worst case is 0.706. involves a capture that also challenges Config C. 2. Measurable diagnostic diversity. The ensemble generates stability and agreement signals that enable reliability assessment (Sect… view at source ↗

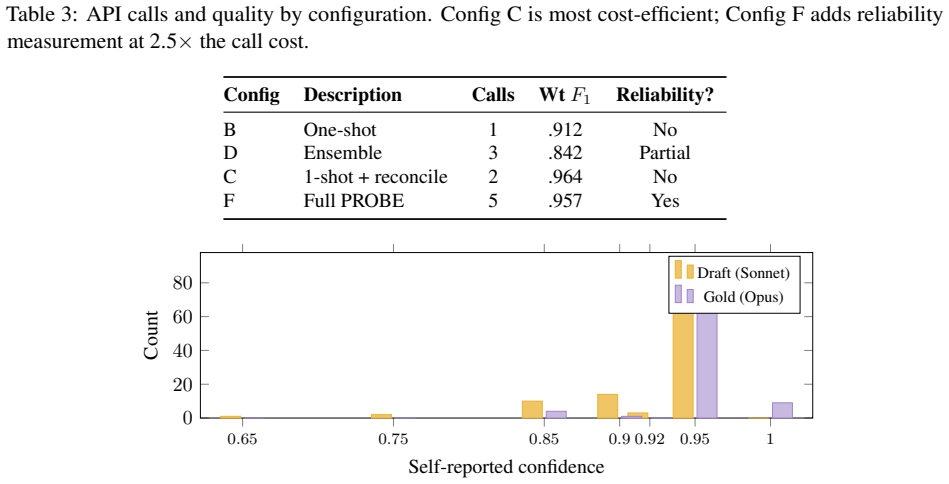

Figure 4
Figure 4. Figure 4: Self-reported confidence distribution. 71% of draft values and 86% of gold values are exactly 0.95. [PITH_FULL_IMAGE:figures/full_fig_p024_4.png] view at source ↗

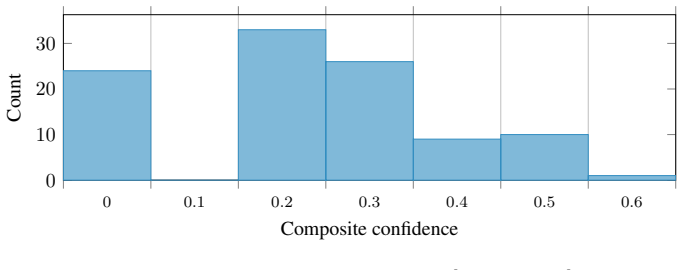

Figure 5
Figure 5. Figure 5: Composite confidence distribution (103 cases). Range [PITH_FULL_IMAGE:figures/full_fig_p025_5.png] view at source ↗

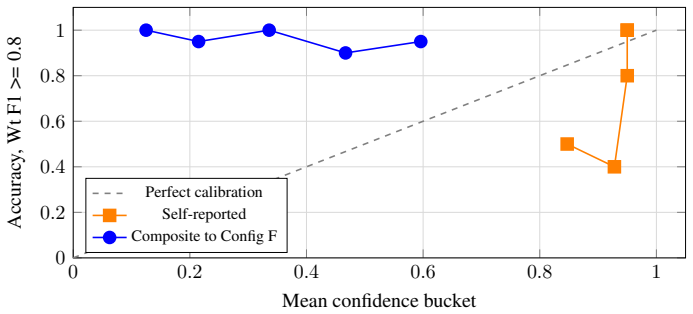

Figure 6
Figure 6. Figure 6: Calibration plot. The dashed diagonal represents perfect calibration. Self-reported confidence, [PITH_FULL_IMAGE:figures/full_fig_p026_6.png] view at source ↗

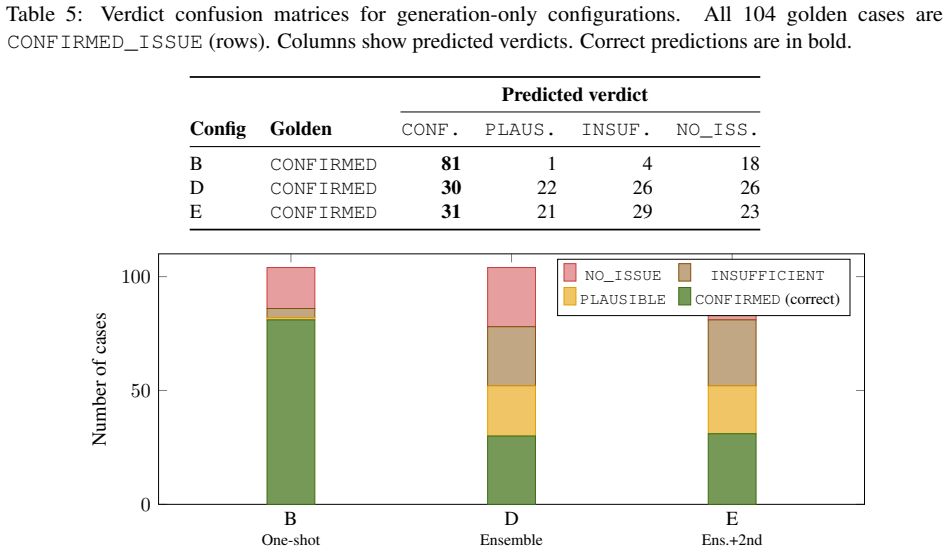

Figure 7
Figure 7. Figure 7: Verdict distribution by configuration. All 104 golden cases are confirmed issues. Green segments [PITH_FULL_IMAGE:figures/full_fig_p027_7.png] view at source ↗

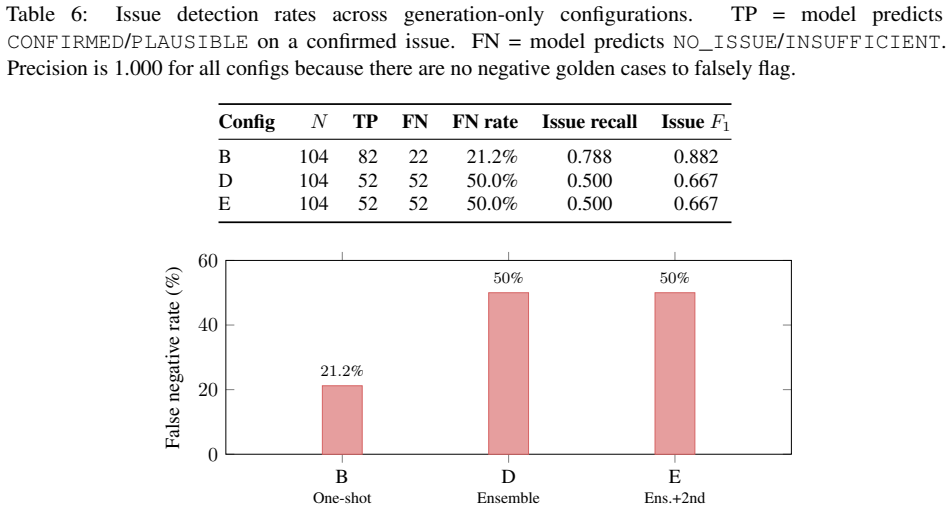

Figure 8
Figure 8. Figure 8: False negative rate (model misses a confirmed issue) by configuration. The ensemble doubles the [PITH_FULL_IMAGE:figures/full_fig_p028_8.png] view at source ↗

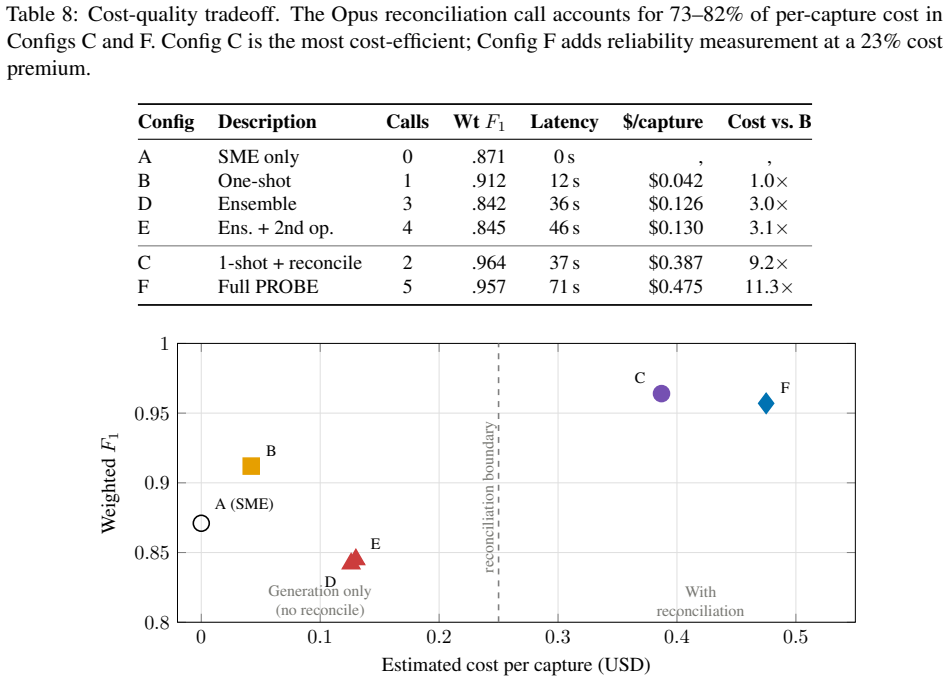

Figure 9
Figure 9. Figure 9: Cost-quality Pareto front. A clear regime boundary separates generation-only configurations (left, [PITH_FULL_IMAGE:figures/full_fig_p030_9.png] view at source ↗
read the original abstract

Diagnosing 802.11 packet captures requires expert protocol knowledge, is slow, inconsistent across engineers, and unscalable. LLM-based approaches sound plausible but fabricate protocol events absent from captures (especially truncated traces), produce uncalibrated confidence scores, and suffer evaluation bias when golden references are co-produced by the model under test. We introduce PROBE (Protocol Reasoning Over evidence-Based Ensembles), a multi-stage pipeline addressing all three failures. It integrates (i) deterministic PCAP-to-text normalization with frame-level verifiability, (ii) multi-run, multi-candidate ensembles with optional cross-model second opinion and progressive obfuscation, (iii) a verdict-aware evidence framework treating absence of failure evidence as contributing evidence, and (iv) a fully deterministic composite reliability score from evidence validity, run-to-run stability, and cross-model agreement without LLM self-assessment. On 87 enterprise Wi-Fi captures (104 capture-reviewer pairs), single-pass LLM analysis raises weighted evidence F1 from 0.871 (expert baseline) to 0.912 but misses critical frames in 35% of cases. Naive ensemble voting drops below baseline (0.842) as majority voting amplifies conservative verdicts: 50% of confirmed failures are misclassified as 'no issue' or 'insufficient evidence.' Adding evidence-grounded reconciliation achieves 0.957 F1, a 96% auto-accept rate, and a worst-case floor above 0.70. LLM self-reported confidence clusters at 0.95 regardless of difficulty (71% report exactly 0.95), confirming it is uninformative. We also introduce a model-agnostic evaluation framework using per-field assertion matching, eliminating circular bias from model-co-produced golden references.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents PROBE, a multi-stage pipeline for evidence-grounded diagnosis of 802.11 packet captures. It claims that deterministic PCAP-to-text normalization, combined with multi-candidate ensembles, a verdict-aware evidence framework (treating absence of failure evidence as positive), and a deterministic reliability score (from validity, stability, and agreement, without LLM self-assessment), yields 0.957 weighted evidence F1, 96% auto-accept rate, and >0.70 worst-case floor on 87 enterprise captures (104 reviewer pairs). This outperforms the 0.871 expert baseline and 0.912 single-pass LLM, while naive ensembles fall to 0.842; a model-agnostic per-field assertion matching evaluation avoids circular bias from model-generated references.

Significance. If the central claims hold after validation, the work offers a concrete advance in reliable LLM application to protocol diagnosis by addressing fabrication, uncalibrated confidence, and evaluation bias. The model-agnostic evaluation framework and deterministic reliability scoring (avoiding self-assessment) are particular strengths that could generalize beyond 802.11. The reported gains over expert baseline and the explicit failure modes of baselines provide falsifiable, quantitative evidence of the pipeline's contribution.

major comments (2)
  1. [Abstract (integration point (i))] Abstract, integration point (i): The deterministic PCAP-to-text normalization with frame-level verifiability is asserted to capture every relevant 802.11 event without omission or fabrication and is the sole input to the verdict-aware evidence framework, ensembles, and reliability scoring. No systematic audit (e.g., field-by-field diff vs. tshark/Wireshark extraction) is reported across the 87 captures or 104 pairs. This is load-bearing for the 0.957 F1 claim and the explanation of why naive ensembles fail, because the abstract itself notes LLM fabrication precisely on truncated traces; if normalization silently drops or fabricates frames, the performance deltas are artifacts of preprocessing rather than reconciliation logic.
  2. [Evaluation / Results] Evaluation (implied in abstract and results): Full dataset details, capture characteristics (e.g., truncation rates), per-field error analysis, and the exact weighting scheme for the reported 'weighted evidence F1' are not provided, preventing verification that the 0.957 F1 and >0.70 floor are not driven by easy cases or post-hoc selection.
minor comments (2)
  1. [Abstract] The abstract states single-pass LLM 'misses critical frames in 35% of cases' but does not define 'critical frames' or report how this metric was computed independently of the model under test.
  2. [Methods (implied)] Notation for the composite reliability score components (evidence validity, run-to-run stability, cross-model agreement) is introduced but not given explicit formulas or pseudocode in the provided text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the referee's constructive review and recommendation for major revision. We address each major comment below and will revise the manuscript to provide the requested transparency on normalization verification and evaluation details.

read point-by-point responses

  1. Referee: [Abstract (integration point (i))] Abstract, integration point (i): The deterministic PCAP-to-text normalization with frame-level verifiability is asserted to capture every relevant 802.11 event without omission or fabrication and is the sole input to the verdict-aware evidence framework, ensembles, and reliability scoring. No systematic audit (e.g., field-by-field diff vs. tshark/Wireshark extraction) is reported across the 87 captures or 104 pairs. This is load-bearing for the 0.957 F1 claim and the explanation of why naive ensembles fail, because the abstract itself notes LLM fabrication precisely on truncated traces; if normalization silently drops or fabricates frames, the performance deltas are artifacts of preprocessing rather than reconciliation logic.

    Authors: We agree that a systematic audit of the normalization step is important to substantiate the claims. The PCAP-to-text conversion is implemented via deterministic tshark-based field extraction with explicit frame-level traceability, ensuring no LLM-driven content generation occurs at this stage. To directly address the concern, we will add an appendix to the revised manuscript containing a field-by-field comparison (against raw tshark/Wireshark output) on a representative sample of at least 20 captures. This will confirm zero omissions or fabrications and isolate the performance gains to the verdict-aware ensemble and reconciliation logic. revision: yes

  2. Referee: [Evaluation / Results] Evaluation (implied in abstract and results): Full dataset details, capture characteristics (e.g., truncation rates), per-field error analysis, and the exact weighting scheme for the reported 'weighted evidence F1' are not provided, preventing verification that the 0.957 F1 and >0.70 floor are not driven by easy cases or post-hoc selection.

    Authors: We acknowledge that greater detail on the evaluation setup is needed for full verifiability. In the revision we will expand the dataset description section to report capture characteristics including truncation rates, packet counts, and other relevant statistics for the 87 captures. We will also specify the precise weighting formula used for the weighted evidence F1 and add a per-field error breakdown to show performance distribution across evidence categories and difficulty levels, thereby demonstrating that the reported metrics are not artifacts of easy-case selection. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's central results (0.957 F1, 96% auto-accept) are obtained by applying a deterministic PCAP-to-text normalization, multi-candidate ensembles, verdict-aware evidence framework, and composite reliability score to 87 captures, then measuring against an expert baseline of 0.871 using model-agnostic per-field assertion matching. No equation or step reduces by construction to its own inputs; the normalization is presented as an independent preprocessing stage whose output is externally verifiable, the reliability score is fully deterministic without LLM self-assessment, and the evaluation framework is explicitly introduced to eliminate circular bias from model-co-produced references. No self-citations appear in the provided text, and no fitted parameter is relabeled as a prediction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no extractable free parameters, axioms, or invented entities beyond standard assumptions in applied ML pipelines; the approach relies on existing LLM capabilities and deterministic rules without introducing new postulated entities.

pith-pipeline@v0.9.1-grok · 5864 in / 1214 out tokens · 22039 ms · 2026-06-27T22:27:10.171281+00:00 · methodology
