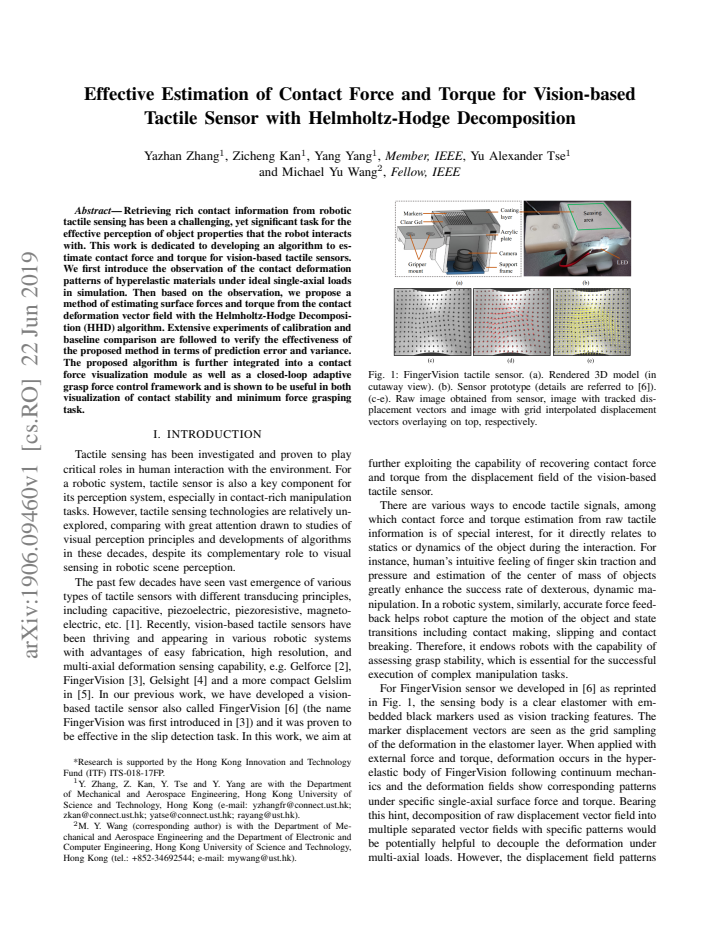

Effective Estimation of Contact Force and Torque for Vision-based Tactile Sensor with Helmholtz-Hodge Decomposition

Yazhan Zhang , Zicheng Kan , Yang Yang , Alexander Yu Tse , Michael Yu Wang This is my paper

Pith reviewed 2026-05-25 17:57 UTC · model grok-4.3

classification 💻 cs.RO
keywords tactile sensingforce estimationtorque estimationHelmholtz-Hodge decompositionvision-based tactile sensorrobotic graspingcontact deformationhyperelastic materials
0
0 comments X

The pith

Helmholtz-Hodge Decomposition applied to tactile deformation fields estimates contact force and torque.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a method to recover surface force and torque values from the deformation vector field captured by a vision-based tactile sensor. It begins with the observation that hyperelastic materials produce distinct deformation patterns under single-axial loads in simulation, then applies the Helmholtz-Hodge Decomposition algorithm to separate the vector field into components that map directly to force and torque. Experiments on calibration and baseline comparison report lower prediction error and variance than alternative approaches. The resulting estimates are shown to support both contact visualization and a closed-loop minimum-force grasping controller.

Core claim

Surface forces and torque are estimated from the contact deformation vector field by applying the Helmholtz-Hodge Decomposition algorithm, which decomposes the field into irrotational and solenoidal parts that correspond to the applied loads, after patterns observed under single-axial simulation loads are used to guide the mapping.

What carries the argument

Helmholtz-Hodge Decomposition (HHD) algorithm applied to the contact deformation vector field, separating it into divergence-free and curl-free components to recover force and torque.

If this is right

  • The estimates enable a visualization module that displays contact stability during interaction.
  • The estimates support a closed-loop controller that achieves minimum-force adaptive grasping.
  • Prediction error and variance are lower than those of the compared baseline methods across calibration tests.
  • The same decomposition pipeline can be reused for any vision-based tactile sensor that produces a dense deformation field.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may reduce the need for per-sensor force calibration if the HHD mapping proves stable across material batches.
  • Similar decomposition steps could be tested on non-hyperelastic sensor skins to check whether the single-axial pattern assumption still holds.
  • Integration into multi-fingered hands would allow simultaneous force-torque feedback from several contacts without additional hardware.

Load-bearing premise

Deformation patterns produced by ideal single-axial loads in simulation remain accurate enough to map to force and torque when real multi-axial contacts occur on the physical sensor.

What would settle it

An experiment that applies controlled multi-axial loads to the physical sensor and measures whether the HHD-derived force and torque estimates deviate substantially from ground-truth readings obtained from a calibrated reference sensor.

Figures

Figures reproduced from arXiv: 1906.09460 by Alexander Yu Tse, Michael Yu Wang, Yang Yang, Yazhan Zhang, Zicheng Kan.

Figure 1

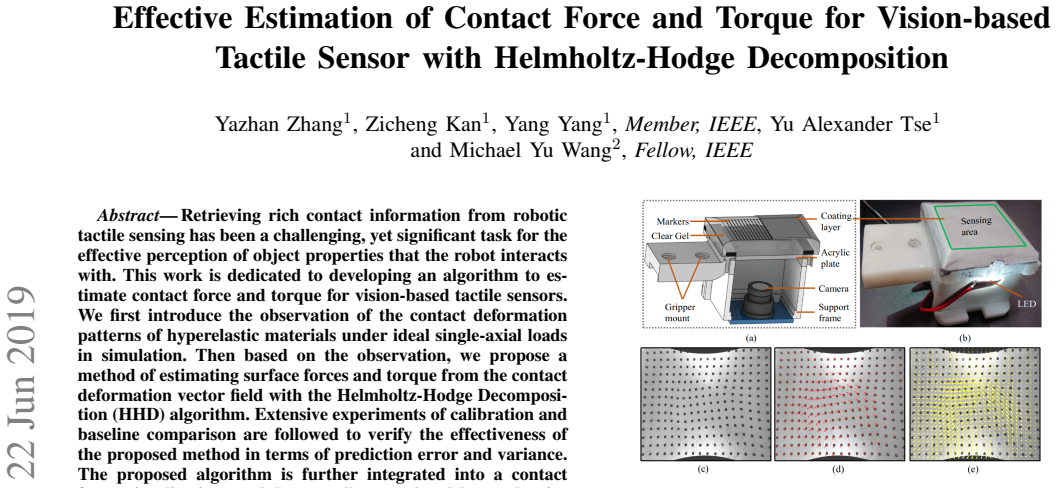

Figure 1. Figure 1: FingerVision tactile sensor. (a). Rendered 3D model (in [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

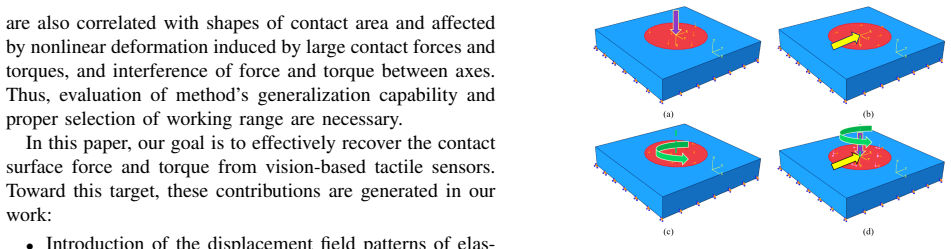

Figure 2. Figure 2: Applied contact force configurations in simulation. (a). [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

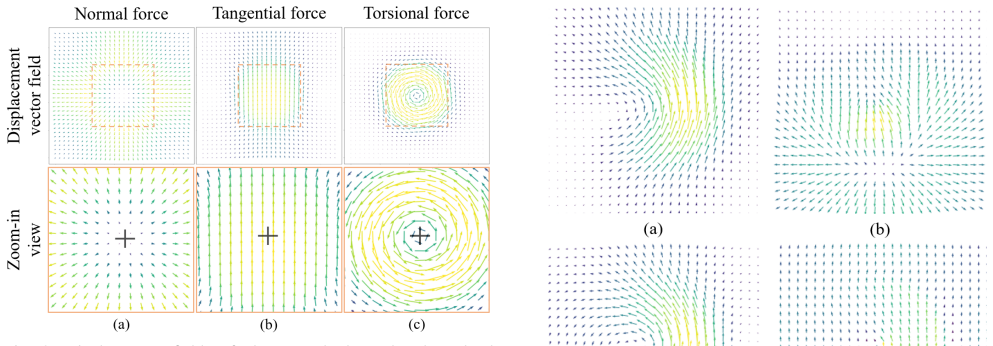

Figure 3
Figure 3. Figure 3: Displacement fields of elastomer body under three load [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 5

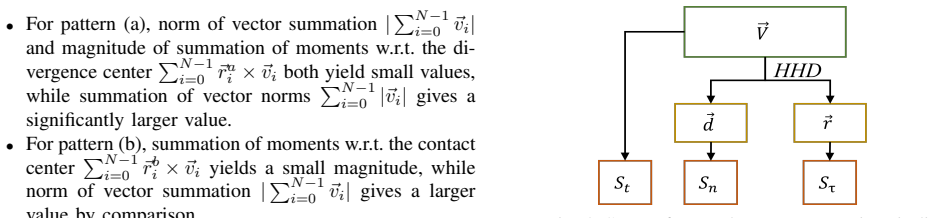

Figure 5. Figure 5: Contact force and torque computation pipeline. [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 6

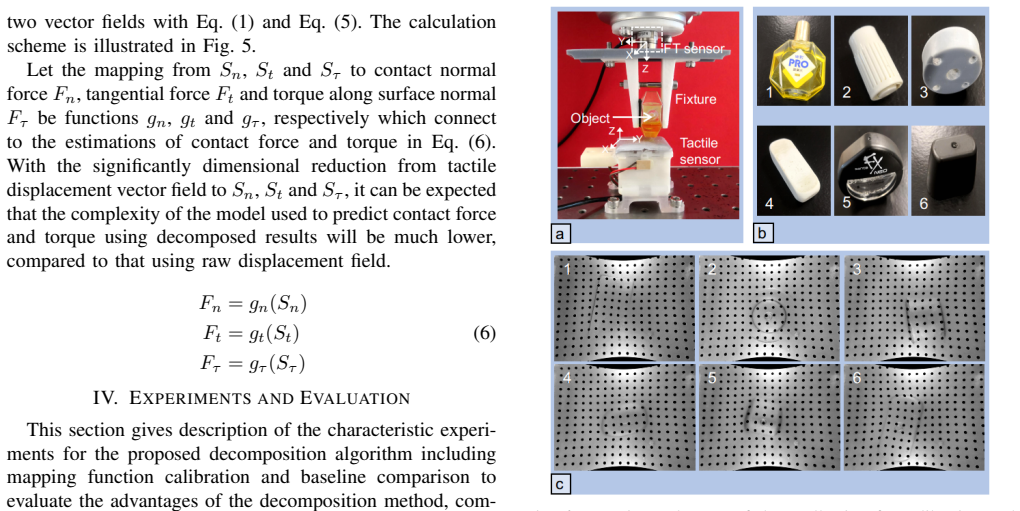

Figure 6. Figure 6: Experimental setup of data collection for calibration and [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7

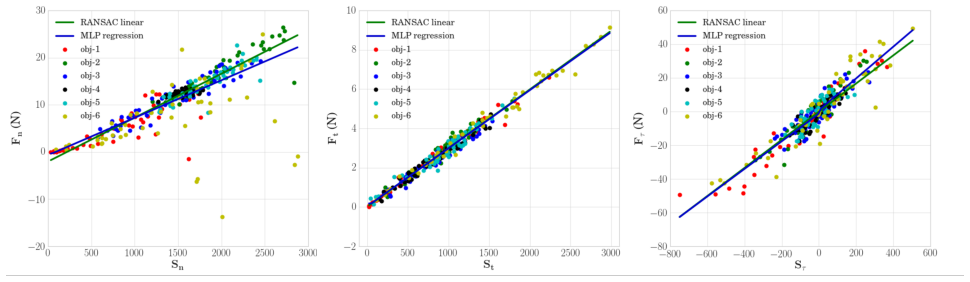

Figure 7. Figure 7: Calibration data and fitting results. Data collected using different objects are scattered with different colors. Data regression methods [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

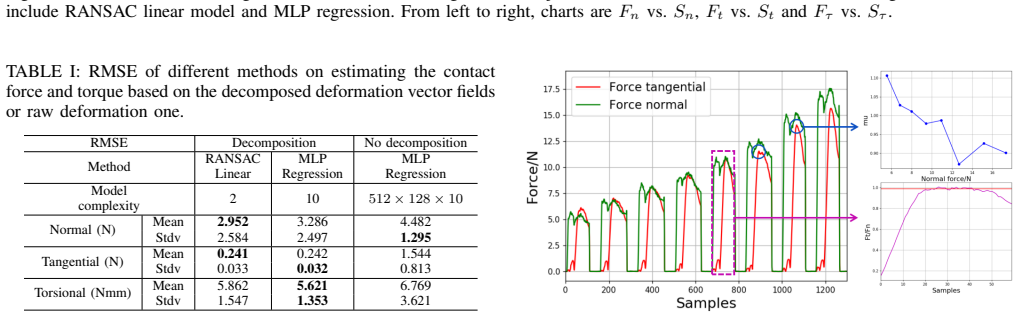

Figure 8
Figure 8. Figure 8: Contact force signals under multiple sliding motion trials. [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 9

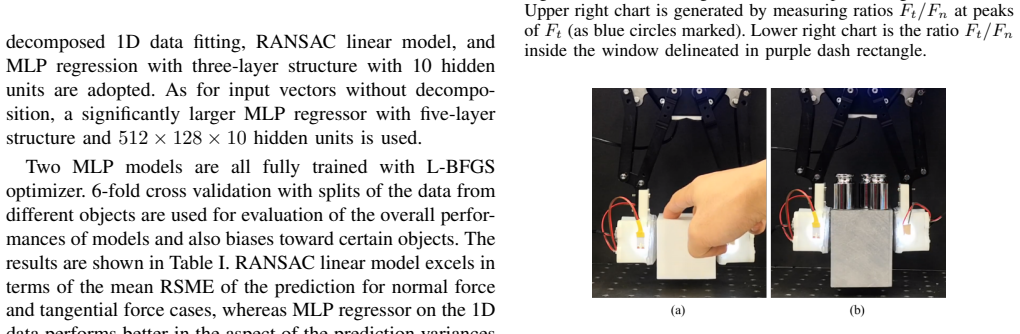

Figure 9. Figure 9: Adaptive grasping force control experiment. (a). Robotiq 2- [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗

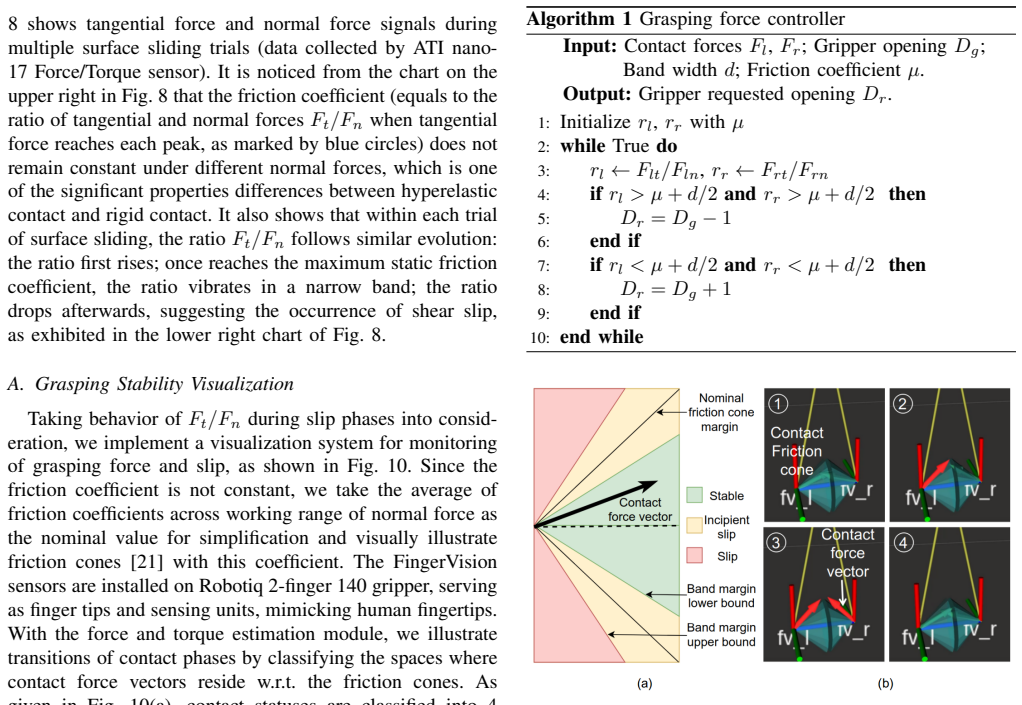

Figure 10
Figure 10. Figure 10: Schematic diagram of contact phases and visualization for [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11

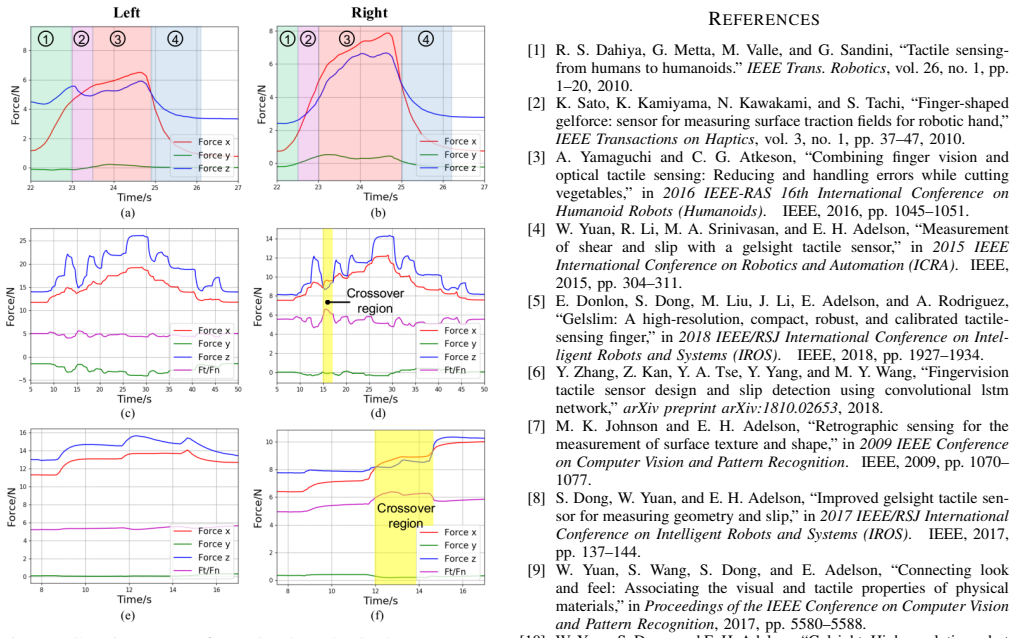

Figure 11. Figure 11: Grasping contact force signals under loads. Force x, y [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
read the original abstract

Retrieving rich contact information from robotic tactile sensing has been a challenging, yet significant task for the effective perception of object properties that the robot interacts with. This work is dedicated to developing an algorithm to estimate contact force and torque for vision-based tactile sensors. We first introduce the observation of the contact deformation patterns of hyperelastic materials under ideal single-axial loads in simulation. Then based on the observation, we propose a method of estimating surface forces and torque from the contact deformation vector field with the Helmholtz-Hodge Decomposition (HHD) algorithm. Extensive experiments of calibration and baseline comparison are followed to verify the effectiveness of the proposed method in terms of prediction error and variance. The proposed algorithm is further integrated into a contact force visualization module as well as a closed-loop adaptive grasp force control framework and is shown to be useful in both visualization of contact stability and minimum force grasping task.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that contact force and torque can be estimated from the deformation vector field of a vision-based tactile sensor by applying the Helmholtz-Hodge Decomposition (HHD) algorithm, after observing that hyperelastic materials under ideal single-axial loads in simulation produce separable deformation patterns. The method is said to be verified through calibration experiments and baseline comparisons on prediction error and variance, and is demonstrated in a contact visualization module and a closed-loop adaptive grasp controller.

Significance. If the HHD decomposition reliably isolates surface force (divergence) and torque (curl) components for arbitrary real multi-axial contacts, the approach would offer a direct, simulation-informed way to recover rich contact information without heavy parameter fitting, which could benefit tactile perception and force-controlled grasping. The integration into visualization and control tasks is a practical strength, but the absence of a derivation establishing invariance under load superposition, nonlinearity, and sensor projection limits the assessed generality.

major comments (2)
  1. [Abstract / §3] Abstract and §3 (method description): the central claim that HHD applied to the observed single-axial deformation patterns yields accurate force/torque estimates rests on an unstated invariance assumption; no derivation is supplied showing why the divergence-free and curl-free parts remain separable and unique when real contacts involve simultaneous multi-axial loads, hyperelastic nonlinearity, or 3D-to-2D image projection. This directly affects whether the reported experimental error reductions can be attributed to the HHD step rather than calibration.
  2. [§4] §4 (experiments): the calibration and baseline comparison results are summarized only in terms of aggregate prediction error and variance; no per-axis error tables, confusion matrices for combined loads, or ablation removing the HHD step are referenced, making it impossible to verify that the method generalizes beyond the single-axial simulation cases used to motivate it.
minor comments (2)
  1. [Abstract] The abstract states the method is 'based on the observation' but does not cite the specific simulation figures or vector-field visualizations that constitute that observation.
  2. [§3] Notation for the input deformation vector field and the extracted force/torque scalars is not introduced before the HHD application is described.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive comments on our manuscript. We address each of the major comments below.

read point-by-point responses
