A novel passivity based controller for a piezoelectric beam

Krishna Chaitanya Kosaraju , Matthijs C. de Jong , Jacquelien M.A. Scherpen This is my paper

Pith reviewed 2026-05-25 09:17 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords passivity-based controlpiezoelectric beamdistributed parameter systemsintegrable port variablesPI controllerenergy-based controlvibration control
0
0 comments X

The pith

A new passivity property for distributed piezoelectric devices with integrable port-variables enables two PI-like control methodologies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a new passivity property for piezoelectric beams where the port variables are integrable. By using this property, it derives two control strategies that take the form of proportional-integral controllers. A reader would care because this provides a systematic energy-based approach to controlling distributed systems like beams, which are common in smart structures and actuators. The work includes simulations that show how the gains affect transient response and steady-state performance.

Core claim

The paper presents a new passivity property for distributed piezoelectric devices with integrable port-variables. It exploits this integrability to develop two new control methodologies whose controllers have a Proportional-Integral like structure, and validates them through simulations with analysis of tuning gains.

What carries the argument

The integrability property of the port-variables, which underpins the new passivity property and allows construction of the PI-like controllers.

If this is right

  • The derived controllers can be applied to regulate the behavior of the piezoelectric beam.
  • Analysis of tuning gains explains the transient and steady-state behaviors of the closed-loop system.
  • The approach applies to other distributed piezoelectric devices with similar integrable ports.
  • Passivity-based design ensures stability properties for the system.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could be tested on physical piezoelectric beam setups to verify real-world performance beyond simulations.
  • Similar integrability assumptions might apply to other distributed parameter systems in control engineering, such as flexible structures.
  • The PI structure might allow for easier implementation using standard industrial controllers.

Load-bearing premise

The port variables of the distributed piezoelectric beam model are integrable.

What would settle it

A derivation showing that the claimed passivity inequality fails to hold when the port variables do not meet the integrability condition.

Figures

Figures reproduced from arXiv: 1907.02314 by Jacquelien M.A. Scherpen, Krishna Chaitanya Kosaraju, Matthijs C. de Jong.

Figure 1
Figure 1. Figure 1: Piezoelectric beam. allows straightforward interconnection with other open sys￾tems, such as controllers and mechanical structures, where the latter is of interest for ongoing research. Furthermore, applying this structure to the system help us discover new passivity properties, that is otherwise not evident. Moreover, this helps us in using the structure preserving spatial dis￾cretization method presented… view at source ↗
Figure 2

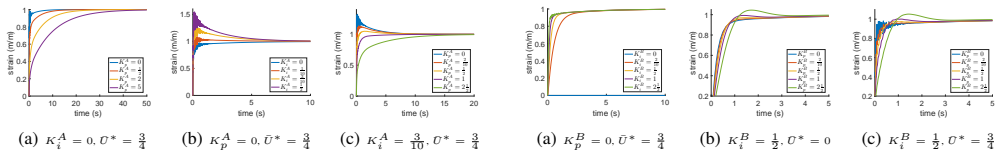

Figure 2. Figure 2: Closed-loop response through the output shaping. - [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

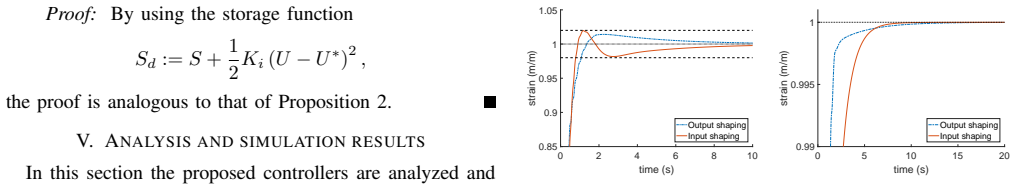

Figure 4. Figure 4: Closed-loop response for tuned controllers - Left: [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
