arxiv: 2502.15059 · v4 · pith:6B6W5MH7new · submitted 2025-02-20 · 🪐 quant-ph

Optimizing Continuous-Wave-Pumped Entanglement-based QKD in Noisy Environments

Hashir Kuniyil , Saif Al-Kuwari , Asad Ali , Artur Czerwinski , Syed M. Arslan This is my paper

Pith reviewed 2026-05-23 02:17 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum key distributionentanglement QKDcontinuous-wave pumpingnoise effectstiming jitterdetector dead timeperformance optimizationdetection unit model
0
0 comments X

The pith

A detector-data model adapts to noise-induced timing and efficiency shifts to optimize continuous-wave entanglement QKD without source parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that extreme noise causes measurable variations in timing jitter, rate-dependent timing shifts, detector dead time, and detection efficiency in entanglement-based QKD systems. These changes contradict manufacturer assumptions of constant parameters and directly limit performance. The authors introduce a model that accounts for detector-dependent timing distortions and recovery effects using only detection-unit data. The model is independent of source parameters and supports characterization plus optimization in strong noise. A reader would care because noise and loss remain central barriers to moving QKD from labs to real-world long-range links.

Core claim

In continuous-wave-pumped entanglement QKD, extreme noise produces significant variations in timing jitter, rate-dependent timing shifts, effective detector dead time, and rate-dependent detection efficiency. A model that adapts to these detector-dependent timing distortions and recovery effects, implemented solely from detection-unit data and independent of source parameters, enables reliable characterization and optimization of system performance under strong noise.

What carries the argument

A model adapting to detector-dependent timing distortions and recovery effects, built from detection-unit data alone and independent of source parameters.

If this is right

  • Detector parameter variations under noise become the dominant factor in determining overall QKD performance.
  • Characterization of noisy QKD systems becomes possible without access to source details.
  • Optimization routines can run using only detection-unit measurements.
  • The approach directly addresses loss and noise limits on long-range transmission.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The model could enable real-time self-calibration of deployed QKD links as noise conditions change.
  • Similar detector-only adaptation might apply to other quantum communication protocols that rely on timing-sensitive detection.
  • Validation in outdoor or fiber-field trials with varying noise levels would test broader applicability.

Load-bearing premise

All relevant noise effects on QKD performance can be captured and corrected using only data from the detection unit.

What would settle it

A controlled experiment in which the model's predicted key rates and optimized parameters deviate from measured values when tested under extreme noise using detection data alone.

Figures

Figures reproduced from arXiv: 2502.15059 by Artur Czerwinski, Asad Ali, Hashir Kuniyil, Saif Al-Kuwari, Syed M. Arslan.

Figure 1
Figure 1. Figure 1: FIG. 1: Experimental setup for coincidence profile characterization in noisy environments. BP - bandpass filter, LP - long pass [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

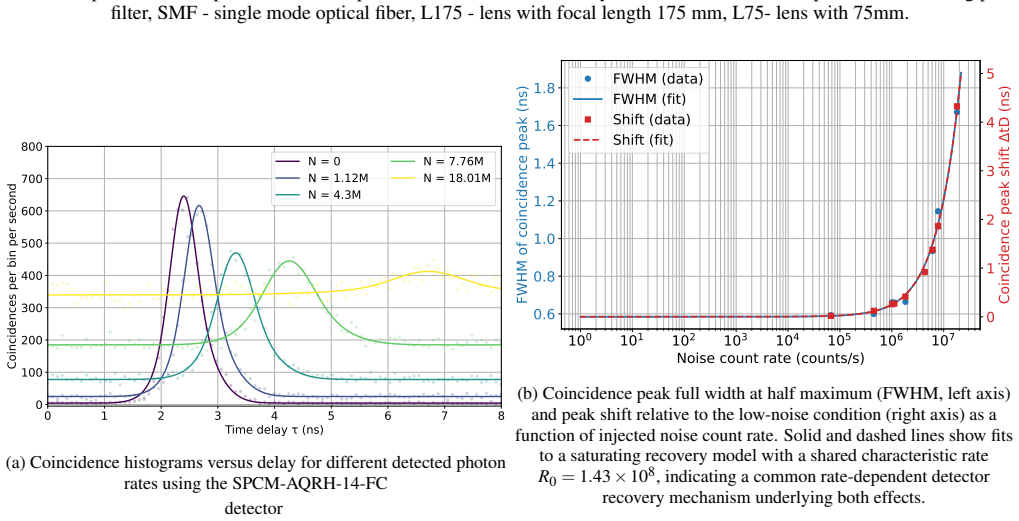

Figure 2. Figure 2: FIG. 2: Effects of noise on the performance of single-photon detectors. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

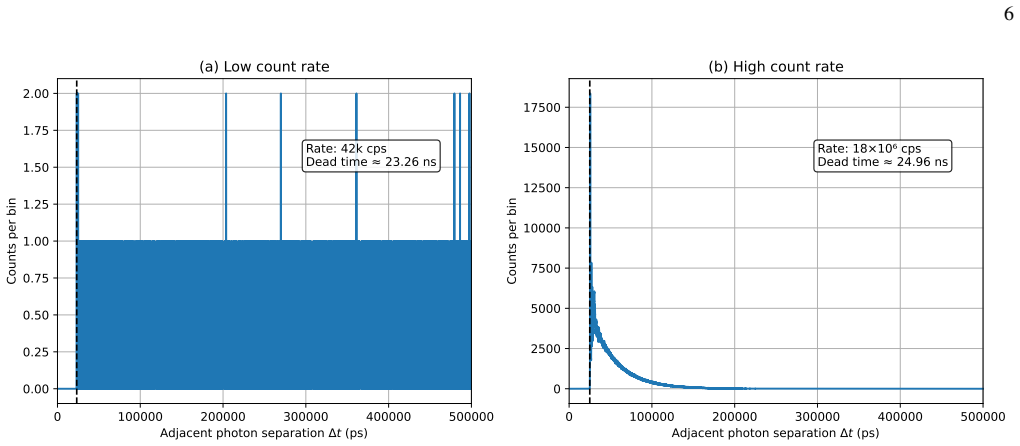

Figure 3. Figure 3: FIG. 3: Single-detector inter-arrival time distributions at low and high count rates. Inter-arrival time distributions of adjacent [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

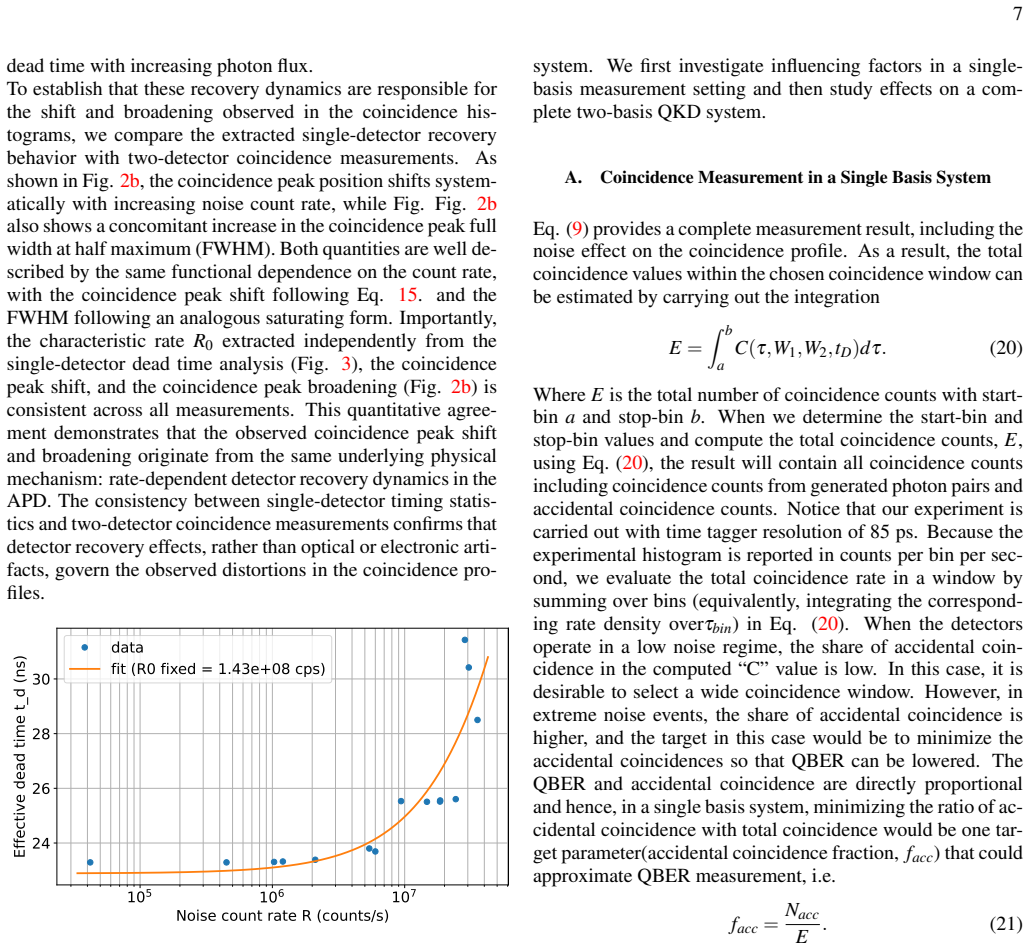

Figure 4. Figure 4: FIG. 4: Effective dead time as a function of photon count [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

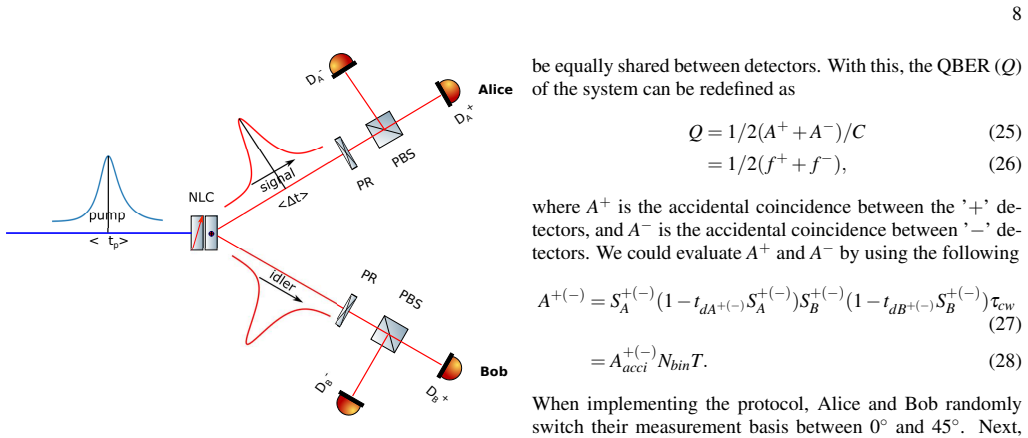

Figure 5. Figure 5: FIG. 5: Typical experimental setup used to implement [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

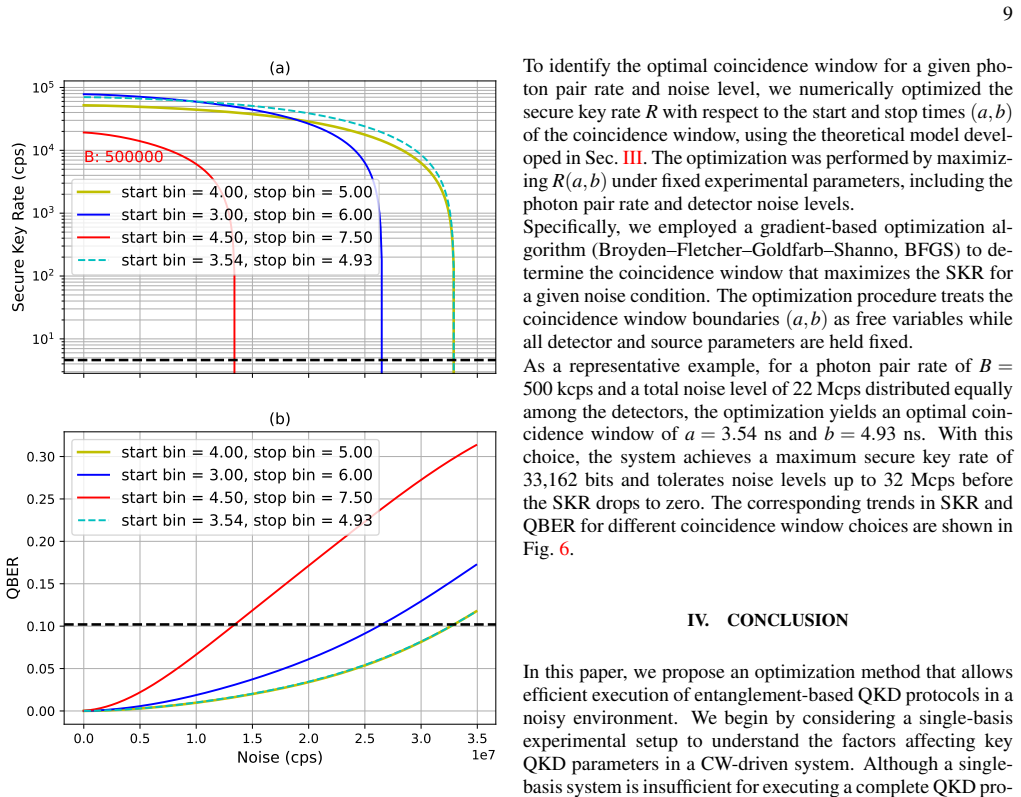

Figure 6. Figure 6: FIG. 6: Evaluated QKD parameters of secure key rate and [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
read the original abstract

Quantum key distribution (QKD) has emerged as a promising solution to protect current cryptographic systems against the threat of quantum computers. As QKD transitions from laboratories to real-world applications, its implementation under various environmental conditions has become a pressing challenge. Major obstacles to practical QKD implementation are the loss of photons in the transmission media and the presence of extreme noise, which can severely limit long-range transmission. In this paper, we investigate the impact of extreme noise on QKD system parameters, including timing jitter, rate-dependent timing shifts, changes in effective detector dead time, and rate-dependent detection efficiency. Contrary to manufacturers' specifications, which assume these parameters to be constant, we demonstrate that these parameters exhibit significant variations in extreme noise conditions. We show that changes in these parameters play a key role in determining system performance in noisy environments. To address these nonidealities, we develop a model that adapts to detector-dependent timing distortions and recovery effects. In particular, our model is independent of source parameters and can be implemented using data from the detection unit. Our results show that the model enables reliable characterization and optimization of QKD performance under strong noise.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper investigates the effects of extreme noise on key parameters of a continuous-wave-pumped entanglement-based QKD system (timing jitter, rate-dependent timing shifts, effective detector dead time, and rate-dependent detection efficiency), showing that these vary significantly contrary to manufacturer specifications. It develops a model for detector-dependent timing distortions and recovery effects that is asserted to be independent of source parameters and implementable solely from detection-unit data, enabling reliable characterization and optimization of QKD performance under strong noise.

Significance. If the claimed independence and predictive accuracy of the detector-only model hold, the work would offer a practical method for optimizing entanglement-based QKD in noisy real-world environments without requiring source-specific characterization, addressing a key barrier to deployment.

major comments (2)
  1. [Abstract] Abstract: the central claim that the model 'is independent of source parameters and can be implemented using data from the detection unit' is load-bearing but unsupported by any reported cross-source validation experiment in which source parameters (pump power, SPDC efficiency, or entanglement visibility) are deliberately varied while the detection unit and noise environment are held fixed; the reported fits to a single experimental configuration do not test separability.
  2. [Abstract] Abstract and results sections: no quantitative data, error bars, or derivation details are provided to support the assertion that the model 'enables reliable characterization and optimization'; the soundness of the parameter-extraction procedure and its predictive power for key rates cannot be assessed from the available text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the major comments point by point below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that the model 'is independent of source parameters and can be implemented using data from the detection unit' is load-bearing but unsupported by any reported cross-source validation experiment in which source parameters (pump power, SPDC efficiency, or entanglement visibility) are deliberately varied while the detection unit and noise environment are held fixed; the reported fits to a single experimental configuration do not test separability.

    Authors: We acknowledge that the reported data use a single source configuration and therefore do not contain an explicit cross-validation in which source parameters are varied while the detection unit remains fixed. The model is constructed exclusively from detection-unit observables (coincidence histograms, single-detector count rates, and measured timing distributions) without any input from pump power, SPDC efficiency, or visibility; the functional forms for rate-dependent jitter, effective dead time, and efficiency are derived from detector physics alone. We will add a dedicated paragraph in the revised manuscript that spells out this separability argument and explicitly notes the absence of multi-source validation as a limitation. revision: partial

  2. Referee: [Abstract] Abstract and results sections: no quantitative data, error bars, or derivation details are provided to support the assertion that the model 'enables reliable characterization and optimization'; the soundness of the parameter-extraction procedure and its predictive power for key rates cannot be assessed from the available text.

    Authors: We agree that the current text lacks the quantitative detail needed for independent assessment. In the revised manuscript we will (i) add error bars to all extracted parameters and key-rate curves, (ii) include a step-by-step derivation of the timing-distortion and recovery model in an appendix, and (iii) present direct comparisons of measured versus model-predicted secret-key rates under the same noise conditions. These additions will allow readers to evaluate both the extraction procedure and the optimization improvement. revision: yes

Circularity Check

0 steps flagged

No circularity: model fitted from detection data without self-referential reduction

full rationale

The paper asserts a detector-only model independent of source parameters, implemented from detection-unit data. No equations, fitted parameters, or self-citations are quoted that reduce a claimed prediction or uniqueness result back to the input data by construction. The independence claim is an empirical assertion about separability rather than a definitional loop, and the derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities; all technical details are absent.
