A single statistical framework models both blocking loss and inter-symbol interference in SPAD array receivers for PAM optical wireless links at any speed.

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Establishes statistical models using renewal theory and Markov chains for photon counts in SPAD arrays, accounting for dead time distortions in PAM-OWC across low, medium, and high speed regimes.

T0 review reviewed 2026-06-29 challenge →

load-bearing objection The paper supplies closed-form photon-count distributions for SPAD arrays under dead time and ISI in PAM-OWC, but the high-speed Markov model uses steady-state probabilities that likely fail for the first symbols after an idle period. the 1 major comments →

arxiv 2605.28560 v1 pith:6DYIYA5K submitted 2026-05-27 eess.SP physics.optics

Unified Analytical Framework for SPAD Array Receivers with Dead-Time-Induced Blocking Loss and Inter-Symbol Interference in PAM-OWC Systems

Chen Wang , Zhiyong Xu , Jingyuan Wang , Jianhua Li , Weifeng Mou , Huatao Zhu This is my paper
classification eess.SP physics.optics
keywords SPAD arraydead timeblocking lossinter-symbol interferencepulse amplitude modulationoptical wireless communicationrenewal theoryMarkov chain
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper develops exact statistical models for photon counts in SPAD array receivers used in pulse-amplitude modulation optical wireless systems. These models treat dead-time effects as two separate distortions: lost photons inside one symbol and carry-over counts from prior symbols. Renewal theory supplies closed-form probability expressions when each symbol lasts longer than the dead time. A Markov chain description of detector states supplies the exact binomial distribution when symbols are shorter than the dead time. The resulting distributions directly yield low-complexity threshold detectors whose performance approaches the optimum.

Core claim

A unified analytical framework captures both dead-time-induced blocking loss and inter-symbol interference in SPAD array receivers for PAM-OWC across all operational speed regimes by establishing comprehensive statistical models: exact closed-form photon-count distributions via renewal theory for symbol durations longer than dead time, and a Markov-chain steady-state model integrated with trigger probability for the binomial distribution when symbol duration is shorter than dead time, together with low-complexity near-optimal threshold detectors derived from these models.

What carries the argument

Renewal theory for low- and medium-speed exact distributions and Markov-chain steady-state states for high-speed binomial photon-count distributions, each incorporating blocking loss and ISI.

Load-bearing premise

The statistical models derived from renewal theory and Markov chains accurately represent the physical dead time behavior of SPAD arrays without unaccounted effects.

What would settle it

Direct comparison of the derived photon-count probability mass functions against histograms collected from a physical SPAD array transmitting PAM symbols at rates both above and below the inverse dead time.

Watch this falsifier. Get emailed when new claim-graph text bears on it.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

1 major / 0 minor

Summary. The paper proposes a unified analytical framework for modeling SPAD array receivers in PAM-based optical wireless communication systems, capturing dead-time-induced blocking loss and inter-symbol interference across all speed regimes. For symbol durations longer than dead time (low/medium speeds), it derives exact closed-form photon-count distributions via renewal theory. For shorter durations (high speeds), it introduces a Markov chain model of steady-state operational states integrated with trigger probability to yield exact binomial distributions, and proposes low-complexity threshold detectors based on these models.

Significance. If the derivations hold, the work supplies closed-form statistical models and detection schemes that directly address nonlinear distortions limiting data rates in photon-starving SPAD-OWC links. The renewal-theory expressions and Markov integration could serve as design tools for PAM systems, enabling optimization without simulation for the regimes covered.

major comments (1)
  1. [High-speed systems Markov chain model] High-speed regime (Markov chain section): The claim of an 'exact binomial photon counts distribution' relies on the steady-state distribution of the Markov chain. However, communication packets typically begin from an idle state after a long idle period; the photon-count statistics for the first several symbols therefore deviate from the steady-state distribution until mixing occurs. This directly undermines the 'exact' and 'unified' claims for the high-speed regime where ISI is strongest, and affects the proposed threshold detection performance.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive comment on the high-speed Markov chain model. We address the concern point-by-point below and outline the planned revisions.

read point-by-point responses

  1. Referee: [High-speed systems Markov chain model] High-speed regime (Markov chain section): The claim of an 'exact binomial photon counts distribution' relies on the steady-state distribution of the Markov chain. However, communication packets typically begin from an idle state after a long idle period; the photon-count statistics for the first several symbols therefore deviate from the steady-state distribution until mixing occurs. This directly undermines the 'exact' and 'unified' claims for the high-speed regime where ISI is strongest, and affects the proposed threshold detection performance.

    Authors: We appreciate this observation. The high-speed analysis explicitly employs the steady-state distribution of the Markov chain to obtain the exact binomial photon-count distribution under the assumption that the system has reached equilibrium. This is appropriate for long packets or continuous transmission, where mixing occurs rapidly in the high-speed regime due to frequent photon arrivals and dead-time events. We agree that the first few symbols after an idle period follow transient statistics, which are not captured by the steady-state model; this represents a limitation to the 'exact' claim at the very beginning of a packet. The low/medium-speed renewal-theory results remain exact and unaffected. To address the comment, we will revise the manuscript to: (i) explicitly state the steady-state assumption in the high-speed section and abstract, (ii) add a brief discussion of the mixing time and its dependence on photon rate, and (iii) note that the proposed threshold detectors are derived for steady-state operation and may require adjustment for the initial symbols of short packets. These clarifications will be incorporated without altering the core derivations. revision: partial

Circularity Check

0 steps flagged

No circularity: derivations use standard renewal theory and Markov chains as external tools

full rationale

The provided abstract and description outline derivations of photon-count distributions via renewal theory (low/medium speed) and Markov chain steady-state models (high speed) integrated with trigger probability. These are standard stochastic modeling techniques applied to the physical system; no equations or steps are shown that reduce a claimed result to a fitted parameter, self-definition, or self-citation chain. The steady-state choice is a modeling assumption open to correctness critique but does not constitute circularity by construction. No load-bearing self-citations or ansatz smuggling are referenced. The framework is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no information on free parameters, axioms, or invented entities.

reviewed 2026-06-29 · how reviews work

0 comments
Cite this review

Pith. "Pith review of Unified Analytical Framework for SPAD Array Receivers with Dead-Time-Induced Blocking Loss and Inter-Symbol Interference in PAM-OWC Systems." pith.science (2026). https://pith.science/paper/6DYIYA5K

@misc{pith2026260528560,
  author       = {Pith},
  title        = {Pith review of: Unified Analytical Framework for SPAD Array Receivers with Dead-Time-Induced Blocking Loss and Inter-Symbol Interference in PAM-OWC Systems},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6DYIYA5K}},
  note         = {Machine review of arXiv:2605.28560}
}
Share X Bluesky LinkedIn Reddit HN
read the original abstract

Optical wireless communication (OWC) leveraging single-photon avalanche diode (SPAD) arrays offers exceptional sensitivity for photon-starving links. However, the inherent dead time of SPADs critically limits achievable data rates by introducing non-linear photon-counting distortions: blocking loss within a symbol duration and inter-symbol interference (ISI) across durations. This paper proposes a unified analytical framework capturing both distortions across all operational speed regimes for pulse-amplitude modulation (PAM), by establishing comprehensive statistical models for SPAD array receivers. For low and medium-speed systems (symbol duration longer than dead time), we derive exact closed-form expressions for the photon counts probability distribution using renewal theory, explicitly incorporating blocking loss and ISI. For high-speed systems (symbol duration shorter than dead time), we develop a Markov chain model characterizing the steady-state operational states and integrate it with trigger probability to obtain the exact binomial photon counts distribution. Furthermore, we propose low-complexity, near-optimal threshold detection schemes based on these models. This work provides essential theoretical tools for designing and optimizing high-performance SPAD-based OWC systems employing PAM.

Figures

Figures reproduced from arXiv: 2605.28560 by Chen Wang, Huatao Zhu, Jianhua Li, Jingyuan Wang, Weifeng Mou, Zhiyong Xu.

Figure 1
Figure 1. Figure 1: Detection scheme of single SPAD-based photon-counting receiver for [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Detection scheme of SPAD array-based photon-counting receiver for [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Detection scheme of SPAD array-based photon-counting receiver for [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 5
Figure 5. Figure 5: Exact vs. approximate PMFs of detected photon counts for low-, medium-, and high-speed systems ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Simulated vs. analytical SER versus received signal photon rate for SPAD array-based OWC systems. [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: SER versus background photon rate under different array scales for low- and high-speed systems. [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8

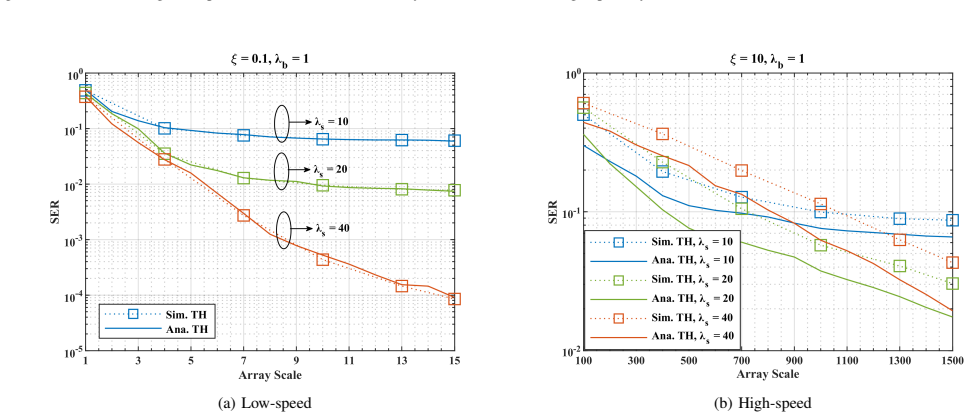

Figure 8. Figure 8: SER versus array scale at different signal photon rates for low- and high-speed systems. [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: SER versus dead time ratio at different signal photon rates for constant symbol duration and dead time. [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
