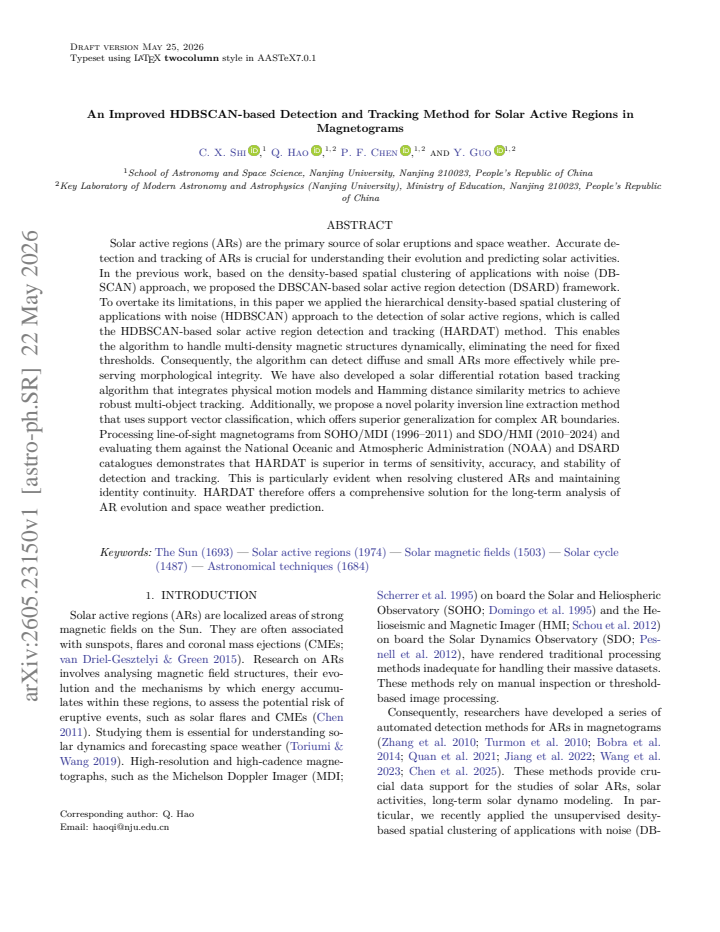

An Improved HDBSCAN-based Detection and Tracking Method for Solar Active Regions in Magnetograms

C. X. Shi , Q. Hao , P. F. Chen , Y. Guo This is my paper

Pith reviewed 2026-05-25 03:29 UTC · model grok-4.3

classification 🌌 astro-ph.SR astro-ph.IM
keywords solar active regionsHDBSCANmagnetogramsdetection and trackingspace weatherpolarity inversion lineSOHO/MDISDO/HMI
0
0 comments X

The pith

HDBSCAN clustering detects solar active regions more sensitively and tracks them with greater continuity than prior DBSCAN methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces HARDAT, which applies hierarchical density-based clustering to line-of-sight magnetograms from SOHO/MDI and SDO/HMI. This replaces fixed-threshold DBSCAN with an approach that adapts to magnetic structures of different densities, allowing detection of small and diffuse active regions while preserving their shapes. A tracking component uses solar differential rotation and Hamming distance to maintain object identities across time. A support vector method extracts polarity inversion lines. Evaluation against NOAA and DSARD catalogues shows gains in sensitivity, accuracy, and stability, particularly for clustered regions.

Core claim

The HDBSCAN-based solar active region detection and tracking (HARDAT) method processes magnetograms to identify active regions by clustering points without requiring fixed density thresholds, enabling effective handling of multi-density structures. It incorporates a differential rotation model for tracking and a support vector classification method for extracting polarity inversion lines. When applied to two decades of SOHO/MDI and SDO/HMI observations, HARDAT achieves higher sensitivity and stability in detection and tracking than previous DBSCAN-based frameworks when benchmarked against established catalogues.

What carries the argument

The HDBSCAN algorithm, which performs hierarchical density-based clustering to identify active regions in varying density magnetic fields without preset parameters.

If this is right

  • Improved detection of small and diffuse active regions that fixed-threshold methods may miss.
  • Better separation and tracking of individual regions inside dense clusters.
  • More reliable long-term identity maintenance for studies of active region evolution.
  • Greater suitability for integration into operational space weather forecasting pipelines.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach could be tested on full-disk vector magnetograms to check whether performance gains persist when more magnetic information is available.
  • Direct head-to-head comparison against convolutional neural network detectors on identical magnetogram sequences would clarify relative strengths.
  • The polarity inversion line extraction step might be combined with existing flare prediction models to test whether boundary accuracy improves forecast skill.

Load-bearing premise

The NOAA and DSARD catalogues provide an unbiased and complete reference for correct active region detections and tracks.

What would settle it

Independent labeling of active regions by multiple solar physicists on a held-out sample of magnetograms, followed by re-evaluation showing that HARDAT does not outperform the baselines in sensitivity or identity continuity.

Figures

Figures reproduced from arXiv: 2605.23150 by C. X. Shi, P. F. Chen, Q. Hao, Y. Guo.

Figure 1
Figure 1. Figure 1: The DSARD result for the SOHO/MDI magnetogram on 2000 May 20, with minDistance set to 20 Mm and minSize set to 70 Mm2 . Panel (a) The result after threshold segmentation. The blue box area is the target region. The right panels are the result of the target region after each part of DSARD processing. Panel (b) Clustering results of the first global DBSCAN. Panel (c) Clustering results of the second reformat… view at source ↗
Figure 2
Figure 2. Figure 2: Panel (a) is the result under the parameters in [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: HDBSCAN-based solar active region detection result of the SOHO/MDI magnetogram on 2000 May 20. Panel (a) HDBSCAN clustering results. Panel (b) DBSCAN clustering results. Panel (c) Better integration with β set to 0.5 and γ set to 0.5. This necessitates adjusting two additional parameters, minSamples_H and ϵ_ClusterSelection, to achieve optimal results [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

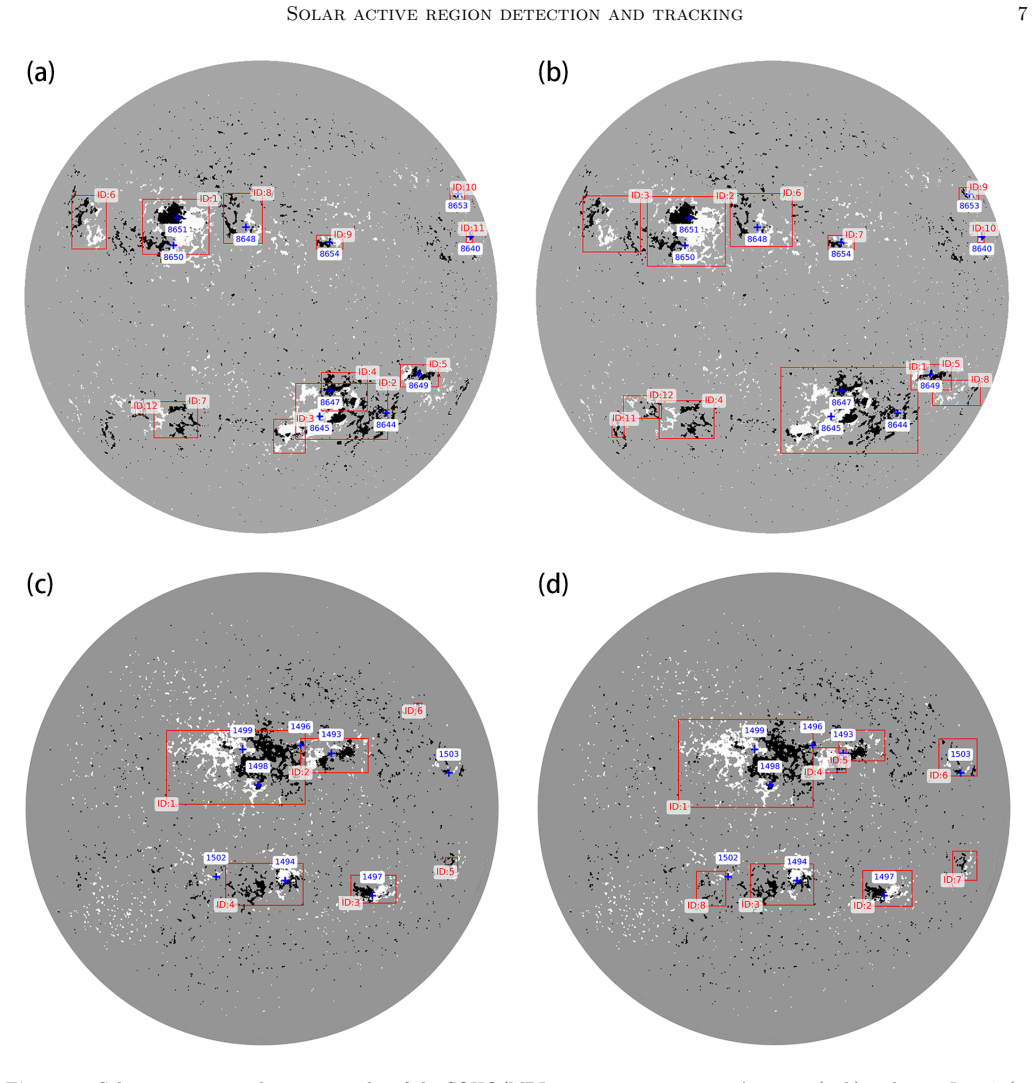

Figure 4. Figure 4: Solar active region detection results of the SOHO/MDI magnetogram on 1999 August 1 (a, b) and 2012 June 7 (c, d). Each red box with a number represents a bounding rectangle of a solar active region identified by DSARD (a, c) or HARD (b, d). The blue plus signs show the labeled ARs of NOAA. 4. TRACKING Due to the dynamic nature of solar active regions, which encompasses processes such as merging, splitting,… view at source ↗
Figure 5

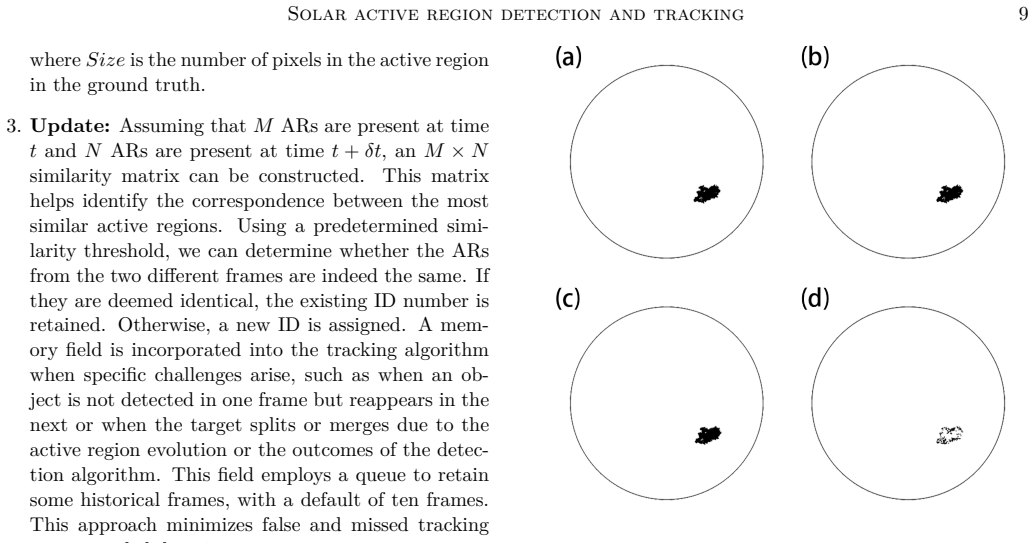

Figure 5. Figure 5: shows an example to display the entire Pre￾diction and Match process for AR2 in [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

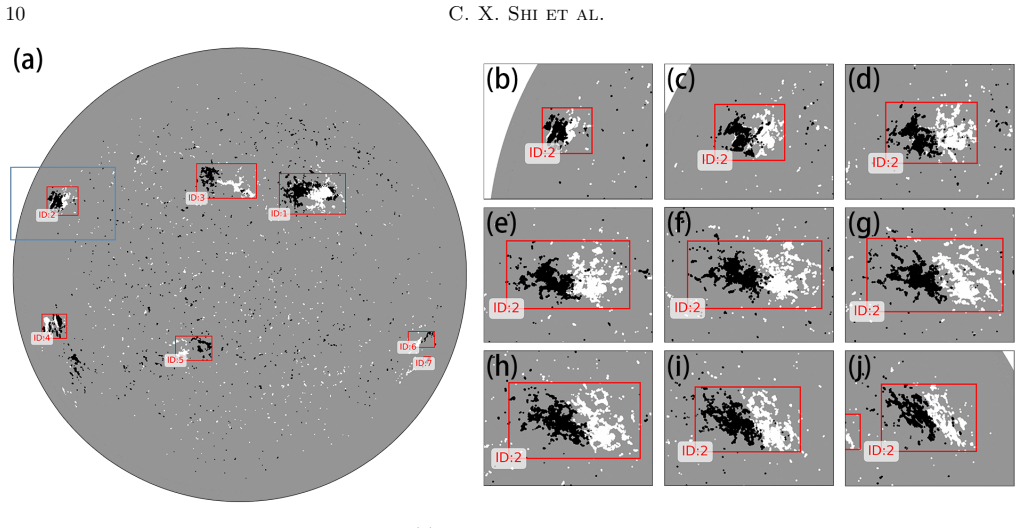

Figure 6. Figure 6: An example of tracking result. Panel (a) The active regions detected by the HARD method on 2022 February 1. Panels (b–j) The trajectory of the active region AR2 from February 1 to February 9, with a time interval of one day. by calculating the proportion of ground truth targets that are successfully tracked for most of their duration. These three metrics are bounded within the interval [0, 1], where larger… view at source ↗
Figure 7

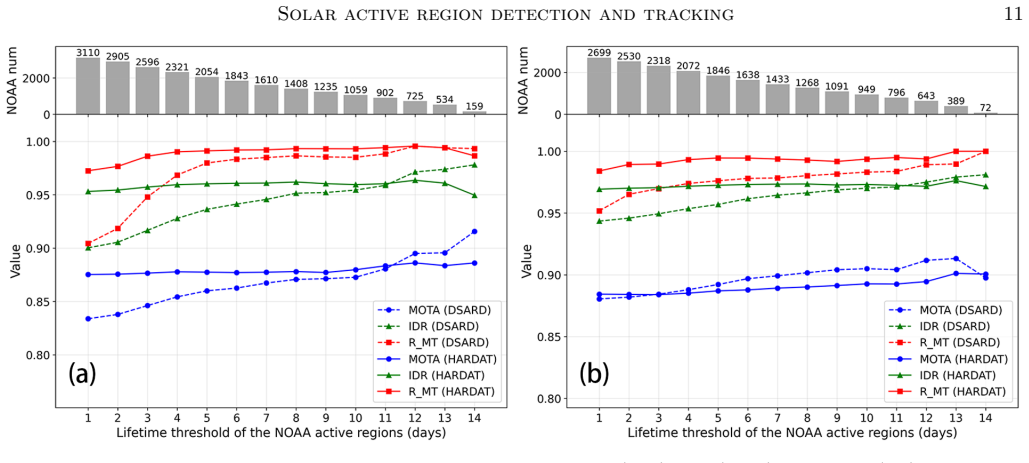

Figure 7. Figure 7: Two line charts of the three tracking evaluation indicators MOTA (blue), IDR (green) and R_MT (red) as a function of lifetime threshold of the NOAA active regions. The dotted line represents the DSARD method, while the solid line represents the HARD method. The histogram above shows the number of NOAA numbers under the current lifetime threshold. Panel (a) The result of SOHO/MDI magnetograms. Panel (b) The… view at source ↗
Figure 8
Figure 8. Figure 8: PIL extraction based on the RBF kernel SVC classification. Panel (a) The HARD detection results of the SDO/HMI magnetogram on 2023 February 1. The right two columns represent the PIL extraction steps for the active regions AR2 and AR4, respectively. Panel (b) and panel (c) represent the original image after threshold segmentation. Panel (d) and panel (e) show the extraction result without filtering. Panel … view at source ↗
Figure 9
Figure 9. Figure 9: Results of PIL-mask extraction using different sigma and n_cluster parameters are presented, with the red areas denoting the extracted PIL regions. The active region selected is the same as that shown in [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10

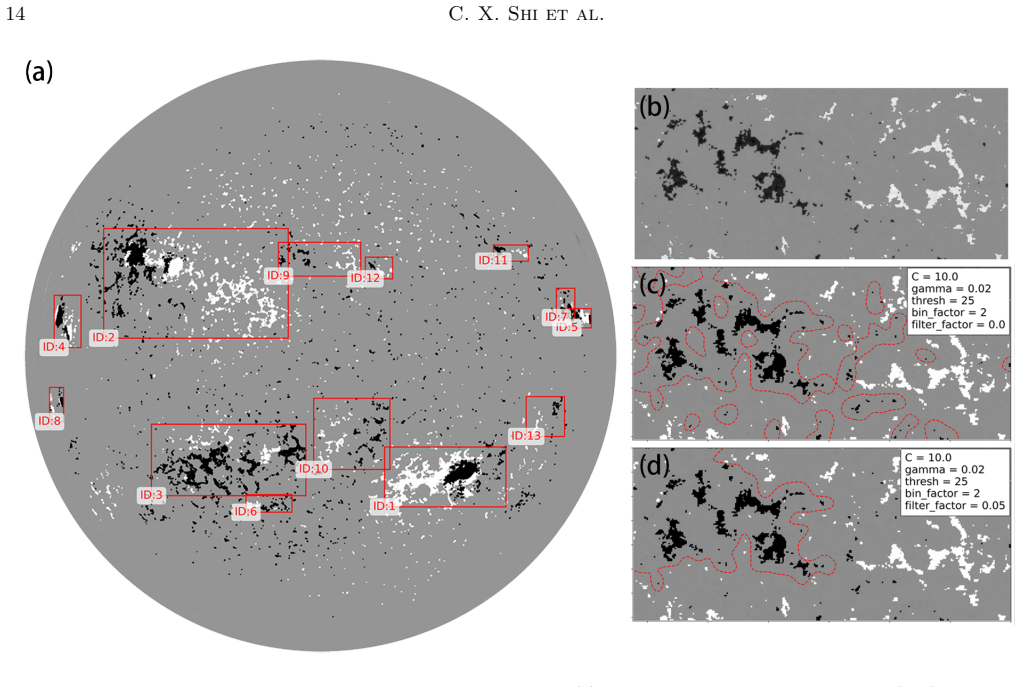

Figure 10. Figure 10: An example of PIL-svc extraction on July 15, 2023. Panel (a) The HARD detection results. Panel (b–d) are similar to [PITH_FULL_IMAGE:figures/full_fig_p014_10.png] view at source ↗
