High-Latitude Zonal Jets in the Martian Upper Atmosphere Driven by Non-Orographic Gravity Waves
Pith reviewed 2026-05-22 08:00 UTC · model grok-4.3
The pith
Non-orographic gravity waves drive high-latitude zonal jets in Mars' upper atmosphere via momentum divergence.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Jet acceleration and deceleration of 280 m/s arise from momentum divergence of 1,300 m/s/sol driven by wave saturation and wind filtering. Simulations and observations indicate that GWs modulate these jets in the hemisphere associated with the descending branches of the Hadley Cell, due to the absence of wave critical layers in the middle atmosphere. Interactions between GWs and the mean flow can shape the circulation and dynamics of the upper atmosphere of Mars.
What carries the argument
momentum divergence caused by non-orographic gravity wave saturation and wind filtering in the absence of critical layers
If this is right
- GWs modulate zonal jets specifically in the hemisphere with descending Hadley Cell branches.
- The lack of wave critical layers in the middle atmosphere allows propagation to the thermosphere.
- These wave-mean flow interactions shape the circulation of the Martian upper atmosphere.
- Observed jet changes match model predictions of 280 m/s acceleration from 1,300 m/s/sol divergence.
Where Pith is reading between the lines
- Similar wave-driven jet mechanisms may operate in the upper atmospheres of other planets like Earth or Venus where orographic waves are limited.
- Improved parameterization of non-orographic GWs in climate models could enhance predictions of thermospheric variability on Mars.
- Correlations between middle atmosphere wave activity and thermospheric jets could be tested with future multi-instrument observations.
Load-bearing premise
The high-latitude jets are modulated primarily by non-orographic gravity waves rather than other dynamical processes, and the model accurately represents the absence of critical layers that would otherwise block wave propagation.
What would settle it
Running the model without the non-orographic gravity wave parameterization and finding that high-latitude jets still appear at observed strengths would falsify the driving role of these waves.
Figures

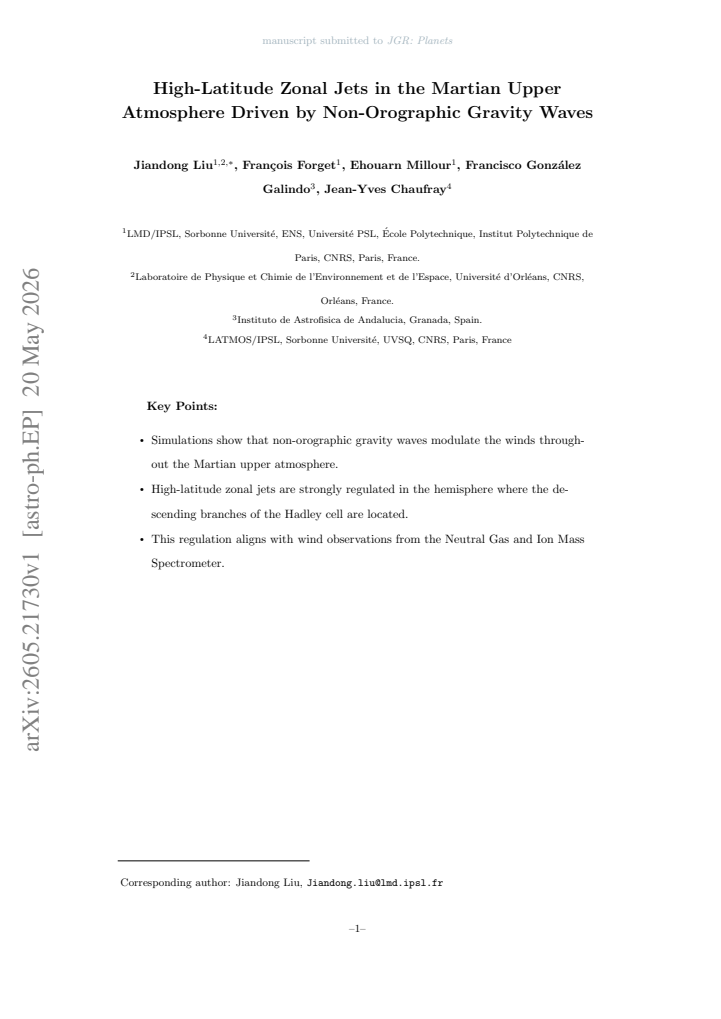

read the original abstract
We investigate thermosphere responses to non-orographic gravity waves (GWs) using wind measurements from the Neutral Gas and Ion Mass Spectrometer onboard the Mars Atmosphere and Volatile EvolutioN mission, alongside simulations from the Mars Planetary Climate Model. We focus on zonal jets in high-latitude regions of the upper atmosphere. Jet acceleration and deceleration (280 m/s ) arise from momentum divergence (1,300 m/s/sol ) driven by wave saturation and wind filtering. Simulations and observations indicate that GWs modulate these jets in the hemisphere associated with the descending branches of the Hadley Cell, due to the absence of wave critical layers in the middle atmosphere. Interactions between GWs and the mean flow can shape the circulation and dynamics of the upper atmosphere of Mars.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper investigates thermosphere responses to non-orographic gravity waves using MAVEN NGIMS wind measurements and Mars Planetary Climate Model simulations. It focuses on high-latitude zonal jets, claiming that acceleration and deceleration of 280 m/s arise from momentum divergence of 1,300 m/s/sol due to wave saturation and wind filtering. The modulation occurs preferentially in the hemisphere with descending Hadley Cell branches because of the absence of critical layers in the middle atmosphere, allowing GW propagation to the upper atmosphere.
Significance. If the central result holds, the work would demonstrate a concrete mechanism by which non-orographic gravity waves shape zonal jets and circulation in the Martian thermosphere, linking middle-atmosphere filtering to thermospheric momentum deposition. This could improve dynamical understanding of upper-atmosphere variability on Mars and provide a testable link between observed wind changes and parameterized wave processes.
major comments (2)
- The headline attribution of 280 m/s jet changes and 1,300 m/s/sol momentum divergence to GW saturation and filtering rests on the Mars PCM producing middle-atmosphere zonal winds that lack critical layers (|u - c| away from zero) for the relevant GW phase speeds. No direct comparison of simulated middle-atmosphere zonal winds or vertical shear against independent observations is shown to confirm this condition; without it the diagnosed thermospheric forcing risks being an artifact of the model winds rather than a robust physical mechanism.
- Abstract and model-observation comparison sections: quantitative values for jet speed change (280 m/s) and momentum divergence (1,300 m/s/sol) are stated without error bars, data-selection criteria, or altitude-specific model-observation residuals, limiting assessment of whether the reported forcing magnitudes are statistically distinguishable from other dynamical contributions.
minor comments (2)
- Clarify the vertical range and exact altitudes at which NGIMS winds are compared to the model thermospheric jets.
- Add a brief statement on the GW source spectrum and phase-speed range used in the Mars PCM parameterization to allow readers to assess the critical-layer filtering argument.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed comments, which help improve the clarity and robustness of our work. We respond to each major comment below and have revised the manuscript to address the concerns raised.
read point-by-point responses
-
Referee: The headline attribution of 280 m/s jet changes and 1,300 m/s/sol momentum divergence to GW saturation and filtering rests on the Mars PCM producing middle-atmosphere zonal winds that lack critical layers (|u - c| away from zero) for the relevant GW phase speeds. No direct comparison of simulated middle-atmosphere zonal winds or vertical shear against independent observations is shown to confirm this condition; without it the diagnosed thermospheric forcing risks being an artifact of the model winds rather than a robust physical mechanism.
Authors: We agree this is an important point for establishing that the diagnosed thermospheric forcing is not an artifact of the model. The Mars PCM middle-atmosphere winds have been validated against observations in earlier publications, but a direct comparison was not included here. In the revised manuscript we will add a dedicated panel or subsection comparing the simulated zonal winds and vertical shear profiles in the middle atmosphere (roughly 20–80 km) to independent datasets such as Mars Climate Sounder temperature-derived winds and radio-occultation profiles, explicitly showing that |u − c| remains sufficiently far from zero for the relevant GW phase speeds. revision: yes
-
Referee: Abstract and model-observation comparison sections: quantitative values for jet speed change (280 m/s) and momentum divergence (1,300 m/s/sol) are stated without error bars, data-selection criteria, or altitude-specific model-observation residuals, limiting assessment of whether the reported forcing magnitudes are statistically distinguishable from other dynamical contributions.
Authors: We accept that the quantitative results should be presented with greater statistical context. The revised manuscript will (i) specify the exact MAVEN NGIMS data-selection criteria (local time, latitude, season, and quality flags) in the methods section, (ii) attach error bars to the 280 m/s and 1,300 m/s/sol values based on the observed standard deviation across the selected orbits and across an ensemble of model realizations, and (iii) include a supplementary table or figure of altitude-resolved model–observation residuals in the thermosphere to allow readers to judge the contribution of GW forcing relative to other terms. revision: yes
Circularity Check
No significant circularity; derivation relies on independent model-observation comparison
full rationale
The paper attributes high-latitude zonal jet changes to non-orographic GW momentum divergence based on direct comparison of MAVEN NGIMS wind data with Mars PCM simulations that include a GW parameterization. The reported 280 m/s accelerations and 1300 m/s/sol divergences are diagnosed outputs from the model runs and observations, not parameters fitted to the target jets or self-defined quantities. The absence of critical layers is presented as a model result in the descending Hadley branch rather than an imposed condition that forces the outcome by construction. No equations, self-citations, or ansatzes are shown in the abstract or context that reduce the central claim to its inputs; the analysis remains self-contained against external wind measurements.
Axiom & Free-Parameter Ledger
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
Jet acceleration and deceleration (±280 m s−1) arise from momentum divergence (±1300 m s−1 sol−1) driven by wave saturation and wind filtering... due to the absence of wave critical layers in the middle atmosphere.
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The scheme computes the vertical evolution of the waves by evaluating the equivalent vertical component of Eliassen-Palm flux... divergence of EP-flux added to the mean flow
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Asumi, A., Sato, K., Kohma, M., & Hayashi, Y.-Y. (2025). Climatology of the residual mean circulation of the martian atmosphere and contribu- tions of resolved and unresolved waves based on a reanalysis data set. Journal of Geophysical Research: Planets,130(3), e2023JE008137. doi: https://doi.org/10.1029/2023JE008137
-
[2]
Benna, M., Bougher, S., Lee, Y., Roeten, K., Yi˘ git, E., Mahaffy, P., & Jakosky, B. (2019). Global circulation of mars’ upper atmosphere.Science,366(6471), –21– manuscript submitted toJGR: Planets 1363–1366. doi: https://doi.org/10.1126/science.aax1553 Cavali´ e, T., Billebaud, F., Encrenaz, T., Dobrijevic, M., Brillet, J., Forget, F., &
-
[3]
Lellouch, E. (2008). Vertical temperature profile and mesospheric winds retrieval on mars from co millimeter observations-comparison with general cir- culation model predictions.Astronomy & Astrophysics,489(2), 795–809. doi: https://doi.org/10.1051/0004-6361:200809815
-
[4]
Chaffin, M., Deighan, J., Schneider, N., & Stewart, A. (2017). Elevated atmospheric escape of atomic hydrogen from mars induced by high-altitude water.Nature geoscience,10(3), 174–178. doi: https://doi.org/10.1038/ngeo2887
-
[5]
Elrod, M. K., Benna, M., & T, N. (2014).Maven neutral gas and ion mass spec- trometer data[dataset]. NASA Planetary Data System. doi: https://doi.org/ 10.17189/1518931
-
[6]
Forbes, J. M. (2004). Tides in the middle and upper atmospheres of mars and venus. Advances in Space Research,33(2), 125–131
work page 2004
-
[7]
M., Zhang, X., Forget, F., Millour, E., & Kleinb¨ ohl, A
Forbes, J. M., Zhang, X., Forget, F., Millour, E., & Kleinb¨ ohl, A. (2020). Solar tides in the middle and upper atmosphere of mars.Journal of Geophysical Research: Space Physics,125(9), e2020JA028140
work page 2020
-
[8]
Huot, J.-P. (1999). Improved general circulation models of the martian at- mosphere from the surface to above 80 km.Journal of Geophysical Research: Planets,104(E10), 24155–24175. doi: https://doi.org/10.1029/1999JE001025 Gonz´ alez-Galindo, F., Bougher, S. W., L´ opez-Valverde, M., Forget, F., & Murphy, J. (2010). Thermal and wind structure of the martia...
-
[9]
Han, P., Jin, S., Liu, J., & Li, Y. (2022). Thermospheric density responses to mar- tian dust storm in autumn based on maven data.Geodesy and Geodynamics, 13(6), 595–601. doi: https://doi.org/10.1016/j.geog.2022.03.002
-
[10]
Jurado-Fortuna, S., Gonz´ alez-Galindo, F., Shulyak, D., & Lara, L. (2026). A cross- correlation method to evaluate wind retrieval accuracy on mars using simu- lated microwave limb sounder observations.Journal of Geophysical Research: Planets,131(1), e2025JE009227. doi: https://doi.org/10.1029/2025JE009227
-
[11]
J., Kahre, M., Brecht, A., & Murphy, J
Kling, A., Wilson, R. J., Kahre, M., Brecht, A., & Murphy, J. (2025). Impact of grid –22– manuscript submitted toJGR: Planets resolution on wave-mean flow interactions with high resolution mars global cli- mate model simulations.Geophysical Research Letters,52(2), e2024GL112297. doi: https://doi.org/10.1029/2024GL112297
-
[12]
Kuroda, T., Medvedev, A. S., & Yi˘ git, E. (2020). Gravity wave activity in the atmosphere of mars during the 2018 global dust storm: Simulations with a high-resolution model.Journal of Geophysical Research: Planets,125(11), e2020JE006556. doi: https://doi.org/10.1029/2020JE006556
-
[13]
Kuroda, T., Medvedev, A. S., Yi˘ git, E., & Hartogh, P. (2015). A global view of gravity waves in the martian atmosphere inferred from a high-resolution gen- eral circulation model.Geophysical Research Letters,42(21), 9213–9222. doi: https://doi.org/10.1002/2015GL066332
-
[14]
Kuroda, T., Medvedev, A. S., Yi˘ git, E., & Hartogh, P. (2016). Global distri- bution of gravity wave sources and fields in the martian atmosphere dur- ing equinox and solstice inferred from a high-resolution general circulation model.Journal of the Atmospheric Sciences,73(12), 4895–4909. doi: https://doi.org/10.1175/JAS-D-16-0142.1
-
[15]
Lellouch, E., Goldstein, J. J., Bougher, S. W., Paubert, G., & Rosenqvist, J. (1991). First absolute wind measurements in the middle atmosphere of mars.Astro- physical Journal,383, 401–406. doi: https://doi.org/10.1086/170797
-
[16]
Liu, J., Jin, S., & Li, Y. (2019). Seasonal variations and global wave distributions in the mars thermosphere from maven and multisatellites accelerometer-derived mass densities.Journal of Geophysical Research: Space Physics,124(11), 9315–9334. doi: https://doi.org/10.1029/2019JA026720
-
[17]
Liu, J., & Millour, E. (2026).Data for ”high-latitude zonal jets in the martian up- per atmosphere driven by non-orographic gravity waves”.Mendeley Data. doi: 10.17632/72k7t8rh75.1
-
[18]
Liu, J., Millour, E., Forget, F., Gilli, G., Lott, F., Bardet, D., . . . others (2023). A surface to exosphere non-orographic gravity wave parameterization for the mars planetary climate model.Journal of Geophysical Research: Planets, 128(7), e2023JE007769. doi: https://doi.org/10.1029/2023JE007769
-
[19]
Liu, J., Millour, E., Forget, F., Lott, F., & Chaufray, J.-y. (2025b). A stochastic parameterization of non-orographic gravity waves induced mixing for mars planetary climate model.Journal of Geophysical Research: Planets,130(9), e2025JE009188. doi: https://doi.org/10.1029/2025JE009188
-
[20]
Lott, F., & Guez, L. (2013). A stochastic parameterization of the gravity waves due to convection and its impact on the equatorial stratosphere.Journal of Geo- physical Research: Atmospheres,118(16), 8897–8909. doi: https://doi.org/10 .1002/jgrd.50705
work page 2013
-
[21]
Lott, F., Guez, L., & Maury, P. (2012). A stochastic parameterization of non- orographic gravity waves: Formalism and impact on the equatorial strato- sphere.Geophysical Research Letters,39(6). doi: https://doi.org/10.1029/ 2012GL051001
work page 2012
-
[22]
S., Yi˘ git, E., Hartogh, P., & Becker, E
Medvedev, A. S., Yi˘ git, E., Hartogh, P., & Becker, E. (2011). Influence of grav- ity waves on the martian atmosphere: General circulation modeling.Journal of Geophysical Research: Planets,116(E10). doi: 10.1029/2011JE003848
-
[23]
S., Yi˘ git, E., Kuroda, T., & Hartogh, P
Medvedev, A. S., Yi˘ git, E., Kuroda, T., & Hartogh, P. (2013). General cir- culation modeling of the martian upper atmosphere during global dust storms.Journal of Geophysical Research: Planets,118(10), 2234–2246. doi: 10.1002/2013JE004429
-
[24]
Miyamoto, A., Nakagawa, H., Kuroda, T., Takami, K., Murata, I., Medvedev, A. S., . . . others (2021). Intense zonal wind in the martian mesosphere during the 2018 planet-encircling dust event observed by ground-based infrared hetero- dyne spectroscopy.Geophysical Research Letters,48(11), e2021GL092413. doi: https://doi.org/10.1029/2021GL092413
-
[25]
Miyoshi, Y., & Fujiwara, H. (2008). Gravity waves in the thermosphere simulated by a general circulation model.Journal of Geophysical Research: Atmospheres, 113(D1). doi: https://doi.org/10.1029/2007JD008874
-
[26]
Miyoshi, Y., Fujiwara, H., Jin, H., & Shinagawa, H. (2014). A global view of grav- ity waves in the thermosphere simulated by a general circulation model.Jour- nal of Geophysical Research: Space Physics,119(7), 5807–5820. doi: https:// doi.org/10.1002/2014JA019848 –24– manuscript submitted toJGR: Planets
-
[27]
Moreno, R., Lellouch, E., Forget, F., Encrenaz, T., Guilloteau, S., & Millour, E. (2009). Wind measurements in mars’ middle atmosphere: Iram plateau de bure interferometric co observations.Icarus,201(2), 549–563. doi: https://doi.org/10.1016/j.icarus.2009.01.027
-
[28]
Richardson, M. I., & Wilson, R. J. (2002). A topographically forced asymmetry in the martian circulation and climate.Nature,416(6878), 298–301. doi: https:// doi.org/10.1038/416298a
-
[29]
Roeten, K., Bougher, S., Benna, M., & Elrod, M. (2022b). Maven/ngims wind ob- servations in the martian thermosphere during the 2018 planet encircling dust event.Icarus,382, 115006. doi: https://doi.org/10.1016/j.icarus.2022.115006
-
[30]
Roeten, K., Bougher, S., Yi˘ git, E., Medvedev, A., Benna, M., & Elrod, M. (2022a). Impacts of gravity waves in the martian thermosphere: The mars global ionosphere-thermosphere model coupled with a whole atmosphere gravity wave scheme.Journal of Geophysical Research: Planets,127(12), e2022JE007477. doi: https://doi.org/10.1029/2022JE007477
-
[31]
Roeten, K. J., Bougher, S. W., Benna, M., Mahaffy, P. R., Lee, Y., Pawlowski, D., . . . L´ opez-Valverde, M.´A. (2019). Maven/ngims thermospheric neu- tral wind observations: Interpretation using the m-gitm general circulation model.Journal of Geophysical Research: Planets,124(12), 3283–3303. doi: https://doi.org/10.1029/2019JE005957
-
[32]
Yang, C., Li, T., Yuan, M., Wu, Z., & Fang, X. (2024). Martian atmospheric tides revealed from maven/iuvs and mro/mcs observations.Geophysical Research Letters,51(12), e2024GL109742. doi: https://doi.org/10.1029/2024GL109742 Yi˘ git, E. (2023). Coupling and interactions across the martian whole atmosphere system.Nature Geoscience,16(2), 123–132. doi: http...
