Adaptive double-phase Rudin--Osher--Fatemi denoising model

Wojciech G\'orny , Micha{\l} {\L}asica , Alexandros Matsoukas This is my paper

Pith reviewed 2026-05-21 21:38 UTC · model grok-4.3

classification 📡 eess.IV cs.CVcs.NAmath.NA
keywords image denoisingtotal variationROF modelstaircasingdouble-phase functionaladaptive regularizationSSIMPSNR
0
0 comments X

The pith

An adaptive double-phase variant of the ROF model reduces staircasing while preserving edges and matching or exceeding classical performance on SSIM, PSNR and LPIPS.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces an adaptive version of the Rudin-Osher-Fatemi total variation denoising model built on a double-phase regularizer. This regularizer combines total variation with a weighted quadratic term so that smoothness adapts to local image features. The explicit goal is to lessen the staircasing artifact that appears in the classical ROF model while keeping edge preservation roughly the same. Tests on both synthetic and natural images across a range of noise levels show that the adaptive model achieves improved or comparable scores on SSIM, PSNR and LPIPS relative to other interpretable methods, and staircasing is visibly reduced.

Core claim

We propose an adaptive variant of the ROF denoising model based on a double-phase type integral functional comprising TV and a weighted quadratic term. It is designed to reduce staircasing with respect to the classical ROF model while preserving the edges of the image in a similar fashion. Implementation and tests on synthetic and natural images over a range of noise levels show improved or similar performance in SSIM, PSNR and LPIPS compared to established models with similar interpretability, while the staircasing effect is visibly reduced.

What carries the argument

Adaptive double-phase regularizer that blends total variation with a weighted quadratic growth term to control local smoothness without fixed global parameters.

If this is right

  • The model remains interpretable and can be used directly in scientific imaging pipelines that already employ ROF.
  • It provides a drop-in replacement that visibly lowers staircasing on both synthetic and natural data across noise levels.
  • Performance on standard similarity metrics remains at least as strong as other comparable variational methods.
  • The approach keeps edge preservation comparable to classical total variation while adding local adaptability.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same adaptive weighting could be applied to related inverse problems such as deblurring or inpainting.
  • Automatic selection of the weighting function might remove the need for manual parameter tuning in practice.
  • Lower staircasing could improve accuracy in downstream tasks like segmentation performed on the denoised output.

Load-bearing premise

The double-phase functional can be made adaptive so that staircasing drops reliably without new artifacts or extensive per-image retuning.

What would settle it

Side-by-side visual comparison or a staircasing metric on a synthetic ramp image with added noise, where the adaptive model produces equal or greater blockiness than classical ROF.

Figures

Figures reproduced from arXiv: 2510.04382 by Alexandros Matsoukas, Micha{\l} {\L}asica, Wojciech G\'orny.

Figure 1

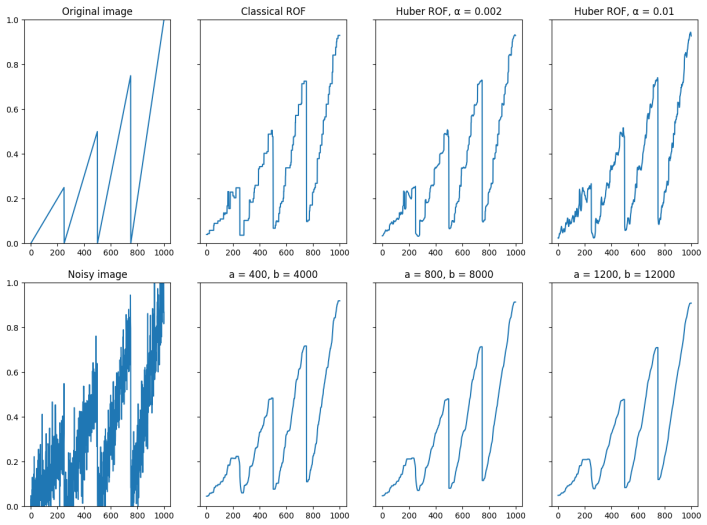

Figure 1. Figure 1: Reconstruction of a one-dimensional synthetic image with classical ROF, Huber [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2

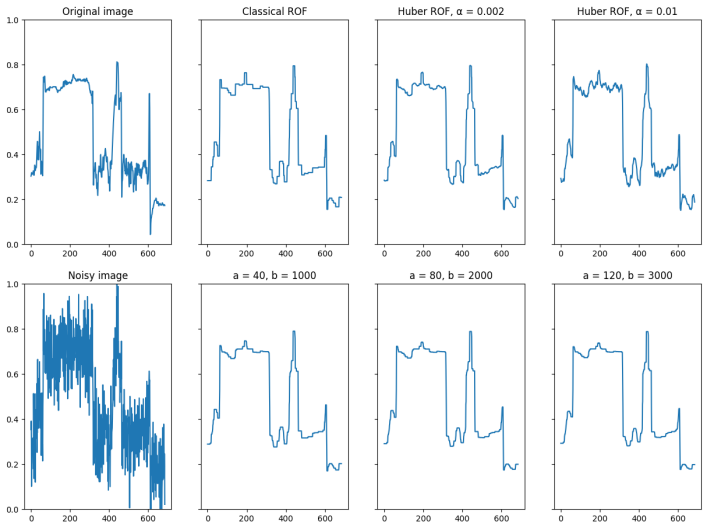

Figure 2. Figure 2: Reconstruction of a one-dimensional natural image with classical ROF, Huber-ROF [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3

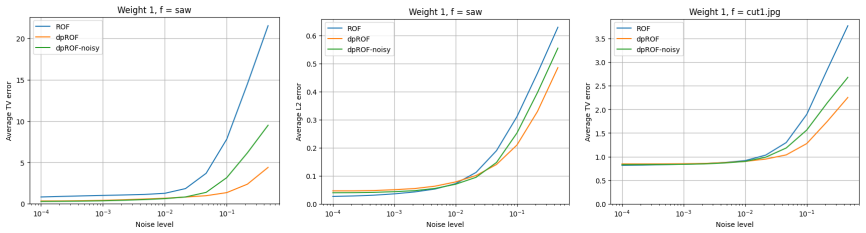

Figure 3. Figure 3: Performance of the classical ROF model, the adaptive double phase ROF model, [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

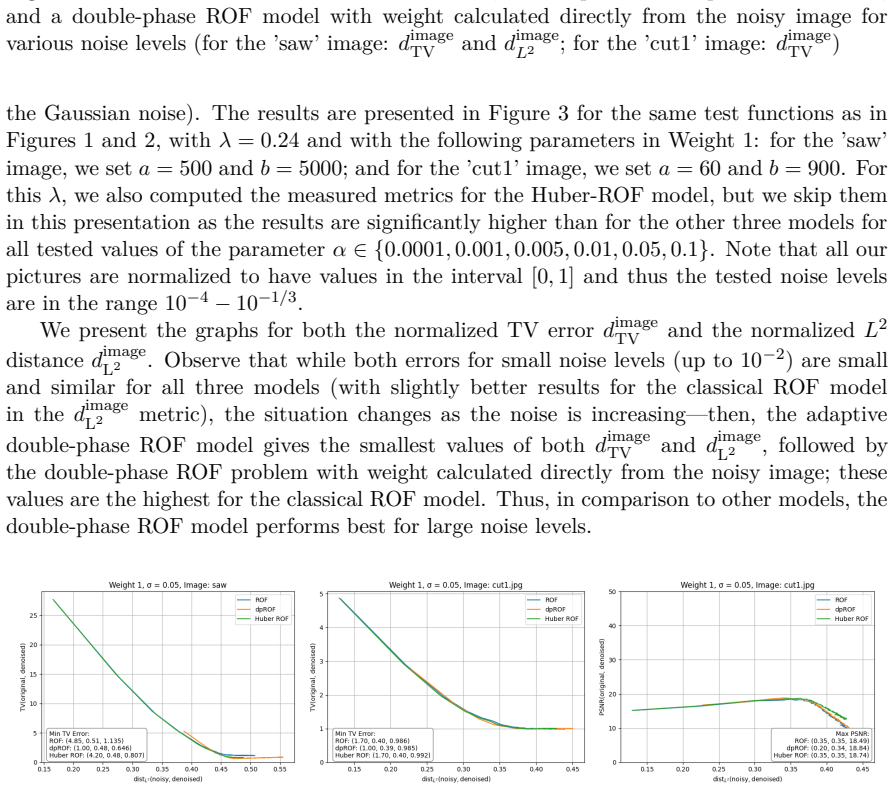

Figure 4. Figure 4: Performance of the classical ROF model, the adaptive double phase ROF model, [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

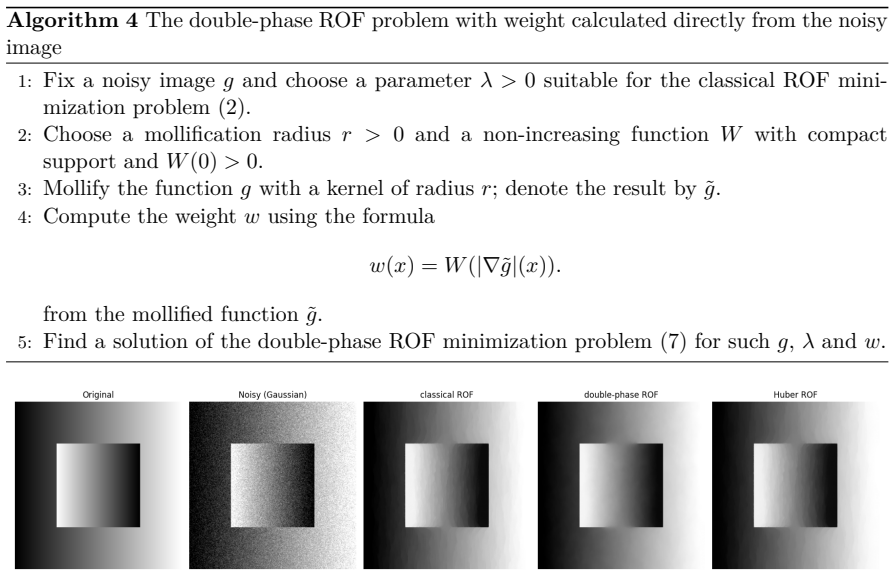

Figure 5. Figure 5: Original ’double gradient’ synthetic image; image with added gaussian noise ( [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6

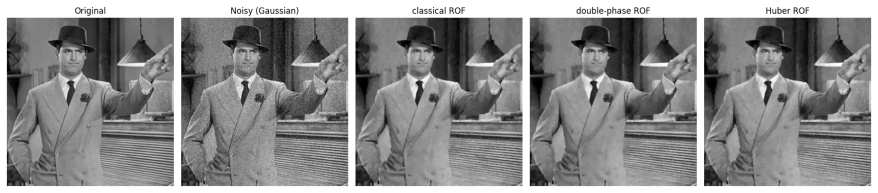

Figure 6. Figure 6: Original ’carygrant’ image; image with added gaussian noise ( [PITH_FULL_IMAGE:figures/full_fig_p014_6.png] view at source ↗
Figure 7

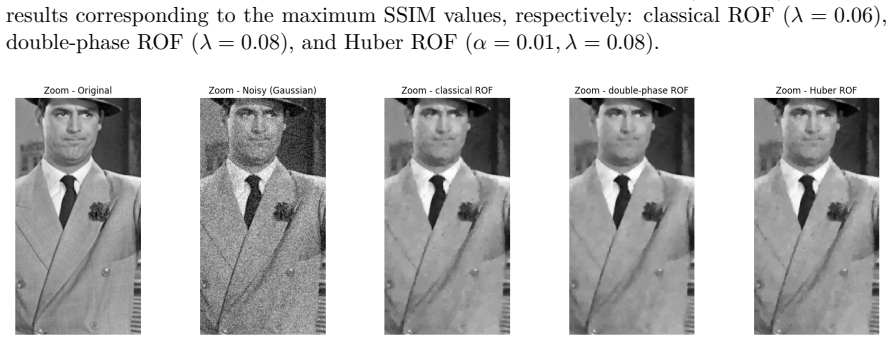

Figure 7. Figure 7: Magnified part of Figure 6 ’carygrant’: face and suit. [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8

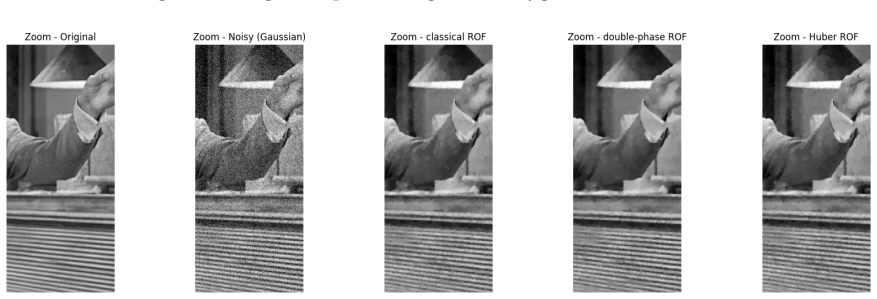

Figure 8. Figure 8: Magnified part of Figure 6 ’carygrant’: arm and lamp. [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
Figure 9

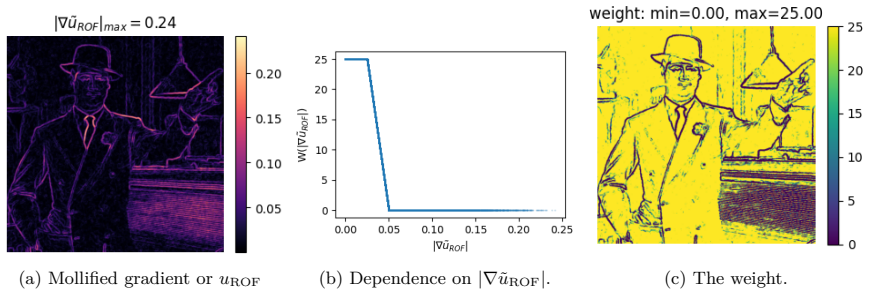

Figure 9. Figure 9: Construction of the weight from mollified gradient of [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Plots of the metrics against the L 2 -distance from the noisy ’carygrant’ image (σ = 0.01), for classical ROF, double-phase ROF and Huber ROF (a = 0.01). including the calculations of these metrics for various choices of parameters, we refer to the available code and summary files [9]. In the presentation below, in each Figure with images, from left to right we show: the original image; the image after ad… view at source ↗
Figure 11
Figure 11. Figure 11: Original ’girlface’ image; image with added gaussian noise ( [PITH_FULL_IMAGE:figures/full_fig_p016_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Magnified part of Figure 11 ’girlface’: eye and cheek. [PITH_FULL_IMAGE:figures/full_fig_p016_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Construction of the weight from mollified gradient of [PITH_FULL_IMAGE:figures/full_fig_p016_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Plots of the metrics with respect to L 2 -distance from the noisy (σ = 0.04) ’girlface’ image, for classical ROF, double-phase ROF and Huber ROF (ah = 0.01). models achieve optimal values of SSIM, the trend line for the adaptive double-phase ROF model has similar shape to the one of the other two models but is slightly higher. Note that similarly to the 1D case, the three metrics achieve the extremal valu… view at source ↗
Figure 15
Figure 15. Figure 15: Original ’schnitzel’ image; image with added gaussian noise ( [PITH_FULL_IMAGE:figures/full_fig_p018_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Magnified part of Figure 15 ’schnitzel’: breadcrumbs texture. [PITH_FULL_IMAGE:figures/full_fig_p018_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Original ’peppers’ image; image with added gaussian noise with [PITH_FULL_IMAGE:figures/full_fig_p019_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Magnified part of Figure 17 ’peppers’ [PITH_FULL_IMAGE:figures/full_fig_p019_18.png] view at source ↗
read the original abstract

Even though more than 30 years have passed since the seminal Rudin--Osher--Fatemi (ROF) paper on total variation (TV) denoising, it remains relevant, in particular in scientific applications such as astronomical imaging. However, it is known to suffer from artifacts such as the staircasing effect. Many variants of the model have been proposed with the aim of countering this. Recently, against the backdrop of immense research output on double-phase problems in the mathematical analysis community, a double-phase type integral functional, comprising of TV and a weighted term of quadratic growth, was suggested as a regularizer for image restoration. Here, we propose an adaptive variant of the ROF denoising model based on that regularizer. It is designed to reduce staircasing with respect to the classical ROF model, while preserving the edges of the image in a similar fashion. We implement the model and test its performance on synthetic and natural images over a range of noise levels. Compared to {established} models {with similar interpretability to ROF}, we observe an improved or similar performance in terms of similarity metrics SSIM, PSNR, {and LPIPS}, while the staircasing effect is visibly reduced.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes an adaptive variant of the classical Rudin-Osher-Fatemi (ROF) total-variation denoising model that incorporates a recently introduced double-phase integral functional (TV term plus a weighted quadratic-growth term). The adaptation is designed to reduce the staircasing artifact while preserving edges comparably to standard ROF. The authors implement the model and evaluate it on synthetic and natural images across a range of noise levels, reporting improved or comparable SSIM, PSNR, and LPIPS scores relative to other interpretable models together with visibly reduced staircasing.

Significance. If the adaptation rule can be shown to activate the quadratic term selectively in flat regions without introducing new artifacts or requiring per-image retuning, the work would supply a mathematically grounded, interpretable improvement to a model still used in scientific imaging. The explicit testing over multiple noise levels and the use of both synthetic and natural images are positive features.

major comments (3)
  1. [model definition / implementation] The adaptation rule that determines the spatially varying weight between the TV and quadratic phases is not stated explicitly (neither in the model definition nor in the implementation section). Without the precise estimator (e.g., local gradient magnitude, residual, or other quantity) and its functional form, it is impossible to verify that the quadratic term activates reliably in flat regions while leaving edges intact, which is the load-bearing premise of the central empirical claim.
  2. [results / tables] The results section reports metric values (SSIM, PSNR, LPIPS) but supplies neither error bars across multiple noise realizations nor any statistical significance tests. Consequently the statement that performance is “improved or similar” cannot be assessed quantitatively and does not yet support the cross-model comparison.
  3. [experimental setup] The set of baseline models used for comparison is described only as “established models with similar interpretability to ROF.” The precise list, parameter settings, and whether any of them already incorporate double-phase or adaptive mechanisms must be stated explicitly so that the claimed advantage can be reproduced and evaluated.
minor comments (2)
  1. [abstract] The abstract contains several sets of curly braces around phrases (“{established}”, “{with similar interpretability to ROF}”, “{and LPIPS}”); these appear to be LaTeX artifacts and should be removed.
  2. [model section] Notation for the double-phase functional and the adaptation weight should be introduced once in a dedicated subsection and then used consistently; currently the transition from the classical ROF functional to the adaptive version is described only in prose.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and have revised the manuscript to improve clarity, reproducibility, and quantitative rigor where possible.

read point-by-point responses

  1. Referee: [model definition / implementation] The adaptation rule that determines the spatially varying weight between the TV and quadratic phases is not stated explicitly (neither in the model definition nor in the implementation section). Without the precise estimator (e.g., local gradient magnitude, residual, or other quantity) and its functional form, it is impossible to verify that the quadratic term activates reliably in flat regions while leaving edges intact, which is the load-bearing premise of the central empirical claim.

    Authors: We acknowledge that the adaptation rule was described at too high a level in the original submission. The rule computes a spatially varying weight from the magnitude of the image gradient after a small Gaussian pre-smoothing step; the quadratic-phase weight is set inversely proportional to this magnitude (with a small positive floor to avoid singularities). This choice ensures the quadratic term receives higher weight in flat regions while the TV term dominates near edges. The explicit formula, together with implementation pseudocode, has been added to the revised Section 2.2 and Section 3. revision: yes

  2. Referee: [results / tables] The results section reports metric values (SSIM, PSNR, LPIPS) but supplies neither error bars across multiple noise realizations nor any statistical significance tests. Consequently the statement that performance is “improved or similar” cannot be assessed quantitatively and does not yet support the cross-model comparison.

    Authors: We agree that error bars strengthen the quantitative claims. In the revision we now report means and standard deviations computed over five independent noise realizations per image and noise level. The observed trends remain consistent. Formal statistical significance testing was not added because the primary contribution is the interpretable, visually verifiable reduction of staircasing rather than a claim of universal superiority; we have tempered the language in the results section accordingly. revision: partial

  3. Referee: [experimental setup] The set of baseline models used for comparison is described only as “established models with similar interpretability to ROF.” The precise list, parameter settings, and whether any of them already incorporate double-phase or adaptive mechanisms must be stated explicitly so that the claimed advantage can be reproduced and evaluated.

    Authors: We have expanded Section 4.1 to list the baselines explicitly: (i) classical ROF, (ii) TV-L1, and (iii) a non-adaptive double-phase model from the recent literature. For each we now state the exact regularization parameter (chosen by grid search on a held-out validation set for each noise level) and confirm that none employs the proposed adaptive weighting. This information enables direct reproduction. revision: yes

Circularity Check

0 steps flagged

No circularity: new adaptive regularizer proposed and validated empirically

full rationale

The paper proposes an adaptive variant of the double-phase ROF model, implements the functional, and reports performance on synthetic/natural images via SSIM/PSNR/LPIPS plus visual staircasing reduction. The central claim rests on the design of the adaptation rule and separate empirical tests rather than any equation that reduces by construction to a fitted input or prior self-citation. The referenced double-phase functional is treated as external background; no load-bearing step equates a prediction to its own definition or forces the result via self-referential fitting.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the suitability of the double-phase functional as a regularizer and on the effectiveness of the (unspecified) adaptation rule; both are domain assumptions drawn from recent mathematical literature rather than derived or independently verified in this work.

free parameters (1)
  • adaptation rule parameters
    The model is described as adaptive, implying one or more parameters or functions that adjust the double-phase weights according to local image features or noise level.
axioms (1)
  • domain assumption A double-phase integral functional mixing total variation and weighted quadratic growth serves as an effective regularizer for image restoration
    Invoked when the abstract states that the adaptive variant is based on the recently suggested double-phase regularizer.
