Hierarchical Bayesian Quadrature

T0 review · 2 major / 4 minor · reviewed 2026-07-14 · grok-4.5

Pith's one-line read Hierarchical Bayesian Quadrature adapts stationary GP models to nonstationary integrands by growing a tree of local surrogates and recombining their integrals with hierarchical conditioning.

desk verdict Solid adaptive BQ for nonstationary integrands: real empirical gains, usable algorithm, partial theory and soft hierarchical novelty. read the letter →

arxiv 2607.10793 v1 pith:6QMYJY7K submitted 2026-07-12 cs.LG cs.NAmath.NA

classification cs.LGcs.NAmath.NA
keywords BayesianquadratureGaussianprocessesnonstationaryintegrandsadaptivedomainpartitioninghierarchicalconditioningmodelevidencenumericalintegration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Standard Bayesian quadrature puts a single stationary Gaussian process prior on an integrand and turns the posterior into a closed-form integral estimate with uncertainty. That prior is misspecified when the integrand’s roughness or length scale changes across the domain, so evaluations are wasted on flat regions while peaks or ridges stay unresolved. This paper shows that the same closed-form machinery can be kept if the domain is split, on the fly, into a binary tree of axis-aligned hyperrectangles, each carrying its own stationary Matérn GP. Local integral posteriors are recombined by treating each child estimate as a noisy observation of a linear functional of the parent GP, thereby restoring cross-boundary correlations. BIC model selection decides when a split is worth making, so the method collapses to ordinary Bayesian quadrature when a single stationary model already fits. On Genz benchmarks, an SIR model-evidence integral, and a reaction–diffusion PDE, the adaptive scheme concentrates evaluations where complexity is highest and reports substantially lower error on nonstationary targets while matching ordinary BQ on stationary ones.

What carries the argument

Tree conditioning: each branch node retains the stationary GP that was fitted before the split; the children’s integral estimates are treated as noisy observations of the corresponding sub-integrals under that parent prior, yielding a joint Gaussian update that reintroduces cross-subdomain correlations and propagates upward to the global integral.

What would settle it

Run the method on a nonstationary integrand whose iso-complexity contours are strongly diagonal or curved (so that axis-aligned rectangles cannot isolate them) and check whether the adaptive tree still reduces integral error relative to a single stationary GP at matched evaluation budgets; if it does not, the partition geometry is insufficient.

Watch

Extended reading notes

Core claim

An adaptively grown tree of local stationary Gaussian processes, whose leaf integral estimates are recombined by hierarchical GP conditioning and whose growth is gated by a BIC split test, recovers the accuracy of ordinary Bayesian quadrature on stationary integrands and substantially improves it on nonstationary ones, all without MCMC and while preserving closed-form kernel mean embeddings.

Load-bearing premise

That axis-aligned rectangular splits and stationary product kernels with closed-form mean embeddings are flexible enough to capture the nonstationarity that matters, and that the partial error bounds that assume a finished tree still justify the adaptive construction.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

2 major / 4 minor

Summary. The paper proposes Hierarchical Bayesian Quadrature (HBQ): an adaptive tree of axis-aligned hyperrectangular subdomains, each carrying a local stationary Matérn (or Wendland) GP with its own lengthscale and smoothness, whose leaf integral estimates are recombined bottom-up by hierarchical GP conditioning that reintroduces parent-kernel cross-subdomain correlations. Tree growth is gated by a BIC approximation to the split Bayes factor (with a 5d minimum points-per-leaf rule), and refinement is driven by a batched integral-variance-reduction score. Theorem 1 / Corollary 2 bound the parent integral error by the worst-case child error under quasi-uniform local designs. Experiments on Genz families (d=2 and d=3), an SIR model-evidence ridge, an on-model piecewise Matérn recovery task with calibration, and a multi-scale reaction–diffusion PDE show substantial gains over standard BQ on nonstationary integrands and parity on stationary ones, with a public Julia implementation.

Significance. If the empirical claims hold, HBQ is a practical Bayesian counterpart to Genz–Malik adaptive cubature that preserves closed-form kernel mean embeddings and calibrated integral uncertainty while automatically allocating budget to local complexity. The combination of BIC-gated splitting, hierarchical recombination of integral functionals, and the partial but clean recombination theory is a genuine contribution to probabilistic numerics for expensive low-to-moderate-dimensional nonstationary integrands (model evidences, multi-scale PDE/simulator responses). Strengths include reproducible code, multiple controlled baselines (MC/QMC/BQ), an on-model structure-recovery experiment with z-score calibration, and an explicit limitations section that correctly flags the partial theory and axis-aligned restriction.

major comments (2)
  1. [§3.2 / Supp. C.3] §3.2 Eqs. (15)–(17) and Supp. C.3: tree conditioning is presented as the primary recombination mechanism that reintroduces cross-subdomain correlations, yet on the Genz families the independent-sum ablation matches both median absolute error and posterior standard deviation to within 0.05% at every budget. The hierarchical novelty claim therefore rests almost entirely on adaptive partitioning rather than on the recombination hierarchy. Either demonstrate a setting (e.g., the piecewise Matérn or PDE) where tree conditioning materially improves calibration or accuracy, or reframe the contribution so that independent sum is the default and tree conditioning is optional.
  2. [§3.3 / §7.1] §3.3 Theorem 1 / Corollary 2 and §7.1: the convergence statements are deliberately conditional on a fixed final tree and fixed local kernels; they do not cover the adaptive construction, BIC decisions, or hyperparameter re-fitting that constitute the algorithm. The central claim that HBQ “achieves substantial gains … while matching … on stationary ones” is therefore supported only empirically. A short discussion of what would be required for a full adaptive rate (or an explicit statement that the theory is only a recombination sanity check) would make the theoretical contribution proportionate to what is proved.
minor comments (4)
  1. [§4.1] §4.1 / Eq. (23): the BIC penalty uses Δk = 3 (shared lengthscale) or d+2 (ARD) and a hard 5d minimum; Supp. C.4 shows robustness on the piecewise task, but a one-sentence justification for the 5d rule (beyond “reliable hyperparameter estimation”) would help readers who wish to retune.
  2. [Fig. 1 / §6.2] Fig. 1(c) and §6.2: SIR results use independent-sum recombination while the PDE and Genz main figures use tree conditioning; a brief note in the caption or text would avoid confusion about which recombination is active.
  3. [§5] §5 Related work: Nested kriging and BART-Int are cited appropriately; a short clause distinguishing HBQ’s closed-form integral functionals from Nested kriging’s second-level GP aggregation would sharpen the positioning.
  4. [Abstract / §5] Typographical: arXiv header and abstract both use “model evidence computations”; ensure consistent hyphenation (“model-evidence”) and that the Genz–Malik citation appears with the same spelling throughout.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: algorithmic method with external ground-truth benchmarks and standard GP fitting; theory is conditional and openly partial.

full rationale

The paper's central claims are algorithmic (adaptive axis-aligned tree of local stationary Matérn/Wendland GPs, BIC-gated splits, hierarchical recombination of closed-form integral functionals) and empirical (gains on nonstationary Genz Corner Peak / reaction-diffusion / SIR ridge; parity on stationary families). Integral estimates follow standard BQ formulas (Eqs. 5-6, 16-17) applied to local kernels whose hyperparameters are profile-ML fitted per leaf (standard practice, not a derivation of the integral). Ground truths are external (analytic Genz, fine-grid trapezoid, Genz-Malik reference). Theorem 1 / Corollary 2 are explicitly conditional on a fixed final tree and kernels and do not claim to cover adaptive construction or hyperparameter adaptation (§3.3, §7.1). No prediction reduces by construction to a fitted target; no uniqueness theorem or ansatz is imported via self-citation as a load-bearing premise; related-work citations (nested kriging, Genz-Malik, treed GPs) are properly scoped as analogues. The method is self-contained against independent benchmarks.

Assumptions & free parameters 6 free parameters · 4 assumptions · 2 invented entities

HBQ rests on standard GP/BQ mathematics plus several modeling and algorithmic choices that are not forced by first principles: axis-aligned tensor-product structure for closed-form embeddings, BIC as a Bayes-factor proxy, minimum leaf size 5d, log-normal child lengthscale prior, discrete Matérn order set, and IVR-style leaf scoring. The invented entity is the hierarchical recombination procedure itself. Free parameters are mostly discrete design choices and prior hyperparameters rather than continuous fits to the integral target.

free parameters (6)
  • BIC split penalty Δk (and optional multiplier in sensitivity)
    Controls when a split is accepted (Eq. 23); default Δk = 3 or d+2; sensitivity study sweeps 0.5×–4×. Directly gates tree growth.
  • Minimum points per child leaf (5d)
    Hard constraint to avoid unreliable hyperparameter fits; chosen by hand, not derived.
  • Child lengthscale log-normal prior variance σ²_prior and parent-anchored mean
    Regularizes short-data leaves (Eq. 24); prior strength is a design choice.
  • Root PC prior calibration P(ℓ < |Ω|/10) = 0.025
    Hand-calibrated PC prior on root lengthscale (Appendix B).
  • Candidate Matérn smoothness set {1/2, 3/2, 5/2}
    Discrete search space for ν; restricts expressivity of local models.
  • Refinement batch size / init grid density (e.g. Sobol +20, initdiv)
    Controls how many points are added per refine step and initial coverage; experiment-specific.
assumptions (4)
  • domain assumption Integrand is well modeled locally by zero-mean stationary Matérn/Wendland GPs with tensor-product structure on axis-aligned hyperrectangles so that kernel mean embeddings remain closed-form.
    §3.1 Kernel choice and Domain choice; required for the closed-form BQ appeal of the method.
  • ad hoc to paper BIC difference approximates the Bayes factor for split vs no-split well enough at small per-leaf N to control false splits.
    §4.1 explicitly replaces intractable marginalization by BIC; sensitivity study supports robustness but does not prove approximation quality.
  • standard math Standard GP posterior and integral formulas (Eqs. 2–6) and Neumann-series expansion for tree conditioning (Theorem 1 proof).
    Background BQ/GP theory used throughout §2–3.
  • domain assumption Quasi-uniform leaf designs yield the classical Matérn BQ rates used in Corollary 2.
    Invoked from Kanagawa/Mahsereci–Karvonen theory; adaptive designs may only approximately satisfy quasi-uniformity.
invented entities (2)
  • Tree-conditioning recombination of leaf integral estimates
    purpose: Reintroduce cross-subdomain correlations by treating child integral estimates as noisy observations of parent linear functionals (Eqs. 15–17).
    Core algorithmic novelty; independent_evidence is empirical only (and ablation C.3 finds little difference vs independent sum on Genz).
  • HBQ adaptive loop (BIC split vs IVR refine on variance-reduction scores)
    purpose: Grow the partition and allocate evaluations without MCMC.
    Composition of known pieces into a quadrature-specific controller; validated by experiments, not by external theory of the full adaptive process.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Hierarchical Bayesian Quadrature." pith.science (2026). https://pith.science/paper/6QMYJY7K

@misc{pith2026260710793,
  author       = {Pith},
  title        = {Pith review of: Hierarchical Bayesian Quadrature},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6QMYJY7K}},
  note         = {Machine review of arXiv:2607.10793}
}
read the original abstract

Numerical integration is a cornerstone of various scientific computing applications, such as engineering simulations and model evidence computations in probabilistic machine learning. Bayesian Quadrature uses Gaussian process surrogates that explicitly encode structural assumptions about the integrand to obtain integral estimates with quantified uncertainty. These surrogates are predominantly based on stationary covariance functions, which results in model misspecification for integrands exhibiting nonstationary behavior. We tackle this issue through an adaptively growing, tree-based partition of the integration domain into local stationary models. Our method recombines the local integral estimates through a hierarchy of GP conditioning that reintroduces cross-subdomain correlations, while model selection criteria control the tree growth to avoid unnecessary partitioning. The resulting algorithm is simple, requires no MCMC, and adapts its evaluation budget to local integrand complexity. On benchmark integration problems and a model evidence computation for an epidemiological model, Hierarchical Bayesian Quadrature achieves substantial gains over standard Bayesian Quadrature on nonstationary integrands while matching its performance on stationary ones.

Figures

Figures reproduced from arXiv: 2607.10793 by the authors.

Figure 1
Figure 1. Adaptive budget allocation for model evidence computation. We consider an SIR epidemiological model with infection rate β and recovery rate γ; each evaluation requires solving an ODE system. The integrand (normalized likelihood times prior) exhibits a curved ridge due to the β/γ correlation. (a) BQ with N = 150 Sobol points: uniform coverage regardless of local complexity. (b) HBQ with N = 150: adaptive partitioning… view at source ↗
Figure 2
Figure 2. HBQ decomposes the domain into subdomains via [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

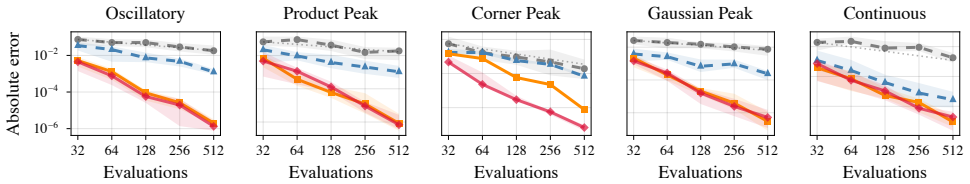

Figure 3. Convergence on the Genz test function suite (d = 2, difficulty C = 9, 20 trials). Lines show median absolute error; shaded regions indicate the interquartile range. The dotted line shows the N −1/2 Monte Carlo reference rate. HBQ matches BQ on four families and substantially outperforms it on Corner Peak, where spatially varying complexity rewards adaptive partitioning. MC and QMC shown for reference. f(x) −2.5 0.0 … view at source ↗
Figures from the paper (7 more)
Figure 5
Figure 5. Figure 5: QQ plot of z-scores against N (0, 1) over 200 trials on the piecewise integrand. Both BQ (orange) and HBQ (red) track the diagonal well. HBQ has four outliers (triangles) attributable to imprecise split placement at sharp smoothness transitions. Ground-truth integrals …
Figure 4
Figure 4. Figure 4: GP posterior fits on a piecewise integrand. The integrand is sampled from a piecewise Matérn GP with narrow rough edges (Matérn-1/2, ℓ = 0.02) and a wide smooth center (Matérn-5/2, ℓ = 0.1); true boundaries are shown as dashed red lines. (a) BQ fits a single stationary…
Figure 6
Figure 6. Figure 6: Convergence on 1D reaction–diffusion PDE integrands. HBQ separates from BQ at N = 64 and reaches 35× lower error at N = 512. providing a theoretical foundation for the adaptive strat￾egy. The structure recovery experiment confirms that HBQ can identify piecewise-statio…
Figure 7
Figure 7. Figure 7: Higher-dimensional Genz benchmark (d = 3). Median absolute error (interquartile bands) versus the number of function evaluations on the Corner Peak and Product Peak families (10 random instances each). HBQ retains its advantage over BQ at d = 3, while MC and QMC are on…
Figure 8
Figure 8. Figure 8: Wall-clock cost versus accuracy. Median absolute error against median wall-clock on Genz Corner Peak (d = 2, 10 instances) with a 50 ms delay injected per evaluation. Because the evaluation cost dominates, all methods share essentially the same wall-clock at each budge…
Figure 9
Figure 9. Figure 9: Tree conditioning versus independent sum. Convergence under the two recombination modes on Genz Corner Peak and Product Peak (d = 2, 20 instances). The two modes coincide to within 0.05% in both median absolute error and posterior standard deviation across all budgets.…
Figure 10
Figure 10. Figure 10: BIC threshold sensitivity. (a) Structure-recovery rate over the BIC penalty multiplier and evaluation budget (1200 trials). (b) Over- and under-split rates at N = 100. The over-split rate is 0% throughout; the only failure mode is conservative under-splitting at the m…

Discussion (0). Sign in to comment.

Reference graph

Works this paper leans on

36 extracted references · 3 canonical work pages

  1. [1]

    Adachi, S

    M. Adachi, S. Hayakawa, M. J rgensen, H. Oberhauser, and M. A. Osborne. Fast B ayesian inference with batch B ayesian quadrature via kernel recombination. In Advances in Neural Information Processing Systems, volume 35, pages 16533--16547, 2022

  2. [2]

    Berntsen, T

    J. Berntsen, T. O. Espelid, and A. Genz. Algorithm 698: DCUHRE : An adaptive multidemensional integration routine for a vector of integrals. ACM Transactions on Mathematical Software, 17 0 (4): 0 452--456, 1991

  3. [3]

    Briol, C

    F.-X. Briol, C. Oates, M. Girolami, and M. A. Osborne. F rank- W olfe B ayesian quadrature: Probabilistic integration with theoretical guarantees. In Advances in Neural Information Processing Systems , volume 28, pages 1162--1170, 2015

  4. [4]

    Briol, C

    F.-X. Briol, C. J. Oates, M. Girolami, M. A. Osborne, and D. Sejdinovic. Probabilistic integration: A role in statistical computation? (with discussion and rejoinder). Statistical Science, 34 0 (1): 0 1--22, 2019

  5. [5]

    Briol, A

    F.-X. Briol, A. Gessner, T. Karvonen, and M. Mahsereci. A dictionary of closed-form kernel mean embeddings. In Proceedings of the 1st International Conference on Probabilistic Numerics, volume 271 of PMLR, pages 84--95, 2025

  6. [6]

    P. J. Davis and P. Rabinowitz. Methods of Numerical Integration. Computer Science and Applied Mathematics. Academic Press, 2nd edition, 1984

  7. [7]

    Deisenroth and J

    M. Deisenroth and J. W. Ng. Distributed G aussian processes. In Proceedings of the 32nd International Conference on Machine Learning , volume 37 of PMLR, pages 1481--1490, 2015

  8. [8]

    J. Dick, F. Y. Kuo, and I. H. Sloan. High-dimensional integration: The quasi- M onte C arlo way. Acta Numerica, 22: 0 133--288, 2013

Show all 36 references
  1. [9]

    Scalable global optimization via local Bayesian optimization

    David Eriksson, Michael Pearce, Jacob Gardner, Ryan D Turner, and Matthias Poloczek. Scalable global optimization via local Bayesian optimization. In Advances in Neural Information Processing Systems, pages 5496--5507, 2019

  2. [10]

    Evans and T

    M. Evans and T. Swartz. Approximating Integrals via Monte Carlo and Deterministic Methods . Oxford University Press, 2000

  3. [11]

    Fuglstad, D

    G.-A. Fuglstad, D. Simpson, F. Lindgren, and H. Rue. Constructing priors that penalize the complexity of G aussian random fields. Journal of the American Statistical Association, 114 0 (525): 0 445--452, 2019

  4. [12]

    A. Genz. Testing multidimensional integration routines. In Proceedings of International Conference on Tools , Methods and Languages for Scientific and Engineering Computation , pages 81--94. Elsevier North-Holland, 1984

  5. [13]

    A. C. Genz and A. A. Malik. Remarks on algorithm 006: An adaptive algorithm for numerical integration over an N -dimensional rectangular region. Journal of Computational and Applied Mathematics, 6 0 (4): 0 295--302, 1980

  6. [14]

    M. N. Gibbs. B ayesian G aussian Processes for Regression and Classification . PhD thesis, University of Cambridge, 1997

  7. [15]

    R. B. Gramacy and H. K. H. Lee. B ayesian treed G aussian process models with an application to computer modeling. Journal of the American Statistical Association, 103 0 (483): 0 1119--1130, 2008

  8. [16]

    A simple method for comparing complex models: Bayesian model comparison for hierarchical multinomial processing tree models using warp-iii bridge sampling

    Quentin Gronau, Eric-Jan Wagenmakers, Daniel Heck, and Dora Matzke. A simple method for comparing complex models: Bayesian model comparison for hierarchical multinomial processing tree models using warp-iii bridge sampling. Psychometrika, 84 0 (1): 0 261--284, 2019. doi:10.100...

  9. [17]

    Gunter, M

    T. Gunter, M. A. Osborne, R. Garnett, P. Hennig, and S. J. Roberts. Sampling for inference in probabilistic models with fast B ayesian quadrature. In Advances in Neural Information Processing Systems , volume 27, pages 2789--2797, 2014

  10. [18]

    Hennig, M

    P. Hennig, M. A. Osborne, and M. Girolami. Probabilistic numerics and uncertainty in computations. Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, 471 0 (2179): 0 20150142, 2015

  11. [19]

    Hennig, M

    P. Hennig, M. A. Osborne, and H. P. Kersting. Probabilistic Numerics: Computation as Machine Learning. Cambridge University Press, 2022

  12. [20]

    Max Hinne, David Leeftink, Marcel A. J. van Gerven, and Luca Ambrogioni. Bayesian model averaging for nonparametric discontinuity design. PLOS ONE, 17 0 (6): 0 e0270310, 2022. doi:10.1371/journal.pone.0270310

  13. [21]

    Kanagawa and P

    M. Kanagawa and P. Hennig. Convergence guarantees for adaptive B ayesian quadrature methods. In Advances in Neural Information Processing Systems, volume 32, pages 6237--6248, 2019

  14. [22]

    Kanagawa, B

    M. Kanagawa, B. K. Sriperumbudur, and K. Fukumizu. Convergence analysis of deterministic kernel-based quadrature rules in misspecified settings. Foundations of Computational Mathematics, 20 0 (1): 0 155--194, 2020

  15. [23]

    K. Li, D. Giles, T. Karvonen, S. Guillas, and F.-X. Briol. Multilevel B ayesian quadrature. In Proceedings of the 26th International Conference on Artificial Intelligence and Statistics, volume 206 of PMLR, pages 1845--1868, 2023

  16. [24]

    Mahsereci and T

    M. Mahsereci and T. Karvonen. B ayesian quadrature: G aussian processes for integration. arXiv:2602.16218v1, 2026

  17. [25]

    Irons, Pierre Latouche, and Adrian E

    Martin Metodiev, Marie Perrot-Dock \`e s, Sarah Ouadah, Nicholas J. Irons, Pierre Latouche, and Adrian E. Raftery. Easily Computed Marginal Likelihoods from Posterior Simulation Using the THAMES Estimator . Bayesian Analysis, 20 0 (3): 0 1003 -- 1030, 2025. doi:10.1214/24-BA1422

  18. [26]

    A. O'Hagan. Bayes-- Hermite quadrature. Journal of Statistical Planning and Inference, 29 0 (3): 0 245--260, 1991

  19. [27]

    M. A. Osborne, D. Duvenaud, R. Garnett, C. E. Rasmussen, S. J. Roberts, and Z. Ghahramani. Active learning of model evidence using B ayesian quadrature. In Advances in Neural Information Processing Systems, volume 25, pages 46--54, 2012

  20. [28]

    Paciorek and M

    C. Paciorek and M. Schervish. Nonstationary covariance functions for G aussian process regression. In Advances in Neural Information Processing Systems , volume 16, 2003

  21. [29]

    Park and D

    C. Park and D. Apley. Patchwork kriging for large-scale G aussian process regression. Journal of Machine Learning Research, 19 0 (7): 0 1--43, 2018

  22. [30]

    Pf \"o rtner, I

    M. Pf \"o rtner, I. Steinwart, P. Hennig, and J. Wenger. Physics-informed G aussian process regression generalizes linear PDE solvers. arXiv:2212.12474v6, 2024

  23. [31]

    C. E. Rasmussen and C. K. I. Williams. Gaussian Processes for Machine Learning. MIT Press, 2006

  24. [32]

    Remes, M

    S. Remes, M. Heinonen, and S. Kaski. Non-stationary spectral kernels. In Advances in Neural Information Processing Systems , volume 30, 2017

  25. [33]

    Rulli \`e re, N

    D. Rulli \`e re, N. Durrande, F. Bachoc, and C. Chevalier. Nested Kriging predictions for datasets with a large number of observations. Statistics and Computing, 28 0 (4): 0 849--867, 2018

  26. [34]

    G. Schwarz. Estimating the dimension of a model. The Annals of Statistics, 6 0 (2): 0 461--464, 1978

  27. [35]

    V. Tresp. A B ayesian committee machine. Neural Computation, 12 0 (11): 0 2719--2741, 2000

  28. [36]

    H. Zhu, X. Liu, R. Kang, Z. Shen, S. Flaxman, and F.-X. Briol. Bayesian probabilistic numerical integration with tree-based models. In Advances in Neural Information Processing Systems , volume 33, pages 5837--5849, 2020
