Evaluating Superconductors through Current Induced Depairing

Pith reviewed 2026-05-25 12:01 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con
keywords pairbreakingdepairsing current densitysuperconductivityvortexcritical currentpulsed measurementtopological insulatorroom-temperature superconductivity
0
0 comments X

The pith

The depairing current density Jd defines a boundary between superconducting and normal states with the same fundamental weight as Tc and Bc2.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This review establishes that the depairing current density Jd deserves equal status with the critical temperature Tc and upper critical field Bc2 because it marks where current alone drives the system into the normal state. The paper reviews the theory of current-induced pair breaking and explains why Jd measurements have been rare: the required current densities are extremely high. It presents the fast-pulsed current technique as the practical way to reach these densities and extract information on superfluid density and the character of the normal state that exists below Tc. The method is then applied to an interfacial superconductor formed between a topological insulator and a chalcogenide, showing how Jd data illuminate properties of newly discovered materials. A sympathetic reader would see this as completing the set of three principal parameters that locate superconductivity in phase space.

Core claim

The phenomenon of superconductivity occurs in the phase space of three principal parameters: temperature T, magnetic field B, and current density Jd. A seldom-measured parameter, the depairing current density Jd, holds the same fundamental importance as Tc and Bc2, in that it defines a boundary between the superconducting and normal states. A study of Jd sheds unique light on other important characteristics of the superconducting state such as the superfluid density and the nature of the normal state below Tc.

What carries the argument

The depairing current density Jd, the intrinsic current density at which the supercurrent itself breaks Cooper pairs and thereby ends the superconducting state.

If this is right

  • Jd measurements supply information on superfluid density and the normal state below Tc that cannot be obtained from Tc or Bc2 alone.
  • The fast-pulsed technique makes Jd accessible despite its high values, allowing evaluation of new materials on a fuller set of intrinsic parameters.
  • Application to interfacial systems such as topological-insulator/chalcogenide structures demonstrates how Jd data can characterize complex superconducting interfaces.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If Jd were measured routinely alongside Tc and Bc2, comparisons across material families could become more systematic and might highlight candidates for higher-performance superconductivity.
  • Extending the pulsed approach to additional classes of materials could test whether Jd correlates with other properties that currently lack direct experimental links.

Load-bearing premise

The fast-pulsed current technique reaches the true depairing limit without heating or vortex motion creating resistance before pair breaking occurs.

What would settle it

A measurement in which resistance appears at a current density lower than the calculated Jd and can be traced to sample heating or vortex motion rather than pair breaking would show the technique does not isolate the depairing boundary.

Figures

Figures reproduced from arXiv: 1907.00427 by Milind N. Kunchur.

Figure 1

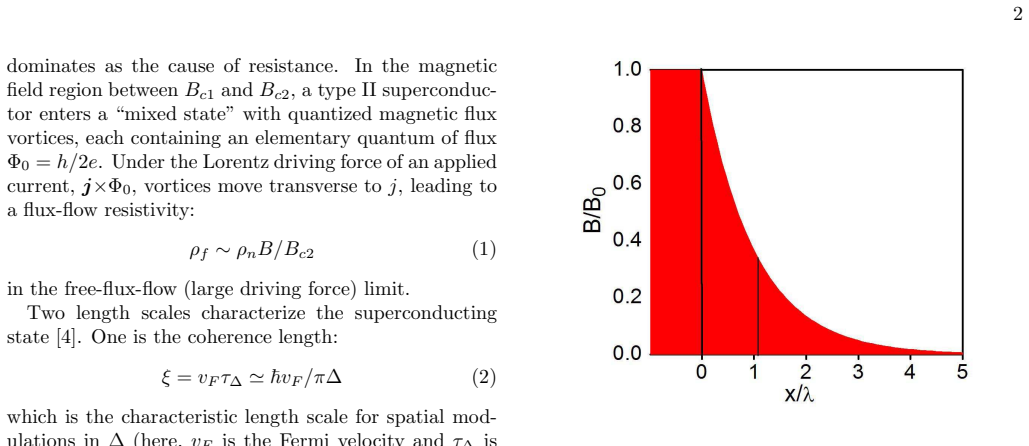

Figure 1. Figure 1: FIG. 1: An externally-applied magnetic field [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

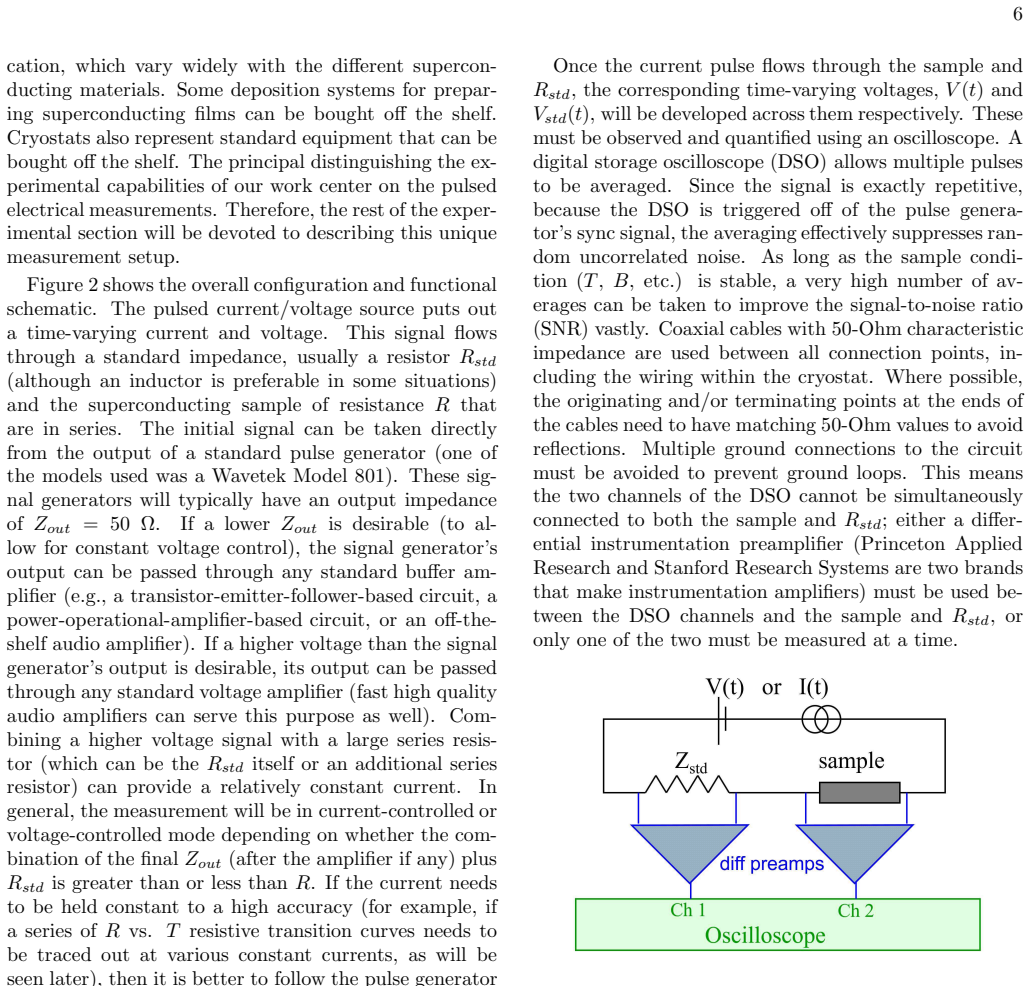

Figure 2. Figure 2: FIG. 2: The overall configuration and functional schematic [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 4

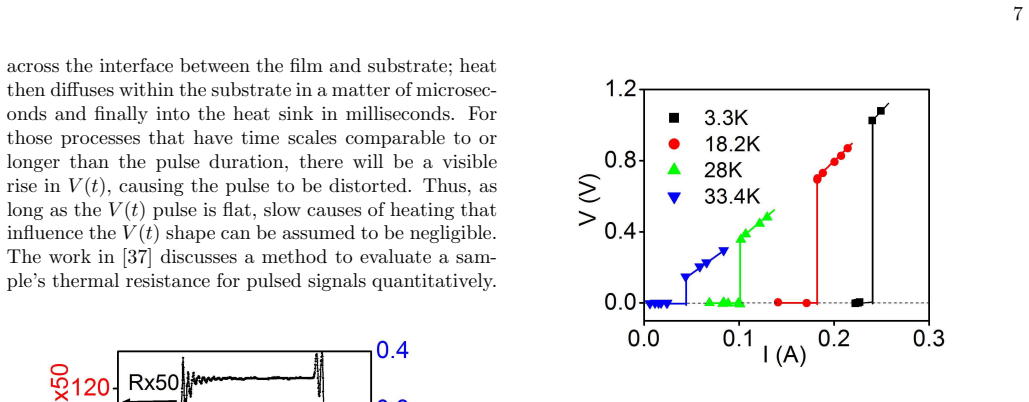

Figure 4. Figure 4: shows an example [26] of a set of IV curves at various fixed temperatures (in zero magnetic field), where each data point represents a pulsed measurement (plateau values) as described above. As the temperature is increased, jd is reduced, and hence, the “jump” occurs at a lower value of I. Notice that the resistance (the V/I slope) jumps from zero (dissipationless superconducting state) to a constant finit… view at source ↗
Figure 3

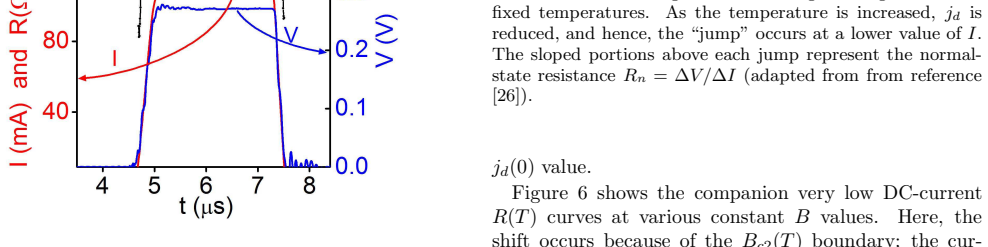

Figure 3. Figure 3: FIG. 3: The measured oscilloscope traces of the sample volt [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 6

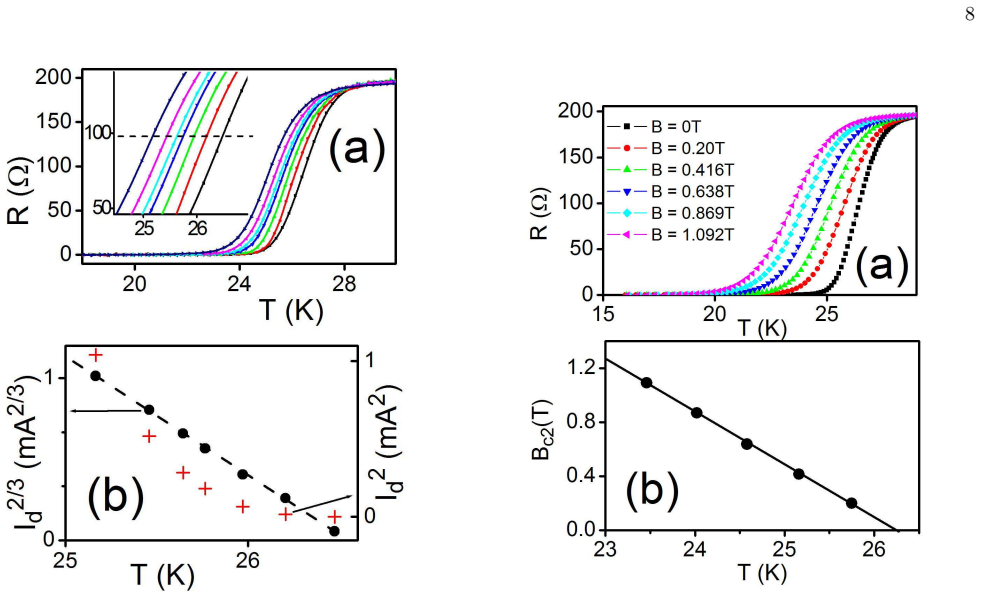

Figure 6. Figure 6: FIG. 6: ( [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
Figure 7

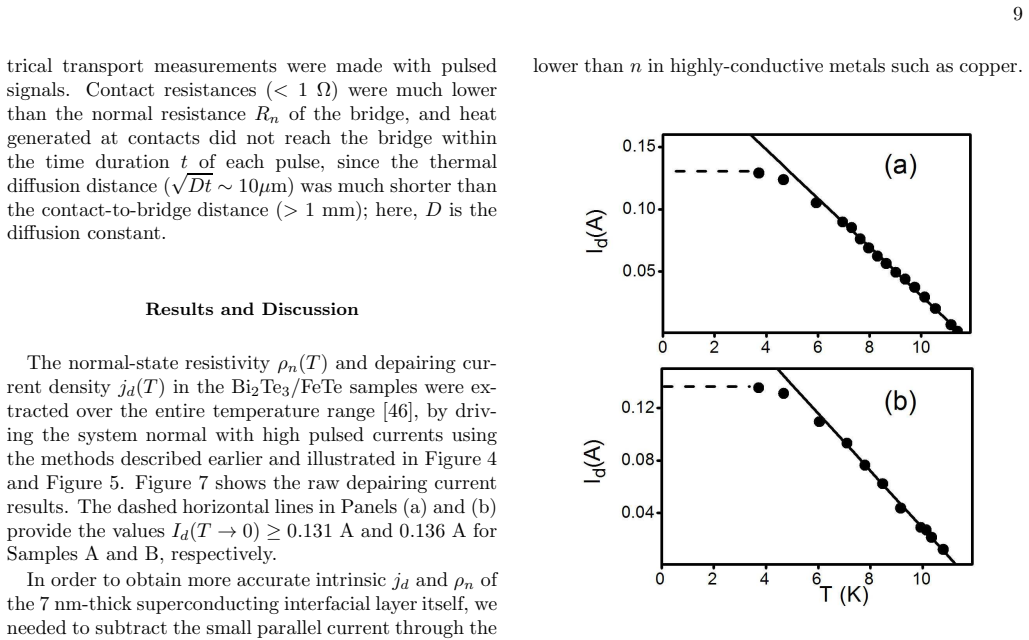

Figure 7. Figure 7: FIG. 7: Raw depairing current versus temperature for [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8

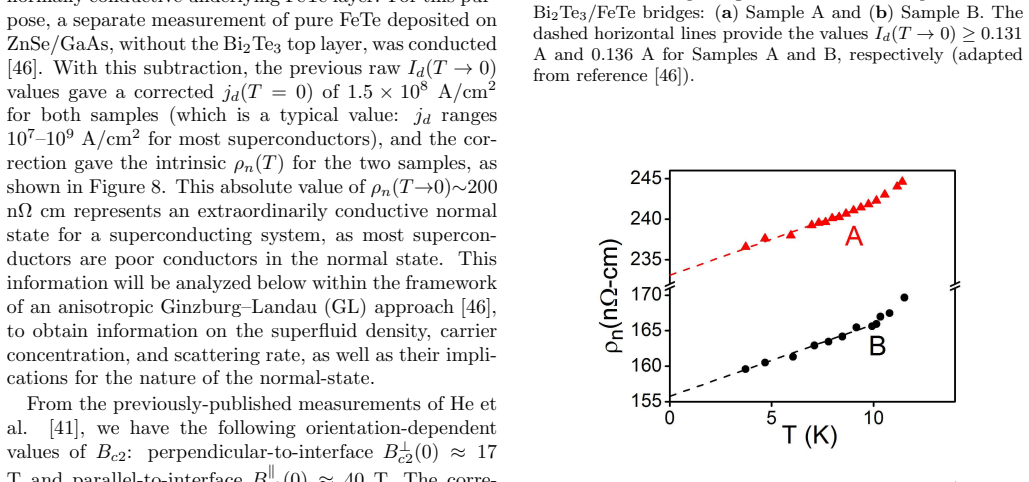

Figure 8. Figure 8: FIG. 8: Intrinsic normal-state resistivity of Bi [PITH_FULL_IMAGE:figures/full_fig_p009_8.png] view at source ↗
read the original abstract

The phenomenon of superconductivity occurs in the phase space of three principal parameters: temperature T, magnetic field B, and current density Jd . The critical temperature Tc is one of the first parameters that is measured and in a certain way defines the superconductor. From the practical applications point of view, of equal importance is the upper critical magnetic field Bc2 and conventional critical current density Jc (above which the system begins to show resistance without entering the normal state). However, a seldom-measured parameter, the depairing current density Jd , holds the same fundamental importance as Tc and Bc2, in that it defines a boundary between the superconducting and normal states. A study of Jd sheds unique light on other important characteristics of the superconducting state such as the superfluid density and the nature of the normal state below Tc, information that can play a key role in better understanding newly-discovered superconducting materials. From a measurement perspective, the extremely high values of Jd make it difficult to measure, which is the reason why it is seldom measured. Here, we will review the fundamentals of current-induced depairing and the fast-pulsed current technique that facilitates its measurement and discuss the results of its application to the topological-insulator/chalcogenide interfacial superconducting system. Keywords: pairbreaking, pair-breaking, vortex, vortices, theory, tutorial, RTS, room-temperature supeconductivity

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript reviews the fundamentals of current-induced depairing, arguing that the depairing current density Jd defines a boundary between superconducting and normal states with the same fundamental importance as Tc and Bc2. It covers the theory of pair-breaking, describes the fast-pulsed current technique to overcome the difficulty of measuring high Jd values, and discusses application of the technique to results from a topological-insulator/chalcogenide interfacial superconducting system.

Significance. If the fast-pulsed technique is validated to reach the intrinsic pair-breaking limit without artifacts, the review would usefully compile methods and insights on a parameter that can inform superfluid density and the normal state in newly discovered superconductors, including interfacial systems.

major comments (1)
  1. [application to the topological-insulator/chalcogenide interfacial superconducting system] The central claim that Jd holds equivalent fundamental status to Tc and Bc2 requires that measured values are the intrinsic depairing current rather than extrinsic. The discussion of the application to the topological-insulator/chalcogenide interfacial system does not address or exclude known risks of local heating, vortex motion, or geometry-dependent effects at high current densities that could prevent the fast-pulsed method from isolating the true pair-breaking limit.
minor comments (1)
  1. [Keywords] The keyword list contains the apparent typographical error 'supeconductivity'.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful review and constructive feedback on our manuscript. We address the single major comment below and outline the revisions we will make.

read point-by-point responses
  1. Referee: [application to the topological-insulator/chalcogenide interfacial superconducting system] The central claim that Jd holds equivalent fundamental status to Tc and Bc2 requires that measured values are the intrinsic depairing current rather than extrinsic. The discussion of the application to the topological-insulator/chalcogenide interfacial system does not address or exclude known risks of local heating, vortex motion, or geometry-dependent effects at high current densities that could prevent the fast-pulsed method from isolating the true pair-breaking limit.

    Authors: We agree that explicit validation against artifacts is necessary to support the claim that measured Jd values are intrinsic. The manuscript reviews the design of the fast-pulsed technique specifically to suppress Joule heating via short pulse durations and discusses its application to the TI/chalcogenide interface as an illustrative case. However, the section on this system does not contain a dedicated paragraph addressing the listed risks. In revision we will add a concise subsection that (i) quantifies the expected temperature rise from the pulse parameters used, (ii) notes the lack of flux-flow voltage signatures in the raw traces, and (iii) describes the lateral geometry and current distribution in the interfacial films. These additions will directly respond to the referee’s concern without altering the overall scope of the review. revision: yes

Circularity Check

0 steps flagged

No circularity: review of established depairing concepts without self-referential derivations

full rationale

The manuscript is a review/tutorial on current-induced depairing and the fast-pulsed measurement technique applied to an interfacial superconductor. It states that Jd defines a boundary between superconducting and normal states (standard in the field) but presents no equations, predictions, or first-principles derivations that reduce by construction to fitted inputs, self-citations, or renamed empirical patterns. The central claim equates Jd's importance to Tc and Bc2 on physical grounds rather than through any load-bearing self-citation chain or ansatz smuggled via prior work. No uniqueness theorems or parameter fits are invoked in a manner that forces the result. The paper is therefore self-contained against external benchmarks in superconductivity theory.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract introduces no new free parameters, axioms, or invented entities; it references standard superconductivity parameters and an established measurement approach.
