A Framework of Near-Field Communication with Different Array Geometries: Analysis, Optimization, and General Channel Estimation Algorithms Based on Deep Learning

Kangda Zhi , Yi Song , Tianyu Yang , Tuo Wu , Tengjiao Wang , Songyan Xue , Fangzhou Wu , Giuseppe Caire This is my paper

Pith reviewed 2026-05-19 21:57 UTC · model grok-4.3

classification 📡 eess.SP
keywords near-field communicationXL-MIMOarray geometrychannel estimationdeep learninghybrid precodingspatial non-stationaritycompressed sensing
0
0 comments X

The pith

Curved array geometries extend the near-field region in XL-MIMO while a general deep-learning estimator recovers the resulting channels for rate optimization.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a framework for near-field communication in extremely large MIMO systems that incorporates different array geometries. It formulates spatially non-stationary channel models based on per-antenna distances for both planar and modular curved arrays, and demonstrates that increasing curvature while holding total antenna count and horizontal arc length fixed pushes the near-field boundary farther from the array for cell-edge users. The central technical contribution is a denoising autoencoder-aided approximated message passing algorithm that solves the compressed sensing channel estimation task for arbitrary geometries without relying on specific codebooks. The estimated channels then support joint optimization of array curvature and hybrid precoding to raise the sum rate across users.

Core claim

By fixing the total number of antennas and the horizontal arc length while varying curvature, the work shows that modular curved arrays enlarge the near-field region compared with planar arrays, and that the AE-AMP algorithm, which inserts a learned denoiser into approximated message passing, estimates the resulting non-stationary channels with robustness and generality across geometries, enabling measurable sum-rate gains when geometry and precoding are designed together.

What carries the argument

The denoising autoencoder-aided approximated message passing (AE-AMP) algorithm, which learns a regularizer to solve the compressed sensing problem for channel estimation under arbitrary array geometries and arbitrary-field channels.

If this is right

  • Increasing array curvature extends the near-field region for cell-edge users without adding antennas or widening the horizontal span.
  • The AE-AMP estimator recovers spatial non-stationary near-field channels more robustly than conventional or other deep-learning benchmarks.
  • Joint design of modular array geometry and hybrid precoding raises achievable sum user rates when the estimated channels are used.
  • The estimation approach applies to arbitrary array geometries and arbitrary-field channels without requiring geometry-specific codebooks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Future XL-MIMO base stations could adopt curved surfaces to improve coverage in regions where near-field propagation dominates.
  • The general compressed-sensing formulation with learned regularizer could be transferred to other spatially non-stationary channel models such as those arising at terahertz frequencies.
  • Hardware implementations would need to weigh the added complexity of modular curved surfaces against the reported rate improvements.

Load-bearing premise

Fixing total antenna count and horizontal arc length while varying curvature isolates the pure geometric effect without confounding changes in aperture or element spacing.

What would settle it

A measurement campaign that directly compares the distance at which spherical-wave effects dominate for planar versus modular curved arrays of identical antenna count and arc length would confirm or refute the claimed extension of the near-field region.

Figures

Figures reproduced from arXiv: 2605.17690 by Fangzhou Wu, Giuseppe Caire, Kangda Zhi, Songyan Xue, Tengjiao Wang, Tianyu Yang, Tuo Wu, Yi Song.

Figure 1
Figure 1. Figure 1: Illustration of the considered sub-connected XL-MIMO system. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: The change of array curvature angle θ given fixed curve length L. have a much larger number of antennas than linear/planar arrays. Meanwhile, the complete circular/cylindrical array does not enable the investigation of the impact of array curvature on adjusting near-field region. Thus, we will fix the number of antennas (i.e., arc length) and model the change of array cur￾vature for fair comparisons betwee… view at source ↗
Figure 3

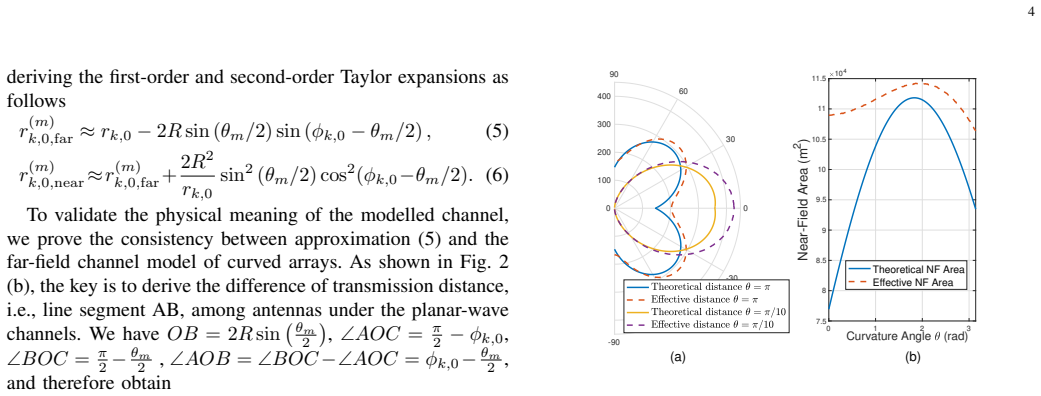

Figure 3. Figure 3: The impact of array curvature on (a) theoretical and effective Rayleigh [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

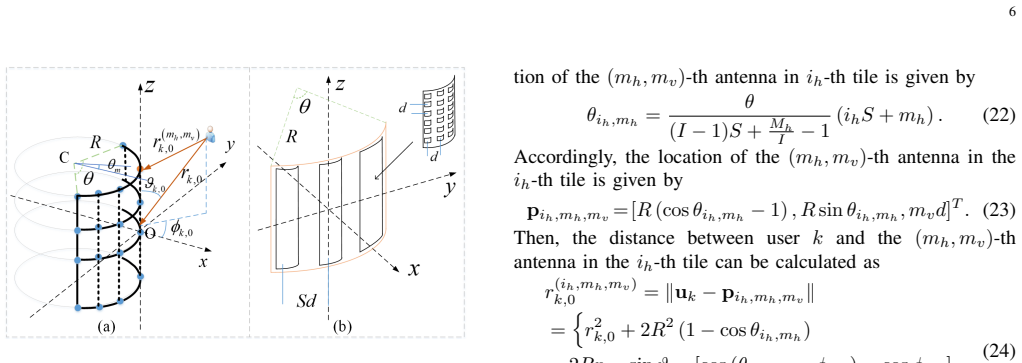

Figure 4. Figure 4: The 3D curved array: (a) uniform cylindrical array; (b) modular [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

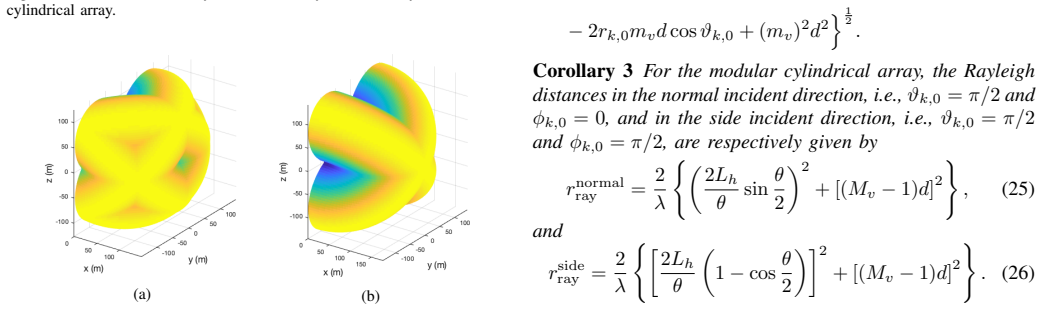

Figure 5. Figure 5: Near-field boundaries in the 3D space: (a) uniform cylindrical array [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

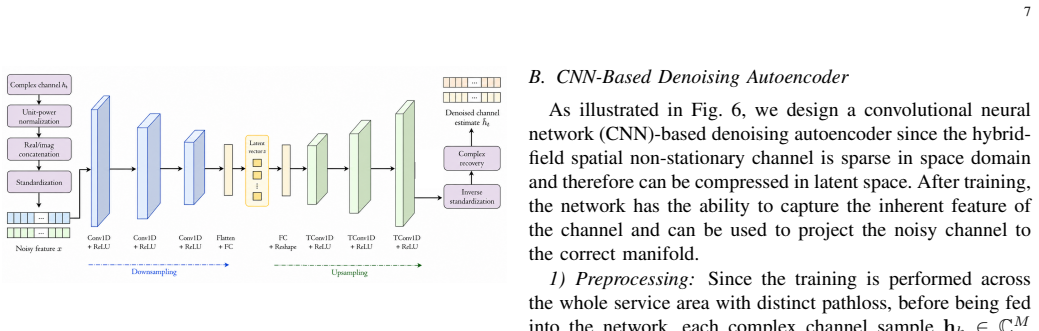

Figure 6. Figure 6: Illustration of the considered denosing AE network. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

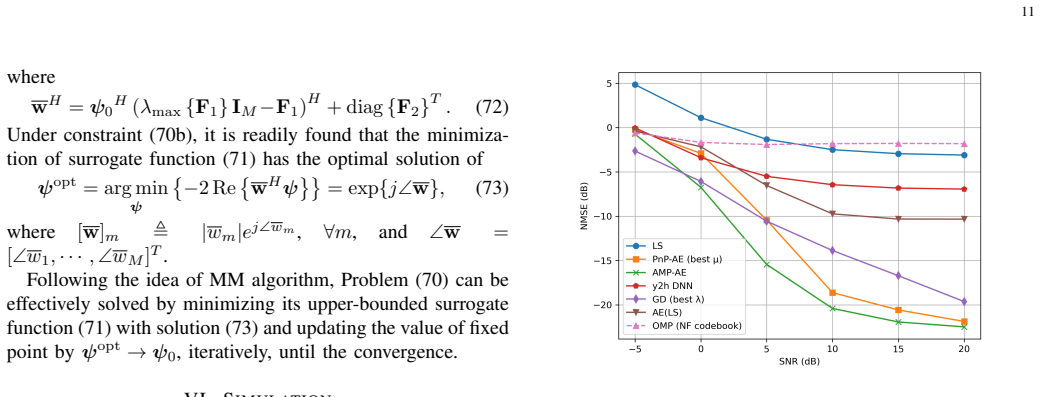

Figure 7. Figure 7: NMSE performance versus uplink SNRs [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Correlation coefficient between estimated and true channels. [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Comparisons with state evolution and replica bound. [PITH_FULL_IMAGE:figures/full_fig_p012_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Heatmap of sum data rates for users located in different M [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: NMSE performance for estimating channels of UPA and MCA. [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Rate comparison between UPA and MCA with estimated channels. [PITH_FULL_IMAGE:figures/full_fig_p013_12.png] view at source ↗
read the original abstract

This work establishes a framework of near-field communication under different array geometries of extremely large-scale multiple-input multiple-output (XL-MIMO). We first formulate the near-field spatial non-stationary channel model which is characterized by the distance between the user and each antenna on uniform and modular curved arrays. By fixing the total number of antennas while varying the degree of curvature, we investigate a fair case where the horizontal arc length of the curved array is the same as the planar array. We explicitly unveil the non-trivial impact of array curvature on extending the near-field region for cell edges. Then, for arbitrary array geometries and arbitrary-field channels, we estimate the spatial-domain channel by tackling a compressed sensing problem with a learned regularizer. Without relying on specific codebooks, we propose a denoising autoencoder (AE)-aided approximated message passing (AMP) algorithm and provide the corresponding theoretical replica bound. Finally, based on the estimated channel, we propose an optimization algorithm to maximize the sum user rate for sub-connected XL-MIMO systems by jointly designing the array geometry and hybrid precoding in the downlink. Numerical results demonstrate that the proposed AE-AMP algorithm can effectively estimate the spatial non-stationary near-field channels with robustness and generalities compared to several conventional and deep-learning-based benchmarks. The improvement of data rate by using modular curved arrays with the estimated channel is also validated.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper establishes a framework for near-field XL-MIMO communications across array geometries, including uniform planar and modular curved arrays. It formulates a spatial non-stationary channel model using per-antenna distances, proposes a denoising autoencoder-aided approximated message passing (AE-AMP) algorithm for general compressed-sensing channel estimation together with a replica bound, and develops a joint optimization of array geometry and hybrid precoding to maximize downlink sum rates in sub-connected systems. Numerical results claim superior estimation robustness and rate gains for curved arrays relative to planar baselines and other benchmarks.

Significance. If the central claims hold, the work supplies a geometry-agnostic estimation procedure backed by a theoretical replica bound and a practical optimization routine for hybrid precoding under near-field conditions. The AE-AMP algorithm's generality across array curvatures and the explicit replica bound constitute clear technical strengths that could support reproducible follow-on studies.

major comments (1)
  1. [Channel formulation and numerical setup] Channel formulation and numerical setup: the comparison that fixes total antenna count N and horizontal arc length while varying curvature does not control for the concomitant shortening of chord length and projected aperture. Because curvature alters the effective horizontal span and the distribution of user-to-element distances independently of the intended spherical-wave non-stationarity, the reported sum-rate improvement cannot be unambiguously attributed to the geometric effect the framework claims to isolate. An ablation that restores equivalent chord length or reports effective aperture metrics is required to substantiate the central rate-gain claim.
minor comments (2)
  1. [Abstract] The abstract states that the AE-AMP algorithm is compared against 'several conventional and deep-learning-based benchmarks' but does not name them; listing the specific baselines in the abstract would improve immediate readability.
  2. [Channel estimation section] Notation for the replica bound is introduced without an explicit statement of the underlying assumptions (e.g., large-system limit, i.i.d. entries) in the main text; a short clarifying sentence would help readers assess its applicability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address the major comment below and agree that additional analysis will strengthen the central claims. We will incorporate the suggested ablation and metrics in the revised manuscript.

read point-by-point responses

  1. Referee: Channel formulation and numerical setup: the comparison that fixes total antenna count N and horizontal arc length while varying curvature does not control for the concomitant shortening of chord length and projected aperture. Because curvature alters the effective horizontal span and the distribution of user-to-element distances independently of the intended spherical-wave non-stationarity, the reported sum-rate improvement cannot be unambiguously attributed to the geometric effect the framework claims to isolate. An ablation that restores equivalent chord length or reports effective aperture metrics is required to substantiate the central rate-gain claim.

    Authors: We thank the referee for highlighting this subtlety in our experimental design. Our decision to fix both N and the horizontal arc length was intended to provide a fair comparison for modular curved arrays, where the total physical length of the modules along the curve is held constant (reflecting practical deployment constraints on module size). We acknowledge, however, that increasing curvature necessarily reduces the chord length and projected aperture, which in turn affects the distribution of user-to-element distances. This geometric change is partly inseparable from the near-field spherical-wave effects we aim to study. To address the concern directly and strengthen the attribution of rate gains, we will add an ablation study in the revised manuscript. In this ablation we will compare configurations with matched chord lengths (by adjusting arc length as curvature varies) and will explicitly report effective aperture metrics such as the projected horizontal span for each geometry. These additions will help isolate the contribution of spatial non-stationarity from aperture variation. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper formulates a near-field channel model for different array geometries, proposes an AE-AMP algorithm for general compressed-sensing channel estimation with a replica bound, and validates performance numerically against external benchmarks. The replica bound is derived as theoretical analysis for the AMP iteration and does not reduce to a fitted parameter or self-referential input by construction. Training the autoencoder on simulated channels drawn from the stated model is standard supervised learning practice and does not equate the reported estimation accuracy or rate gains to the training data itself. The fixed-N and fixed-arc-length modeling choice is an explicit assumption for isolating curvature effects rather than a definitional loop. No load-bearing step collapses to a self-citation chain, ansatz smuggling, or renaming of known results; the central claims remain independently testable against the provided benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claims rest on the spatial non-stationary channel model being an accurate description of real propagation, on the training distribution of the autoencoder matching deployment channels, and on the fixed-arc-length comparison being a fair isolation of curvature effects.

free parameters (2)
  • degree of curvature
    Varied while keeping total antennas and horizontal arc length fixed; chosen to study geometric impact.
  • number of users and antennas
    Fixed in the fair comparison and numerical experiments; values are simulation parameters.
axioms (1)
  • domain assumption The near-field channel is fully characterized by per-antenna distances on uniform and modular curved arrays.
    Invoked in the first modeling step of the abstract.
