Beyond Single-Channel: Multichannel Signal Imaging for PPG-to-ECG Reconstruction with Vision Transformers

T0 review · 5 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Pulse-signal images cut ECG reconstruction error by up to 29%

desk verdict A genuinely new four-channel image representation for PPG-to-ECG with useful clinical metrics, but the headline gains lean on ECG-derived beat boundaries that a real PPG-only system won't have. read the letter →

arxiv 2505.21767 v2 pith:76EAN5V4 submitted 2025-05-27 eess.IV cs.LGeess.SP

Xiaoyan Li , Shixin Xu , Faisal Habib , Arvind Gupta , Huaxiong Huang This is my paper · ORCID
classification eess.IVcs.LGeess.SP
keywords PPG-to-ECGreconstructionphotoplethysmographyVisionTransformermulti-channelsignalimagebeat-alignedpaddingelectrocardiogramQRSareaerrorimaging
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper sets out to show that ECG waveforms can be reconstructed from a pulse signal more faithfully when the photoplethysmogram (PPG) is converted into a four-channel, beat-aligned image rather than treated as a flat one-dimensional time series. The image stacks successive cardiac cycles as rows, aligned at R peaks and padded with values from the following beat, with the four channels carrying the raw signal, its first-order difference, its second-order difference, and its cumulative area under the curve. A Vision Transformer encoder-decoder then learns both the shape of individual beats and how beats change across cycles. In leave-one-out experiments on two public paired PPG-ECG datasets, the method is reported to reduce PRD by up to 29% and RMSE by 15% relative to a 1D convolution baseline, and to improve clinically oriented measures such as QRS area error and PR/RT interval errors. If those results reproduce, PPG from wearables could become a more credible proxy for ECG features such as P waves, QRS complexes, and T waves that are normally visible only with electrodes.

What carries the argument

The central object is the four-channel signal image: a tensor of shape 16 beats by 128 samples by 4 channels, built by segmenting the signal into cardiac cycles at R peaks, padding each shorter cycle with values from the subsequent beat, and stacking the raw waveform, first-order difference, second-order difference, and cumulative area under the curve as separate channels. The Vision Transformer splits this image into small patches and treats each patch as a token; self-attention then relates patches across beats and across temporal positions, which is how the model captures both intra-beat morphology and inter-beat variability. Because each 2D patch can span several beats at the same phase of the cycle, the representation gives the attention mechanism something the paper shows a 1D patch-based transformer lacks: direct visual comparison of corresponding waveform segments across consecutive cardiac cycles. The total training loss adds a QRS complex-enhanced term that weights reconstruction errors near R peaks with a Gaussian, keeping the model focused on the most diagnostically critical part of the beat.

What would settle it

Take the trained model and rebuild the PPG input images using beats found by an automatic PPG peak detector while leaving the ECG only for evaluation, then recompute PRD, RMSE, and the four interval metrics on the same BIDMC and CapnoBase records; if the margin over CLEP-GAN disappears or reverses, the headline gain depends on ECG-derived beat alignment rather than on the image representation itself.

Watch

Extended reading notes

Core claim

The central claim is that representing PPG as a four-channel image—raw pulse, first-order difference, second-order difference, and cumulative area under the curve, arranged as beat-aligned rows—gives a Vision Transformer enough structure to reconstruct ECG waveforms, including small P and T waves, more accurately than existing 1D convolution approaches. On 30 low-noise records from each of two public datasets with leave-one-out validation, the paper reports PRD of 42.65 versus 71.43 for CLEP-GAN on BIDMC and 53.89 versus 81.04 on CapnoBase, RMSE of 0.253 versus 0.406 and 0.301 versus 0.399, and lower relative errors for PR interval, RT interval, and RT amplitude difference. The one reported exception is a slightly higher QRS area error on CapnoBase. Alongside these comparisons, the paper introduces four clinically motivated metrics—QRS area error, PR interval error, RT interval error, and RT amplitude difference—arguing that waveform reconstruction should be judged by whether diagnostically relevant intervals and amplitudes survive translation, not only by pointwise error.

Load-bearing premise

The load-bearing assumption is that the heartbeat boundaries used to line up the pulse-signal images can be found from the pulse signal alone as reliably as they are found from the paired ECG during training and evaluation, but the paper does not specify or test a pulse-only beat detector.

Editorial extensions

If this is right

  • If the reported numbers reproduce, a four-channel ViT encoder-decoder becomes the strongest PPG-to-ECG waveform reconstruction method on these two datasets, ahead of CLEP-GAN on PRD, RMSE, and most of the interval metrics.
  • The paper's comparison shows that beat-aligned padding with subsequent-beat values outperforms both zero-padding and direct reshaping, so the beat-stacking procedure itself is part of the claimed gain.
  • Adding the four clinical metrics gives later work a way to check P-wave, QRS, and T-wave fidelity instead of relying on global pointwise error, which can hide systematic loss of small waveform features.
  • The paper finds that feeding the same four channels to a 1D convolution model degrades its performance, which supports the claim that the benefit comes from combining multi-channel representation with 2D self-attention rather than from the extra channels alone.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A PPG-only deployment would need its own beat detector, and the leave-one-out protocol appears to supply beat boundaries from the paired ECG recordings; part of the 29% PRD gain may therefore not survive automatic PPG peak segmentation.
  • The same beat-aligned multi-channel recipe is a natural test on other quasi-periodic physiological signals, such as respiration or arterial blood pressure, where inter-cycle morphology carries clinical information.
  • The new metrics depend on peak detection and the evaluation selects low-noise records; adding motion artifacts or baseline wander could shrink the reported advantages in PR, RT, and QRS-area errors.
  • The failure of four-channel input to help CLEP-GAN suggests an architecture with long-range attention over beats, rather than local 1D convolutions, is what unlocks the extra channels; a 1D transformer with beat-level patches might capture part of the gain more cheaply.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

5 major / 5 minor

Summary. The manuscript proposes a Vision Transformer (ViT) encoder-decoder for reconstructing ECG from PPG. The input is a four-channel 2D 'signal image' formed by segmenting signals into R-peak-aligned beats, padding shorter beats with subsequent-beat values, and stacking 16 beats per image; the four channels are raw PPG, first-order difference, second-order difference, and cumulative AUC. The authors evaluate on 30-record subsets of BIDMC and CapnoBase with leave-one-out validation, comparing against CLEP-GAN, and introduce four additional clinical interval/amplitude metrics. They report consistent improvements, including 'up to 29% reduction in PRD and 15% reduction in RMSE', and provide ablations on image representation, output combination, losses, and input channels.

Significance. If the empirical claims are reproducible, the beat-aligned multichannel 2D representation and its combination with ViT self-attention are a promising direction for PPG-to-ECG reconstruction. The paper has concrete strengths: it uses two public datasets, uses leave-one-out validation, reports a large set of ablations, and proposes clinically motivated error metrics. However, the evaluation protocol currently leaks target-ECG beat timing into the input pipeline for the proposed method, the baseline set is limited to the authors' own prior model, and the 30-record selection is not objectively justified. These issues must be addressed before the state-of-the-art and PPG-only deployment claims are supported.

major comments (5)
  1. [Section 4.0.1; Section 5.3] The 2D image construction in Section 4.0.1 defines each row using RR intervals, i.e., ECG R-peak times, and states that 'the same processing steps used for the ECG image (YI) are applied to the PPG image (XI)'. For a true PPG-only deployment this requires a beat detector on PPG, but no such detector is specified, and the leave-one-out protocol in Section 5.3 keeps the test record's ECG available during evaluation. The reported PRD and RMSE gains in Table 1 therefore include oracle beat-timing information from the target modality; a real PPG-only pipeline would also contain beat segmentation errors that are not captured in the current numbers. Please evaluate the method with a PPG beat detector (or otherwise supply beat boundaries from an independent PPG segmentation method) and report the sensitivity of PRD and RMSE to beat-alignment errors.
  2. [Section 5.3; Table 1] The comparison in Table 1 uses a single baseline, CLEP-GAN, which is the authors' own earlier model introduced in reference [28]. The abstract's claim of outperforming 'existing 1D convolution-based approaches' and the use of 'state-of-the-art' are not supported by a single baseline. Please add at least one independent baseline under the same 30-record leave-one-out protocol (e.g., CardioGAN [24], RDDM [19], or a 1D patch-based Transformer), or soften the claims accordingly.
  3. [Section 5.3] The selection of 30 low-noise records per dataset is described only as being made 'to ensure reliable measurement accuracy'. If the selection depends on noise or other reconstruction-related properties, it can bias the comparison in favor of the proposed method. Please specify an objective selection rule decided before evaluation, report results on the full datasets (53 BIDMC and 42 CapnoBase records), or list the excluded records with a concrete justification.
  4. [Abstract; Section 5.3; Table 1] The abstract and Section 5.3 state reductions of 'approximately 29% and 18%' in PRD and 'approximately 15% and 10%' in RMSE on BIDMC and CapnoBase, respectively, but these numbers do not match Table 1: the relative reductions implied by Table 1 are approximately 40% and 33% in PRD and 38% and 25% in RMSE (or, if computed as absolute differences, 28.8 and 27.2 PRD points and 0.153 and 0.098 RMSE units). The headline quantitative claim should be corrected so that the text and the table are consistent.
  5. [Section 5.2, Eqs. (10)-(18)] The four newly introduced clinical metrics require QRS boundary indices (t_s and t_e in Eq. 10) and P-peak and T-peak detection (Eqs. 13, 15, 17), but the peak and boundary detection algorithms are never described, and no validation against expert annotations is provided. Given that reconstructed signals have PRD values around 40-50%, the reliability of these automatically computed metrics is not established. Please specify the detectors used and, ideally, report agreement with manually annotated intervals on a small sample.
minor comments (5)
  1. [Figure 1 caption] The caption contains a typo: 'Both the encoder and decoder are implemented using(ViT networks.' should be 'implemented using ViT networks.'
  2. [Section 4.0.1, Eq. (4)] In Eq. (4), the channel labels YΔx and YΔ²x use 'x' while the surrounding text uses 'y' for the signal; please make the notation consistent.
  3. [Section 5.2, Eq. (6)] The QRS-enhanced loss is described as introduced by [18], but the notation (c_{l,k}, K_l, Gaussian weighting) differs from the formulation in [18]; please clarify whether Eq. (6) is taken verbatim or adapted.
  4. [Section 6.0.4; Tables 2-7] Several ablation tables (Tables 2, 3, 5, 6, 7) report results on one or very few records, and Table 4 reports four records. Please state this limitation explicitly in the captions, and ideally add leave-one-out aggregate results for these comparisons, since the main table (Table 1) uses 30 records.
  5. [Section 5.3] The phrase 'state-of-the-art 1D convolutional model CLEP-GAN' should be qualified as 'our previous model' or 'the baseline used in this study' to avoid implying an independent community-established state of the art.

Circularity Check

1 steps flagged · score 6.0 of 10

R-HRV gains are inherited from the ECG-defined beat grid; central PRD/RMSE comparisons remain independent.

  1. self definitional [Section 4.0.1 (2D Signal Image Data), Section 5.2 (HRV metric), Table 1]
    "Since R peak detection is generally more reliable than identifying the onsets or offsets of P and T waves, we use the RR interval to define each beat cycle. ... The same processing steps used for the ECG image (YI) are applied to the PPG image (XI)."

    The input PPG image is segmented into rows using RR intervals taken from the target ECG, so the target RR-interval sequence is encoded into the input grid. The model output is converted back to a 1D ECG by concatenating those same padded beats and removing the padding with the known beat lengths (Appendix A), and the QRS-enhanced loss is centered at the ground-truth R-peak locations. Consequently the reconstructed signal inherits the target R-peak timing: the RR intervals evaluated as R-HRV in Table 1 are supplied by the input construction rather than predicted from PPG. The reported R-HRV improvement over CLEP-GAN is therefore not an independent test for that metric, although PRD, RMSE, and the P/T-wave-based metrics still measure genuine reconstruction quality.

full rationale

This is an empirical method-comparison paper, not an analytic derivation, so most circularity patterns do not apply. The central claims of 29% PRD and 15% RMSE improvement are measured outcomes of a supervised model and are not fitted parameters renamed as predictions. The one substantive circularity is in the HRV evaluation: because the beat-aligned image construction uses ECG R-peak times to define rows for both the target and the PPG input, the reconstructed ECG's beat boundaries are the target's beat boundaries by construction, making R-HRV (standard deviation of RR intervals) a largely inherited quantity rather than a learned prediction. The SOTA baseline CLEP-GAN is the authors' own prior work [28], and the paper relies on that self-citation for the claim that it is state-of-the-art; however, the comparison itself is a measured benchmark rather than a derivation, so this is a weakness in baseline selection but not an equation-level circularity. The new clinical metrics (QRS area, PR interval, RT interval, RT amplitude) are defined by the authors but are computed from reconstructed waveforms and do not reduce to inputs by definition. Overall, the central waveform-reconstruction result retains independent empirical content, but the R-HRV sub-claim is partially circular, yielding a score of 6.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central claim depends on the beat-aligned 2D image construction (Section 4.0.1), the filtering choices (Section 3.1), and the post hoc 30-record selection (Section 5.3). None of these are derived from first principles, and the unstated test-time beat segmentation is the most fragile. No new physical entities are introduced; the four-channel image is a representational choice, not a new object.

free parameters (5)
  • ViT patch size = 8 (also discussed as 8x16 and 4x4)
    Chosen by hand; governs how many beats appear in each patch and is central to the claim that 2D patching captures inter-beat dependencies (Section 5.1, Section 6.0.1).
  • Number of beats per image = 16
    Chosen by hand to balance context against training set size; directly affects the reported metrics (Section 5.1).
  • Beat window width = 128 samples at 125 Hz
    Determined by the longest beat in the dataset; a data-dependent choice that changes with heart rate and sampling rate (Section 4.0.1, Section 5.1).
  • QRS loss spread and intensity = Not specified (sigma and beta)
    The QRS-enhanced loss in Eq. (6) depends on beta and sigma, but the paper never states their values, leaving the training objective incompletely specified.
  • Number of low-noise records selected per dataset = 30
    Post hoc selection threshold chosen to ensure reliable peak detection; this choice affects the headline comparison and is not derived from any principle (Section 5.3).
assumptions (5)
  • domain assumption The cardiac cycle for both ECG and PPG can be defined using ECG R peak intervals.
    Section 4.0.1 states "we use the RR interval to define each beat cycle" and applies the same beat construction to both ECG and PPG images. At inference, PPG-only beat boundaries are not specified.
  • domain assumption Bandpass filtering ranges (0.4-45 Hz for ECG, 0.3-8 Hz for PPG) preserve the signal components needed for high-fidelity reconstruction.
    Section 3.1 adopts these ranges from prior work [28,33,34]. If the filters remove diagnostically relevant content, the achievable reconstruction quality is bounded from above.
  • domain assumption R peaks are the most reliable fiducial points and can be detected in both modalities.
    Section 4.0.1: "R peak detection is generally more reliable than identifying the onsets or offsets of P and T waves." This underpins the beat-aligned image construction and the new clinical metrics.
  • ad hoc to paper Self-attention over 2D patches of stacked padded beats can capture long-range inter-beat dependencies better than 1D sequence processing.
    This is the core architectural hypothesis argued in Section 6.0.1. It is supported only by empirical comparisons, not by a theoretical or mechanistic argument.
  • ad hoc to paper The 30 selected records per dataset are representative enough for a fair leave-one-out comparison.
    Section 5.3: "we selected 30 relatively low-noise recordings from each dataset to ensure reliable measurement accuracy." The selection assumes it does not systematically advantage the proposed method over the baseline.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Beyond Single-Channel: Multichannel Signal Imaging for PPG-to-ECG Reconstruction with Vision Transformers." pith.science (2026). https://pith.science/paper/76EAN5V4

@misc{pith2026250521767,
  author       = {Pith},
  title        = {Pith review of: Beyond Single-Channel: Multichannel Signal Imaging for PPG-to-ECG Reconstruction with Vision Transformers},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/76EAN5V4}},
  note         = {Machine review of arXiv:2505.21767}
}
read the original abstract

Reconstructing ECG from PPG is a promising yet challenging task. While recent advancements in generative models have significantly improved ECG reconstruction, accurately capturing fine-grained waveform features remains a key challenge. To address this, we propose a novel PPG-to-ECG reconstruction method that leverages a Vision Transformer (ViT) as the core network. Unlike conventional approaches that rely on single-channel PPG, our method employs a four-channel signal image representation, incorporating the original PPG, its first-order difference, second-order difference, and area under the curve. This multi-channel design enriches feature extraction by preserving both temporal and physiological variations within the PPG. By leveraging the self-attention mechanism in ViT, our approach effectively captures both inter-beat and intra-beat dependencies, leading to more robust and accurate ECG reconstruction. Experimental results demonstrate that our method consistently outperforms existing 1D convolution-based approaches, achieving up to 29% reduction in PRD and 15% reduction in RMSE. The proposed approach also produces improvements in other evaluation metrics, highlighting its robustness and effectiveness in reconstructing ECG signals. Furthermore, to ensure a clinically relevant evaluation, we introduce new performance metrics, including QRS area error, PR interval error, RT interval error, and RT amplitude difference error. Our findings suggest that integrating a four-channel signal image representation with the self-attention mechanism of ViT enables more effective extraction of informative PPG features and improved modeling of beat-to-beat variations for PPG-to-ECG mapping. Beyond demonstrating the potential of PPG as a viable alternative for heart activity monitoring, our approach opens new avenues for cyclic signal analysis and prediction.

Figures

Figures reproduced from arXiv: 2505.21767 by the authors.

Figure 1

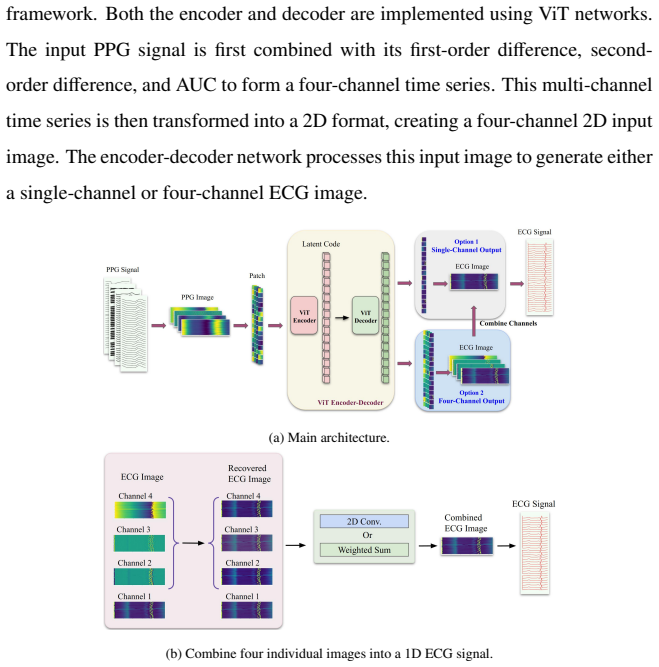

Figure 1. Architecture of the proposed method. (a) presents the main framework, while (b) illustrates [PITH_FULL_IMAGE:figures/full_fig_p010_1.png] view at source ↗
Figure 2
Figure 2. Examples of padded ECG and PPG beats from record 0332 in the CapnoBase dataset. [PITH_FULL_IMAGE:figures/full_fig_p012_2.png] view at source ↗
Figure 3
Figure 3. Scatter plots of RMSE and PRD results for CLEP-GAN and our method on the BIDMC [PITH_FULL_IMAGE:figures/full_fig_p018_3.png] view at source ↗
Figures from the paper (6 more)
Figure 4
Figure 4. Figure 4: Scatter plots of RMSE and PRD results for CLEP-GAN and our method on the CapnoBase [PITH_FULL_IMAGE:figures/full_fig_p018_4.png]
Figure 5
Figure 5. Figure 5: Comparison of ECG samples generated by our proposed method and the CLEP-GAN [PITH_FULL_IMAGE:figures/full_fig_p019_5.png]
Figure 6
Figure 6. Figure 6: Visualization of the input representations used by each model: (a) 1D signal patches used in [PITH_FULL_IMAGE:figures/full_fig_p021_6.png]
Figure 7
Figure 7. Figure 7: Comparison of predictions between the proposed method and the 1D patch-based Trans [PITH_FULL_IMAGE:figures/full_fig_p021_7.png]
Figure 8
Figure 8. Figure 8: Patchification process for beat-aligned 2D signal images. Each row represents a single beat [PITH_FULL_IMAGE:figures/full_fig_p022_8.png]
Figure 9
Figure 9. Figure 9: Comparison of weight visualizations for two combination methods: (a) the convolution [PITH_FULL_IMAGE:figures/full_fig_p027_9.png]
