arxiv: 2606.26444 · v1 · pith:7EVO5NUUnew · submitted 2026-06-24 · ❄️ cond-mat.mes-hall

Quantum Hall effect in three-dimensional lattice induced by Wannier-Stark-Landau localization

D.-H.-Minh Nguyen This is my paper

Pith reviewed 2026-06-26 00:29 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords quantum Hall effectthree-dimensional latticeWannier-Stark-Landau localizationHofstadter butterflychiral hinge modesChern numberstopological transport
0
0 comments X

The pith

Parallel electric and magnetic fields on a cubic lattice produce quantized Hall conductance perpendicular to the fields when the Fermi energy lies in spectral gaps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that parallel electric and magnetic fields aligned along a crystal axis in a cubic lattice confine electron orbits to the surfaces of finite-size cylinders. This three-dimensional confinement generates a spectrum that generalizes the Hofstadter butterfly, with gaps separating equidistant resonances near the center and discrete levels near the boundaries. When the Fermi energy sits inside these gaps the Hall conductance normal to the fields becomes quantized while the other components of the conductance tensor remain zero. Open boundaries additionally support chiral hinge modes whose topology is fixed by nonzero bulk Chern numbers. The construction supplies a lattice platform for realizing three-dimensional quantum Hall transport.

Core claim

Subjecting a cubic lattice to parallel electric and magnetic fields aligned along a crystal axis confines electrons three-dimensionally so that their classical orbits lie on the surface of a finite-size cylinder. In the quantum limit this produces a three-dimensional generalization of the Hofstadter butterfly containing equidistant resonances near the band center and discrete levels near the edges. Fermi energies inside the resulting gaps yield a quantized Hall conductance in the plane normal to the fields while the remaining components of the conductance tensor vanish. With open boundaries the same state supports topological chiral hinge modes that are protected by the bulk Chern numbers.

What carries the argument

Wannier-Stark-Landau localization that restricts classical orbits to cylindrical surfaces and opens gaps in the three-dimensional spectrum.

If this is right

  • Hall conductance in the plane normal to the fields is quantized.
  • Other components of the conductance tensor vanish.
  • Topological chiral hinge modes appear under open boundary conditions.
  • These modes are protected by bulk Chern numbers.
  • The setup supplies a platform for quantum Hall studies in solid-state heterostructures and synthetic lattices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cylindrical confinement may produce analogous gaps and quantized transport in non-cubic three-dimensional lattices.
  • The equidistant resonances near the spectral center could serve as a clear experimental signature for detecting the effect.
  • Varying the relative strengths of the two fields might allow tuning between different quantized values or different topological sectors.

Load-bearing premise

That the parallel electric and magnetic fields create a confining potential whose classical orbits sit on finite-size cylinders and thereby open gaps in the quantum spectrum.

What would settle it

Numerical diagonalization or transport measurement showing unquantized Hall conductance for Fermi energies inside the predicted gaps would disprove the claim.

Figures

Figures reproduced from arXiv: 2606.26444 by D.-H.-Minh Nguyen.

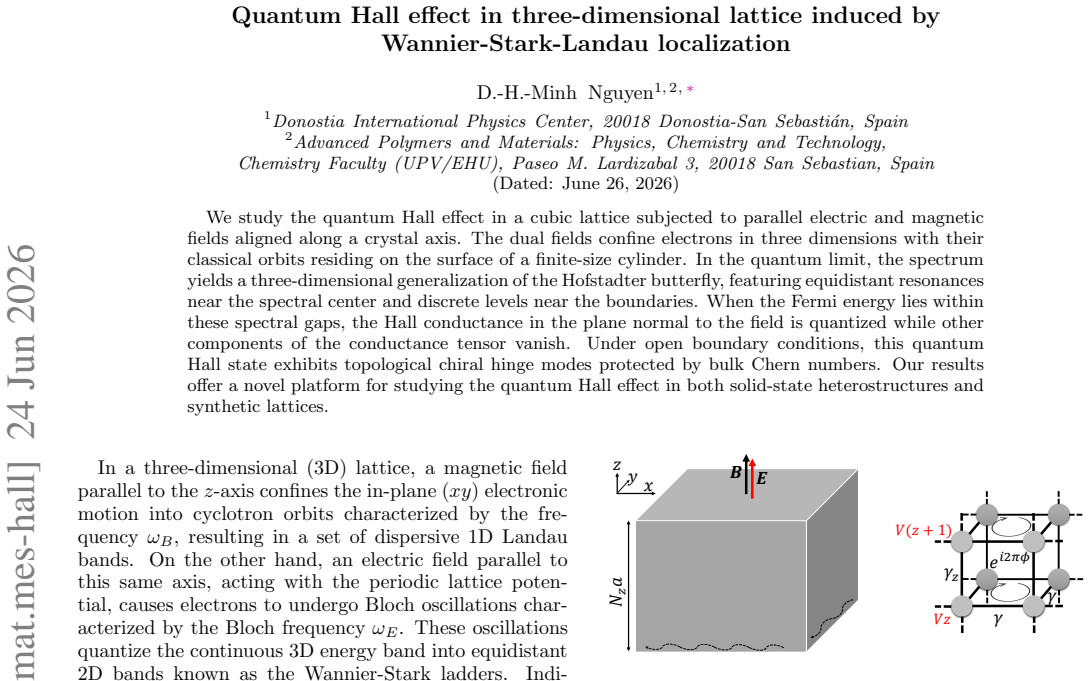

Figure 1
Figure 1. Figure 1: Cubic lattice in parallel magnetic and electric fields. The cubic lattice is subjected to parallel magnetic and electric fields along the z-axis. The motion of electrons in this lattice is described by the hopping parameters γ and γz, the Peierls phase, and the on-site energy V z. characteristics make this system an intriguing platform for observing novel phenomena. For example, the com￾mensurate interplay… view at source ↗

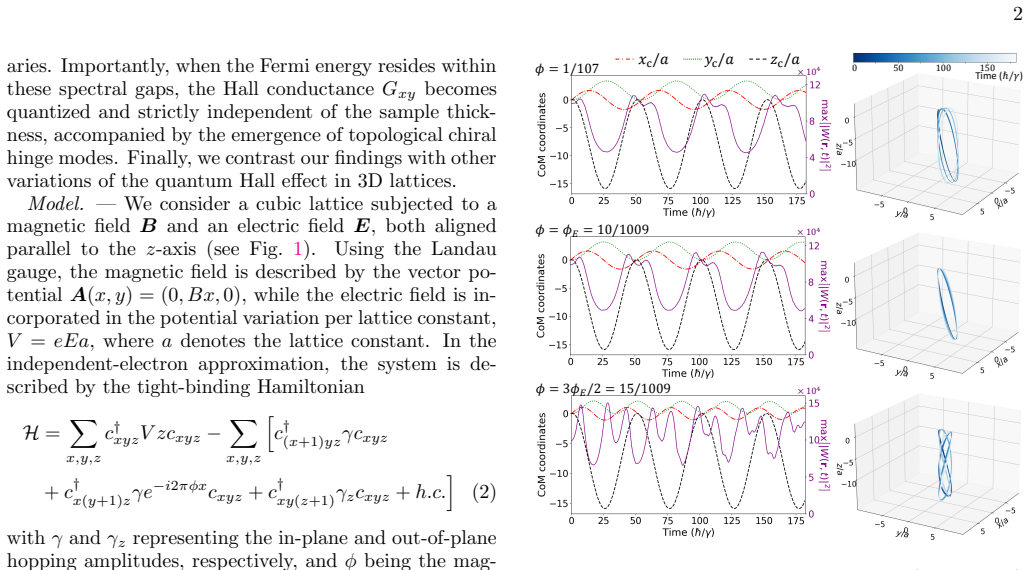

Figure 2
Figure 2. Figure 2: Dynamics of electron wave packets. (Left column) The CoM coordinates of the wave packet (dashed/dotted lines) and the height of its modulus squared (solid line) when V = 4π|γ| 10 1009 . The three rows correspond to three values of the magnetic flux. (Right column) The trajec￾tories of the wave packet’s CoM in real space. The color denotes time and the line thickness indicates the height of |W(r, t)| 2 . Th… view at source ↗

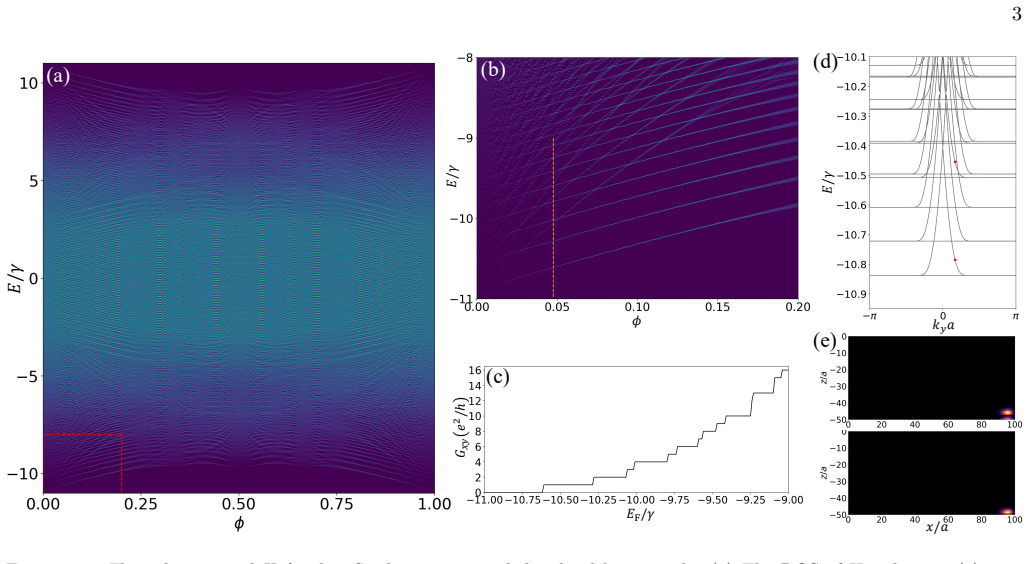

Figure 3
Figure 3. Figure 3: Three-dimensional Hofstadter-Stark spectrum and the chiral hinge mode. (a) The DOS of Hamiltonian (5) as a function of energy and magnetic flux when Nz = 101 and V = 4π|γ| 10 1009 . (b) The magnified spectrum indicated by the red dashed box in (a). (c) The transverse conductance along the orange line of panel (b) for ϕ = 5 107 . (d) The dispersion of the lowest bands when the periodic boundary condition is… view at source ↗
read the original abstract

We study the quantum Hall effect in a cubic lattice subjected to parallel electric and magnetic fields aligned along a crystal axis. The dual fields confine electrons in three dimensions with their classical orbits residing on the surface of a finite-size cylinder. In the quantum limit, the spectrum yields a three-dimensional generalization of the Hofstadter butterfly, featuring equidistant resonances near the spectral center and discrete levels near the boundaries. When the Fermi energy lies within these spectral gaps, the Hall conductance in the plane normal to the fields is quantized while other components of the conductance tensor vanish. Under open boundary conditions, this quantum Hall state exhibits topological chiral hinge modes protected by bulk Chern numbers. Our results offer a novel platform for studying the quantum Hall effect in both solid-state heterostructures and synthetic lattices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript studies the quantum Hall effect in a 3D cubic lattice under parallel electric and magnetic fields aligned along a crystal axis. The dual fields are argued to confine electrons such that classical orbits lie on a finite-size cylinder surface, producing a 3D generalization of the Hofstadter butterfly with equidistant resonances near the spectral center and discrete levels near the boundaries. When the Fermi energy lies in the resulting gaps, the Hall conductance normal to the fields is quantized while other tensor components vanish; under open boundaries the state hosts topological chiral hinge modes protected by bulk Chern numbers.

Significance. If the central claims hold, the work would provide a concrete lattice realization of 3D quantum Hall physics induced by Wannier-Stark-Landau localization, offering a platform for both solid-state heterostructures and synthetic lattices. The explicit construction of a gapped spectrum and the prediction of hinge modes would constitute a falsifiable extension of 2D Hofstadter physics to three dimensions.

major comments (1)
  1. [Abstract and §3] Abstract and §3 (spectrum and topology): the central claim that the gapped states are protected by bulk Chern numbers and host topological chiral hinge modes rests on the existence of well-defined 3D bulk invariants. However, the Hamiltonian contains the term eEz (Wannier-Stark localization), which explicitly breaks translational invariance along z. Standard bulk Chern numbers are obtained by integrating Berry curvature over a closed 3D Brillouin zone that requires periodicity in all three directions; no such zone exists here. The manuscript must specify the precise effective construction (e.g., projected Landau levels, finite-cylinder slicing, or an auxiliary periodicity restoration) used to define the Chern numbers and demonstrate that this construction remains valid in the quantum limit.
minor comments (1)
  1. [Abstract] The abstract refers to 'equidistant resonances' and 'discrete levels' without indicating the precise energy scale or the magnetic-field strength at which the quantum limit is reached; a brief statement of the parameter regime would improve clarity.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the subtlety in defining bulk invariants under broken translational symmetry. We address the major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (spectrum and topology): the central claim that the gapped states are protected by bulk Chern numbers and host topological chiral hinge modes rests on the existence of well-defined 3D bulk invariants. However, the Hamiltonian contains the term eEz (Wannier-Stark localization), which explicitly breaks translational invariance along z. Standard bulk Chern numbers are obtained by integrating Berry curvature over a closed 3D Brillouin zone that requires periodicity in all three directions; no such zone exists here. The manuscript must specify the precise effective construction (e.g., projected Landau levels, finite-cylinder slicing, or an auxiliary periodicity restoration) used to define the Chern numbers and demonstrate that this construction remains valid in the quantum limit.

    Authors: We agree that the eEz term breaks continuous translational invariance along z and that a naive 3D Brillouin zone does not exist. In the manuscript the Chern numbers are obtained by an effective construction that exploits the Wannier-Stark-Landau localization: the strong electric field quantizes the z-motion into discrete, exponentially localized states whose centers are separated by the Stark ladder spacing. For each such localized z-slice the problem reduces to a 2D Hofstadter Hamiltonian in the x-y plane (with magnetic flux through the plaquettes), whose Berry curvature is integrated over the magnetic Brillouin zone of the x-y torus. The resulting 2D Chern number is assigned to that slice; the 3D state is topologically nontrivial when a gap separates slices with different Chern numbers. This construction is equivalent to a finite-cylinder slicing in the presence of the linear potential and reduces exactly to the standard 2D Hofstadter Chern number when the electric field is taken to zero while keeping the magnetic field fixed. We will add an explicit subsection in §3 that (i) derives the effective 2D Hamiltonian for each Stark level, (ii) shows the Berry-curvature integral over the 2D zone, and (iii) verifies that the same integers protect the hinge modes under open boundaries. The revision will also include a short numerical check confirming that the invariants remain quantized in the quantum-limit regime where the localization length is smaller than the lattice constant. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The abstract and available description present a physical model with dual fields, spectral gaps, quantized conductance, and topological modes protected by bulk Chern numbers. No equations, self-citations, fitted parameters, or ansatzes are quoted that reduce any claimed prediction or result to an input by construction. The derivation chain is not shown to be self-definitional or tautological; the central claims rest on the stated Hamiltonian and boundary conditions without evident reduction to prior fitted quantities or author-specific uniqueness theorems. This is the expected non-finding for a paper whose provided text contains no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Based solely on abstract; no specific free parameters or invented entities identifiable.

axioms (1)
  • domain assumption Standard assumptions of tight-binding model in lattice with magnetic and electric fields.
    Typical for such condensed matter studies.
