ELK: Exploring the Efficiency of Inter-core Connected AI Chips with Deep Learning Compiler Techniques

T0 review · 3 major / 5 minor · reviewed 2026-08-06 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read The deep learning compiler Elk claims it can bring inter-core connected AI chips to 94.84% of their ideal roofline performance by jointly optimizing per-core execution, inter-core data exchange, and HBM preloading.

desk verdict A genuinely new joint scheduling framework for inter-core AI chips, whose headline number rests on an HBM emulation that needs validation or caveating. read the letter →

arxiv 2507.11506 v2 pith:7FZ464TJ submitted 2025-07-15 cs.AR cs.DCcs.LG

Yiqi Liu , Yuqi Xue , Noelle Crawford , Jilong Xue , Jian Huang This is my paper
classification cs.ARcs.DCcs.LG
keywords deeplearningcompilerinter-coreconnectedAIchipHBMpreloadoperatorschedulingon-chipmemoryallocationLLMinferencedesignspaceexploration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper claims that a deep learning compiler can bring inter-core connected AI chips (chips with direct links between cores forming a large distributed on-chip memory, plus HBM) to within about 5% of their theoretical roofline performance. The claim is that the three factors that decide end-to-end speed, per-core execution, inter-core data exchange, and off-chip HBM loading, can be treated as configurable compiler parameters and searched jointly instead of optimized one at a time. The compiler, Elk, chooses for each operator how many future operators to preload, how much of each core's SRAM goes to execution versus preload, and in what order preloads happen. On an emulator built from a real ICCA chip with modeled HBM, Elk is reported to reach 94.84% of ideal roofline performance on average, improving on a basic next-operator-only preloader by 1.87x and on a static-allocation scheme by 1.37x. If this holds, the efficiency ceiling of this chip class is mostly a software scheduling problem.

What carries the argument

The load-bearing mechanism is a two-level search over a global trade-off space. The outer level is an inductive operator scheduling policy: working backward through the model, Elk fixes each operator's preload count (the number of future operators whose HBM loads overlap its execution) by minimizing the current-to-end time, with a base case at the last operator and a theorem showing the induction step is exact given optimal per-preload-number execution times. The inner level is a cost-aware on-chip memory allocation algorithm that enumerates Pareto-optimal partition plans for the running operator and each preloaded operator, then greedily trades memory for time using the ratio of reduced space to increased time. A third component, preload order permutation, reorders the sequence of HBM loads within a bounded edit distance, pruning by HBM-heavy operators per transformer layer, to reduce interconnect contention and shorten the on-chip lifetimes of large tensors.

What would settle it

Replace the emulator's single-controller broadcast approximation with a cycle-accurate multi-controller HBM model that includes per-controller queues and bank conflicts, and re-run Elk's optimized plan for Llama-2-70B; if the reported preload/execution overlap or the 94.84% roofline fraction drops materially, the headline result depends on a broadcast model that real HBM controllers would not produce.

Watch

Extended reading notes

Core claim

Elk's central discovery is that the apparent tussle among compute, communication, and I/O on an ICCA chip can be represented as a small global trade-off space in the compiler, with each factor mapped to a knob: execution speed grows with the per-core SRAM allocated to the running operator, HBM utilization grows with the number of operators preloaded ahead of time, and per-operator preload space sizes determine how much shared data is broadcast at preload time instead of fetched from other cores during execution. Elk searches this space with a two-level inductive scheduler and a cost-aware memory allocator. Scheduling works backward from the last operator: for each operator, Elk tries every feasible preload count and keeps the one minimizing the time from the current operator to the end of the model. The allocator walks each operator down its Pareto-optimal curve of partition plans, repeatedly downgrading the plan with the largest ratio of SRAM saved to time added, until everything fits on-chip. A final pass reorders preloads, within a bounded edit distance, to shrink large tensors' SRAM lifespans and to move heavy HBM traffic away from interconnect rush hours. The full design reaches 94.84% of the ideal roofline on average, eliminates 87.65% of the interconnect congestion overhead compared to the same design without reordering, and raises average HBM bandwidth utilization from 34.7% (basic) to 62.40%, close to the 64.38% of the ideal configuration.

Load-bearing premise

The result stands or falls on whether emulating HBM as one controller core that broadcasts data to all cores, with added delays that saturate the interconnect, faithfully captures how real multi-controller HBM traffic contends with inter-core data exchange.

Editorial extensions

If this is right

  • LLM inference on ICCA chips can run within about 5% of the roofline, meaning near-ideal overlap of HBM preloading and on-chip execution is achievable in software.
  • Preload reordering alone removes 87.65% of the interconnect congestion overhead that remains when scheduling and allocation are optimized without reordering, at an average edit distance of 2.9 preload steps.
  • HBM bandwidth utilization on the tested models rises from 34.7% with a next-operator-only preloader to 62.40% with Elk, close to the 64.38% ideal, so existing HBM bandwidth can be used substantially harder.
  • Design-space exploration built on Elk indicates that HBM and interconnect bandwidth should scale together, and that mesh-interconnect ICCA chips are more sensitive to NoC bandwidth than all-to-all chips.
  • Large GQA models such as Gemma2-27B and Llama2-70B can serve tokens at latencies close to smaller models, because grouped-query attention cuts the KV-cache traffic Elk must schedule.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The single-controller broadcast model of HBM in the emulator is the main place where reality could diverge from the 94.84% number; on real multi-controller HBM, per-controller queues and bank conflicts may create contention patterns a single broadcast cannot reproduce.
  • The same three-way trade-off space should transfer to other chips with direct inter-core links, such as GPU SM clusters, where the paper's own discussion notes HBM and inter-SM bandwidth are comparable; Elk's preload reordering could be tested there.
  • Because Elk prunes to HBM-heavy operators and identical transformer layers, the same machinery should extend to mixture-of-experts models by scheduling expert preloads after routing, which the paper proposes as future work but does not implement.
  • The Pareto-ratio greedy allocation could be reused as a general resource-budgeting heuristic for any accelerator whose per-operator memory and time costs lie on measured Pareto curves, independent of inter-core connectivity.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. Elk is a DL compiler framework for inter-core connected AI (ICCA) chips with off-chip HBM. It structures the trade-off among per-core execution, inter-core communication, and off-chip data loading into configurable compiler parameters, and searches over the number of preloaded operators, the per-operator execution/preload space sizes, and the preload order. The three main algorithmic components are a two-level inductive operator scheduler, a cost-aware greedy memory allocator, and preload-order permutation. The paper evaluates Elk on an emulator built on real IPU-POD4 hardware, with HBM accesses emulated by a controller core that broadcasts data and applies DRAMsim3 latencies, and also on an event-driven simulator supporting all-to-all and mesh topologies. End-to-end LLM decoding results report that Elk-Full reaches 94.84% of an ideal roofline, achieves 89.52% interconnect utilization, and outperforms the Basic and Static baselines by 1.87x and 1.37x on average. Design-space exploration with varied HBM bandwidth, interconnect bandwidth, topology, and core count is also presented.

Significance. If the quantitative claims hold, this is a useful contribution: it demonstrates a systematic compiler-level search space for ICCA chips that couples on-chip scheduling with HBM preloading, and it provides an open-source artifact, a real-IPU-based emulator, and a simulator that supports multiple topologies. The workload breadth (four LLMs plus DiT-XL), the multiple batch sizes and sequence lengths, and the two network topologies strengthen the empirical study. The headline 94.84% result, however, rests on an HBM emulation that is not cross-validated against the paper's own multi-controller simulator or real HBM hardware, and the formal optimality claim for the inductive scheduler is not fully supported by the presented proof. These issues do not invalidate the overall system design, but they must be addressed before the quantitative results can be taken at face value.

major comments (3)
  1. [§5 and §6.2] The end-to-end results in Figure 17, including the headline '94.84% of ideal,' are produced on an emulator whose HBM is realized by a single controller core that broadcasts all preload data to all cores and applies DRAMsim3 latencies as fixed delays. This is a single-serialized-source approximation, whereas the architecture described in §2.1 and modeled in the simulator has multiple HBM controllers with independent request streams. A full broadcast to every receiver also places every preload byte on every inbound link, which is not the traffic shape of per-tile unicast or multicast preloads issued by real HBM controllers with queues, bank conflicts, and row-buffer state. The paper reports no quantitative cross-validation of this HBM emulation against the simulator's multi-controller model or against real HBM-equipped hardware. Because the headline number and the HBM/utilization values in Figure 18(b) depend directly on this approximation, the revision should either validate the emulation (for example, compare emulator and simulator on the same plan and traffic) or report sensitivity of the headline to HBM emulation parameters such as controller count, queueing, and burstiness.
  2. [§4.2, Theorem 4.2] The proof of the inductive step is incomplete. The contradiction argument is asserted rather than derived: it does not formally show that enumerating all preload numbers for operator i must find a schedule minimizing T_end - T^i_s-exe, and the equality T^i_e-exe = min(T^{i+1}_s-exe, T^{i+p+1}_s-pre) omits the on-chip memory capacity constraints from §4.3 and the dependence of L^i_exe on the preload-state plans of the p future operators. Consequently, the sentence 'The algorithm provably finds the end-to-end plan with the shortest total time' is not supported by the presented proof. Please supply a complete induction proof with explicit invariants, or reclassify the scheduling algorithm as a heuristic and justify its quality empirically (for example, against exhaustive search on small models).
  3. [Abstract and §4.3] The abstract states that Elk 'generates globally optimized execution plans,' but the allocation step in §4.3 is an iterative greedy heuristic that repeatedly moves an operator to the next Pareto-optimal plan with the largest ratio Delta = (reduced space)/(increased time) and stops when memory fits. Greedy selection does not guarantee a global optimum, and no bound on the gap to the optimal allocation is given. This overstates the formal status of the contribution. The wording should be qualified, or the paper should include a proof of optimality under the stated cost model, or a small-scale experiment comparing the greedy result to the exhaustive optimum.
minor comments (5)
  1. [§6.1] The Ideal roofline is defined with separate interconnects for preload and execution and zero-latency data distribution; this is a well-defined upper bound, but the paper should state more explicitly that it is an abstraction rather than a hardware-achievable configuration when discussing '94.84% of ideal.'
  2. [§4.4] The pruning rule restricts reordering to HBM-heavy operators with above-average tensor size and to HBM-heavy operators per layer; the paper should quantify how sensitive the final results are to this threshold and justify it beyond the OPT-30B example.
  3. [Figure 18(a)] The legend entry 'interconnect' is ambiguous; it should clarify whether this component represents preload stalled by interconnect, execution stalled by interconnect, or both.
  4. [§5] The sentence 'We also use our real IPU-based emulator to validate our simulator' is not accompanied by a quantitative comparison; please add a figure or table with error bounds for predicted versus measured per-kernel or end-to-end latencies.
  5. [§4.2] The notation T^{i+p+1}_s-pre in Theorem 4.2 is introduced without a definition that links p to the number of overlapped preloads; align this notation with Lemma 4.1 and the surrounding text.

Circularity Check

0 steps flagged · score 1.0 of 10

No significant circularity: the headline speedups are measured on a real-IPU emulator and the roofline ratio is against an explicit upper bound; the T10 self-citation is a baseline/plan source, not a construction that forces the result.

full rationale

The derivation chain is not circular. Elk's search procedure enumerates partition plans, preload counts, memory allocations, and preload orders, and the final end-to-end latencies in Figure 17 are measured on the IPU-POD4 emulator, not computed from the fitted cost model. The cost model of Section 4.3 is fitted from profiled tile executions and transfer volumes and validated in Figure 12, but it only guides plan selection; the reported speedups and utilizations are emulator measurements. The '94.84% of ideal' claim is a ratio against an explicitly stated upper bound (Section 6.1: 'each of preload and execution has its own interconnect ... and the data distribution phase has zero latency'), not a quantity derived from Elk's own fitted parameters. The only notable self-citation is T10 [34]: the paper uses T10's compute-shift execution-model plans as per-operator inputs and builds the Static baseline on T10. This is a normal use of prior work by overlapping authors; T10 is a peer-reviewed system, and the paper does not invoke a T10 uniqueness theorem to forbid alternatives or define its objective. The inductive scheduling proof (Lemma 4.1, Theorem 4.2) is conditional on obtaining optimal per-preload-number execution times, while Section 4.3 uses a greedy heuristic; that is a correctness/over-claim concern, not circularity. The single-controller HBM broadcast emulation in Section 5 is a fidelity approximation and a validation risk, but it is not a self-referential reduction of the prediction to its inputs. Overall, no load-bearing step reduces by construction to a fitted parameter or a self-citation chain.

Assumptions & free parameters 2 free parameters · 4 assumptions · 0 invented entities

No new physical entities are introduced. The free parameters are the fitted cost model and the reorder threshold. The axioms are the sequential execution model, the HBM emulation approximation, cost model accuracy, and the completeness of the plan enumerator.

free parameters (2)
  • Linear tree cost model coefficients = not reported
    Elk fits linear tree models to profiled execution times per operator type and transfer times per network link (§4.3, Figure 12). These fitted parameters drive plan selection and scheduling.
  • HBM-heavy operator threshold = tensor size above model_size / operator_count
    In §4.4, Elk reorders preloads only for operators whose tensor size is above average. This heuristic, set by hand, prunes the preload order search space.
assumptions (4)
  • domain assumption Operators in a DL model execute sequentially in dependency order.
    Used in §4.2 to justify the inductive scheduling algorithm and its optimality proof. Modern transformer layers are mostly sequential, but arbitrary ONNX DAGs with parallel branches would break the proof.
  • domain assumption A single controller core broadcasting data over the interconnect faithfully emulates HBM controller-to-core preload traffic and contention.
    The emulation framework in §5 treats one core as the HBM controller and assumes broadcast saturates the interconnect and inbound links like real HBM modules.
  • domain assumption The fitted linear tree cost models accurately predict execution and transfer times across the plan space.
    Elk's search uses the cost model to estimate times and choose plans (§4.3). Figure 12 shows good agreement, but the model is an approximation.
  • domain assumption The partition plans enumerated by existing compilers such as T10 cover the relevant plan space.
    Elk relies on partition plans generated by T10 and other compilers (§4.3, §5). If a better plan shape exists outside this set, Elk cannot find it.

how reviews work

0 comments
Cite this review

Pith. "Pith review of ELK: Exploring the Efficiency of Inter-core Connected AI Chips with Deep Learning Compiler Techniques." pith.science (2026). https://pith.science/paper/7FZ464TJ

@misc{pith2026250711506,
  author       = {Pith},
  title        = {Pith review of: ELK: Exploring the Efficiency of Inter-core Connected AI Chips with Deep Learning Compiler Techniques},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7FZ464TJ}},
  note         = {Machine review of arXiv:2507.11506}
}
read the original abstract

To meet the increasing demand of deep learning (DL) models, AI chips are employing both off-chip memory (e.g., HBM) and high-bandwidth low-latency interconnect for direct inter-core data exchange. However, it is not easy to explore the efficiency of these inter-core connected AI (ICCA) chips, due to a fundamental tussle among compute (per-core execution), communication (inter-core data exchange), and I/O (off-chip data access). In this paper, we develop Elk, a DL compiler framework to maximize the efficiency of ICCA chips by jointly trading off all the three performance factors discussed above. Elk structures these performance factors into configurable parameters and forms a global trade-off space in the DL compiler. To systematically explore this space and maximize overall efficiency, Elk employs a new inductive operator scheduling policy and a cost-aware on-chip memory allocation algorithm. It generates globally optimized execution plans that best overlap off-chip data loading and on-chip execution. To examine the efficiency of Elk, we build a full-fledged emulator based on a real ICCA chip IPU-POD4, and an ICCA chip simulator for sensitivity analysis with different interconnect network topologies. Elk achieves 94% of the ideal roofline performance of ICCA chips on average, showing the benefits of supporting large DL models on ICCA chips. We also show Elk's capability of enabling architecture design space exploration for new ICCA chip development.

Figures

Figures reproduced from arXiv: 2507.11506 by the authors.

Figure 1
Figure 1. Architecture of inter-core connected AI (ICCA) chip. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Resource contentions on ICCA chip with HBM. [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Operator partitioning and inter-core data sharing. [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figures from the paper (16 more)
Figure 6
Figure 6. Figure 6: HBM bandwidth demands of models across time, [PITH_FULL_IMAGE:figures/full_fig_p004_6.png]
Figure 5
Figure 5. Figure 5: The execution times of representative operators [PITH_FULL_IMAGE:figures/full_fig_p004_5.png]
Figure 7
Figure 7. Figure 7: The inter-core bandwidth demand of each core [PITH_FULL_IMAGE:figures/full_fig_p005_7.png]
Figure 8
Figure 8. Figure 8: The total per-core interconnect bandwidth demand. [PITH_FULL_IMAGE:figures/full_fig_p005_8.png]
Figure 9
Figure 9. Figure 9: Overview of our Elk framework. 4 Design and Implementation We design Elk, a compiler framework for exploring the efficiency of ICCA chips. Elk automatically trades-off performance factors by configuring the number of preloaded operators, the per-core execution space si…
Figure 10
Figure 10. Figure 10: Select the preload number that minimizes the [PITH_FULL_IMAGE:figures/full_fig_p006_10.png]
Figure 11
Figure 11. Figure 11: Tradeoff between time overhead & memory usage. [PITH_FULL_IMAGE:figures/full_fig_p007_11.png]

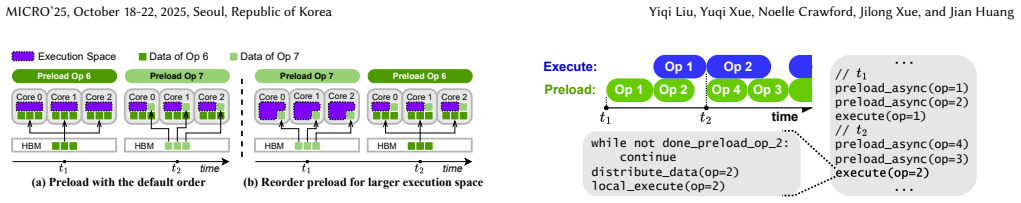

Figure 13
Figure 13. Figure 13: Reorder preloads to allow larger execution space. [PITH_FULL_IMAGE:figures/full_fig_p008_13.png]
Figure 14
Figure 14. Figure 14: The generation of candidate preload orders. [PITH_FULL_IMAGE:figures/full_fig_p008_14.png]
Figure 16
Figure 16. Figure 16: Elk compile time for varied model/batch sizes. (3) The code generation in Elk generates the kernel code for com￾puting each tile and the inter-core data transfer operations, based on the target hardware and selected partition plans. For compute, Elk uses code template…
Figure 17
Figure 17. Figure 17: The per-token serving latency of various models and batch sizes on 4 ICCA chips with 16TB/s HBM. [PITH_FULL_IMAGE:figures/full_fig_p010_17.png]
Figure 20
Figure 20. Figure 20: Breakdown of LLama2-13B per-token latency with [PITH_FULL_IMAGE:figures/full_fig_p011_20.png]
Figure 19
Figure 19. Figure 19: Per-token latency at varied HBM bandwidths. [PITH_FULL_IMAGE:figures/full_fig_p011_19.png]
Figure 21
Figure 21. Figure 21: Interconnect utilization at varied HBM bandwidths. 8TB/s HBM 10 20 30 All-to-All 10TB/s HBM 12TB/s HBM 14TB/s HBM Basic Static ELK-Dyn ELK-Full Ideal 30 40 10 20 30 Mesh 30 40 30 40 30 40 Total Interconnect Bandwidth (TB/s) Latency (ms) [PITH_FULL_IMAGE:figures/full_…
Figure 22
Figure 22. Figure 22: Llama2-70B latency of at varied NoC bandwidths. [PITH_FULL_IMAGE:figures/full_fig_p012_22.png]
Figure 23
Figure 23. Figure 23: Per-token latency at varied core counts. [PITH_FULL_IMAGE:figures/full_fig_p012_23.png]
