Analytical solutions for timelike orbits around Damour-Solodukhin wormholes

Pith reviewed 2026-05-22 05:42 UTC · model grok-4.3

classification 🌀 gr-qc
keywords Damour-Solodukhin wormholestimelike geodesicsinnermost stable circular orbitMino-time parametrizationelliptic integralshomoclinic orbitswormhole throateffective potential roots
0
0 comments X

The pith

Triple-root configurations at the Damour-Solodukhin wormhole throat fix the innermost stable circular orbit and set it apart from Schwarzschild black holes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines timelike geodesics in a family of Schwarzschild-like wormhole spacetimes whose throat radius is controlled by a single deformation parameter. The radial effective potential for these geodesics has four roots, one of which is always the throat itself, and these roots can coincide to produce double, triple, or quartic degeneracies. When a triple root occurs at the throat, the location of the innermost stable circular orbit is fixed by that degeneracy, supplying a potential observational signature that differs from the corresponding black-hole case. The authors then exploit Mino-time parametrization to obtain closed-form solutions for particle trajectories in terms of incomplete elliptic integrals, covering both bound and unbound motion as well as special cases in which the throat root produces logarithmic or power-law divergences in coordinate time and azimuthal angle.

Core claim

The radial effective potential admits four roots including the throat radius. Triple-root degeneracies involving the throat determine the ISCO. Exact analytic trajectories are constructed via Mino-time parametrization, expressed through incomplete elliptic integrals; when the throat is a double or triple root the azimuthal angle and coordinate time diverge as the particle approaches it, whereas a simple root permits smooth traversal between the two asymptotic regions. Exact homoclinic solutions tied to the throat are also obtained together with their Lyapunov exponents, and analytic inspiral and plunge trajectories through the throat are derived.

What carries the argument

The radial effective potential possessing four roots (one fixed at the throat) whose degeneracies control orbital stability, solved analytically through Mino-time parametrization that yields trajectories in incomplete elliptic integrals.

If this is right

  • When the throat is a simple root, particles cross smoothly between the two asymptotically flat regions.
  • Double or triple roots at the throat produce logarithmic or power-law divergences in azimuthal angle and coordinate time.
  • Homoclinic orbits attached to the throat exist and possess well-defined Lyapunov exponents that can be computed exactly.
  • Inspiral and plunge trajectories through the throat admit fully analytic descriptions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If orbital data around a compact object reveal an ISCO radius that cannot be matched by any Schwarzschild geometry yet fits a triple-root throat for some deformation parameter, the observations would favor a wormhole interpretation over a black hole.
  • The closed-form elliptic-integral expressions could be used to model the timing of electromagnetic signals or gravitational-wave bursts from matter crossing the throat.
  • The same degeneracy analysis might be applied to null geodesics or to spinning generalizations of the wormhole to produce further observational discriminants.

Load-bearing premise

The effective potential is assumed to possess exactly four roots, one of them the throat, for the chosen range of the deformation parameter, so that these roots may merge into multiple degeneracies without further restrictions imposed by the metric.

What would settle it

A direct numerical integration of the geodesic equation for a fixed deformation parameter that places the innermost stable circular orbit at a radius inconsistent with any triple-root configuration would show the claimed relation does not hold.

Figures

Figures reproduced from arXiv: 2605.22187 by Da-Shin Lee, Shao-Chen Ho, Tien Hsieh, Yo-Chung Ko.

Figure 1
Figure 1. Figure 1: FIG. 1. A diagram of the parameter space ( [PITH_FULL_IMAGE:figures/full_fig_p009_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Effective potentials [PITH_FULL_IMAGE:figures/full_fig_p010_2.png] view at source ↗
Figure 3

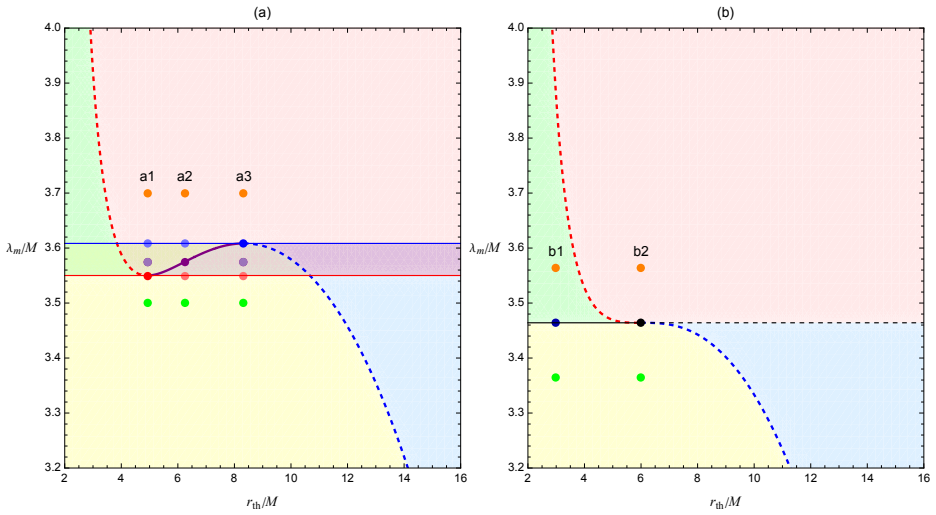

Figure 3. Figure 3: FIG. 3. A diagram of the parameter space ( [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

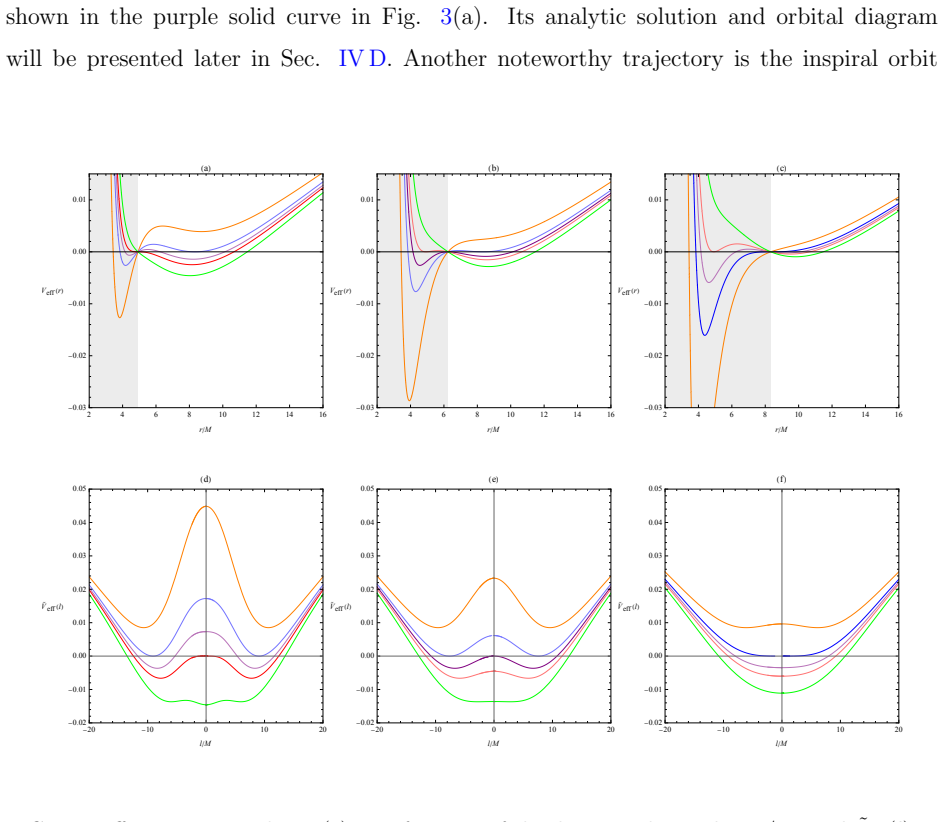

Figure 4. Figure 4: FIG. 4. Effective potentials [PITH_FULL_IMAGE:figures/full_fig_p013_4.png] view at source ↗
Figure 5

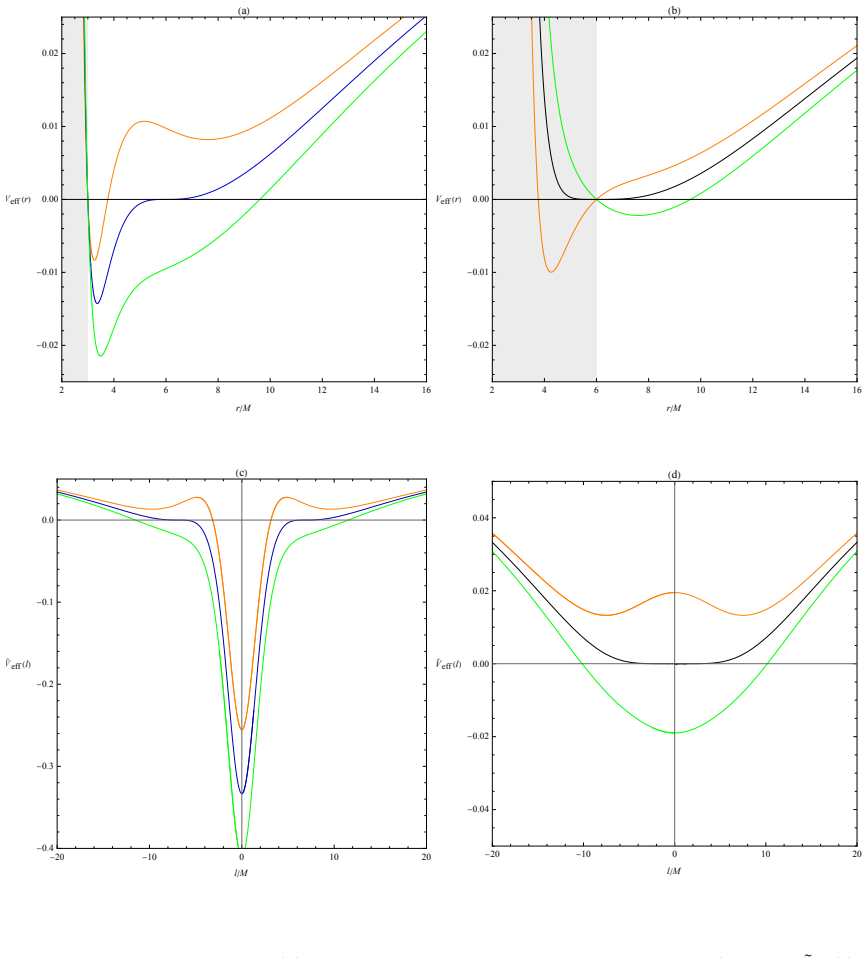

Figure 5. Figure 5: FIG. 5. Effective potentials [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6

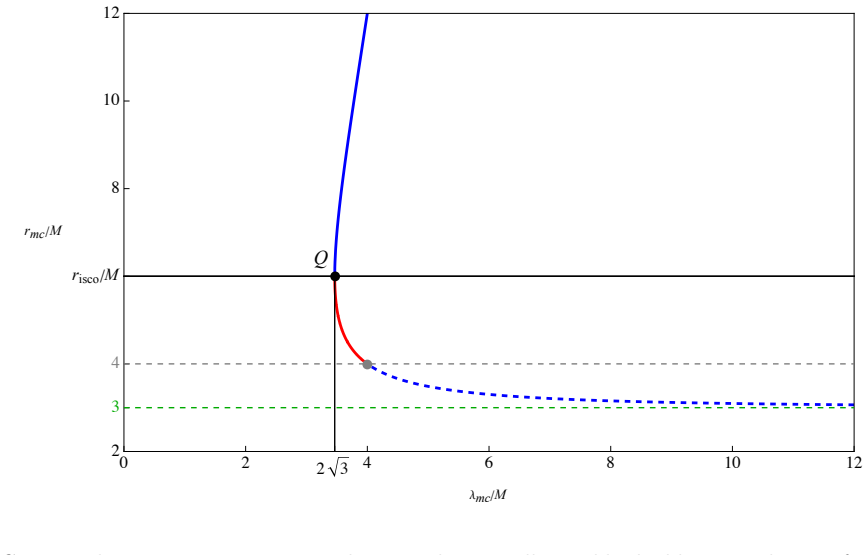

Figure 6. Figure 6: FIG. 6. This is a parameter-space diagram showing all possible double-root solutions for [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
Figure 7

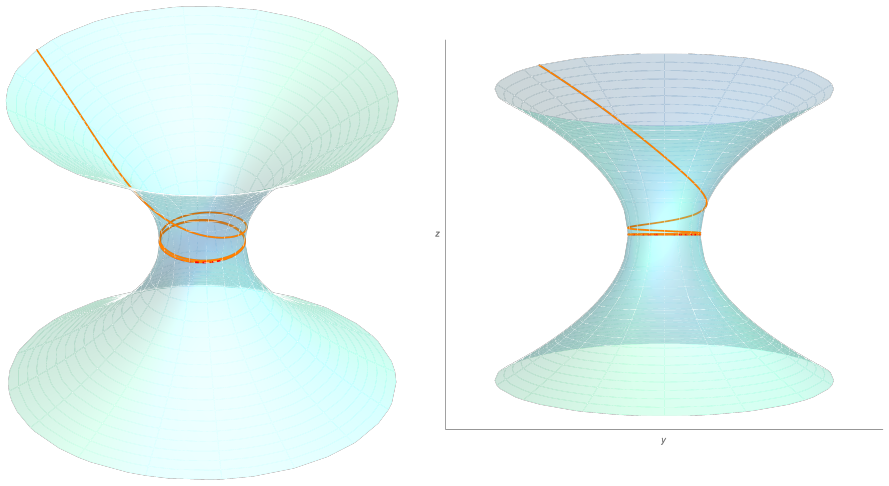

Figure 7. Figure 7: FIG. 7. Embedding diagram onto which the particle trajectory is projected. The particle with the [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Embedding diagram onto which the particle trajectory is projected. The particle with [PITH_FULL_IMAGE:figures/full_fig_p019_8.png] view at source ↗
Figure 9

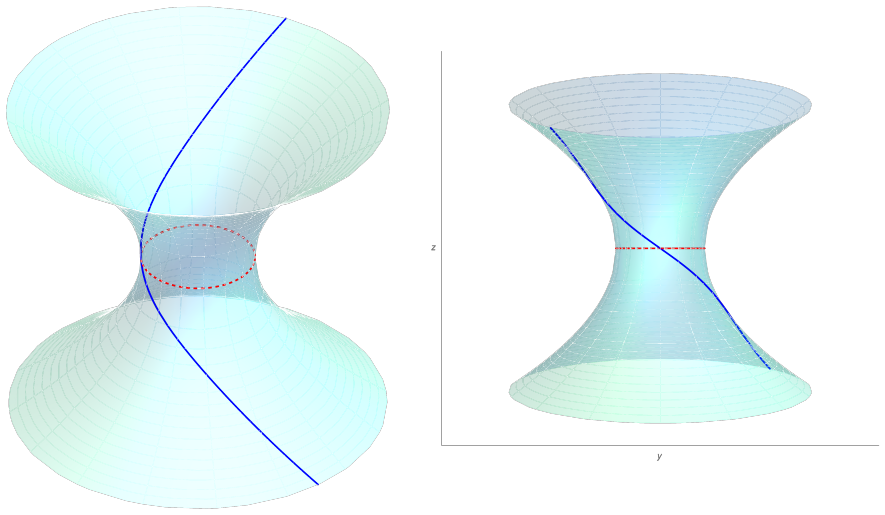

Figure 9. Figure 9: FIG. 9. Embedding diagram onto which the particle trajectory is projected. The particle with [PITH_FULL_IMAGE:figures/full_fig_p021_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Embedding diagram onto which the particle’s homoclinic orbit is projected. The particle [PITH_FULL_IMAGE:figures/full_fig_p023_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11. The Lyapunov exponent as a function of the throat radius [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12. Embedding diagram onto which the particle’s inspiral orbit is projected. With the [PITH_FULL_IMAGE:figures/full_fig_p026_12.png] view at source ↗

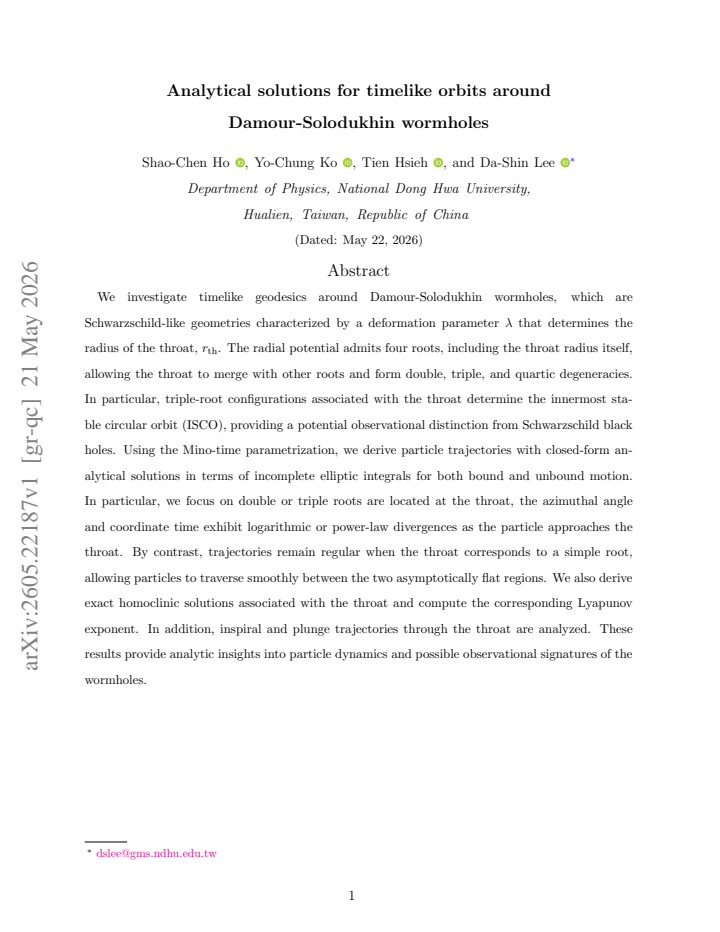

read the original abstract

We investigate timelike geodesics around Damour-Solodukhin wormholes, which are Schwarzschild-like geometries characterized by a deformation parameter $\lambda$ that determines the radius of the throat, $r_{\rm th}$. The radial potential admits four roots, including the throat radius itself, allowing the throat to merge with other roots and form double, triple, and quartic degeneracies. In particular, triple-root configurations associated with the throat determine the innermost stable circular orbit (ISCO), providing a potential observational distinction from Schwarzschild black holes. Using the Mino-time parametrization, we derive particle trajectories with closed-form analytical solutions in terms of incomplete elliptic integrals for both bound and unbound motion. In particular, we focus on double or triple roots are located at the throat, the azimuthal angle and coordinate time exhibit logarithmic or power-law divergences as the particle approaches the throat. By contrast, trajectories remain regular when the throat corresponds to a simple root, allowing particles to traverse smoothly between the two asymptotically flat regions. We also derive exact homoclinic solutions associated with the throat and compute the corresponding Lyapunov exponent. In addition, inspiral and plunge trajectories through the throat are analyzed. These results provide analytic insights into particle dynamics and possible observational signatures of the wormholes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript derives closed-form analytical solutions for timelike geodesics in Damour-Solodukhin wormholes using Mino-time parametrization, expressing particle trajectories in terms of incomplete elliptic integrals for bound and unbound motion. It analyzes the radial effective potential, which is stated to admit four roots including the throat radius r_th for the deformation parameter λ, examines degeneracies (double, triple, quartic) at the throat, identifies the ISCO with triple-root configurations at r_th, derives exact homoclinic solutions with associated Lyapunov exponents, and discusses divergences in azimuthal angle and coordinate time when roots merge at the throat, as well as inspiral and plunge trajectories.

Significance. If the derivations hold and the root structure is correctly established, the work supplies exact analytic expressions for geodesic motion in these wormhole spacetimes, including regular traversals and divergent behaviors near the throat. This could furnish concrete observational signatures distinguishing Damour-Solodukhin wormholes from Schwarzschild black holes via ISCO location and homoclinic orbit properties, strengthening the analytic toolkit for exotic compact objects.

major comments (2)
  1. [Abstract] Abstract and the radial-equation setup: the claim that 'the radial potential admits four roots, including the throat radius itself' for the chosen range of λ is not automatic. The radial function R(r) = E² - V_eff(r) vanishes at r_th only when E² exactly equals V_eff(r_th), which imposes a constraint on the conserved quantities E and L that is not shown to follow directly from the metric definition or the range of λ without additional tuning; this assumption underpins the entire discussion of root mergers, triple-root ISCO, and throat-associated divergences.
  2. [Geodesic analysis section] The identification of triple-root configurations at the throat as determining the ISCO (abstract and relevant geodesic section): the standard ISCO condition requires both V_eff'(r) = 0 and V_eff''(r) = 0 at a circular orbit; when the throat is forced to be a root by parameter choice, it is unclear whether the resulting degeneracy automatically satisfies the stability criterion or merely reflects the imposed root condition rather than a generic extremum of the effective potential.
minor comments (2)
  1. Clarify the explicit form of the radial polynomial R(r) and the metric functions g_tt, g_rr used to construct V_eff, ensuring the throat radius appears as a root only under stated conditions on E and L.
  2. Add a brief comparison table or plot contrasting the ISCO radius and Lyapunov exponent with the Schwarzschild case for representative λ values to strengthen the observational-distinction claim.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thorough review and valuable feedback on our manuscript concerning analytical solutions for timelike geodesics in Damour-Solodukhin wormholes. We address each major comment below and indicate the revisions we plan to make.

read point-by-point responses
  1. Referee: [Abstract] Abstract and the radial-equation setup: the claim that 'the radial potential admits four roots, including the throat radius itself' for the chosen range of λ is not automatic. The radial function R(r) = E² - V_eff(r) vanishes at r_th only when E² exactly equals V_eff(r_th), which imposes a constraint on the conserved quantities E and L that is not shown to follow directly from the metric definition or the range of λ without additional tuning; this assumption underpins the entire discussion of root mergers, triple-root ISCO, and throat-associated divergences.

    Authors: We agree that the throat radius r_th is a root of the radial equation only when the conserved energy satisfies E² = V_eff(r_th). In the manuscript, our analysis focuses on the physically relevant cases where this condition holds, allowing us to study orbits that reach or traverse the throat, including the degeneracies and divergences mentioned. This choice of E and L is not arbitrary but selected to explore the distinctive features of the wormhole geometry. We will revise the abstract and the relevant sections to explicitly state the constraint on E and L and clarify that we consider the parameter regime where r_th is indeed a root for the chosen λ range. revision: yes

  2. Referee: [Geodesic analysis section] The identification of triple-root configurations at the throat as determining the ISCO (abstract and relevant geodesic section): the standard ISCO condition requires both V_eff'(r) = 0 and V_eff''(r) = 0 at a circular orbit; when the throat is forced to be a root by parameter choice, it is unclear whether the resulting degeneracy automatically satisfies the stability criterion or merely reflects the imposed root condition rather than a generic extremum of the effective potential.

    Authors: A root of multiplicity three in the radial function R(r) = E² - V_eff(r) at r = r_th necessarily implies that R(r_th) = R'(r_th) = R''(r_th) = 0. Since R'(r) = -V_eff'(r) and R''(r) = -V_eff''(r), this directly enforces V_eff'(r_th) = 0 and V_eff''(r_th) = 0, satisfying the standard conditions for an inflection point and thus the ISCO. The triple degeneracy is not merely imposed but arises from tuning the parameters λ, E, and L such that the throat coincides with the location where the effective potential has an inflection point. We will include an explicit verification of these derivative conditions in the revised geodesic analysis section to address this concern. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper applies the geodesic equation to the fixed Damour-Solodukhin metric, constructs the radial effective potential from the metric functions, and derives closed-form solutions in elliptic integrals for chosen root configurations. The statement that the potential admits four roots including the throat is an explicit modeling choice of parameter ranges and conserved quantities E, L rather than a reduction of any output to the input by construction. No fitted parameters are renamed as predictions, no self-citation chain supports a uniqueness claim, and the analytical expressions follow directly from standard integration techniques without circular dependence on the claimed ISCO distinction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The results rest on the standard geodesic equation in a fixed static spherically symmetric metric whose throat radius is set by a single free parameter; no new entities are postulated.

free parameters (1)
  • λ
    Deformation parameter that fixes the throat radius r_th; appears in the metric and therefore in the effective potential.
axioms (1)
  • standard math Timelike geodesics obey the geodesic equation derived from the metric
    Invoked throughout the derivation of the radial potential and its roots.
