Programmable wrinkling for functionally-graded auxetic circular membranes

T0 review · 3 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read Radial grading of stiffness and Poisson ratio can program the appearance, growth, merging, and disappearance of wrinkled regions in auxetic membranes as the applied traction rises.

desk verdict A solid proof-of-concept for programming wrinkling regions in graded auxetic membranes; the axisymmetry assumption is the key caveat and Eq. (4) has a typo. read the letter →

arxiv 2506.04148 v1 pith:7US4SONQ submitted 2025-06-04 cond-mat.soft

Sairam Pamulaparthi Venkata , Valentina Balbi , Michel Destradea , Dino Accoto , Giuseppe Zurlo This is my paper
classification cond-mat.soft
keywords AuxeticmaterialsThinmembranesFunctionallygradedHyperelasticityTensionFieldTheoryWrinklingElasticinstabilities
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that the wrinkled regions of a thin auxetic annular membrane can be deliberately engineered by choosing how the Young modulus and Poisson ratio vary across the radius. Using tension field theory, the authors show that as the edge traction is increased monotonically, the predicted wrinkled regions can appear, broaden, merge, and even disappear, depending on the material grading. This matters because it suggests a route to programmable, morphing surfaces whose wrinkle patterns are tunable features, with potential uses in wearable robotics, tissue scaffolds, and aerospace structures.

What carries the argument

The central object is the relaxed strain energy density of tension field theory $W^R$, which replaces the parent membrane energy whenever either principal stress would be compressive, setting that stress component to zero. Wrinkles are taken to appear as soon as a principal stress becomes compressive; the relevant threshold is the natural width, e.g. $\lambda_\Phi^*=\sqrt{1+\nu-\lambda_R^2\nu}$, at which the circumferential stress vanishes. Under the axisymmetric ansatz, the equilibrium equation reduces to a single ordinary differential equation for the radial coordinate $r(R)$, and a wrinkled region is precisely a zone where the relaxed circumferential stress is zero.

What would settle it

Fabricate or simulate an annular auxetic membrane with the two-step Young-modulus profile of Case 2, load the outer rim, and image the surface; if the observed wrinkles are not concentric annuli that appear, merge, and partially unwrinkle as in Figure 8, or if a non-axisymmetric pattern appears at a lower load, the predicted wrinkling regions are wrong.

Watch

Extended reading notes

Core claim

The central claim is that spatially graded material properties give direct control over where wrinkles form in a soft auxetic membrane. Under the axisymmetric deformation $r=r(R)$, $\phi=\Phi$, equilibrium reduces to a single radial ODE, and wrinkles are identified with zones where the relaxed circumferential stress vanishes, $P^R_{\phi\Phi}=0$. With a linearly decreasing Young modulus and a Gaussian Poisson-ratio profile, a new wrinkled annulus appears at higher loads and merges with the inner one; with a two-step Young-modulus profile, three separate wrinkled regions form and the outer one can partially unwrinkle as the load grows; and when the material properties depend on the deformed radius, one wrinkled region grows while another stays nearly fixed.

Load-bearing premise

The analysis assumes the deformation stays perfectly axisymmetric, so wrinkles can only form as concentric circular annuli; if a symmetry-breaking pattern with wavy or azimuthally varying wrinkles were energetically preferred, the predicted wrinkling regions would not match the actual ones.

Editorial extensions

If this is right

  • Prescribing a linearly decreasing Young modulus toward the inner rim lowers the traction needed to start wrinkling there.
  • A Gaussian Poisson-ratio profile can generate a second wrinkled annulus that merges with the inner one as the load increases, producing a single large wrinkled region.
  • A two-step Young-modulus profile can produce three separated wrinkled regions, and one of them can partially unwrinkle at higher tractions.
  • When the material properties depend on the deformed radius, the inner wrinkled region grows with load while the outer region remains nearly stationary.
  • The relaxed energy predicts wrinkled regions that are subsets of the compressive-stress regions found from the unrelaxed membrane energy, so using the parent energy alone overestimates wrinkling.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A direct test of the axisymmetric assumption would be a full two-dimensional simulation that allows $\phi\neq\Phi$; if azimuthally modulated wrinkles become stable at lower tractions, the predicted concentric annuli would need revision.
  • Since the authors note the method generalizes to other geometries, the same relaxed-energy machinery could be applied to rectangular or arbitrarily shaped membranes, where grading along two directions might produce even richer wrinkle layouts.
  • Fabrication via auxetic metamaterials introduces a microstructure scale, so the effective graded properties would require homogenization and the model would need to be adapted to predict wrinkle wavelengths, which the present continuum theory does not resolve.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 5 minor

Summary. The paper studies wrinkling in annular membranes made of a compressible auxetic material with radially graded Young's modulus and Poisson ratio. Using Pipkin's tension field theory, the authors construct a relaxed membrane energy, reduce the equilibrium equations under an axisymmetric ansatz to a single radial ODE, and solve it numerically in Mathematica and COMSOL for three material profiles. Their central claim is that appropriately chosen spatial inhomogeneities can produce non-trivial sequences of wrinkling regions that appear, broaden, merge, and partially disappear as the applied edge traction is increased. The numerical results are cross-validated between the two implementations.

Significance. If the central claim holds, the paper provides a useful proof-of-concept for designing auxetic membranes with controlled wrinkling patterns through material grading, which could be relevant for morphing surfaces and soft actuators. The cross-validation between two independent numerical implementations (Mathematica and COMSOL) is a strength, and the exposition of tension field theory is accessible. However, the axisymmetric ansatz is enforced by construction in both solvers and is never verified against symmetry-breaking solutions, and an intermediate formula in the plane-stress reduction is mathematically inconsistent. These issues must be addressed before the paper's conclusions can be considered fully supported.

major comments (3)
  1. [Section 2, Eq. (4)] Equation (4) is incorrect. At the reference configuration λ_R=λ_Φ=1, it yields λ_Z = sqrt(1 - ν/(1-ν)) = sqrt((1-2ν)/(1-ν)), which is not 1 for ν<0. The undeformed state would therefore have a non-unit thickness stretch and a non-zero out-of-plane stress, contradicting the definition of the reference state. The correct plane-stress solution of (3) is λ_Z^2 = [1+ν-ν(λ_R^2+λ_Φ^2)]/(1-ν). Since the membrane energy (5) is presented as being obtained by substituting (4) into (3), the derivation as written is invalid. The authors should correct (4) and re-derive (5), or explicitly state that (5) is the standard plane-stress membrane energy adopted as the model and remove the incorrect intermediate formula.
  2. [Section 2, Eq. (1) and Eq. (10); Section S2] The analysis is restricted to the axisymmetric ansatz r=r(R), φ=Φ, and the COMSOL verification in Section S2 is constructed by revolving a 2D strip around the Z-axis, so it enforces the same ansatz by construction. No stability analysis, bifurcation check, or full two-dimensional solve is provided. The central claim that graded material properties can 'program' wrinkling patterns is therefore established only within the axisymmetric class. If non-axisymmetric wrinkled solutions (e.g., azimuthally localized wrinkles) are energetically preferred, the predicted annular wrinkling regions would be incorrect. Please verify the ansatz for at least one representative case with a full 2D simulation that does not impose axisymmetry, or revise the claims to explicitly refer to axisymmetric wrinkling patterns.
  3. [Abstract and Section 3.2] The abstract states that wrinkled regions can 'appear, broaden, merge, and eventually disappear again' as the applied traction is increased monotonically. The results show partial unwrinkling of the outer region in Case 2 (Section 3.2, Figure 7B and Table S2: the outer wrinkled interval [4.4591,6.0563] cm at 0.25 MPa becomes [7.7125,10.7820] cm at 2.50 MPa, while the current outer radius is 10.9584 cm), but no complete wrinkled region vanishes. The wording 'eventually disappear again' is therefore stronger than the evidence presented. Please either provide a case where an entire wrinkled region disappears or moderate the abstract and conclusions accordingly.
minor comments (5)
  1. [Section 3.1] The phrase 'wrinkling occurs only along the circumferential direction' is inconsistent with Section 2.1, where a zero circumferential stress is stated to lead to wrinkles parallel to the radial direction. Please make the orientation terminology uniform.
  2. [Section 3.2] Similarly, the phrase 'wrinkles appear along the circumferential direction' should be revised to match the orientation defined in Section 2.1.
  3. [Supplementary S1] The smooth Heaviside approximation uses β=3000. A brief convergence study with respect to β would strengthen confidence that the results are insensitive to this regularization parameter.
  4. [Supplementary S2] The COMSOL implementation description is abbreviated. Please clarify how the 3D revolved model enforces the plane-stress condition and how the logical operator LOGOPT is implemented numerically.
  5. [Figure 5 and Figure 8] The captions use inconsistent color terminology: Figure 5 refers to 'dark regions' while Figure 8 refers to 'grey (wrinkled) regions'. Please unify the wording and ensure the figures are printed consistently.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: material gradations are inputs, wrinkling intervals are computed outputs; TFT is an external model, and the axisymmetric ansatz is a limitation, not a circular step.

full rationale

The derivation is self-contained and non-circular. The material profiles E(R), nu(R) (Eqs. 12, 15, 16) are prescribed inputs; the wrinkling intervals are obtained by solving the radial equilibrium equation (Eq. 10) with boundary conditions (Eq. 11) under the relaxed strain energy (Eq. 7), so the locations of zero circumferential stress are computed outputs rather than fitted parameters. Tension field theory is adopted from external references (Pipkin 1986b, Steigmann and Green 1990), not from a self-citation, and no uniqueness theorem from the authors is invoked to force the ansatz. The cited works by Zurlo and co-workers are listed only as earlier applications of TFT to other material classes and do not support any step of the derivation. The COMSOL model is described as a revolution of a 2D strip (SI Section S2), so it shares the axisymmetry of the Mathematica ODE; the cross-check therefore validates the discretization, not the symmetry assumption. That the ansatz r=r(R), phi=Phi (Eq. 1) restricts patterns to annuli and is not tested against symmetry-breaking wrinkles is a modeling limitation, not a circularity: no output quantity is equal by construction to an input quantity, and no fitted value is renamed as a prediction. The paper even labels the results a 'proof of concept' and lists experimental validation as future work, consistent with a forward model rather than a self-fulfilling fit.

Assumptions & free parameters 4 free parameters · 6 assumptions · 0 invented entities

The paper introduces no new physical entities. It relies on established constitutive and tension-field-theory assumptions plus hand-chosen radial material profiles. The central results are numerical consequences of these modeling choices, so the ledger is dominated by domain assumptions and ad hoc numerical parameters.

free parameters (4)
  • Case 1 material profile parameters (E_int, E_out, c0, offset, divider) = E_int=1.30 MPa, E_out=1.00 MPa, c0=-0.9223, offset=1.670 cm, divider=0.8941 cm
    Hand-chosen to produce a linearly decreasing Young modulus and a Gaussian Poisson ratio with a highly auxetic inner rim; not fitted to data.
  • Case 2 material profile parameters (E_res, E0, offset1-4, divider1) = E_res=0.60 MPa, E0=0.50 MPa, offsets 1.00, 1.75, 2.50, 3.25 cm, divider1=0.05 cm
    Hand-chosen to create a two-step Young modulus profile with constant negative Poisson ratio; not fitted to data.
  • Case 3 material profile parameters (E_res*, E0*, offset_a, offset_b, divider_a, nu_out, nu_int) = E_res*=E0*=0.50 MPa, offset_a=1.25 cm, offset_b=2.75 cm, divider_a=0.05 cm, nu_out=-0.3, nu_int=-0.6
    Hand-chosen to make material properties depend on the current radial coordinate, giving deformation-dependent profiles; not fitted to data.
  • Heaviside smoothing parameter beta = 3000
    Introduced to regularize the relaxed strain energy switch in Eq. (S.1b); no sensitivity analysis is provided, and the sharpness of wrinkling boundaries may depend on this value.
assumptions (6)
  • domain assumption Axisymmetric deformation ansatz: r = r(R), phi = Phi, z = z(Z).
    Stated in Section 2 (Eq. 1) and used to reduce the equilibrium equations to a single radial ODE (Eq. 10). This assumption excludes non-axisymmetric wrinkling modes and is load-bearing for all numerical results.
  • domain assumption Plane stress state: P_ZZ = 0, with the out-of-plane stretch given by Eq. (4).
    Used in Section 2 to reduce the 3D Kirchhoff energy to the membrane energy (5). The printed Eq. (4) appears to contain a typo, but the subsequent energy is consistent with standard plane-stress reduction.
  • domain assumption Tension field theory: wrinkles appear whenever a principal in-plane stress becomes compressive, and the relaxed energy sets that stress component to zero.
    Invoked in Section 2.1 (Eq. 7) following Pipkin (1986). The paper uses this to identify wrinkled regions, which are the central quantities of the study.
  • domain assumption Compressible Kirchhoff material model (Eq. 3) with radially varying Young modulus and Poisson ratio.
    Adopted in Section 2 as the constitutive model for the membrane. The validity of this model for graded auxetic materials is assumed throughout.
  • domain assumption Local constitutive response: the same strain energy form applies at every point, with material parameters depending on the radial coordinate.
    Used implicitly when writing E(R) and nu(R) in the stress expressions. This is a standard inhomogeneous elasticity assumption and is not justified beyond the reference to functionally graded materials.
  • ad hoc to paper The smooth Heaviside approximation with beta=3000 correctly approximates the relaxed energy branches.
    Introduced in the supplementary material (Eq. S.1b) to make the energy differentiable for numerical solution. The choice of beta is not derived from physical considerations and is not tested for sensitivity.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Programmable wrinkling for functionally-graded auxetic circular membranes." pith.science (2026). https://pith.science/paper/7US4SONQ

@misc{pith2026250604148,
  author       = {Pith},
  title        = {Pith review of: Programmable wrinkling for functionally-graded auxetic circular membranes},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/7US4SONQ}},
  note         = {Machine review of arXiv:2506.04148}
}
read the original abstract

Materials with negative Poisson's ratio, also known as auxetic materials, display exotic properties such as expansion in all directions under uni-axial tension. For their unique properties, these materials find a broad range of applications in robotic, structural, aerospace, and biomedical engineering. In this work we study the wrinkling behavior of thin and soft auxetic membranes, subjected to edge tractions. We show that spatial inhomogeneities of the Young modulus and of the Poisson ratio can be suitably tailored to produce non-trivial wrinkling patterns, with wrinkled regions that can appear, broaden, merge, and eventually disappear again, as the magnitude of applied tractions is increased monotonically. To model wrinkling in a functionally graded membrane, we employ the mathematically elegant and physically transparent tension field theory, an approximated method that we implement in commercially available software. Beyond unveiling the challenging technological potential to achieve non-standard wrinkling on-demand in auxetic membranes, our study also confirms the potential of using tension field theory to study, analytically and numerically, instabilities in functionally graded materials.

Figures

Figures reproduced from arXiv: 2506.04148 by the authors.

Figure 1
Figure 1. Undeformed and deformed configurations of a circular membrane. The reference and current coordinates of a material point are (𝑅, Φ, 𝑍) and (𝑟, 𝜙, 𝑧), respectively, with associated basis vectors {𝐞𝑅 , 𝐞Φ, 𝐞𝑍}. The inner and outer radii of the undeformed and deformed membrane are 𝑅int, 𝑅out and 𝑟int, 𝑟out, respectively. The inner rim of the membrane is fixed and a surface traction is applied on the outer edge. The cor… view at source ↗
Figure 2
Figure 2. Case 1: Distribution of Young’s modulus 𝐸 (𝑅) (black line) and Poisson’s ratio 𝜈 (𝑅) (blue curve) in the membrane with respect to the referential radial coordinate 𝑅. The curves are obtained from Equation (12) with the following parameters: 𝐸int = 1.30 MPa, 𝐸out = 1.00 MPa, 𝑐0 = −0.9223, offset = 1.670 cm, divider = 0.8941 cm, 𝑅int = 0.5 cm, 𝑅out = 4.0 cm. Since the material is under radial tension, the circumferent… view at source ↗
Figure 3
Figure 3. Case 1: Radial and circumferential components of the deformation gradient, 𝜆𝑅 (𝑟) and 𝜆Φ (𝑟), plotted with respect to the current radial coordinate 𝑟 for an applied surface traction of 0.75 MPa. The solid lines and markers are results obtained from MATHEMATICA and COMSOL, respectively. To validate our physical intuition that wrinkling occurs only along the circumferential direction, we plot [PITH_FULL_IMAGE:figures… view at source ↗
Figures from the paper (8 more)
Figure 4
Figure 4. Figure 4: Case 1: The results from MATHEMATICA and COMSOL are represented by solid lines and markers, re￾spectively. Surface traction on the outer edge of the membrane is increasing in the direction of the arrow (0.15 MPa, 0.50 MPa, 0.75 MPa, 1.50 MPa). For increasing traction l…
Figure 5
Figure 5. Figure 5: Case 1: Distribution of wrinkling profiles with an increase in the traction load from the left top in clockwise direction. Each quadrant refers to a different applied traction load (0.15 MPa to 1.50 MPa). Thanks to axisymmetry, only quadrants of the circular membrane a…
Figure 6

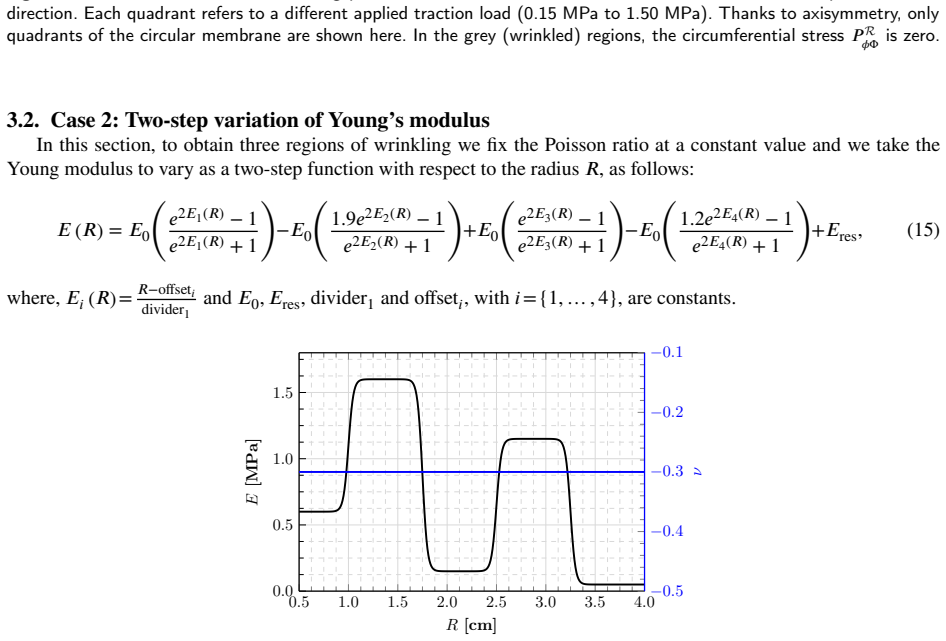

Figure 6. Figure 6: Case 2: Distribution of Young’s modulus 𝐸 (𝑅) (black curve) and Poisson’s ratio 𝜈 (𝑅) (blue line) in the membrane with respect to the referential radial coordinate 𝑅. The plot for the Young modulus is obtained by using Equation (15). The parameters are: 𝐸res = 0.60 MPa…
Figure 7
Figure 7. Figure 7: Case 2: Relaxed first Piola-Kirchhoff stress (𝐏 R) components with respect to the current radial coordinate (𝑟) for different traction loads: (A) Traction load: 0.25 MPa, (B) Traction load: 2.50 MPa. The solid lines and markers are results obtained from MATHEMATICA and…
Figure 8

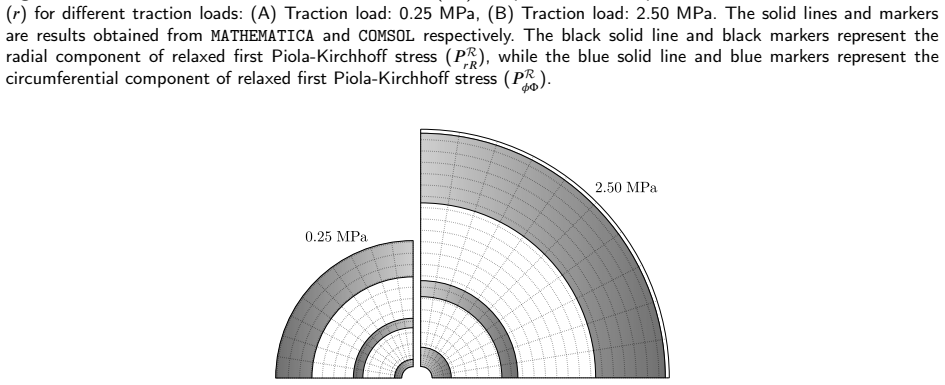

Figure 8. Figure 8: Case 2: Distribution of wrinkling profiles with increasing traction load from left (0.25 MPa) to right (2.50 MPa). Each quadrant refers to a different applied traction load. At the lower load, there are three wrinkled regions (grey) and two unwrinkled regions (white). …
Figure 9
Figure 9. Figure 9: Case 3: Distribution of Young’s modulus 𝐸 (𝑟) and Poisson’s ratio 𝜈 (𝑟) in the membrane. (A) With respect to the current radial coordinate 𝑟; (B) With respect to the referential radial coordinate 𝑅. The solid lines and dash-dotted lines correspond to traction loads of …
Figure 10
Figure 10. Figure 10: Case 3: Relaxed (Membrane) first Piola-Kirchhoff stress 𝐏 R (𝐏) components with respect to the current radial coordinate 𝑟 for different traction loads: (A) Traction load: 0.05 MPa, (B) Traction load: 0.20 MPa. The solid (and dash-dotted) lines and markers are results…
Figure 11
Figure 11. Figure 11: Case 3: Distribution of wrinkling profiles with an increase in the traction load from left (0.05 MPa) to right (0.20 MPa). Each quadrant refers to a different applied traction load. and consider traction loads lower than 0.48 MPa. For representative purposes, we show …
