Understanding critical currents in superconducting cuprate tapes

Charles Simon This is my paper

Pith reviewed 2026-05-22 11:58 UTC · model grok-4.3

classification ❄️ cond-mat.supr-con
keywords critical currentssurface pinningYBaCuOMathieu/Simon modelcuprate tapesphase diagramsuperconducting coils
0
0 comments X

The pith

Surface pinning dominates critical currents in YBaCuO superconducting tapes across much of the phase diagram.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that the Mathieu/Simon model, which centers on surface pinning mechanisms, explains the critical currents in cuprate tapes better than the usual assumptions of strong and weak pinning. This older model correctly estimates the order of magnitude of experimentally observed critical currents in YBaCuO across a large portion of the relevant phase space. Engineers need reliable parametrization of how these currents depend on magnetic field, temperature, and angle to build effective superconducting coils. Reconsidering existing data through this lens points toward improved material development and standardized tape characterization.

Core claim

The Mathieu/Simon model shows that surface pinning mechanisms dominate critical currents across a large part of the phase diagram of YBaCuO. Unlike strong and weak pinning mechanisms, which are commonly assumed to be dominant, the MS model accurately predicts the order of magnitude of experimentally measured values, suggesting it should at least be considered the dominant mechanism.

What carries the argument

The surface pinning mechanism in the Mathieu/Simon model, which controls critical current by pinning vortices primarily at the tape surfaces rather than through bulk processes.

If this is right

  • The model supplies a physical basis for parametrizing critical currents as functions of magnetic field, temperature, and angle in tape fabrication.
  • Calculations from the model can guide the development of new cuprate materials with higher performance.
  • Standardized characterization protocols for superconducting tapes can be built around surface pinning rather than bulk pinning assumptions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Focusing fabrication efforts on surface treatments could yield larger gains in critical current than adjustments to bulk pinning centers.
  • The model may connect to broader questions of how surface quality limits performance in other thin-film or tape superconductors.

Load-bearing premise

The surface-pinning mechanism described in the Mathieu/Simon model is in fact the dominant process controlling critical current over most of the relevant phase space, rather than being a secondary or co-existing effect.

What would settle it

Measure critical currents in YBaCuO tapes before and after a controlled change to surface properties such as roughness or coating, while holding bulk composition and microstructure fixed, to check whether the critical current shifts in the manner predicted by the model.

Figures

Figures reproduced from arXiv: 2602.09640 by Charles Simon.

Figure 1

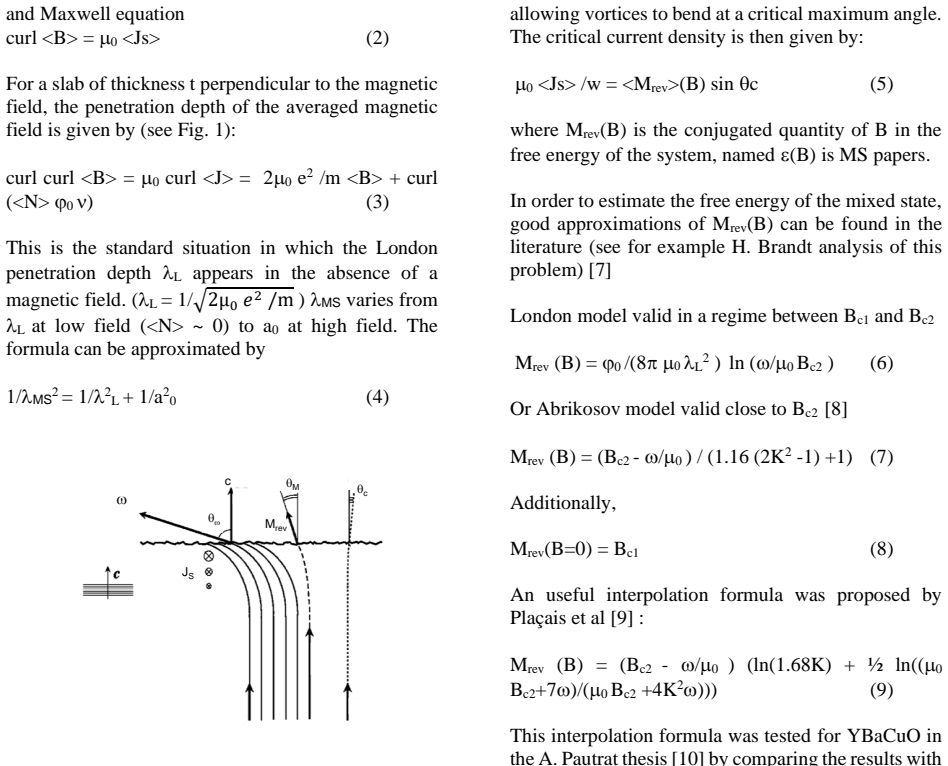

Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

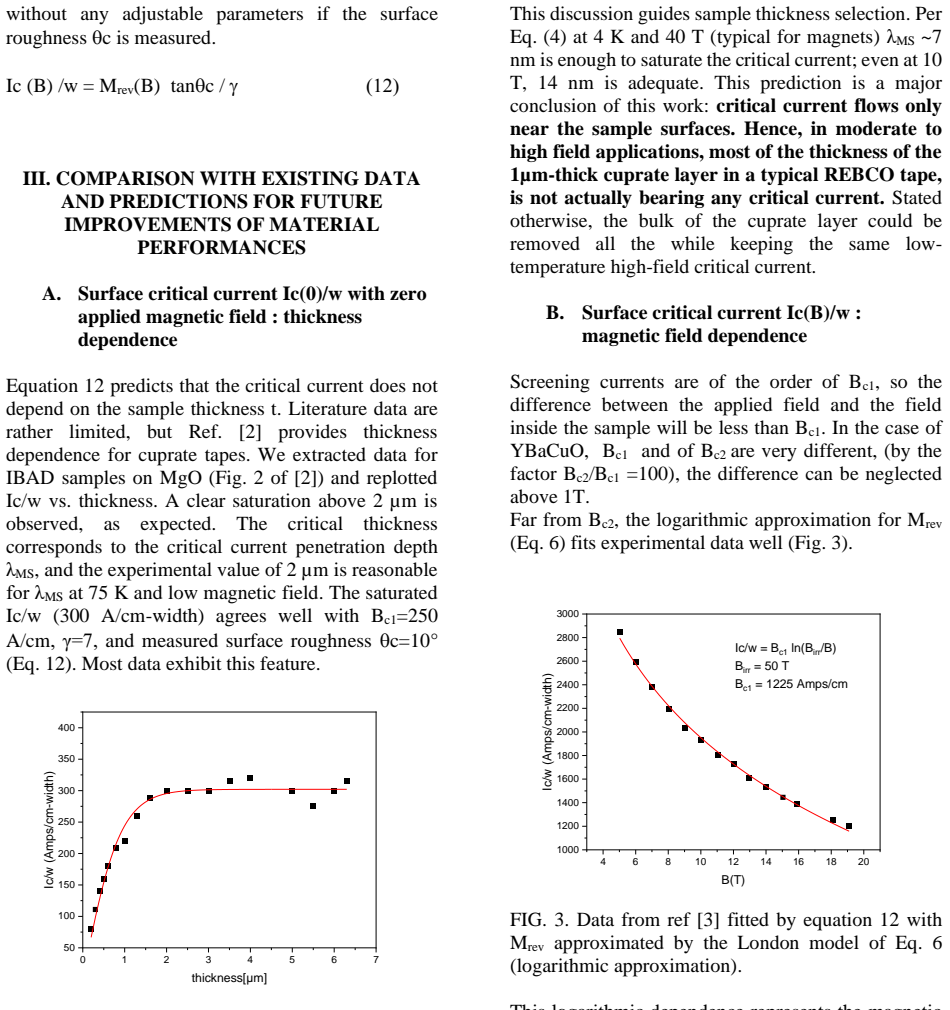

Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

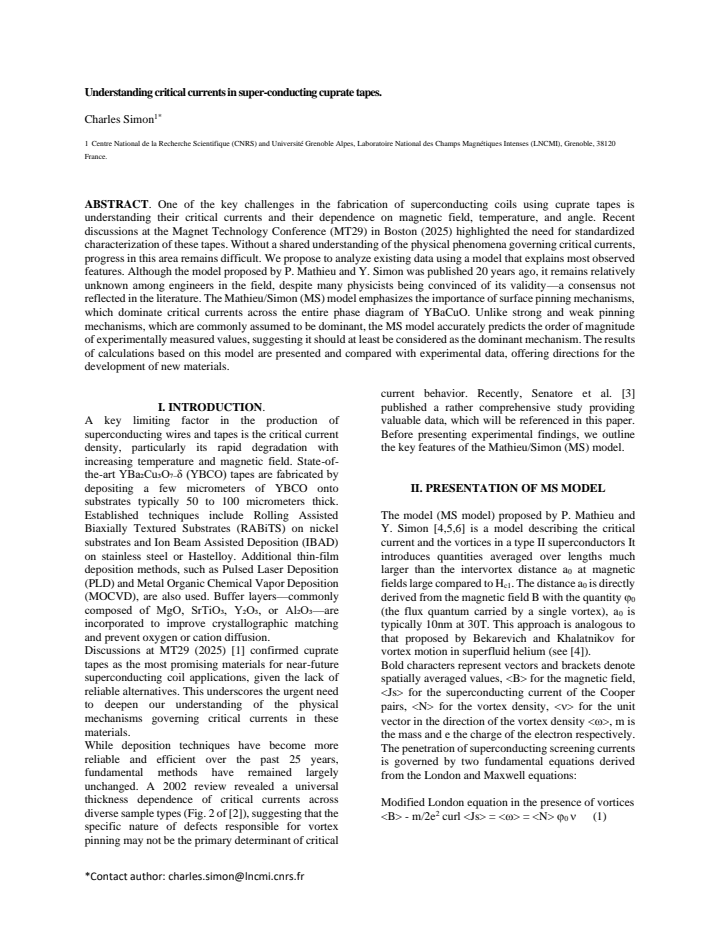

read the original abstract

One of the key challenges in the fabrication of superconducting coils using cuprate tapes is the parametrization of the critical currents and their dependence on magnetic field, temperature, and angle. Discussions at the Magnet Technology Conference (MT29) in Boston (2025) highlighted the need for standardized characterization and a better understanding of these tapes. Without a shared understanding of the physical phenomena governing critical currents, progress in this area remains difficult. We propose to analyze existing data using a model that explains most observed features. Although the model proposed by P. Mathieu and Y. Simon was published 20 years ago, it remains relatively unknown and certainly unused among engineers in the field, although many physicists were convinced of its validity, a consensus not reflected in the literature. The Mathieu/Simon (MS) model emphasizes the importance of surface pinning mechanisms, which dominate critical currents across a large part of the phase diagram of YBaCuO. Unlike strong and weak pinning mechanisms, which are commonly assumed to be dominant, the MS model accurately predicts the order of magnitude of experimentally measured values, suggesting it should at least be considered the dominant mechanism. The results of calculations based on this model are presented and compared with experimental data, offering directions for the development of new materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes analyzing existing data on critical currents in cuprate tapes using the 20-year-old Mathieu/Simon (MS) model, which posits that surface pinning mechanisms dominate over strong and weak pinning across much of the YBaCuO phase diagram. It claims the MS model explains most observed features in the dependence of critical current on magnetic field, temperature, and angle, and matches the order of magnitude of experimental values, offering directions for material development and standardization following discussions at MT29.

Significance. If the surface-pinning expressions are shown to outperform or exclusively account for measured Ic(B,T,θ) values through rigorous quantitative tests, the work could reorient the field away from bulk pinning assumptions toward surface mechanisms, improving parametrization for superconducting coils.

major comments (3)
  1. [Abstract] Abstract: The assertion that the MS model 'explains most observed features' and 'accurately predicts the order of magnitude of experimentally measured values' supplies no equations, no specific data comparisons, and no error analysis, leaving the central claim unsupported.
  2. [Main text (calculations section)] Main text (calculations section): The paper presents calculations compared to existing data but does not report systematic residuals, MAPE, or side-by-side predictions from collective pinning or Dew-Hughes-type bulk models on the same datasets, so order-of-magnitude consistency alone cannot establish dominance.
  3. [Discussion] Discussion: No falsifiable predictions or tests are given that would distinguish surface pinning from co-existing bulk mechanisms across the full phase diagram, which is load-bearing for recommending the model as dominant.
minor comments (2)
  1. [References] Add explicit citations and brief derivations or key equations from the original Mathieu/Simon papers so readers can follow the model application without external lookup.
  2. [Results] Clarify any fitting parameters used in the presented calculations versus truly parameter-free predictions.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive report. We address each major comment point by point below, indicating where revisions will be made to strengthen the presentation of the Mathieu/Simon model and its comparisons to data.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The assertion that the MS model 'explains most observed features' and 'accurately predicts the order of magnitude of experimentally measured values' supplies no equations, no specific data comparisons, and no error analysis, leaving the central claim unsupported.

    Authors: We agree that the abstract is concise and does not include supporting details. The main text contains the relevant MS model expressions and direct comparisons to experimental Ic(B,T,θ) datasets from cuprate tapes. In the revised manuscript we will expand the abstract to reference the key surface-pinning formulas and note the order-of-magnitude agreement with measured values on representative datasets. revision: yes

  2. Referee: [Main text (calculations section)] Main text (calculations section): The paper presents calculations compared to existing data but does not report systematic residuals, MAPE, or side-by-side predictions from collective pinning or Dew-Hughes-type bulk models on the same datasets, so order-of-magnitude consistency alone cannot establish dominance.

    Authors: The calculations section does compare MS-model results to published data, but we acknowledge the absence of quantitative error metrics and explicit contrasts with bulk-pinning expressions. We will add a table of residuals and MAPE for the primary datasets and include side-by-side predictions against a representative collective-pinning and Dew-Hughes model for at least two temperature and field regimes. A fully exhaustive comparison across every possible bulk model is not feasible within the present scope, but the added material will allow readers to assess relative performance directly. revision: partial

  3. Referee: [Discussion] Discussion: No falsifiable predictions or tests are given that would distinguish surface pinning from co-existing bulk mechanisms across the full phase diagram, which is load-bearing for recommending the model as dominant.

    Authors: We will revise the discussion to list concrete, falsifiable signatures of surface pinning, including the predicted angular dependence of Ic near the ab-plane and the temperature scaling of the surface-pinning force that differ from standard bulk-pinning forms. These will be presented as testable predictions that can be checked against existing or new measurements across the YBaCuO phase diagram, thereby clarifying how the MS mechanism can be distinguished from co-existing bulk contributions. revision: yes

Circularity Check

0 steps flagged

Minor self-citation of Mathieu/Simon model with independent data comparison

full rationale

The paper applies the pre-existing Mathieu/Simon surface-pinning model to existing experimental datasets on YBaCuO tapes and reports order-of-magnitude agreement with measured critical currents. Although the model originates from prior work by authors in the same research lineage, the central claim rests on explicit calculations compared to data rather than any reduction of the present paper's outputs to its own fitted parameters or definitions. No equation in the provided text shows a prediction that is identical to an input by construction, and the model is treated as an external input whose validity is tested against measurements. This constitutes normal self-citation that does not render the derivation circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available, so the internal structure of the MS model cannot be audited. The central claim rests on the unexamined premise that surface pinning is dominant and that the 20-year-old model already contains the correct functional form.

axioms (1)
  • domain assumption Surface pinning mechanisms dominate critical currents across a large part of the YBaCuO phase diagram.
    Stated directly in the abstract as the key physical picture that distinguishes the MS model from conventional strong/weak pinning assumptions.

pith-pipeline@v0.9.0 · 5739 in / 1319 out tokens · 37575 ms · 2026-05-22T11:58:18.657263+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages

  1. [1]

    Magnet Technology conference 2025, https://www.mt29-conf.org

    work page 2025

  2. [2]

    Understanding high critical currents in YBa2Cu3O7 thin films and coated conductors

    L. Civale et al. “Understanding high critical currents in YBa2Cu3O7 thin films and coated conductors”, Journal of Low Temperature Physics 135, 87 (2004)

    work page 2004

  3. [3]

    REBC O tapes for applications in ultra -high fields, critical current surface and scaling relations

    C. Senatore et al, Supercond. “REBC O tapes for applications in ultra -high fields, critical current surface and scaling relations” Sci. Technol. 37, 115013 (2024)

    work page 2024

  4. [4]

    Phenomenological theory of vortex motion in type -II superconductors

    P. Mathieu and Y. Simon, “Phenomenological theory of vortex motion in type -II superconductors”; Europhys. Lett. 5, 67 (1988). 10 0 100 200 300 400 500 600 700 800Ic/w (Amps/cm-width) B(T) *Contact author: charles.simon@lncmi.cnrs.fr

    work page 1988

  5. [5]

    Continuum theory of the mixed -state and surface Joule effects in type -II superconductors

    T. Hocquet, P. Mathieu and Y. Simon, “Continuum theory of the mixed -state and surface Joule effects in type -II superconductors” Phys Rev B46, 1061 (1992)

    work page 1992

  6. [6]

    Critical- current fluctuations and flux-flow noise in type- II superconductors

    B. Plaçais, P. Mathieu and Y. Simon, “Critical- current fluctuations and flux-flow noise in type- II superconductors” Phys Rev. Lett 70, 1521 (1993)

    work page 1993

  7. [7]

    Precision Ginzburg -Landau solution of ideal vortex lattices for any induction and symme try

    H. Brandt, “Precision Ginzburg -Landau solution of ideal vortex lattices for any induction and symme try” Phys Rev Lett 78, 2208 (1997)

    work page 1997

  8. [8]

    A. A. Abrikosov, Sov. Phys. JETP 5, 1174 (1957)

    work page 1957

  9. [9]

    Plaçais et al, Phys

    B. Plaçais et al, Phys. C 239-240, 3049 (1994)

    work page 1994

  10. [10]

    ancrage et dynamique d'un réseau de vortex dans le cadre d'un ancrage de surface. Supraconducti vité

    Alain Pautrat. “ancrage et dynamique d'un réseau de vortex dans le cadre d'un ancrage de surface. Supraconducti vité” [cond -mat.supr- con]. Université de Caen, 2000. Français. ⟨NNT : ⟩. ⟨tel-00010046⟩)

    work page 2000

  11. [11]

    Zhidong Hao and John R. Clem, M. W. McElfresh, L. Civale, A. P. Malozemoff; and F. Holtzberg, Phys Rev B 43, 2844 (1991)

    work page 1991

  12. [12]

    Critical current s in the anisotropic superconductor 2H -NbSe2: evidence for an upper bound of the surface critical-current density

    G. Lazard et al, “Critical current s in the anisotropic superconductor 2H -NbSe2: evidence for an upper bound of the surface critical-current density” Phys Rev B 65, 064518, (2002)

    work page 2002

  13. [13]

    An unusual phase transition to a second liquid vortex phase in the superconductor YB a2Cu3O7

    F. Bouquet et al., “An unusual phase transition to a second liquid vortex phase in the superconductor YB a2Cu3O7” Nature 411, 448 (2001)

    work page 2001

  14. [14]

    Persistence of an ordered flux line lattice above the second peak in Bi -2212

    A. Pautrat et al. “Persistence of an ordered flux line lattice above the second peak in Bi -2212 ” Phys. Rev. B 75, 224512 (2007)

    work page 2007

  15. [15]

    Leroux, F

    M. Leroux, F. Balakirev, M. Miura, K. Agatsuma, L. Civale, B. Maiorov, Phys. R ev. Applied 11, 054005 (2019)

    work page 2019
