Shear shock evolution in incompressible soft solids

Chockalingam Senthilnathan , Tal Cohen This is my paper

Pith reviewed 2026-05-24 20:57 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords shear shockincompressible elastic materialshyperelastic modelsshock formation distancephase mapsbrain tissuetraumatic brain injuryelastodynamics
0
0 comments X

The pith

Closed-form expressions for shear shock formation distance are derived for incompressible hyperelastic materials and assembled into phase maps that identify when shocks occur.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives closed-form expressions for the distance at which shear waves evolve into shocks in incompressible elastic solids under large deformations. These expressions are assembled into non-dimensional phase maps that mark the regimes where shocks form, as functions of loading amplitude, waveform shape, ramp time, and the elastic parameters of common hyperelastic models. The maps are then applied to brain tissue, showing that smaller brains are less susceptible to shear shocks for realistic loadings. The sensitivity encoded in the maps is offered as a guide for choosing loading parameters, specimen dimensions, and material properties that can avoid shock formation in protective designs.

Core claim

Closed form expressions for the shock formation distance are derived within large deformation elastodynamics for incompressible elastic materials using common hyperelastic models. These expressions enable non-dimensional phase maps that determine the regimes where shocks can form, highlighting the influence of loading amplitude, shape, ramp time, and elastic parameters. For brain tissue applications, the maps indicate that smaller brains are less susceptible to shear shock formation for realistic loadings, and the maps are proposed to guide protective structure design by avoiding shock-forming combinations of parameters.

What carries the argument

The closed-form expression for shock formation distance obtained by solving the governing elastodynamic equations for incompressible hyperelastic solids under shear loading.

If this is right

  • Shock formation distance varies directly with loading amplitude, waveform shape, and ramp duration.
  • Non-dimensional phase maps delineate the parameter combinations that produce or suppress shocks for any chosen hyperelastic model.
  • For brain tissue under realistic inputs, smaller specimen sizes reduce the likelihood of shear shock formation.
  • The maps identify safe operating regions in loading amplitude, ramp time, and specimen size that avoid shock formation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The size dependence identified for brain tissue could be tested by repeating the same loading protocol on soft-gel samples of systematically varied thickness.
  • Because the maps are sensitive to waveform details, they could be used to design input signals that deliberately stay below the shock threshold in medical or industrial applications.
  • The same closed-form approach might extend to compressible or anisotropic soft solids if the governing equations can be integrated similarly.

Load-bearing premise

The derivations assume the materials remain incompressible and obey standard hyperelastic constitutive relations throughout the large-deformation process.

What would settle it

A laboratory measurement of the actual distance at which a shear wave steepens into a shock in a soft incompressible solid, performed under controlled loading conditions, that deviates substantially from the closed-form prediction would falsify the expressions.

Figures

Figures reproduced from arXiv: 1907.06760 by Chockalingam Senthilnathan, Tal Cohen.

Figure 1

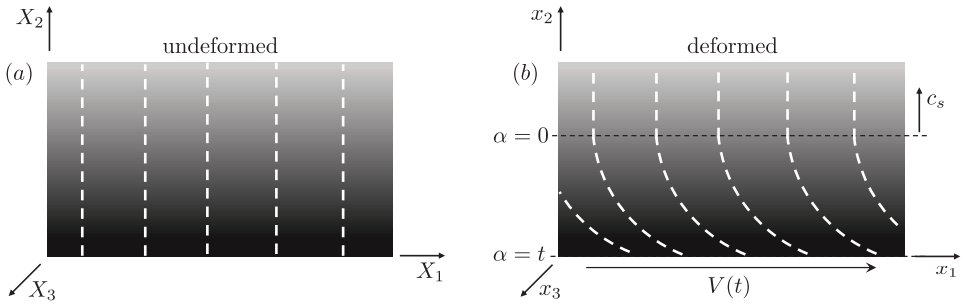

Figure 1. Figure 1: Simple shear deformation of a homogeneous isotropic perfectly incompressible material occupying the [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

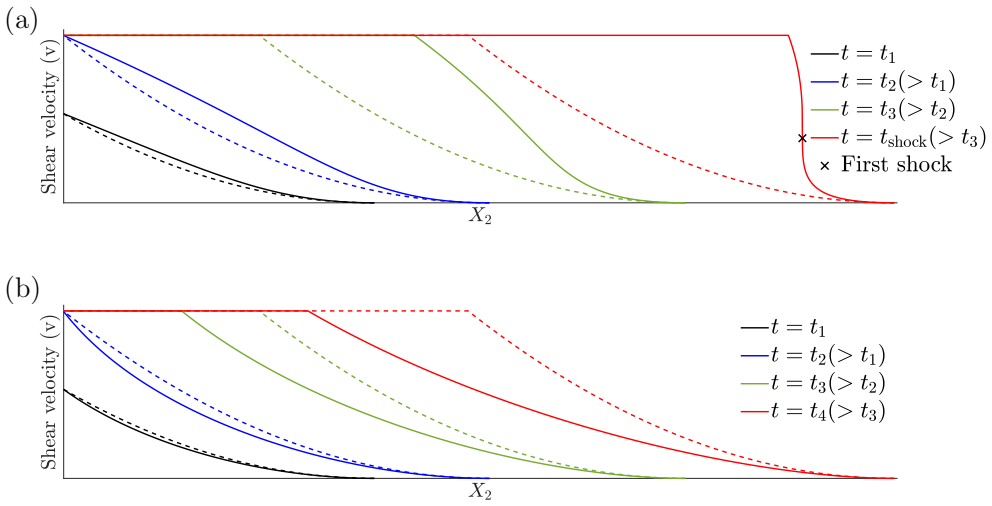

Figure 2. Figure 2: A quadratic loading waveform (n = 2 in (44)) nonlinearly evolving while being spatially relayed by a material with (a) Stiffening shear stress response, i.e τ 00(|γ|) > 0. The figure was made for the exponential stress model (53), and the parameters chosen were such that the loading was in the regime m > mth (and n > nc = 1) so that the first shock forms somewhere in the middle of the ramping part of the w… view at source ↗
Figure 3

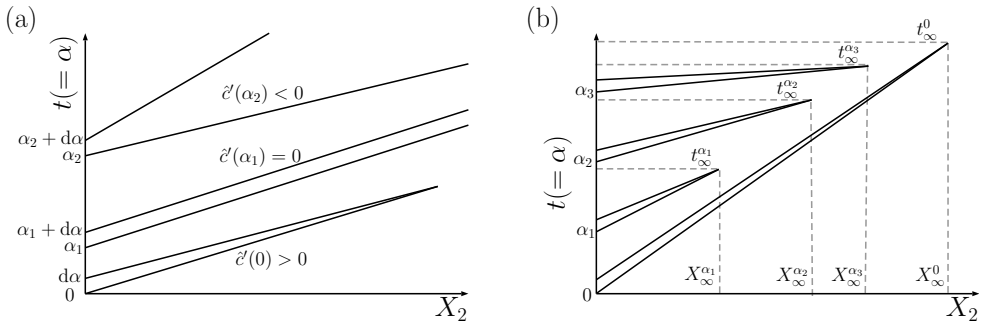

Figure 3. Figure 3: (a) Characteristics with slope 1/c on the t−X2 plane, described by (19), along which shear velocity and strain are constant. In regions where the characteristics run away from each other (ˆc 0 < 0) the waveform spatially spreads with time and in regions where their separation reduces (ˆc 0 > 0) the waveform steepens. In regions where characteristics are parallel (ˆc 0 = 0) the waveform is locally relayed w… view at source ↗
Figure 4

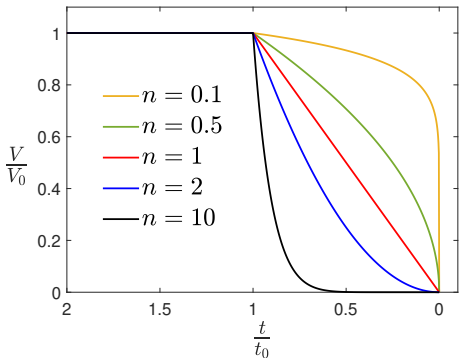

Figure 4. Figure 4: Family of loading profiles described by (44), [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

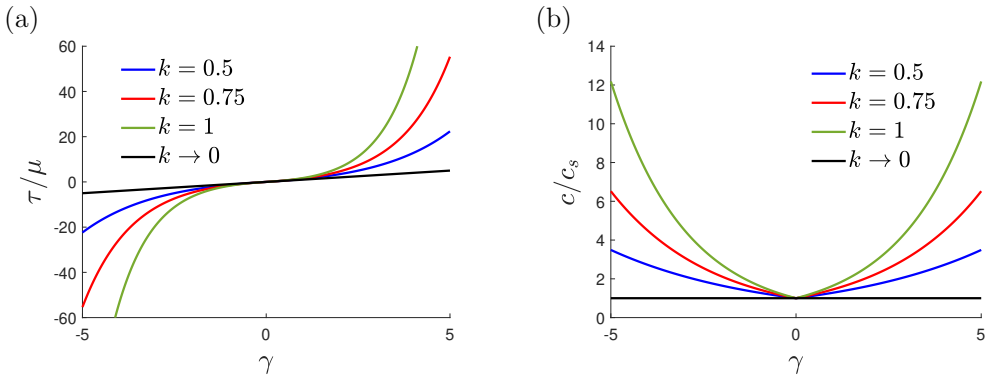

Figure 5. Figure 5: Exponential stress model (53): Plots of (a) the dimensionless shear stress, and (b) the dimensionless [PITH_FULL_IMAGE:figures/full_fig_p016_5.png] view at source ↗
Figure 6

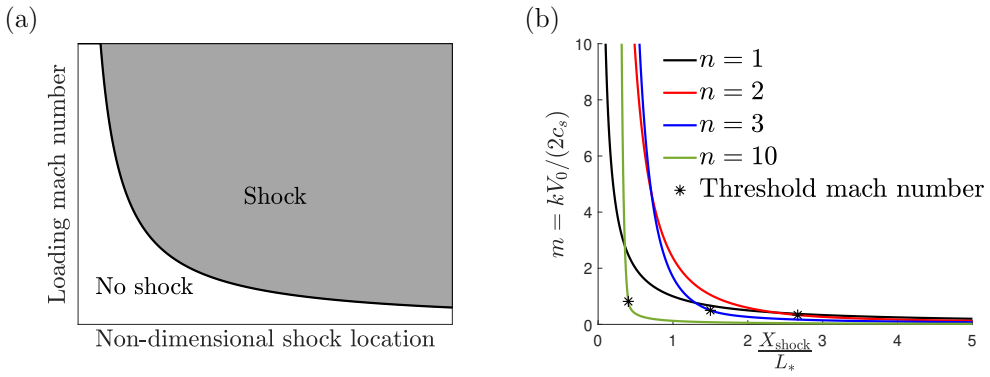

Figure 6. Figure 6: (a) Representative non-dimensional phase map of the shock location for a given loading exponent [PITH_FULL_IMAGE:figures/full_fig_p019_6.png] view at source ↗
Figure 7

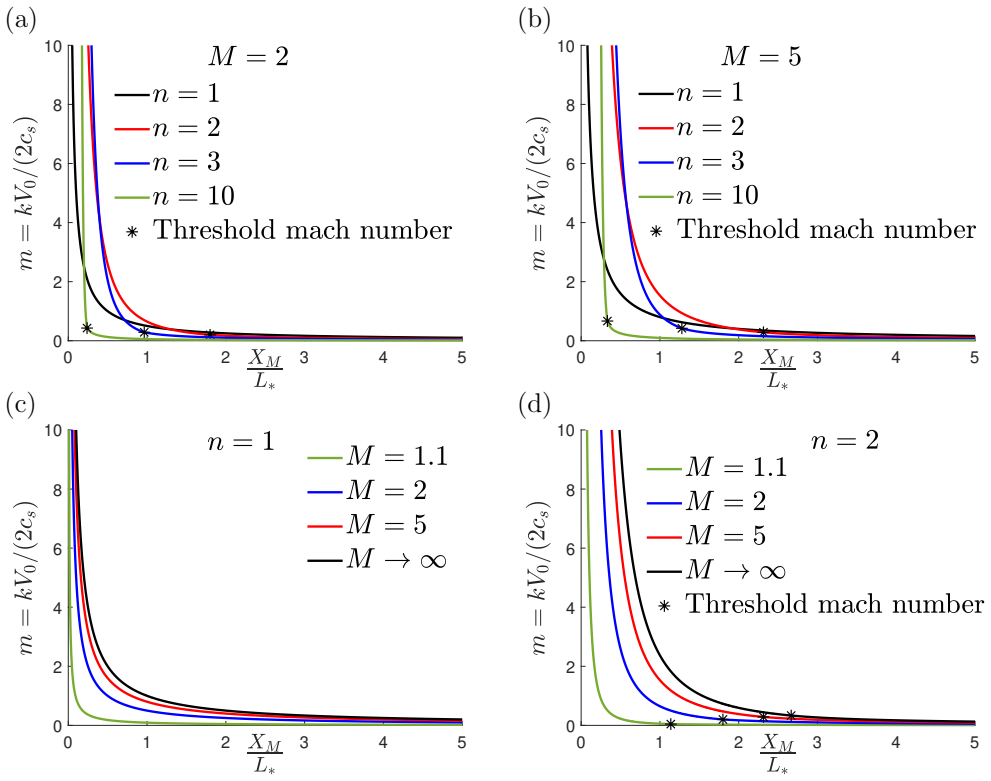

Figure 7. Figure 7: Exponential stress model (53): Maps of the dimensionless distance of first realization of acceleration [PITH_FULL_IMAGE:figures/full_fig_p020_7.png] view at source ↗
Figure 8

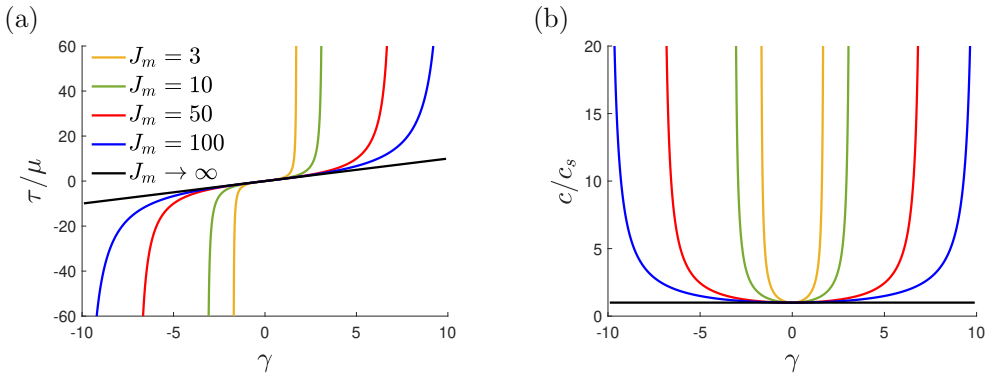

Figure 8. Figure 8: Gent model (67): Plots of (a) the dimensionless shear stress, and (b) the dimensionless shear wavespeed [PITH_FULL_IMAGE:figures/full_fig_p022_8.png] view at source ↗
Figure 9

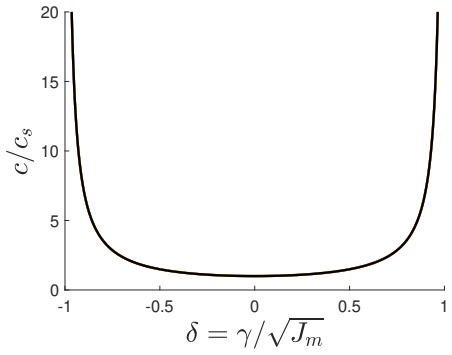

Figure 9. Figure 9: Gent model (67): Plot of the dimensionless wavespeed as a function of the fractional shear strain [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
Figure 10

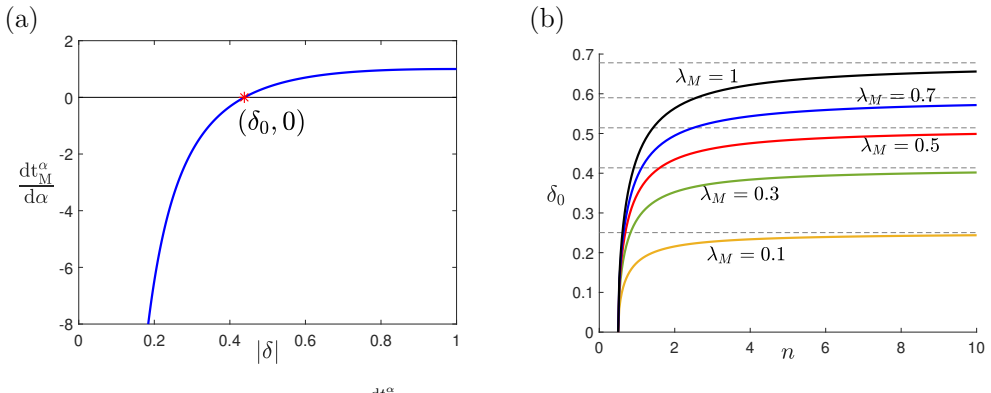

Figure 10. Figure 10: Gent model (67): (a) Plot of dt α M dα versus the magnitude of the fractional shear strain for λM, n = 1 using (76). The nature of the plot remains the same for any λM(= 1−1/M) ∈ (0, 1) and any n > 0.5, as δ → 0 −, the limit dt α M dα → −∞ and dt α M dα changes sign from negative to positive at the root | ˆδ(α)| = δ0. (b) Plots of δ0 versus the loading exponent for different values of λM. The dotted lines… view at source ↗
Figure 11

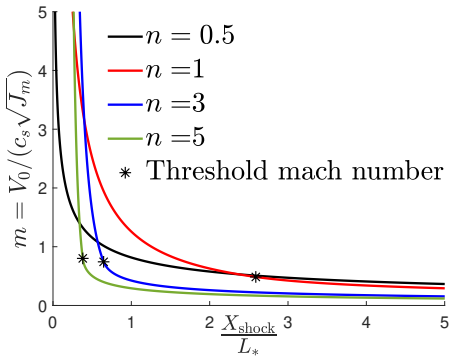

Figure 11. Figure 11: Gent model (67): Non-dimensional map of the shock location as a function of the loading mach [PITH_FULL_IMAGE:figures/full_fig_p025_11.png] view at source ↗
Figure 12

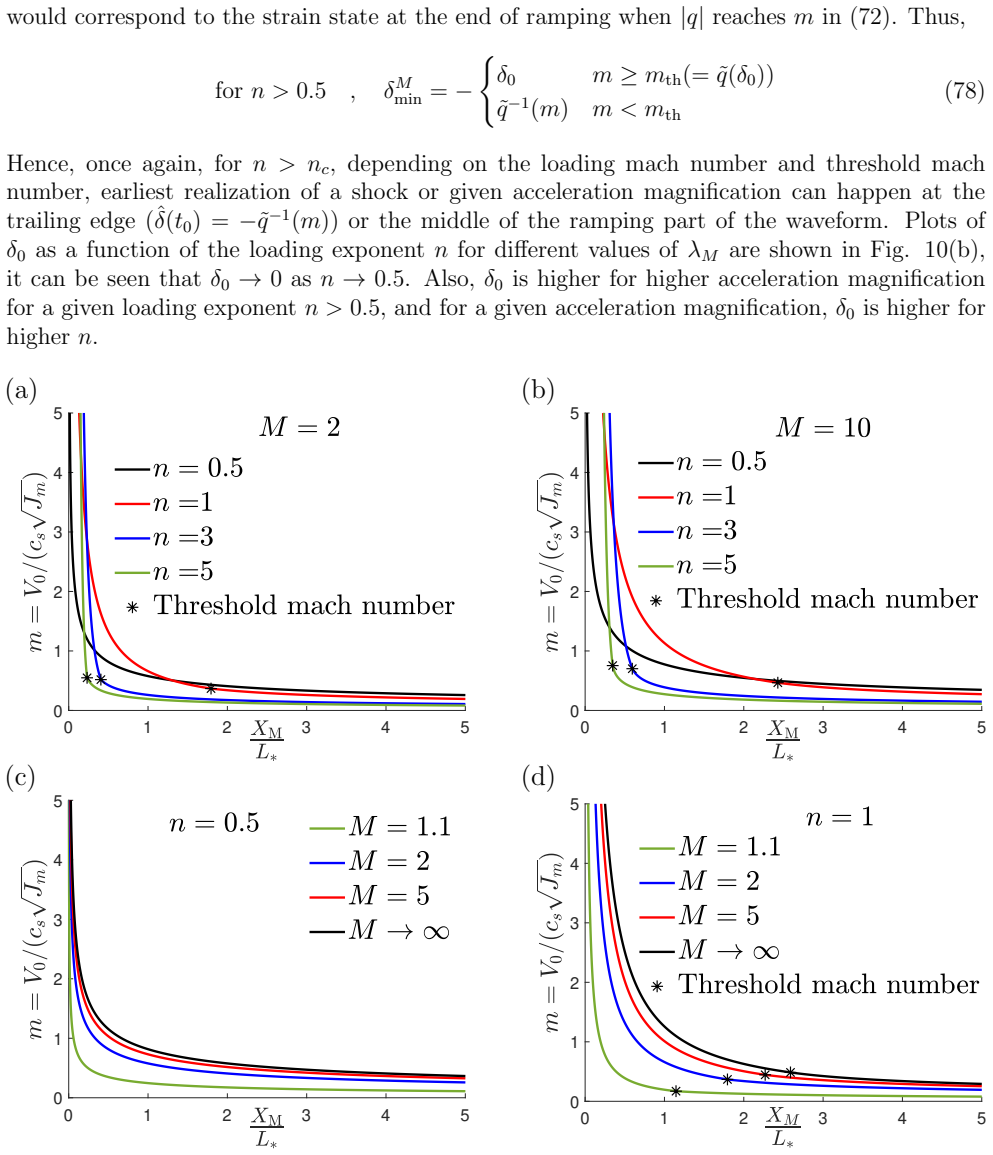

Figure 12. Figure 12: Gent model (67): Maps of the dimensionless distance of first realization of acceleration magnification [PITH_FULL_IMAGE:figures/full_fig_p026_12.png] view at source ↗
Figure 13

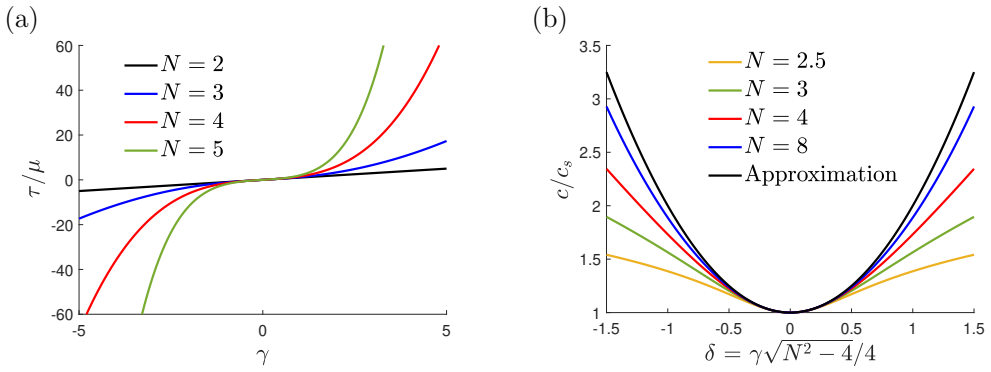

Figure 13. Figure 13: Ogden model (82): (a) Plot of the dimensionless shear stress as a function of the shear strain [PITH_FULL_IMAGE:figures/full_fig_p028_13.png] view at source ↗
Figure 14

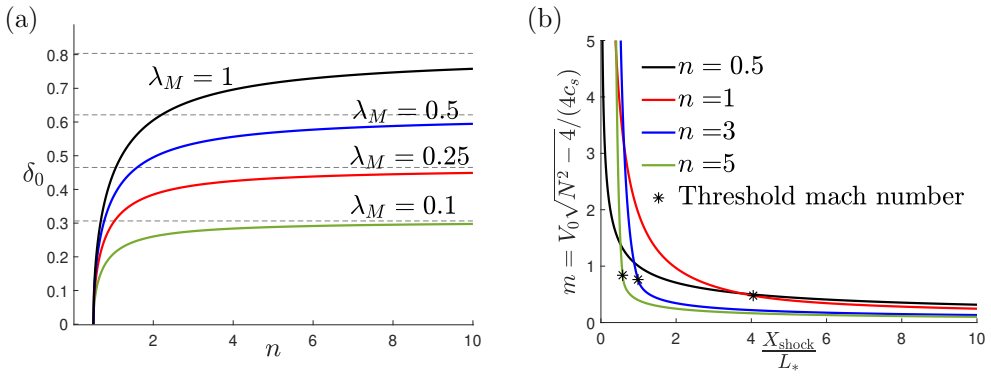

Figure 14. Figure 14: Ogden model (82) for N > 2: (a) Plots of δ0, the positive root of (90), versus the loading exponent for different values of λM. The dotted lines represent the asymptotic value of δ0 as n → ∞ and δ0 → 0 as n → 0.5 (nc). (b) Non-dimensionalized map of the shock location as a function of the loading mach number m, for various loading exponents (using λM = 1 in (92)). For n > 0.5(nc), a threshold mach number … view at source ↗
Figure 15

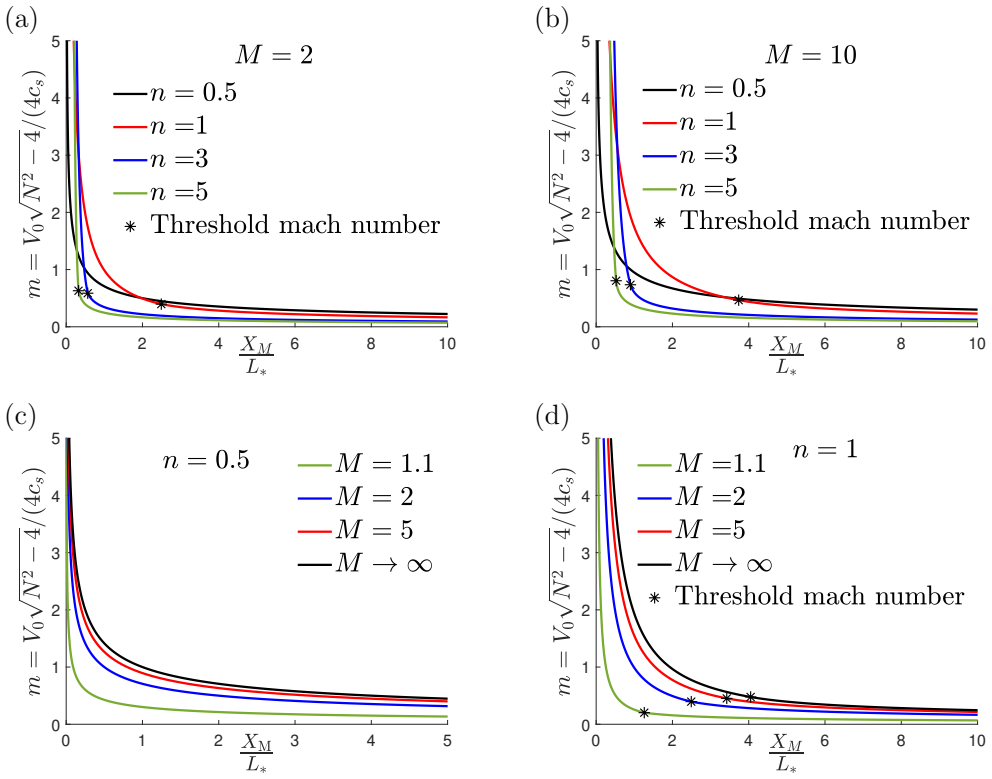

Figure 15. Figure 15: Ogden model (82) for N > 2: Maps of the dimensionless distance of first realization of acceleration magnification M, for varying loading mach number m, using (92). Maps for different loading exponents n with (a) M = 2, and (b) M = 10. Maps at different M for (c) n = 0.5(nc) and (d) n = 1. In (c),(d), curves for XM quickly converge to that of the shock location (M → ∞) at higher values of M. shown in [PIT… view at source ↗
Figure 16

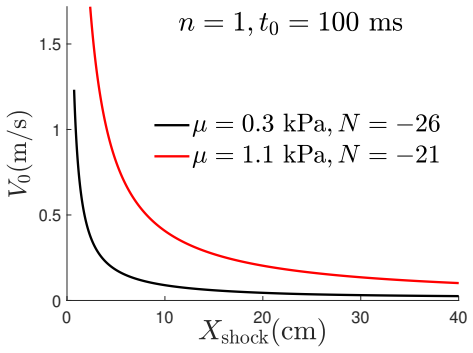

Figure 16. Figure 16: Shock formation in the brain: Plot of the shock formation distance for the two parameter Ogden model [PITH_FULL_IMAGE:figures/full_fig_p032_16.png] view at source ↗
read the original abstract

Nonlinear evolution of shear waves into shocks in incompressible elastic materials is investigated using the framework of large deformation elastodynamics, for a family of loadings and commonly used hyperelastic material models. Closed form expressions for the shock formation distance are derived and used to construct non-dimensional phase maps that determine regimes in which a shock can be realized. These maps reveal the sensitivity of shock evolution to the amplitude, shape, and ramp time of the loading, and to the elastic material parameters. In light of a recent study (Espindola et al., 2017), which hypothesizes that shear shock formation could play a signicant role in Traumatic Brain Injury (TBI), application to brain tissue is considered and it is shown that the size matters in TBI research. Namely, for realistic loadings, smaller brains are less susceptible to formation of shear shocks. Furthermore, given the observed sensitivity to the imparted waveform and the constitutive properties, it is suggested that the non-dimensional maps can guide the design of protective structures by determining the combination of loading parameters, material dimensions, and elastic properties that can avoid shock formation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The paper investigates the nonlinear evolution of shear waves into shocks in incompressible elastic materials using large-deformation elastodynamics for a family of loadings and standard hyperelastic models. Closed-form expressions for the shock formation distance are derived via characteristic integration and used to construct non-dimensional phase maps identifying regimes where shocks form. These maps are applied to brain tissue to argue that smaller brains are less susceptible to shear shocks under realistic loadings, with suggestions for guiding protective structure design.

Significance. If the closed-form derivations hold, the work supplies analytical expressions and non-dimensional maps that quantify sensitivity of shock formation to loading amplitude, shape, ramp time, and elastic parameters. This offers a practical framework for soft solids mechanics that can complement numerical studies and inform TBI-related modeling by highlighting geometric scaling effects.

minor comments (3)
  1. [Abstract] Abstract: 'signicant' is a typo and should read 'significant'.
  2. [Abstract] The phrasing 'the size matters in TBI research' is informal; a more precise statement such as 'brain size influences susceptibility to shear shock formation' would improve clarity.
  3. [Introduction] The motivation citing Espindola et al. (2017) would benefit from a one-sentence summary of their key hypothesis to aid readers outside the TBI literature.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary, significance assessment, and recommendation of minor revision. No major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper derives closed-form expressions for shock formation distance from the standard hyperbolic system of large-deformation incompressible elastodynamics applied to common hyperelastic constitutive models, followed by non-dimensionalization to produce phase maps. No step reduces by construction to a fitted parameter, self-citation chain, or ansatz imported from the authors' prior work; the cited Espindola et al. (2017) is external and the derivations remain self-contained against external benchmarks of continuum mechanics.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only; the derivations rest on standard assumptions of continuum elastodynamics and incompressibility. No free parameters, invented entities, or ad-hoc axioms are identifiable from the provided text.

axioms (1)
  • domain assumption Large deformation elastodynamics framework for incompressible hyperelastic materials
    Invoked in abstract paragraph 1 as the setting for the analysis.

pith-pipeline@v0.9.0 · 5716 in / 1149 out tokens · 17203 ms · 2026-05-24T20:57:26.085074+00:00 · methodology
