Verification of the tenth-Order QED contribution to the anomalous magnetic moment of the electron from diagrams without fermion loops

T0 review · 3 major / 4 minor · reviewed 2026-08-11 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read The paper attributes a 5-sigma disagreement in the electron's magnetic moment to biased Monte Carlo integrals in 98 diagrams, and a higher-statistics recomputation yields a revised value that resolves it.

desk verdict A genuinely new diagram-by-diagram gap-equation audit of the two tenth-order QED calculations, with a credible revised value, but Table I itself contains multi-sigma outliers that contradict the paper's central 'no discrepancy' claim. read the letter →

arxiv 2412.06473 v3 pith:A62UDSJX submitted 2024-12-09 hep-ph

Tatsumi Aoyama , Masashi Hayakawa , Akira Hirayama , Makiko Nio This is my paper · ORCID
classification hep-ph
keywords anomalousmagneticmomentelectrong-2QEDperturbationtheorytenthorderno-fermion-loopdiagramsself-energydiagramdecompositiongapequationMonteCarlointegration
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Two independent numerical calculations of the tenth-order QED contribution to the electron's anomalous magnetic moment from diagrams without electron loops disagreed by about $5\sigma$, a serious obstacle to using the electron's magnetic moment as a precision test of the Standard Model. This paper attempts to locate the source of that disagreement by decomposing the contribution into 389 self-energy-diagram integrals and checking each one against a 'gap equation' that relates the two calculations' renormalization conventions. The check finds no individual diagram out of line, but the differences of 98 diagrams with a common structure—one second-order self-energy subdiagram and no others—accumulate with a clear sign. Recomputing those 98 integrals with the same Monte Carlo algorithm at higher statistics shifts the total by $-0.8032 \pm 0.0717$, giving a revised value $6.800 \pm 0.128$ that agrees with the independent result. If correct, the paper removes a well-known tension in the theoretical prediction of the electron's magnetic moment.

What carries the argument

The load-bearing object is the gap equation. For each of the 389 independent tenth-order self-energy diagrams $G$, the difference between the finite magnetic moment $\Delta M_G$ from one calculation and the sum of the vertex-diagram amplitudes $\sum_i \Delta M_{G(i)}$ from the other is expressed, via the Ward-Takahashi identity, in terms of lower-order renormalization constants and magnetic moments. Because those lower-order quantities are known to high accuracy, the equation predicts the difference; comparing that prediction with the two numerical integrals checks both calculations diagram by diagram. The classification by self-energy subdiagram structure then isolates the 98 integrals that carry the accumulated bias.

What would settle it

Recomputing the same 98 integrals with an integration method that does not share VEGAS's variable-stretching heuristics, such as deterministic quasi-Monte Carlo, and comparing the summed value with $57.0023 \pm 0.0327$ would settle the claim: a significantly different total would show the bias was not removed.

Watch

Extended reading notes

Core claim

The paper claims that the $5\sigma$ disagreement between the two known tenth-order QED contributions to the electron's anomalous magnetic moment from diagrams without fermion loops originates in a systematic bias in the Monte Carlo integration of 98 particular Feynman integrals. These are the diagrams that contain one second-order self-energy subdiagram and no other self-energy subdiagrams. Recomputing those 98 integrals with the same VEGAS algorithm at higher statistics and with slightly modified variable stretching produced a summed shift of $-0.8032 \pm 0.0717$, changing the total from $7.604 \pm 0.140$ to $6.800 \pm 0.128$. The new value is consistent with the independent result $6.824 \pm 0.089$ and its 2024 update $6.857 \pm 0.081$, so the authors conclude the discrepancy is resolved.

Load-bearing premise

The resolution rests on the premise that the systematic integration error was confined to the 98 diagrams identified after inspecting the data, and that re-running the same integration routine with more samples and slightly altered stretching removed that error.

Editorial extensions

If this is right

  • The revised no-fermion-loop contribution is $6.800 \pm 0.128$, replacing $7.604 \pm 0.140$ and agreeing with the independent estimates $6.824 \pm 0.089$ and $6.857 \pm 0.081$.
  • The gap-equation consistency check across all 389 self-energy diagrams validates that both constructions of the Feynman integrals are correct; the discrepancy was in numerical integration, not in the formulation.
  • The accumulated bias is localized to the 98 integrals containing a single second-order self-energy subdiagram, whose new sum differs from the old by $-0.8032 \pm 0.0717$.
  • The electron's tenth-order QED prediction is now compatible with the independent value, so the comparison between the measured magnetic moment and theory no longer contains this $5\sigma$ tension.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • An implication the authors leave implicit is that the earlier gap was a numerical artifact of under-sampled VEGAS integration rather than a sign of new physics or a flaw in renormalization.
  • Because 85 of the 98 new integrals moved downward, the bias looks directional and tied to the VEGAS variable stretching; this suggests the same auditing procedure could be applied to other slow-converging diagram classes, a step the paper does not take.
  • A natural testable extension is to recompute the 98 integrals with an independent numerical method; the paper's resolution currently rests on one algorithm run at higher statistics, so such a check would settle whether the bias is truly gone.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper addresses a known ~5σ discrepancy between two independent numerical evaluations of the tenth-order QED contribution to the electron anomalous magnetic moment from diagrams without fermion loops (Set V): the authors' earlier AHKN2020 value and Volkov's results. The authors decompose the 389 independent tenth-order self-energy diagrams and construct gap equations that relate AHKN's finite magnetic moment amplitudes to Volkov's sums of vertex-diagram amplitudes through finite renormalization-constant differences. A diagram-by-diagram comparison is presented in Table I. The authors find that the numerical differences between the two calculations accumulate in 98 diagrams that contain exactly one second-order self-energy subdiagram and no other self-energy subdiagrams. These 98 integrals are re-evaluated with increased VEGAS statistics, and replacing the old values yields a revised Set V result of 6.800 ± 0.128, consistent with Volkov's combined estimate 6.828(60). The paper concludes that the discrepancy is resolved.

Significance. If the revised value and its uncertainty are correct, this is an important result: it resolves a long-standing tension between two major numerical efforts in tenth-order QED and restores consistency with the independent Volkov calculations. The gap-equation framework is a useful new tool for diagram-by-diagram comparison and is presented with enough detail to be checked. The paper also provides a large computational campaign (about 3.2×10^7 core-hours) and publishes detailed tables of old and new integrals, which is valuable for future work. However, the central claim rests on a post hoc selection of 98 diagrams and on the assumption that the numerical bias in the old AHKN2020 integrals was confined to that class. That assumption is not yet validated with an independent integration method or a control sample, and the paper's own Table I contains residuals far outside the quoted errors, which undermines the assertion that no individual diagram shows a discrepancy.

major comments (3)
  1. [Section VI, Table I] The statement in Section VI that 'there is no apparent inconsistency in any of the 389 diagrams' is not supported by the numbers in Table I. For example, X350 has a residual of 0.0090 ± 0.0008 (about 11σ), X352 has 0.0103 ± 0.0006 (about 17σ), X382 has 0.0382 ± 0.0076 (about 5σ), X329 has 0.0275 ± 0.0064 (about 4.3σ), and X227 has 0.0341 ± 0.0094 (about 3.6σ). X350, X352, and X382 are not in the 98 re-evaluated integrals listed in Table II, so the proposed replacement cannot remediate those residuals. If these residuals are genuine, either the quoted uncertainties are underestimated or the gap equations are not correct for these diagrams; either way, the claim of diagram-by-diagram consistency needs to be replaced with a statistical treatment of the full set of 389 residuals, including a look-elsewhere correction or a global goodness-of-fit test.
  2. [Section VII, Table II] The identification of the 98-diagram class is made after inspecting the data and is not pre-registered, and the conclusion that the bias is confined to this class is not verified with an independent integration method. The new evaluation uses the same VEGAS algorithm as the old one, with larger statistics and only slightly modified stretching; a correlated bias in the VEGAS integration would not necessarily be detected by this procedure. Furthermore, although the individual old–new differences in Table II are mostly within 1–2σ, 85 of the 98 integrals decrease, and the total shift is −0.8032 ± 0.0717, an approximately 11σ effect. This strongly indicates a systematic effect in the old integrals, but it also raises the question of whether the new integrals carry a residual correlated bias. A control check is needed: for instance, re-evaluating several non-98 diagrams (such as X350, X352, and X382) with the same new setup, or computing a subset with an independent integration method, would test whether the bias is truly confined to the 98-diagram class.
  3. [Eq. (9) and Section VII] The final uncertainty of 0.128 in Eq. (9) is the combined statistical error of the new VEGAS evaluations. If the numerical bias in the old integrals is correlated across diagrams that share the same self-energy substructure, the new integrals could carry a common systematic error that is not reflected in this uncertainty. The paper does not provide any estimate of such a systematic uncertainty. To make the central claim load-bearing, the authors should either demonstrate with a control sample that the new evaluations are free of the bias or add a systematic error term to the final result. Without this, the claim that the discrepancy is resolved is conditional on an unverified assumption about the source of the bias.
minor comments (4)
  1. [Section I, Eq. (4)] The paper refers to the unpublished AHKN2020 result as a reference value throughout; it would be helpful to state explicitly that this value has not been published in a refereed journal and to describe the exact contents of the dataset that defines AHKN2020.
  2. [Section VII] The statement that the 98 integrals 'had not been reevaluated with increased sampling points exceeding 1×10^10 using double-double precision' could be clarified: does this mean that no other Set V integrals have ever been evaluated with such statistics, or only that these particular ones had not been? The sentence as written is ambiguous.
  3. [Table II] The caption says 'Old Value' and 'New Value' but does not state the precision or the exact statistics used for each; adding a note on the number of sampling points per diagram, or at least the range, would improve reproducibility.
  4. [General] There are minor typographical issues, such as 'difficulty' and other non-ASCII ligatures in the text, and the reference formatting is inconsistent (e.g., Refs. [20] and [36] have slightly different journal-name styles). These do not affect the content.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: the revised Set V value is an independent re-evaluation of 98 VEGAS integrals, not a fit or a self-citation-derived number.

full rationale

The paper's central claim is a numerical re-evaluation. The gap-equation comparison in Sections IV-VI is a Ward-Takahashi consistency identity between AHKN's and Volkov's renormalization schemes; the right-hand side is computed from lower-order constants, not from the target Set V total, and the final AHKN2024 value in Eq. (9) is obtained by summing the independently re-run 98 integrals in Table II. No parameter is fitted to Volkov's result, and the concluding consistency with Volkov (6)-(8) is a comparison, not an input. The paper's reliance on earlier AHKN lower-order quantities is supported by analytic results and by Volkov's independent data, so it is not a load-bearing self-citation. The main weakness - selecting the 98-diagram class after inspecting the accumulated differences without a look-elsewhere correction, and the presence of large individual residuals (e.g., X350, X352 in Table I) that are not in the re-evaluated set - is a statistical/correctness concern about the uncertainty assessment, not a circular reduction of the derived value to its inputs. Accordingly no circular step can be exhibited with the required specificity.

Assumptions & free parameters 0 free parameters · 5 assumptions · 1 invented entities

The central claim rests on QED perturbation theory, the correctness of the gap equations for all 389 diagrams, the reliability of lower-order AHKN inputs, and the convergence of VEGAS. No physical free parameters are fitted to the target; the numerical inputs are the recalculated integrals and prior AHKN results. The mild circularity burden comes from selecting the 98 diagrams after seeing the discrepancy pattern.

assumptions (5)
  • domain assumption QED perturbative expansion and Feynman diagram representation are valid for the electron anomalous magnetic moment.
    The entire calculation assumes the standard QED framework and that the 2n-th order coefficient A1 is well defined.
  • standard math The Ward-Takahashi identity relates vertex and self-energy diagrams as used in Eqs. (10)-(11).
    Used to combine vertex diagrams into 389 self-energy diagrams and to express the difference between the two calculations.
  • domain assumption On-shell renormalization with IR-free intermediate constants can be implemented via the K-operation and the forest formula.
    The gap equations rely on the claimed equivalence of the AHKN and Volkov renormalization procedures and on the correctness of the forest formula (21).
  • domain assumption The lower-order finite quantities (delta L, Delta M, Delta dm, Delta L_B) from previous AHKN works are accurate to better than 0.001.
    These values enter every gap equation; if any is wrong, the consistency check is invalid. The paper states their uncertainties are less than 0.0002.
  • domain assumption VEGAS Monte Carlo integration with double-double arithmetic and the stated sampling counts converges to the true value of each Feynman integral.
    The new result rests on the assumption that increased statistics remove the old hidden bias rather than shifting it to another part of the integration domain.
invented entities (1)
  • delta L_G(i) finite renormalization constant
    purpose: Bookkeeping quantity defined as L_VUV - L_UV for each vertex diagram; used to express the gap equation between AHKN and Volkov finite amplitudes.
    It is a calculational construct introduced in Eq. (17), not a physical observable. It has no falsifiable handle outside the paper, but it is well-defined in terms of known renormalization constants.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Verification of the tenth-Order QED contribution to the anomalous magnetic moment of the electron from diagrams without fermion loops." pith.science (2026). https://pith.science/paper/A62UDSJX

@misc{pith2026241206473,
  author       = {Pith},
  title        = {Pith review of: Verification of the tenth-Order QED contribution to the anomalous magnetic moment of the electron from diagrams without fermion loops},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/A62UDSJX}},
  note         = {Machine review of arXiv:2412.06473}
}
abstract

A discrepancy of approximately 5$\sigma$ exists between the two known results for the tenth-order QED contribution to the anomalous magnetic moment of the electron, calculated from Feynman vertex diagrams without fermion loops. To investigate this, we decomposed this contribution into 389 parts based on a self-energy diagram representation, enabling a diagram-by-diagram numerical comparison of the two calculations. No significant discrepancies were found for individual diagrams. However, the numerical differences of the 98 diagrams sharing a common structure were not randomly distributed. The accumulation of these differences resulted in the 5$\sigma$ discrepancy. A recalculation with increased statistics in the Monte Carlo integration was performed for these 98 diagrams. By replacing the old values with the new ones for these 98 integrals, we have obtained a revised result of $6.800 \pm 0.128$, thereby resolving the discrepancy.

Figures

Figures reproduced from arXiv: 2412.06473 by the authors.

Figure 1

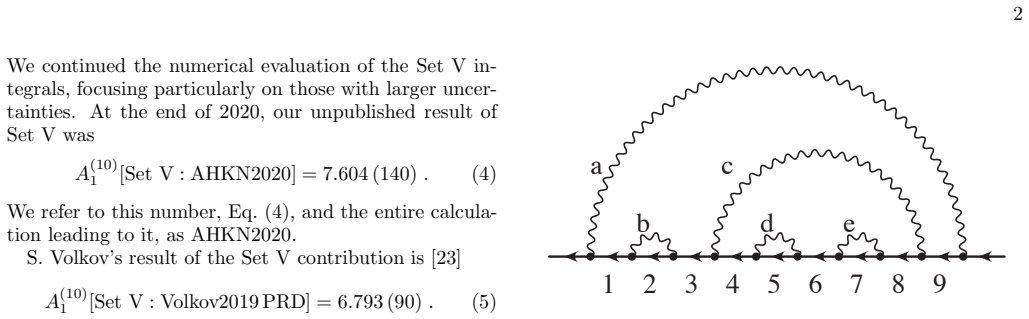

Figure 1. FIG. 1. A self-energy diagram of the tenth-order QED. This [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

Discussion (0). Continue with ORCID to comment.

Forward citations

Cited by 2 Pith papers

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score. Full citation record

  1. Towards testing $(g-2)_\tau$ in $e^+e^-\to\tau^+\tau^-$: radiative corrections and projections for Belle II

    hep-ph 2025-05 conditional novelty 7.0 of 10

    A complete one-loop QED calculation for polarized e+e- to tau+tau- is implemented in the McMule Monte-Carlo code, showing that Belle II with a polarized beam could test the tau anomalous magnetic moment at the 10^-5 level.

  2. Muon lifetime and Fermi constant: an update

    hep-ph 2026-07 accept novelty 4.5 of 10

    Updated Δq = (−4 384 678 ± 34)×10^{-9} reduces theory error on the muon lifetime by an order of magnitude and gives G_F = 1.166 378 59(59)×10^{-5} GeV^{-2}.
