arxiv: 1907.09719 · v1 · pith:A6J4GOB5new · submitted 2019-07-23 · 💻 cs.CR

Towards Secure IoT: Securing Messages Dissemination in Intelligent Traffic Systems

Jawdat Alshaer This is my paper

Pith reviewed 2026-05-24 17:54 UTC · model grok-4.3

classification 💻 cs.CR
keywords VANETIoT securitymessage disseminationintelligent traffic systemssensor network protocolbase stationscryptographic overheadauthentication
0
0 comments X

The pith

A sensor network security protocol can be inherited across VANET zones via base stations to enable secure low-overhead message dissemination in intelligent traffic systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that a security protocol originally used in sensor networks can be applied to vehicular ad hoc networks by having roadside base stations pass it along to adjacent zones. This inheritance avoids restarting security key setup and communication initialization each time a vehicle crosses into a new area. The result is meant to keep cryptographic computation light enough for vehicles moving at high speeds while still providing authentication and message security. Simulation results are presented as evidence that the adapted protocol supports practical secure communication with fast direction-based authentication during zone transitions. If the approach holds, it would allow secure messaging to extend across connected sub-networks in dynamic traffic environments without repeated heavy overhead.

Core claim

By inheriting a sensor network security protocol through base station gateways, VANETs achieve secure practical communication that can be passed to other sub VANETs, with reduced cryptography computation overhead suitable for high mobility and using security primitives that guarantee security while permitting fast authentication as vehicles move between zones based on direction.

What carries the argument

Inheritance of the sensor network security protocol across sub-VANET zones via base station gateways, relying on security primitives for fast direction-dependent authentication.

If this is right

  • Secure practical communication is achieved in VANETs for message dissemination.
  • The protocol can be inherited to other sub VANETs without full re-initialization.
  • Cryptography computation overhead stays low enough for high-mobility vehicle networks.
  • Fast authentication occurs during zone transitions depending on vehicle direction.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The inheritance approach could extend to other zone-structured mobile IoT networks beyond traffic systems.
  • Integration with existing traffic sensors might allow direction data to further optimize authentication timing.
  • Physical deployment tests would be needed to check performance against variable real-world interference and attack patterns.

Load-bearing premise

That a security protocol from sensor networks can be directly inherited across VANET zones via base stations without introducing new vulnerabilities or unacceptable delays under real high-mobility conditions.

What would settle it

A simulation or field measurement showing that authentication time exceeds acceptable limits or that attacks succeed when vehicles cross base station boundaries at highway speeds under the paper's attack models.

Figures

Figures reproduced from arXiv: 1907.09719 by Jawdat Alshaer.

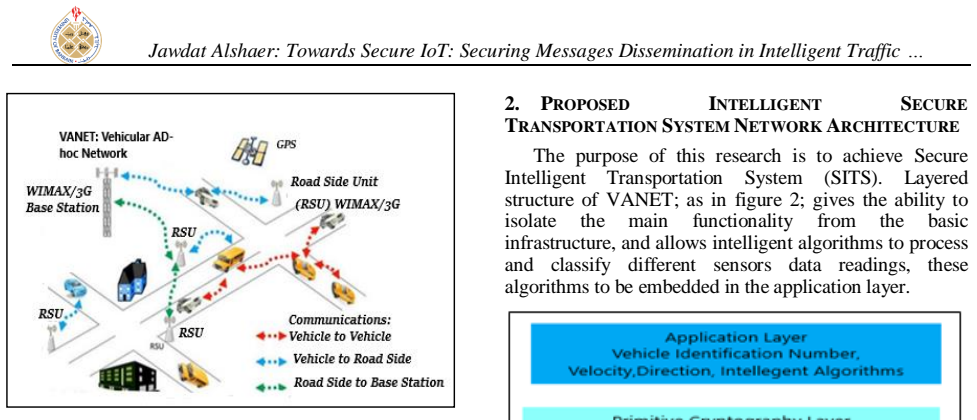

Figure 1
Figure 1. Figure 1: Vehicular Ad Hoc Networks in transportation system. Vehicle data communication is new added network technology as a result of the revolution in vehicle technical and communication specifications. Each moving vehicle equipped with sensors, processing units and transmission channels, with location and context aware properties [2]. Base Stations (BS) on roads form the gateways for these networks. Vehicles ent… view at source ↗
Figure 2
Figure 2. Figure 2: Layered Vanet structure to apply security primitives [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

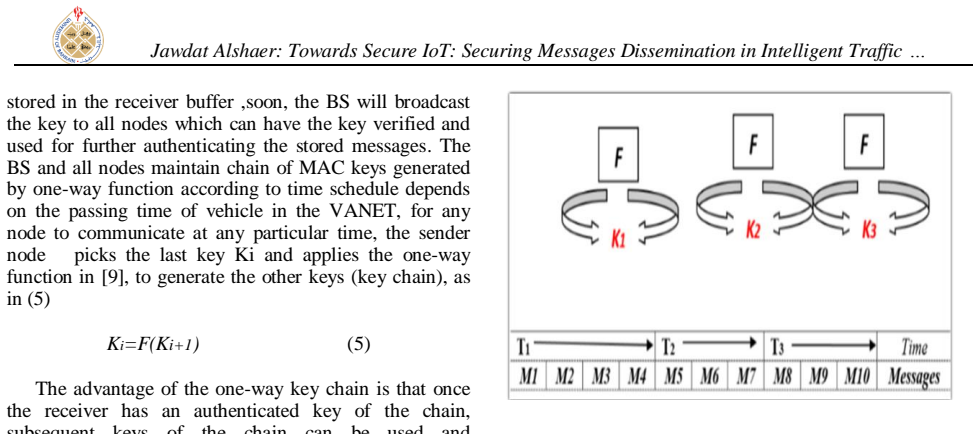

Figure 3
Figure 3. Figure 3: M1 and M2 are using k1 while later in time M9 and M10 will [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Cryptography primitives applied with the counter [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Average End to End delay of packets The used algorithm RC5 in the proposed security protocol requires only 8 instructions per cycle which leads to very low processing and transmitting; encrypting 30- byte packet requires less than 4 cycles. Applying the security primitives proposed for sensor networks is adequate for the high mobility nature of VANET were the proposed methods can sign and encrypt each mess… view at source ↗
read the original abstract

A few years ago, Automotive area in the IoT was seen as theoretical concept and today we are already seeing the possibilities of not only driverless cars, but applications of IoT in the intelligent vehicles including parking, maintaining environment, protecting lives and smoothing the flow vehicle movements. We have realized the urgent need of using simple and efficient secure protocol in Vehicular Ad Hoc Network (VANET) to be practical in the fast mobility of the network nodes, and taking advantage of the existence of base stations gateways along the road to inherit the protocol to different VANETs, this will reduce the initialization of communication overhead time and the security keys initialization each time a node passes to new base station zone. In this research, we applied security protocol used in sensor networks to achieve security in VANET, the simulation analysis shows that secure practical communication is achieved which can be inherited to other sub VANETs. The contribution of this article is enhancing proposed protocols with as less cryptography computation overhead as possible to make it applicable in the high mobility nature of VANET using security primitives; which guarantees security while allowing fast authenticating during vehicle passing one VANET to the next one depending on its direction in the transportation networks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript proposes inheriting a sensor-network security protocol to VANETs in intelligent traffic systems. Base stations act as gateways to propagate the protocol across sub-VANET zones, reducing per-zone initialization and crypto overhead while enabling fast directional authentication during handoffs. The central claim is that simulation results demonstrate secure, practical communication that can be inherited without compromising the high-mobility requirements of VANETs.

Significance. If the simulation evidence were provided and shown to address VANET-specific mobility and attack conditions, the work could offer a low-overhead path for securing IoT message dissemination in traffic networks by reusing existing sensor protocols. The approach of directional handoff inheritance is a potentially practical contribution, but the absence of inspectable methods, metrics, or attack models prevents any assessment of whether the result actually holds.

major comments (3)
  1. [Abstract] Abstract: the assertion that 'simulation analysis shows that secure practical communication is achieved' supplies no simulation setup, node density, mobility model, performance metrics (delay, packet delivery ratio, authentication latency), baselines, or attack models. Without these, the central empirical claim cannot be evaluated.
  2. [Abstract / Introduction] The manuscript's core assumption—that a sensor-network protocol can be directly inherited across VANET sub-zones via base stations without introducing replay, Sybil, or handoff-specific vulnerabilities—is stated but not tested. No section analyzes key freshness, authentication steps, or measured delays under topology changes every few seconds at vehicular speeds.
  3. [Abstract] The claim of 'as less cryptography computation overhead as possible' and 'fast authenticating during vehicle passing' is not supported by any quantitative comparison or timing analysis that accounts for base-station coverage boundaries and directional movement.
minor comments (1)
  1. [Abstract] Abstract contains minor grammatical issues (e.g., 'a few years ago, Automotive area in the IoT was seen as theoretical concept') and inconsistent capitalization that should be cleaned for readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and indicate planned revisions.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the assertion that 'simulation analysis shows that secure practical communication is achieved' supplies no simulation setup, node density, mobility model, performance metrics (delay, packet delivery ratio, authentication latency), baselines, or attack models. Without these, the central empirical claim cannot be evaluated.

    Authors: The referee is correct that the current manuscript does not supply the requested simulation details in the abstract or main text. We will revise by adding a dedicated simulation section that specifies node density, mobility model, performance metrics (delay, packet delivery ratio, authentication latency), baselines, and attack models to support the empirical claims. revision: yes

  2. Referee: [Abstract / Introduction] The manuscript's core assumption—that a sensor-network protocol can be directly inherited across VANET sub-zones via base stations without introducing replay, Sybil, or handoff-specific vulnerabilities—is stated but not tested. No section analyzes key freshness, authentication steps, or measured delays under topology changes every few seconds at vehicular speeds.

    Authors: We agree the inheritance approach is presented at a conceptual level without explicit testing of the listed vulnerabilities or performance under rapid topology changes. We will add a security analysis section addressing replay, Sybil, and handoff vulnerabilities along with key freshness and authentication steps, plus new simulations reporting measured delays at vehicular speeds. revision: yes

  3. Referee: [Abstract] The claim of 'as less cryptography computation overhead as possible' and 'fast authenticating during vehicle passing' is not supported by any quantitative comparison or timing analysis that accounts for base-station coverage boundaries and directional movement.

    Authors: The claims rest on the reduced initialization from protocol inheritance, but the manuscript lacks quantitative comparisons and timing analysis. We will revise to include direct comparisons against baseline protocols and timing measurements that incorporate base-station coverage boundaries and directional handoffs. revision: yes

Circularity Check

0 steps flagged

Application of sensor-network protocol to VANET via simulation shows no definitional or self-citation circularity

full rationale

The paper frames its contribution as applying an existing security protocol from sensor networks to VANETs, with simulation used to verify secure communication and inheritance across sub-zones. The abstract states: 'we applied security protocol used in sensor networks to achieve security in VANET, the simulation analysis shows that secure practical communication is achieved which can be inherited to other sub VANETs.' No equations, fitted parameters, or derivations are presented that reduce by construction to inputs. The central claim relies on the applicability of the prior protocol under VANET conditions, but this is presented as an engineering application rather than a mathematical derivation or uniqueness theorem justified solely by overlapping-author citations. Simulation results serve as an external benchmark, rendering the analysis self-contained with no load-bearing circular steps matching the enumerated patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review prevents identification of specific free parameters, axioms, or invented entities; none are extractable from the provided text.

pith-pipeline@v0.9.0 · 5736 in / 1136 out tokens · 27776 ms · 2026-05-24T17:54:41.842774+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages · 1 internal anchor

  1. [1]

    Vehicle as a Mobile Sensor

    Abdelhamid S., Hassanein H.S., Takahara G. Vehicle as a Mobile Sensor. Procedia Comput. Sci. 2014;34:286–295. doi: 10.1016/j.procs.2014.07.025. [CrossRef] [Google Scholar]

    work page doi:10.1016/j.procs.2014.07.025 2014

  2. [2]

    Mobile Object -Tracking Approach using a Combination of Fuzzy Logic and Neural Networks

    Alshaer, J.J. Mobile Object -Tracking Approach using a Combination of Fuzzy Logic and Neural Networks. Glob. J. Comput. Sci. Technol. E Netw. Web Secur., 15, 13 –19, 2015

    work page 2015

  3. [3]

    Challenges of Internet of Things and Big Data Integration

    Z. Alansari, N. B. Anuar, A. Kamsin, S. Soomro, M. R. Belgaum, M. H. Miraz, Jawdat Alshaer., "Challenges of Internet of Things and Big Data Integration," arXiv preprint arXiv:1806.08953, 2018

    work page internal anchor Pith review Pith/arXiv arXiv 2018

  4. [4]

    Miraz et al.,”Internet of ThingsInfrastructure, Architecture, Security and Privacy”, in the proceedings of IEEE iCCECE '18, Southend, UK, August 2018

    Zainab Alansari, Mohammad Riyaz Belgaum, Jawdat Alshaer, Safeeullah Soomro, Mahdi H. Miraz et al.,”Internet of ThingsInfrastructure, Architecture, Security and Privacy”, in the proceedings of IEEE iCCECE '18, Southend, UK, August 2018

    work page 2018

  5. [5]

    Intelligent traffic management system,

    J. J. Alshaer and V. V. Gubarev, "Intelligent traffic management system," in Control and Communications, 2009. SIBCON 2009. International Siberian Conference on, 2009, pp. 15 -20

    work page 2009

  6. [6]

    Threshold Anonymous Announcement in VANETs,

    Chen, L., Ng, S., and Wang, G., “Threshold Anonymous Announcement in VANETs, ” in IEEE Journal on Selected Areas in Communications, vol. 29, pp. 605 -615, 2011

    work page 2011

  7. [7]

    Proving Reliability of Anonymous Information in VANETs,

    Kounga, G., Walter, T., and Lachmund, S., “Proving Reliability of Anonymous Information in VANETs, ” in IEEE Transactions on Vehicular Technology, vol. 58, no. 6, pp. 2977 -2989, 2009

    work page 2009

  8. [8]

    Enhancing Identity Based Batch Verification Scheme for Security and Privacy in VANET,

    Mahapatra, P., and Naveena, A., “Enhancing Identity Based Batch Verification Scheme for Security and Privacy in VANET, ” in IEEE 7th InternationalAdvance Computing Conference, IACC, pp. 391-396, January 2017

    work page 2017

  9. [9]

    Perrig, R

    A. Perrig, R. Szewczyk, V. Wen, D. Culler, J.D. Tygar, SPINS: security protocols for sensor networks, Proceedings of ACM MobiCom'01, Rome, Italy, 2001, pp. 189 –199

    work page 2001

  10. [10]

    Security challenges, issues and their solutions for VANET,

    Raw, R . S., Kumar, M., and Singh, N., “Security challenges, issues and their solutions for VANET, ” in International Journal of Network Security & Its Applications, vol. 5, issue 5, pp. 95 –105, 2013

    work page 2013

  11. [11]

    Security in vehicular ad hoc network byusing multiple operating channels,

    Shukla, N., Dinker, A. G., Srivastava, N., and Singh, A., “Security in vehicular ad hoc network byusing multiple operating channels, ” in IEEE 3rd International Conference on Computing for Sustainable Global Development, INDIACom, pp. 3064 -3068, March 2016

    work page 2016

  12. [12]

    Certificate revocation in vehicular Ad Hoc network s: a novel approach,

    Islam, N., “Certificate revocation in vehicular Ad Hoc network s: a novel approach, ” in IEEE International Conference on Networking Systems and Security, NSysS, pp. 1 -5, January 2016

    work page 2016

  13. [13]

    PPAS: A Privacy Preservation Authentication Scheme for Vehicular Communication Networks

    Ming-Chin Chuang and Chao-Lin Chen, “PPAS: A Privacy Preservation Authentication Scheme for Vehicular Communication Networks” International Journal of Innovations in Engineering and Technology (IJIET), vol.12, no.3, pp. 45-51, Feb. 2019

    work page 2019

  14. [14]

    TEAM: Trust-Extended Authentication Mechanism for Vehicular Ad Hoc Networks,

    Ming-Chin Chuang and Jeng-Farn Lee, “TEAM: Trust-Extended Authentication Mechanism for Vehicular Ad Hoc Networks,” IEEE Systems Journal, vol. 8, no. 3, pp. 749-758, September 2014

    work page 2014

  15. [15]

    Mansour , Cherif Salama , Hoda K

    Marvy B. Mansour , Cherif Salama , Hoda K. Mohamed and Sherif A. Hammad,VANET SECURITY AND PRIVACY – AN OVERVIEW,International Journal of Network Security & Its Applications (IJNSA) Vol. 10, No.2, pp 13 -34,2018 0 100 200 300 400 500 600 0 10 20 30 40 50 60 70 80 Time (ms) Number Of Nodess Proposed Protocol BMFR GPSR DSDV Int. J. Com. Dig. Sys. 8, No.4, ....

    work page 2018

  16. [16]

    U. S. National Institute of Standards and Technology (NIST).DES model of operation. Federal Information ProcessingStandards Publication 81 (FIPS PUB 81)

    work page

  17. [17]

    Tygar, and Dawn Song

    Adrian Perrig, Ran Canetti, J.D. Tygar, and Dawn Song. Efficient authentication and signing of multicast streams ove r lossy channels. In IEEE Symposium on Security and Privacy, May 2000

    work page 2000

  18. [18]

    R. L. Rivest. The RC5 encryption algorithm. Proc. 1 st Workshop on Fast Software Encryption, pages 86–96, 1995

    work page 1995

  19. [19]

    Highly Dynamic Destination - Sequenced Dista nce-Vector (DSDV) for Mobile Computers,

    C. E. Perkins and P. Bhagwat, “Highly Dynamic Destination - Sequenced Dista nce-Vector (DSDV) for Mobile Computers,” “Proc. ACM Conf. Communications Architectures and Protocols”, London, UK, August 1994, pp. 234 -244

    work page 1994

  20. [20]

    GPSR: greedy perimeter stateless routing for wireless networks,

    B. Karp and H. T. Kung, “GPSR: greedy perimeter stateless routing for wireless networks,” in Proceedings of the 6th Annual International Conference on Mobile Computing and Networking (MOBICOM '00), pp. 243–254, August 2000

    work page 2000

  21. [21]

    A Review on Routing Protocols used in VANET

    Priyanka Goyal, Anish Soni, Ashu Dalal & Arun Jain, “ A Review on Routing Protocols used in VANET”, IJARCS Volume 5, No. 6, July-August 2014. Jawdat Jamil Alshaer: Received the BSc degree from the Department of Computer Science, Mu’ta University, Jordan, in 1993, MSc degree from the Department of Computer Science, Wichita State University, USA, in 2003, a...

    work page 2014
