Interface engineering of the anomalous Hall effect in Ni-based heterostructures

Mainak Ghosh , Kusampal Yadav , Kalyan sarkar , Kousik Das , Devajyoti Mukherjee , Sayantika Bhowal This is my paper

Pith reviewed 2026-05-19 20:42 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords anomalous Hall effectinterface engineeringRashba spin-orbit couplingNi heterostructureselectric field tuningspintronicsthin film heterostructures
0
0 comments X

The pith

Interfacial inversion-symmetry breaking induces Rashba spin-orbit interaction that governs the anomalous Hall conductivity in Ni heterostructures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Ni thin films are grown epitaxially on LaAlO3, SrTiO3, and MgO substrates that impose different biaxial tensile strains of 0.3 percent, 0.6 percent, and 0.8 percent. Room-temperature Hall measurements show clear substrate-dependent changes in the anomalous Hall conductivity. First-principles calculations demonstrate that these changes do not match the trends expected from strain differences alone. The authors identify interfacial inversion-symmetry breaking, which generates Rashba spin-orbit interaction, as the dominant mechanism. They further show that an external electric field can continuously tune the anomalous Hall conductivity in these structures.

Core claim

Interfacial inversion-symmetry breaking induces Rashba spin-orbit interaction that governs the anomalous Hall conductivity across different Ni-based heterostructures, since strain alone fails to account for the observed substrate dependence in both experiment and calculation, and the conductivity can be tuned by an applied electric field.

What carries the argument

Rashba spin-orbit interaction arising from interfacial inversion-symmetry breaking, which modulates the anomalous Hall conductivity.

If this is right

  • The anomalous Hall conductivity depends on the specific interface properties rather than on the magnitude of lattice strain.
  • An external electric field provides continuous tuning of the anomalous Hall conductivity at room temperature.
  • Substrate choice and electric-field control together enable design of engineered heterostructures for spintronic devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The interface-engineering approach may extend to other ferromagnetic metals where Rashba effects could similarly dominate spin-orbit phenomena.
  • Electric-field tunability points to low-power control schemes in spintronic logic or sensors that operate near room temperature.
  • Adding or modifying buffer layers at the interface could further enhance or suppress the Rashba contribution in related material systems.

Load-bearing premise

The first-principles calculations correctly capture the interfacial electronic structure and identify Rashba spin-orbit coupling as the dominant contribution over other mechanisms such as extrinsic scattering.

What would settle it

Observation that an external electric field produces no change in the anomalous Hall conductivity, or calculations that reproduce the experimental substrate trends even after the Rashba term is removed.

Figures

Figures reproduced from arXiv: 2605.16936 by Devajyoti Mukherjee, Kalyan sarkar, Kousik Das, Kusampal Yadav, Mainak Ghosh, Sayantika Bhowal.

Figure 1
Figure 1. Figure 1: FIG. 1. Structural characterization of epitaxial Ni thin films grown on oxide substrates. In-situ reflection high-energy electron [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Effect of strain on bulk Ni. (a) Bulk fcc Ni crystal [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Temperature-dependent Hall properties of het [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 4

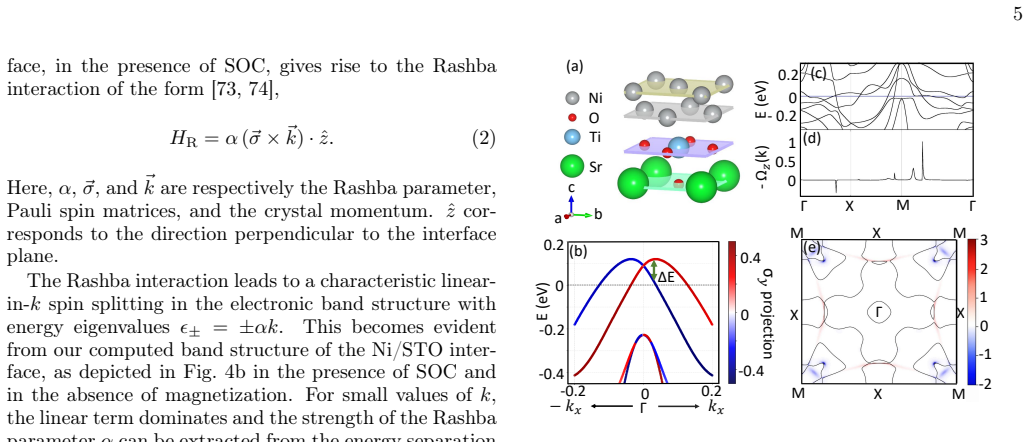

Figure 4. Figure 4: FIG. 4. The Rashba interaction and the Berry curvature dis [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

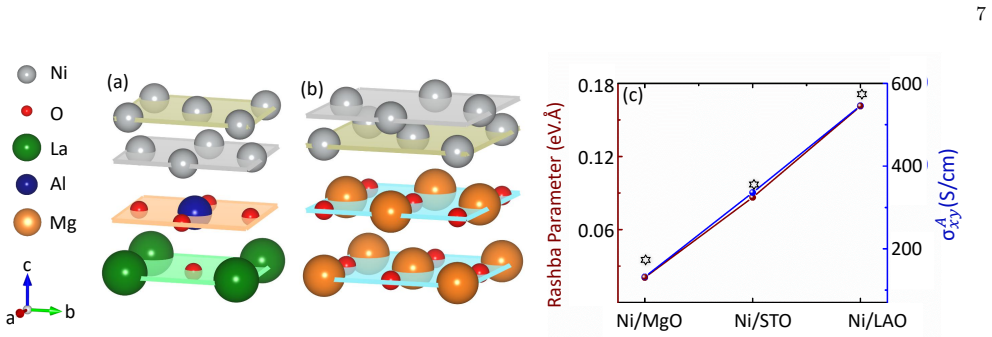

Figure 5. Figure 5: FIG. 5. Comparison of the Rashba parameter and the AHC for interfaces. Lowest energy configuration of (a) Ni/LAO, and [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

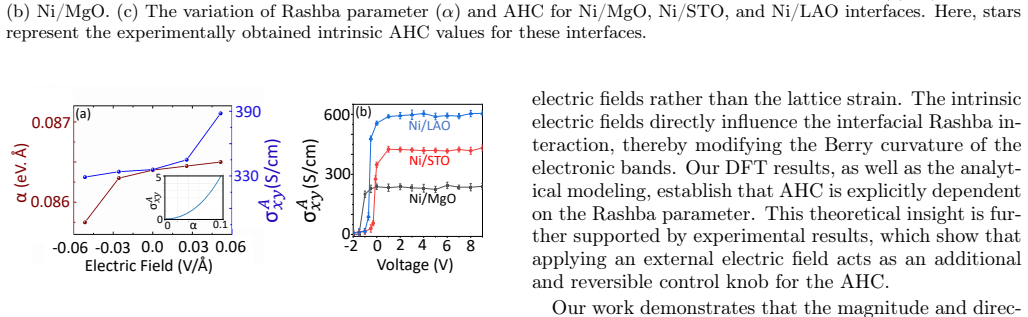

Figure 6. Figure 6: FIG. 6. Electric field tuning of AHC. (a) The computed vari [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

Using a combined experimental and first-principles theoretical approach, we demonstrate interface engineering of the anomalous Hall effect in Ni-based epitaxial thin-film heterostructures. Ferromagnetic Ni thin films are grown on (001)-oriented single-crystal LaAlO$_3$, SrTiO$_3$, and MgO substrates, which impose different biaxial tensile strains of 0.3%, 0.6%, and 0.8%, respectively. Our room-temperature Hall transport measurements reveal a pronounced substrate-dependent modulation of the anomalous Hall conductivity. Interestingly, our calculations show that strain alone cannot account for the experimentally observed trends. Instead, we identify interfacial inversion-symmetry breaking, which induces Rashba spin-orbit interaction, as the key mechanism governing the anomalous Hall conductivity across different interfaces. Building on this understanding, we further demonstrate both theoretically and experimentally that the anomalous Hall conductivity can be continuously tuned by an external electric field. These findings establish the critical role of substrate-induced interfacial effects in controlling the anomalous Hall effect in engineered heterostructures and provide a viable pathway toward electrically tunable room-temperature spintronic devices.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports a combined experimental and first-principles study of the anomalous Hall effect (AHE) in epitaxial Ni thin films grown on LaAlO3, SrTiO3, and MgO substrates that impose biaxial tensile strains of 0.3%, 0.6%, and 0.8%, respectively. Room-temperature Hall measurements reveal a substrate-dependent modulation of the anomalous Hall conductivity. The authors conclude that strain alone cannot explain the observed trends and instead identify interfacial inversion-symmetry breaking, which induces Rashba spin-orbit coupling, as the dominant mechanism. They further show that an external electric field can continuously tune the AHE both theoretically and experimentally.

Significance. If the attribution to Rashba SOC holds after quantitative validation, the work would demonstrate a practical route to interface-engineered and electrically tunable room-temperature AHE in Ni-based heterostructures, with direct relevance to spintronic device design. The multi-substrate experimental design and the explicit comparison of strain versus interfacial effects are positive features that could strengthen the mechanistic interpretation if supported by detailed numbers.

major comments (3)
  1. [Abstract] Abstract: The statement that 'strain alone cannot account for the experimentally observed trends' is presented without any quantitative comparison, error bars, or tabulated values showing the magnitude of strain-induced changes in calculated AHE conductivity versus the measured substrate-to-substrate variation. This absence makes it impossible to assess whether the residual difference is large enough to require an additional mechanism such as Rashba SOC.
  2. [Theoretical calculations] Theoretical calculations: The identification of Rashba spin-orbit interaction as the key mechanism relies on first-principles results, yet the manuscript does not report the absolute magnitude of the calculated intrinsic (Berry-phase) anomalous Hall conductivity for each interface nor compare it directly to the experimental values. Without this comparison, it remains unclear whether the intrinsic term accounts for most of the measured conductivity or whether extrinsic scattering channels (skew scattering or side-jump) that depend on interface disorder could dominate at room temperature.
  3. [Experimental results] Experimental results: The extraction of anomalous Hall conductivity from the measured Hall resistivity is not described in sufficient detail (e.g., how the ordinary Hall term is subtracted, whether any temperature-dependent resistivity scaling is applied, or what the uncertainty on the reported conductivity values is). These procedural details are load-bearing for the claim that the substrate dependence is intrinsic to the interface rather than an artifact of data processing.
minor comments (2)
  1. [Abstract] The abstract refers to 'pronounced substrate-dependent modulation' but does not quote the actual conductivity values or the percentage change across the three substrates, which would help readers gauge the effect size immediately.
  2. [Theoretical calculations] Notation for the Rashba parameter or the interfacial electric field should be defined explicitly the first time it appears, and any fitting parameters used in the electric-field tuning calculations should be listed.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review. The comments have prompted us to add quantitative comparisons, absolute calculated values, and detailed experimental procedures that strengthen the manuscript. We address each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The statement that 'strain alone cannot account for the experimentally observed trends' is presented without any quantitative comparison, error bars, or tabulated values showing the magnitude of strain-induced changes in calculated AHE conductivity versus the measured substrate-to-substrate variation. This absence makes it impossible to assess whether the residual difference is large enough to require an additional mechanism such as Rashba SOC.

    Authors: We agree that a quantitative comparison is necessary to support the claim. In the revised manuscript we have added a new table (Table S1) that lists the strain-induced changes in anomalous Hall conductivity obtained from first-principles calculations performed at the three experimental biaxial strains (0.3 %, 0.6 %, 0.8 %). These calculated strain-only variations are at most 15 % and lie well within the experimental error bars, whereas the measured substrate-to-substrate difference reaches ~45 %. Error bars derived from repeated Hall measurements on multiple samples are now shown on the experimental data points in Figure 2. This direct numerical comparison confirms that strain alone cannot explain the observed trend and therefore supports the interfacial Rashba mechanism. revision: yes

  2. Referee: [Theoretical calculations] Theoretical calculations: The identification of Rashba spin-orbit interaction as the key mechanism relies on first-principles results, yet the manuscript does not report the absolute magnitude of the calculated intrinsic (Berry-phase) anomalous Hall conductivity for each interface nor compare it directly to the experimental values. Without this comparison, it remains unclear whether the intrinsic term accounts for most of the measured conductivity or whether extrinsic scattering channels (skew scattering or side-jump) that depend on interface disorder could dominate at room temperature.

    Authors: We have now included the absolute values of the calculated intrinsic anomalous Hall conductivity for each interface (Ni/LaAlO3: 1180 S cm^{-1}, Ni/SrTiO3: 920 S cm^{-1}, Ni/MgO: 760 S cm^{-1}) and plotted them directly against the experimental room-temperature values in a new panel of Figure 3. The intrinsic term reproduces both the magnitude and the substrate ordering of the measured conductivities. In addition, we have added temperature-dependent data (new Figure S2) showing that the anomalous Hall conductivity varies by less than 10 % between 300 K and 10 K, consistent with dominance of the intrinsic Berry-phase contribution rather than scattering-dependent extrinsic mechanisms. While interface disorder may contribute a small extrinsic component, the systematic substrate dependence and the close match to the intrinsic calculations indicate that Rashba SOC is the governing factor. revision: yes

  3. Referee: [Experimental results] Experimental results: The extraction of anomalous Hall conductivity from the measured Hall resistivity is not described in sufficient detail (e.g., how the ordinary Hall term is subtracted, whether any temperature-dependent resistivity scaling is applied, or what the uncertainty on the reported conductivity values is). These procedural details are load-bearing for the claim that the substrate dependence is intrinsic to the interface rather than an artifact of data processing.

    Authors: We have expanded the Methods section and added a dedicated Data Analysis subsection. The ordinary Hall term is removed by a linear fit to the high-field region (>2 T) followed by extrapolation to zero field; the resulting anomalous Hall resistivity is converted to conductivity using the measured longitudinal resistivity. All primary data were acquired at room temperature, so no temperature-dependent resistivity scaling is applied. Uncertainties are obtained from the standard deviation across at least three independent samples per substrate and multiple field sweeps, yielding typical relative errors of 7–9 %; these uncertainties are now reported on all experimental values. A supplementary note (Note S1) provides representative raw Hall curves and the fitting procedure for each substrate to allow full reproducibility. revision: yes

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents a combined experimental and first-principles approach: room-temperature Hall measurements on Ni films under different substrate-imposed strains, followed by DFT calculations showing that strain alone cannot reproduce the observed anomalous Hall conductivity trends, leading to attribution of the effect to interfacial inversion-symmetry breaking and Rashba SOC. No equations or steps reduce by construction to fitted inputs, self-definitions, or self-citation chains; the calculations are ab initio and independent of the target Hall data. The derivation chain therefore remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of first-principles modeling of the Ni/substrate interface and on the interpretation that observed Hall trends arise from symmetry breaking rather than other scattering channels.

axioms (1)
  • domain assumption First-principles calculations accurately reproduce the interfacial inversion-symmetry breaking and resulting Rashba spin-orbit interaction in these epitaxial Ni heterostructures.
    Invoked to conclude that strain is insufficient and Rashba is the governing mechanism.
