Data-Driven Robust MPC for Unknown Nonlinear Systems via Set-Membership Learning
Pith reviewed 2026-06-25 23:07 UTC · model grok-4.3
The pith
Unknown nonlinear systems can be robustly controlled with data-driven min-max MPC that learns set-membership uncertainty bounds from noisy input-state data.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By representing the unknown nonlinear dynamics in an equivalent linear form whose matrices are characterized by a set-membership set derived from noisy input-state data, a min-max MPC problem can be solved via a Lyapunov-based semidefinite program to obtain a state-feedback controller that guarantees recursive feasibility of the optimization and either exponential or robust closed-loop stability depending on the presence of process disturbances.
What carries the argument
The set-membership description of the unknown system matrices obtained from noisy data, which supplies the uncertainty set for the min-max MPC problem solved by a Lyapunov-based semidefinite program.
If this is right
- The optimization remains recursively feasible at every time step.
- Exponential stability of the closed loop is obtained when process disturbances are absent.
- Robust stability of the closed loop is obtained when process disturbances are present.
- The controller exhibits competitive performance relative to existing data-driven and model-based methods on benchmark examples.
Where Pith is reading between the lines
- The same set-membership construction could be used to incorporate partial prior knowledge by fixing some matrix entries while learning the rest.
- Online SDP solves may restrict the method to systems whose sampling period allows sufficient computation time unless warm-starting or faster solvers are added.
- The approach suggests a route to adaptive control by periodically refreshing the set-membership description as new data arrive.
Load-bearing premise
The unknown nonlinear dynamics can be exactly represented in an equivalent linear form using vector fields built from a chosen dictionary of basis functions, allowing the unknown matrices to be fully characterized by a set-membership description derived from noisy input-state data.
What would settle it
A simulation or experiment in which the true dynamics lie outside the computed set-membership bounds, causing the closed-loop trajectory to violate recursive feasibility or lose stability despite the SDP conditions being satisfied.
Figures
read the original abstract

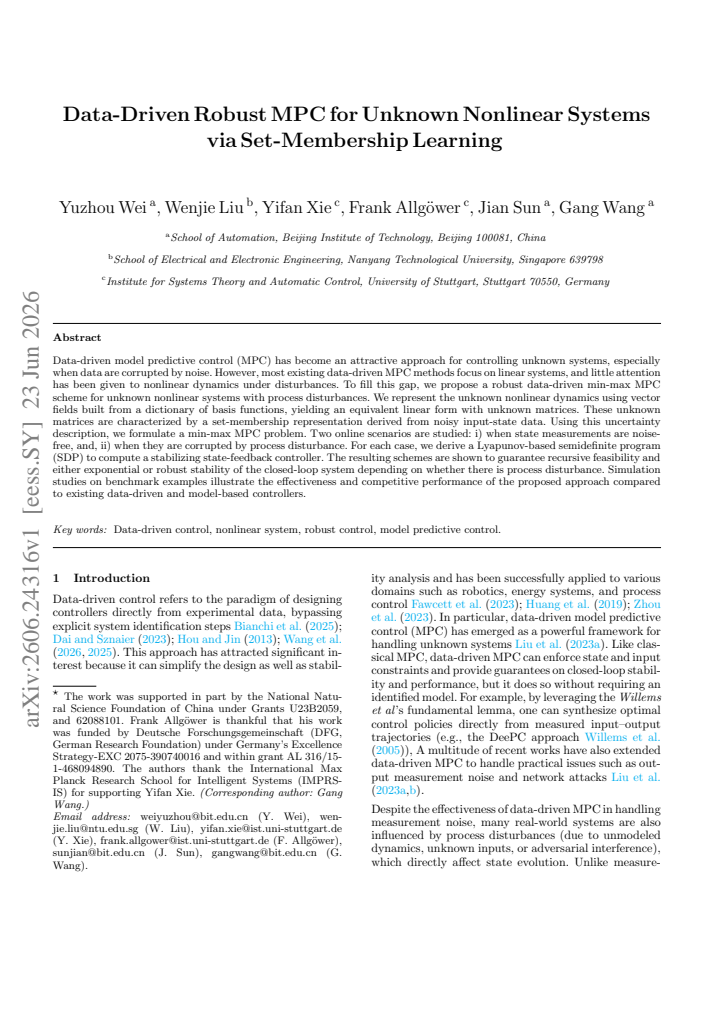

Data-driven model predictive control (MPC) has become an attractive approach for controlling unknown systems, especially when data are corrupted by noise. However, most existing data-driven MPC methods focus on linear systems, and little attention has been given to nonlinear dynamics under disturbances. To fill this gap, we propose a robust data-driven min-max MPC scheme for unknown nonlinear systems with process disturbances. We represent the unknown nonlinear dynamics using vector fields built from a dictionary of basis functions, yielding an equivalent linear form with unknown matrices. These unknown matrices are characterized by a set-membership representation derived from noisy input-state data. Using this uncertainty description, we formulate a min-max MPC problem. Two online scenarios are studied: i) when state measurements are noise-free, and, ii) when they are corrupted by process disturbance. For each case, we derive a Lyapunov-based semidefinite program (SDP) to compute a stabilizing state-feedback controller. The resulting schemes are shown to guarantee recursive feasibility and either exponential or robust stability of the closed-loop system depending on whether there is process disturbance. Simulation studies on benchmark examples illustrate the effectiveness and competitive performance of the proposed approach compared to existing data-driven and model-based controllers.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes a data-driven robust min-max MPC scheme for unknown nonlinear systems with process disturbances. It represents the dynamics in an equivalent linear form via a chosen dictionary of basis functions, derives a set-membership uncertainty description of the unknown matrices from noisy input-state data, formulates an online min-max MPC problem, and supplies Lyapunov-based SDP solutions for a stabilizing state-feedback controller in two measurement scenarios. The schemes are claimed to ensure recursive feasibility together with exponential stability (noise-free case) or robust stability (disturbed case).
Significance. If the exact linear parametrization holds and the SDP certificates are valid, the approach would provide a tractable data-driven route to robust MPC for nonlinear systems under disturbances, extending existing linear data-driven methods while retaining stability guarantees via set-membership learning. The use of SDP-based controllers and explicit feasibility/stability proofs would be a concrete strength if the representation assumption can be certified.
major comments (2)
- [Abstract / model representation] Abstract and model-representation section: the central claim that the unknown nonlinear dynamics admit an 'equivalent linear form' with matrices fully characterized by set-membership sets derived from data requires that the true vector field lies exactly in the span of the chosen basis functions. No verifiable conditions on the dictionary, no procedure to certify exactness from data, and no discussion of the consequences when the assumption fails are supplied; without these the robust MPC problem is not guaranteed to be a valid over-approximation and the Lyapunov SDP certificates do not apply to the real closed-loop system.
- [Abstract / stability analysis] Stability and recursive-feasibility claims (abstract): these rest on the min-max MPC formulation whose uncertainty set is obtained under the exact-representation assumption. When the dictionary is incomplete the true dynamics lie outside every matrix set consistent with the data, so the derived SDP certificates and feasibility arguments no longer bound the actual nonlinear closed-loop behavior; the paper provides no sensitivity analysis or fallback when this occurs.
minor comments (2)
- Notation for the basis-function dictionary and the resulting matrix sets should be introduced with explicit dimensions and an example in the main text rather than only in the appendix.
- The two online scenarios (noise-free vs. disturbed measurements) are distinguished clearly in the abstract but the corresponding SDP formulations would benefit from a side-by-side comparison table of the decision variables and constraints.
Simulated Author's Rebuttal
We thank the referee for the constructive comments on our manuscript. We address each major comment below and propose revisions where appropriate to clarify the scope and limitations of the approach.
read point-by-point responses
-
Referee: [Abstract / model representation] Abstract and model-representation section: the central claim that the unknown nonlinear dynamics admit an 'equivalent linear form' with matrices fully characterized by set-membership sets derived from data requires that the true vector field lies exactly in the span of the chosen basis functions. No verifiable conditions on the dictionary, no procedure to certify exactness from data, and no discussion of the consequences when the assumption fails are supplied; without these the robust MPC problem is not guaranteed to be a valid over-approximation and the Lyapunov SDP certificates do not apply to the real closed-loop system.
Authors: We acknowledge that the proposed framework assumes the nonlinear dynamics admit an exact linear parametrization in the chosen dictionary of basis functions. This assumption is standard in approximation-based nonlinear control but is indeed central to the validity of the uncertainty sets and subsequent guarantees. In the revised manuscript, we will add explicit discussion in the model representation section stating the assumption, noting that no general finite-data certification procedure is provided (as verifying exact span membership from noisy data alone is generally intractable without additional system knowledge), and outlining the consequences of violation (the true dynamics may lie outside the computed sets, rendering the robust MPC and SDP certificates inapplicable to the actual system). revision: yes
-
Referee: [Abstract / stability analysis] Stability and recursive-feasibility claims (abstract): these rest on the min-max MPC formulation whose uncertainty set is obtained under the exact-representation assumption. When the dictionary is incomplete the true dynamics lie outside every matrix set consistent with the data, so the derived SDP certificates and feasibility arguments no longer bound the actual nonlinear closed-loop behavior; the paper provides no sensitivity analysis or fallback when this occurs.
Authors: The stability and recursive feasibility results are derived under the exact-representation assumption, as stated in the problem formulation and analysis sections. We agree that no sensitivity analysis or fallback is provided for dictionary incompleteness. In revision, we will insert a remark in the stability analysis section explicitly conditioning the guarantees on the assumption and recommending dictionary selection via domain knowledge. Developing a general sensitivity analysis or fallback would require quantifying representation error, which lies outside the current set-membership framework focused on exact parametrization. revision: partial
- A general, verifiable procedure to certify exact dictionary representation from finite noisy data without additional prior knowledge of the system dynamics.
Circularity Check
No significant circularity; derivation is self-contained under stated assumptions
full rationale
The paper assumes the unknown nonlinear dynamics admit an exact equivalent linear parametrization via a chosen finite dictionary of basis functions, obtains a set-membership description of the unknown matrices from noisy input-state data, and then derives a min-max MPC formulation together with Lyapunov-based SDP certificates for recursive feasibility and exponential/robust stability. No equations or steps in the provided text reduce a claimed prediction or stability result to a fitted parameter or self-citation by construction. The load-bearing assumption is external to the derivation chain rather than tautological, and no self-citation load-bearing or ansatz smuggling is exhibited.
