Vacuum breakdown in a misaligned magnetized Kerr spacetime
Pith reviewed 2026-05-22 06:12 UTC · model grok-4.3
The pith
Misaligned magnetic fields around spinning black holes lower the threshold for vacuum electron-positron pair creation.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the misaligned magnetized Kerr spacetime the dyadoregion consists of several lobes whose number, size, and orientation vary with the inclination angle of the background magnetic field. The electromagnetic energy available for pair creation is estimated together with a beaming factor that converts the intrinsic dyadoregion energy into observed isotropic energy. Thermodynamic properties of the electron-positron-photon plasma are derived, revealing initial magnetic dominance. The minimum magnetic field required for pair creation is smaller for misaligned configurations than for aligned ones.
What carries the argument
The dyadoregion identified via electromagnetic invariants, which marks where the induced electric field exceeds the Schwinger critical value and vacuum breakdown can occur.
If this is right
- The dyadoregion breaks into multiple lobes whose number and orientation change with the inclination angle.
- Electromagnetic energy available for pair creation can be converted to observed isotropic energy via a derived beaming factor.
- The electron-positron-photon plasma begins in a magnetically dominated thermodynamic state.
- Misaligned magnetic fields require a weaker minimum field strength to trigger significant pair creation than aligned fields.
Where Pith is reading between the lines
- Models of gamma-ray burst engines may need to incorporate inclination effects to predict pair-production efficiency more accurately.
- Observable signatures such as anisotropic gamma-ray emission patterns could arise from the lobed geometry of the dyadoregion.
- Extending the analysis to slowly varying or disk-generated fields would test whether the inclination advantage persists beyond the uniform-field assumption.
Load-bearing premise
The background magnetic field is taken to be asymptotically uniform and inclined at a fixed angle to the black hole spin axis, allowing the dyadoregion to be located solely through electromagnetic invariants.
What would settle it
A calculation or observation showing that the minimum magnetic field strength for appreciable pair creation is equal to or higher in misaligned cases than in aligned cases would falsify the central claim.

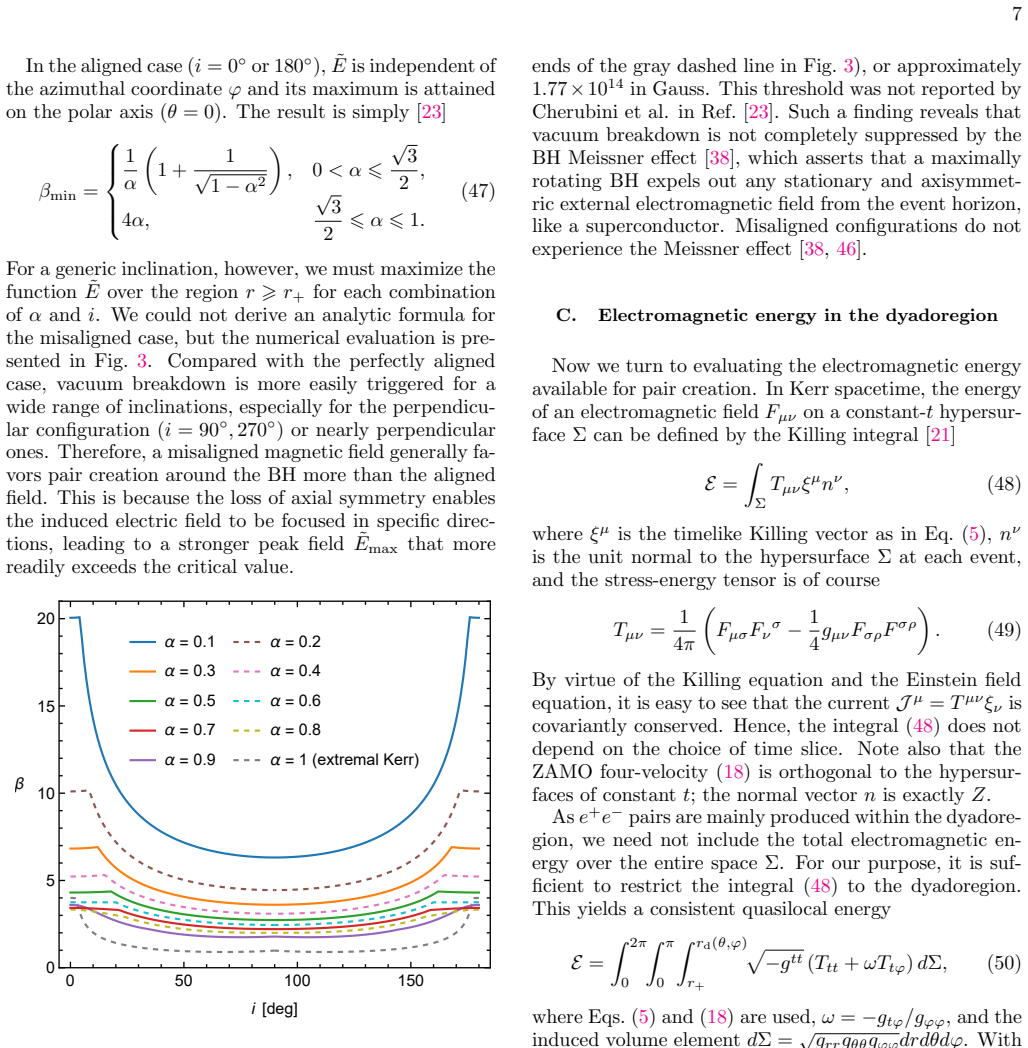

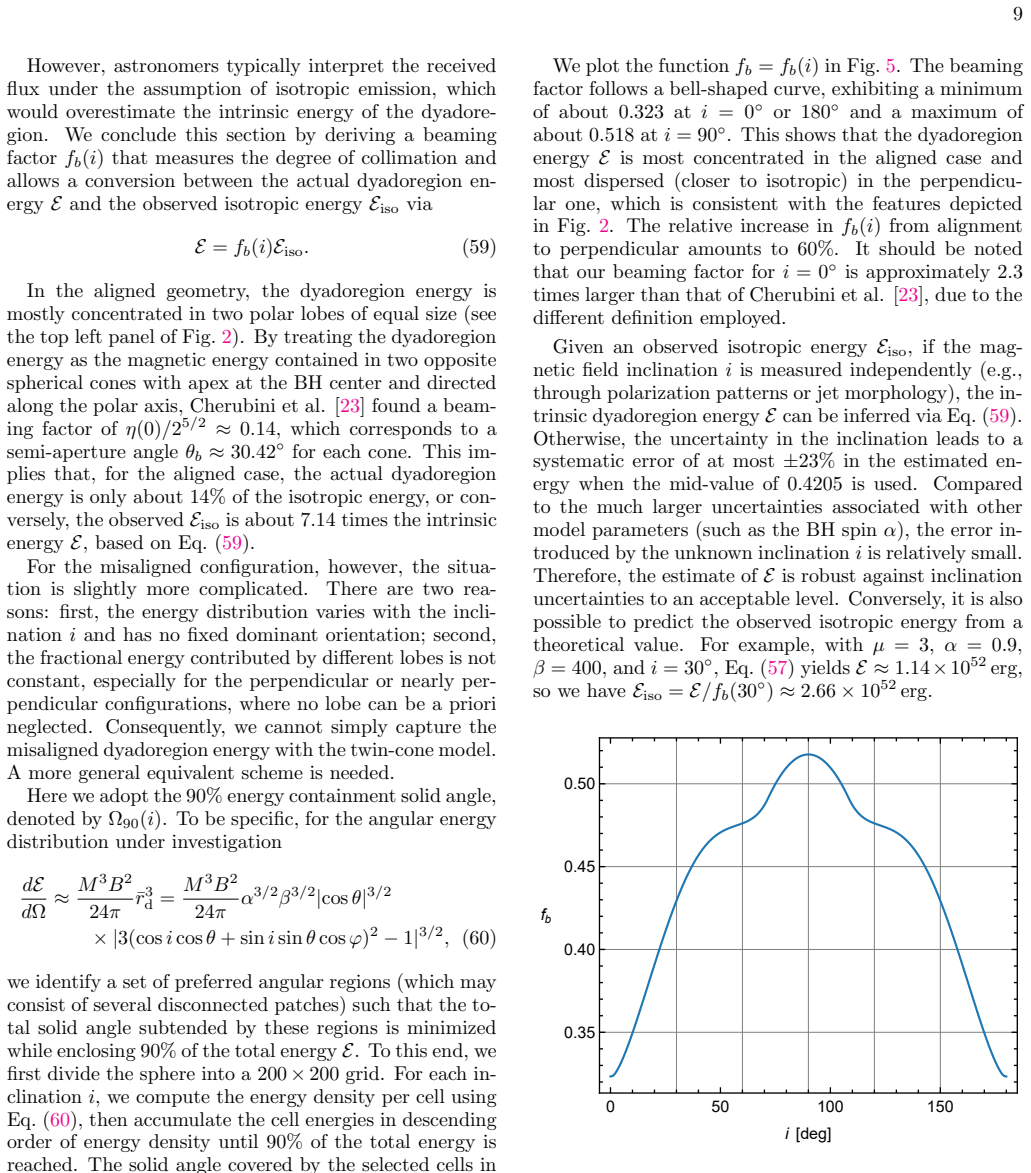

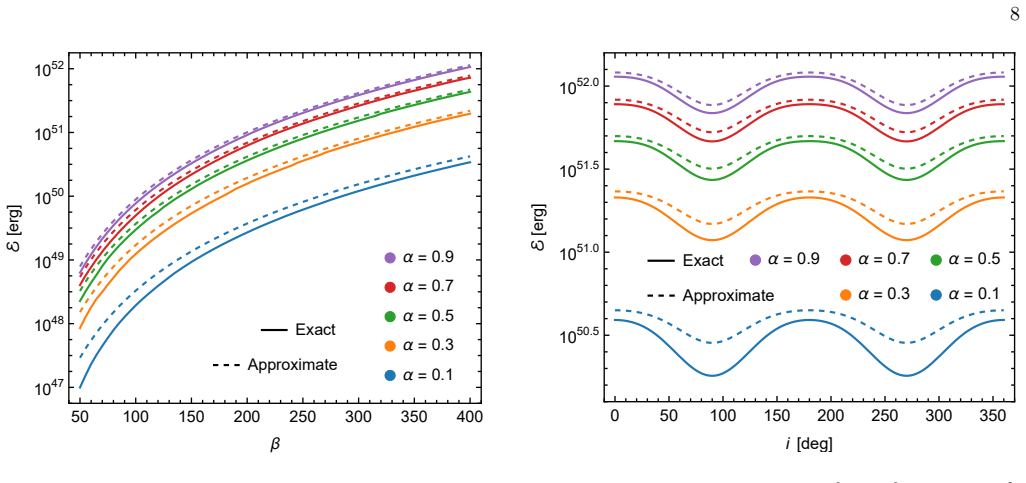

Figures
read the original abstract
Electron-positron ($e^{+}e^{-}$) pair creation by vacuum breakdown around compact objects is believed to power high-energy astrophysical transients like gamma-ray bursts (GRBs). In this work, we focus on vacuum breakdown around a Kerr black hole (BH) immersed in an asymptotically uniform magnetic field that is inclined with respect to the BH spin axis. The dyadoregion, the region where the induced electric field exceeds the critical value $E_{\text{c}}=m_{e}^{2}c^{3}/(e\hbar)$, is identified via the electromagnetic invariants. It is found that the dyadoregion consists of several lobes whose number, size, and orientation vary with the inclination. We also estimate the electromagnetic energy available for pair creation and derive a beaming factor that allows a conversion between the intrinsic dyadoregion energy and the observed isotropic energy. The thermodynamic properties of the resulting electron-positron-photon ($e^{+}e^{-}\gamma$) plasma are included, revealing an initial magnetic dominance. The evaluation of the minimum magnetic field required shows that misaligned magnetic fields generally favor pair creation more than aligned ones.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript investigates vacuum breakdown and electron-positron pair creation around a Kerr black hole immersed in an asymptotically uniform magnetic field inclined relative to the black hole spin axis. The dyadoregion is identified using the electromagnetic invariants, revealing a multi-lobe structure whose number, size, and orientation depend on the inclination angle. The work estimates the available electromagnetic energy, derives a beaming factor to relate intrinsic dyadoregion energy to observed isotropic energy, analyzes the thermodynamics of the resulting e^{+}e^{-}γ plasma (showing initial magnetic dominance), and concludes that misaligned fields generally lower the minimum magnetic field strength required for pair creation compared to aligned configurations.
Significance. If the central results hold, the paper offers a useful extension of vacuum breakdown models to more astrophysically realistic misaligned configurations, with potential relevance to gamma-ray burst engines and other high-energy transients. The inclination-dependent lobe structure, beaming factor derivation, and plasma thermodynamics provide concrete handles for modeling. The comparison of minimum B thresholds between aligned and misaligned cases is the key quantitative claim; its robustness hinges on the accuracy of the dyadoregion identification.
major comments (2)
- [§3] §3 (Dyadoregion identification via invariants): The dyadoregion is located solely by the conditions on the invariants F F and *F F that imply an induced electric field exceeding E_c. In the Kerr geometry with an inclined asymptotic field, frame-dragging couples differently to poloidal and toroidal components, so the invariants alone do not guarantee that the frame-dependent |E| measured by a local observer (ZAMO or static) exceeds E_c at the same coordinate locations or B strengths. An explicit projection onto a local orthonormal tetrad at representative points inside the lobes, together with a direct comparison to the aligned case, is required to substantiate the claim that misaligned fields favor pair creation at lower B.
- [§5] §5 (Minimum magnetic field evaluation): The conclusion that misaligned fields require lower minimum B rests on the dyadoregion volumes and energy estimates derived from the invariant method. Without reported checks against the exact aligned limit (inclination = 0), error estimates on the lobe volumes, or sensitivity tests to the choice of observer frame, it is unclear whether the reported preference for misalignment is robust or an artifact of the invariant-based identification.
minor comments (2)
- [Abstract] The abstract states that the beaming factor 'allows a conversion' but does not indicate whether it is derived from first principles or normalized to a specific observer; a one-sentence clarification would help readers.
- [Figures] Figure captions for the lobe visualizations should explicitly state the inclination angles shown and the coordinate system used for the projections.
Simulated Author's Rebuttal
We thank the referee for their thorough review and valuable comments on our manuscript. We address each of the major comments in detail below and outline the revisions we plan to make.
read point-by-point responses
-
Referee: [§3] §3 (Dyadoregion identification via invariants): The dyadoregion is located solely by the conditions on the invariants F F and *F F that imply an induced electric field exceeding E_c. In the Kerr geometry with an inclined asymptotic field, frame-dragging couples differently to poloidal and toroidal components, so the invariants alone do not guarantee that the frame-dependent |E| measured by a local observer (ZAMO or static) exceeds E_c at the same coordinate locations or B strengths. An explicit projection onto a local orthonormal tetrad at representative points inside the lobes, together with a direct comparison to the aligned case, is required to substantiate the claim that misaligned fields favor pair creation at lower B.
Authors: We appreciate the referee's observation on the distinction between invariant-based identification and local frame measurements. The electromagnetic invariants provide a covariant way to identify regions where pair production is possible, as they determine the existence of a frame in which the electric field dominates. Nevertheless, to strengthen the manuscript and directly address this concern, we will add an appendix or subsection in §3 that computes the electric and magnetic field components in the ZAMO orthonormal tetrad at several representative points within the identified lobes for a range of inclination angles, including a direct comparison to the aligned (inclination = 0) configuration. This will confirm that the local |E| indeed exceeds E_c in those regions and support the claim regarding misaligned fields. revision: yes
-
Referee: [§5] §5 (Minimum magnetic field evaluation): The conclusion that misaligned fields require lower minimum B rests on the dyadoregion volumes and energy estimates derived from the invariant method. Without reported checks against the exact aligned limit (inclination = 0), error estimates on the lobe volumes, or sensitivity tests to the choice of observer frame, it is unclear whether the reported preference for misalignment is robust or an artifact of the invariant-based identification.
Authors: We agree that explicit validation against the aligned limit and quantitative error analysis would enhance the robustness of our conclusions. In the revised manuscript, we will include a new figure or table in §5 showing the minimum B threshold as a function of inclination angle, explicitly demonstrating the continuous limit as inclination approaches zero, where it matches the aligned case results from previous literature. We will also report numerical error estimates on the computed dyadoregion volumes based on grid resolution and provide a brief discussion of the observer frame choice, noting that the invariant method is supplemented by ZAMO frame checks as added in §3. These revisions will clarify that the preference for misalignment is not an artifact. revision: yes
Circularity Check
No significant circularity; derivation follows from metric, field ansatz and invariants
full rationale
The paper sets up the Kerr metric with an asymptotically uniform magnetic field at fixed inclination, computes the electromagnetic field, locates the dyadoregion via the two standard invariants, estimates available energy from the resulting volume, and obtains a beaming factor from the region's angular extent. These steps are direct consequences of the chosen background and Maxwell solution; they do not reduce to self-citations, fitted parameters renamed as predictions, or definitions that presuppose the final comparison of minimum B values. The aligned-versus-misaligned contrast arises simply by varying the inclination parameter inside the same equations. The work is therefore self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
free parameters (1)
- magnetic field inclination angle
axioms (2)
- standard math Spacetime is described by the Kerr metric
- domain assumption Magnetic field is asymptotically uniform and inclined
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
The dyadoregion ... is identified via the electromagnetic invariants ... ˜E = sqrt(F² + G²) − F (Eqs. 31-33, 39)
-
IndisputableMonolith/Constants.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
E_c = m_e² c³ / (e ℏ) ... minimum magnetic field β_min (Eq. 46, Fig. 3)
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
J. S. Schwinger, On gauge invariance and vacuum polar- ization, Phys. Rev.82, 664 (1951)
work page 1951
-
[2]
R. Ruffini, G. Vereshchagin, and S.-S. Xue, Electron- positron pairs in physics and astrophysics: from heavy nuclei to black holes, Phys. Rept.487, 1 (2010)
work page 2010
- [3]
-
[4]
R. Narayan, T. Piran, and P. Kumar, Accretion models of gamma-ray bursts, Astrophys. J.557, 949 (2001)
work page 2001
-
[5]
K. Kohri and S. Mineshige, Can neutrino cooled accretion disk be an origin of gamma-ray bursts?, Astrophys. J. 577, 311 (2002)
work page 2002
-
[6]
T. Di Matteo, R. Perna, and R. Narayan, Neutrino trap- ping and accretion models for gamma-ray bursts, Astro- phys. J.579, 706 (2002)
work page 2002
- [7]
-
[8]
W. H. Lee, E. Ramirez-Ruiz, and D. Page, Dynamical evolution of neutrino-cooled accretion disks: Detailed mi- crophysics, lepton-driven convection, and global energet- ics, Astrophys. J.632, 421 (2005)
work page 2005
-
[9]
W.-M. Gu, T. Liu, and J.-F. Lu, Neutrino-Dominated Accretion Models for Gamma-Ray Bursts: Effects of General Relativity and Neutrino Opacity, Astrophys. J. Lett.643, L87 (2006)
work page 2006
-
[10]
W.-X. Chen and A. M. Beloborodov, Neutrino-Cooled Accretion Disks around Spinning Black Hole, Astrophys. J.657, 383 (2007)
work page 2007
-
[11]
N. Kawanaka and S. Mineshige, Neutrino Cooled Disk and Its Stability, Astrophys. J.662, 1156 (2007)
work page 2007
-
[12]
A. Janiuk and Y.-F. Yuan, The role of black hole spin and magnetic field threading the unstable neutrino disk in Gamma Ray Bursts, Astron. Astrophys.509, A55 (2010)
work page 2010
-
[13]
N. Kawanaka, T. Piran, and J. H. Krolik, Jet Luminosity From Neutrino-Dominated Accretion Flows in Gamma- Ray Bursts, Astrophys. J.766, 31 (2013)
work page 2013
- [14]
-
[15]
L. Xue, T. Liu, W.-M. Gu, and J.-F. Lu, Relativistic global solutions of neutrino-dominated accretion flows, Astrophys. J. Suppl.207, 23 (2013)
work page 2013
- [16]
-
[17]
J. D. Uribe, E. A. Becerra-Vergara, and J. A. Rueda, Neutrino oscillations in a neutrino-dominated accretion disk around a Kerr BH, Universe7, 7 (2021)
work page 2021
-
[18]
A. G. Aksenov, R. Ruffini, and G. V. Vereshchagin, Ther- malization of nonequilibrium electron-positron-photon plasmas, Phys. Rev. Lett.99, 125003 (2007)
work page 2007
-
[19]
A. G. Aksenov, R. Ruffini, and G. V. Vereshchagin, Ther- malization of the mildly relativistic plasma, Phys. Rev. D79, 043008 (2009)
work page 2009
-
[20]
The dyadosphere of black holes and gamma-ray bursts
G. Preparata, R. Ruffini, and S.-S. Xue, The Dyado- sphere of black holes and gamma-ray bursts, Astron. As- trophys.338, L87 (1998), arXiv:astro-ph/9810182
work page internal anchor Pith review Pith/arXiv arXiv 1998
-
[21]
C. Cherubini, A. Geralico, J. A. Rueda H., and R. Ruffini, e−e+ pair creation by vacuum polarization around elec- tromagnetic black holes, Phys. Rev. D79, 124002 (2009)
work page 2009
-
[22]
R. M. Wald, Black hole in a uniform magnetic field, Phys. Rev. D10, 1680 (1974)
work page 1974
-
[23]
C. Cherubini, R. Moradi, J. A. Rueda, and R. Ruffini, Vacuum breakdown around a Kerr black hole surrounded by a magnetic field, Astron. Astrophys.704, A69 (2025)
work page 2025
- [24]
-
[25]
F. Rastegarnia, R. Moradi, J. A. Rueda, R. Ruffini, L. Li, S. Eslamzadeh, Y. Wang, and S. S. Xue, The structure of the ultrarelativistic prompt emission phase and the properties of the black hole in GRB 180720B, Eur. Phys. J. C82, 778 (2022)
work page 2022
-
[26]
M. Obergaulinger, P. Cerda-Duran, E. Muller, and M. A. Aloy, Semi-global simulations of the magneto-rotational instability in core collapse supernovae, Astron. Astro- phys.498, 241 (2009). 14
work page 2009
-
[27]
M. Obergaulinger and M. ´A. Aloy, Protomagnetar and black hole formation in high-mass stars, Mon. Not. Roy. Astron. Soc.469, L43 (2017)
work page 2017
- [28]
- [29]
-
[30]
D. Proga and M. C. Begelman, Accretion of low angular momentum material onto black holes: 2-D magnetohy- drodynamical case, Astrophys. J.592, 767 (2003)
work page 2003
- [31]
-
[32]
El-Badryet al., A red giant orbiting a black hole, Mon
K. El-Badryet al., A red giant orbiting a black hole, Mon. Not. Roy. Astron. Soc.521, 4323 (2023)
work page 2023
-
[33]
M. V. Barkov, D. V. Khangulyan, and S. B. Popov, Jets and gamma-ray emission from isolated accreting black holes, Mon. Not. Roy. Astron. Soc.427, 589 (2012)
work page 2012
-
[34]
K. Kin, R. Kuze, and S. S. Kimura, Galactic Isolated Stellar-mass Black Holes with the Magnetospheric Spark Gap as Possible GeV–TeV Gamma-Ray Unidentified Sources, Astrophys. J.985, 251 (2025)
work page 2025
-
[35]
E. Figueiredo, B. Cerutti, and K. Parfrey, Effect of mag- netic field inclination on black hole jet power and particle acceleration, Astron. Astrophys.700, L19 (2025)
work page 2025
-
[36]
J. C. McKinney, A. Tchekhovskoy, and R. D. Bland- ford, Alignment of Magnetized Accretion Disks and Rel- ativistic Jets with Spinning Black Holes, Science339, 49 (2013)
work page 2013
-
[37]
J. Biˇ c´ ak and L. Dvoˇ r´ ak, Stationary electromagnetic fields around black holes. ii. general solutions and the fields of some special sources near a kerr black hole, Gen. Rel. Grav.7, 959 (1976)
work page 1976
-
[38]
J. Biˇ c´ ak and V. Janiˇ s, Magnetic fluxes across black holes, Mon. Not. Roy. Astron. Soc.212, 899 (1985)
work page 1985
-
[39]
V. Karas and O. Kopacek, Magnetic layers and neutral points near rotating black hole, Class. Quant. Grav.26, 025004 (2009)
work page 2009
- [40]
-
[41]
O. Kop´ aˇ cek and V. Karas, Inducing chaos by breaking axial symmetry in a black hole magnetosphere, Astro- phys. J.787, 117 (2014)
work page 2014
-
[42]
O. Kop´ aˇ cek and V. Karas, Regular and chaotic motion in general relativity: The case of an inclined black hole magnetosphere, J. Phys. Conf. Ser.600, 012070 (2015)
work page 2015
-
[43]
J. Biˇ c´ ak, D. Kubizˇ n´ ak, and T. R. Perche, Migrating Car- rollian particles on magnetized black hole horizons, Phys. Rev. D107, 104014 (2023)
work page 2023
-
[44]
Karas, Asymptotically uniform magnetic field near a Kerr black hole, Phys
V. Karas, Asymptotically uniform magnetic field near a Kerr black hole, Phys. Rev. D40, 2121 (1989)
work page 1989
-
[45]
B. Punsly and F. V. Coroniti, Electrodynamics of the event horizon, Phys. Rev. D40, 3834 (1989)
work page 1989
-
[46]
M. Dovciak, V. Karas, and A. Lanza, Magnetic fields around black holes, Eur. J. Phys.21, 303 (2000)
work page 2000
-
[47]
A. Neronov and F. A. Aharonian, Production of TeV gamma-radiation in the vicinity of the supermassive black hole in the giant radiogalaxy M87, Astrophys. J. 671, 85 (2007)
work page 2007
-
[48]
A. Y. Neronov, D. V. Semikoz, and I. I. Tkachev, Ultra- High Energy Cosmic Ray production in the polar cap regions of black hole magnetospheres, New J. Phys.11, 065015 (2009)
work page 2009
-
[49]
O. E. Kalashev, K. V. Ptitsyna, and S. V. Troitsky, To- wards a model of population of astrophysical sources of ultra-high-energy cosmic rays, Phys. Rev. D86, 063005 (2012)
work page 2012
-
[50]
A. Tursunov, M. Zajaˇ cek, A. Eckart, M. Koloˇ s, S. Britzen, Z. Stuchl´ ık, B. Czerny, and V. Karas, Effect of Electromagnetic Interaction on Galactic Center Flare Components, Astrophys. J.897, 99 (2020)
work page 2020
-
[51]
V. Karas and O. Kopacek, Near-horizon structure of es- cape zones of electrically charged particles around weakly magnetized rotating black hole: Case of oblique magne- tosphere, Astron. Nachr.342, 357 (2021)
work page 2021
-
[52]
O. Kop´ aˇ cek and V. Karas, Near-horizon structure of es- cape zones of electrically charged particles around weakly magnetized rotating black hole. II. Acceleration and es- cape in the oblique magnetosphere, Astrophys. J.900, 119 (2020)
work page 2020
-
[53]
S. M. Ressler, E. Quataert, C. J. White, and O. Blaes, Magnetically modified spherical accretion in GRMHD: reconnection-driven convection and jet propagation, Mon. Not. Roy. Astron. Soc.504, 6076 (2021)
work page 2021
-
[54]
K. Chen and Z. G. Dai, Charging and Electromagnetic Radiation during the Inspiral of a Black Hole–Neutron Star Binary, Astrophys. J.909, 4 (2021)
work page 2021
-
[55]
S. Hu, X. Wu, and E. Liang, Construction of a Second- order Six-dimensional Hamiltonian-conserving Scheme, Astrophys. J. Supp.257, 40 (2021)
work page 2021
- [56]
-
[57]
V. P. Frolov, Motion of a rotating black hole in a homo- geneous electromagnetic field, Phys. Rev. D109, 064045 (2024)
work page 2024
-
[58]
V. P. Frolov and A. Koek, Motion of a weakly charged ro- tating black hole in a homogeneous electromagnetic field, Phys. Rev. D110, 064052 (2024)
work page 2024
-
[59]
A. Tursunov and N. Dadhich, Fifty years of energy ex- traction from rotating black hole: revisiting magnetic Penrose process, Universe5, 125 (2019)
work page 2019
-
[60]
D. V. Galtsov and V. I. Petukhov, Black Hole in an Exter- nal Magnetic Field, Zh. Eksp. Teor. Fiz.74, 801 (1978)
work page 1978
-
[61]
L. D. Landau and E. M. Lifshitz, Chapter 3 - charges in electromagnetic fields, inThe Classical Theory of Fields (Fourth Edition), Course of Theoretical Physics, Vol. 2 (Pergamon, Amsterdam, 1975) fourth edition ed., pp. 43– 65
work page 1975
-
[62]
Carter, Hamilton-Jacobi and Schrodinger separable solutions of Einstein’s equations, Commun
B. Carter, Hamilton-Jacobi and Schrodinger separable solutions of Einstein’s equations, Commun. Math. Phys. 10, 280 (1968)
work page 1968
-
[63]
T. Damour and R. Ruffini, Quantum Electrodynamical Effects in Kerr-Newman Geometries, Phys. Rev. Lett.35, 463 (1975)
work page 1975
-
[64]
S. S. Komissarov and J. C. McKinney, Meissner effect and Blandford-Znajek mechanism in conductive black hole magnetospheres, Mon. Not. Roy. Astron. Soc.377, L49 (2007)
work page 2007
-
[65]
J. C. McKinney and C. F. Gammie, A Measurement of 15 the electromagnetic luminosity of a Kerr black hole, As- trophys. J.611, 977 (2004)
work page 2004
-
[66]
S. S. Komissarov, Observations of the Blandford-Znajek and the MHD Penrose processes in computer simulations of black hole magnetospheres, Mon. Not. Roy. Astron. Soc.359, 801 (2005)
work page 2005
- [67]
-
[68]
Ruffiniet al., On the classification of GRBs and their occurrence rates, Astrophys
R. Ruffiniet al., On the classification of GRBs and their occurrence rates, Astrophys. J.832, 136 (2016)
work page 2016
-
[69]
F. Cipolletta, C. Cherubini, S. Filippi, J. A. Rueda, and R. Ruffini, Fast Rotating Neutron Stars with Realistic Nuclear Matter Equation of State, Phys. Rev. D92, 023007 (2015)
work page 2015
-
[70]
J. Podolsky and H. Ovcharenko, Kerr Black Hole in a Uniform Bertotti-Robinson Magnetic Field: An Exact Solution, Phys. Rev. Lett.135, 181401 (2025)
work page 2025
