A numerical analysis focused comparison of several Finite Volume schemes for an Unipolar Degenerated Drift-Diffusion Model

Cl\'ement Canc\`es , Claire Chainais-Hillairet , J\"urgen Fuhrmann , Beno\^it Gaudeul This is my paper

Pith reviewed 2026-05-24 16:04 UTC · model grok-4.3

classification 🧮 math.NA cs.NAmath.APphysics.comp-ph
keywords finite volume methoddrift-diffusion equationsdegenerated diffusionstability analysisconvergence proofnumerical schemeschemical potentialunipolar model
0
0 comments X

The pith

Four finite volume schemes for the unipolar degenerated drift-diffusion model provide stability and existence, with convergence for two.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines an unipolar degenerated drift-diffusion system defined by the relation between concentration c and chemical potential h(c) = log(c/(1-c)). Four finite volume schemes are developed, each using a different formulation of the numerical fluxes. Stability analysis and proofs of existence of solutions are provided for every scheme. Convergence with respect to the discretization parameters is established specifically for two of the schemes. The behavior of all schemes is illustrated through numerical experiments.

Core claim

The authors design four finite volume schemes based on four different formulations of the fluxes for the unipolar degenerated drift-diffusion system. They prove stability and existence results for all four schemes and establish convergence proofs for two of them with respect to the discretization parameters.

What carries the argument

Four different formulations of the fluxes used to define the finite volume schemes, chosen to preserve key properties like positivity from the continuous model.

Load-bearing premise

The continuous unipolar degenerated drift-diffusion system with the given relation for h(c) is well-posed, allowing the discrete schemes to inherit its structural properties on admissible meshes.

What would settle it

Finding a sequence of meshes and time steps where one of the schemes fails to produce a bounded positive solution or where the two convergent schemes do not approach the continuous solution.

Figures

Figures reproduced from arXiv: 1907.11126 by Beno\^it Gaudeul, Claire Chainais-Hillairet, Cl\'ement Canc\`es, J\"urgen Fuhrmann.

Figure 1
Figure 1. Figure 1: Illustration of an admissible mesh as in Definition 2. We denote by mK the d-dimensional Lebesgue measure of the control volume K. The set of the faces is partitioned into two subsets: the set Eint of the interior faces defined by Eint = {σ ∈ E | σ = K|L for some K, L ∈ T } , and the set Eext of the exterior faces defined by Eext = {σ ∈ E | σ ⊂ ∂Ω} , which can also be partitioned into E D = {σ ⊂ ΓD} and E … view at source ↗
Figure 2

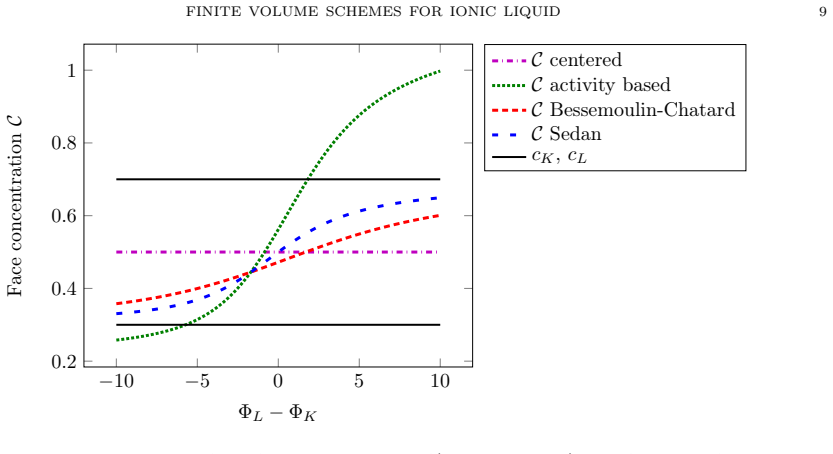

Figure 2. Figure 2: Evolution of the face concentration C(cK, cL, ΦK, ΦL) as a function of the jump of the potential ΦL − ΦK for the choice cK = 0.3 and cL = 0.7. Lemma 3.2. The face dissipation functional defined by (3.4) and either (2.8), (2.9), (2.10) or (2.11) satisfies the following dissipation property: given δ ∈ (0, 1) and M ∈ R, there holds, for Ψ and Υ as defined in (3.6): limcL→0 Ψδ,M(cL) = +∞, limcL→1 Υδ,M(cL) = +∞… view at source ↗
Figure 3

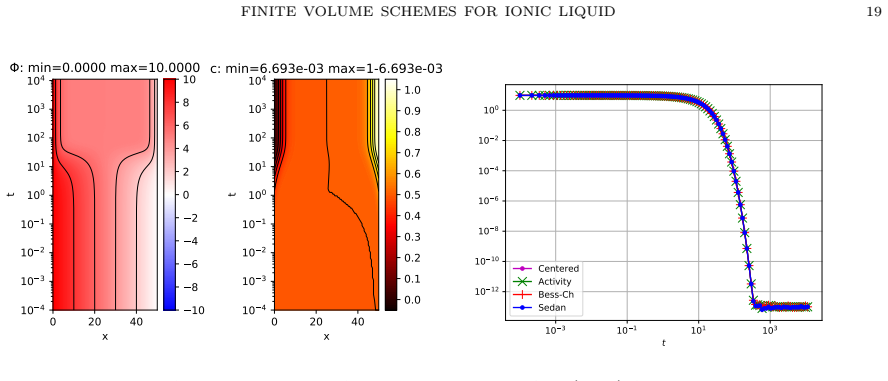

Figure 3. Figure 3: Left: time evolution of solution on domain Ω = (0, 50) from constant initial value c = 1 2 with Dirichlet boundary conditions Φ(0) = 10, Φ(50) = 0, c dp = − 1 2 and homogeneous Neumann boundary conditions for c. Right: Evolution of the relative free energy according to (1.11). 0 20 40 x 10 4 10 3 10 2 10 1 10 0 10 1 10 2 10 3 10 4 t : min=-62.5000 max=-0.0000 65 52 39 26 13 0 13 26 39 52 65 0 20 40 x 10 4 … view at source ↗
Figure 4

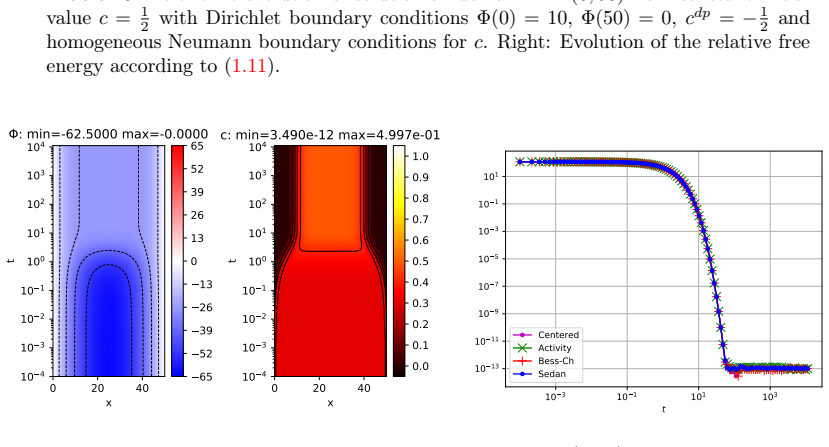

Figure 4. Figure 4: Left: time evolution of solution on domain Ω = (0, 50) from constant initial value c = 0.3 with Dirichlet boundary conditions Φ(0) = 0, Φ(50) = 0, c dp = − 1 2 and homogeneous Neumann boundary conditions for c. Right: Evolution of the relative free energy according to (1.11). decreases during time evolution for all four schemes discussed in this paper. We also remark that for zero applied potential, the co… view at source ↗
Figure 5

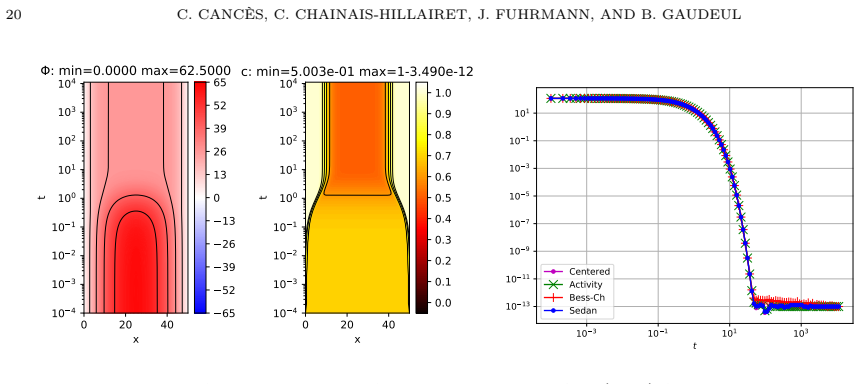

Figure 5. Figure 5: Left: time evolution of solution on domain Ω = (0, 50) from constant initial value c = 0.7 with Dirichlet boundary conditions Φ(0) = 0, Φ(50) = 0, c dp = − 1 2 and homogeneous Neumann boundary conditions for c. Right: Evolution of the relative free energy according to (1.11). 10 4 10 3 10 2 10 1 h 10 5 10 4 10 3 10 2 10 1 10 0 L 2 Error Centered Activity Bess-Ch Sedan O(h 2 ) 10 4 10 3 10 2 10 1 h 10 3 10 … view at source ↗
Figure 6

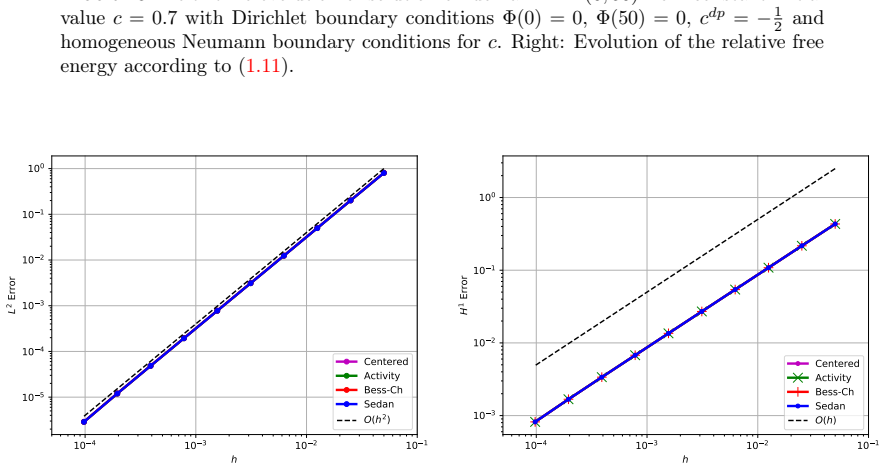

Figure 6. Figure 6: Convergence behavior of the different schemes for the case depicted in [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗
Figure 7

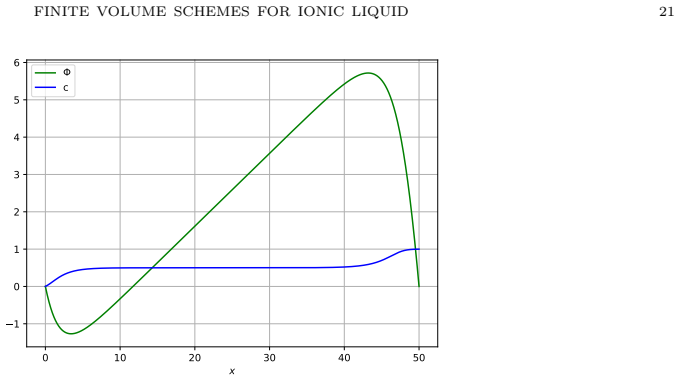

Figure 7. Figure 7: Stationary solution with Dirichlet boundary conditions for c and Φ. 10 4 10 3 10 2 10 1 h 10 5 10 4 10 3 10 2 10 1 10 0 10 1 L 2 Error Centered Activity Bess-Ch Sedan O(h 2 ) 10 4 10 3 10 2 10 1 h 10 2 10 1 10 0 H 1 Error Centered Activity Bess-Ch Sedan O(h) [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8

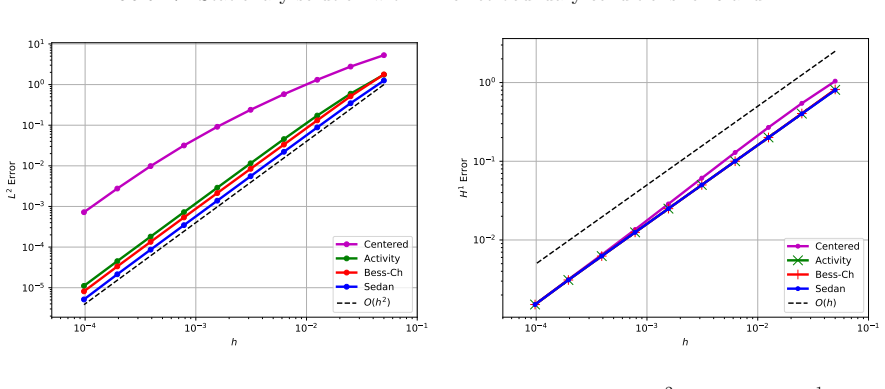

Figure 8. Figure 8: Convergence behavior of the different schemes. Left: L 2 -error, right: H1 error. Correspondence to the equation in the paper: “Centered”: (2.8), “Sedan”: (2.9), “Activity”: (2.10), “Bess-Ch”: (2.11). 0.00 0.02 0.04 0.06 0.08 0.10 0.000 0.005 0.010 40 20 0 20 40 0 1 2 3 4 5 Centered Activity Bess-Ch Sedan [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗
Figure 9

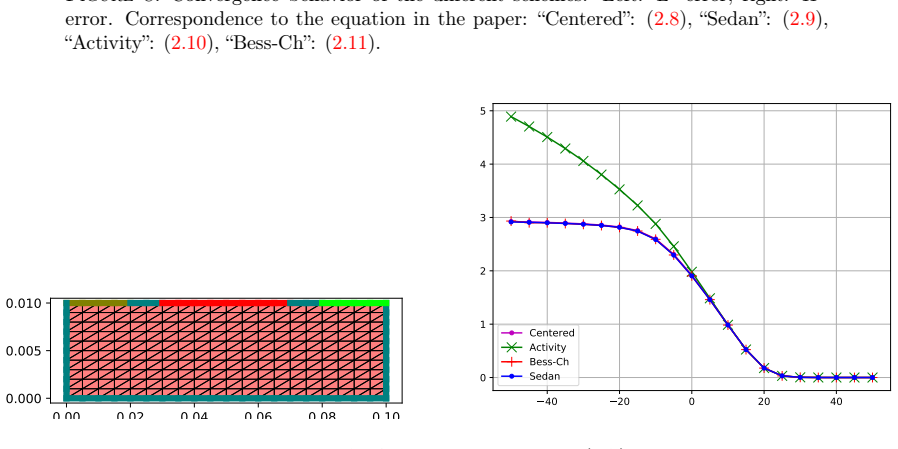

Figure 9. Figure 9: Discretization grid of refinement level nref = 1 (left) and corresponding I-V curves for different discretization schemes (right). following boundary conditions at the contacts:  Φ c  =  −5 1 2  at Γsource = (0, 0.2 · L) × H  Φ c  =  5 1 2  at Γdrain = (0.8 · L, L) × H  ∇Φ · n J · n  =  − 1 d (Φ − Ugate) 0  at Γgate = (0.3 · L, 0.7 · L) × H  ∇Φ · n J · n  =  0 0  at ∂Ω \ (Γgate ∪ Γsource ∪ … view at source ↗

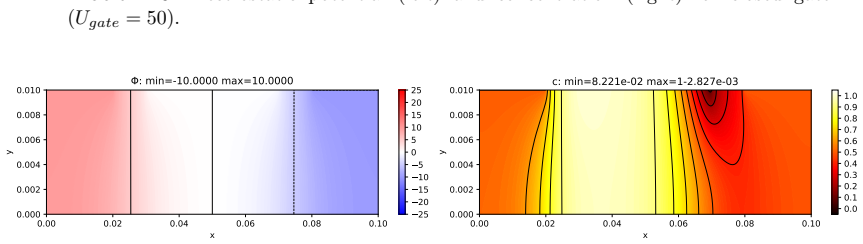

Figure 10
Figure 10. Figure 10: Electrostatic potential (left) and concentration (right) for closed gate (Ugate = 50). 0.00 0.02 0.04 0.06 0.08 0.10 x 0.000 0.002 0.004 0.006 0.008 0.010 y : min=-10.0000 max=10.0000 25 20 15 10 5 0 5 10 15 20 25 0.00 0.02 0.04 0.06 0.08 0.10 x 0.000 0.002 0.004 0.006 0.008 0.010 y c: min=8.221e-02 max=1-2.827e-03 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 [PITH_FULL_IMAGE:figures/full_fig_p022_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Electrostatic potential (left) and concentration (right) for Ugate = 0). 0.00 0.02 0.04 0.06 0.08 0.10 x 0.000 0.002 0.004 0.006 0.008 0.010 y : min=-24.9376 max=10.0000 25 20 15 10 5 0 5 10 15 20 25 0.00 0.02 0.04 0.06 0.08 0.10 x 0.000 0.002 0.004 0.006 0.008 0.010 y c: min=5.000e-01 max=1-2.326e-13 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 [PITH_FULL_IMAGE:figures/full_fig_p022_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Electrostatic potential (left) and concentration (right) for open gate (Ugate = −50), with concentration in the channel reaching the saturation value 1. 10 4 10 3 10 2 hx 10 2 10 1 10 0 10 1 ||IV IVref||2 Centered Activity Bess-Ch Sedan O(h) O(h 2 ) [PITH_FULL_IMAGE:figures/full_fig_p022_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Convergence of the I-V curves calculated using the different discretization schemes. Here, Φgate ∈ (−50, 50) is the gate voltage, and d = 0.1 · H is the gate thickness. We introduce a slightly anisotropic rectangular grid nx × ny grid with nx = 10 × 2 nref and ny = 5 × 2 nref , where nref is the refinement level. Each cell in the rectangular grid is subdivided into two triangles, see [PITH_FULL_IMAGE:fig… view at source ↗

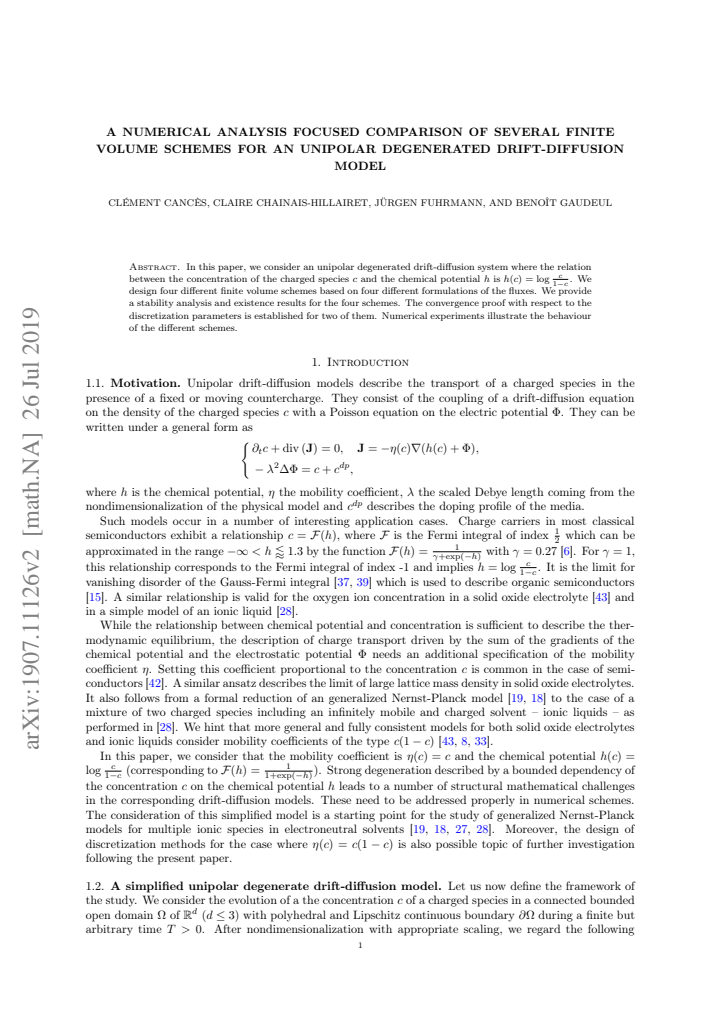

read the original abstract

In this paper, we consider an unipolar degenerated drift-diffusion system where the relation between the concentration of the charged species $c$ and the chemical potential $h$ is $h(c)=\log \frac{c}{1-c}$. We design four different finite volume schemes based on four different formulations of the fluxes. We provide a stability analysis and existence results for the four schemes. The convergence proof with respect to the discretization parameters is established for two of them. Numerical experiments illustrate the behaviour of the different schemes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper considers the unipolar degenerated drift-diffusion system with the relation h(c) = log(c/(1-c)). It constructs four finite-volume schemes from distinct flux formulations, establishes stability and existence results for all four schemes, proves convergence with respect to discretization parameters for two of them, and presents numerical experiments comparing their behavior.

Significance. If the stability, existence, and convergence claims hold, the manuscript supplies a systematic comparison of flux formulations for a degenerate parabolic system arising in semiconductor or biological modeling. The convergence proofs for two schemes constitute a concrete contribution that can guide scheme selection; the numerical experiments provide practical illustration of the theoretical distinctions.

minor comments (2)
  1. The abstract states that convergence is proved for two schemes but does not identify which two or the precise sense of convergence (e.g., strong L^1 or weak-*); adding this information would improve readability.
  2. Notation for the admissible meshes and the discrete gradient operators should be introduced once in a dedicated preliminary section rather than repeated across scheme definitions.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive assessment of the manuscript, the clear summary of its contributions, and the recommendation for minor revision. No specific major comments were listed in the report, so there are no individual points requiring point-by-point response or manuscript changes.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper constructs four finite volume schemes from explicit flux formulations for the given degenerate drift-diffusion model with h(c) = log(c/(1-c)). Stability, existence, and convergence results follow from direct a-priori estimates, positivity preservation, and compactness arguments on admissible meshes. No load-bearing step reduces by definition to its inputs, no fitted parameters are relabeled as predictions, and no uniqueness or ansatz is imported via self-citation chains. The modeling premise (well-posedness of the continuous system) is an external assumption standard to the field and does not create internal circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard mathematical assumptions from parabolic PDE theory and finite-volume discretization; no free parameters are fitted and no new physical entities are postulated.

axioms (2)
  • domain assumption The continuous unipolar degenerated drift-diffusion system admits solutions satisfying 0 < c < 1
    Implicit when the model is introduced via the relation h(c)=log(c/(1-c)) and when discrete schemes are required to preserve these bounds.
  • standard math Meshes are admissible in the sense required by standard finite-volume convergence theory
    Invoked for the convergence statements of the two schemes.
