arxiv: 1907.08934 · v1 · pith:AVULNJDWnew · submitted 2019-07-21 · 💻 cs.IT · cs.ET· math.IT

Adaptive Release Duration Modulation for Limited Molecule Production and Storage

Ladan Khaloopour , Mahtab Mirmohseni , Masoumeh Nasiri-Kenari This is my paper

Pith reviewed 2026-05-24 18:38 UTC · model grok-4.3

classification 💻 cs.IT cs.ETmath.IT
keywords molecular communicationadaptive modulationrelease durationerror probabilityproduction rate limitstorage capacitytime-slotted communication
0
0 comments X

The pith

Varying the release duration of molecules minimizes error probability under production-rate and storage limits.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Molecular transmitters are constrained by slow molecule production and limited storage space. The paper introduces adaptive release duration modulation, in which the transmitter varies how long it opens its outlets to release molecules when sending a 1 while staying silent for a 0. The objective is to choose the duration that yields the lowest error probability at the receiver. The authors characterize the optimal duration and obtain upper and lower bounds showing that the adaptive scheme outperforms fixed-duration transmission.

Core claim

The transmitter sends bit 1 by releasing stored molecules over a chosen duration and bit 0 by staying silent. Adaptive release duration modulation selects the duration in each slot that minimizes the error probability while respecting the production-rate limit and storage capacity. The properties of this optimal duration allow derivation of performance bounds, and the resulting scheme improves error rates relative to non-adaptive fixed-duration release.

What carries the argument

adaptive release duration modulation, the selection of transmission duration per slot to minimize error probability subject to production and storage constraints

If this is right

  • The optimal release duration exhibits identifiable properties that support performance analysis.
  • Upper and lower bounds on error probability follow directly from the optimal duration.
  • The adaptive scheme achieves lower error rates than constant release duration under the same constraints.
  • Performance gains hold across the characterized range of production and storage parameters.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The scheme could be combined with other transmitter constraints such as energy or channel memory to further tighten bounds.
  • In biological settings with similar storage limits, adaptive duration may allow higher effective rates without increasing molecule count.
  • Physical testbeds measuring error versus duration would directly test whether the derived bounds match observed minima.

Load-bearing premise

The transmitter can freely choose and implement any release duration in each slot while respecting the production-rate limit and storage capacity, and the receiver's detection statistics depend on release duration in a manner that permits a well-defined minimum-error optimum.

What would settle it

An experiment or calculation showing that no choice of release duration produces a lower error probability than the best fixed duration, when production rate and storage capacity are enforced, would falsify the claimed improvement.

Figures

Figures reproduced from arXiv: 1907.08934 by Ladan Khaloopour, Mahtab Mirmohseni, Masoumeh Nasiri-Kenari.

Figure 1
Figure 1. Figure 1: Molecular transmitter, channel and receiver [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

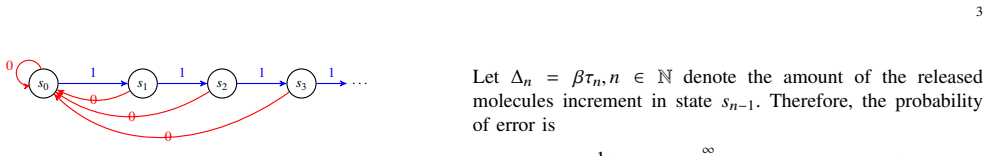

Figure 2
Figure 2. Figure 2: Transmitter finite state machine capacity BM , the outlets are opened for duration TM , and βTM molecules are also produced at this time. Therefore the total number of released molecules for bit “1” is Xi = BM + βTM = βT. If we quantize the release duration into very short intervals, substituting the above amount of Xi in (1) and using thinning property of Poisson distribution result in Yi ∼ Poisson (βT + … view at source ↗
Figure 3
Figure 3. Figure 3: release duration increments release duration by τ1. So for the next bit “1”, the storage is not full at the beginning of time-slot. To compensate this reduction, we wait for time τ1 in order to the storage be filled. Then, the outlets are opened for release duration TM + τ2. Note that we should have τ1 +τ2 ≥ 0 not to waste molecule production time. For state si , we wait for time τ1+· · ·+τi in order to th… view at source ↗

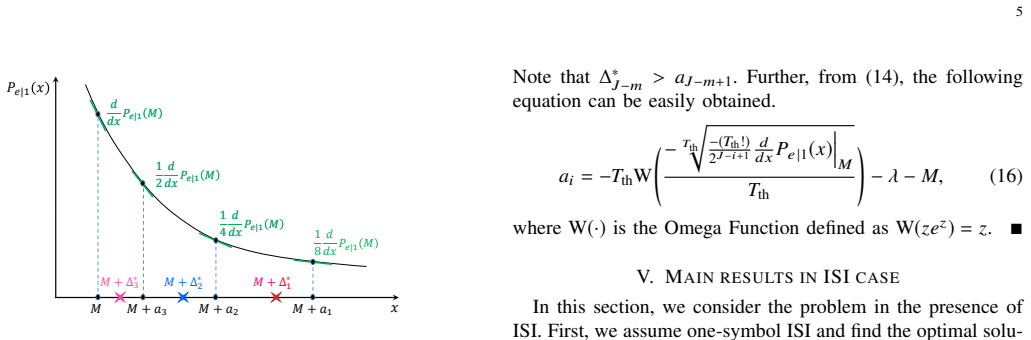

Figure 4
Figure 4. Figure 4: Intervals of optimal number of transmitted molecules in different states [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Transition diagram of two-symbol ISI local minimum for (23), which is a global minimum (because Pe|1 is a convex function and the domain of lis in conditions (21) and (22) is compact). Since l ∗ i = M + ∆ ∗ i , the ∆ ∗ i s are obtained from (41) as ∆ ∗ i = 1 p0    p1M + ∆ ∗ 1,no-ISI, i = 1 ∆ ∗ i,no-ISI − p1∆ ∗ i−1 , 2 ≤ i ≤ J 0, i > J. (25) B. Two-symbol ISI We know the storage is filled when a bi… view at source ↗
Figure 6
Figure 6. Figure 6: Error probability versus noise parameter for no-ISI case [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Error probability versus storage capacity for no-ISI case with [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Upper bounds on the number of positive release duration increments [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Error probability versus noise parameter for two-symbol ISI case [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: the intervals of optimal released molecule increments [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
read the original abstract

The nature of molecular transmitter imposes some limitations on the molecule production process and its storage. As the molecules act the role of the information carriers, the limitations affect the transmission process and the system performance considerably. In this paper, we focus on the transmitter's limitations, in particular, the limited molecule production rate and the finite storage capacity. We consider a time-slotted communication where the transmitter opens its outlets and releases the stored molecules for a specific time duration to send bit "1" and remains silent to send bit "0". By changing the release duration, we propose an adaptive release duration modulation. The objective is to find the optimal transmission release duration to minimize the probability of error. We characterize the properties of the optimal release duration and use it to derive upper and lower bounds on the system performance. We see that the proposed modulation scheme improves the performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 4 minor

Summary. The paper proposes an adaptive release duration modulation scheme for molecular communication under transmitter constraints of limited molecule production rate and finite storage capacity. In a time-slotted binary channel, the transmitter releases stored molecules for a chosen duration to encode bit '1' and remains silent for '0'. The central claim is that an optimal per-slot release duration exists that minimizes error probability; the authors characterize its properties, derive upper and lower performance bounds from this optimum, and report that the adaptive scheme outperforms fixed-duration baselines.

Significance. If the optimization and bounding arguments are rigorous, the result is significant for practical molecular communication because it directly incorporates production-rate and storage limits that are fundamental to physical transmitters. The explicit derivation of performance bounds from the optimal-duration characterization would be a useful theoretical contribution, providing quantitative guidance on how much adaptation can improve reliability without requiring additional molecules.

minor comments (4)
  1. The abstract states that bounds are derived from the optimal release duration, but the manuscript should include an explicit statement of the channel model (e.g., the arrival process or detection statistic as a function of release duration) in §2 or §3 so that the optimization objective is fully specified.
  2. Notation for the release duration variable, production-rate limit, and storage capacity should be introduced once and used consistently; several symbols appear to be redefined across sections.
  3. Figure captions and axis labels need to indicate whether the plotted curves correspond to the derived bounds or to Monte-Carlo simulations, and whether the fixed-duration baseline uses the same average release duration as the adaptive scheme.
  4. The proof that the optimal duration is unique or monotonic should be placed in an appendix or clearly labeled subsection rather than sketched only in the main text.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the careful summary of our manuscript and for recommending minor revision. The referee's description accurately reflects the paper's focus on adaptive release duration modulation under molecule production-rate and storage constraints, the derivation of performance bounds, and the reported gains over fixed-duration baselines.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper's core claim is that optimizing release duration per slot (subject to production-rate and storage limits) minimizes error probability, with the optimal duration then used to derive performance bounds that demonstrate improvement. No step reduces to a self-definition, a fitted input renamed as prediction, or a load-bearing self-citation chain; the optimization objective and resulting bounds are presented as derived from the stated constraints and detection model rather than presupposing the target result. The derivation is therefore self-contained against the paper's own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; the optimal duration may implicitly involve channel parameters or rate limits, but none are named or fitted in the provided text.

pith-pipeline@v0.9.0 · 5685 in / 1145 out tokens · 23032 ms · 2026-05-24T18:38:08.579580+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

16 extracted references · 16 canonical work pages · 1 internal anchor

  1. [1]

    An adaptive pulse-width modulation for limited molecule production and storage,

    L. Khaloopour, M. Mirmohseni, and M. Nasiri-Kenari, “An adaptive pulse-width modulation for limited molecule production and storage,” in 2018 Iran Workshop on Communication and Information Theory (IWCIT) , pp. 1–6, IEEE, 2018

    work page 2018

  2. [2]

    Nakano, A

    T. Nakano, A. W. Eckford, and T. Haraguchi, Molecular communication. Cambridge University Press, 2013

    work page 2013

  3. [3]

    A com- prehensive survey of recent advancements in molecular communication,

    N. Farsad, H. B. Yilmaz, A. Eckford, C.-B. Chae, and W. Guo, “A com- prehensive survey of recent advancements in molecular communication,” IEEE Communications Surveys & Tutorials , vol. 18, no. 3, pp. 1887– 1919, 2016

    work page 1919

  4. [4]

    Kinetic models of odor transduc- tion implemented as artificial neural networks,

    R. Malaka, T. Ragg, and M. Hammer, “Kinetic models of odor transduc- tion implemented as artificial neural networks,” Biological cybernetics , vol. 73, no. 3, pp. 195–207, 1995

    work page 1995

  5. [5]

    Improving receiver performance of diffusive molecular communication with enzymes,

    A. Noel, K. C. Cheung, and R. Schober, “Improving receiver performance of diffusive molecular communication with enzymes,” IEEE Transactions on NanoBioscience , vol. 13, no. 1, pp. 31–43, 2014

    work page 2014

  6. [6]

    Nano- machine molecular communication over a moving propagation medium,

    H. ShahMohammadian, G. G. Messier, and S. Magierowski, “Nano- machine molecular communication over a moving propagation medium,” Nano Communication Networks , vol. 4, no. 3, pp. 142–153, 2013

    work page 2013

  7. [7]

    Transmission rate control for molecular communication among biological nanomachines,

    T. Nakano, Y . Okaie, and A. V . Vasilakos, “Transmission rate control for molecular communication among biological nanomachines,” IEEE Journal on Selected Areas in Communications , vol. 31, no. 12, pp. 835– 846, 2013

    work page 2013

  8. [8]

    Adaptive transmission rate with a fixed threshold decoder for diffusion-based molecular communication,

    M. Movahednasab, M. Soleimanifar, A. Gohari, M. Nasiri-Kenari, and U. Mitra, “Adaptive transmission rate with a fixed threshold decoder for diffusion-based molecular communication,” IEEE Transactions on Communications, vol. 64, no. 1, pp. 236–248, 2016

    work page 2016

  9. [9]

    Simulation-based evaluation of the diffusion-based physical channel in molecular nanonetworks,

    N. Garralda, I. Llatser, A. Cabellos-Aparicio, and M. Pierobon, “Simulation-based evaluation of the diffusion-based physical channel in molecular nanonetworks,” in Computer Communications Workshops (INFOCOM WKSHPS), 2011 IEEE Conference on , pp. 443–448, IEEE, 2011

    work page 2011

  10. [10]

    Symbol Synchronization for Diffusive Molecular Communication Systems

    V . Jamali, A. Ahmadzadeh, and R. Schober, “Symbol synchroniza- tion for diffusive molecular communication systems,” arXiv preprint arXiv:1610.09141, 2016

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  11. [11]

    Diffusion- controlled interface kinetics-inclusive system-theoretic propagation mod- els for molecular communication systems,

    U. A. Chude-Okonkwo, R. Malekian, and B. Maharaj, “Diffusion- controlled interface kinetics-inclusive system-theoretic propagation mod- els for molecular communication systems,” EURASIP Journal on Ad- vances in Signal Processing , vol. 2015, no. 1, p. 89, 2015

    work page 2015

  12. [12]

    Ion channel based bio-synthetic modulator for diffusive molecular commu- nication,

    H. Arjmandi, A. Ahmadzadeh, R. Schober, and M. N. Kenari, “Ion channel based bio-synthetic modulator for diffusive molecular commu- nication,” IEEE transactions on nanobioscience , vol. 15, no. 5, pp. 418– 432, 2016

    work page 2016

  13. [13]

    Diffusion-based molecular communication with limited molecule production rate,

    H. G. Bafghi, A. Gohari, M. Mirmohseni, G. Aminian, and M. Nasiri- Kenari, “Diffusion-based molecular communication with limited molecule production rate,” IEEE Transactions on Molecular , Biological and Multi- Scale Communications , vol. 4, pp. 61–72, June 2018

    work page 2018

  14. [14]

    Information theory of molecular communication: Directions and challenges,

    A. Gohari, M. Mirmohseni, and M. Nasiri-Kenari, “Information theory of molecular communication: Directions and challenges,” IEEE Transactions on Molecular , Biological and Multi-Scale Communications , vol. 2, no. 2, pp. 120–142, 2016. 13

    work page 2016

  15. [15]

    Receivers for diffusion-based molecular communication: Exploiting memory and sampling rate,

    R. Mosayebi, H. Arjmandi, A. Gohari, M. Nasiri-Kenari, and U. Mi- tra, “Receivers for diffusion-based molecular communication: Exploiting memory and sampling rate,” IEEE Journal on Selected Areas in Commu- nications, vol. 32, no. 12, pp. 2368–2380, 2014

    work page 2014

  16. [16]

    Nanoscale communication with brownian motion,

    A. W. Eckford, “Nanoscale communication with brownian motion,” in 2007 41st Annual Conference on Information Sciences and Systems , pp. 160–165, IEEE, 2007

    work page 2007
